Description

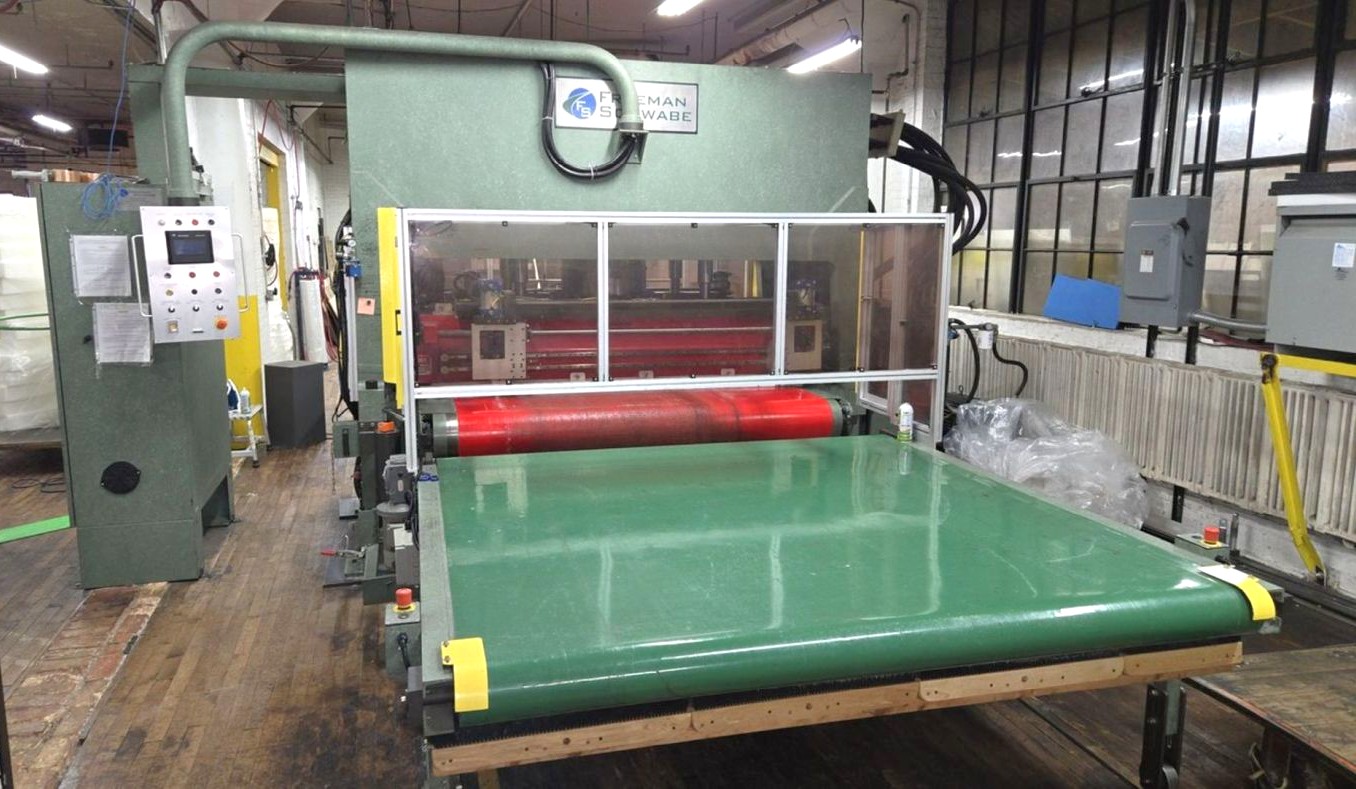

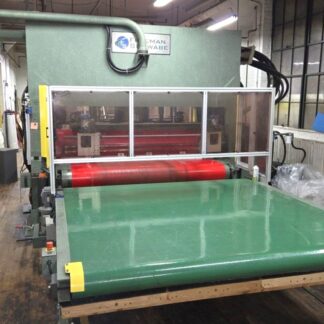

Die Cutting Press with Automated Table • Used 230 Ton Press for Sale
Model: Freeman Schwabe SR-230 Press
Condition: Very Good
Location: Jackson, MI Falahee Building
Year: Year Unknown
Machine #: 8186
Buy Now: $
| max. capacity | 230 Ton | max. stroke | Approx. 6" | RAM ADJUSTMENT | APPROX. 6" | max. daylight | Approx. 9" | BED AREA | 99" x 50" (RL x FB) | DISTANCE BETWEEN UPRIGHTS | 103.25" WIDE | max. die cutting area | 102" x 39" (RL X FB) | RAM / SLIDE AREA | 95" x 39" (RL x FB) | FLOOR TO CUTTING LEVEL HEIGHT | 35" | PRESS CONTROLS | Allen-BRadley MICROLOGIX 1500 PLC CONTROLLER WITH ETHERNET/IP CONNECTION | hydraulic UNIT | VICKERS 3520V30A8 1CC22R HYDRAULIC PUMP | ELECTRIC MOTOR | 25Hp 230/460V-3-60 BALDOR RELIANCE INDUSTRIAL MOTOR | 58/29 AMPS | PRESS DIMENSIONS | 121" X 78" (RL X FB) X 106" HIGH | CONTROL CABINET DIMENSIONS | 49" X 24" (RL X FB) X 79" HIGH | RED SHUTTLE TABLE DIMENSIONS | 100" X 142" (RL X FB) - 84" WIDE CLAMP SECTION UP TO 4" THICK MATERIAL | PRESS MOUNTED SHUTTLE TABLE DIMENSIONS | 87" X 20" (RL X FB) | GREEN SHUTTLE TABLE DIMENSIONS | 100" X 84" (RL X FB) URETHANE POWER BELT OUTFEED CONVEYOR | APPROX. WEIGHT | APPROX. 36,000 lbs total | Equipped With | 75" wide x 142" urethane Power, Belt Infeed Conveyor, 82' x 82" urethane power belt outfeed conveyor, THERMAL TRANSFER PRODUCTS RM-19-12 HEAT EXCHANGER (300 PSI / 350 DEG F) | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Falahee Building |
