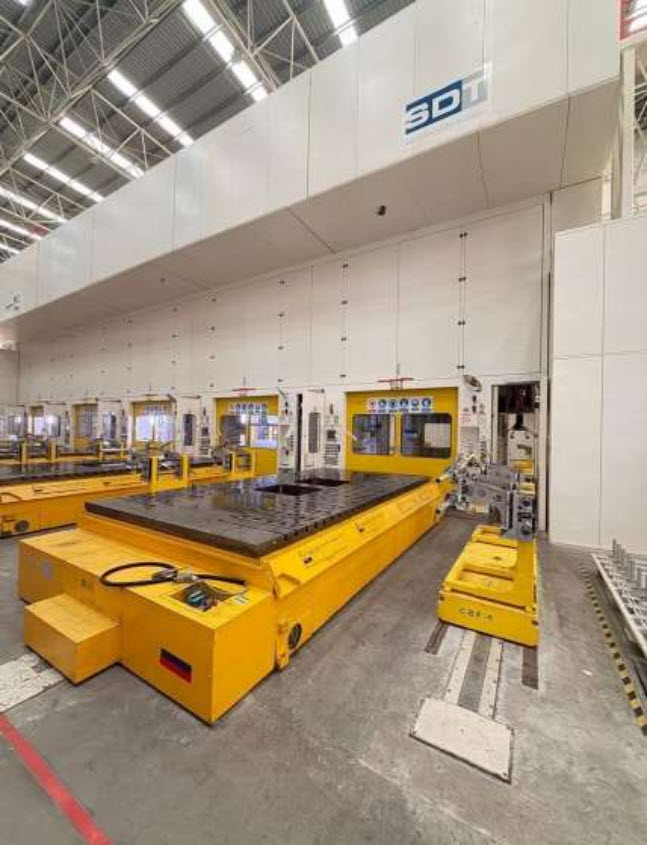

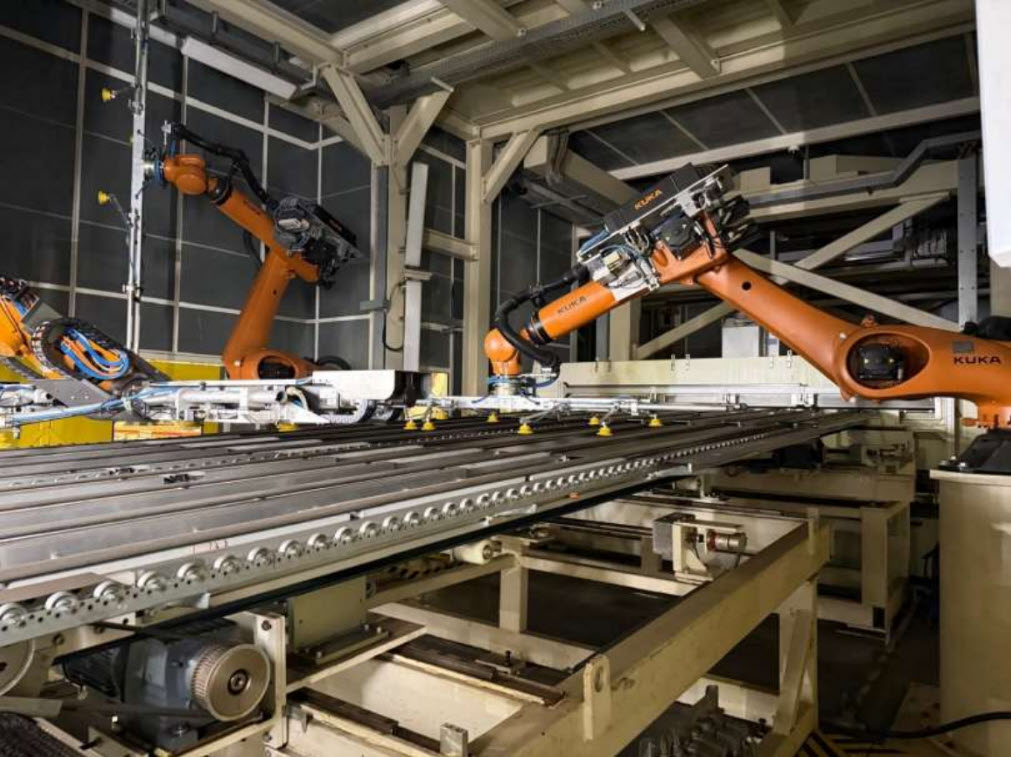

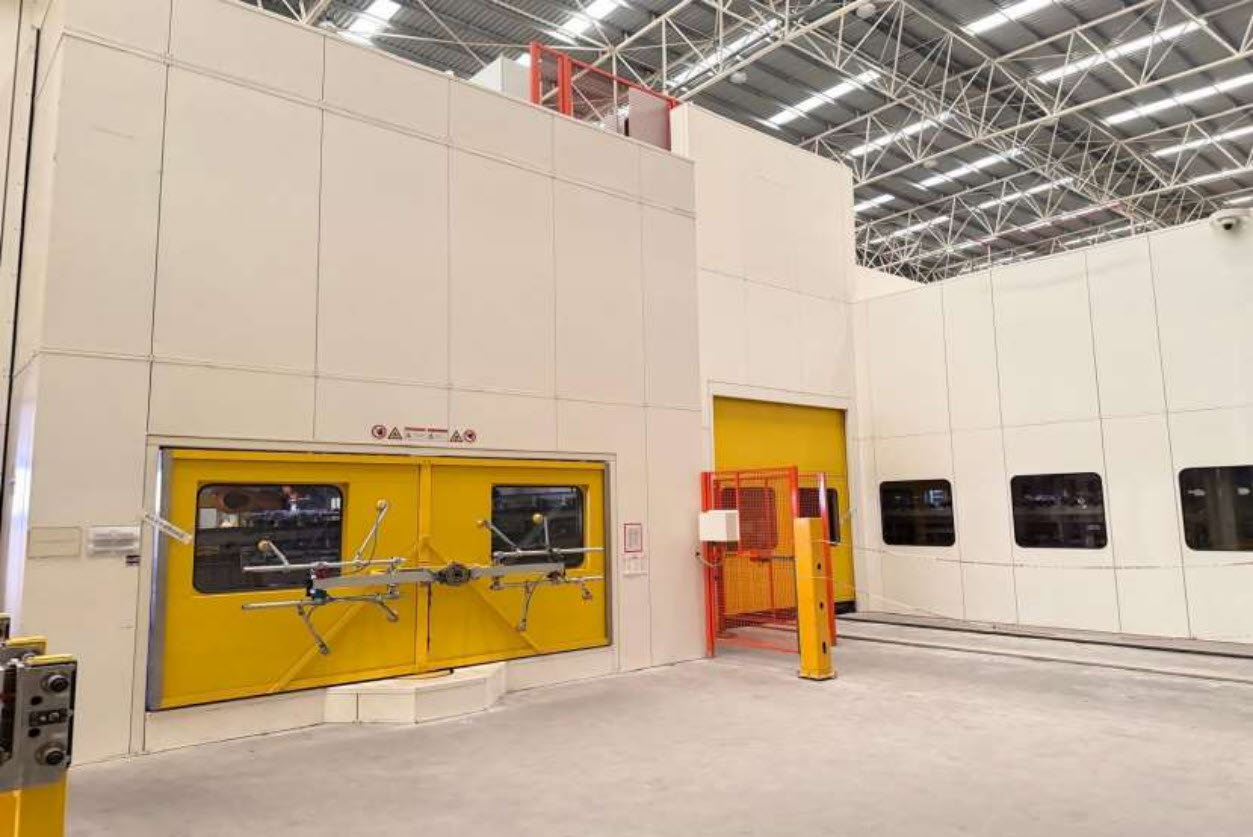

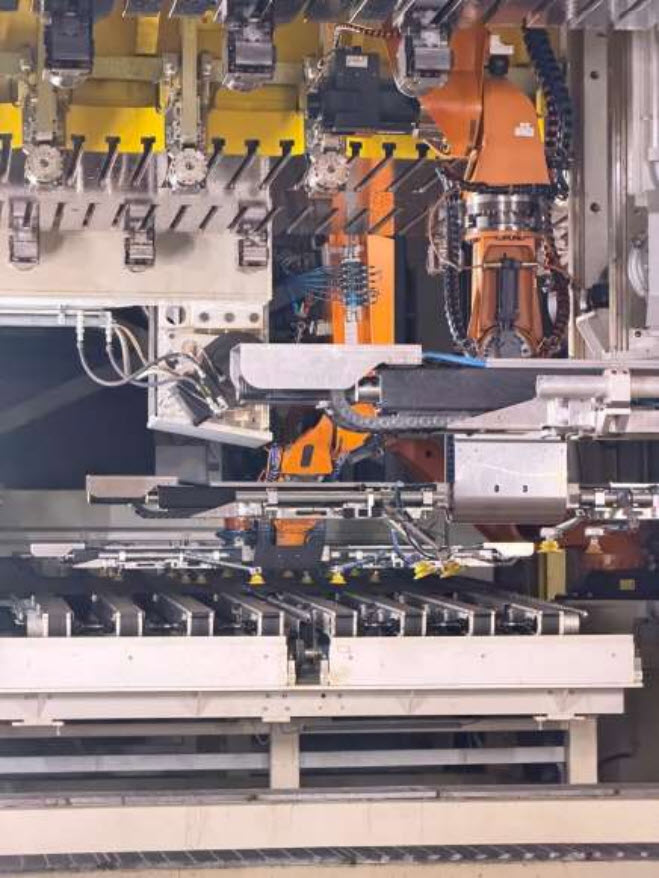

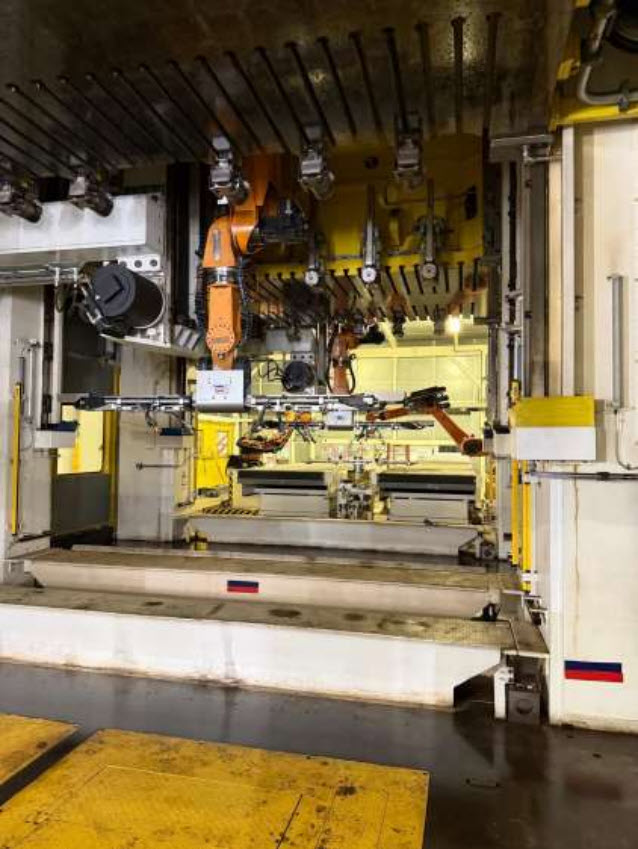

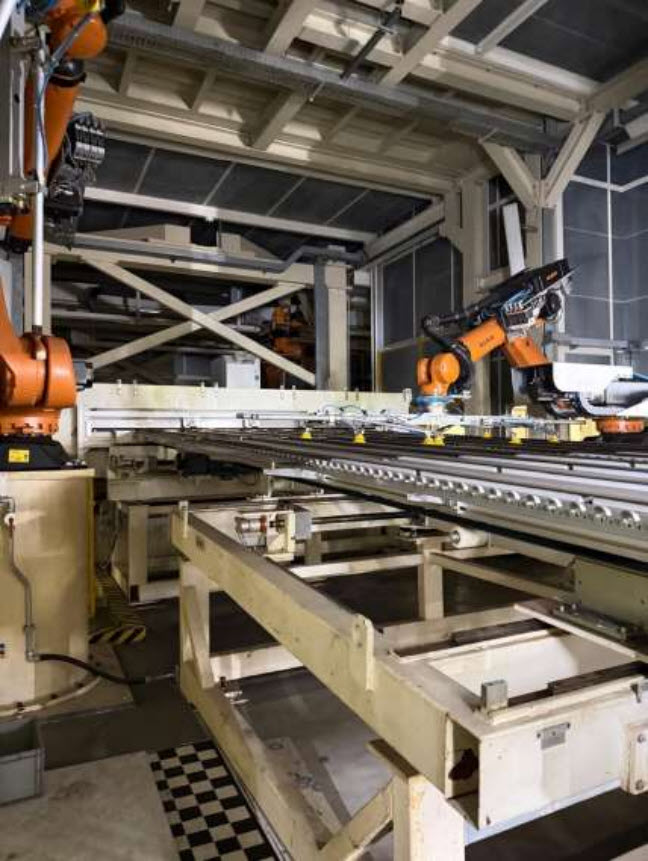

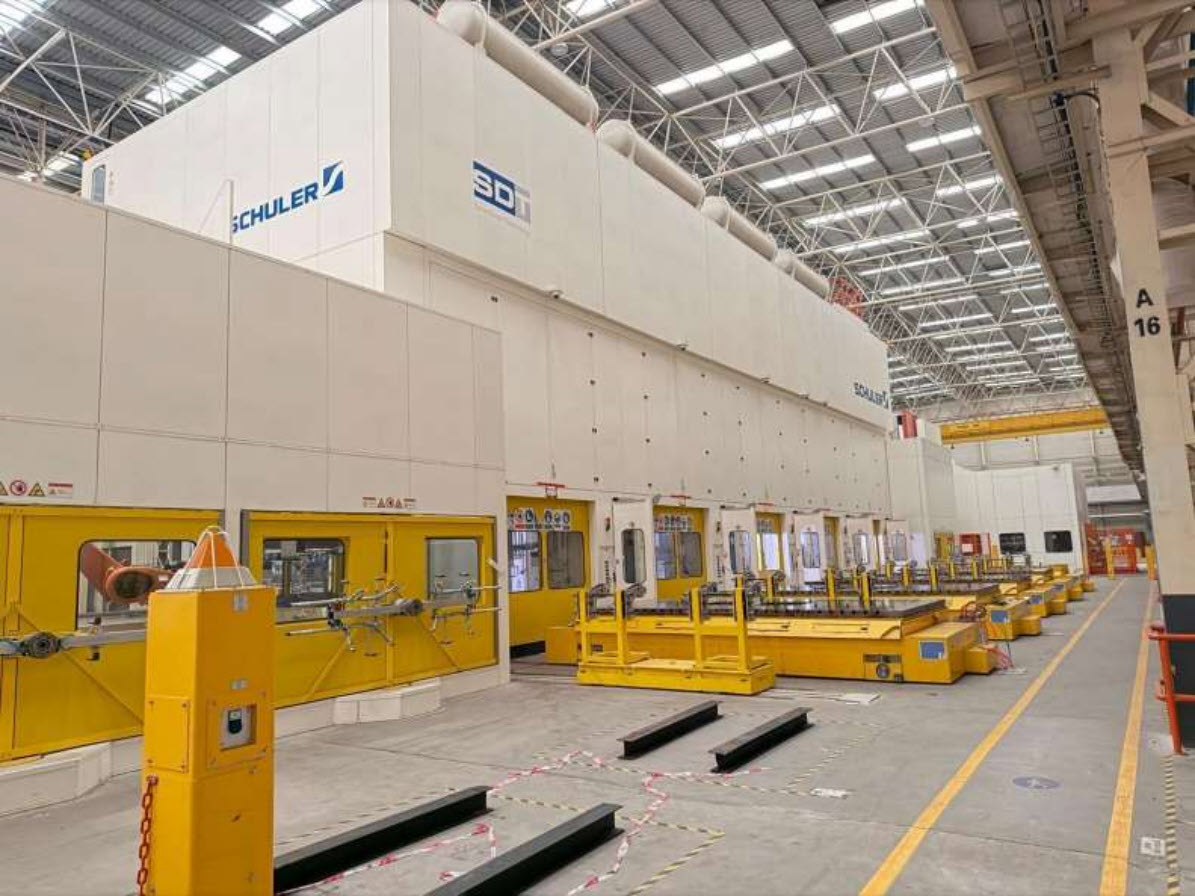

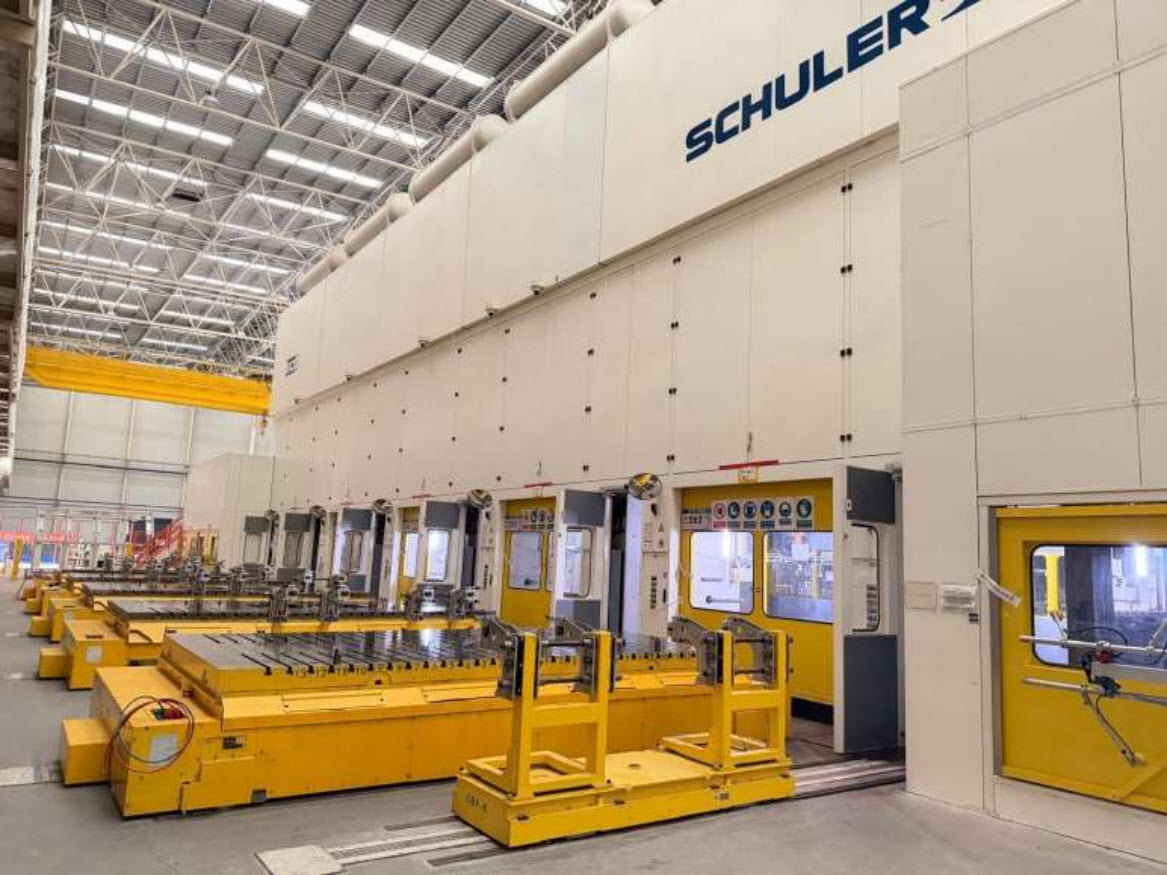

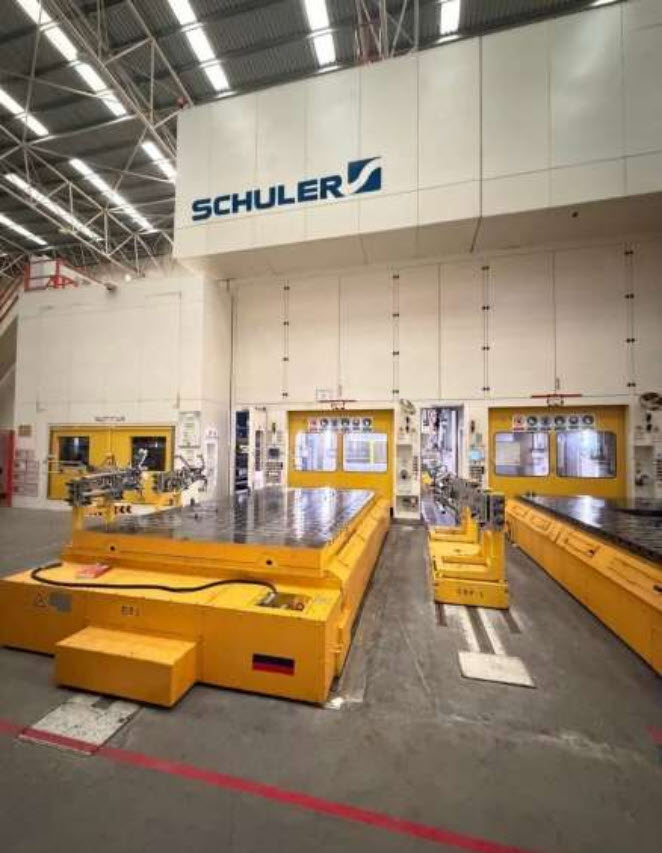

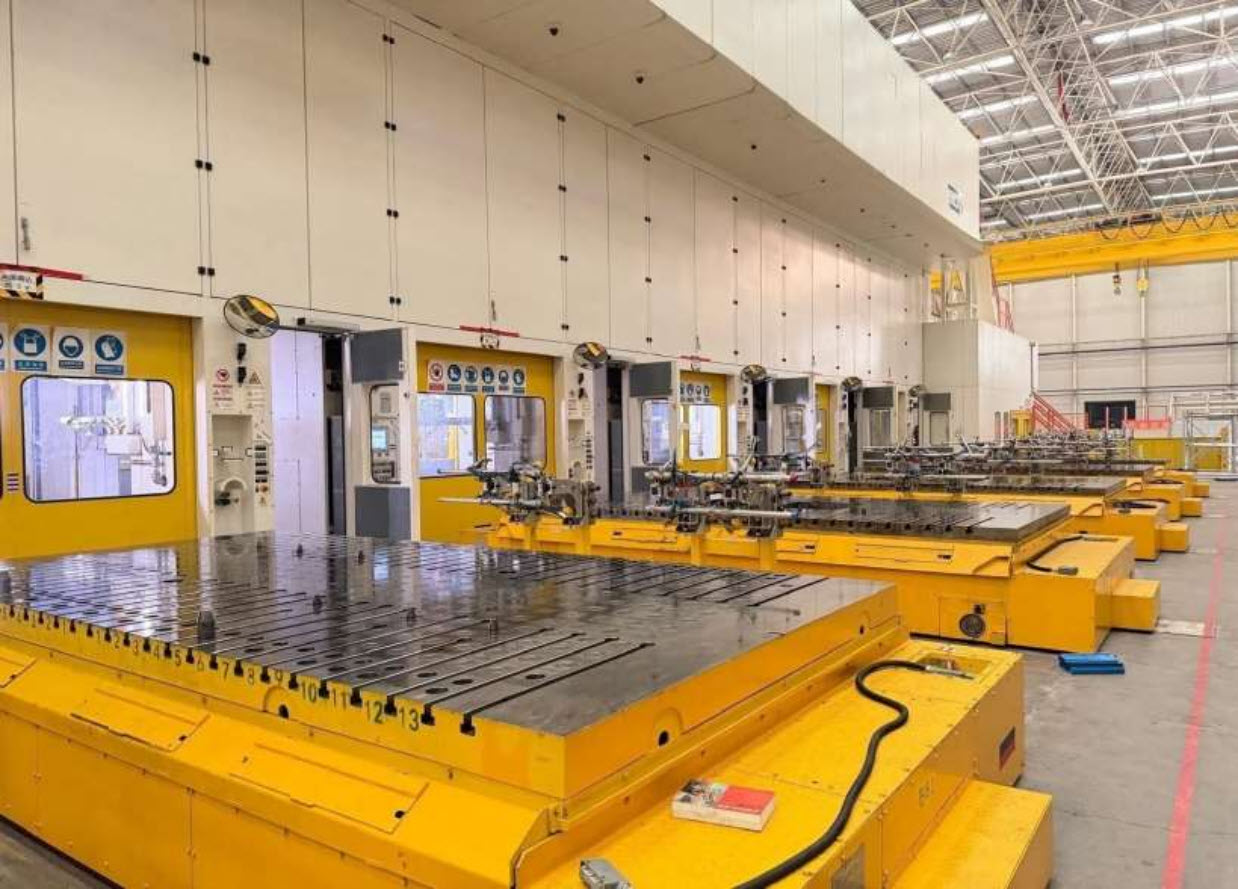

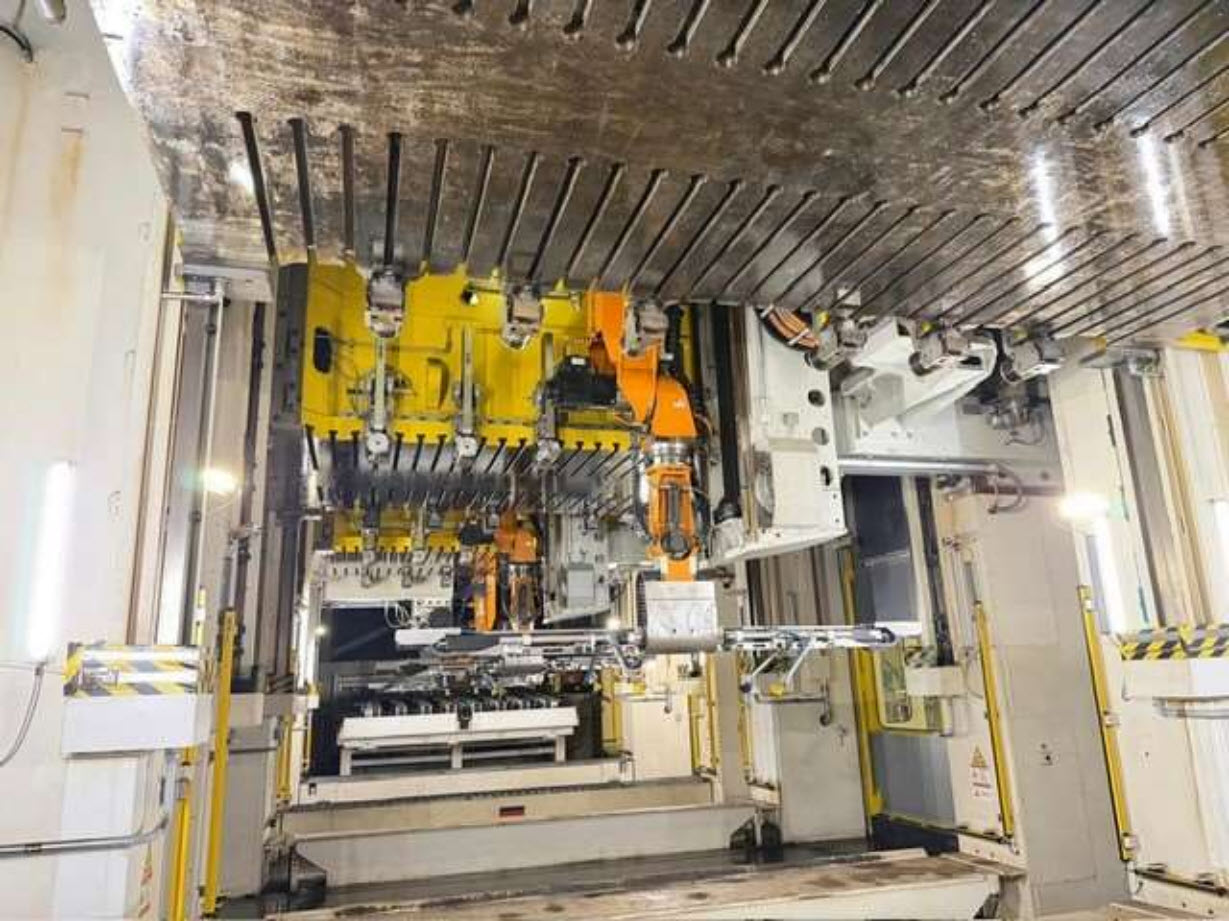

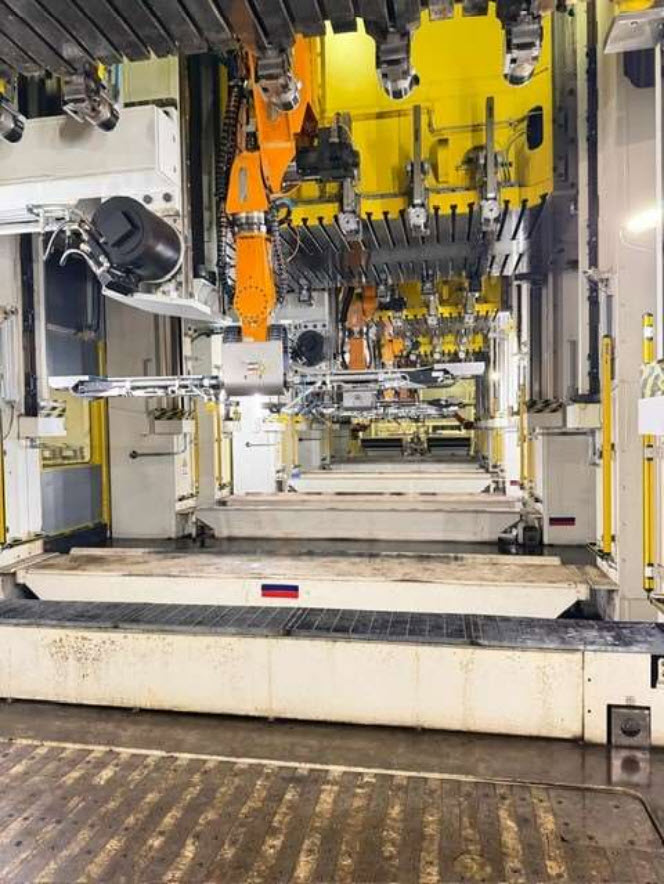

Automated Transfer Line • Used 2,755 Ton Press for Sale

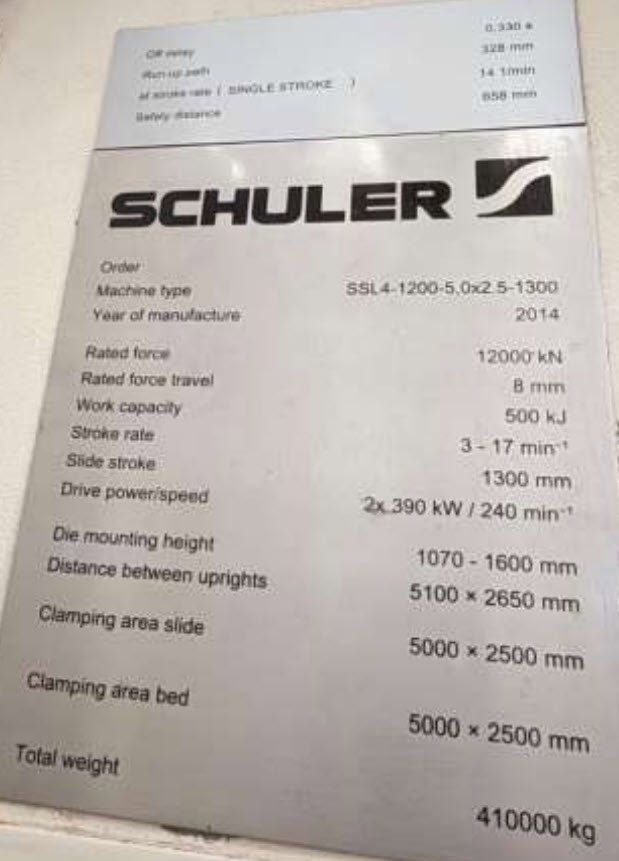

Model: Schuler SSL4-2500-5.0X2.5-1300 / SSL4-1200-5.0x2.5-1300 Press
Condition: Excellent
Location: **On Location**
Year: 2014
Machine #: 8378
Buy Now: $

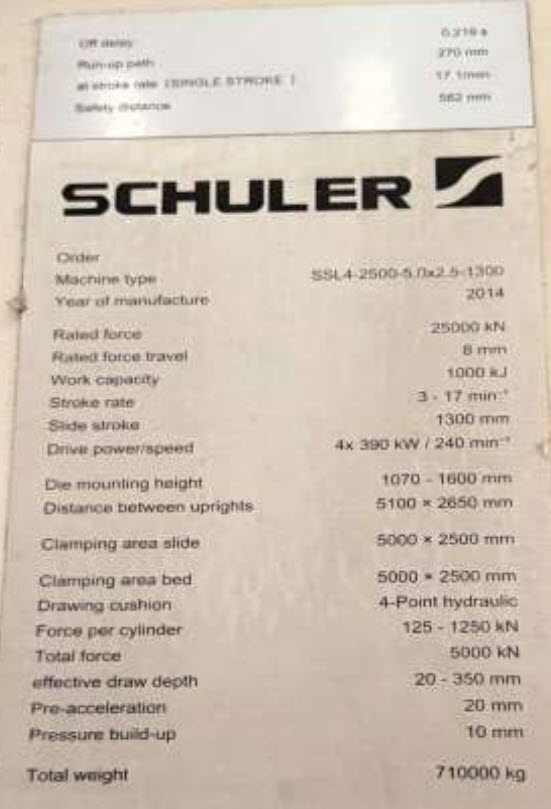

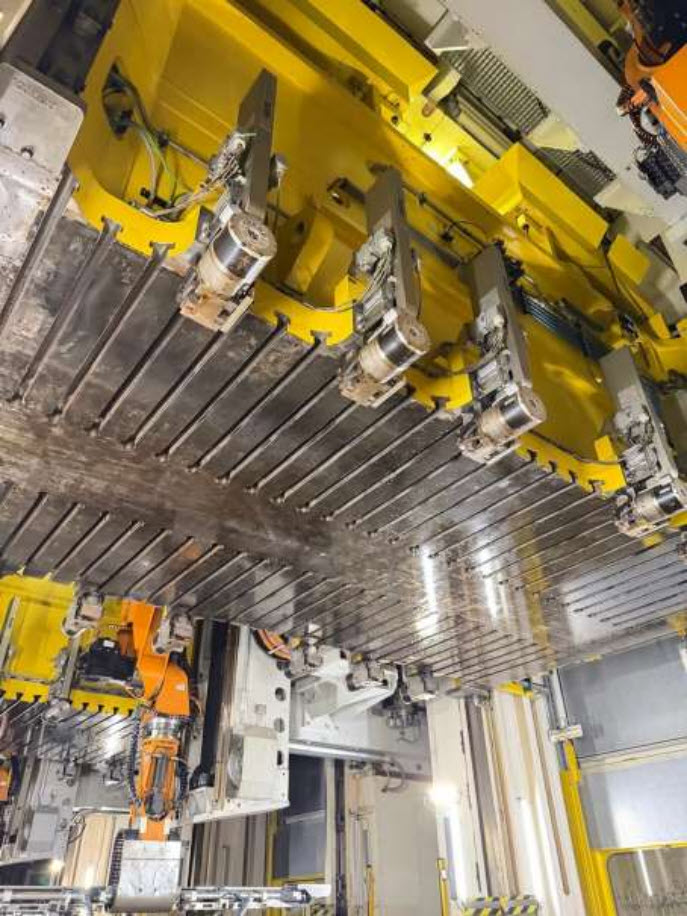

| PRESS 1 | 2,755 TON SCHULER PRESS MODEL: SSL4-2500-5.0X2.5-1300 | CAPACITY | 2,755 TONS / 25,000 KN | STROKE | 51.18" / 1300 MM | DIE MOUNTING HEIGHT (SDAU) | 42.13" TO 63" / 1070 MM TO 1600 MM | BED AREA | 196.85" X 98.43" (RL X FB) / 5000 X 2500 MM | RAM / SLIDE AREA | 196.85" X 98.43" (RL X FB) / 5000 X 2500 MM | DISTANCE BETWEEN UPRIGHTS | 200.79" X 104.33" (RL X FB) / 5100 X 2650 MM | SPEEDS | 3-17 SPM | CUSHION CAPACITY | 550 TONS / 5000 KN | CUSHION STROKE | .79" TO 13.78" / 20 - 350 MM | MAIN ELECTRIC MOTORS | (4) 523 HP MOTORS / 390 KW | TOTAL WEIGHT | 1,565,282 LBS / 710,000 KG | PRESSES 2, 3, 4, 5 | 1,323 TON SCHULER PRESS MODEL SSL4-1200-5.0x2.5-1300 | CAPACITY | 1,323 TONS / 12,000 KN | STROKE | 51.18" / 1300 MM | DIE MOUNTING HEIGHT (SDAU) | 42.13" TO 63" / 1070 TO 1600 MM | BED AREA | 196.85" X 98.43" (RL X FB) / 5000 X 2500 MM | RAM / SLIDE AREA | 196.85" X 98.43" (RL X FB) / 5000 X 2500 MM | DISTANCE BETWEEN UPRIGHTS | 200.79" X 104.33" (RL X FB) / 5100 X 2650 MM | SPEEDS | 3-17 SPM | MAIN ELECTRIC MOTORS | (2) 523 HP MOTORS / 390 KW | TOTAL WEIGHT | 903,895 LBS / 410,000 KG | Equipped With | Schuler "ServoDirect" Technology: Fully programmable slide curves (Pendulum mode, Link motion simulation, etc.) for optimized forming speeds, 4-Point Hydraulic Drawing Cushion, Rolling Bolster System, Hydraulic Overload Protection, Automatic Ram Adjustment & Clamping, Automatic Counterbalance System | Note | fully programmable stroke profiles. The 2755-ton lead press includes a 4-point hydraulic cushion, ideal for large automotive or appliance panels. |
|---|---|
| Location | This Used Press is Located in Our **On Location** |
