Description

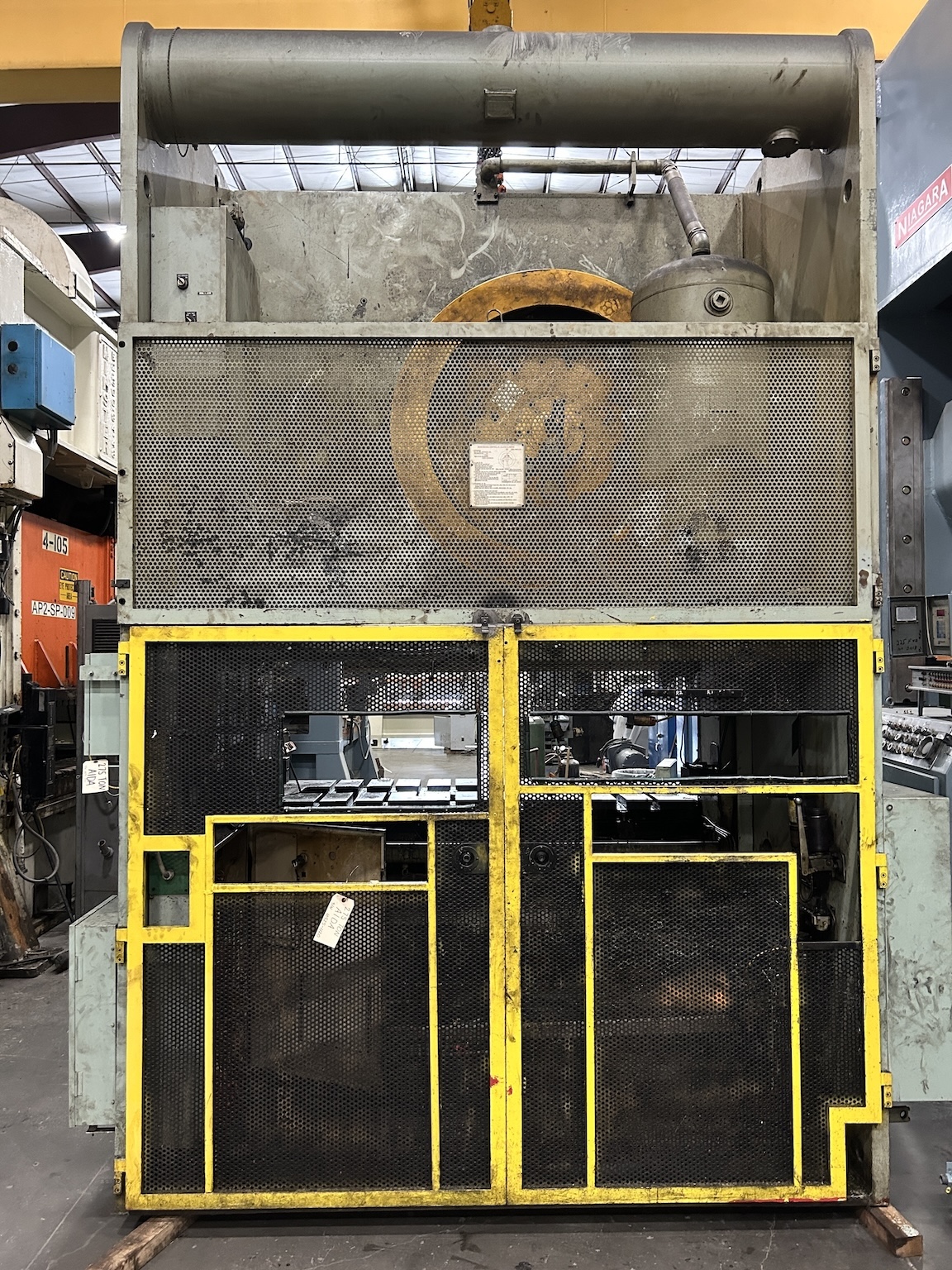

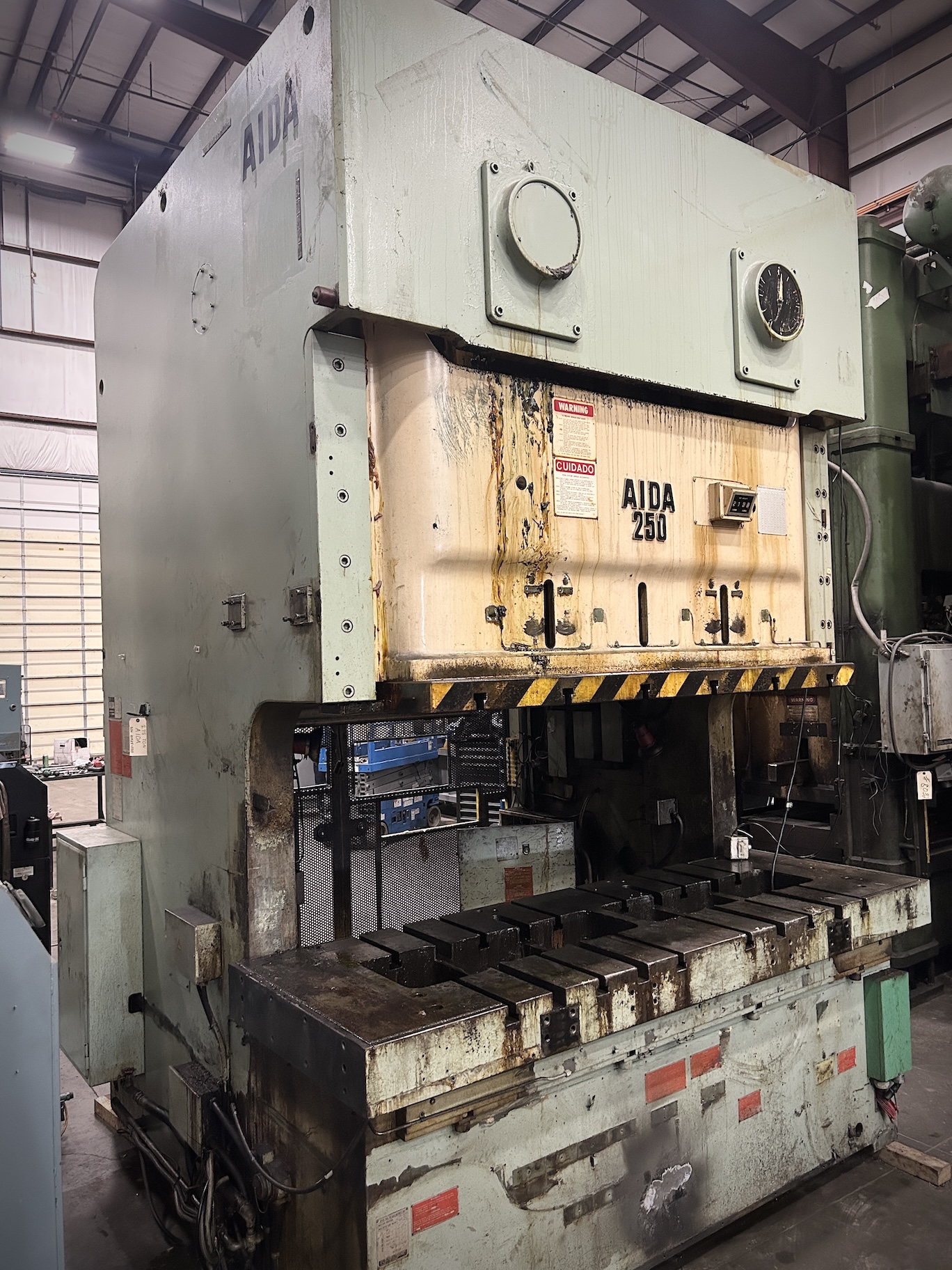

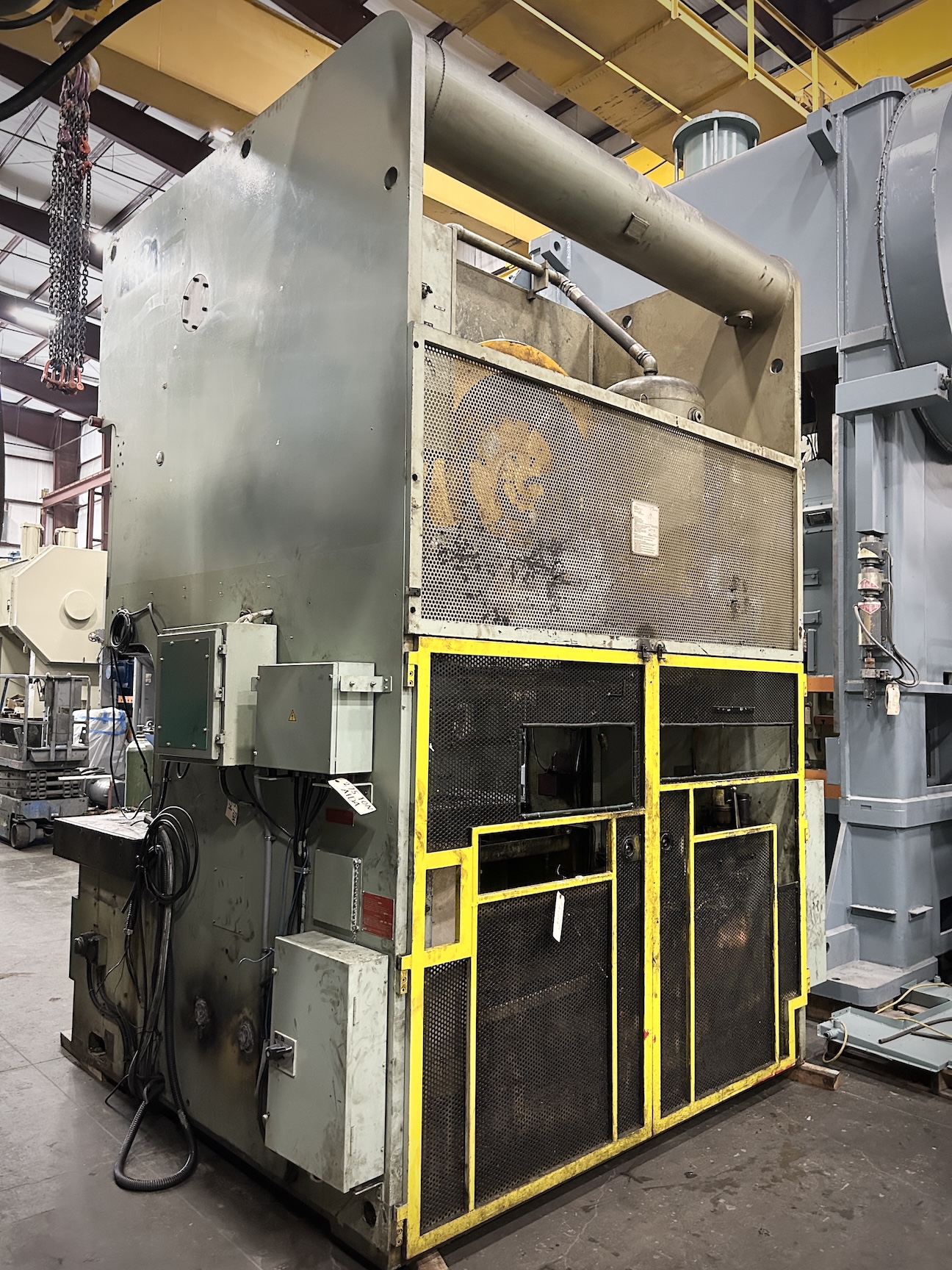

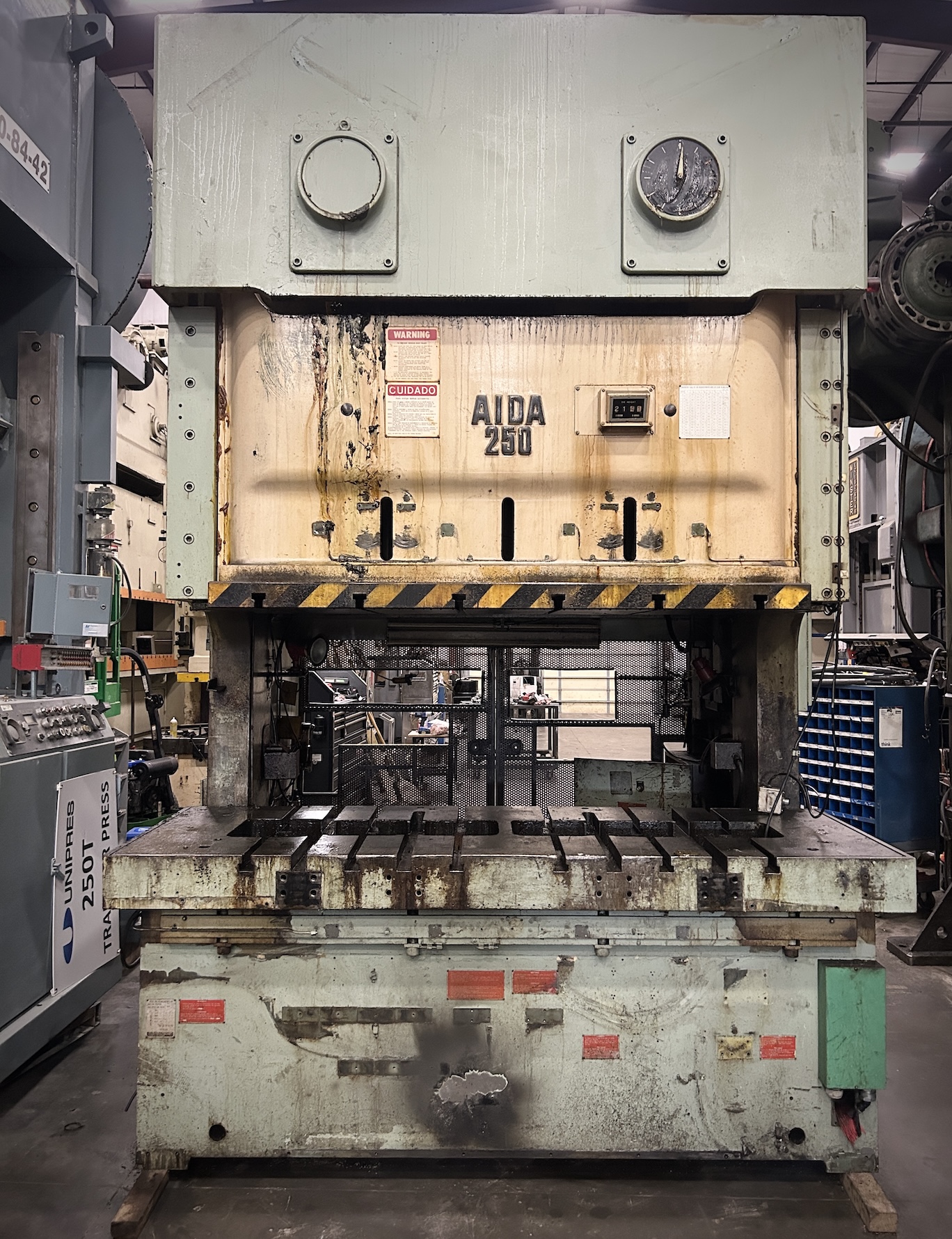

Double Crank Gap Frame Press • 275 Ton Press for Sale
Model: Aida NC2-250(2) Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1987
Machine #: 8295
Buy Now: $

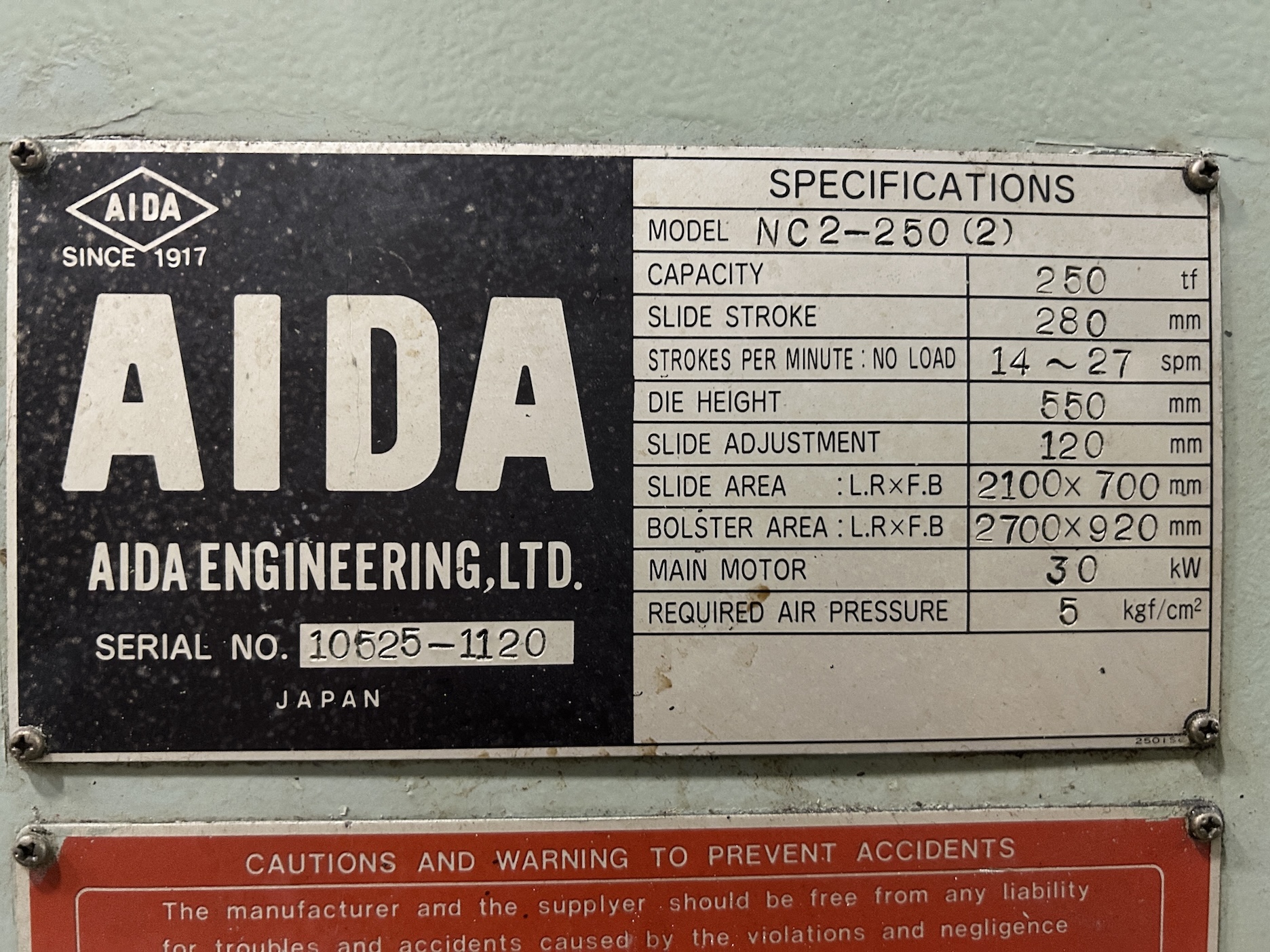

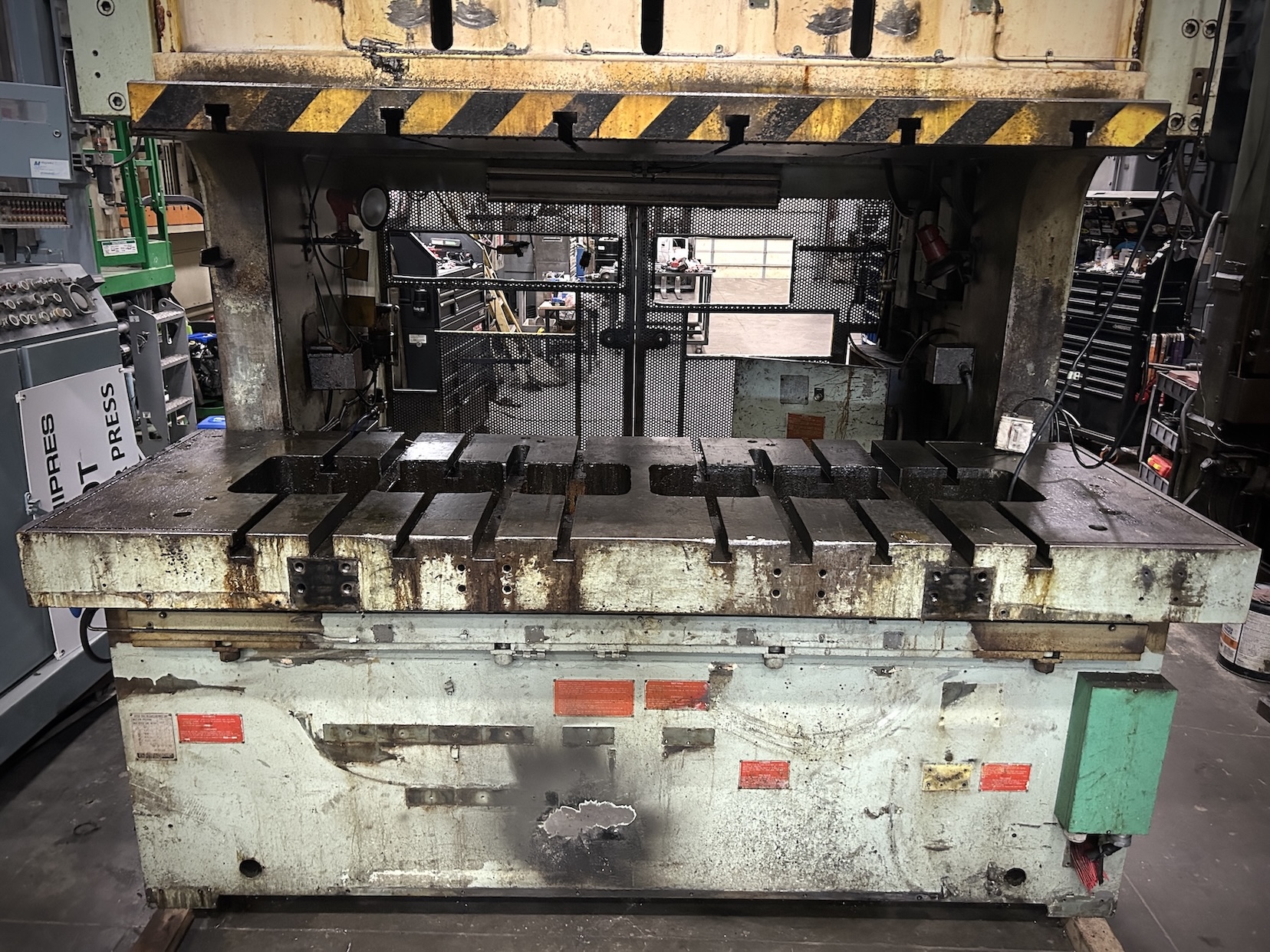

| capacity | 275 us ton | blanking capacity | 220 us ton | stroke | 11" | max die height | 21.7" sdau over 7.1" h bolster | bed area | 106.3" x 36.2" (rl x fb) | speed | 14 - 27 spm | slide adjustment | 4.7" motorized | slide area | 82.7" rl x 27.6" fb (t-slotted) | bolster plate | 7.1" h x 106.3" rl x 36.2" fb (t-slotted) | distance between uprights | 86.2" | distance floor to bed | 43.3" | clutch | aida air clutch / brake combination | electrics | 40 hp 1750 rpm 480v-3-60 motor & aida press control. will include new cieco press control for reconditioned price. | approx dimensions | 134" H X 124" RL X 179" FB | approx weight | 78,000 LBS | Equipped With | FLOOR STANDING, AIR COUNTERBALANCES, HIGHLY RIGID FRAME TO MINIMIZE DEFLECTION, BALL & SOCKET CONNECTIONS, HYDRAULIC OVERLOAD PROTECTION SYSTEM, HARDENED & GROUND PINION & GROUND MAIN GEAR, QUILL MOUNTED FLYWHEEL | Note |
|---|---|
| Location | This Press is Located in Our Columbia, TN Warehouse |
