Machine Specifications
Straight Side Mechanical Press • Used 121 Ton Press for Sale
Manufacturer: Komatsu

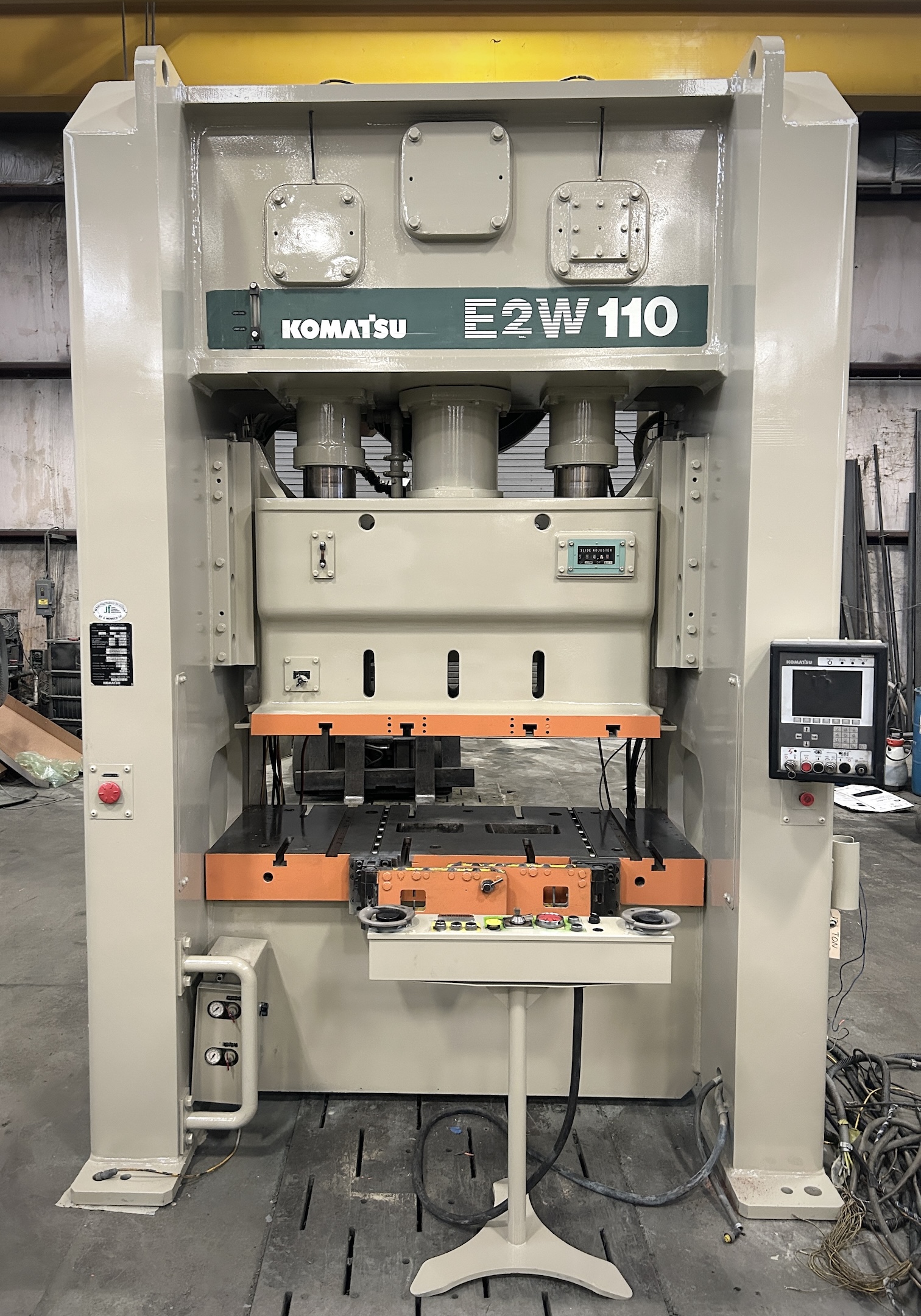

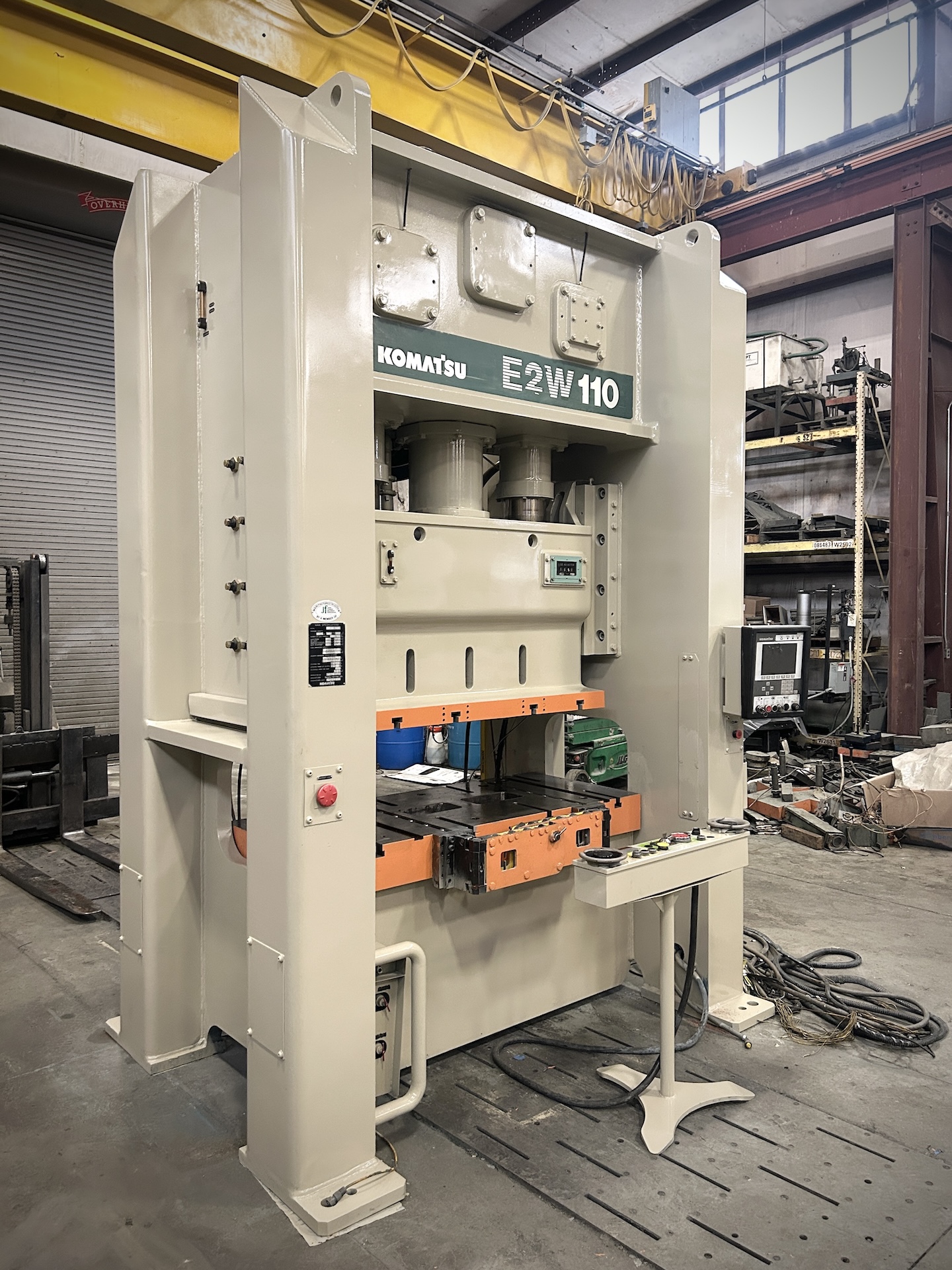

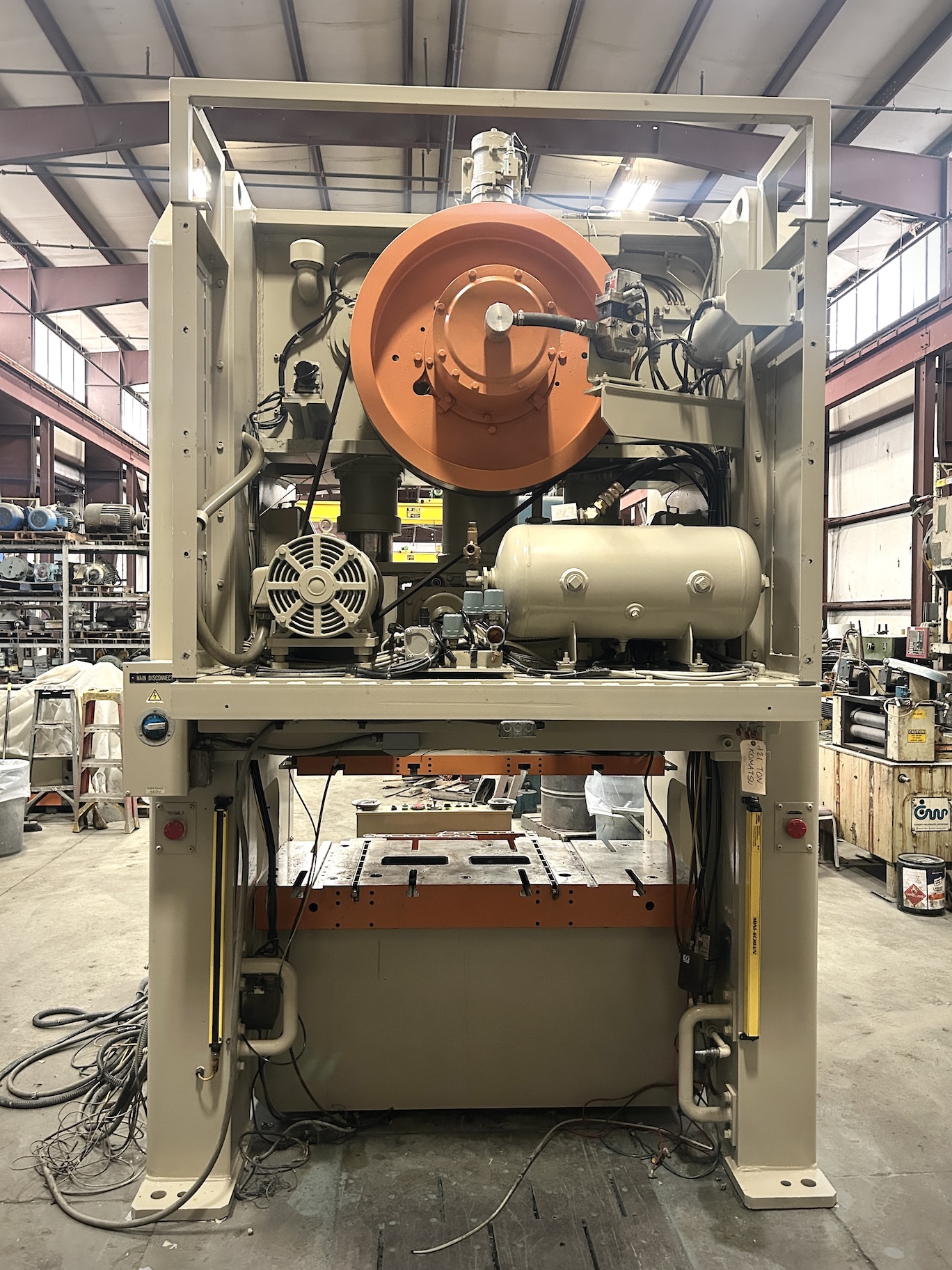

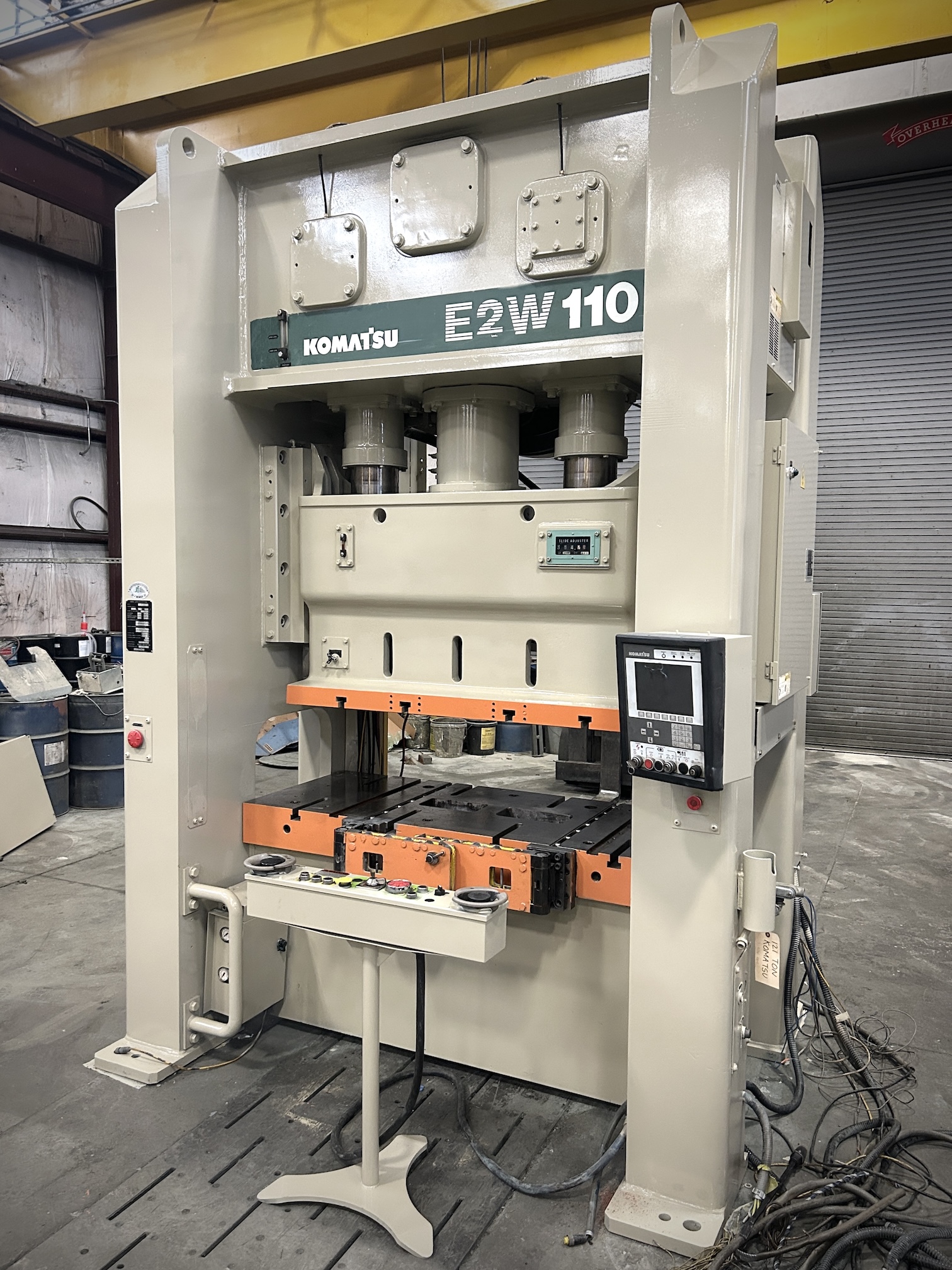

Model: Komatsu E2W110 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 2002
Machine #: 8148
Buy Now: $

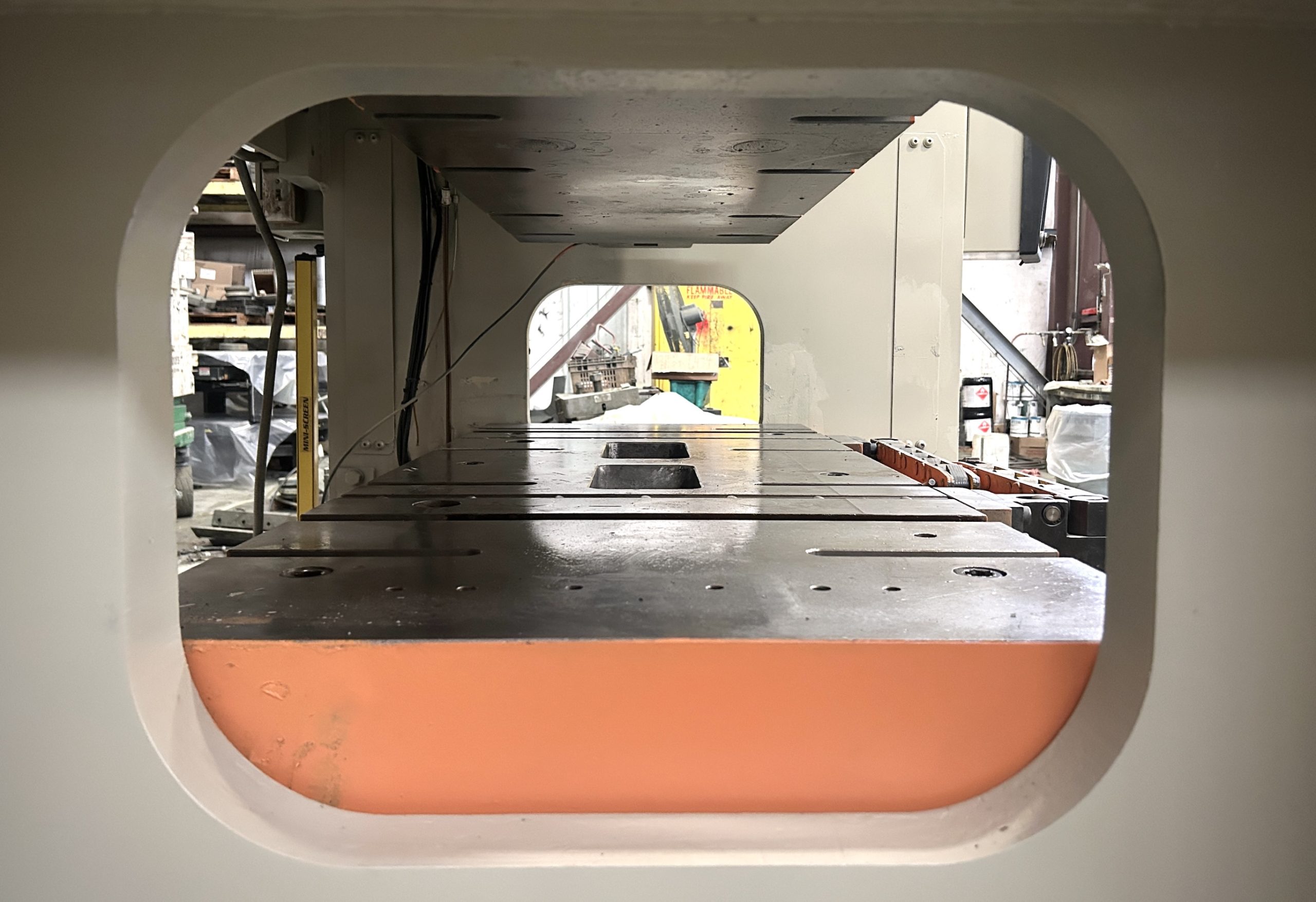

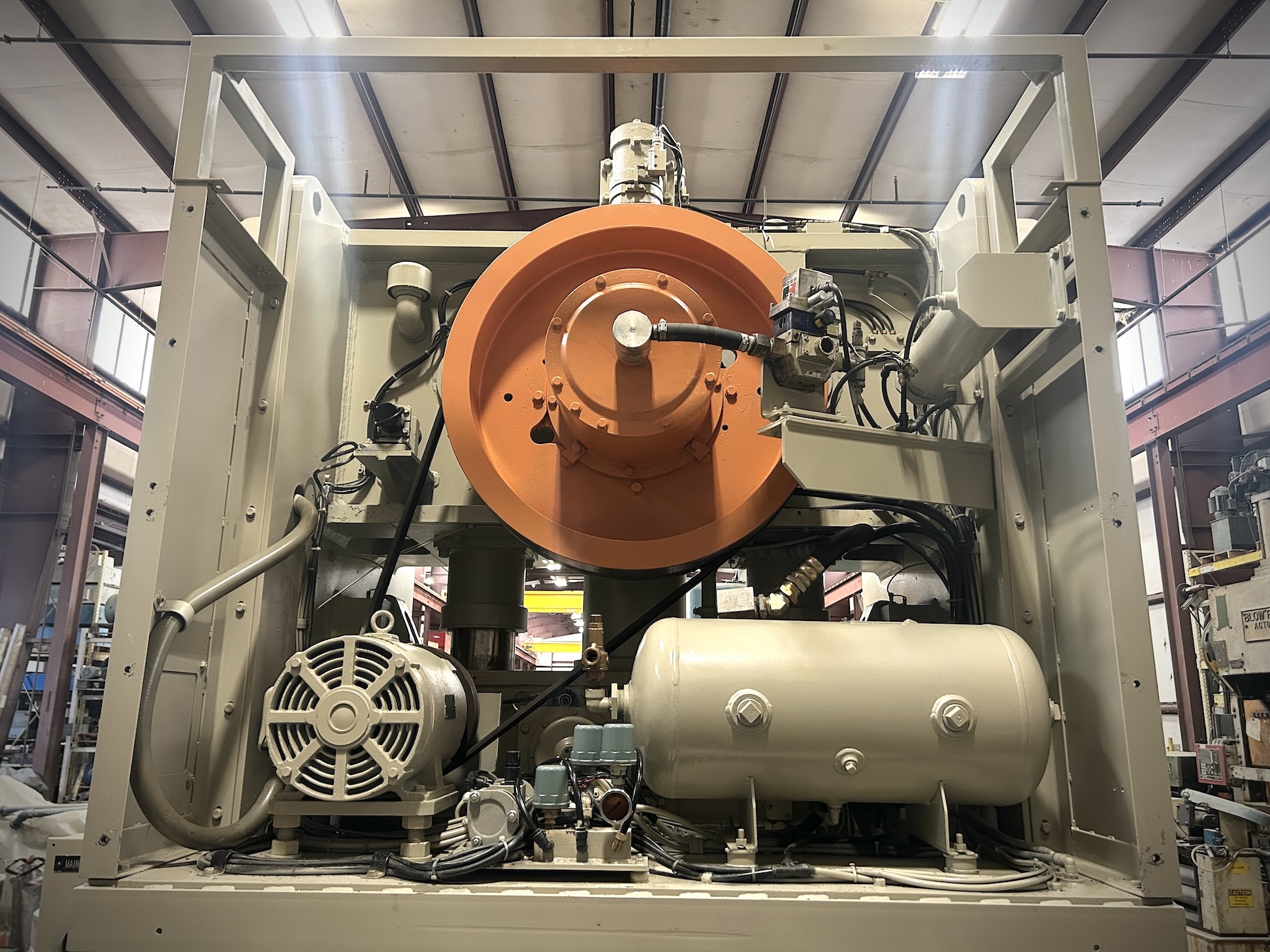

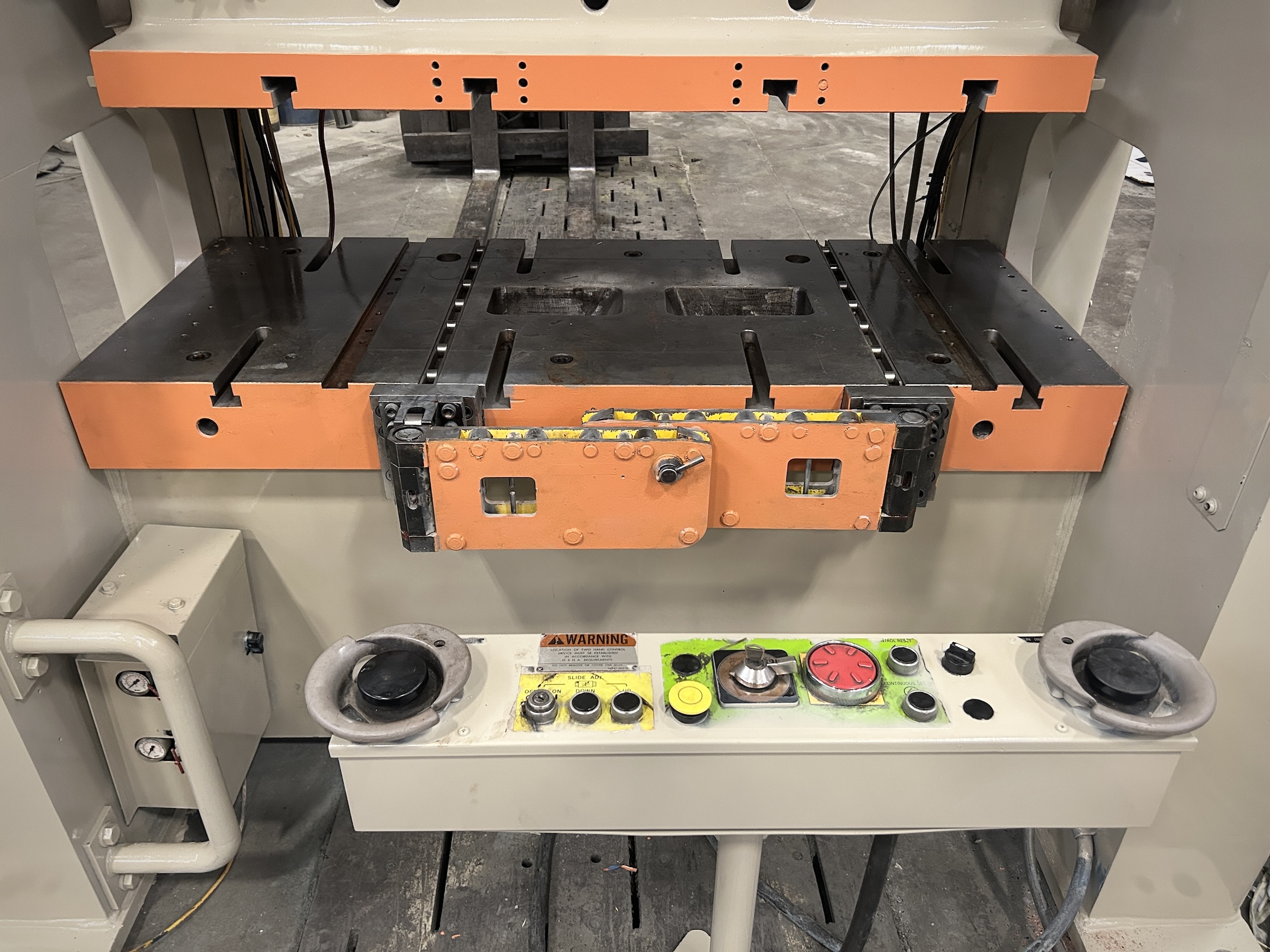

| capacity | 121 us ton | stroke | 3.2″ | max die height | 15.8″ sdau over 6.3″ H bolster | bed area | 65.4″ rl x 27.5″ fb | speed | 60 – 120 spm | slide adjustment | 3.9″ motorized | slide area | 55.1″ rl x 20.5″ fb (t-slot) | bolster plate | 6.3″ h x 65.4″ rl x 27.5″ fb (t-slot) | distance between uprights | 66.1″ | distance floor to bed | 29.1″ | window size | 20.9″ | clutch | komatsu WET clutch / brake combination | electrics | 15 hp 1750 rpm | approx dimensions | 140″ h x 88″ rl x 67″ fb | approx weight | 40,000 lbs | Equipped With | AIR COUNTERBALANCED RAM, HYDRAULIC OVERLOAD PROTECTION SYSTEM, ECCENTRIC GEAR DRIVE IN WET CLUTCH FOR CONTINUOUS LUBRICATION OF MAJOR DRIVE COMPONENTS, PLUNGER GUIDED SLIDE, FLOOR STANDING DESIGN | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
