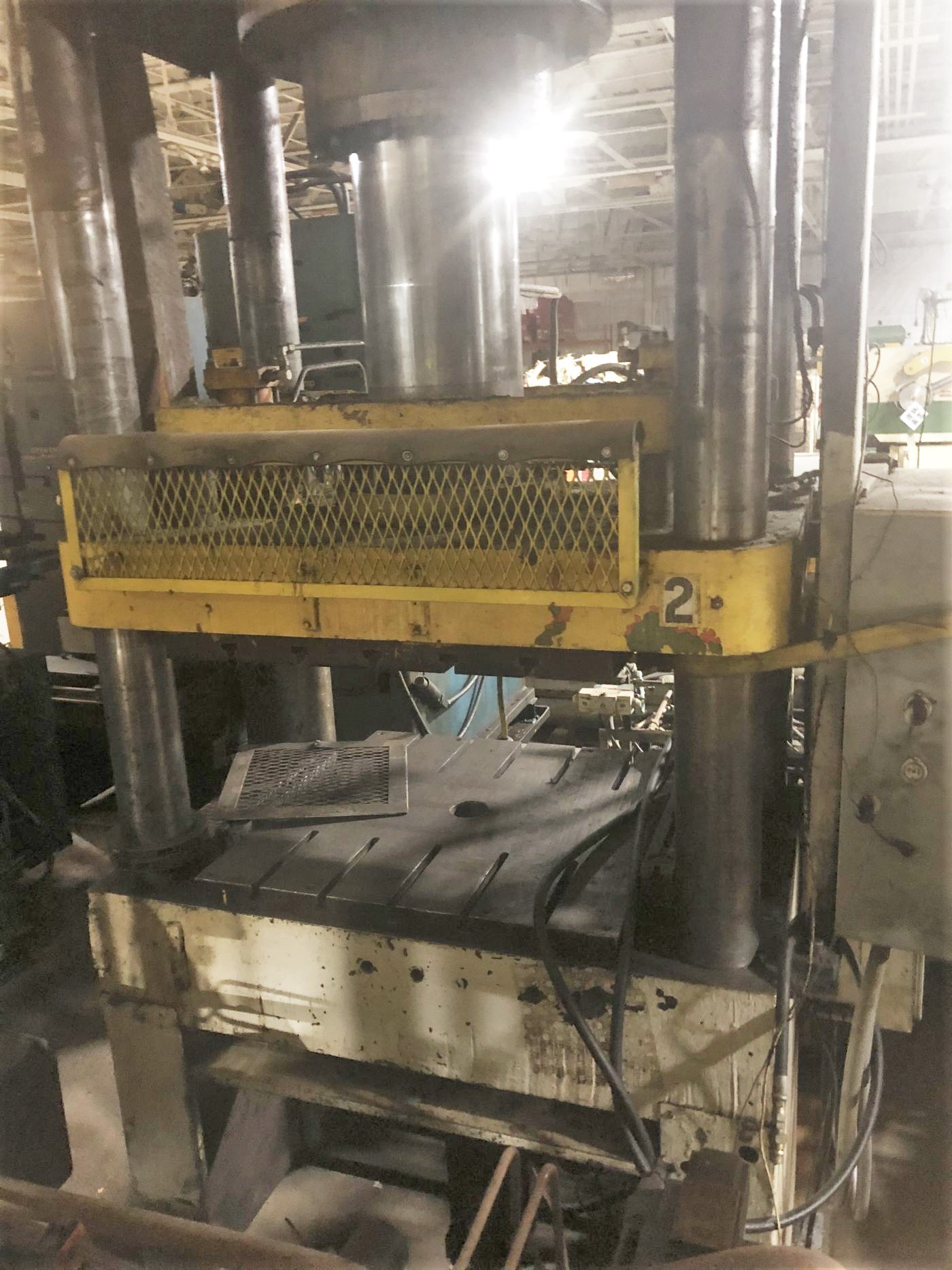

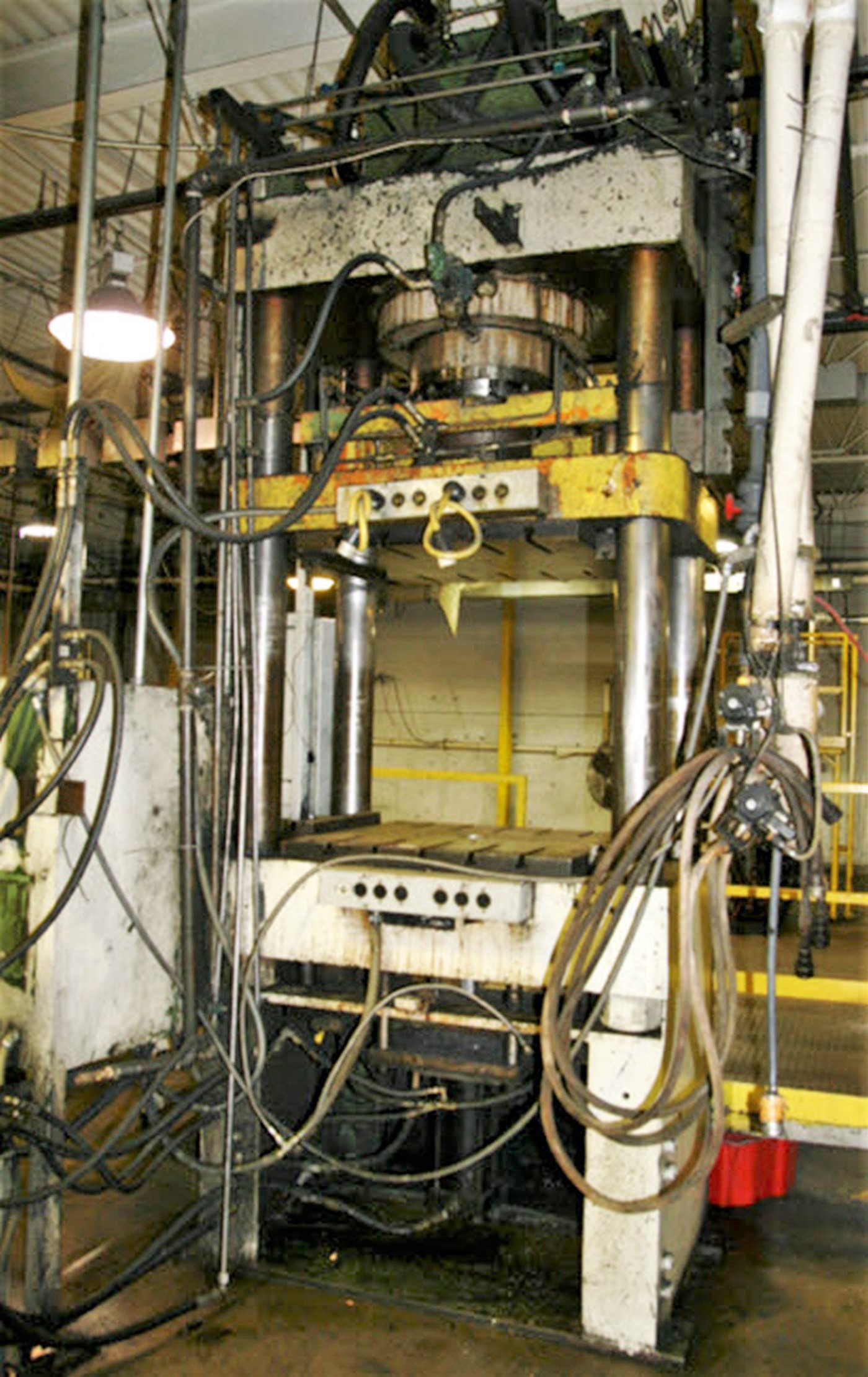

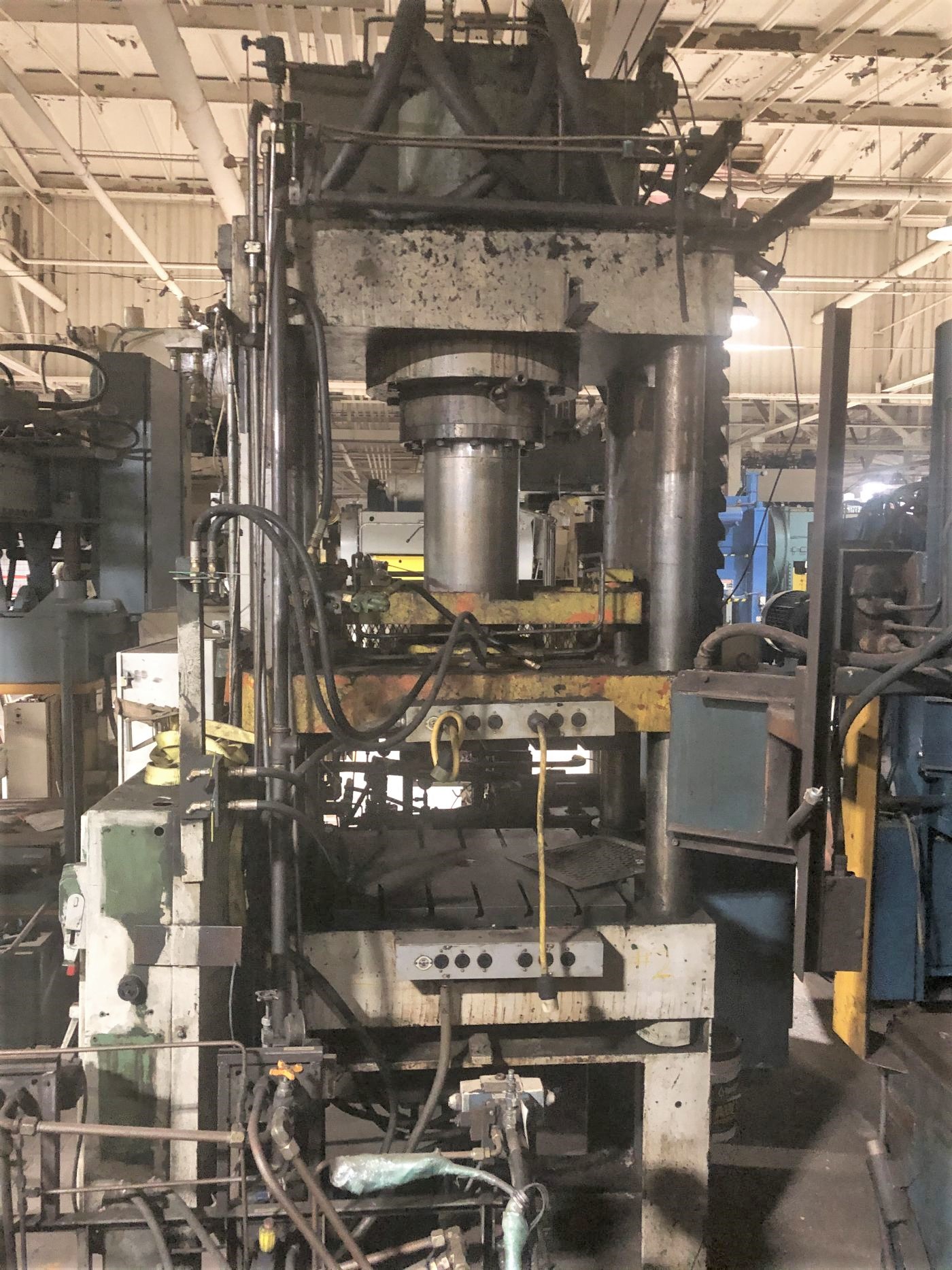

4-Post Used Hydraulic Press • Used 220 Ton Press for Sale
Model: Rodgers Transfer Compression Molding Press
Condition: In Process
Location: Jackson, MI Falahee Building
Year: 1981
Machine #: 4349
Buy Now: $37,500

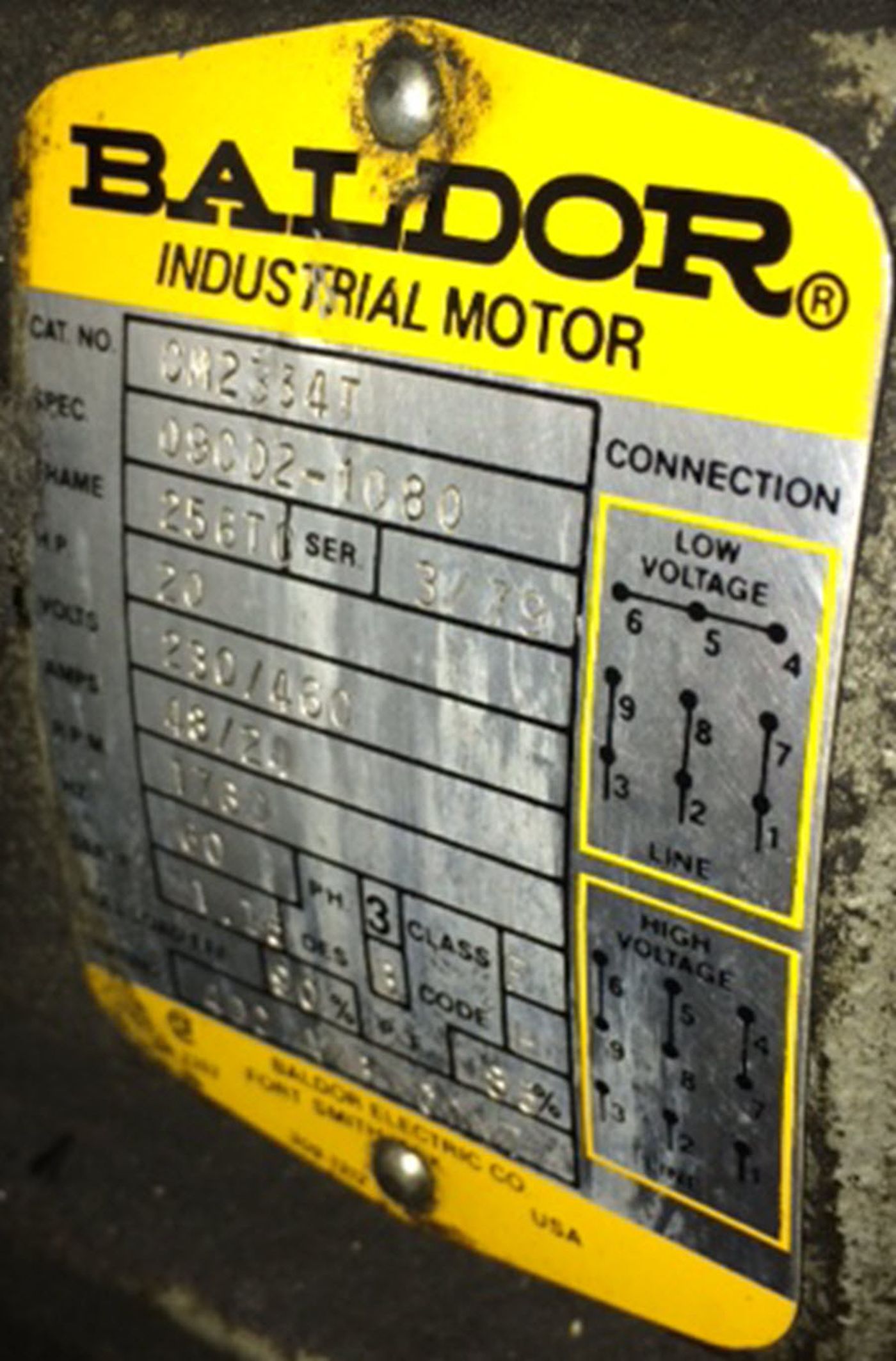

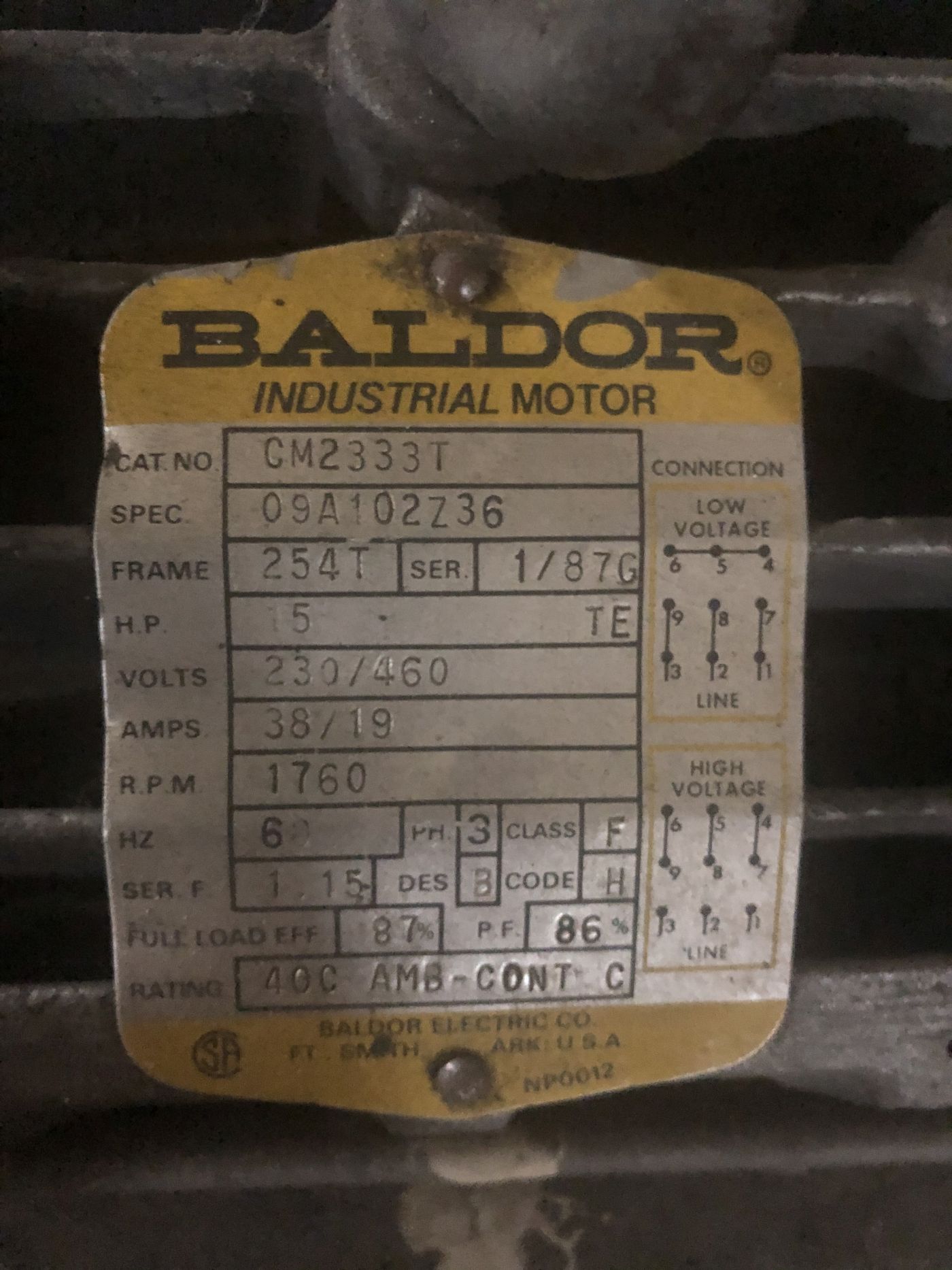

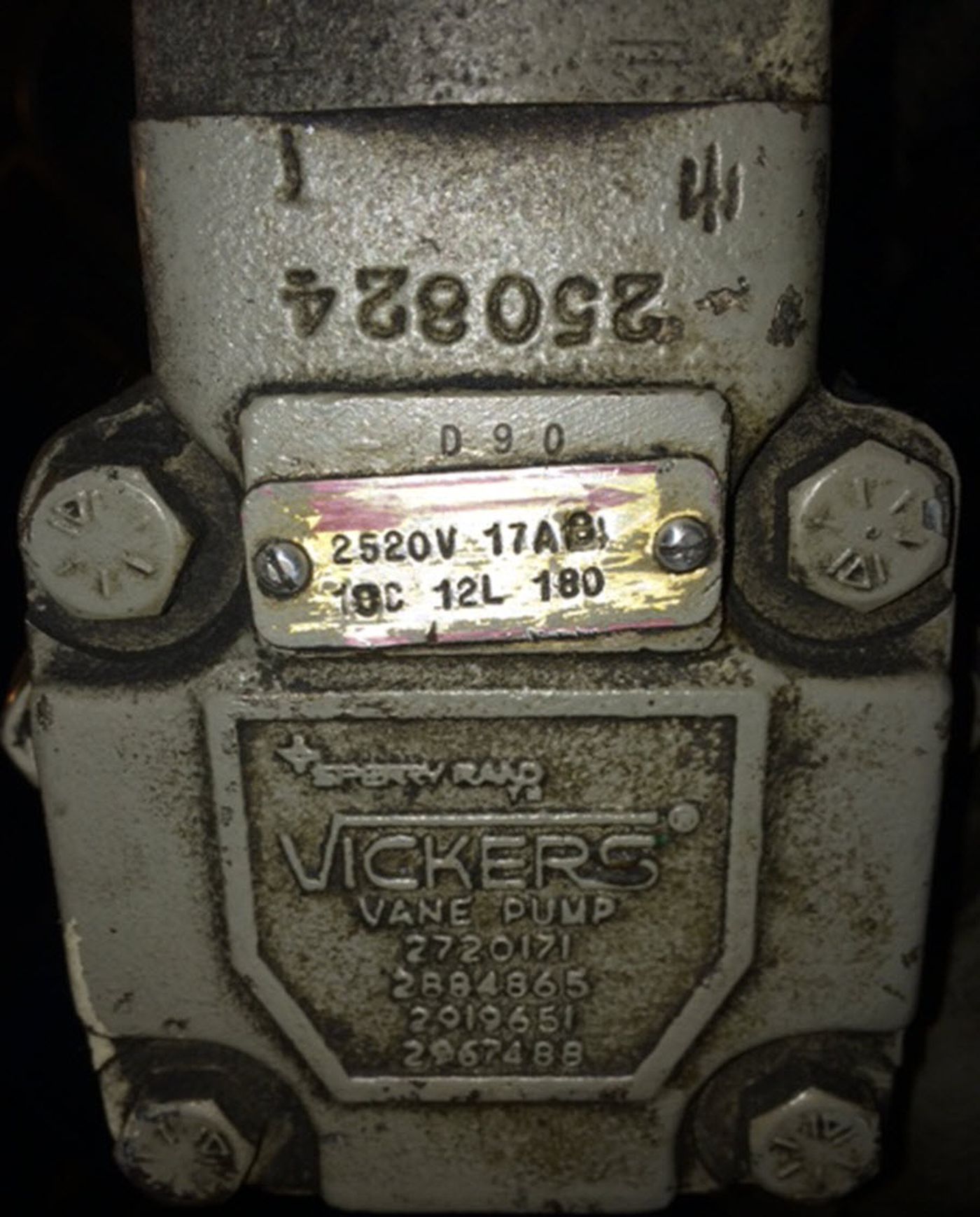

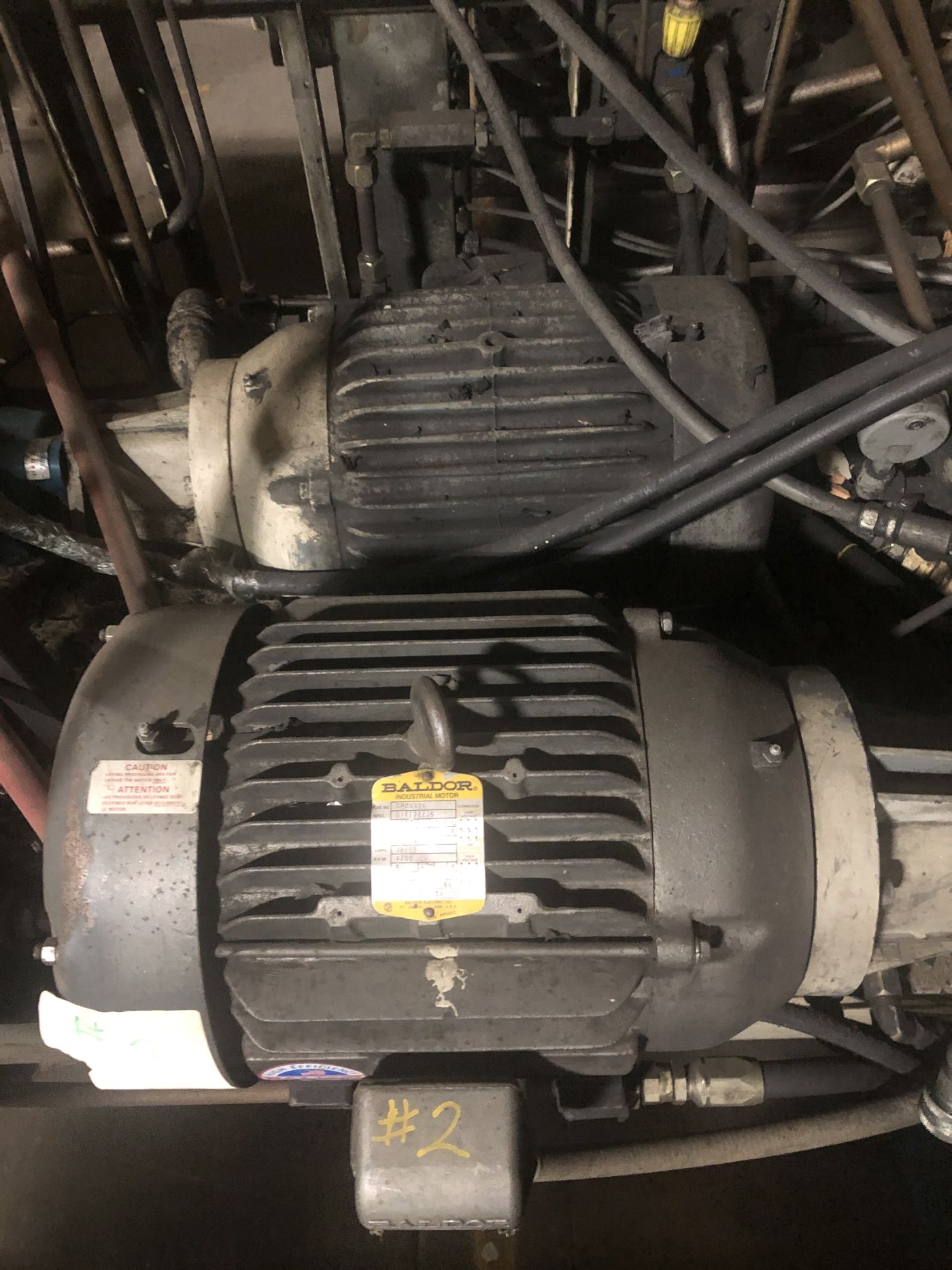

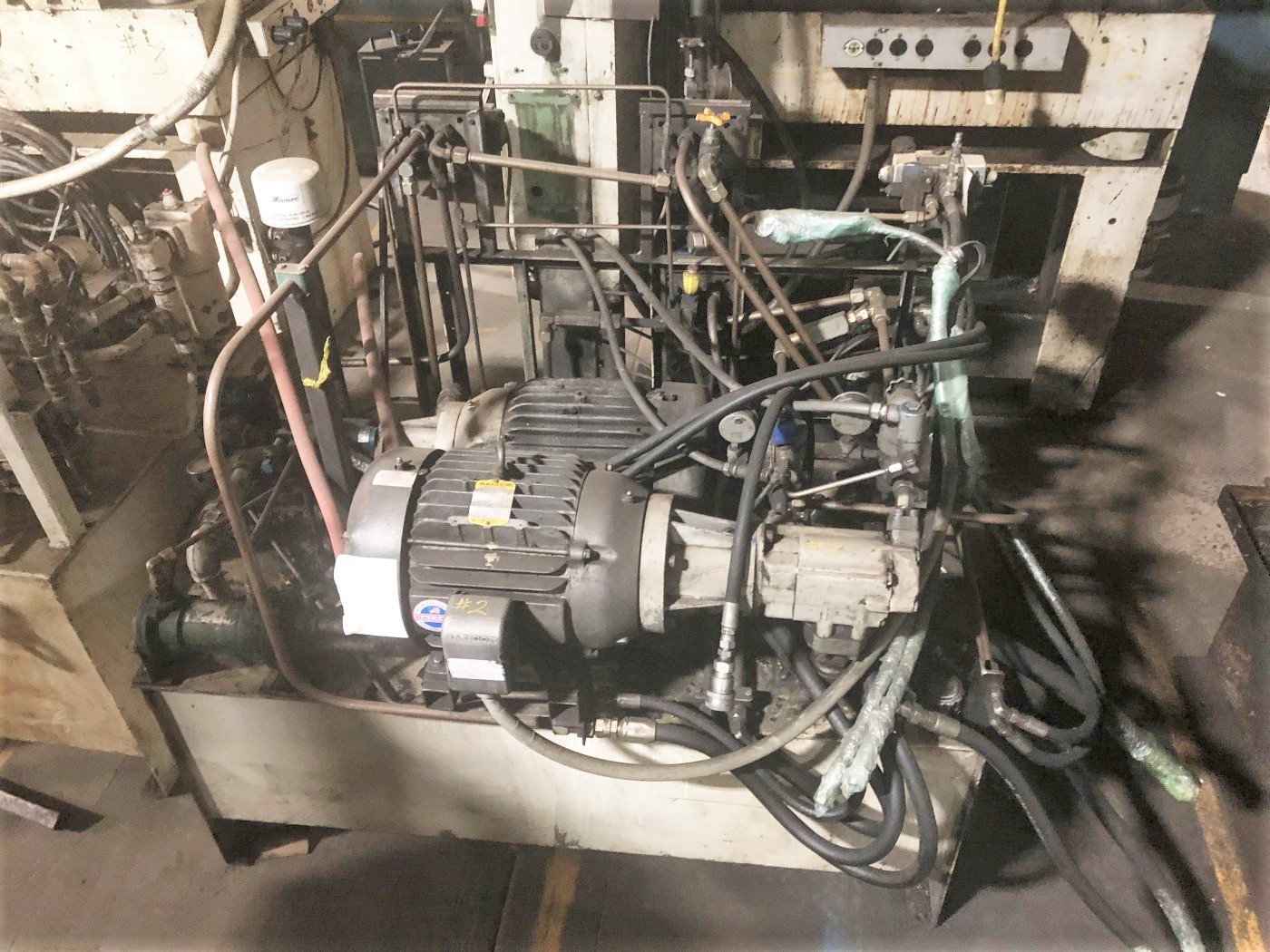

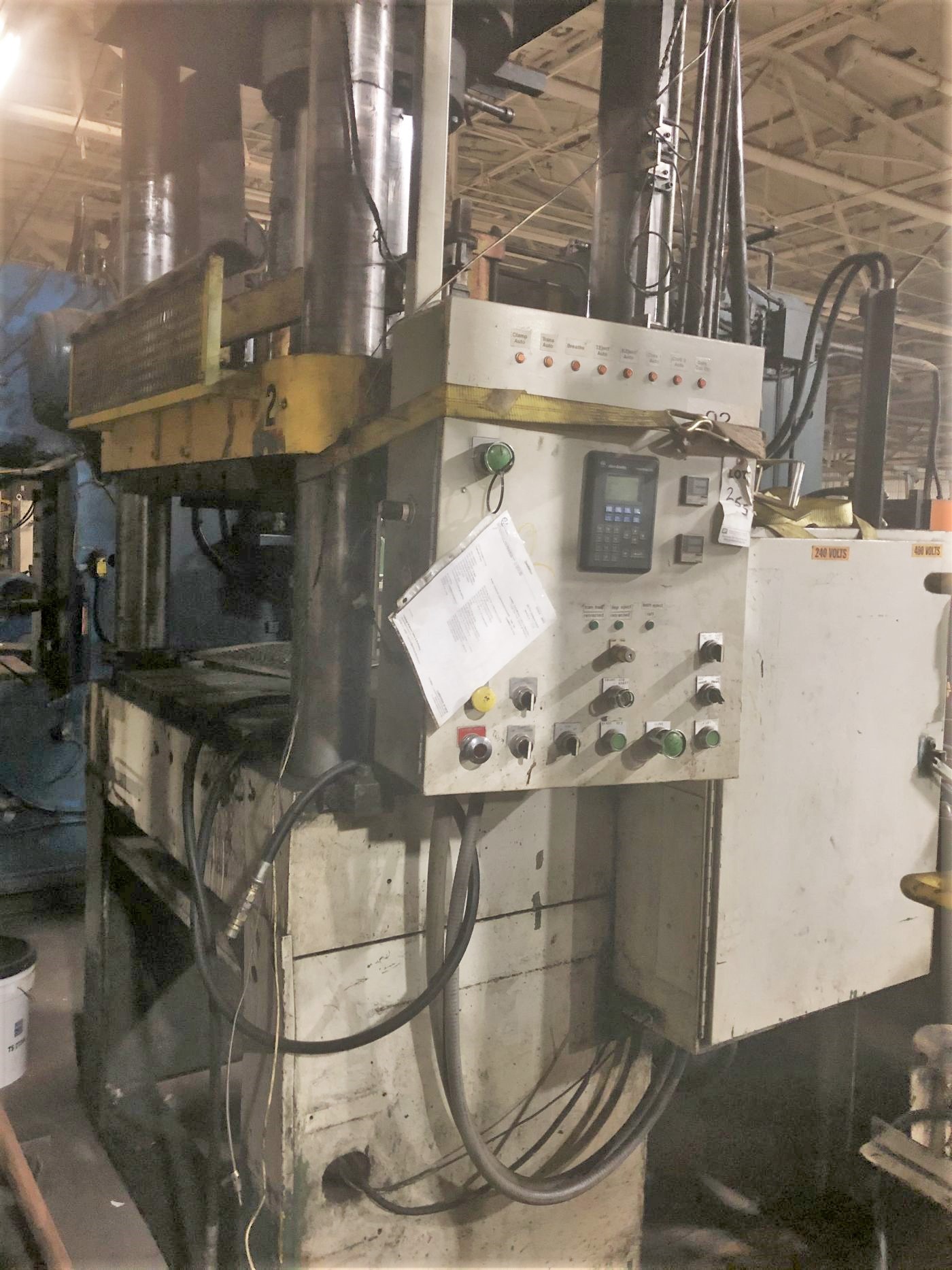

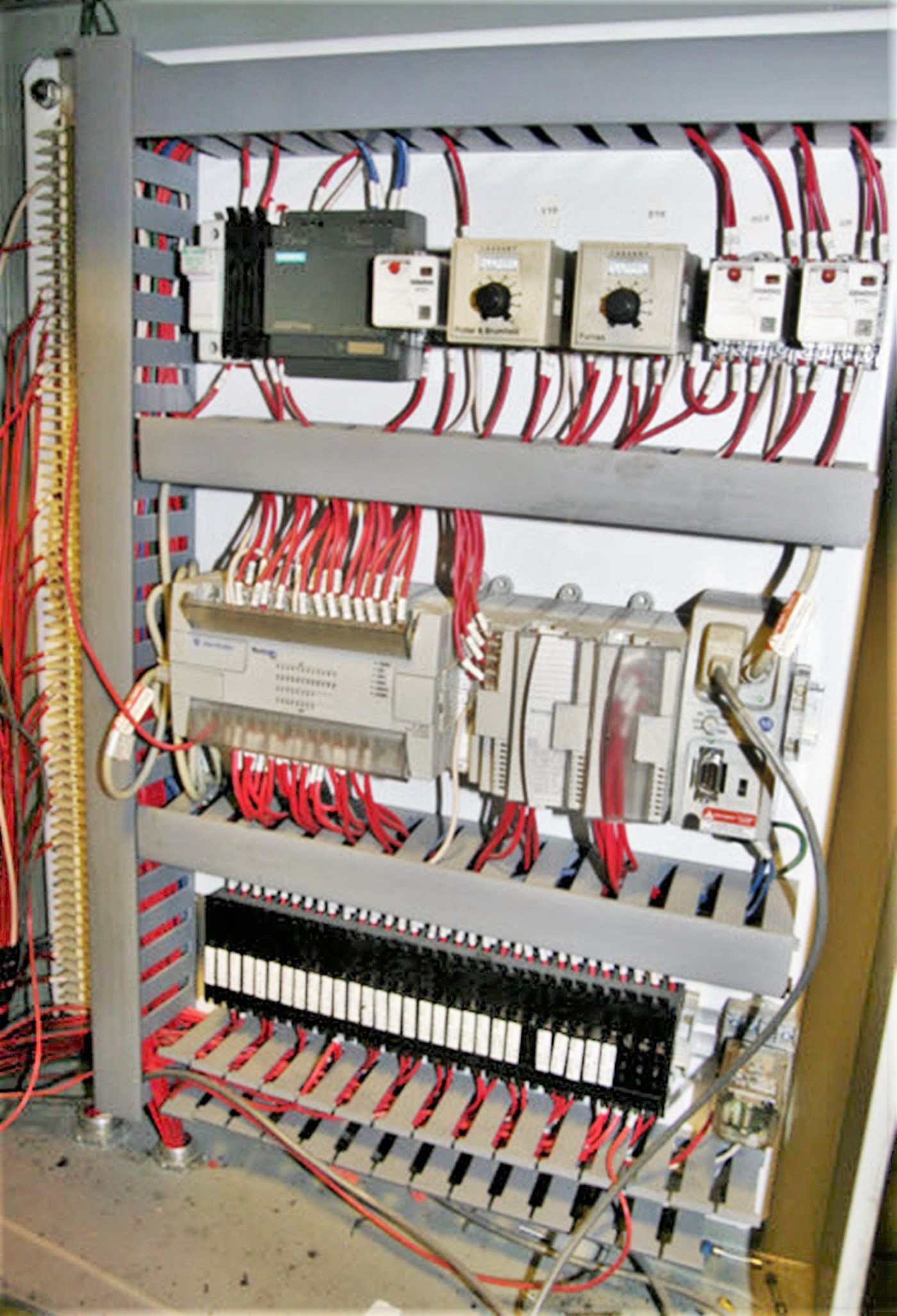

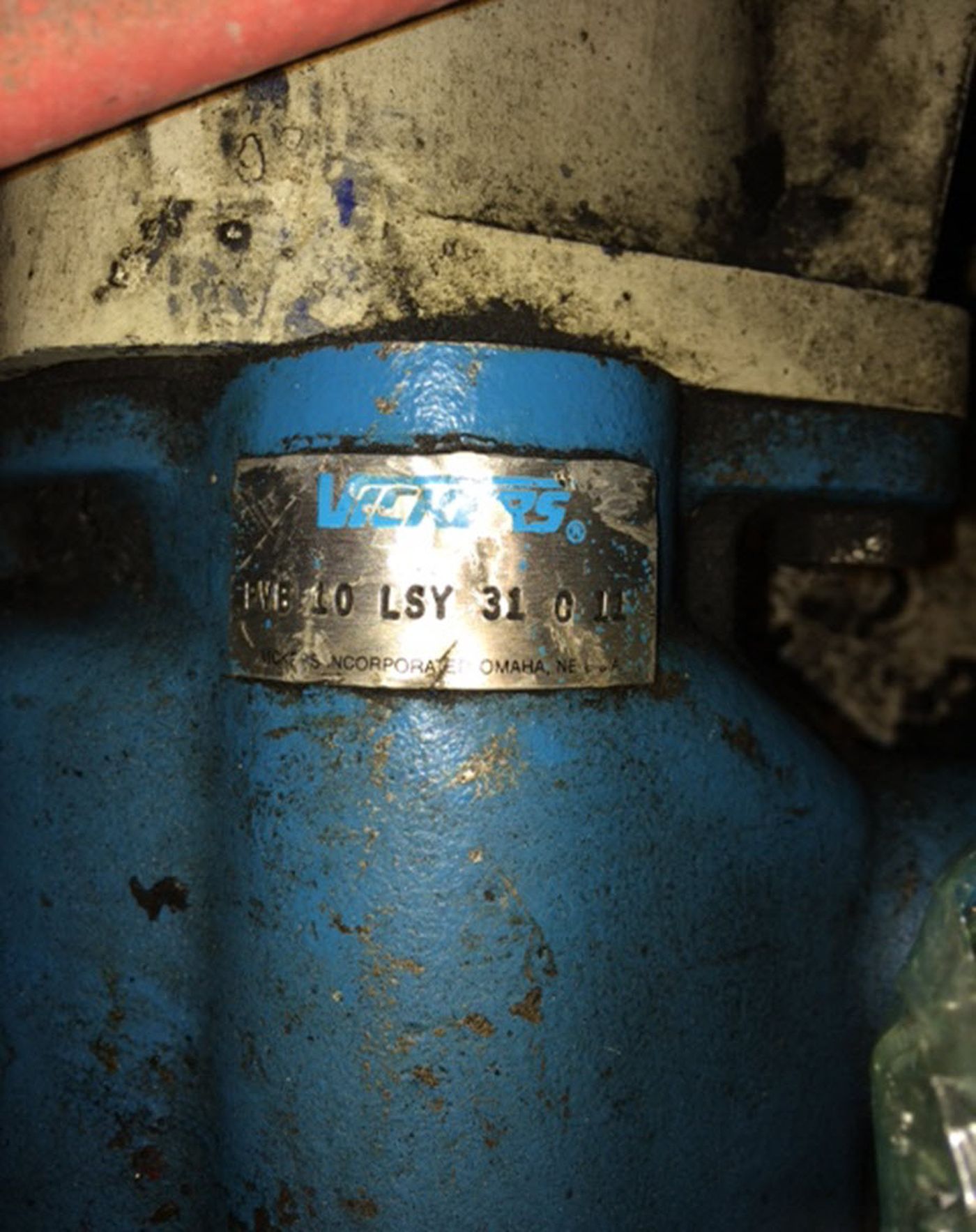

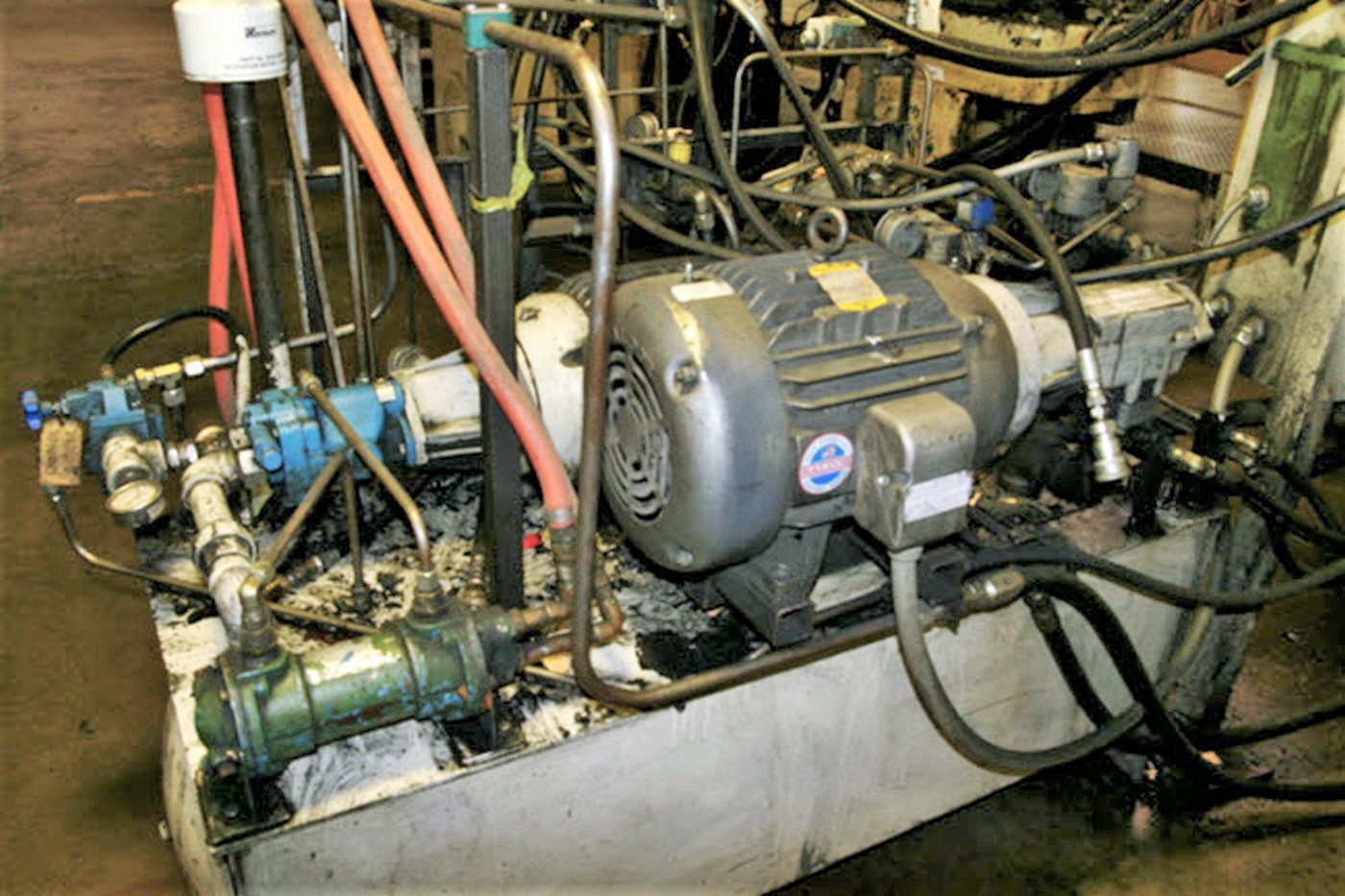

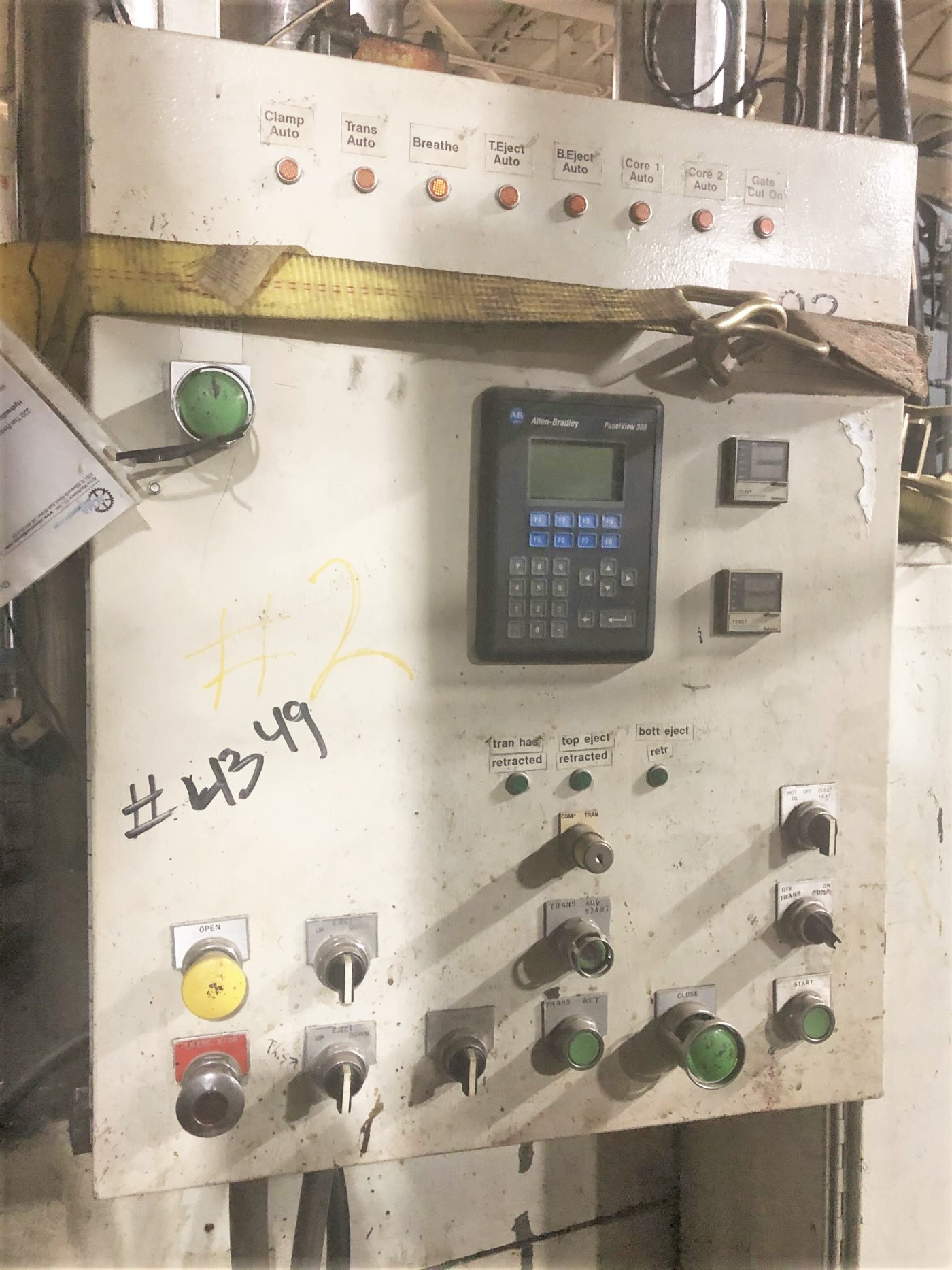

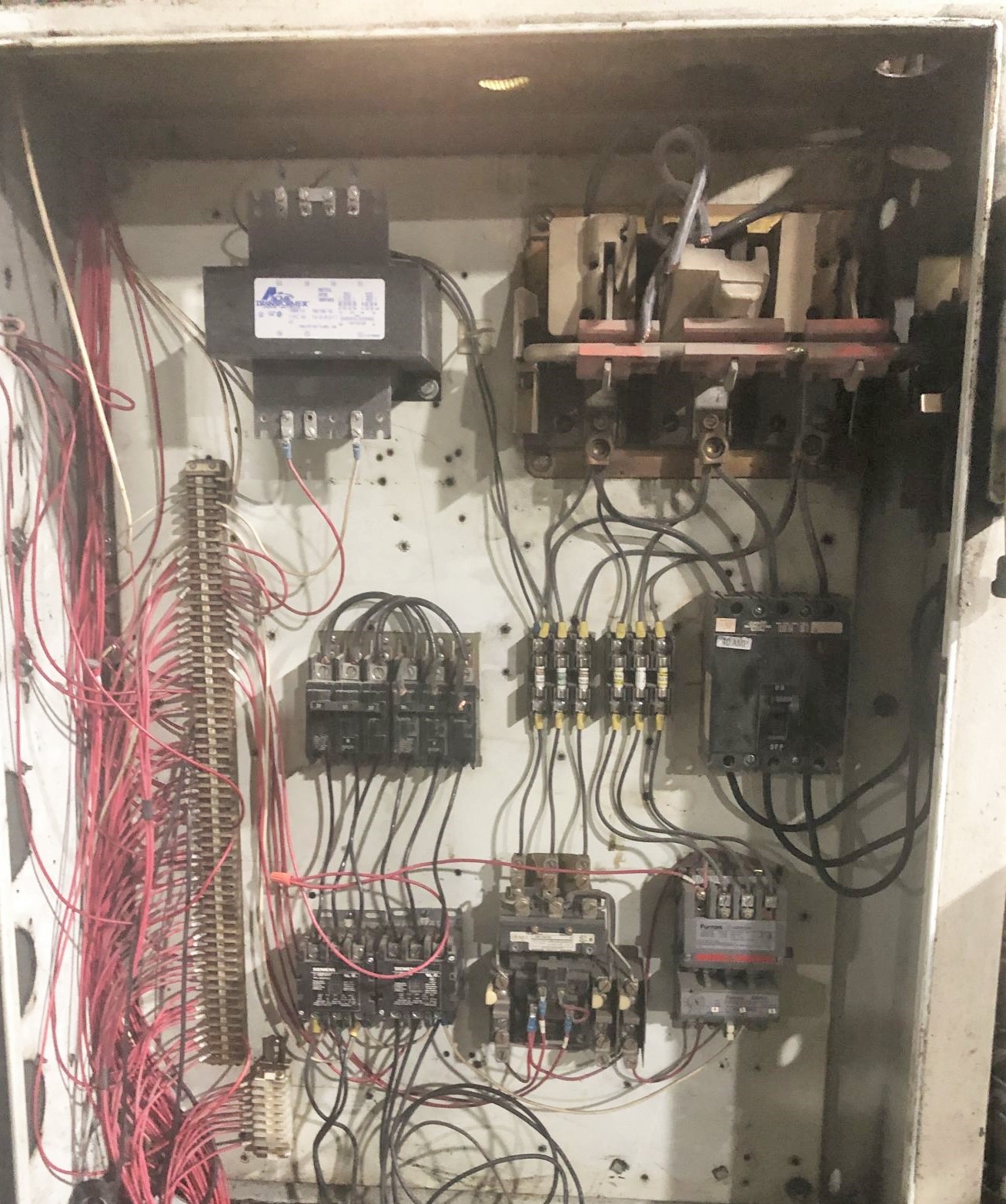

| CAPACITY | 220 TON @ 1700 PSI | MAX. STROKE | APPROX. 18"-24" | MAX. DAYLIGHT TO BED | 48" - (43.5" BETWEEN BOLSTERS) | OVERALL BED & RAM AREA | 58" X 36" (RL X FB) WITH 3-1/2" HOLE IN BED | DISTANCE BETWEEN POSTS | 42" X 21" (RL X FB) | BOLSTER PLATE SIZES | (2) 36" X 35" (RL X FB) X 2.25" THICK | USABLE BED AREA | 42" X 36" (RL X FB) | FLOOR TO BED | 51.5" | POST SIZE | 6" DIA. | CYLINDER SIZE | APPROX. 18" DIA. BORE | HYDRAULICS (FLOOR MOUNTED) | 20 HP, 230/460 V MOTOR-VICKERS PISTON PUMP NO. PVB10LSY31011, 15 GPM | -- | VICKERS DOUBLE VANE PUMP NO. 2520V17AB, 10C12L180 | PRESS CONTROLS | *AB "MICROLOGIX" 1200 PLC CONTROLLER AB PANELVIEW "300" Touch Screen | ELECTRICS | 15 HP, 230/460 V MOTOR | APPROX. DIMENSIONS | 14' HIGH, 7' RL, 6' FB | APPROX. WEIGHT | 40,000 LBS. | Equipped With | FLOOR STANDING, BOTTOM TRANSFER CYLINDER-12" STROKE, TOP & BOTTOM EJECTORS, WITH MOLD HEATERS ON TOP & BOTTOM | Note | 2 IN STOCK (4348) |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Falahee Building |
