Description

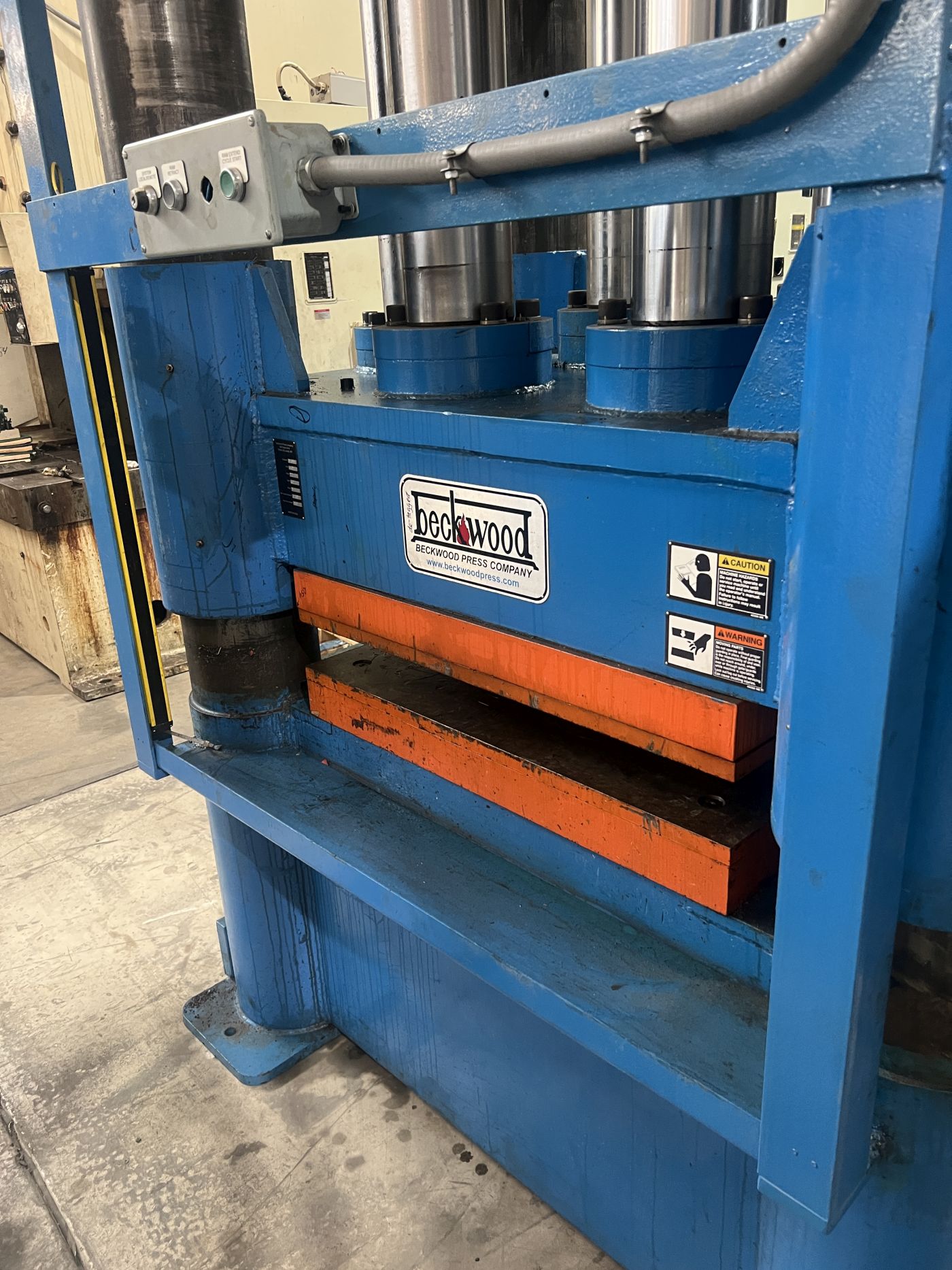

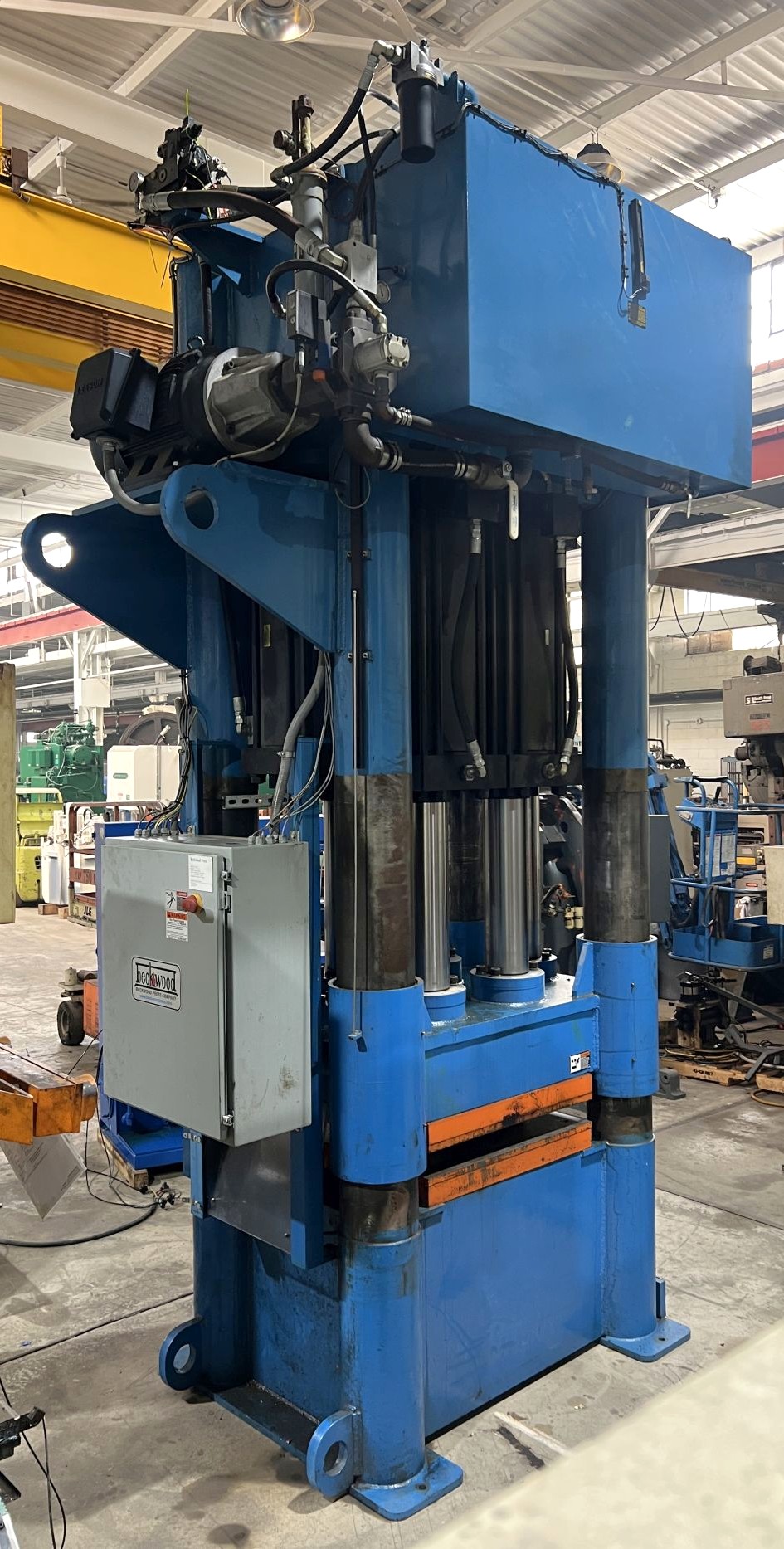

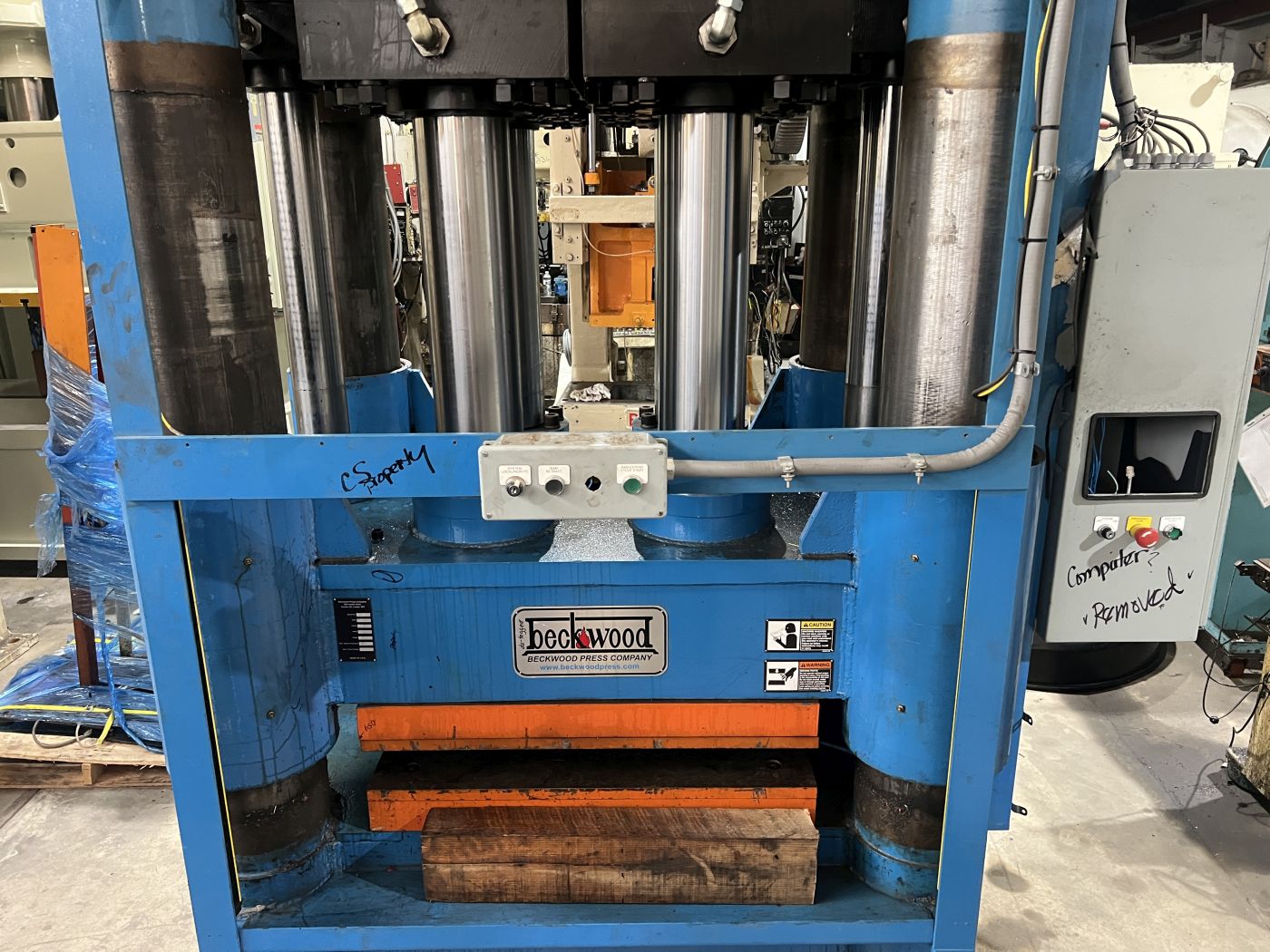

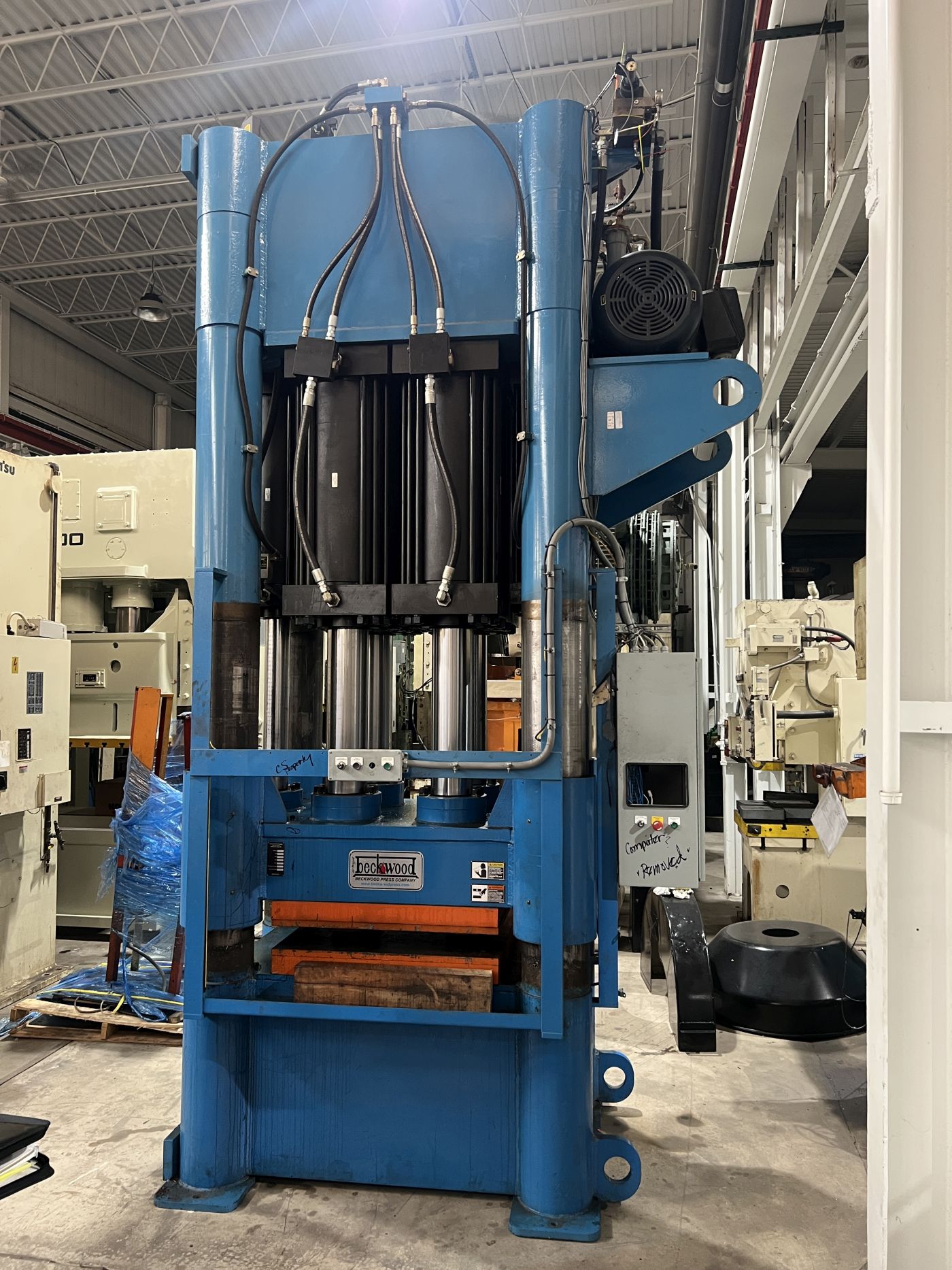

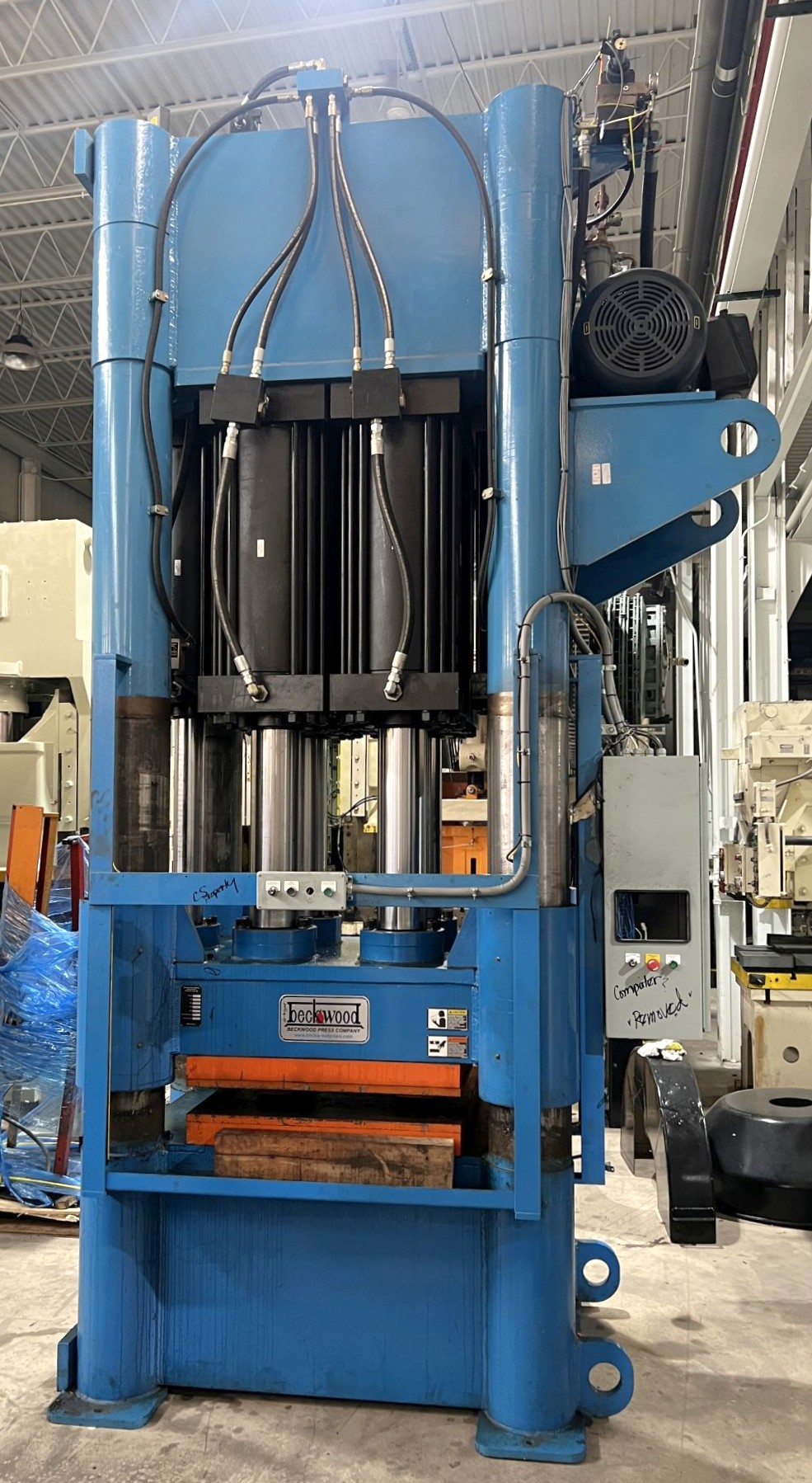

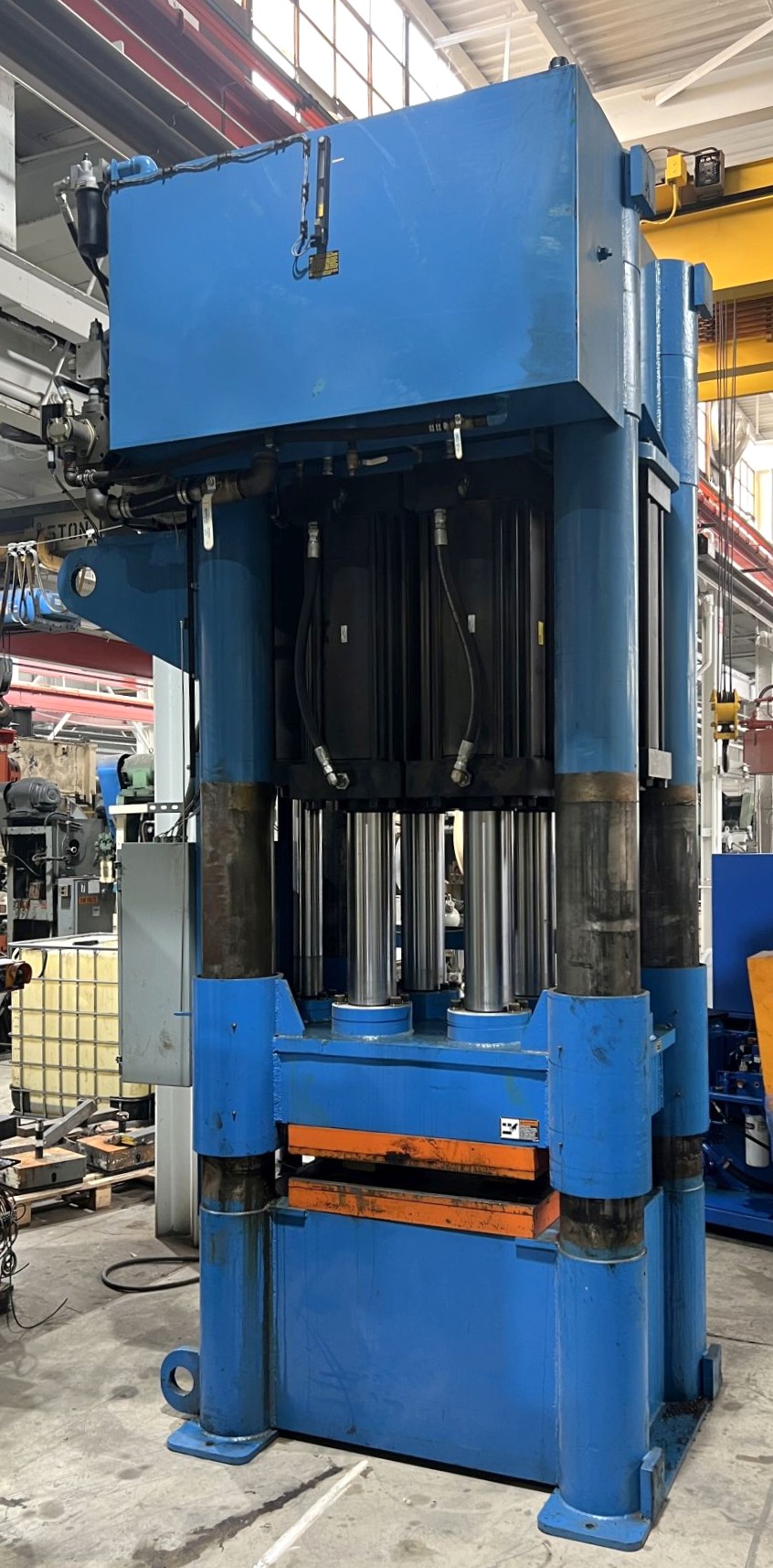

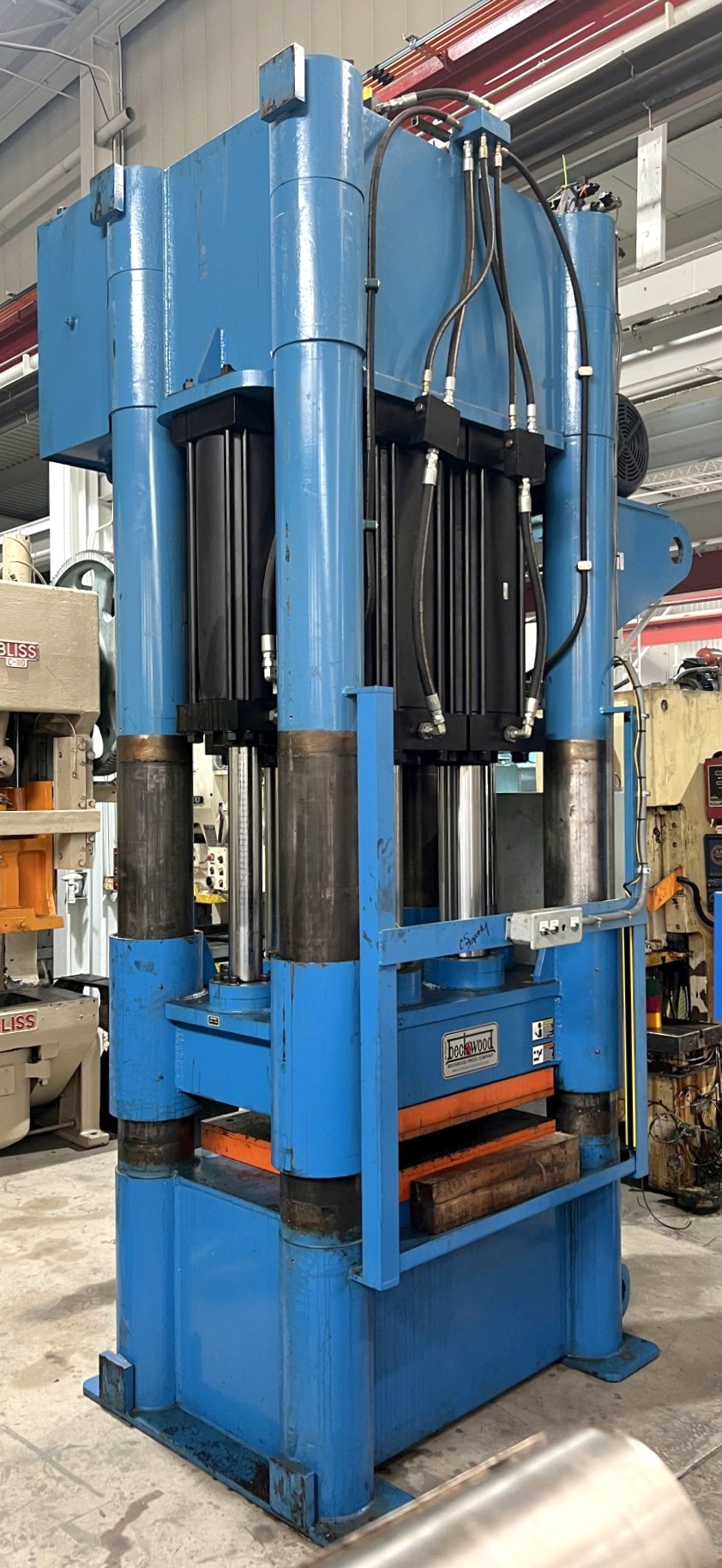

Floor Standing Press • Used 980 Ton Press for Sale
- Manufacturer
- Beckwood›
- Machine #
- 8441
- Condition
- Very Good
- Location
- Jackson, MI Cooper BuildingDirectionsMap
- Year
- 2011
- Model
- Beckwood 4P980F3636
Buy Now: $
| MAX. CAPACITY | 980 TONS AT 3,200 MAX PSI |
|---|---|
| MAX. STROKE | 27" (CYLINDER RATED FOR 28") |
| DAYLIGHT RANGE TO BED | APPROX. 0" TO 27" (NEED TO BE CONFIRMED) |

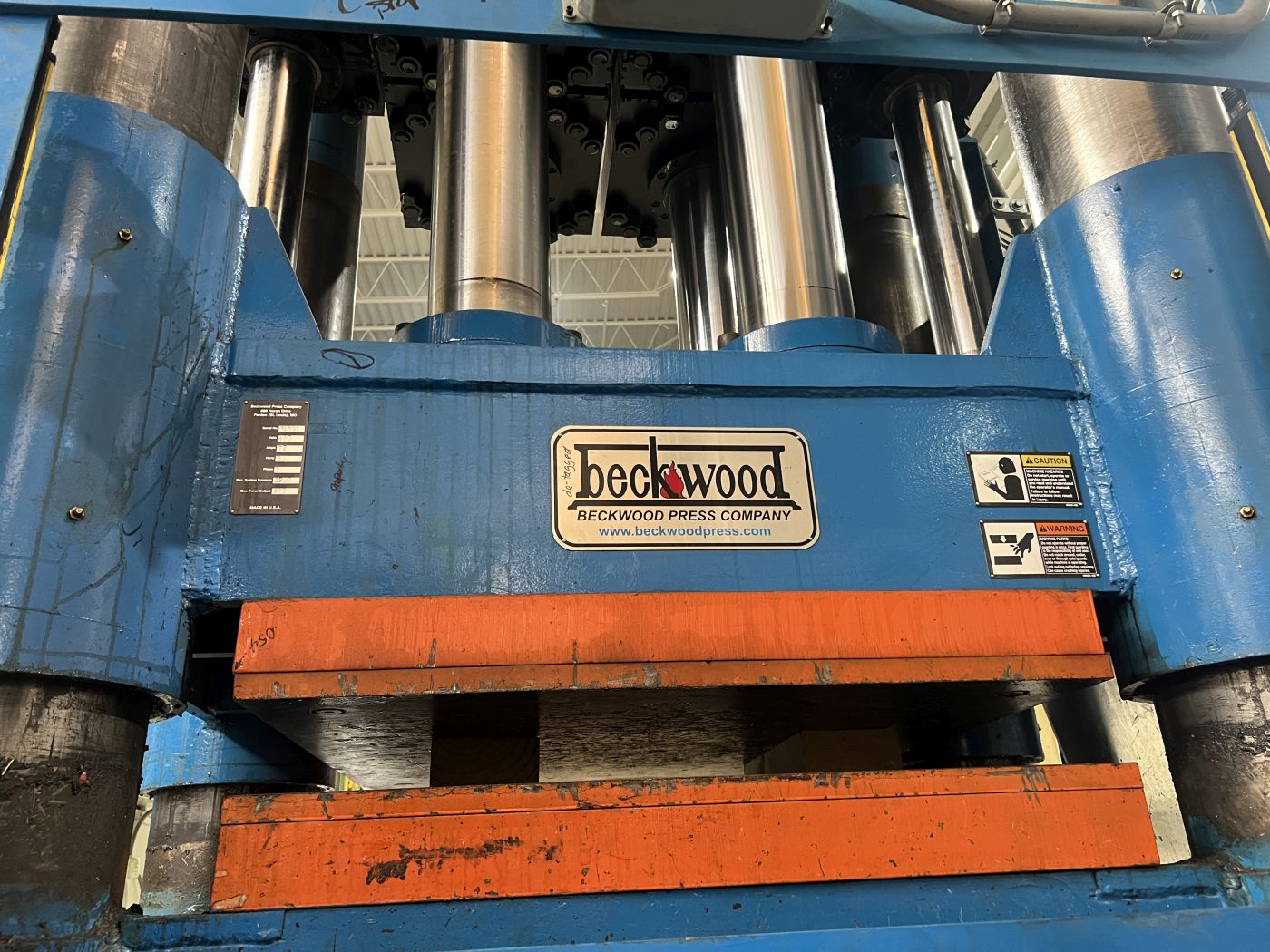

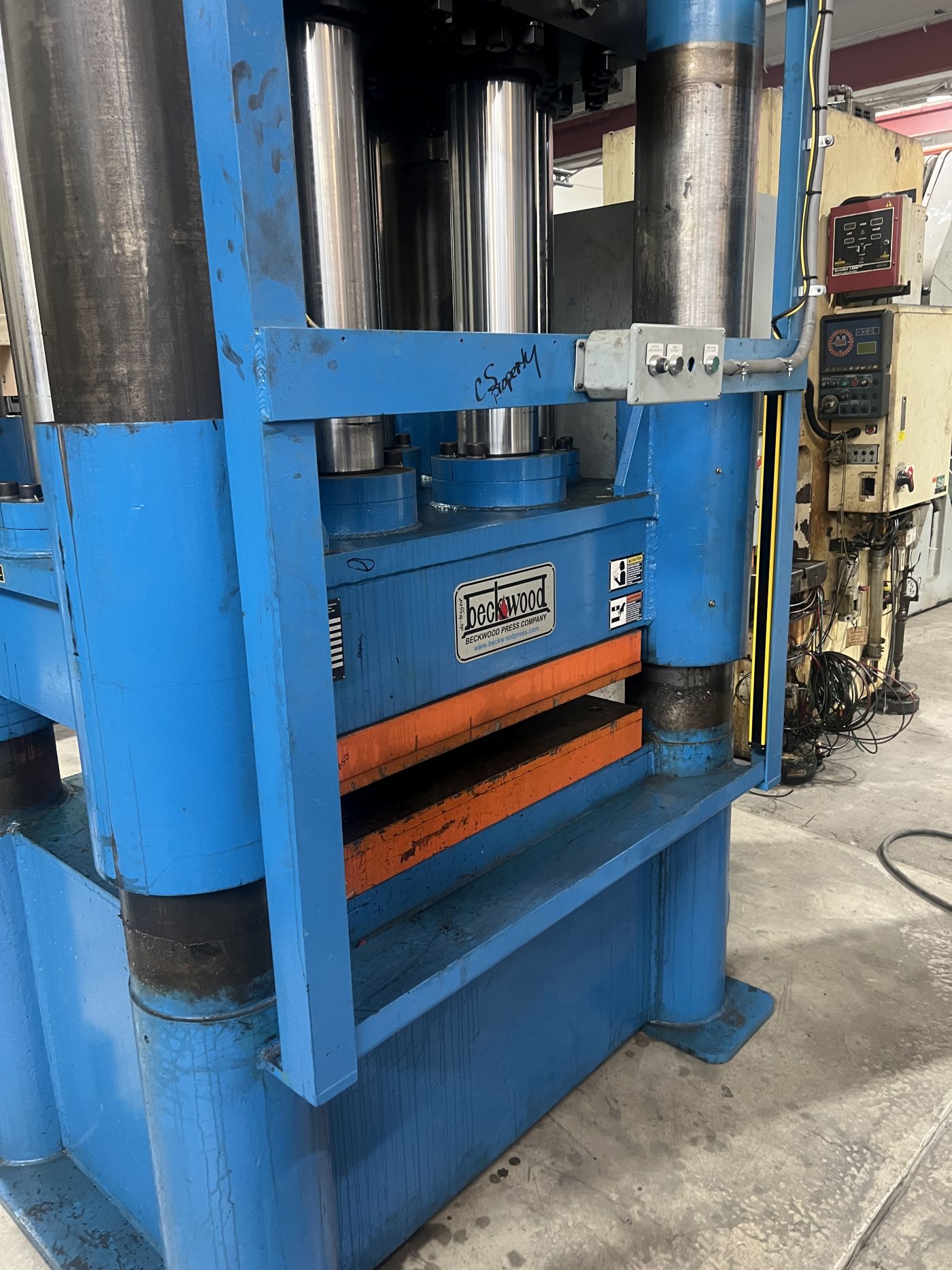

| bed & ram area | 55" X 36.5" (RL X FB) |
| DISTANCE BETWEEN POSTS | 43" X 23" (RL X FB) |
| USABLE BED AREA | 43" X 36.5" (RL X FB) |
| BOLSTER PLATES | 36" X 36" (RL X FB) X 4" THICK |
| RAM SPEEDS | __ |
| FLOOR TO BED HEIGHT | 32" |

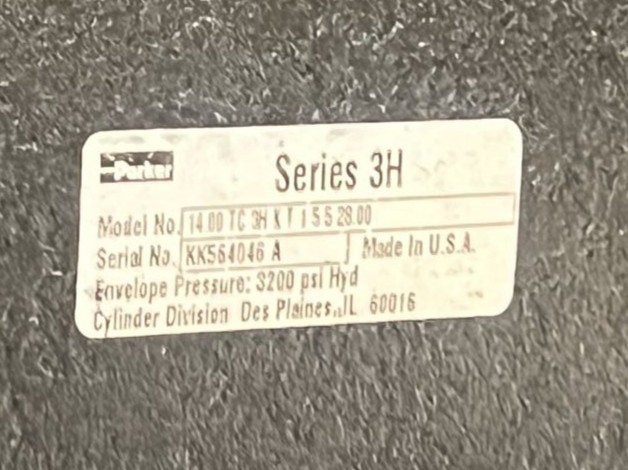

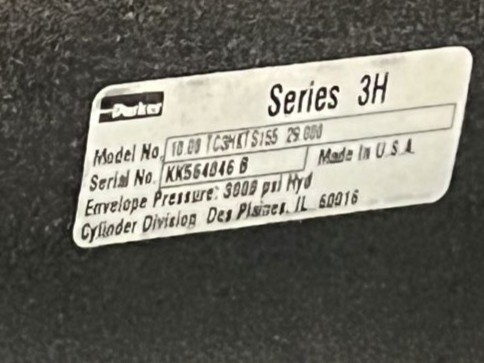

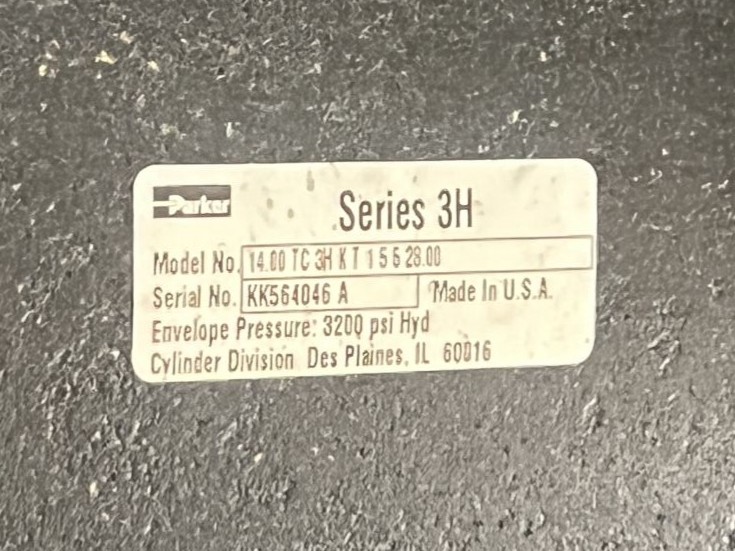

| CYLINDER SIZE | (4) 14" DIA. BORE AND (2) 10" DIA. BORE (LIKELY RETURN CYLINDERS) |
| RAM ROD SIZE | (4) 6.75" DIA AND (2) 4.5" DIA. |
| POST / 4-COLUMN SIZE | 9.5" DIA. |

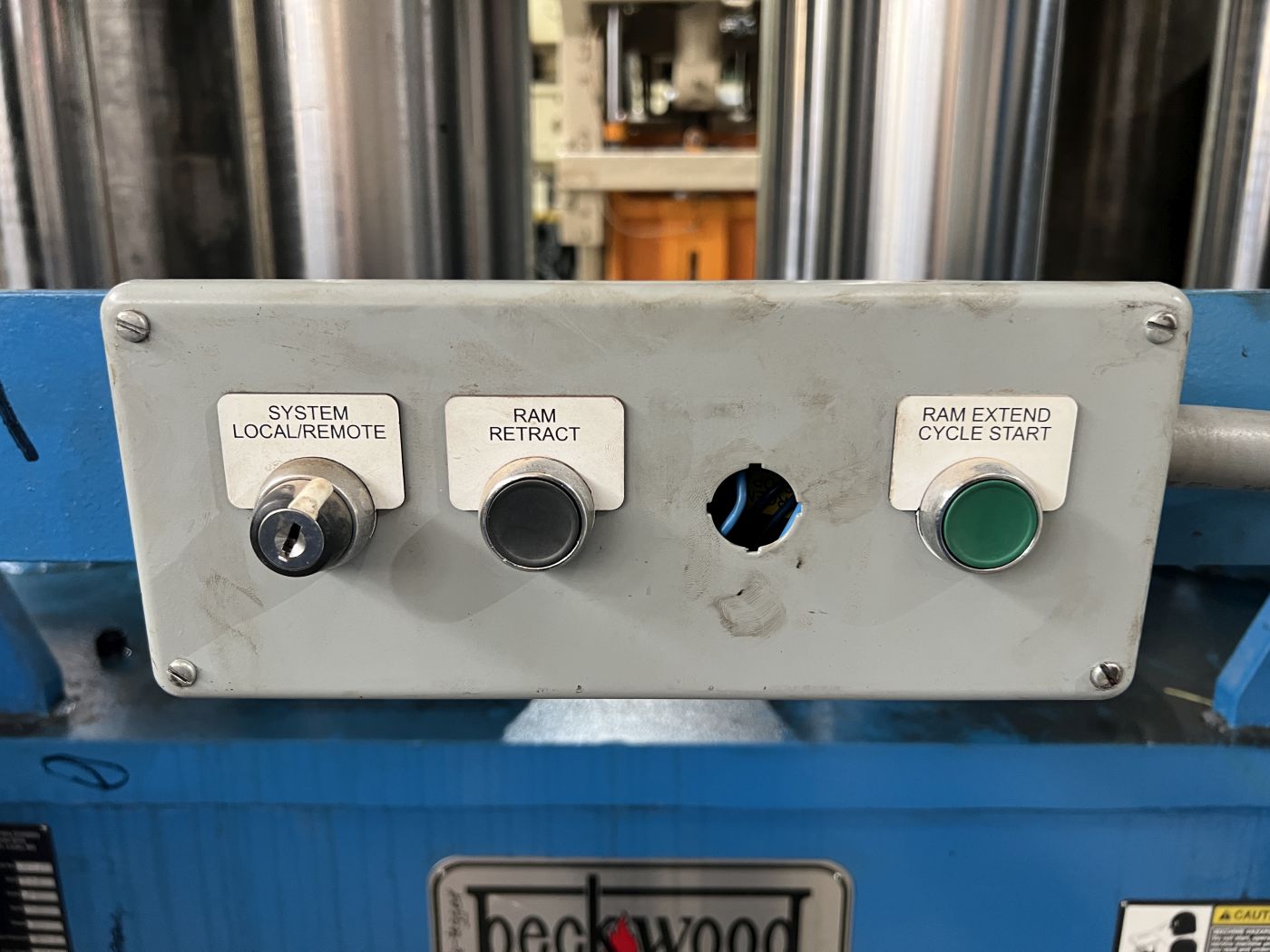

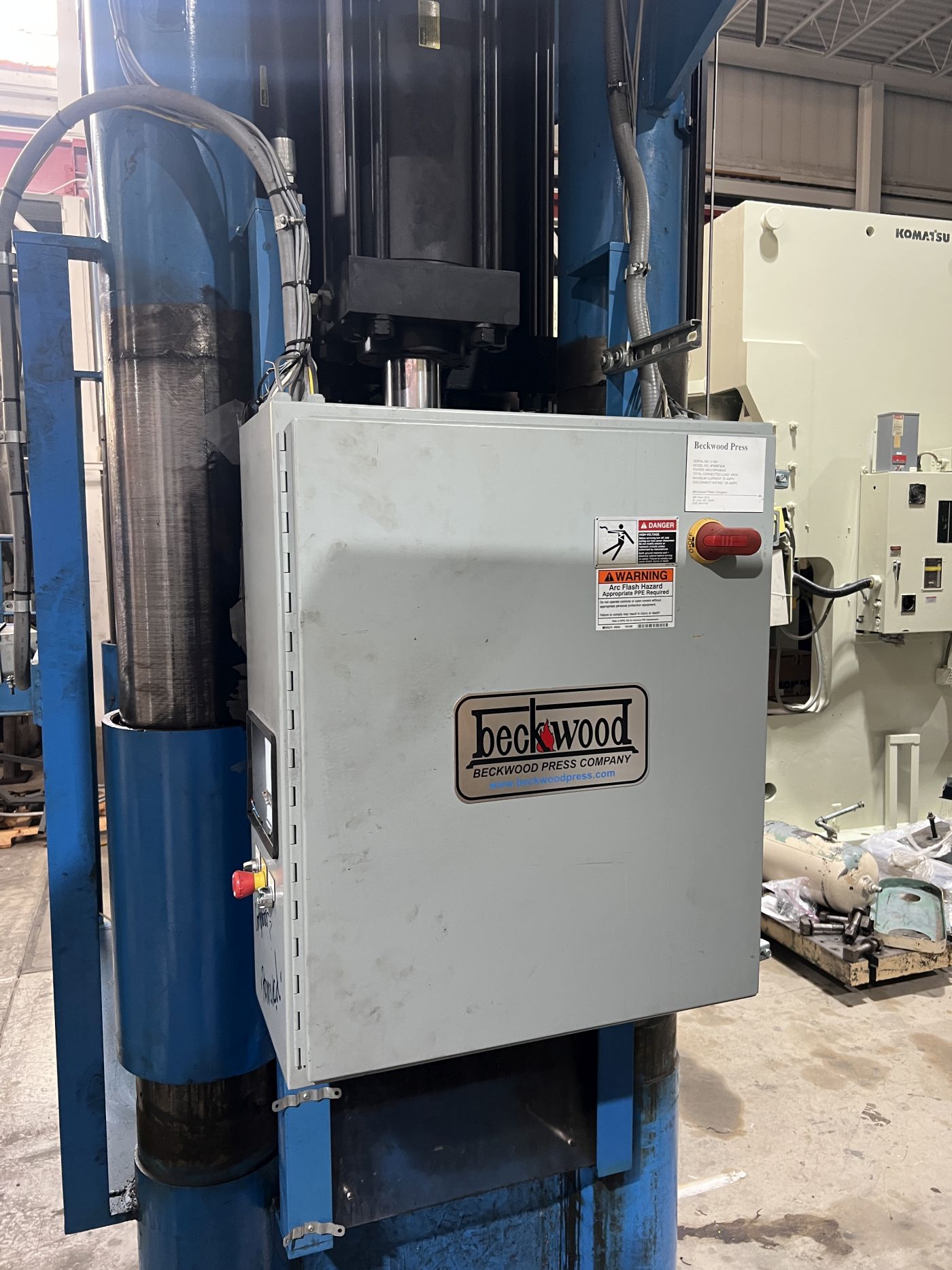

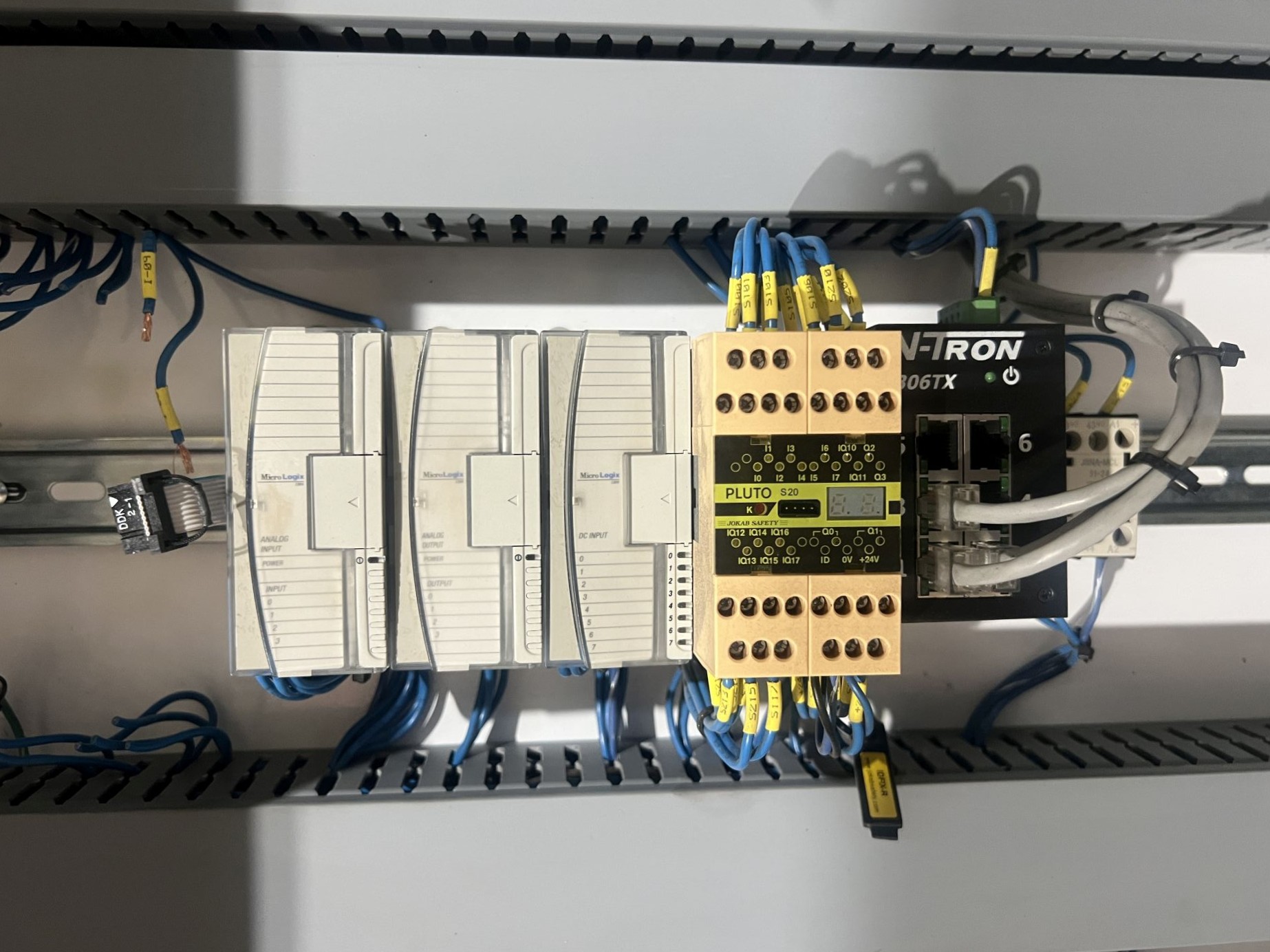

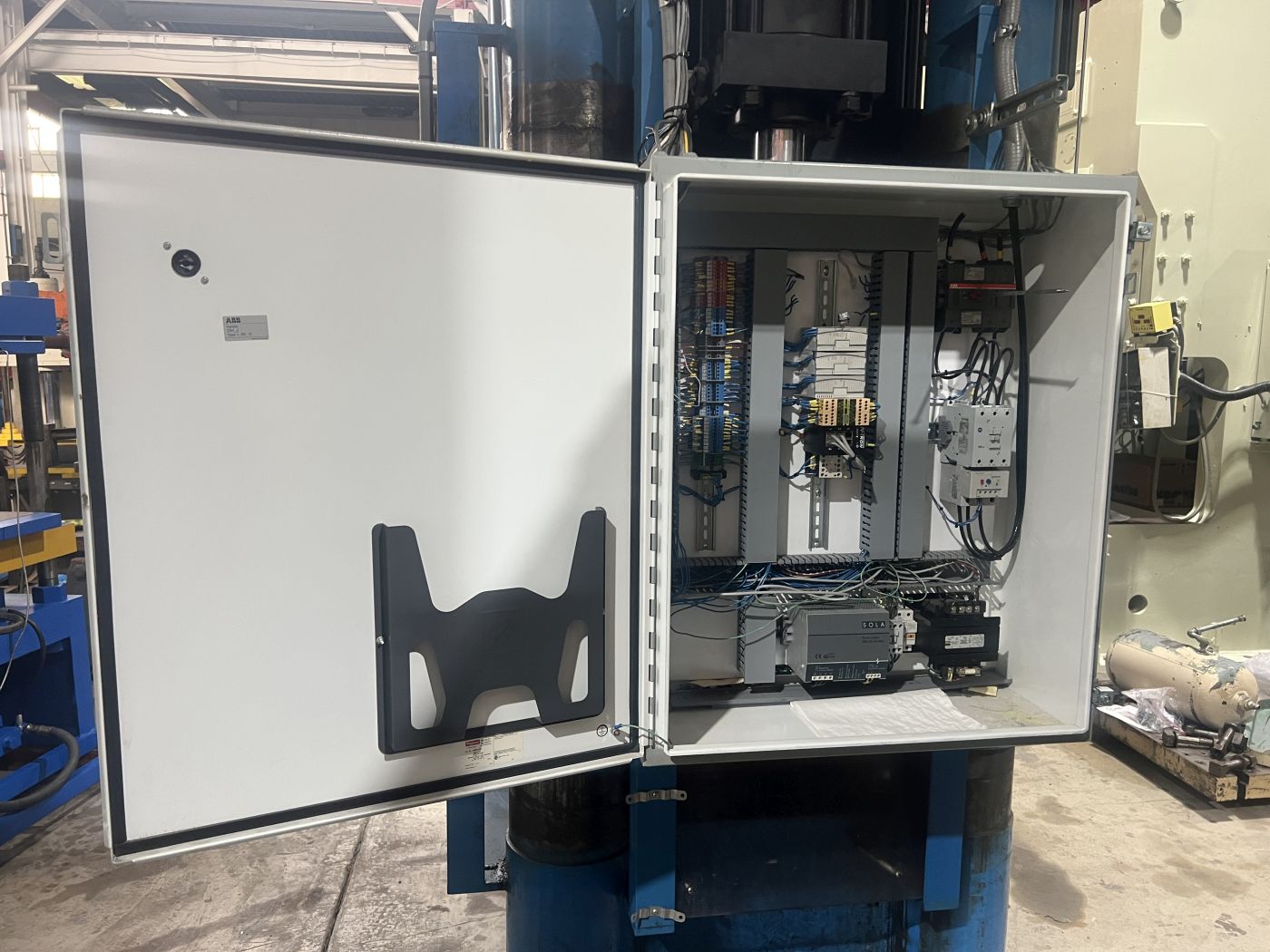

| PRESS CONTROLS | ALLEN-BRADLEY MICROLOGIX CONTROLLERS |
| HYDRAULIC SYSTEM | __ |
| ELECTRIC MOTOR | __ |

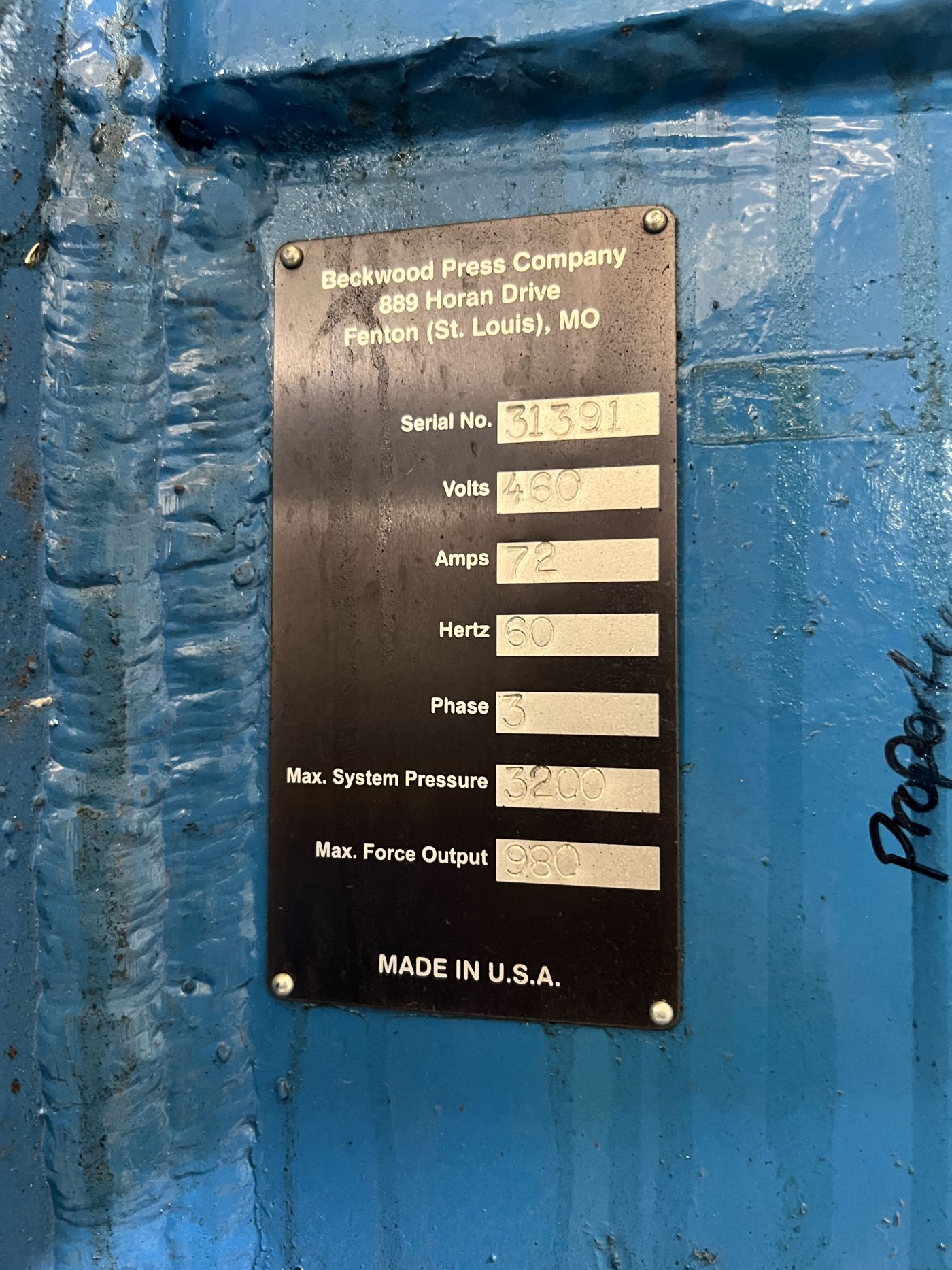

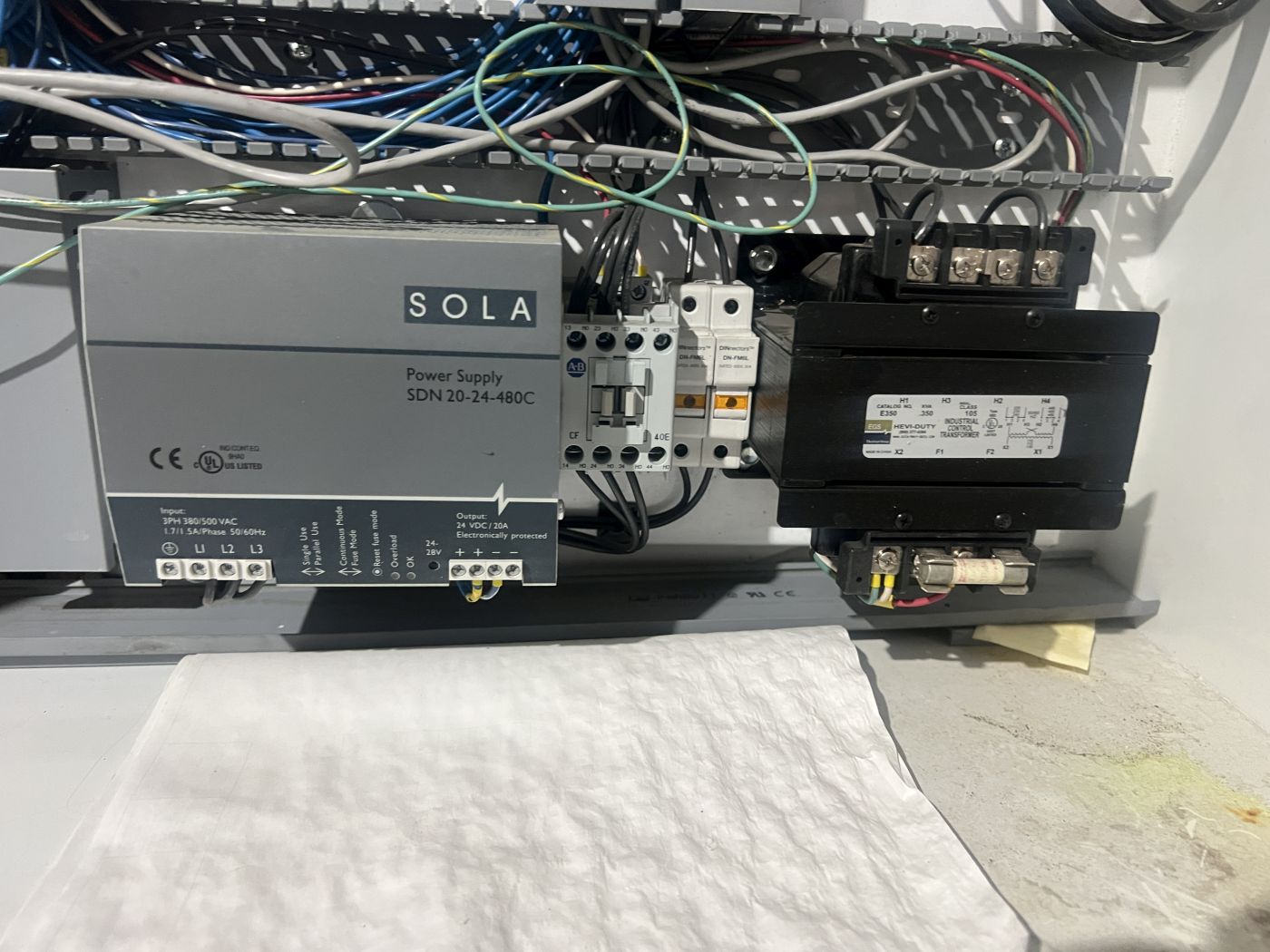

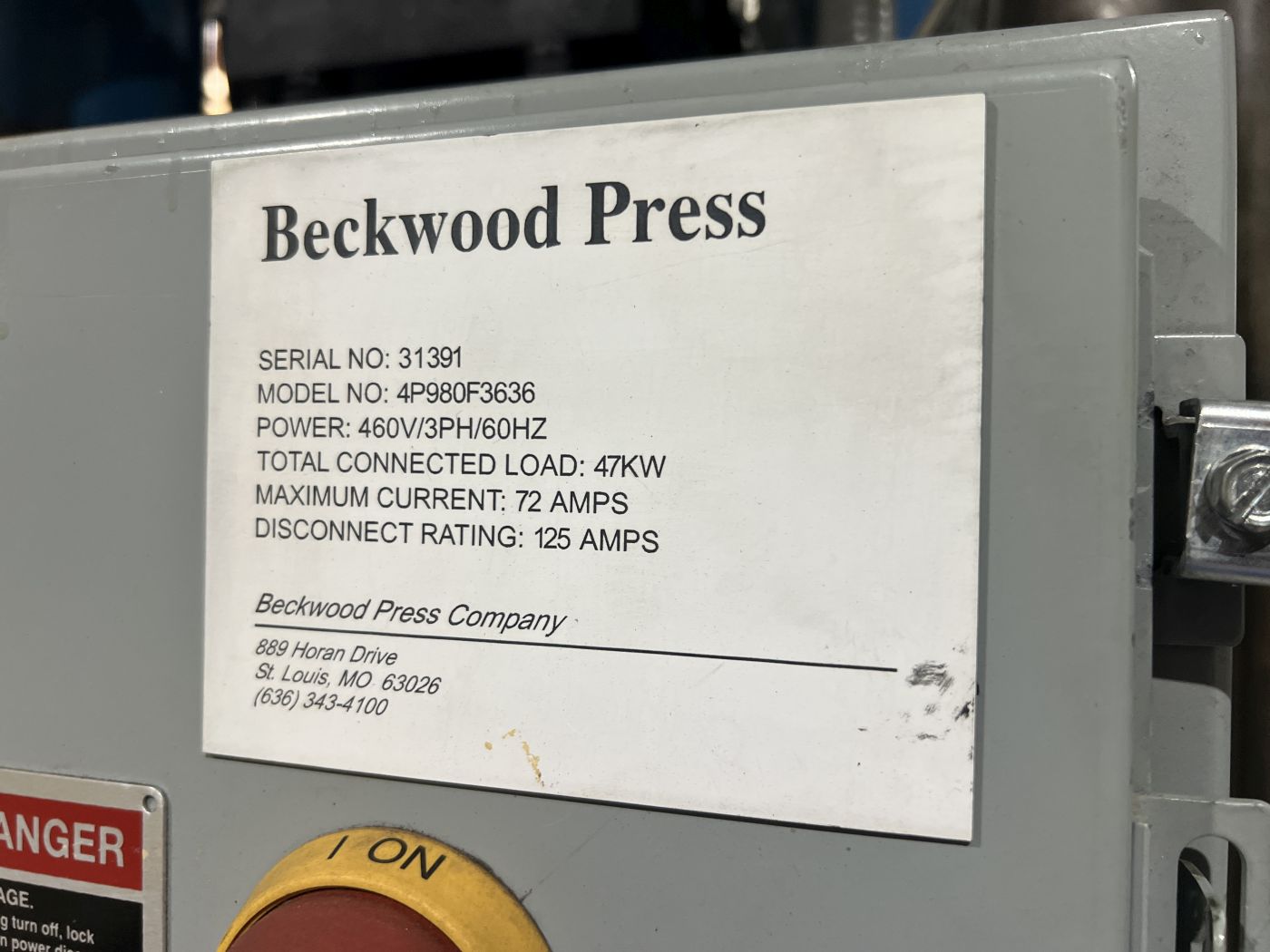

| ELECTRICAL NOTE | 72 FULL LOAD AMPS - WIRED FOR 460V |
| APPROX. DIMENSIONS | 95" X 75" (RL X FB) X 182" HIGH |
| APPROX. WEIGHT | __ |
| Equipped With | __ |
| Note | __ |
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
