300 Ton Niagara Press • Used Niagara BP2-300-72-48 Press

300

300
Ton
72″
Bed R-L
5″
Stroke
Speed: 55-110 SPM
New in 1

1
300 Ton Used Press – Straight Side Press
Model: Niagara BP2-300-72-48
5″ STR, 72X48 BED, 23″ SH, 55-110 SPM, 6″ ADJ,

Straight Side Double Crank Press for Sale
Used Niagara Stamping Press (Mechanical)
Machine #6011
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Niagara
Model: Niagara BP2-300-72-48 Press
Condition: In Process
Location: Columbia, TN Warehouse
Year: Year Unknown
Machine #: 6011
Buy Now: $





CAPACITY 300 tONS @ 1/2″ OFF BOTTOM
STROKE 5″
MAX SHUT HEIGHT TO BED 23″ (SDAU)
BED AREA 72″ RL X 48″ FB
SPEED 55 – 110 SPM
RAM ADJUSTMENT 6″ (MOTORIZED)
RAM AREA 72″ RL X 48″ FB (T-SLOTTED) – JUST “REBUILT”
BOLSTER PLATE 6.5″ H X 72″ RL X 48″ FB
DISTANCE BETWEEN UPRIGHTS 79″
DISTANCE BETWEEN OIL CATCHERS 73″
FLOOR TO BED 34″
WINDOWS 37″ W X 21″ H
CLUTCH NIAGARA AIR CLUTCH & BRAKE
ELECTRICS 40 HP 1750 RPM 480V-3-60 MOTOR W/VFD & RESISTOR BANK. Updating the press control..
APPROX DIMENSIONS 15′ 8″ H (WITH TANK) X 13′ RL X 113″ FB
APPROX WEIGHT 99,000 LBS
Equipped With DUAL AIR COUNTERBALANCED RAM, RECIRCULATING OIL SYSTEM, FLOOR STANDING, TIE ROD FRAME CONSTRUCTION

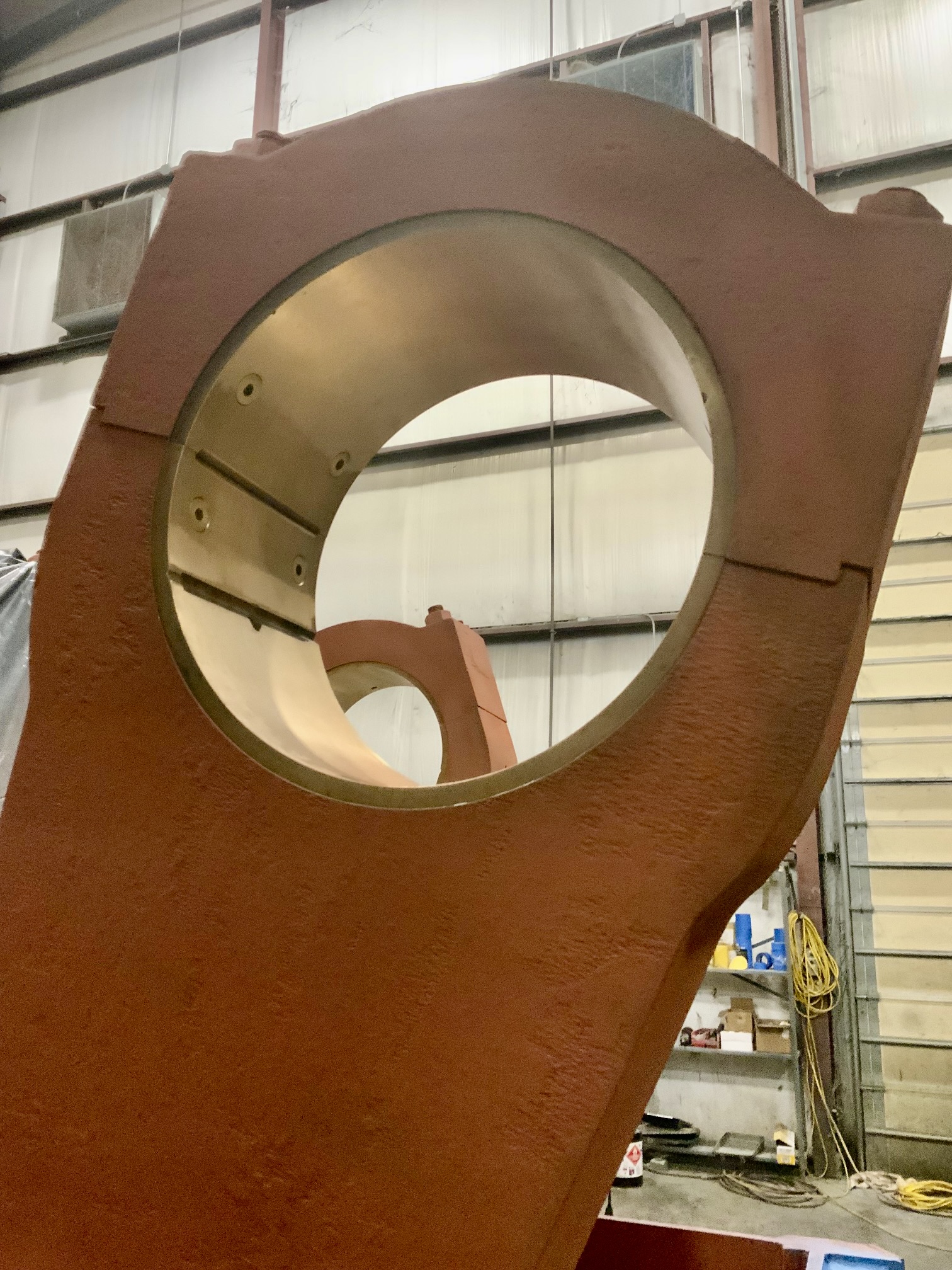

Note ***** RAM just recently rebuilt *****
Location This used press is located in our Columbia, TN Warehouse
