Description

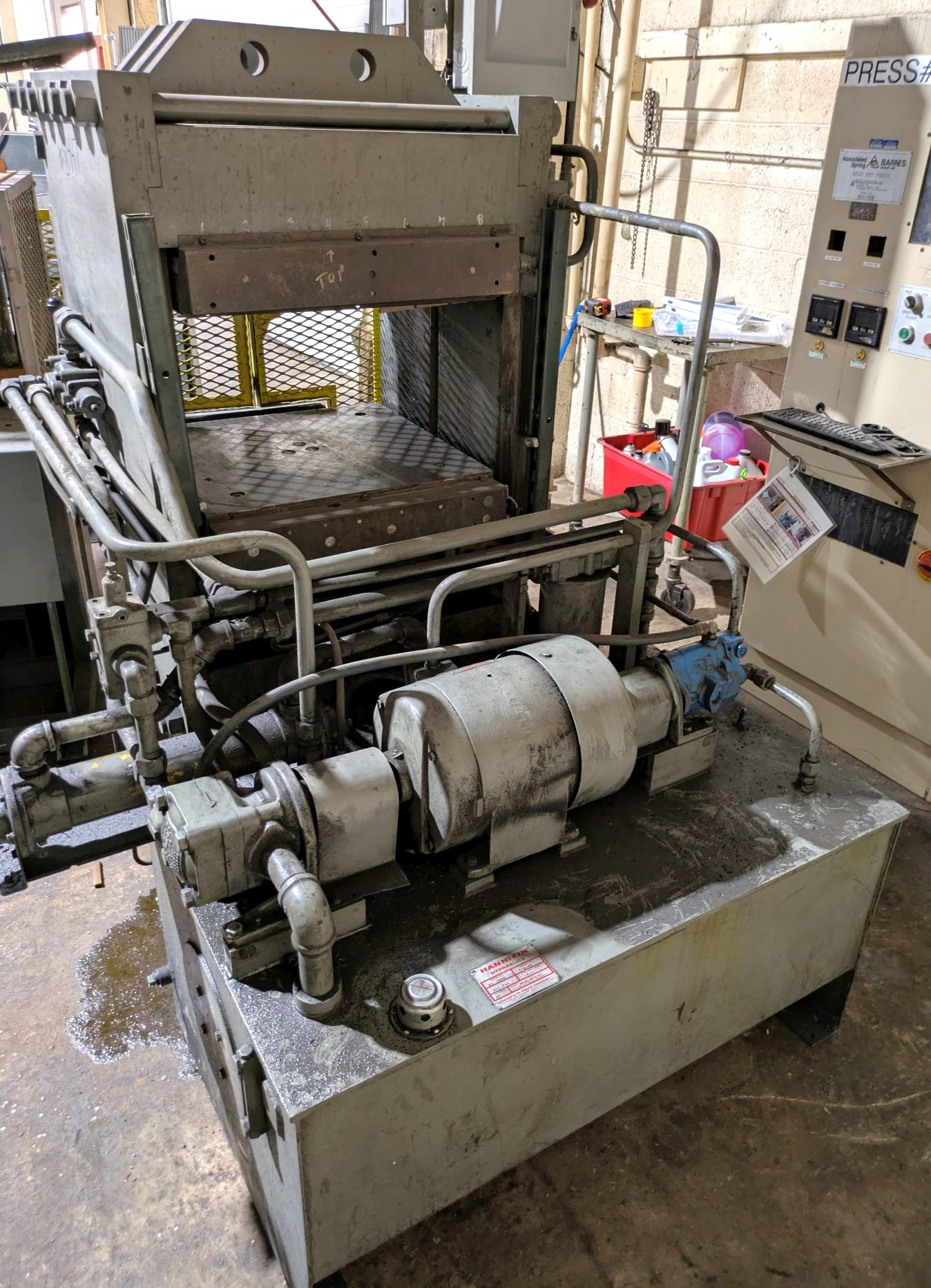

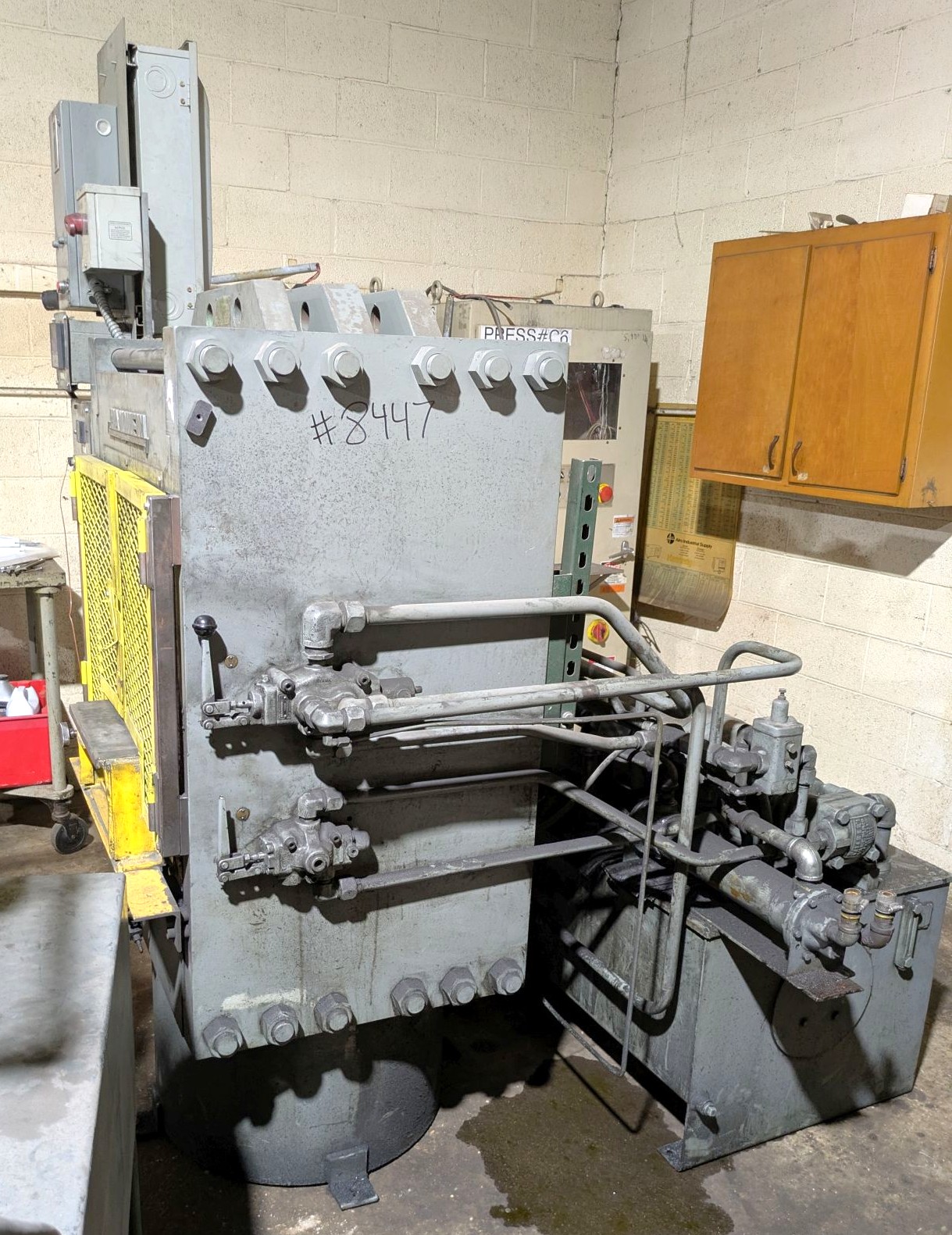

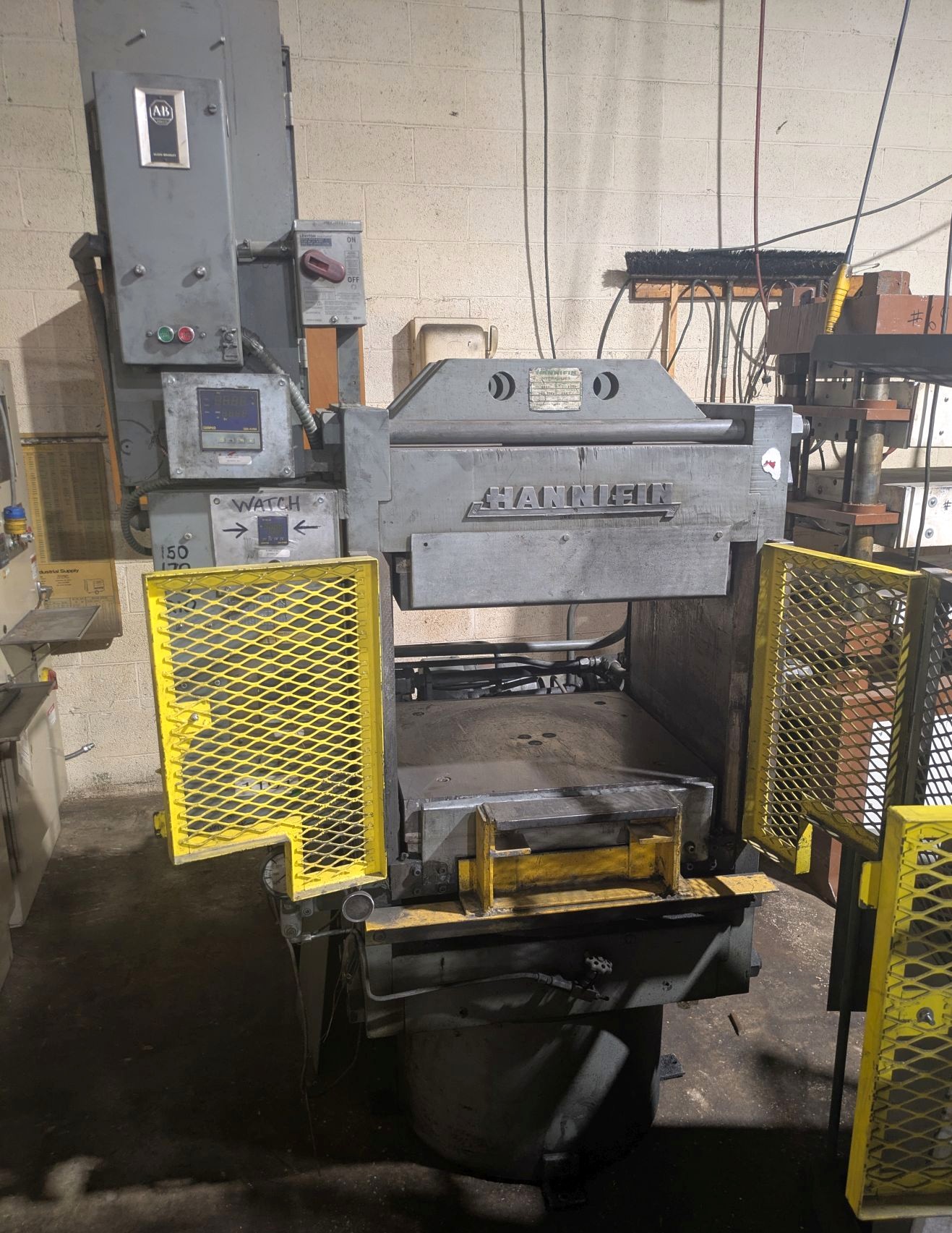

Molding Press • Used 300 Ton Press for Sale
- Machine #
- 8447
- Condition
- Very Good
- Location
- Jackson, MI Cooper Building
- Year
- Year Unknown
- Model

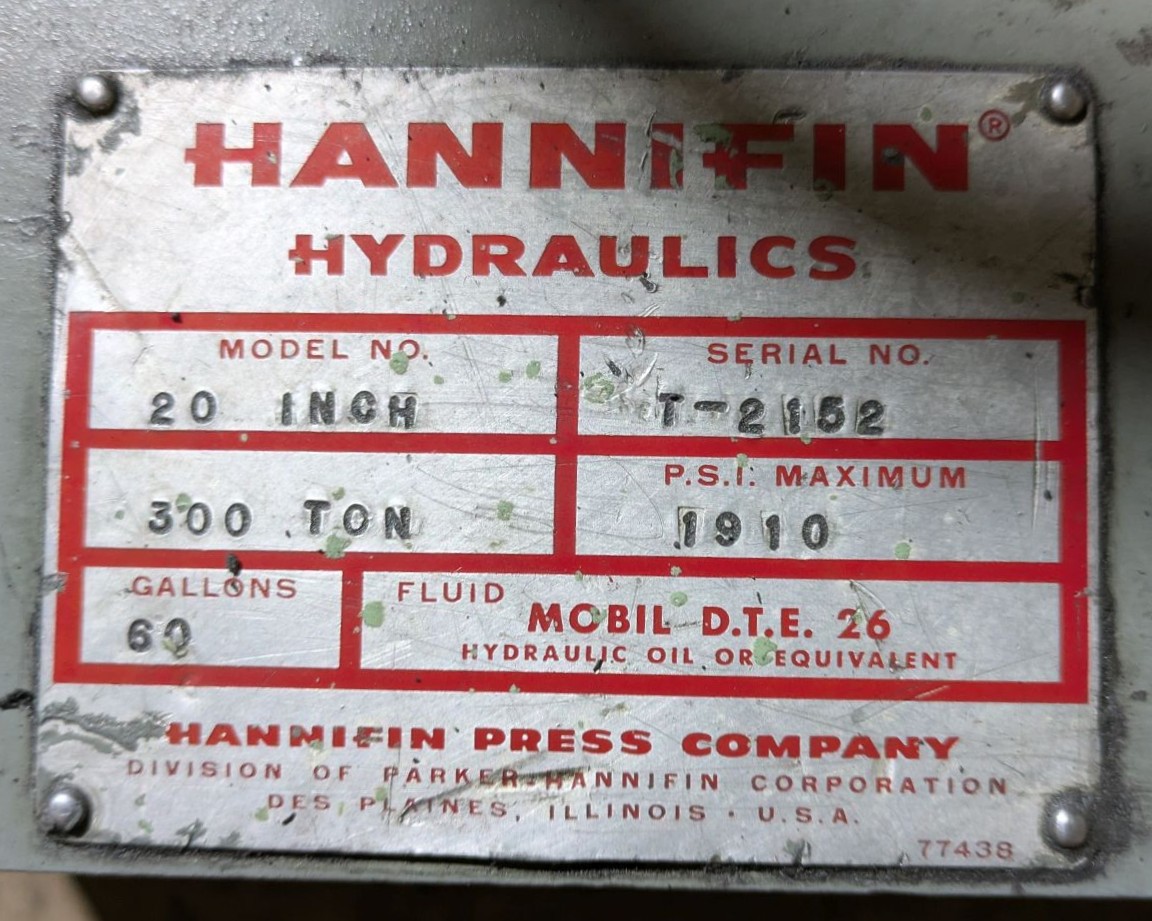

- Hannifin 20 INCH
Buy Now: $
| MAX. CAPACITY | 300 Tons AT 1,910 PSI |
|---|---|
| MAX. STROKE | Approx 16" (To be verified) |
| MAX. DAYLIGHT | 22" (15" w/ Platens) |

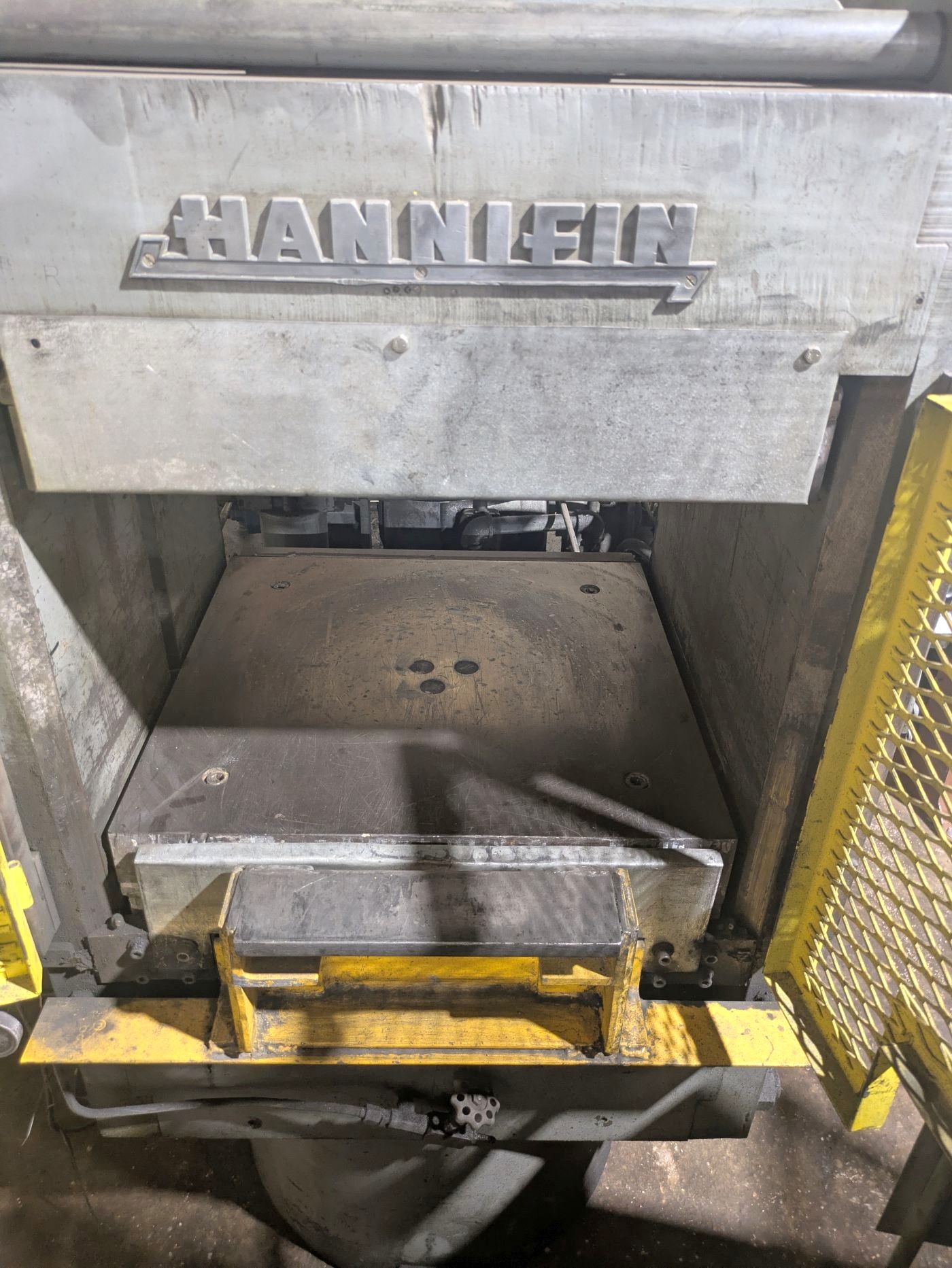

| OVERALL BED & RAM AREA | 24" x 24" (RL x FB) |

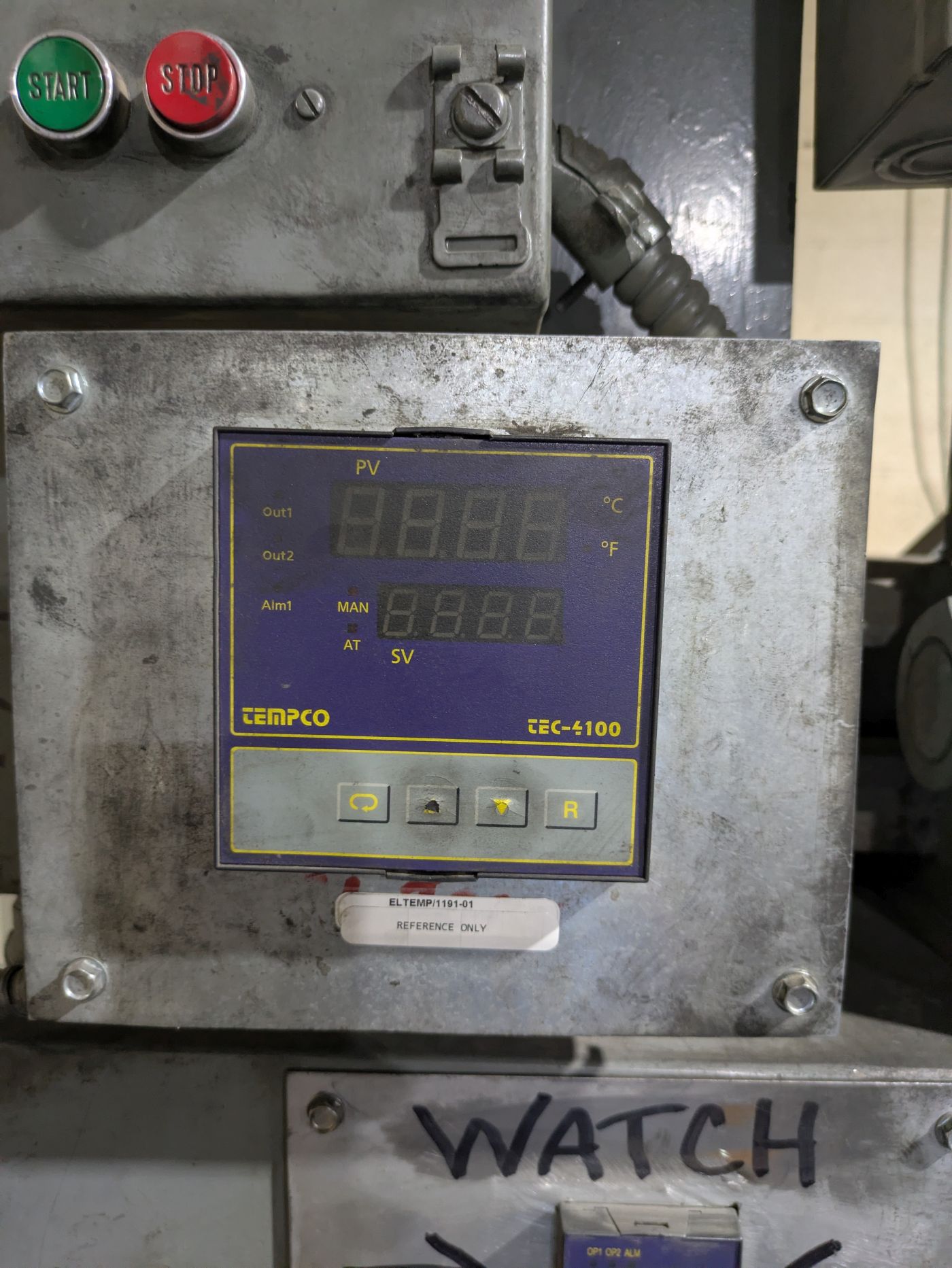

| ELECTRICAL HEATED PLATENS | 24" X 24" (RL X F) X 3" THICK With .5" Thick Insulation |
| SPEEDS | __ |
| CYLINDER SIZE | Approx. 20" DIA. PISTON |
| FLOOR TO BED HEIGHT | 33" |
| PRESS CONTROLS | valves manually controlled |

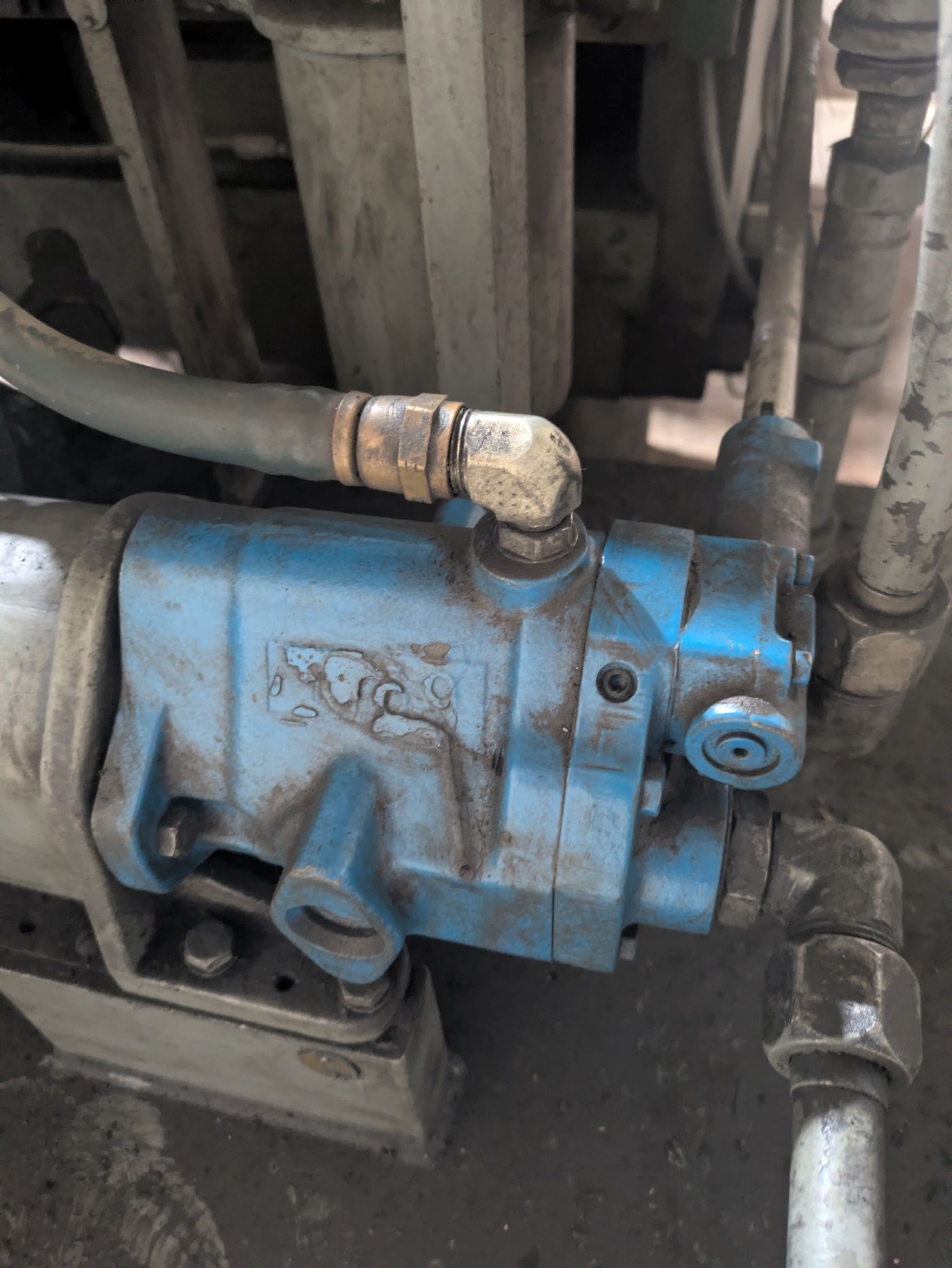

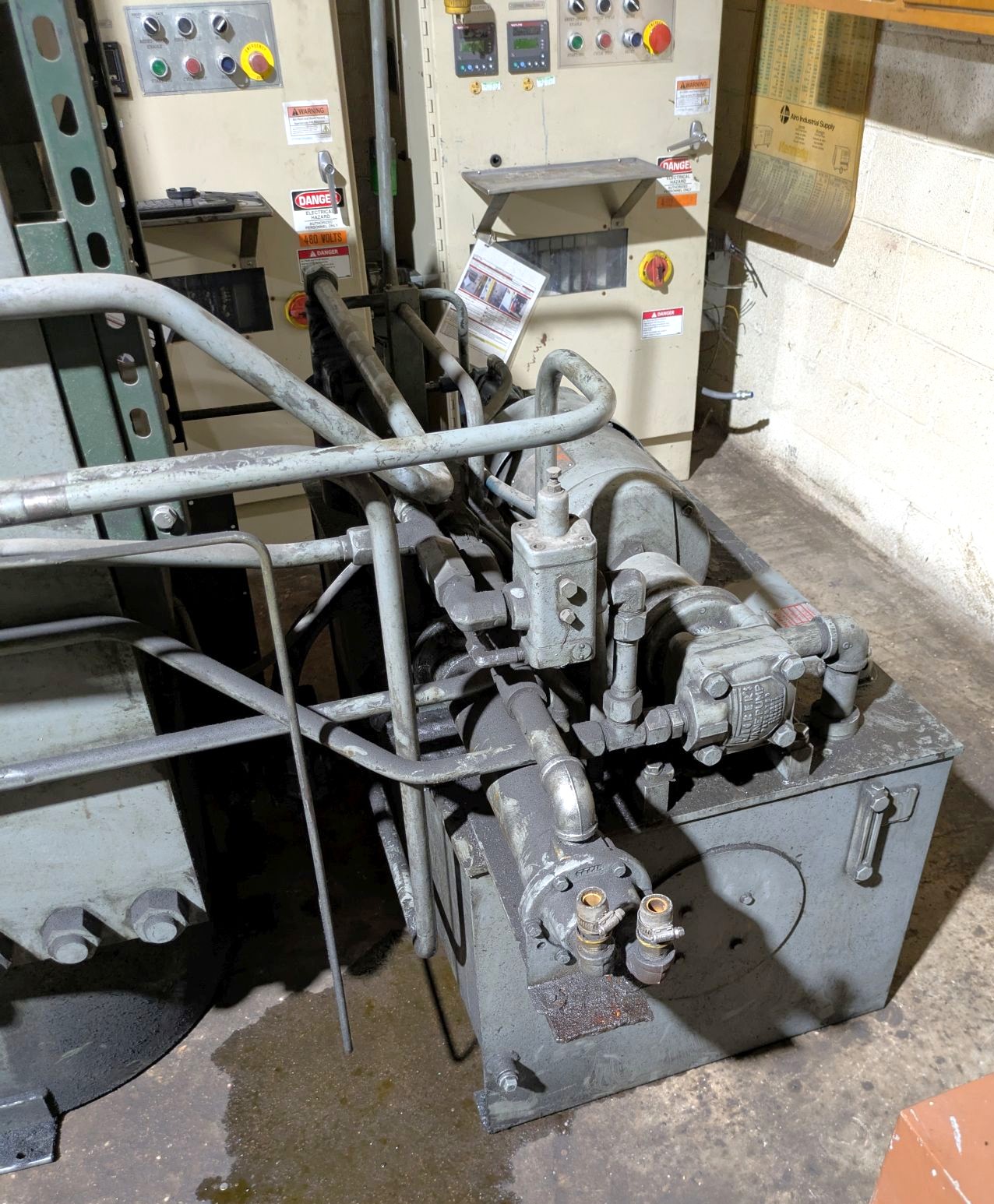

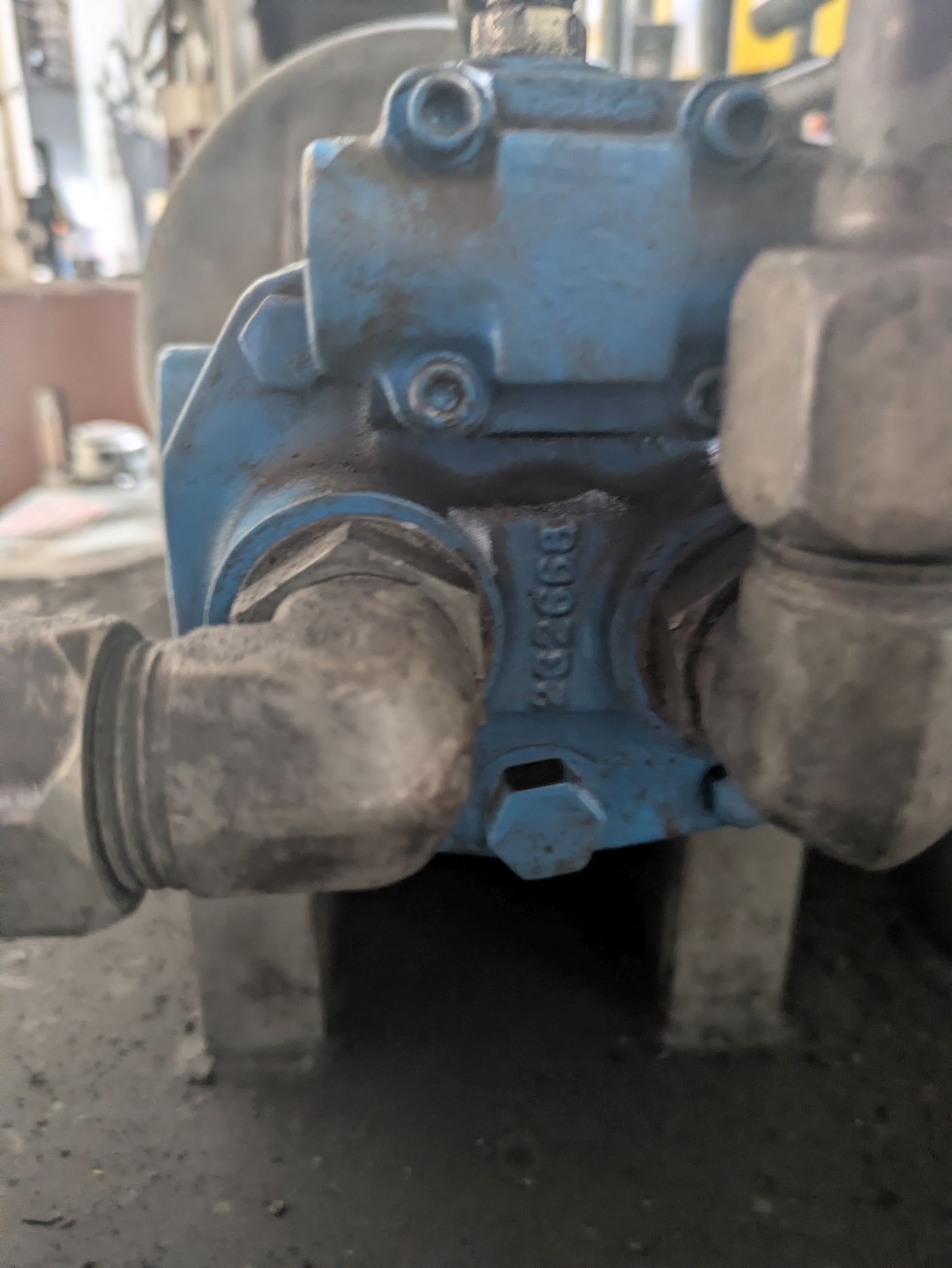

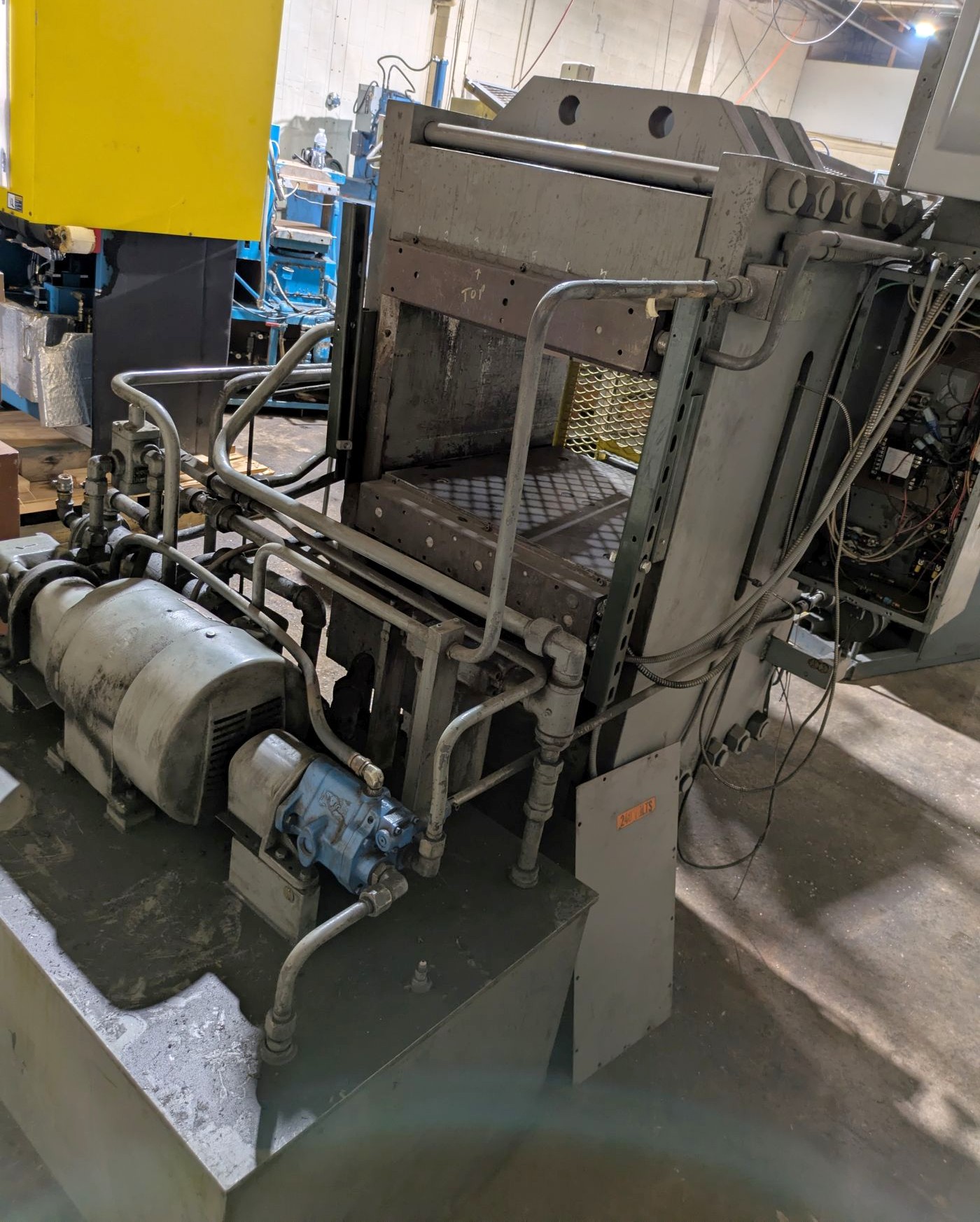

| HYDRAULIC SYSTEM | 60 GALLON RESERVOIR |

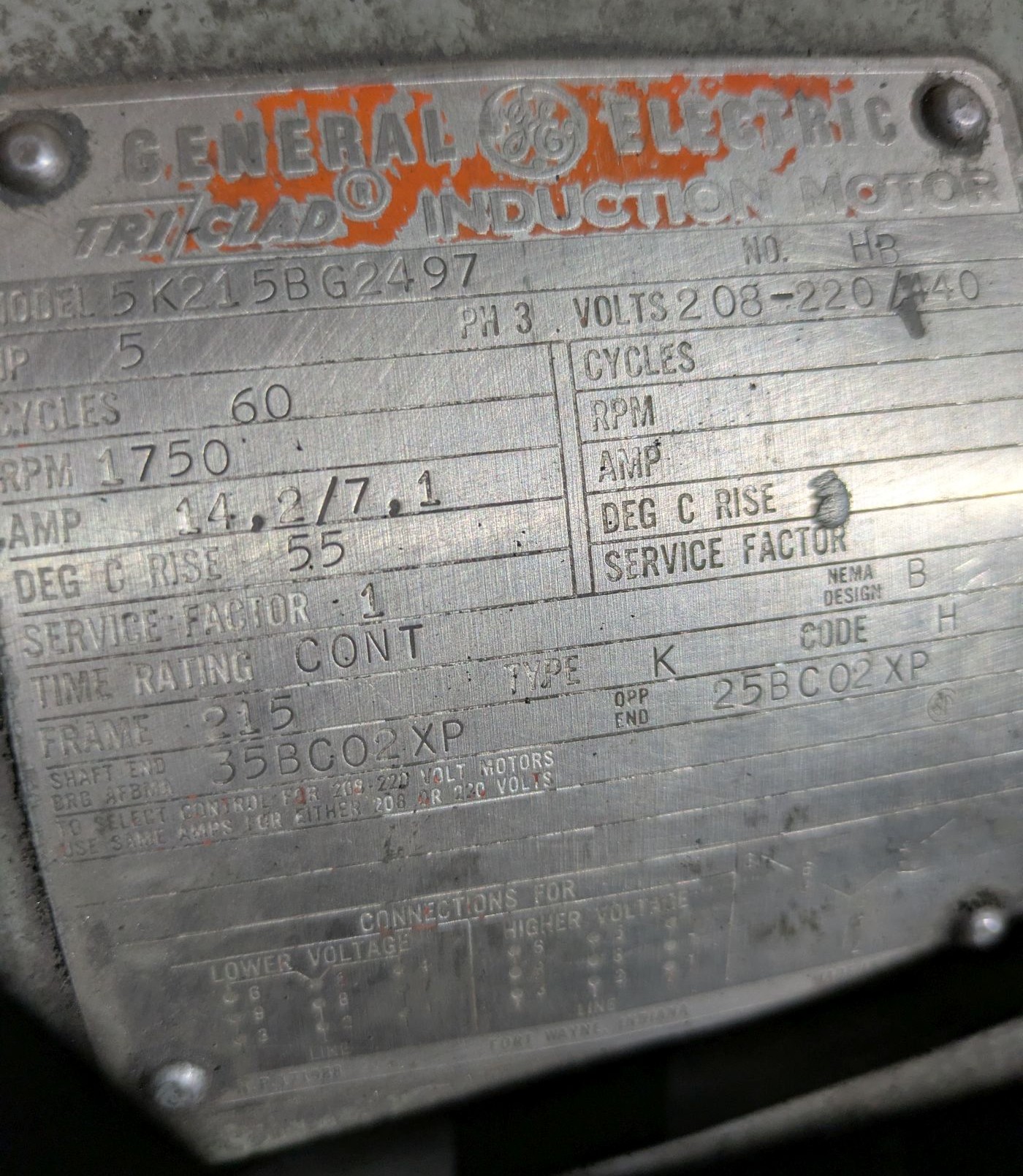

| ELECTRIC MOTOR | 5 HP 220/440V-3-60 GE INDUCTION MOTOR | 14.2 / 7.1 AMPS | 1750 RPM |
| ELECTRICAL NOTE | __ |
| OVERALL DIMENSIONS | 68" x 70" (RL+FB) x 90" Tall |
| APPROX. WEIGHT | 13,000 lbs |
| Equipped With | __ |
| Note | __ |
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
