Description

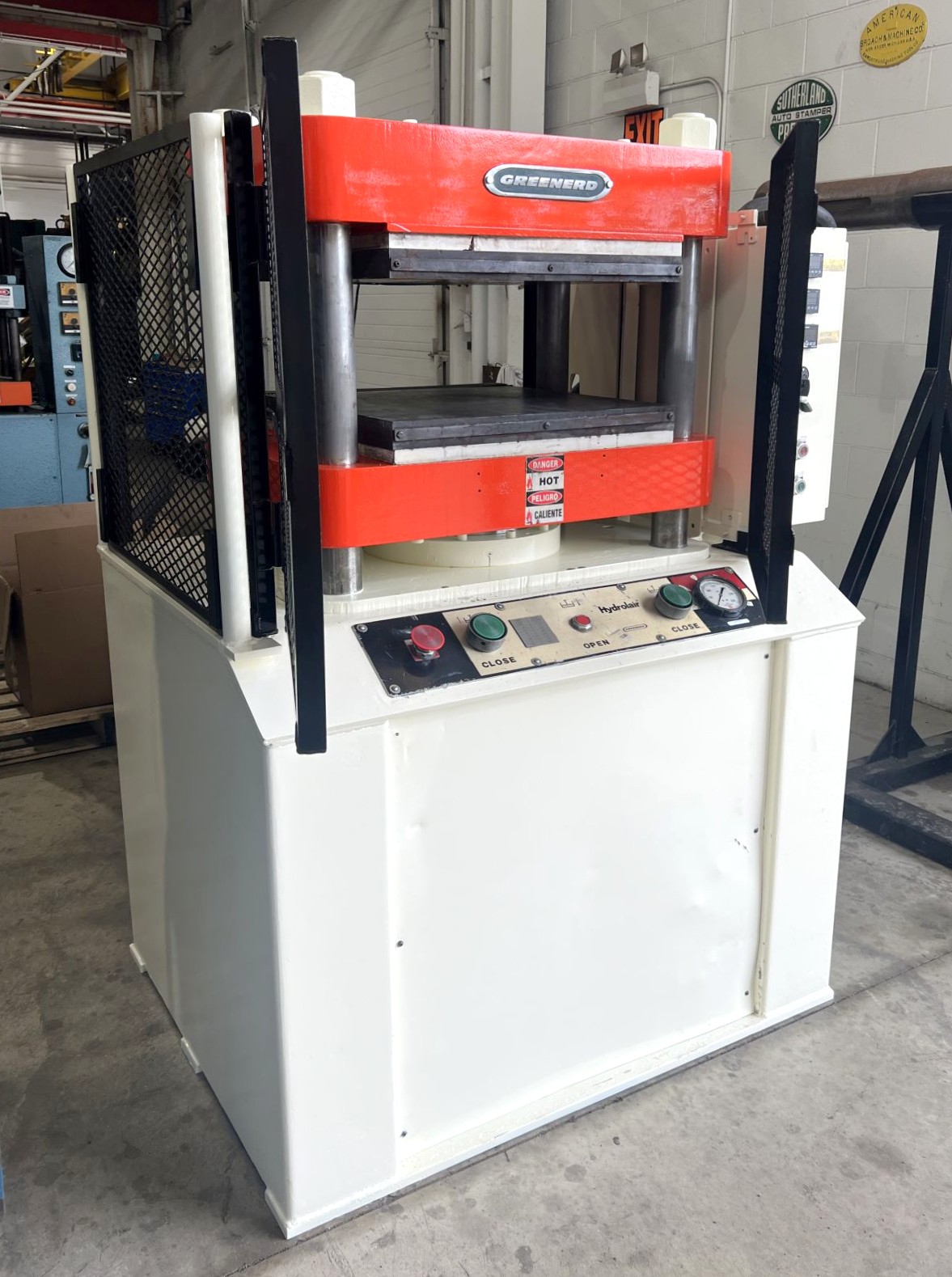

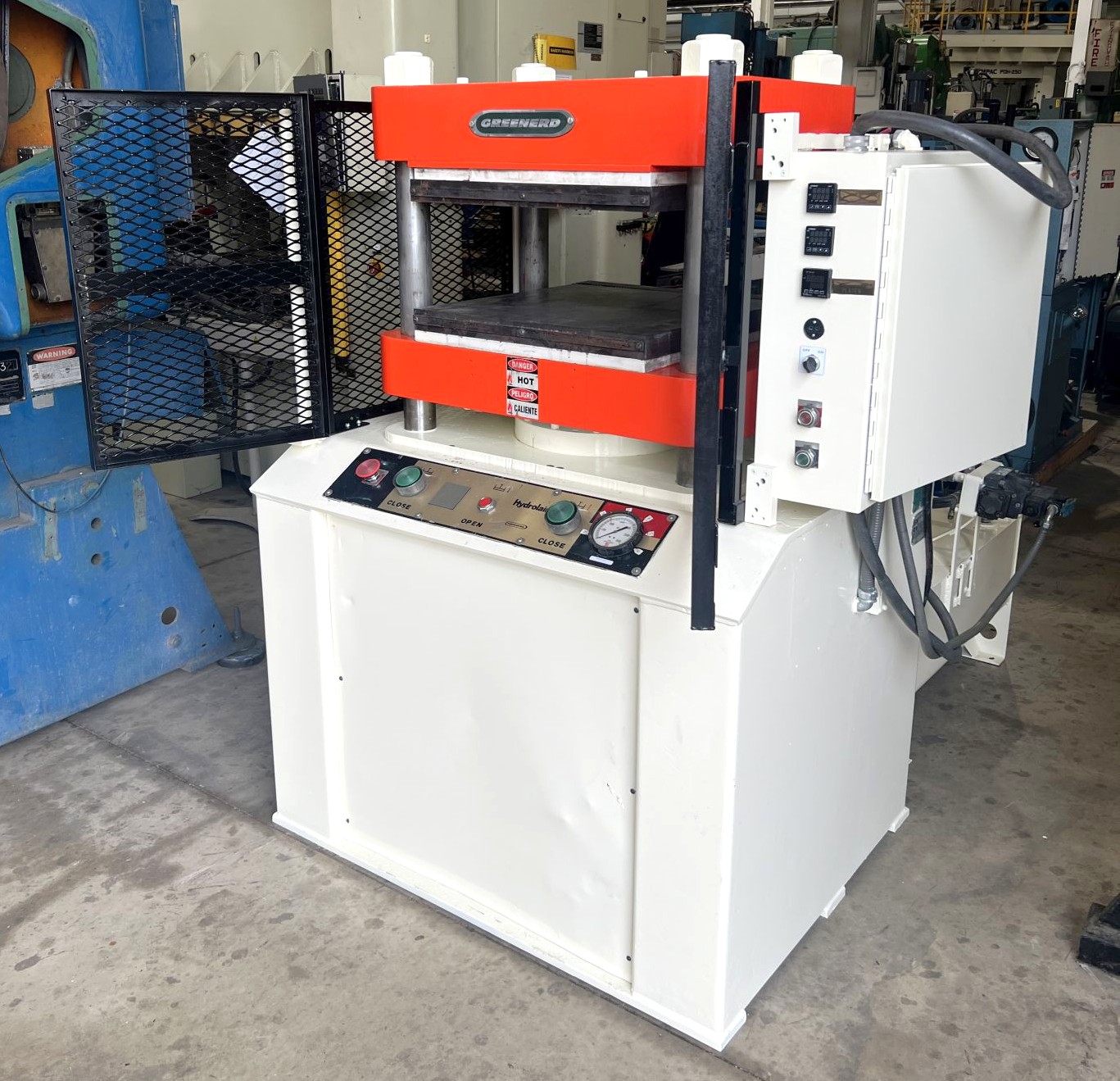

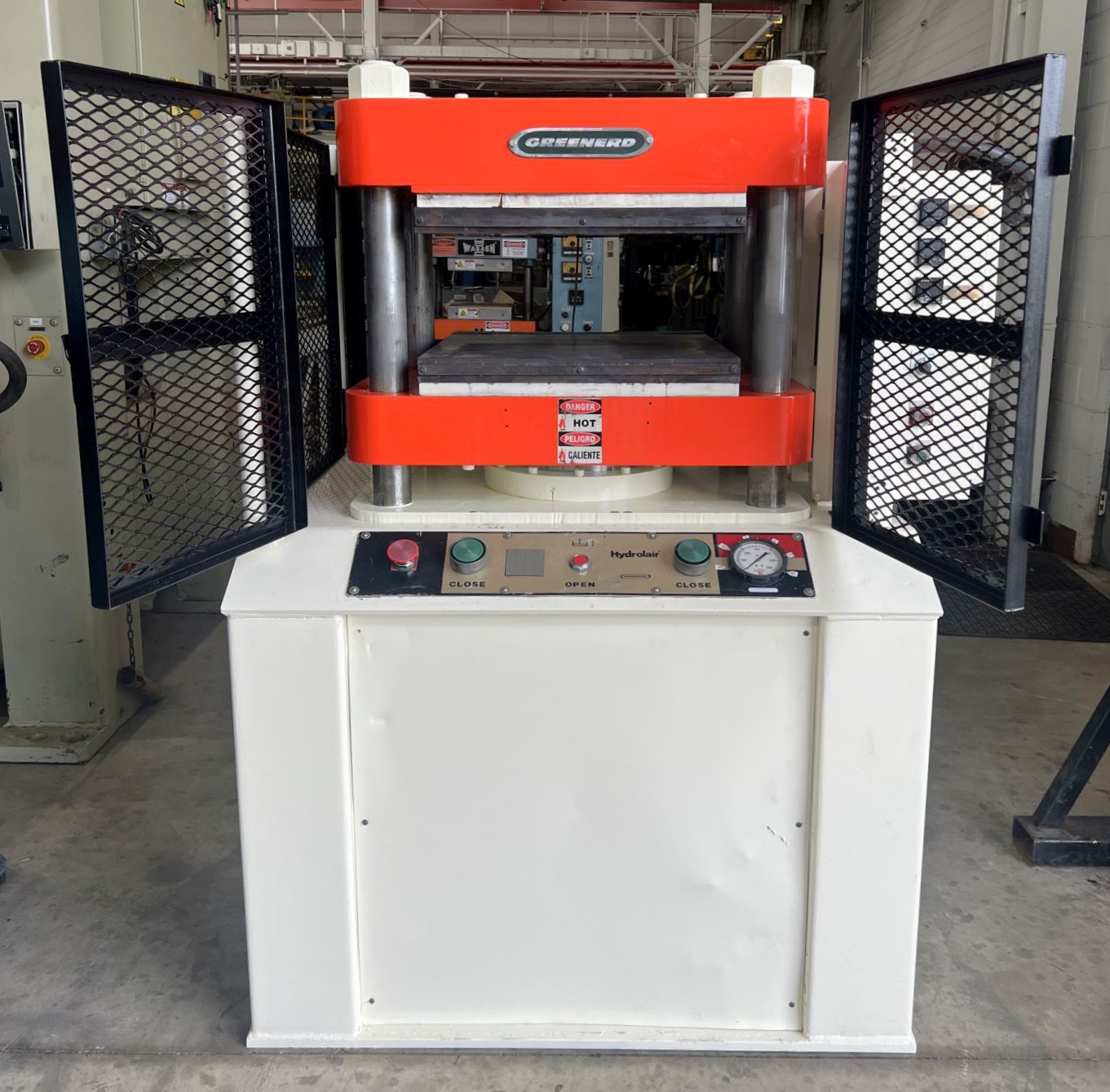

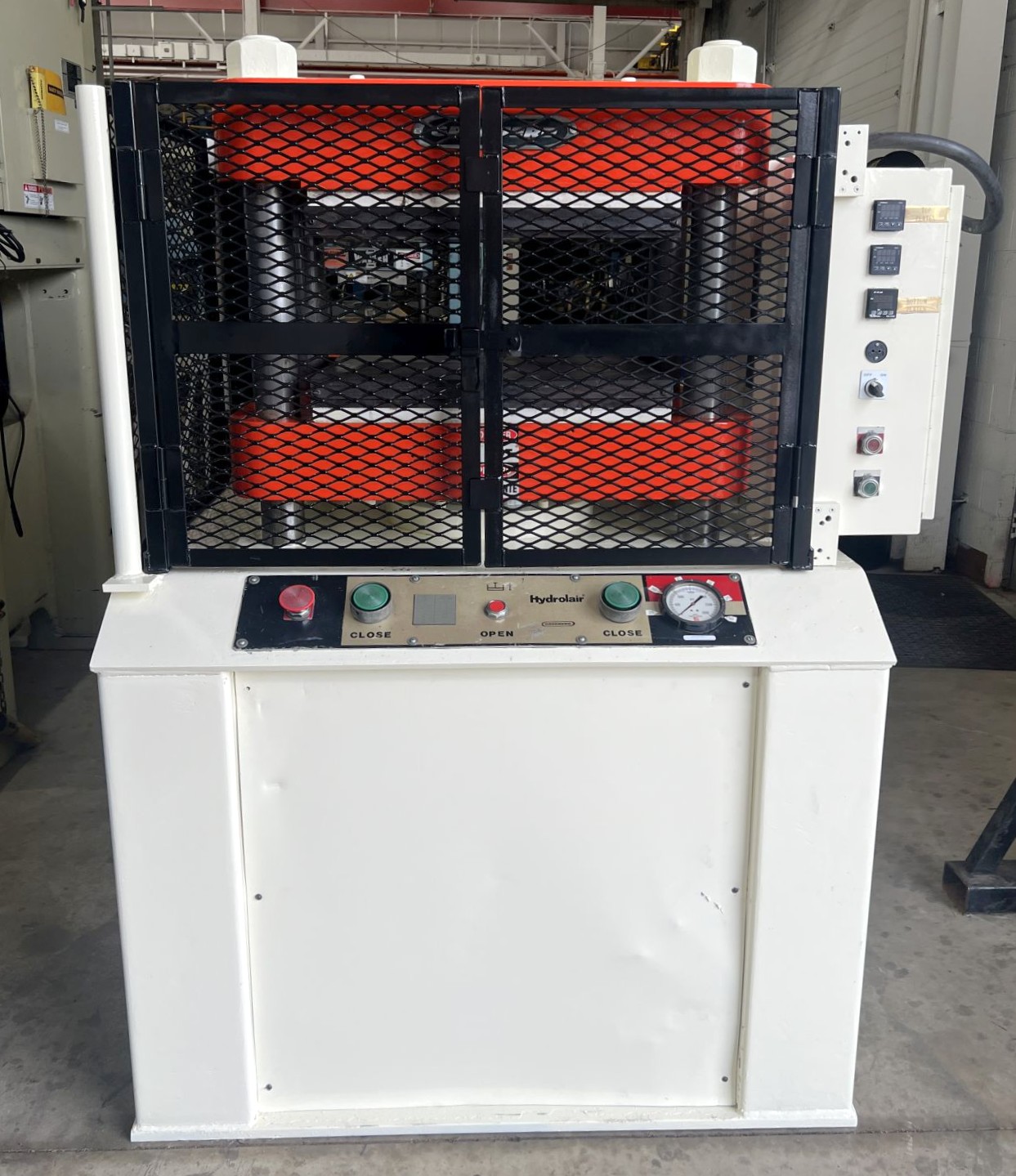

Industrial Heat Press • Used 150 Ton Press for Sale
- Machine #
- 8449
- Condition
- Very Good
- Location
- Jackson, MI Cooper Building
- Year
- 1985
- Model

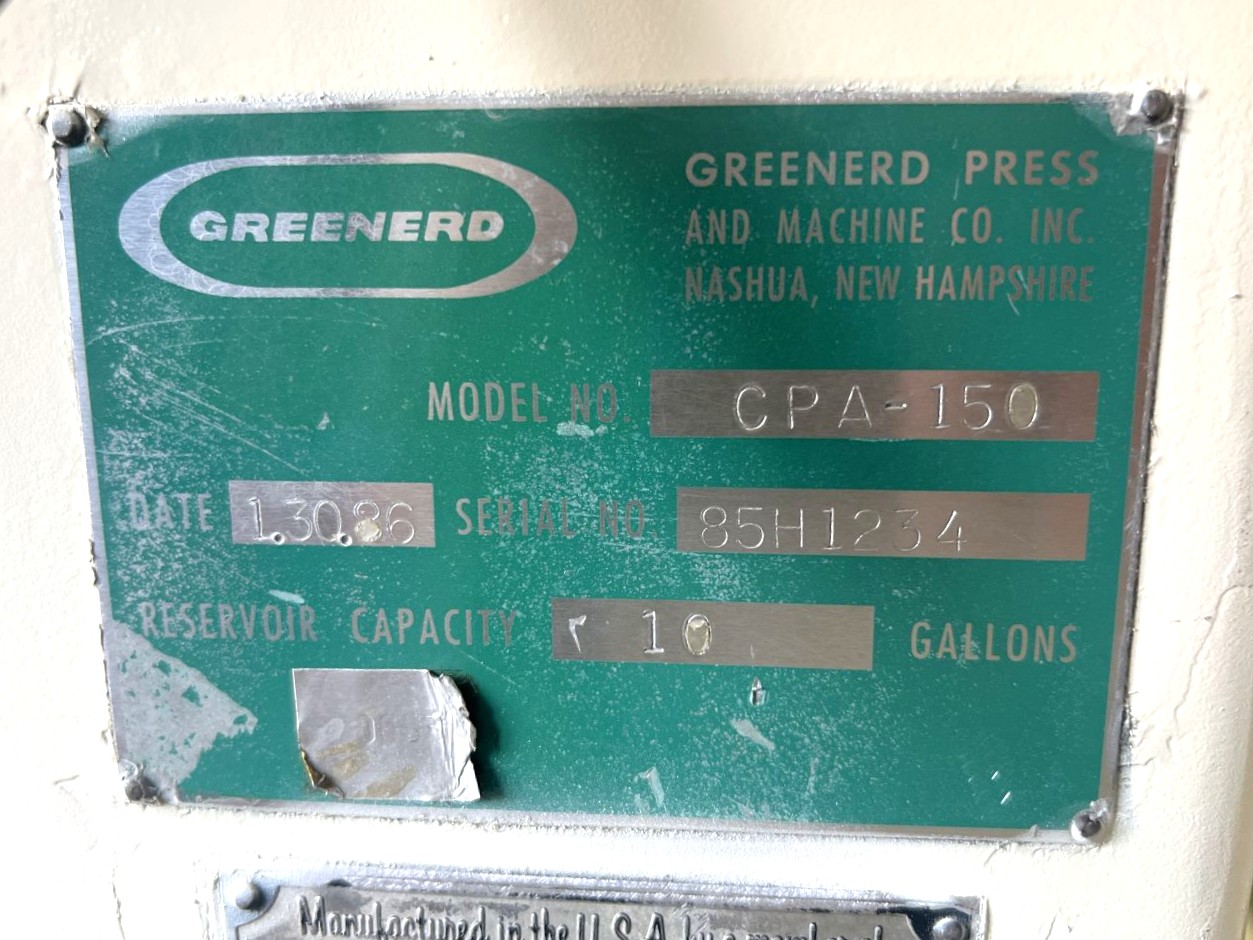

- Greenerd CPA-150
Buy Now: $
| MAX. CAPACITY | 150 TONS |
|---|---|
| MAX. STROKE | 15" |
| DAYLIGHT RANGE | .5" TO 15.5" - CLOSES TO 0 BETWEEN PLATENS |
| OVERALL BED & RAM AREA | 36" X 24" (RL X FB) |
| DISTANCE BETWEEN POSTS | 26.5" X 14.5" (RL X FB) |
| USABLE BED AREA | 26.5" X 24" (RL X FB) |

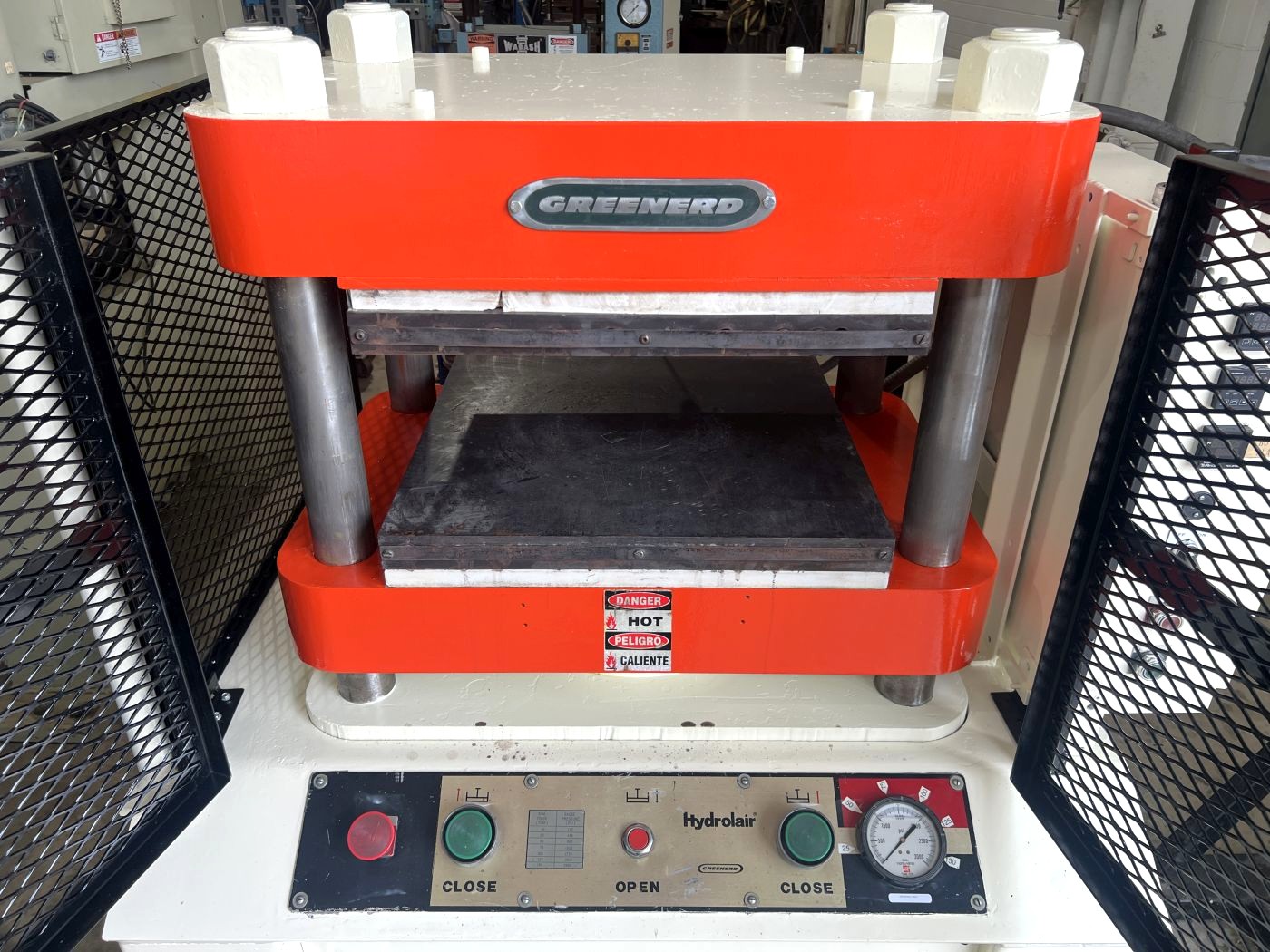

| ELECTRIC HEATED PLATENS | 24" X 24" (RL X FB) X 2.875" THICK |
| SPEEDS | APPROX. 13.4 IPM PRESSING (BASED ON 6.5 GPM PUMP AND 12" BORE) |
| FLOOR TO BED HEIGHT | 48" |
| RAM ROD SIZE | 11.75" DIA. |
| CYLINDER SIZE | 12" DIA. |
| 4 COLUMN / POSTS SIZE | 3" DIA. |

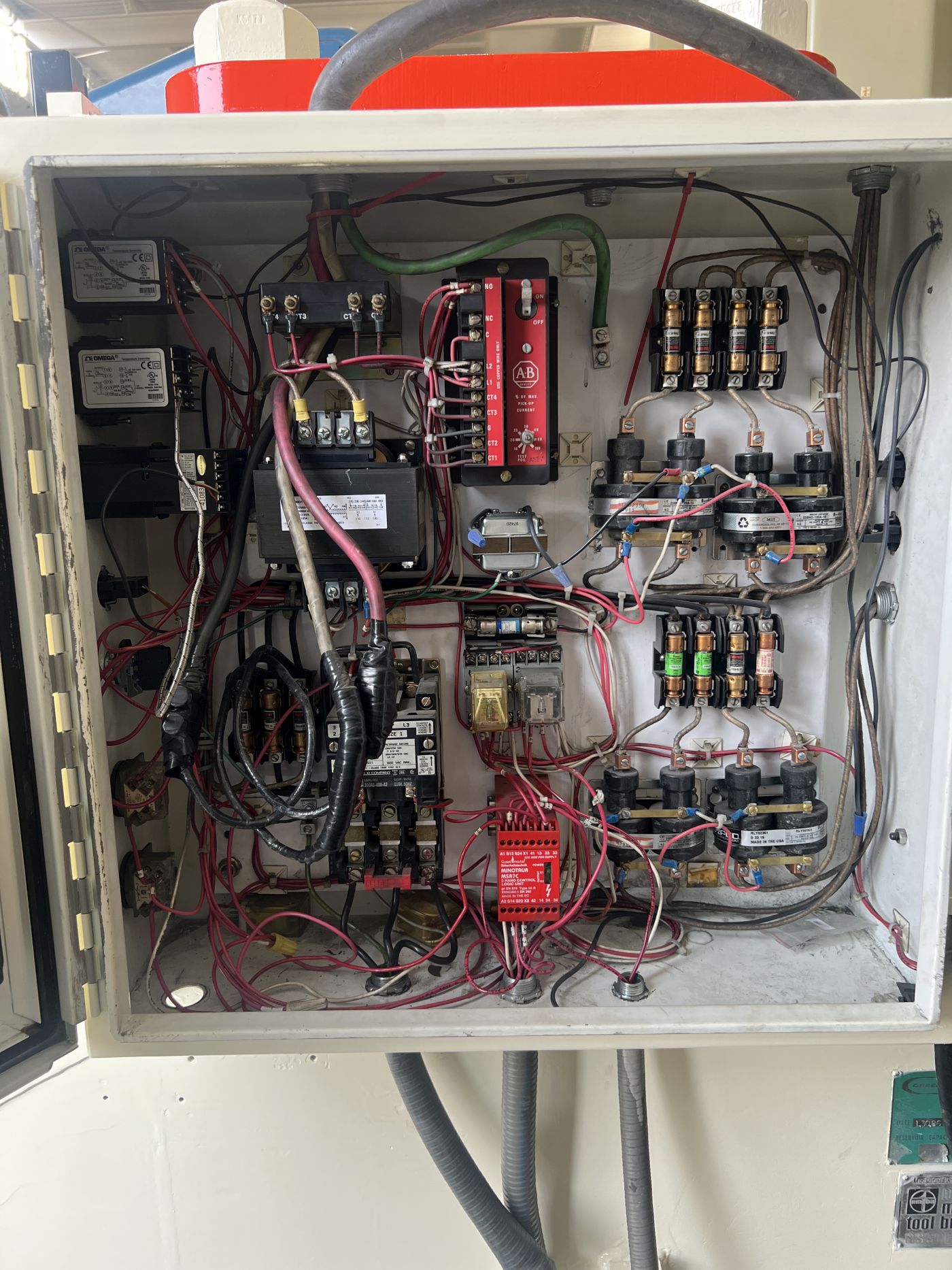

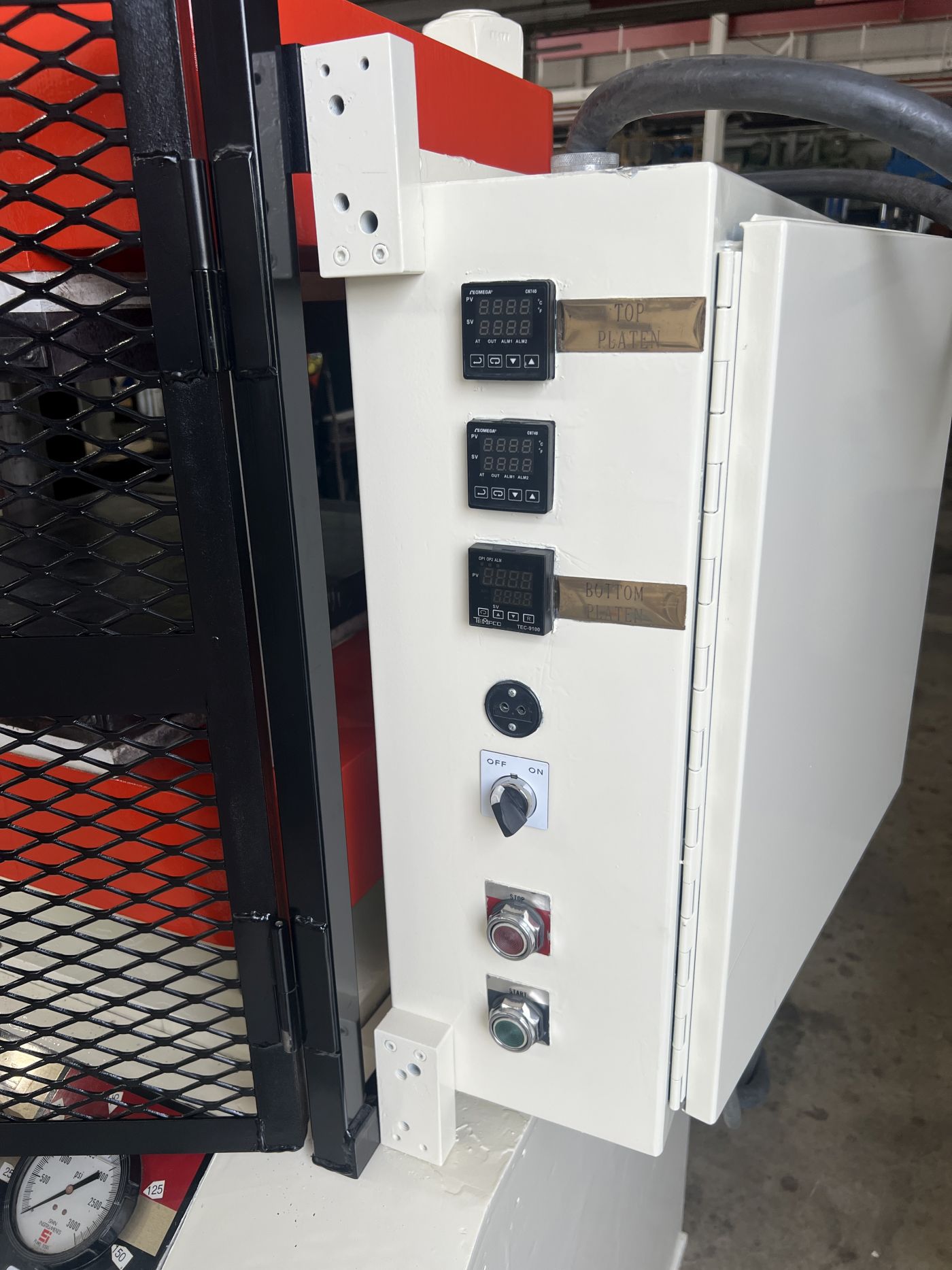

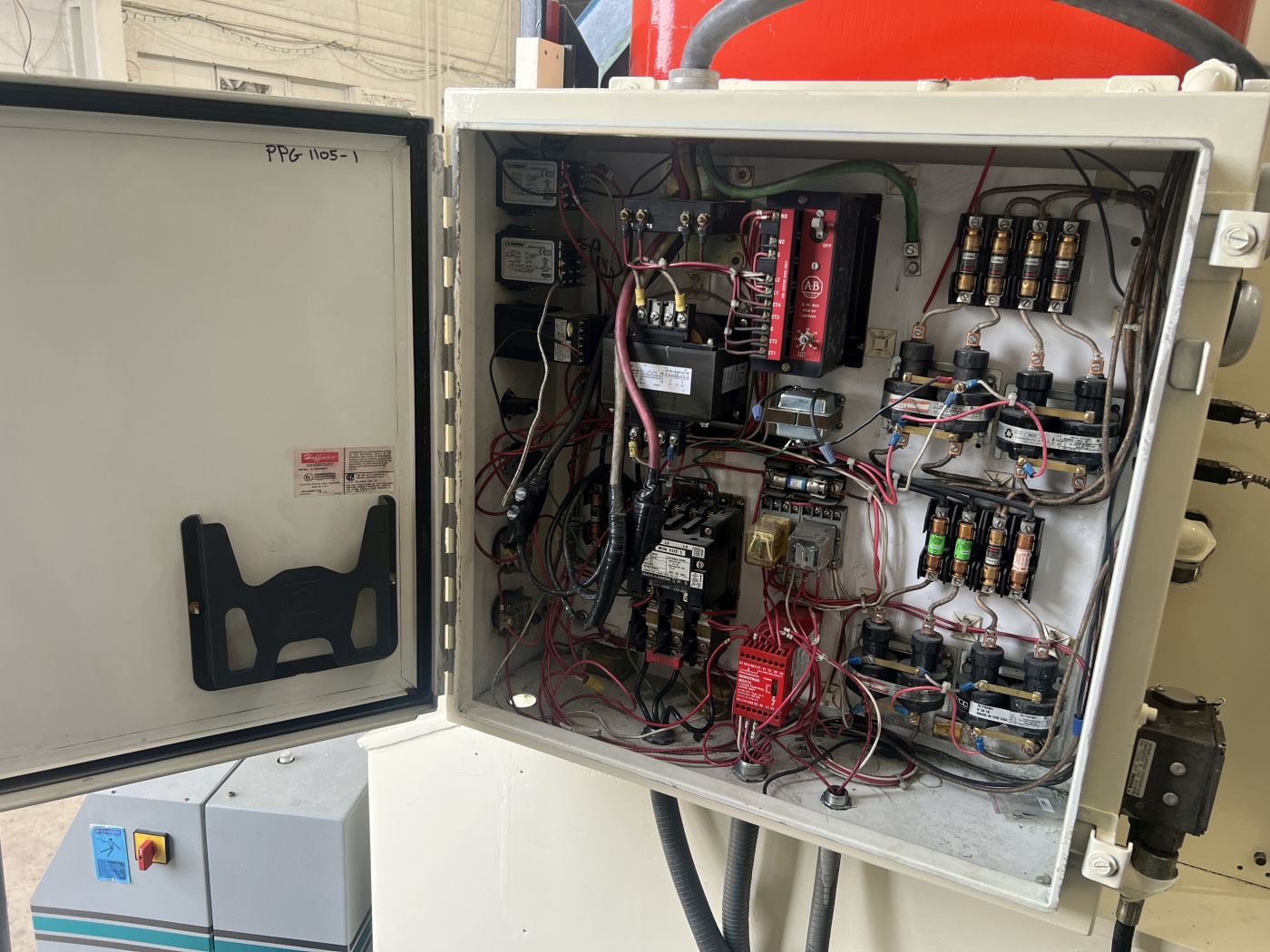

| PRESS CONTROLS | ALLEN-BRADLEY RELAY LOGIC WITH OMEGA DIGITAL TEMP CONTROLLERS AND DUAL PALM BUTTONS |

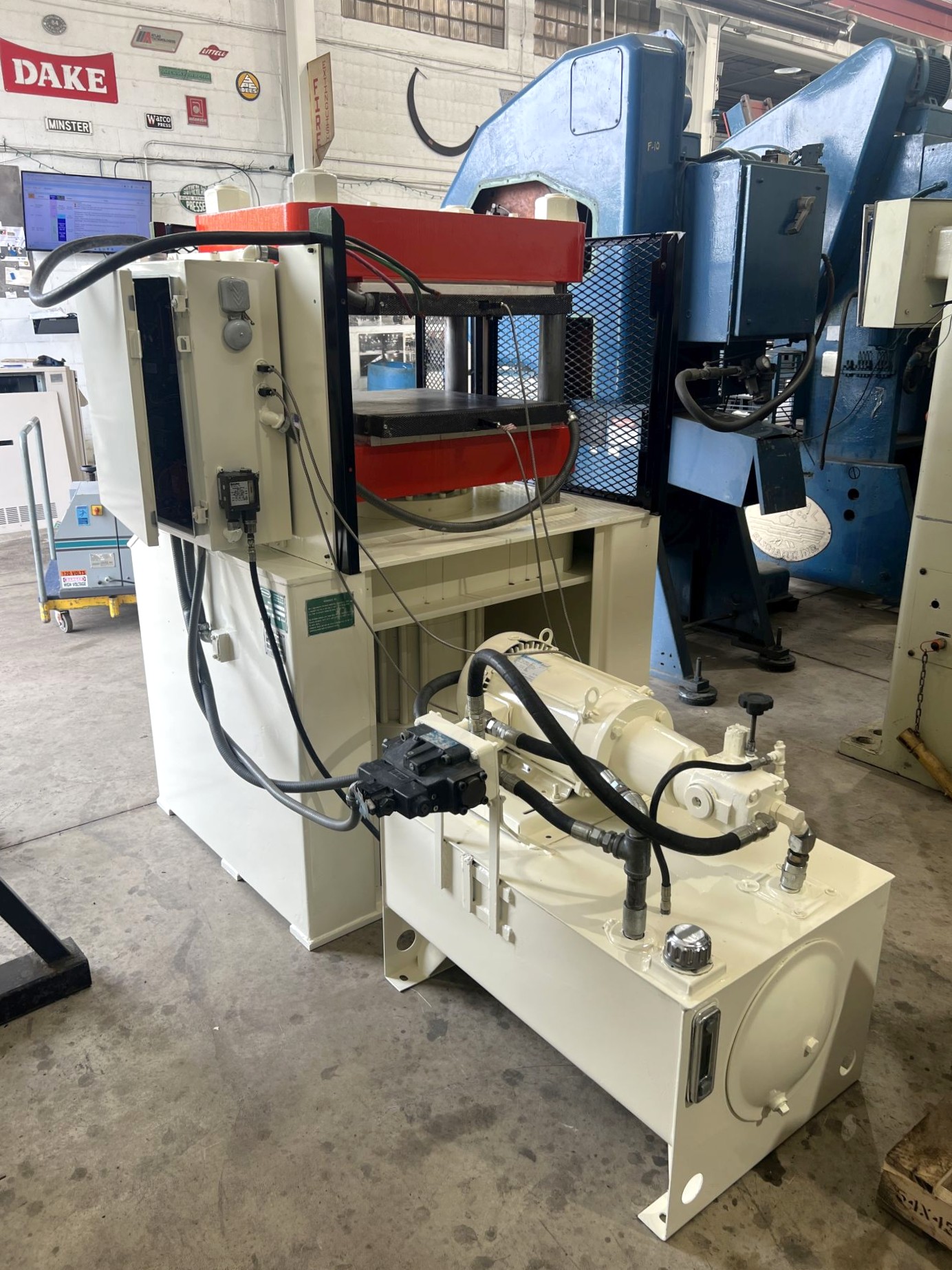

| HYDRAULIC UNIT | OILGEAR PVWJ VARIABLE DISPLACEMENT AXIAL PISTON PUMP (MODEL PVWJ-014) |
| HYDRAULIC NOTE | 10 GALLON RESERVOIR |

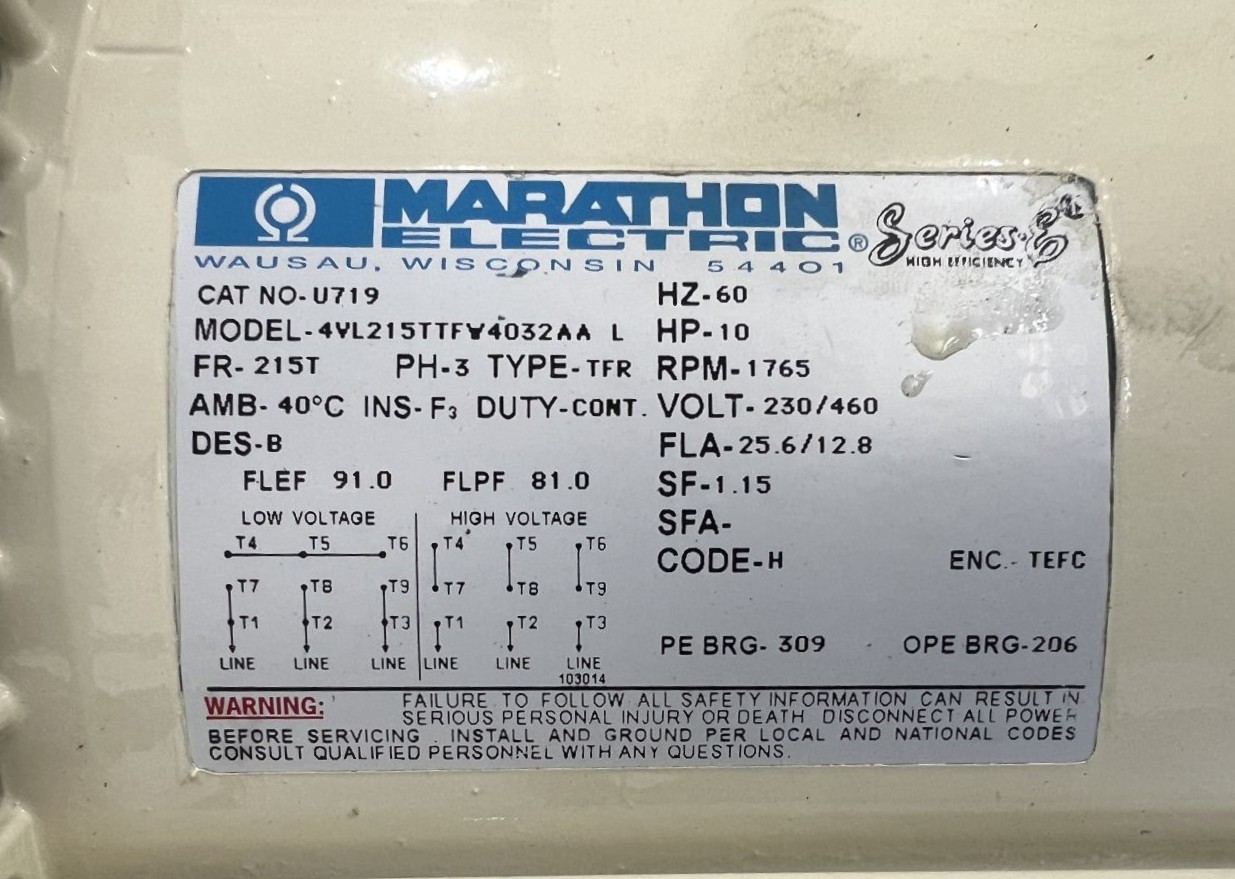

| ELECTRIC MOTOR | 10 HP 230/460V-3-60 MARATHON ELECTRIC AC MOTOR | 25.6 / 12.8 AMPS - WIRED FOR 460V |
| PRESS DIMENSIONS | 61" x 48" (RL X FB) X 73" HIGH (PRESS ONLY) |
| HYDRAULIC UNIT DIMENSIONS | 42" X 38" (RL X FB) X 40" HIGH |
| APPROX. WEIGHT | 5,000 LBS. |

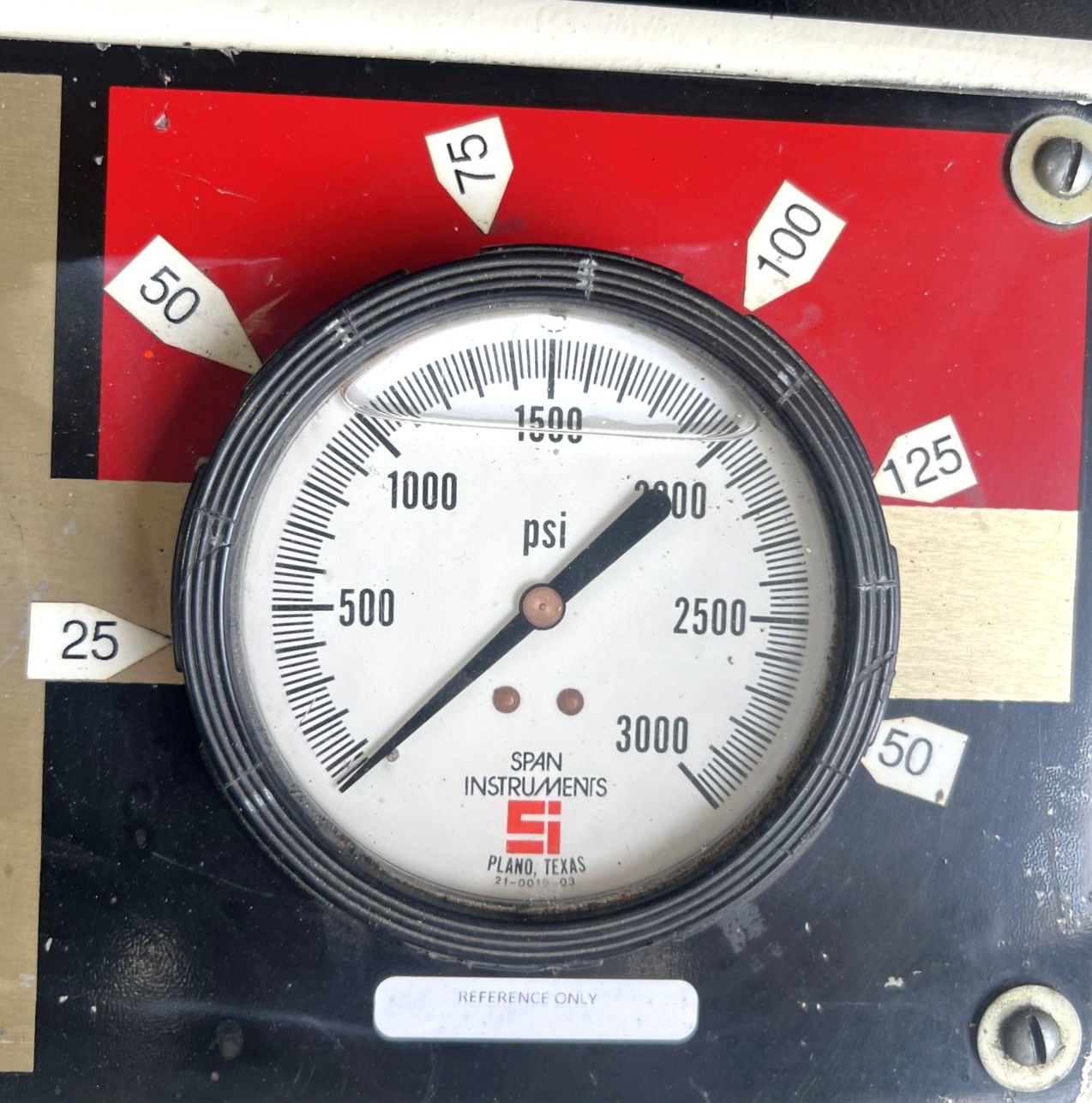

| Equipped With | SPAN INSTRUMENTS ANALOG TONNAGE/PRESSURE GAUGE |
| Note | __ |
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
