Machine Specifications

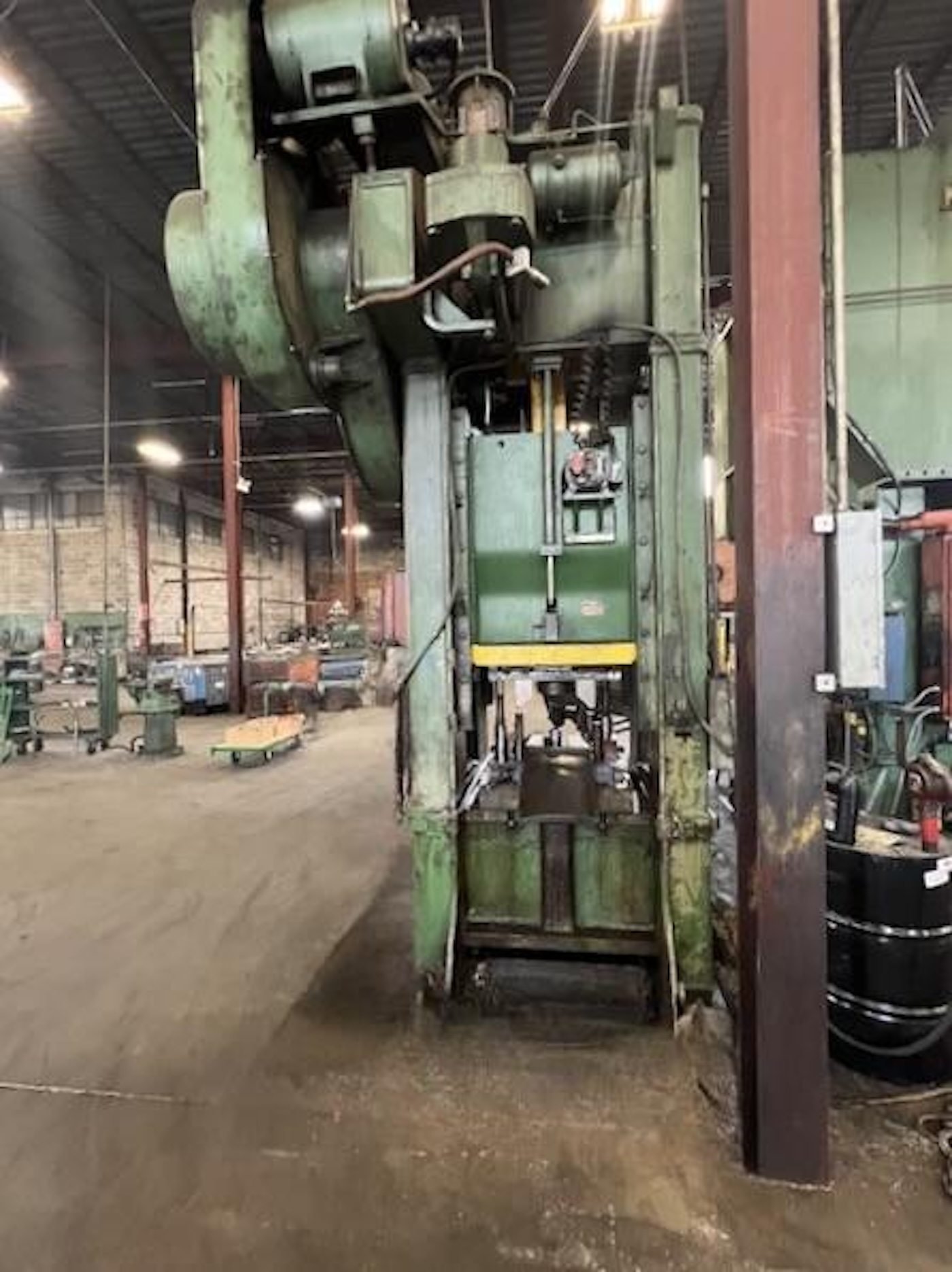

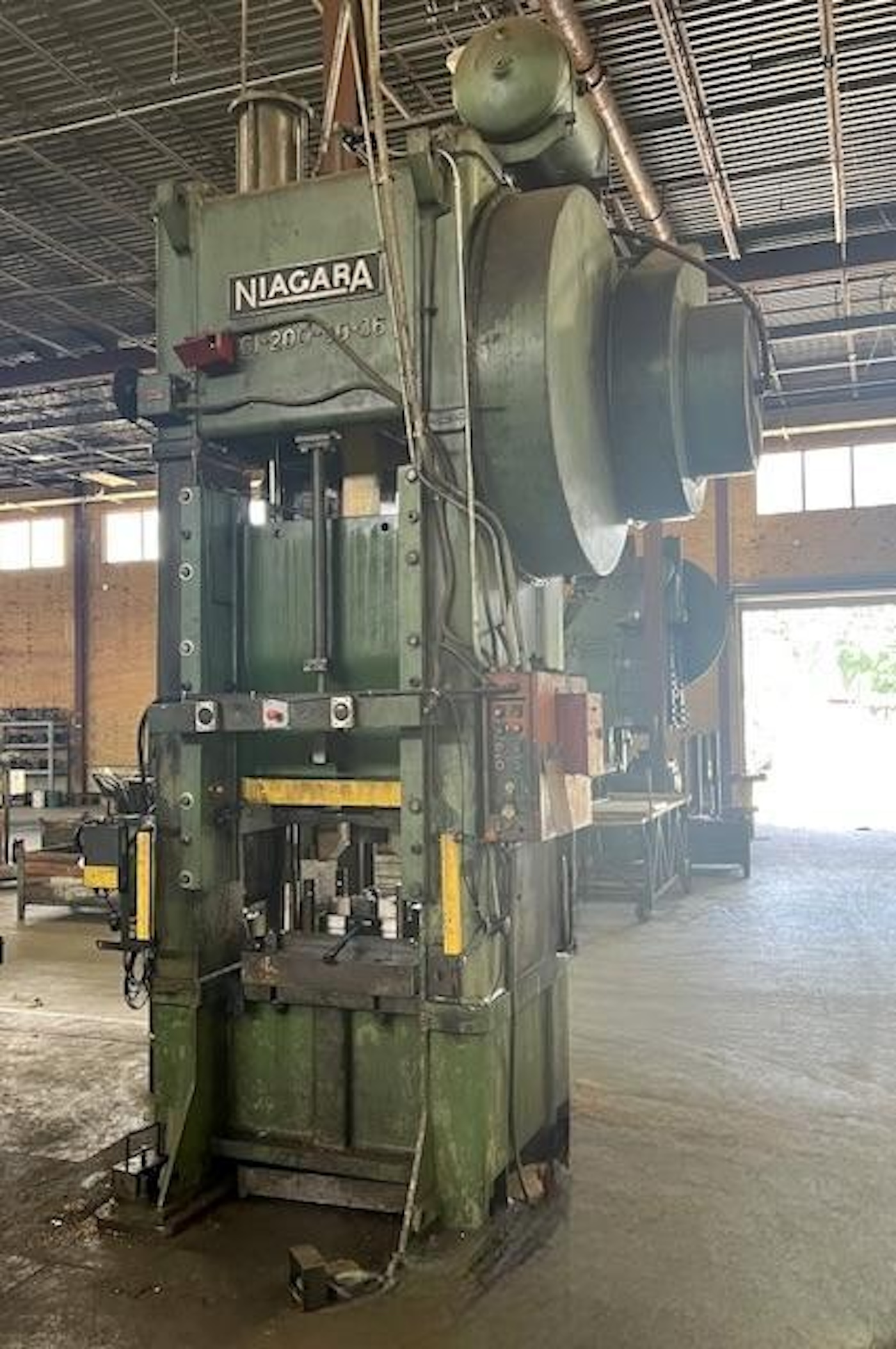

Straight Side Press • Used 200 Ton Press for Sale
Manufacturer: Niagara
Model: Niagara SC1-200-30-36 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1966
Machine #: 8028
Buy Now: $44,500
| capacity | 200 ton | stroke | 10″ | max shut height to bed | 26″ sdau | bed area | 30″ x 36″ (RL X fb) | speed | 30 spm | slide adjustment | 10″ motorized | slide area | 30″ rl x 30″ fb | bolster plate | 5″ h x 30″ rl x 36″ fb | distance between uprights | APPROX 32″ | distance floor to bed | 32″ | window size | 21″ | clutch | niagara air clutch & brake | electrics | 20 hp 1150 rpm 208-240/480v-3-60 motor & niagara relay press control | approx dimensions | 183″ h x 104″ rl x 92″ fb | approx weight | 48,000 lbs | Equipped With | SINGLE BACK GEARED DESIGN, FLOOR STANDING, TIE ROD FRAME, DUAL AIR COUNTERBALANCES, trabon lubrication, flywheel brake | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
