Straight Side Press • Used 300 Ton Press for Sale

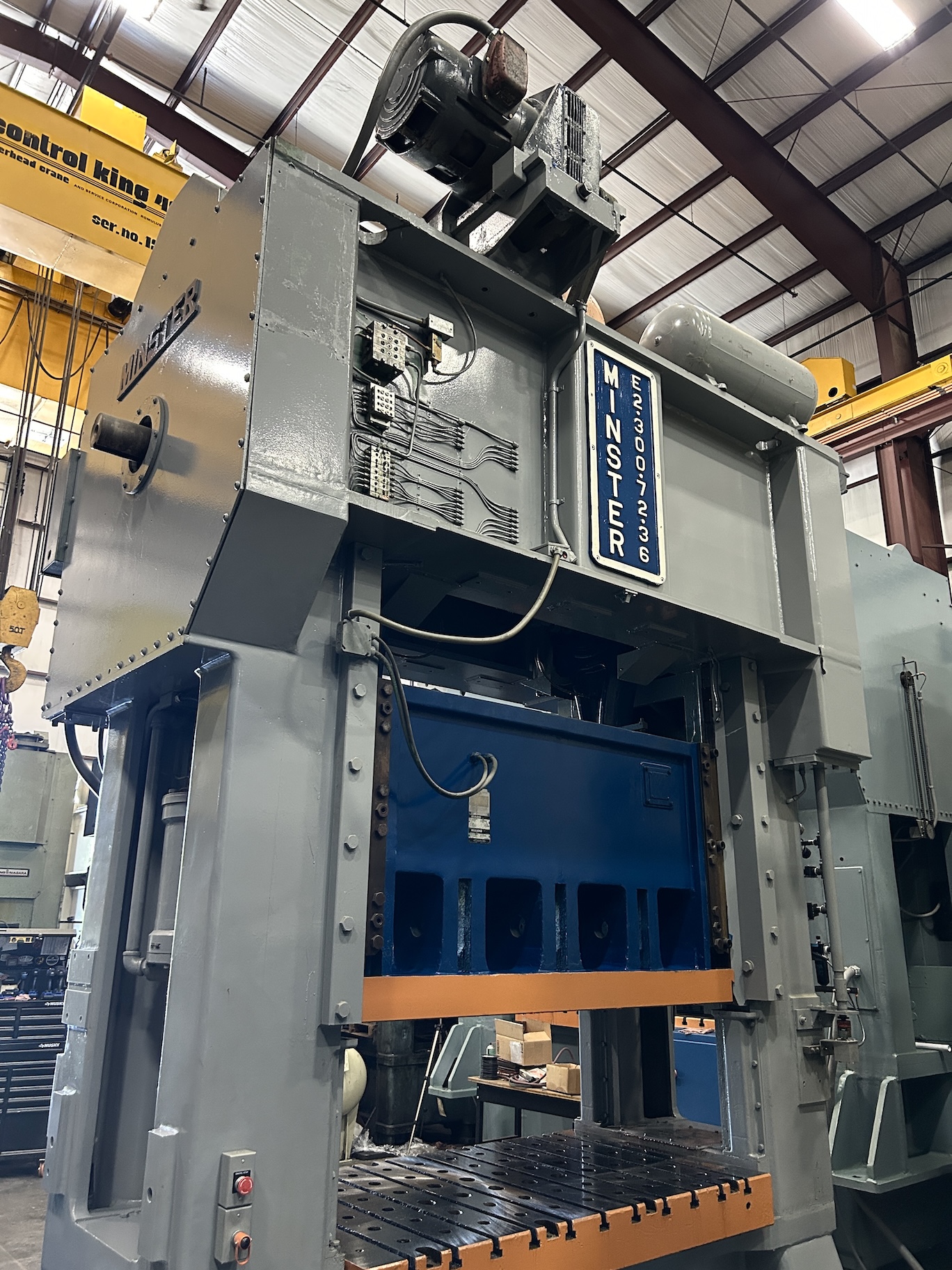

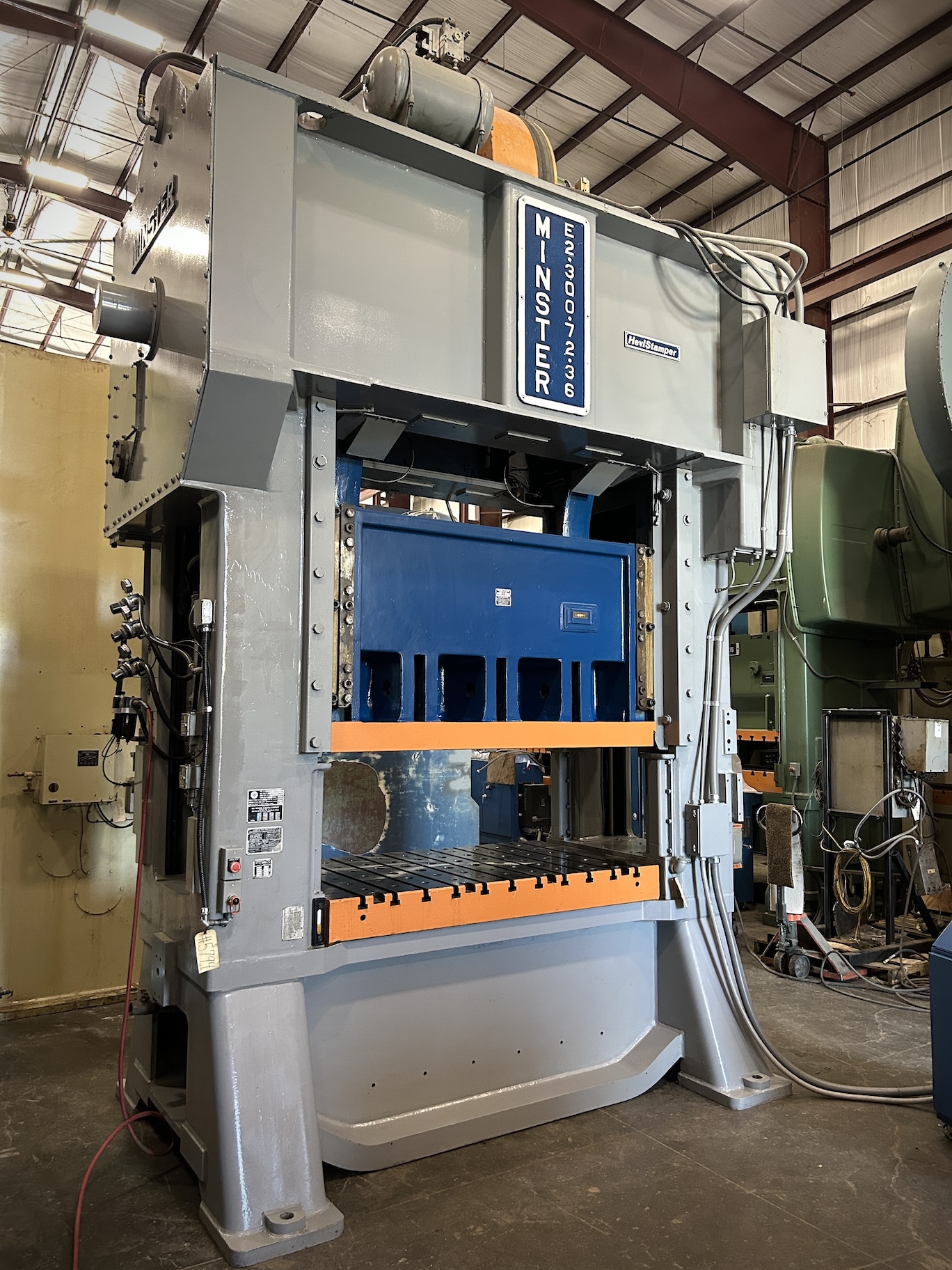

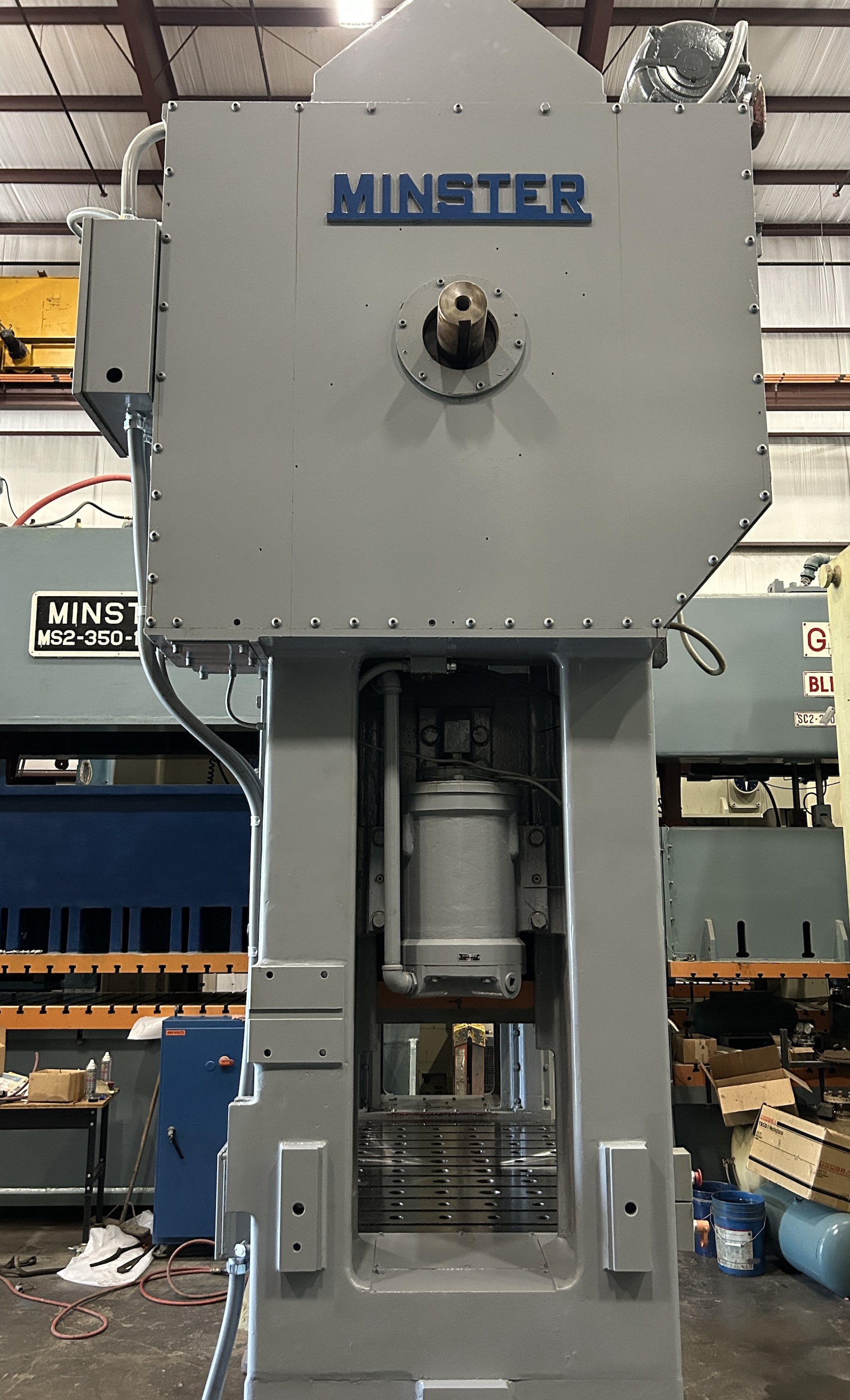

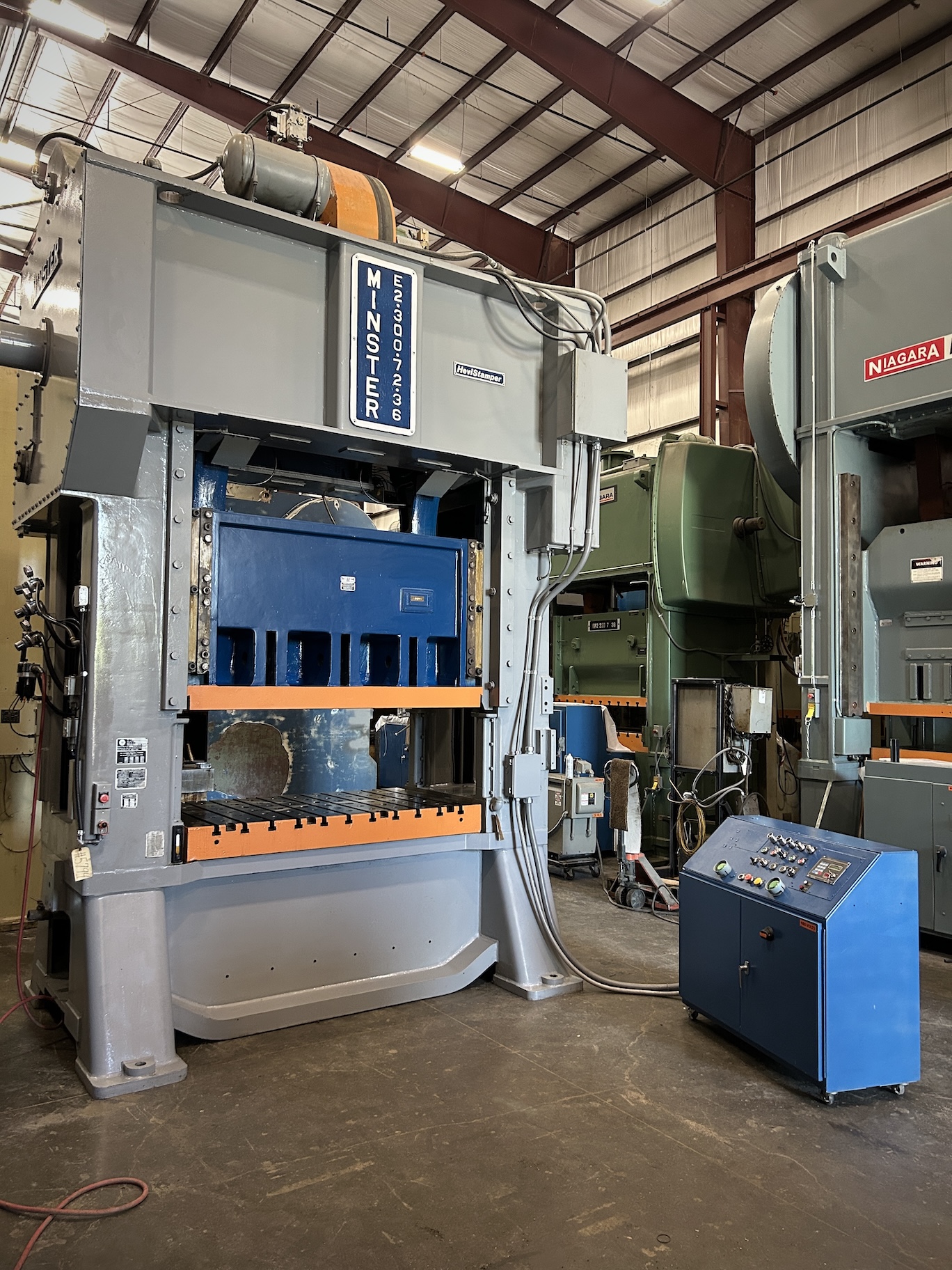

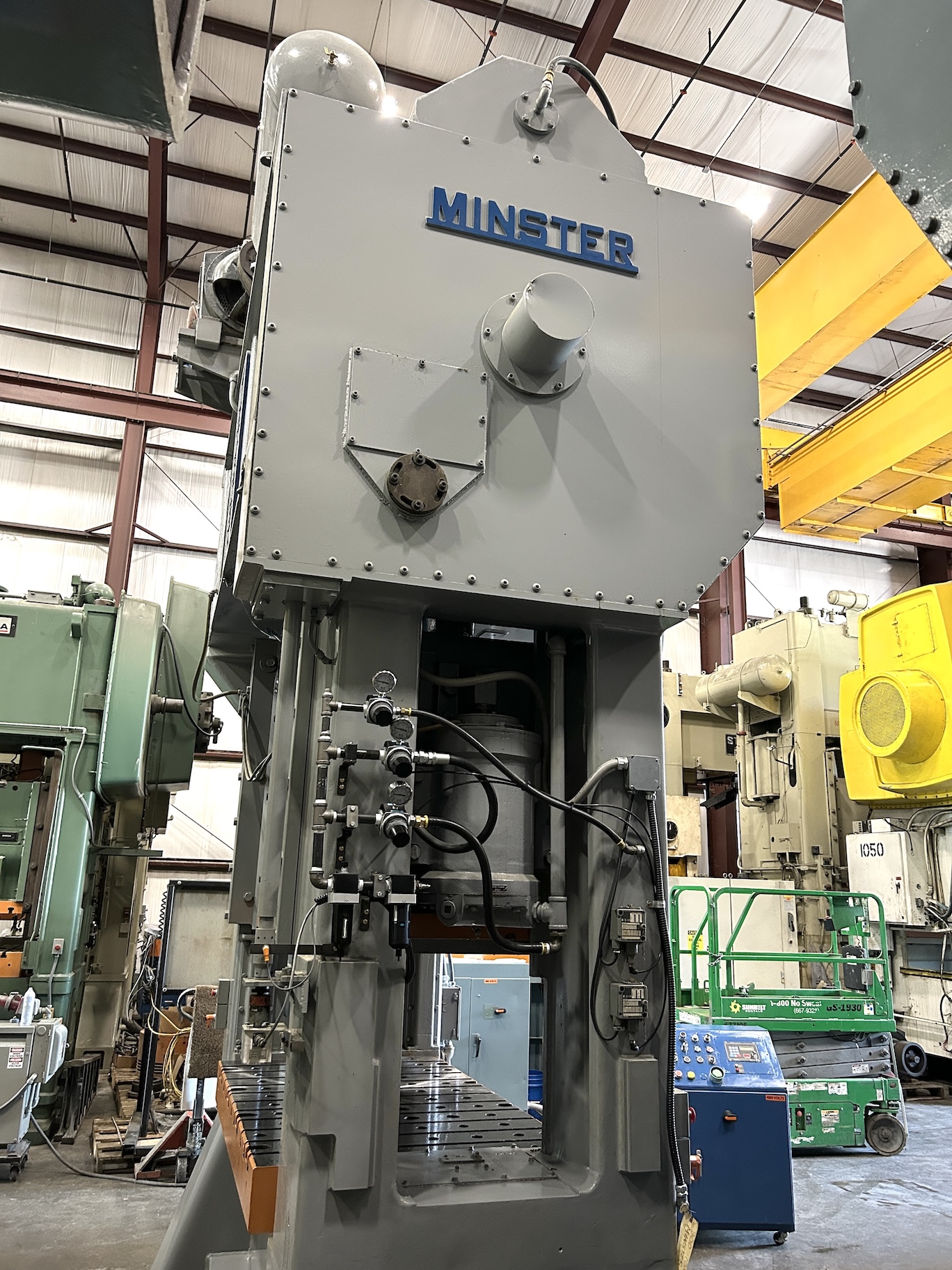

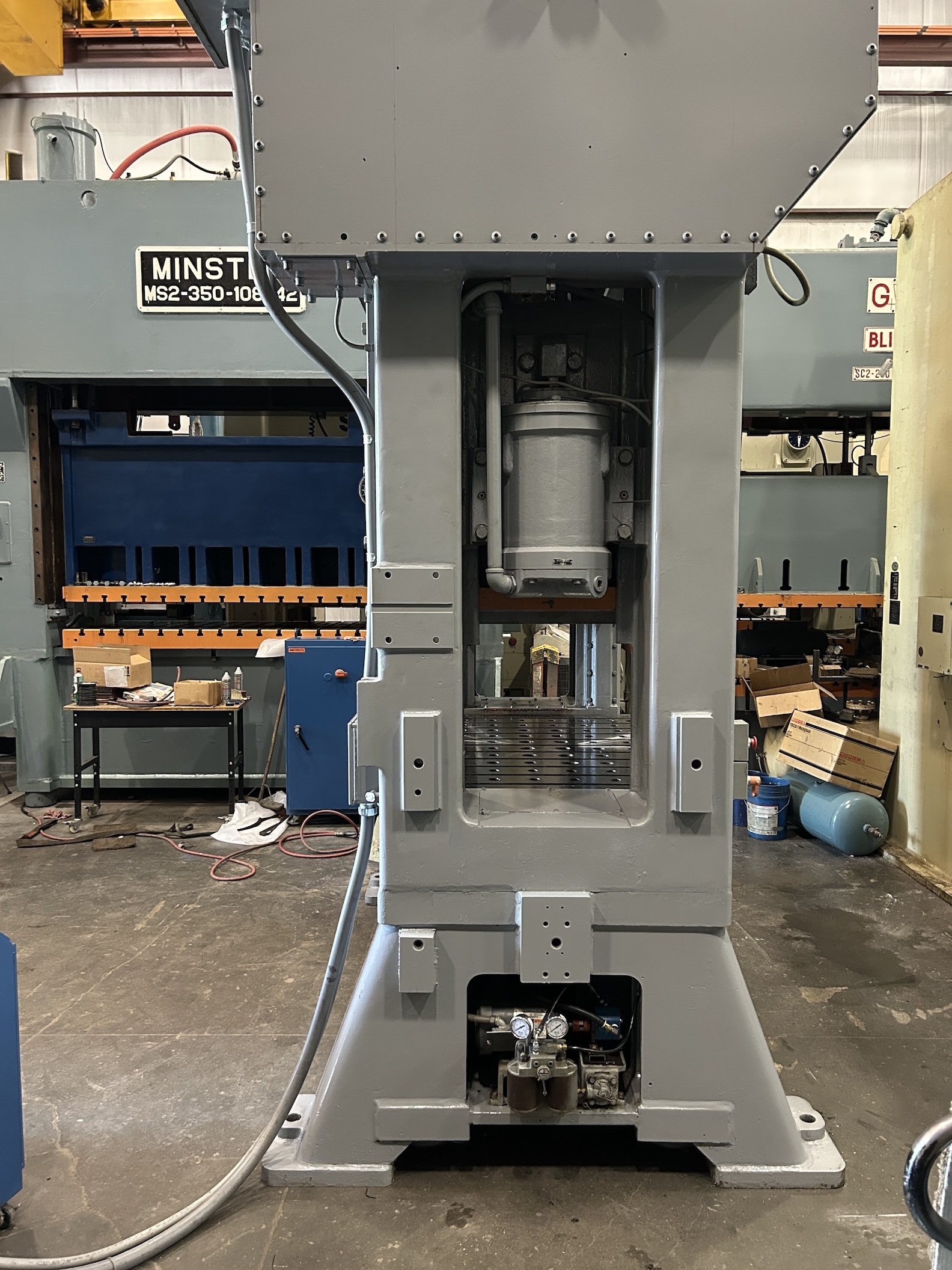

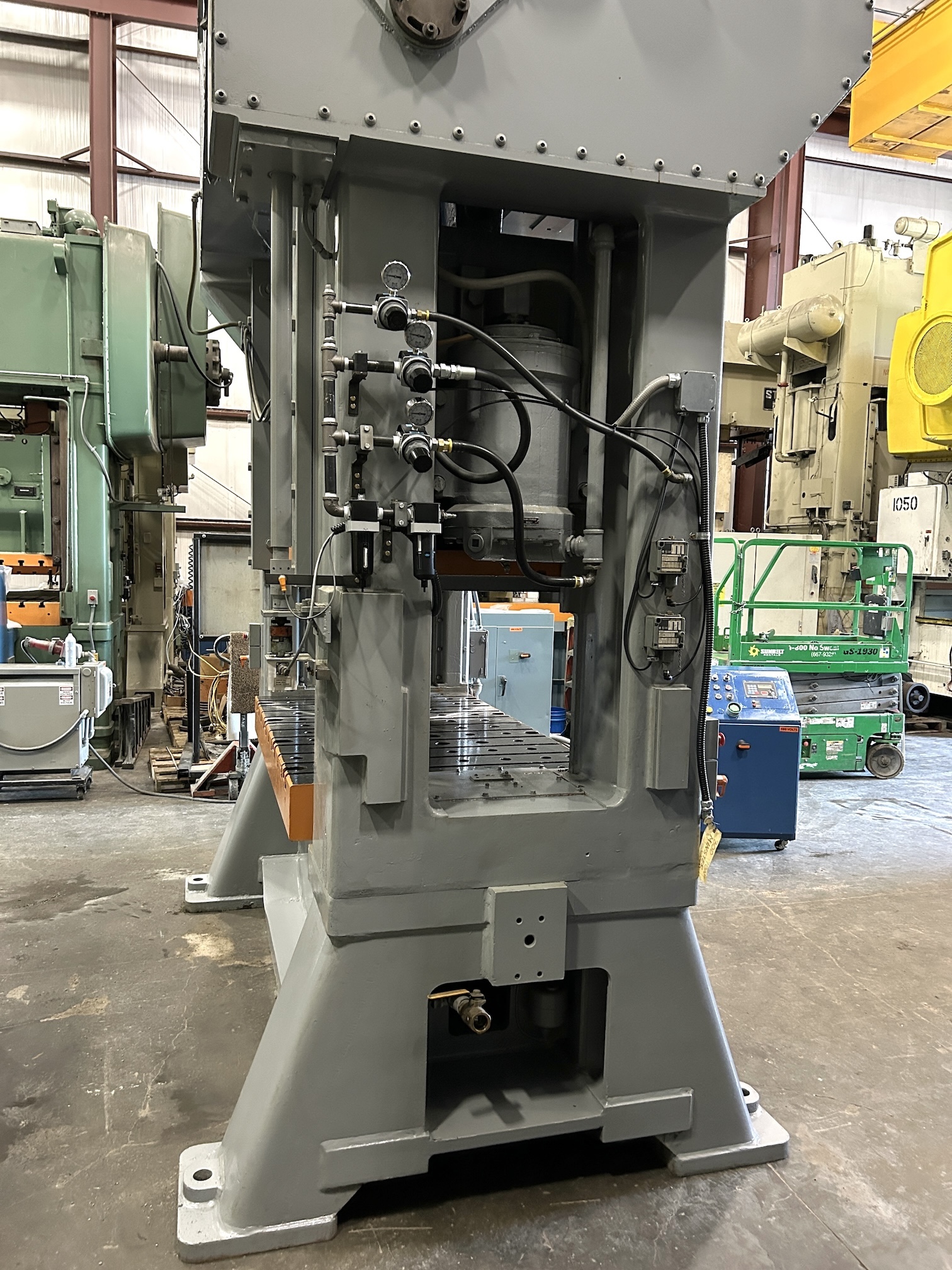

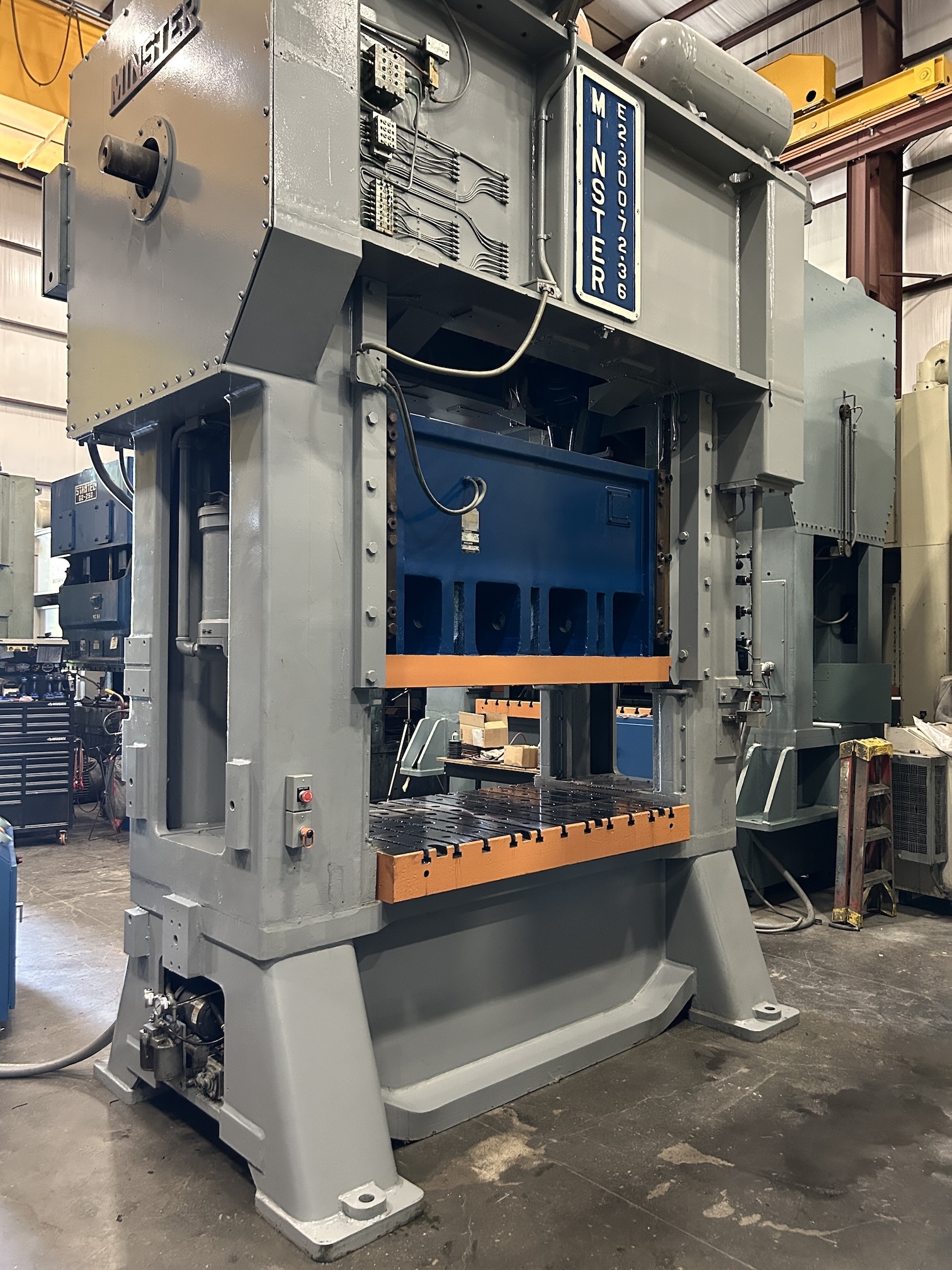

Model: Minster E2-300-72-36 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1968
Machine #: 5794
Buy Now: $

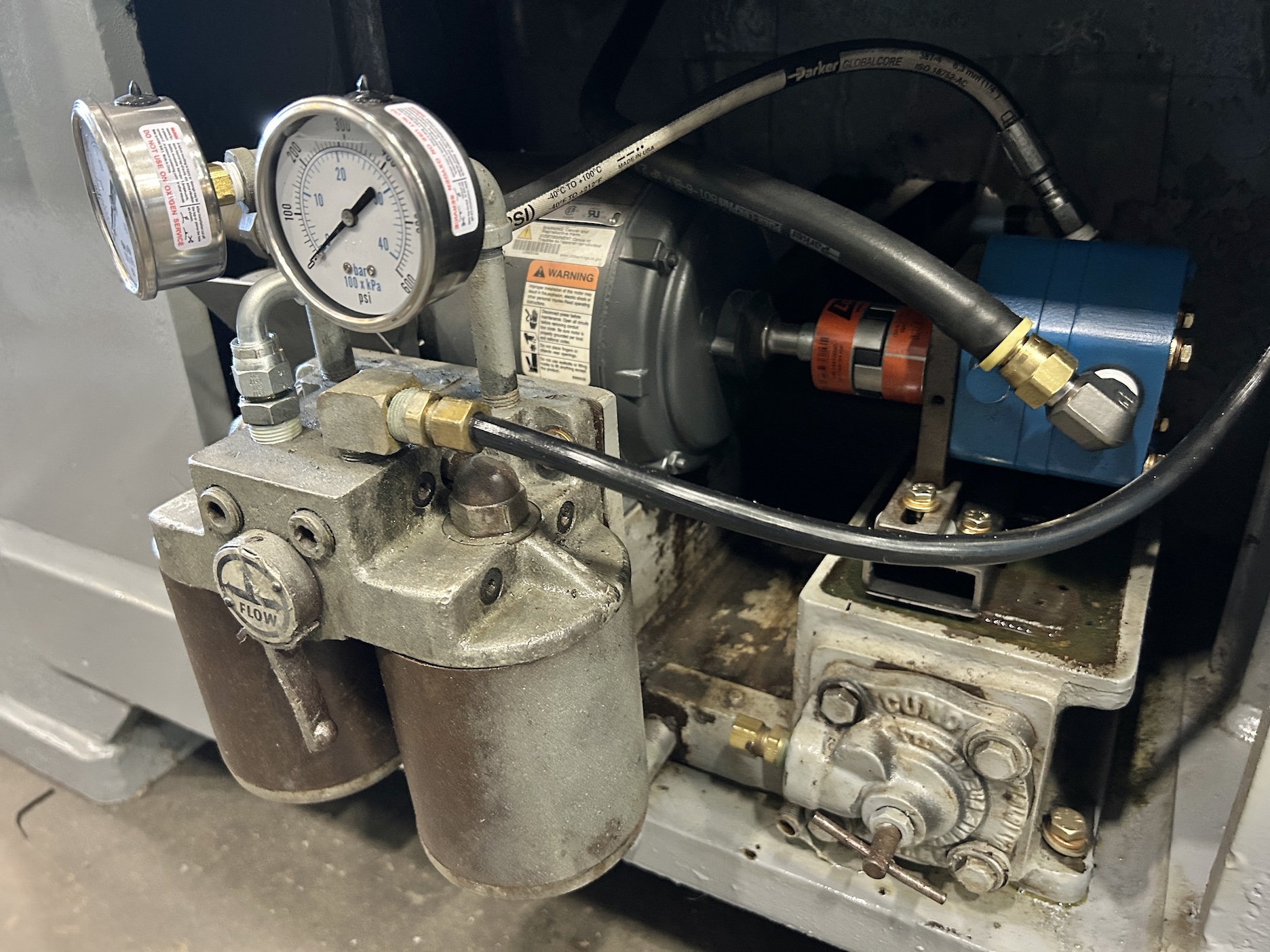

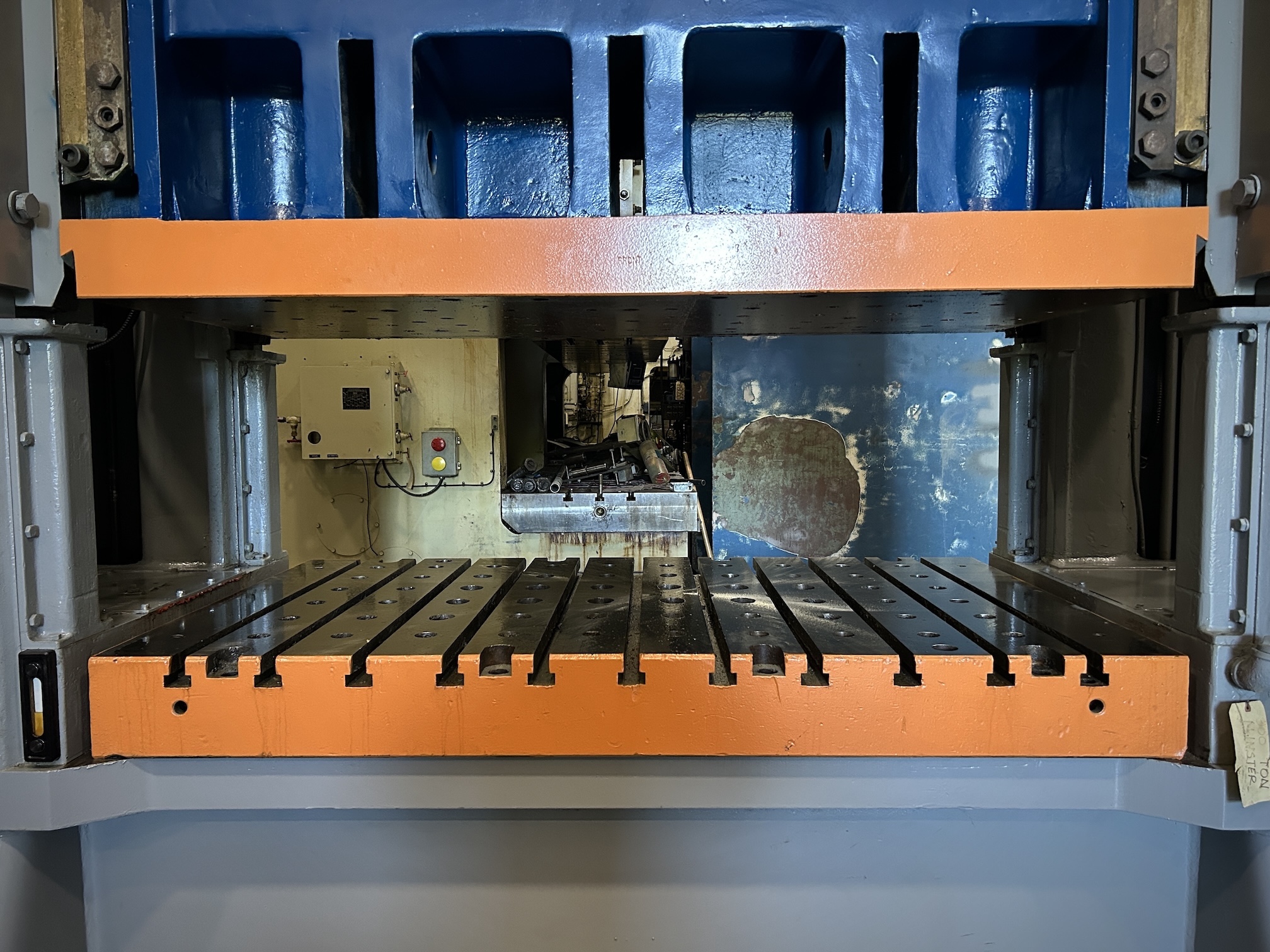

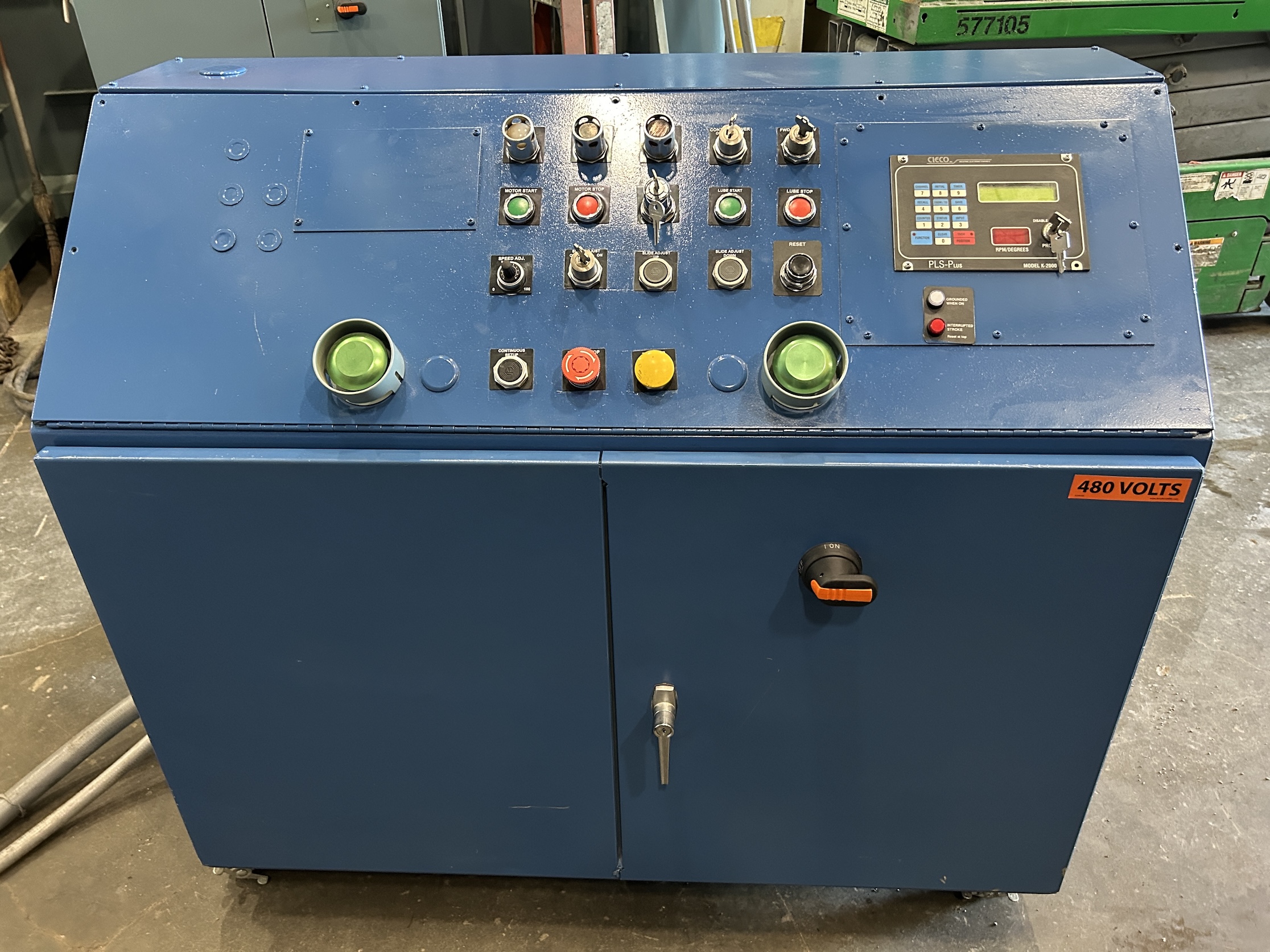

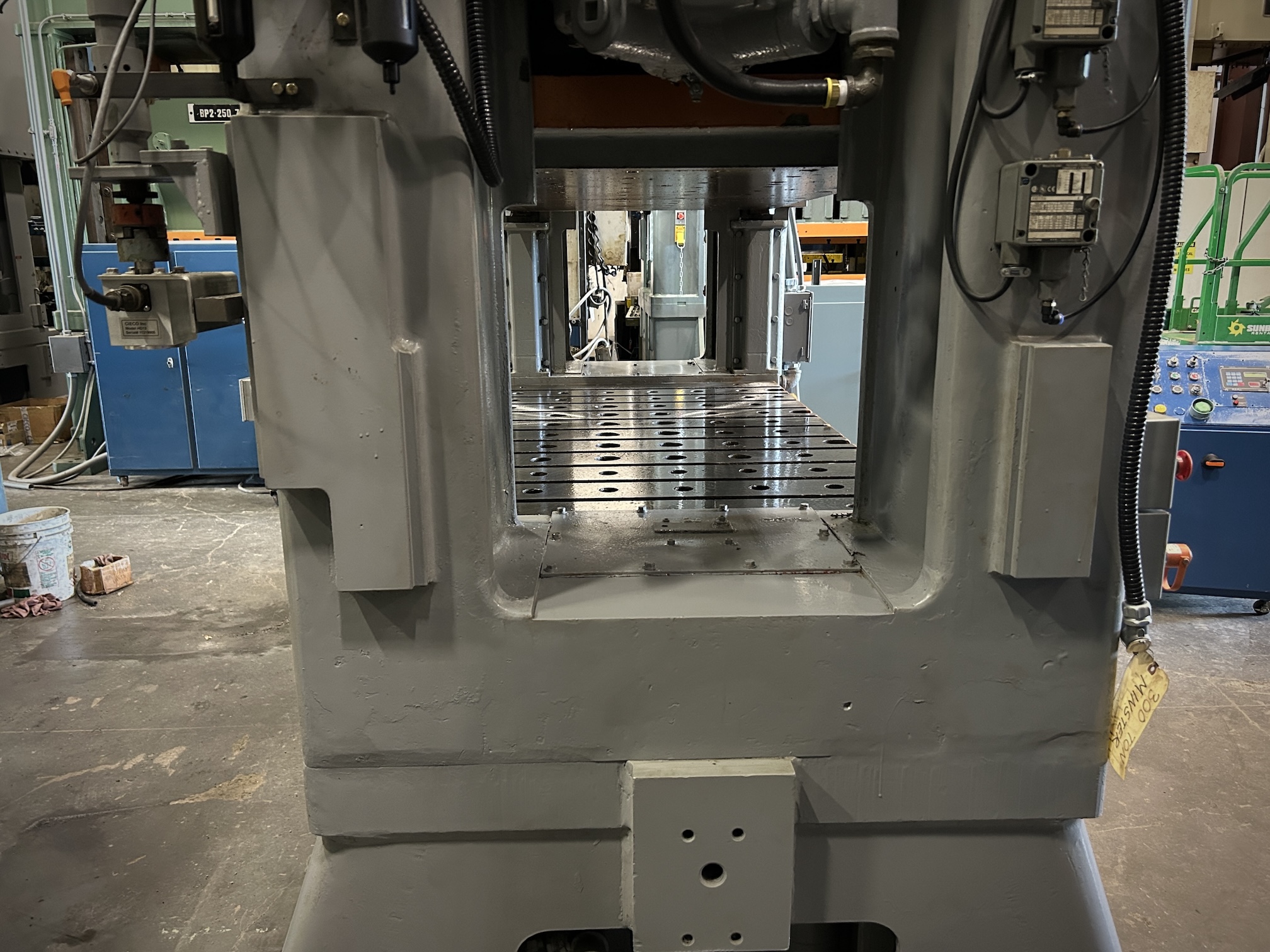

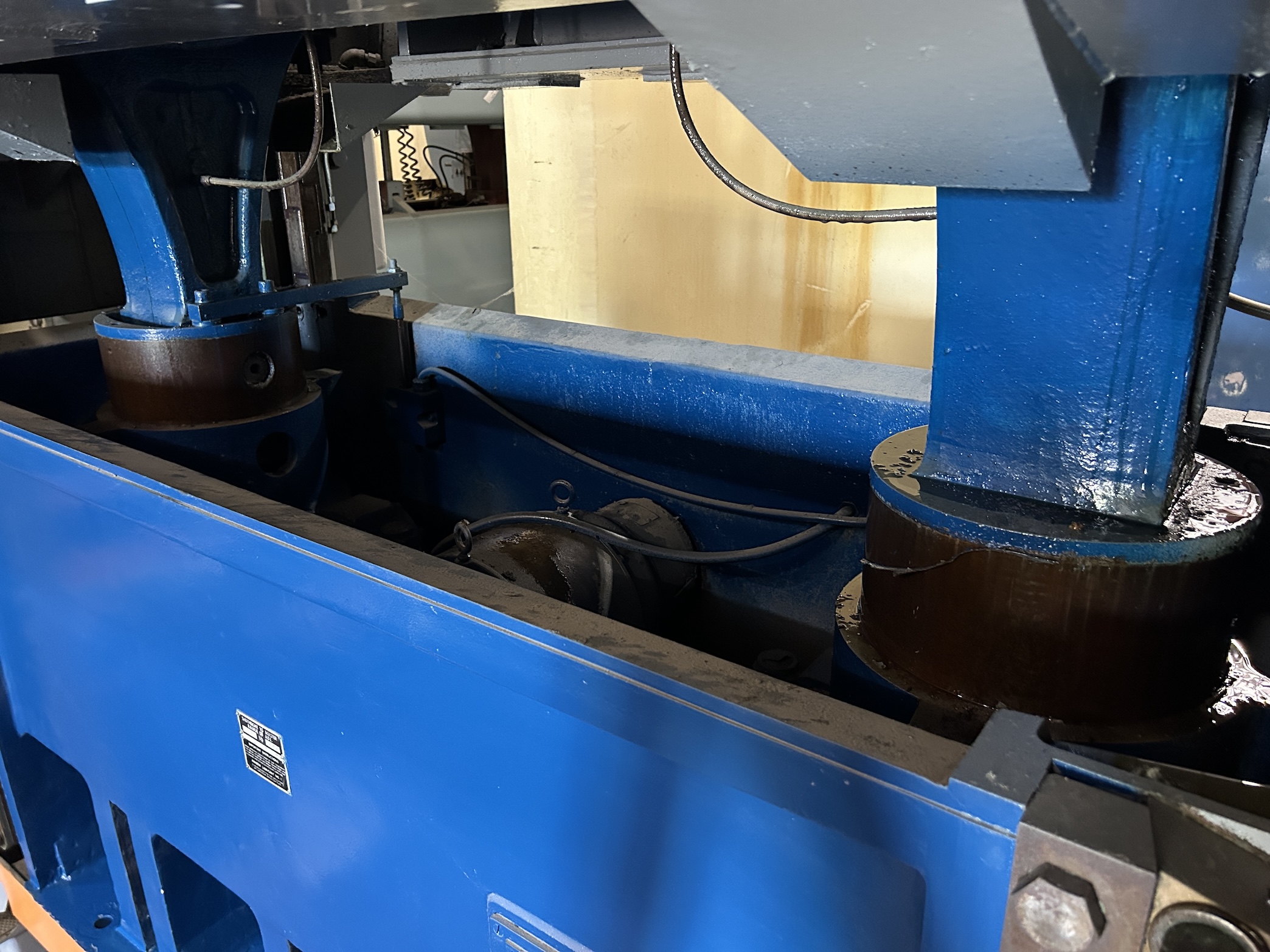

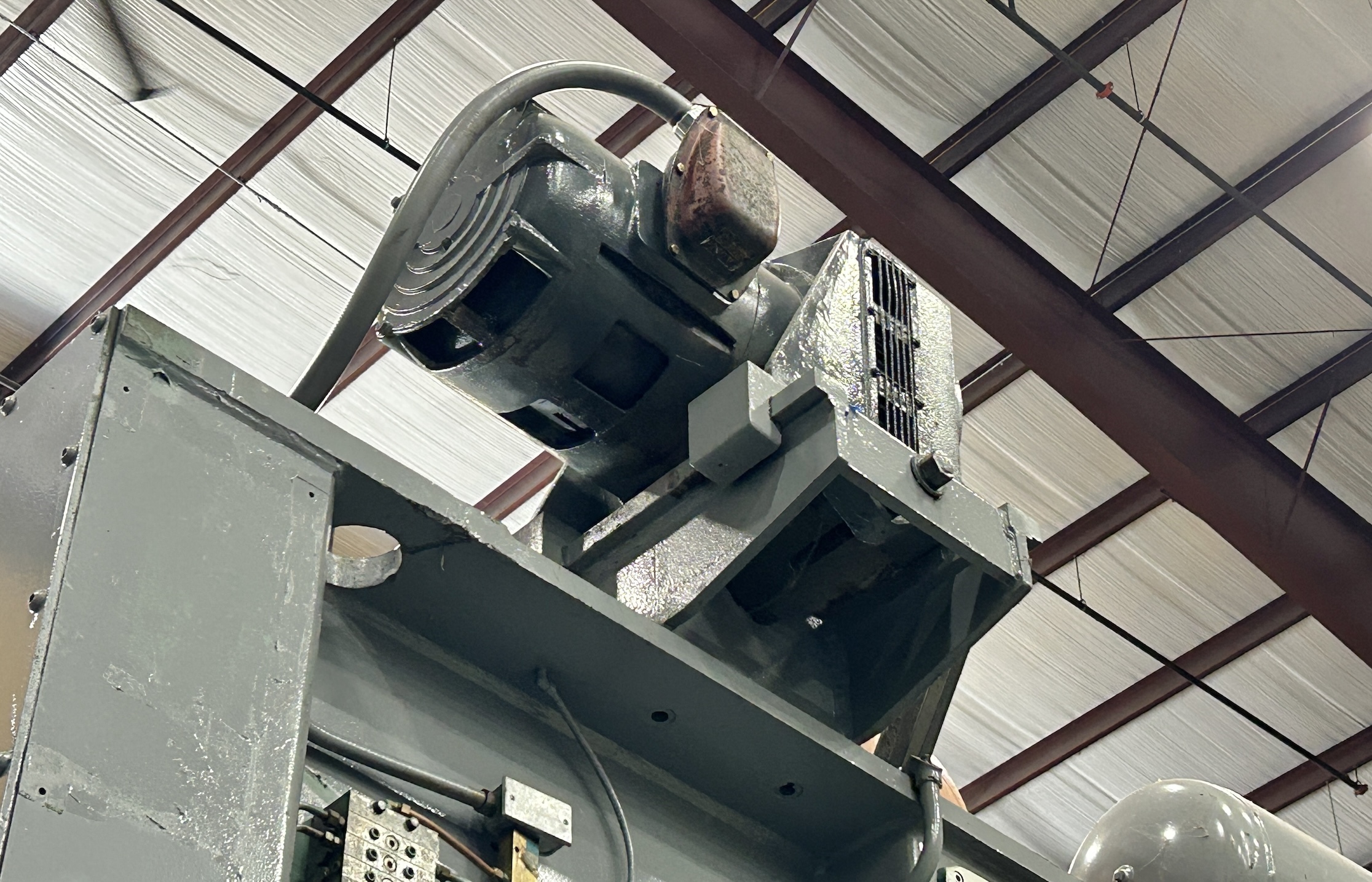

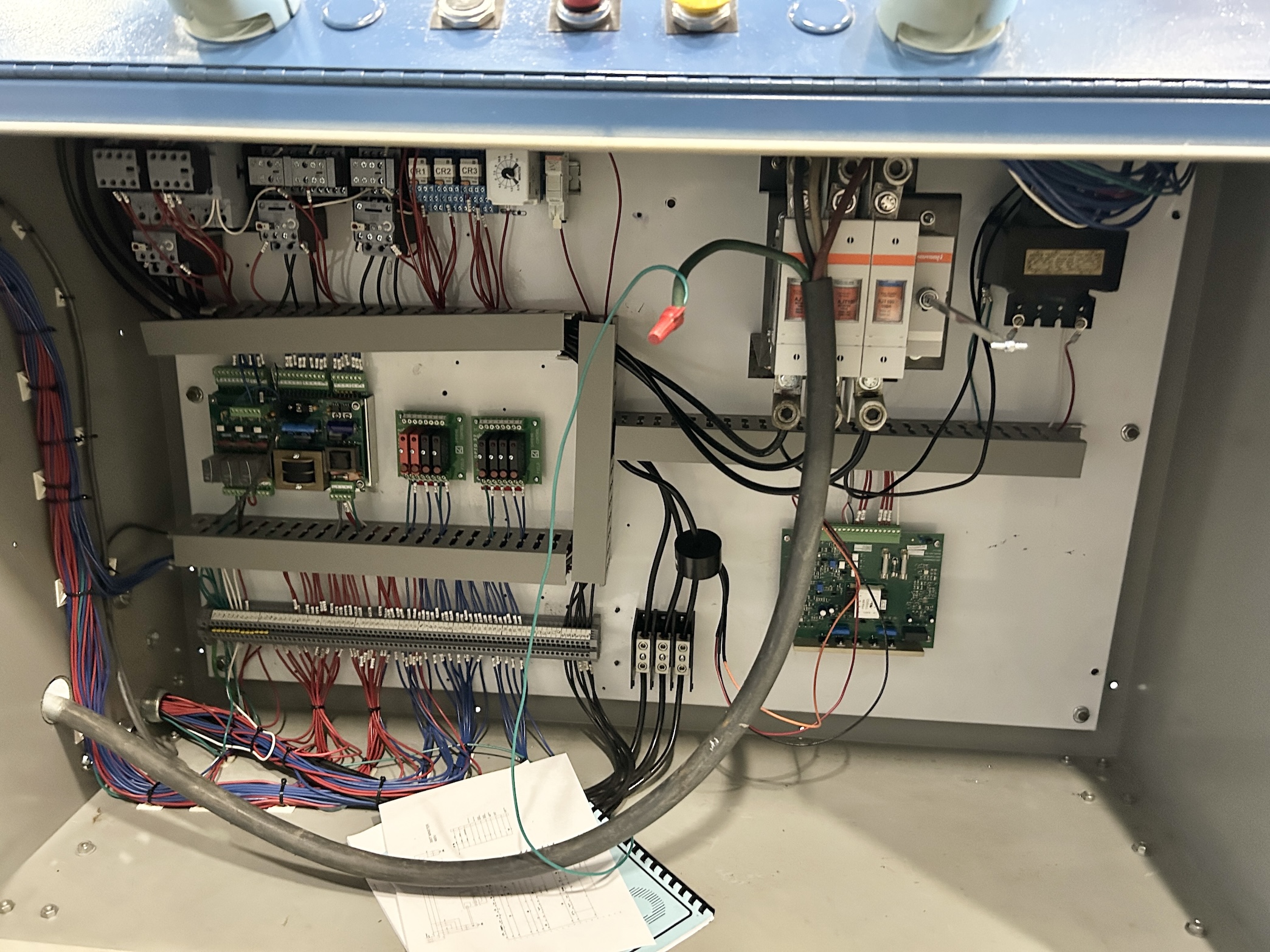

| CAPACITY | 300 TON | STROKE | 8" | MAX SHUT HEIGHT TO BED | 39" SDAU | BED AREA | 72" x 36" (rl x FB) | SPEED | 30 - 60 SPM | slide area | 72" RL x 36" FB | slide adjustment | 6" (MOTORIZED) | BOLSTER | 7" H X 72" RL X 42" FB (T-SLOT) | WINDOW SIZE | 22" FB X 24" H | DIST UPRIGHTS/FLOOR TO BED | 73-1/2" / 36-1/4" | CLUTCH | MINSTER AIR CLUTCH & BRAKE | PRESS CONTROLS | NEW CIECO 1100R6 PRESS CONTROL FOR RECONDITIONED PRICE | electrics | 40 HP 1750 rpm 480v-3-60 EDDY CURRENT DRIVE | APPROX. DIMENSIONS | 16' 8" H X 11'8" RL X 7' FB | APPROX. WEIGHT | 85,000 LBS. | Equipped With | FLOOR STANDING BASE RECIRCULATING LUBRICATION SYSTEM - new pump & lube motor included in reconditioned price AIR COUNTERBALANCED RAM TWIN GEAR DRIVE MACHINED BOLSTER PLATe | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
