176 Ton Komatsu Used Press for Sale • Komatsu E2W Press

176

176
Ton
78.8″
Bed R-L
7.9″
Stroke
Speed: 35-65 SPM
New in 2000

1
Straight Side Press

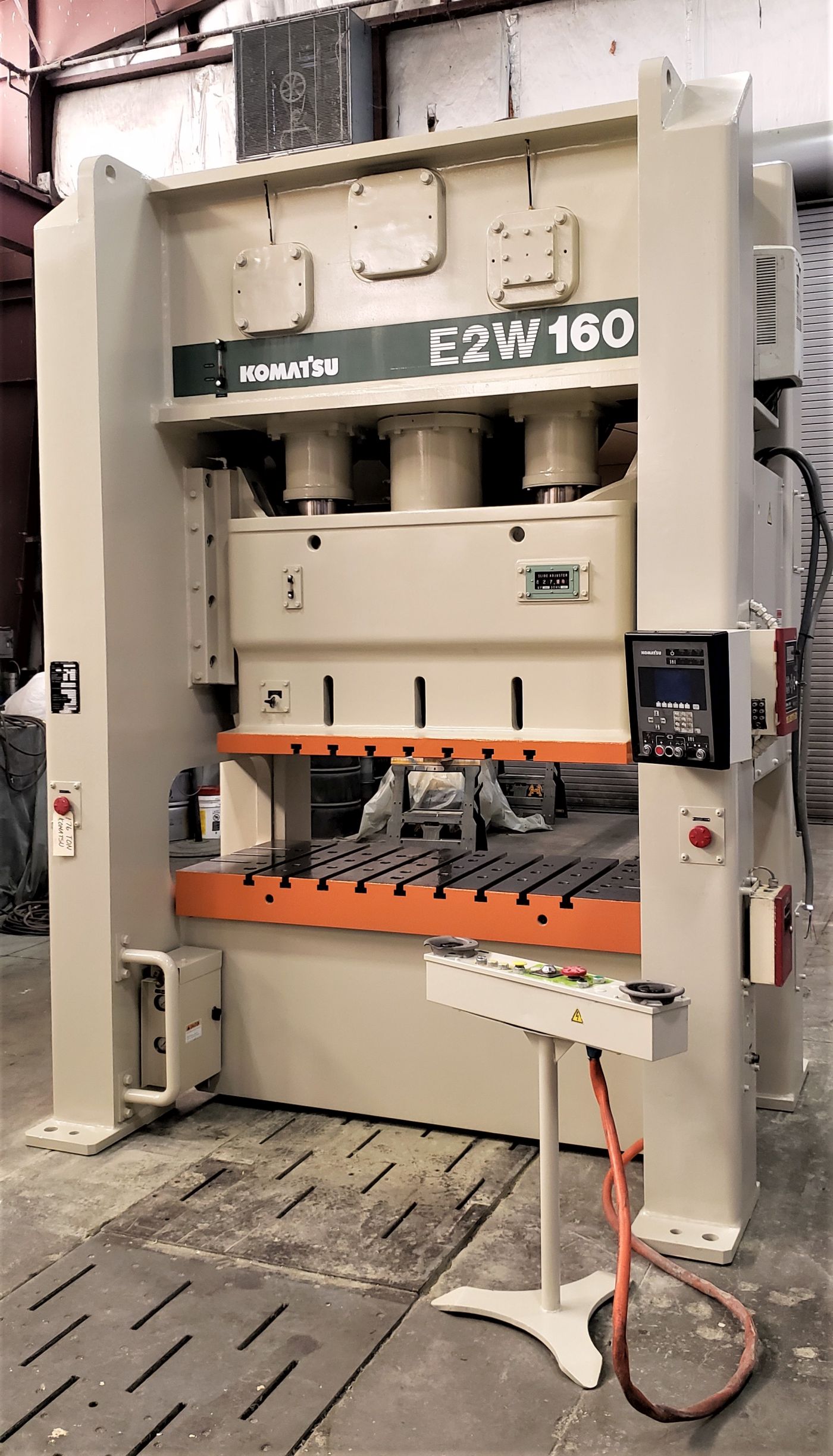

Model: Komatsu E2W
7.9″ STR, 18.1″ SHUT HEIGHT OB, 79X30 BED, 35-65 SPM, 3.9″ ADJ, VIEW UNDER POWER

Straight Side Double Crank Press for Sale
Used Komatsu Stamping Press (Mechanical)
Machine #6158
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Komatsu
Model: Komatsu E2W-160 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 2000
Machine #: 6158
Buy Now: $





CAPACITY 176 US TONS
STROKE 7.87″
max die height 18.11″ SDAU OVER BOLSTER
BED AREA 78.8″ RL X 29.9″ FB
SPEED 35 – 65 SPM
RAM ADJUSTMENT 3.93″ MOTORIZED
RAM AREA 63″ RL X 22.83″ FB (T-SLOTTED)
BOLSTER PLATE 6.6″ H X 78.8″ RL X 29.9″ FB (T-SLOTTED)
DIST UPRIGHTS / FLOOR TO BED 74.75″ / 28.75″
WINDOW SIZE 30″ W
CLUTCH KOMATSU WET CLUTCH
ELECTRICS 20 HP 1750 RPM 480V-3-60 MOTOR W/ABB VFD & KOMATSU PRESS CONTROL
APPROX DIMENSIONS 137″ H x 102″ RL x 96″ FB
APPROX WEIGHT 46,000 LBS
Equipped With SYMMETRICAL UNITIZED FRAME, DOUBLE REDUCTION GEARING, PLUNGER GUIDE SYSTEM, HYDRAULIC OVERLOAD PROTECTOR, AIR COUNTERBALANCED RAM, FLOOR STANDING VIEW UNDER POWER
Note __
Location This used press is located in our Columbia, TN Warehouse
