500 Ton Minster Press • Used Minster E2-500-84-48 Press

500

500
Ton
84″
Bed R-L
12″
Stroke
Speed: 18-27 SPM
New in 1

Omnilink Press Controls

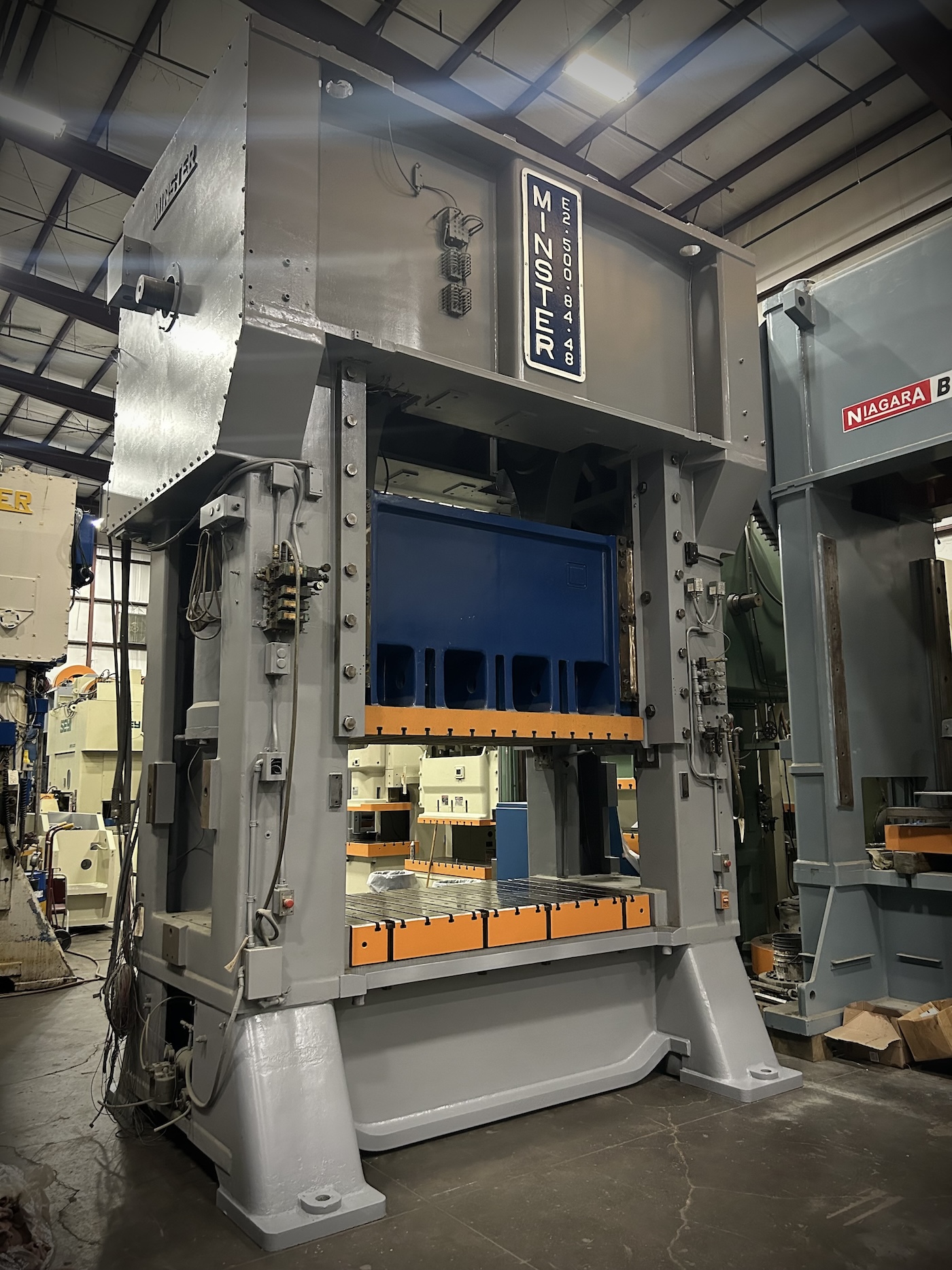

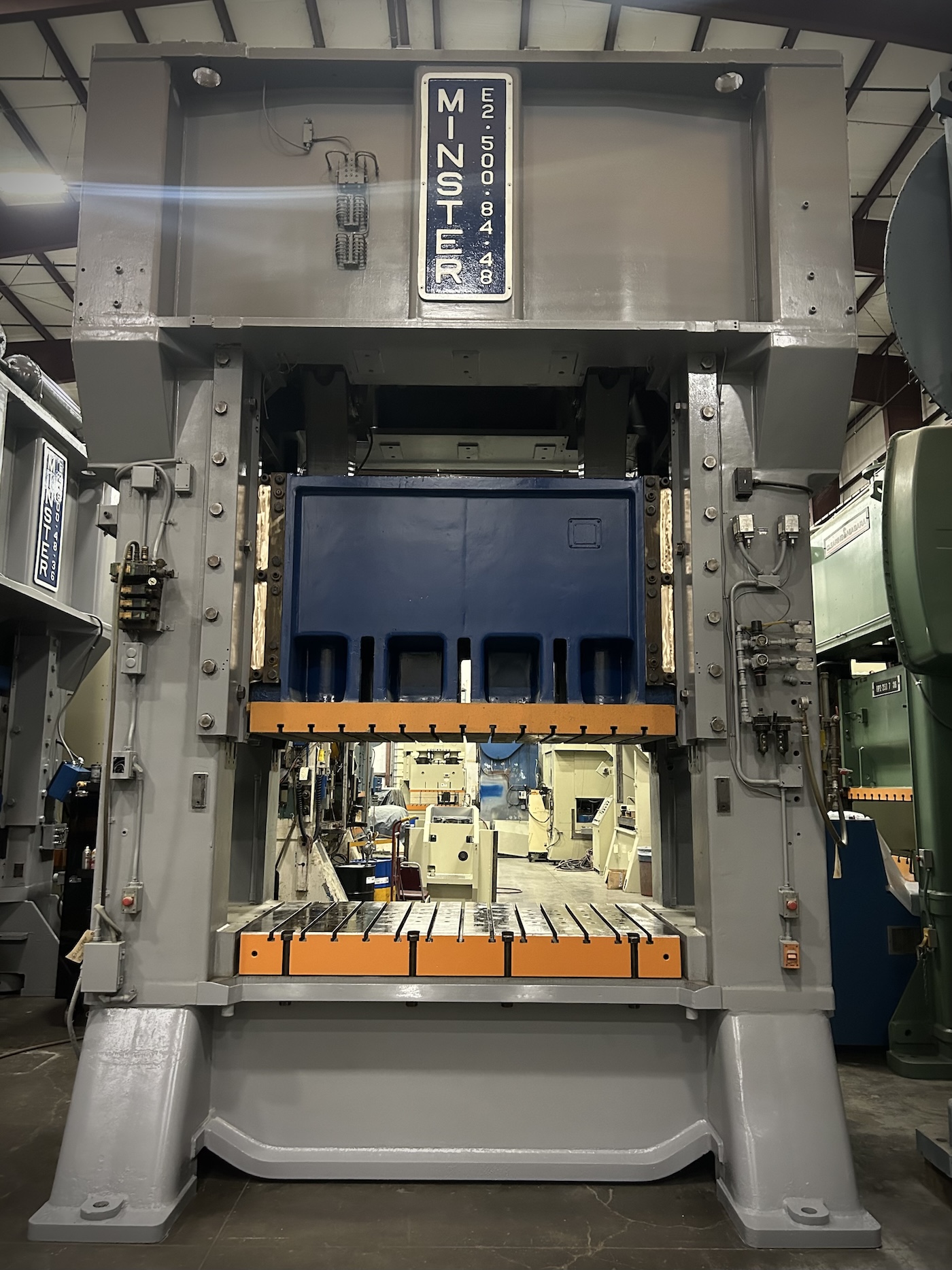

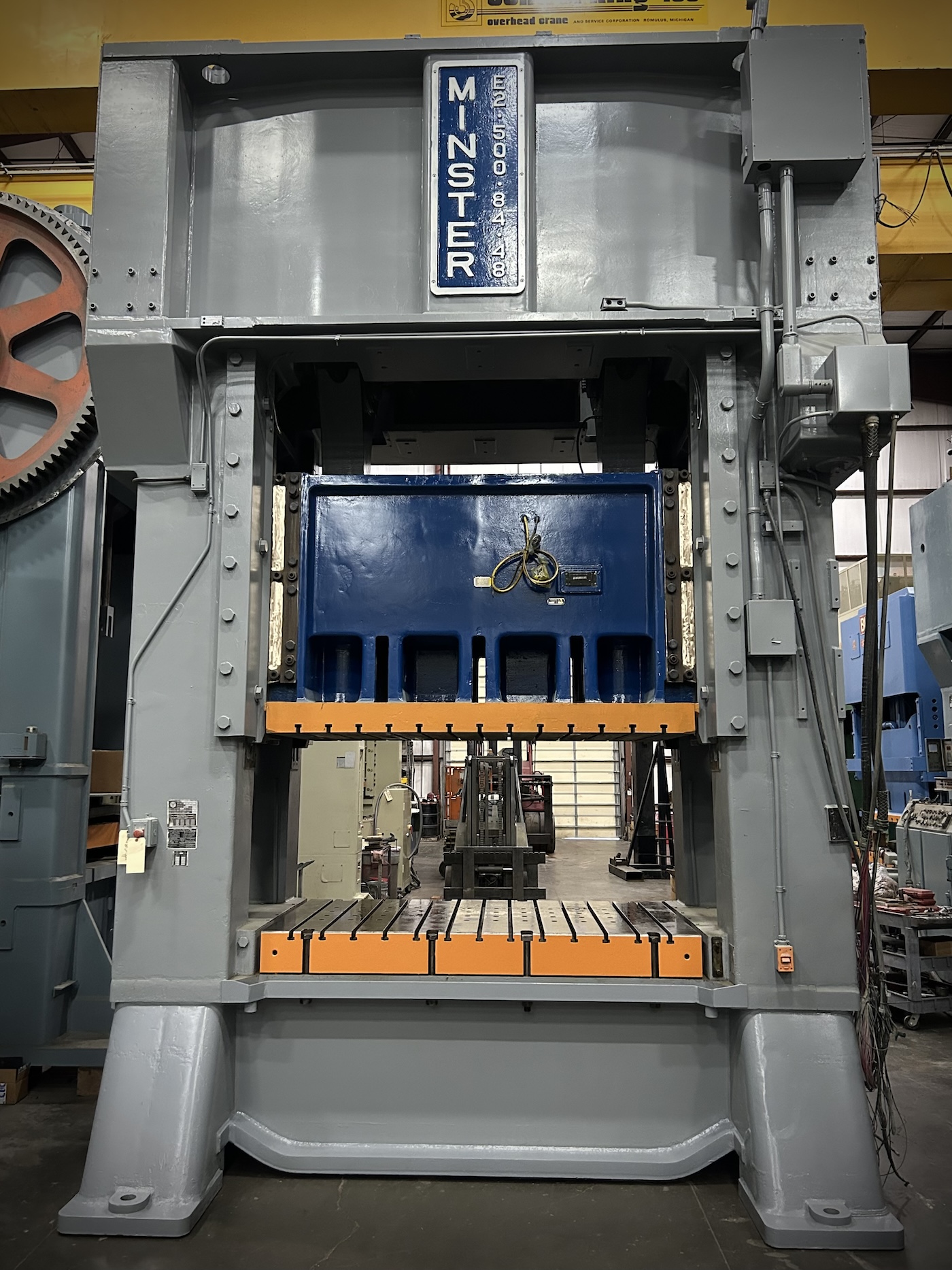

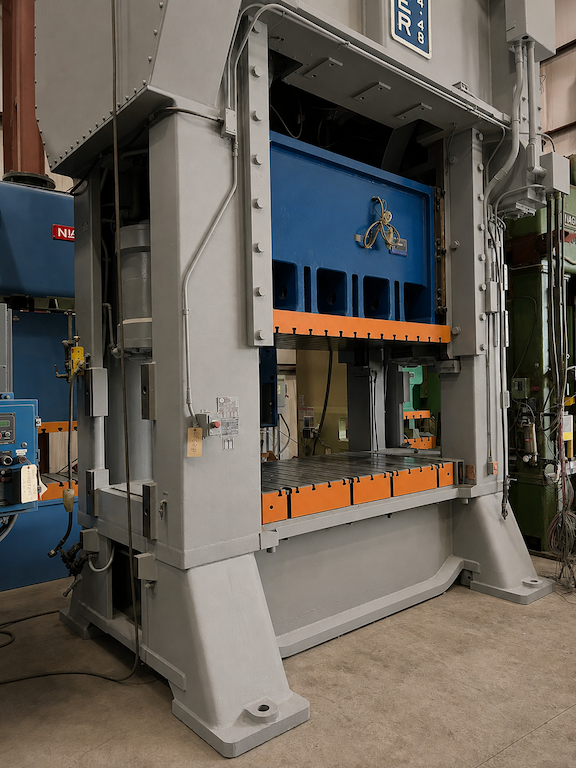

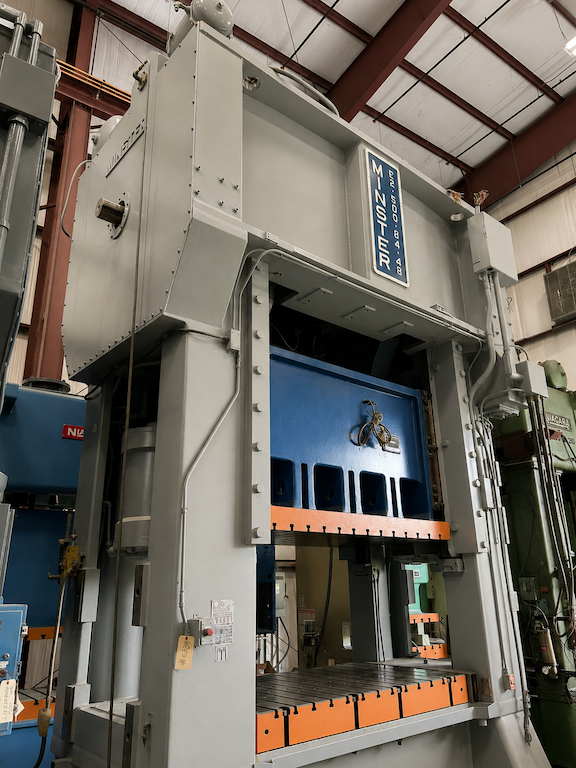

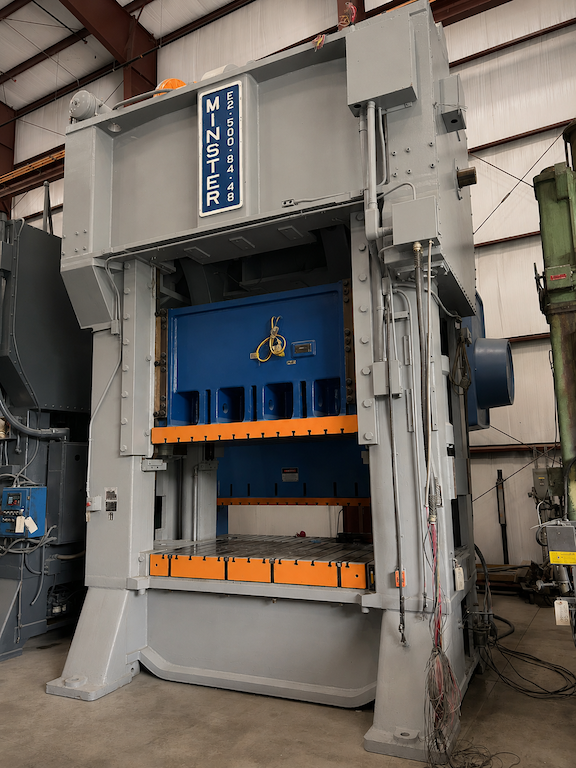

500 Ton Used Press – Straight Side Press
Model: Minster E2-500-84-48
12″ STR, 46″ SH, 84X48 BED, 18-27 SPM, 10″ ADJ

Straight Side Double Crank Press for Sale
Used Minster Stamping Press (Mechanical)
Machine #6378
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Minster
Model: Minster E2-500-84-48 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1970
Machine #: 6378
Buy Now: $





capacity 500 ton
stroke 12″
max shut height to bed 46″ sdau
bed area 84″ x 48″ (rl x fb)
speed 18 – 27 spm
slide adjustment 10″ motorized

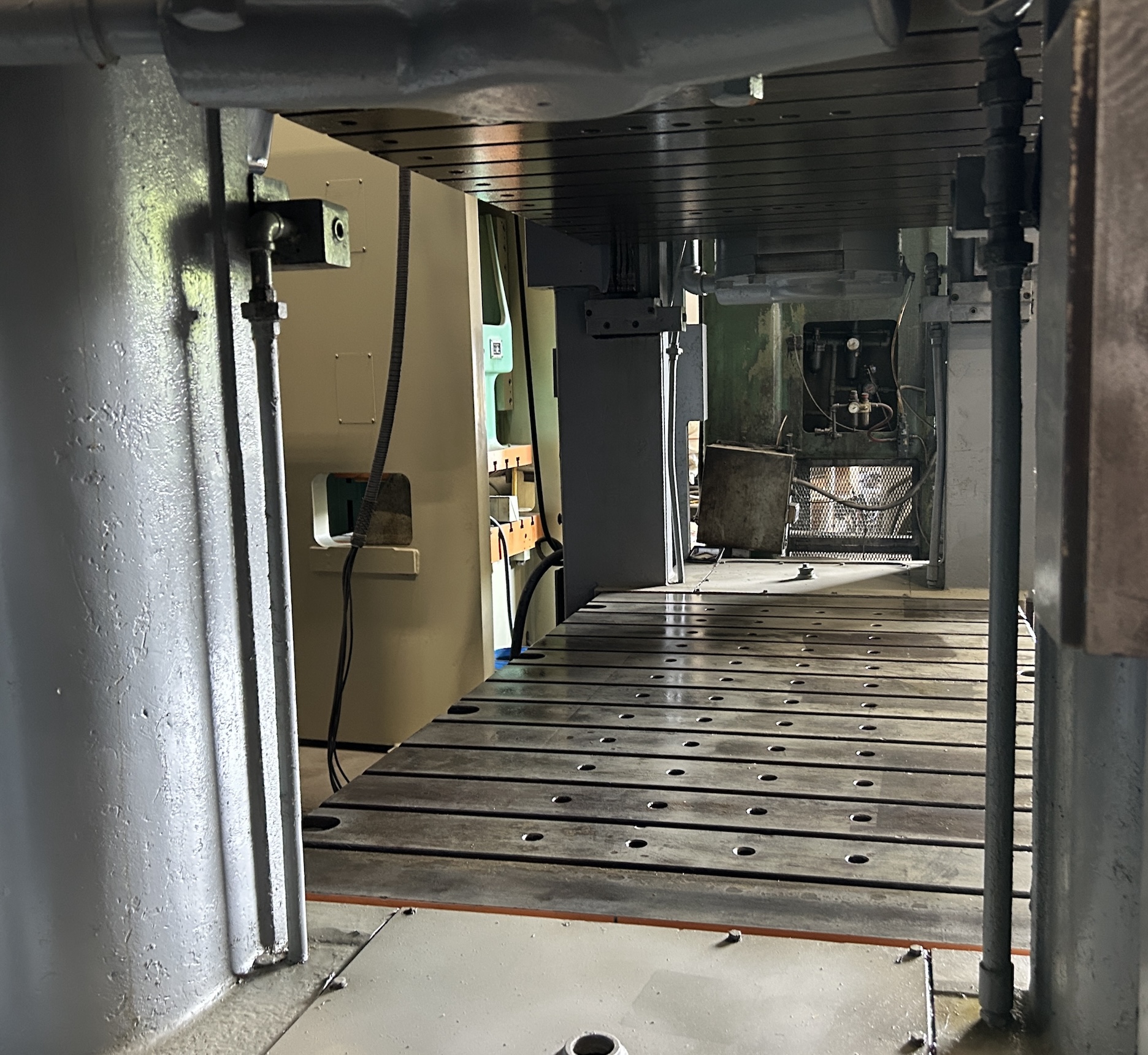

slide area 84″ rl x 48″ fb (t-slotted)

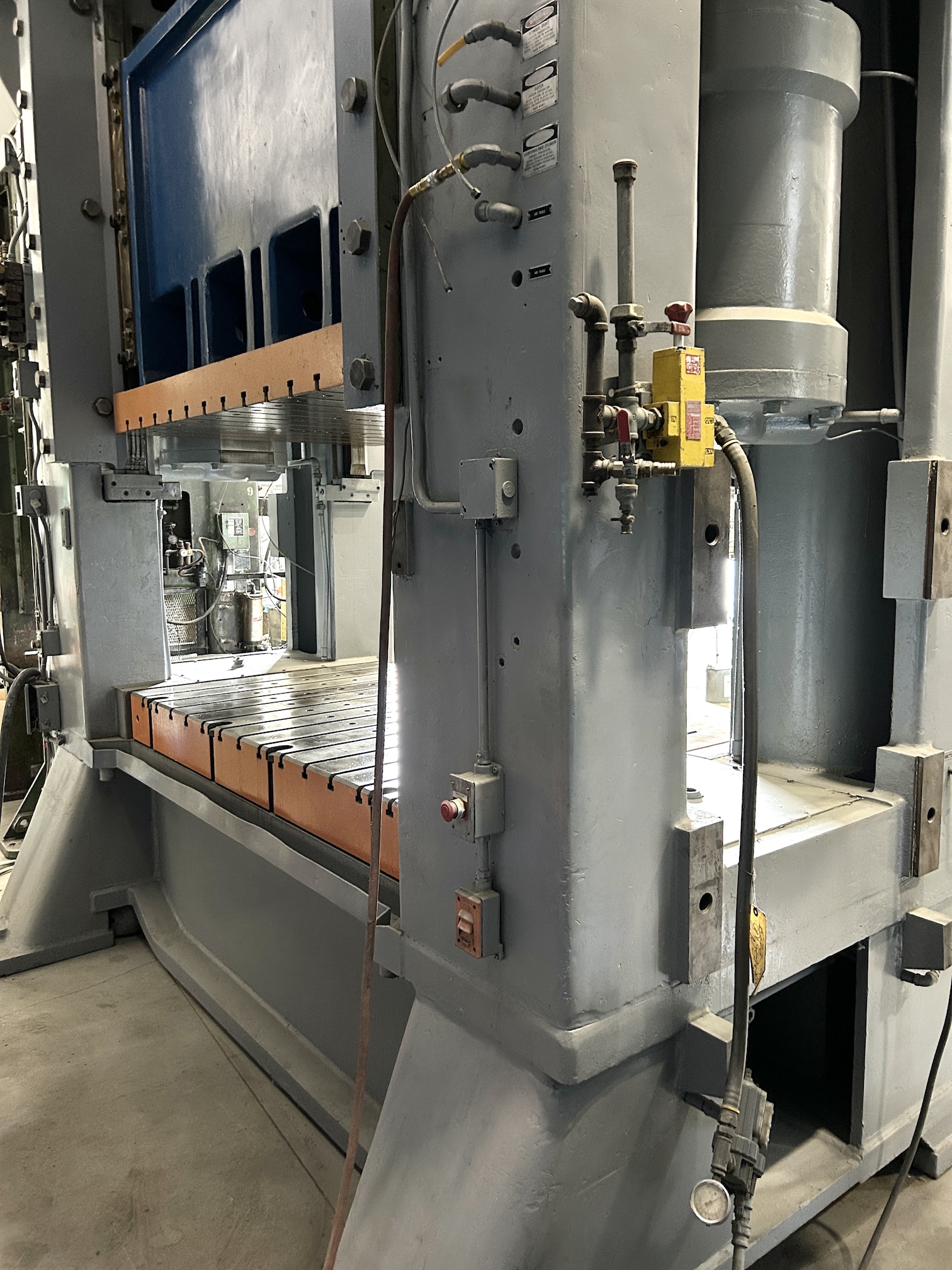

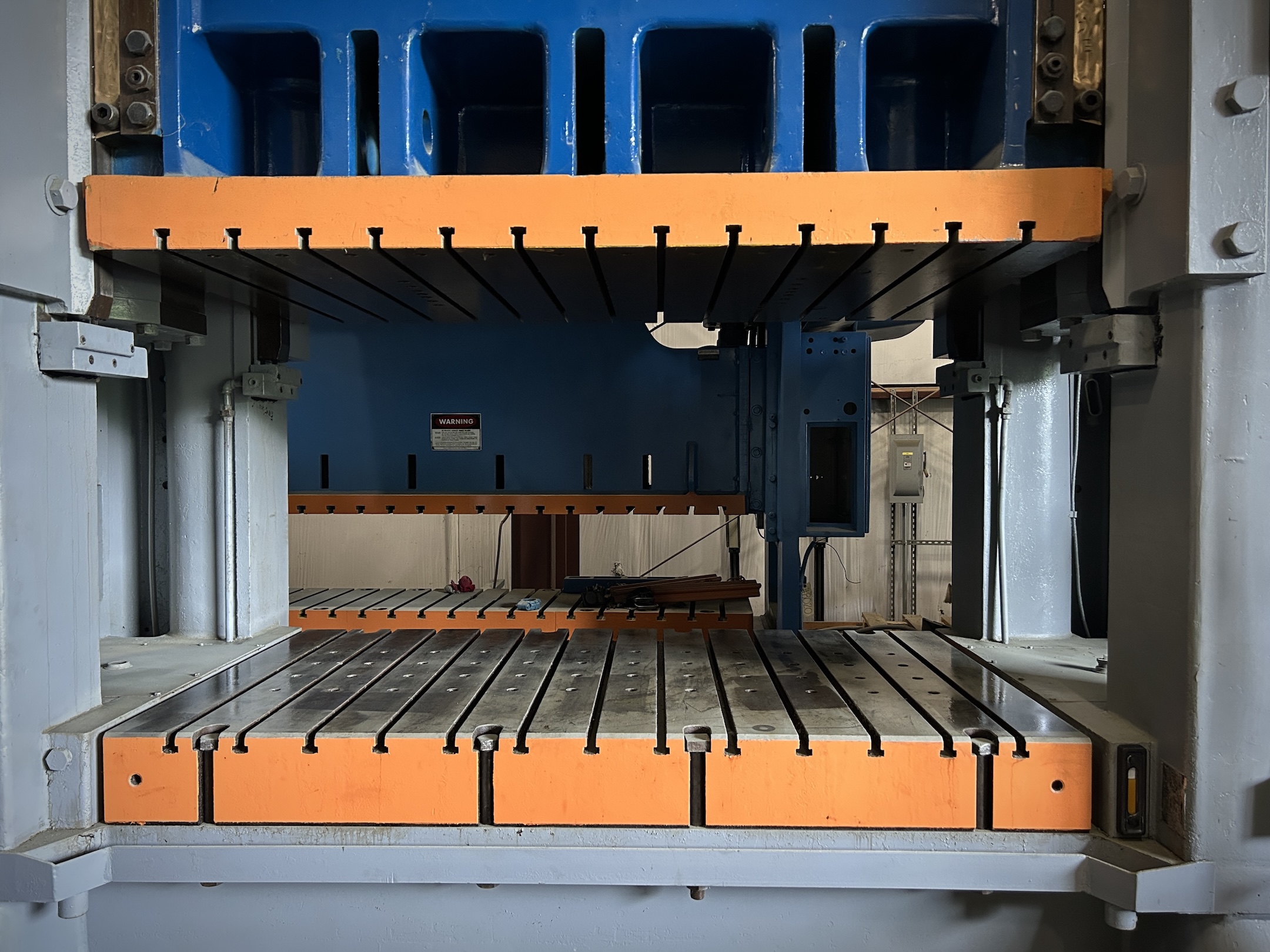

bolster plate 8″ h x 84″ rl x 48″ fb (t-slotted)
dist uprights / floor to bed 86″ or 93″ / 37″ w/o footpads

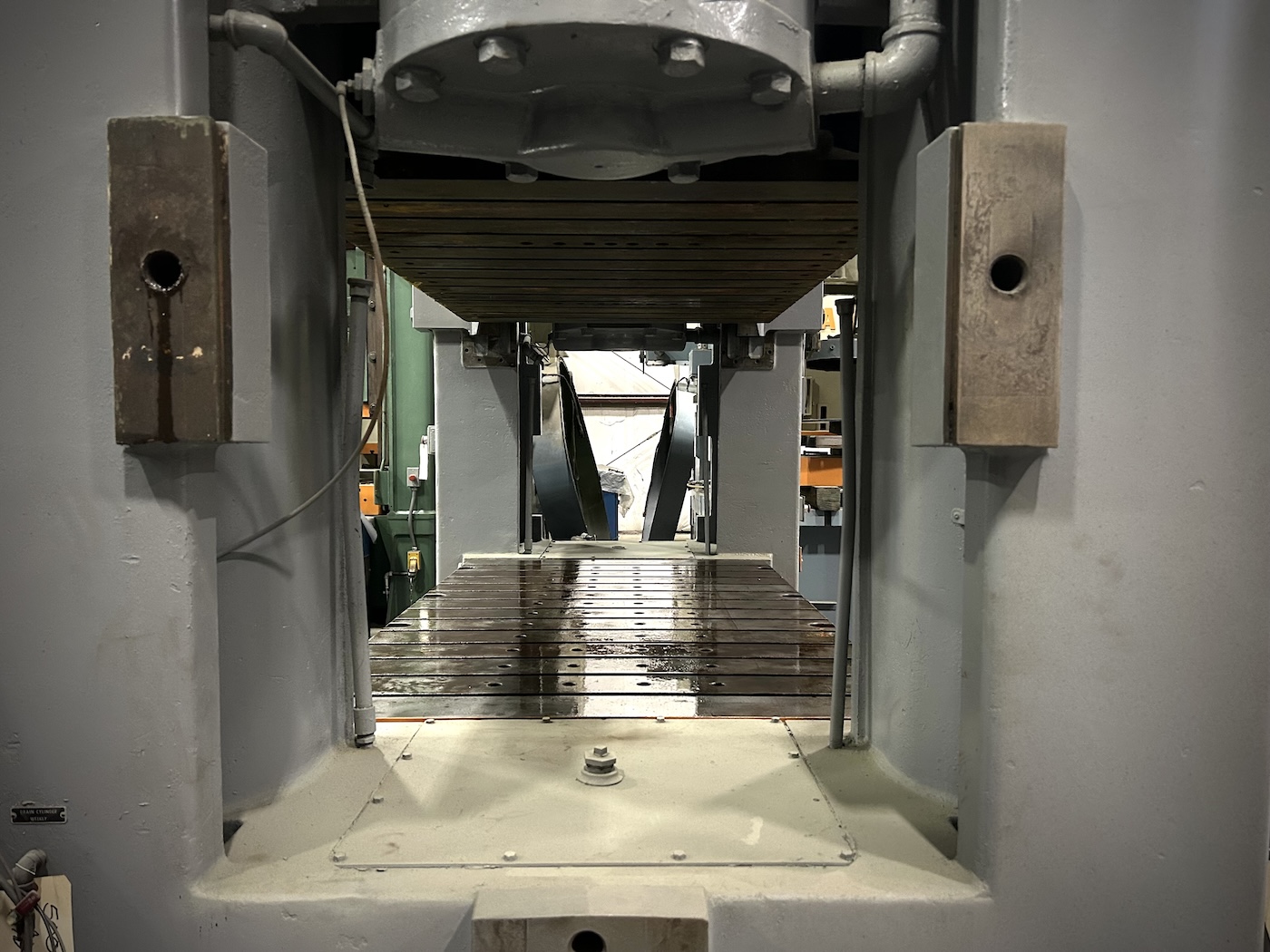

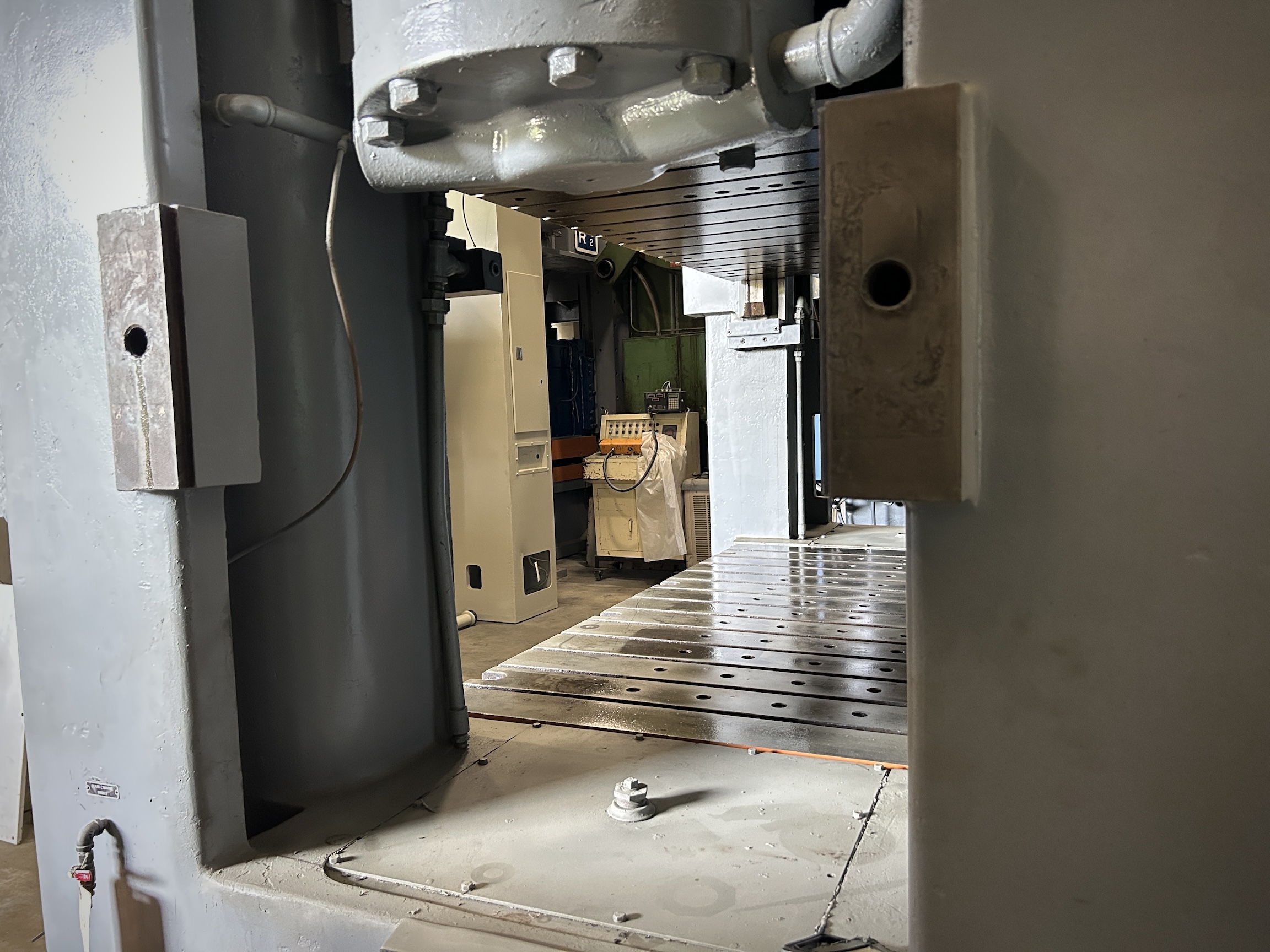

window size 32″ w x 31″ h

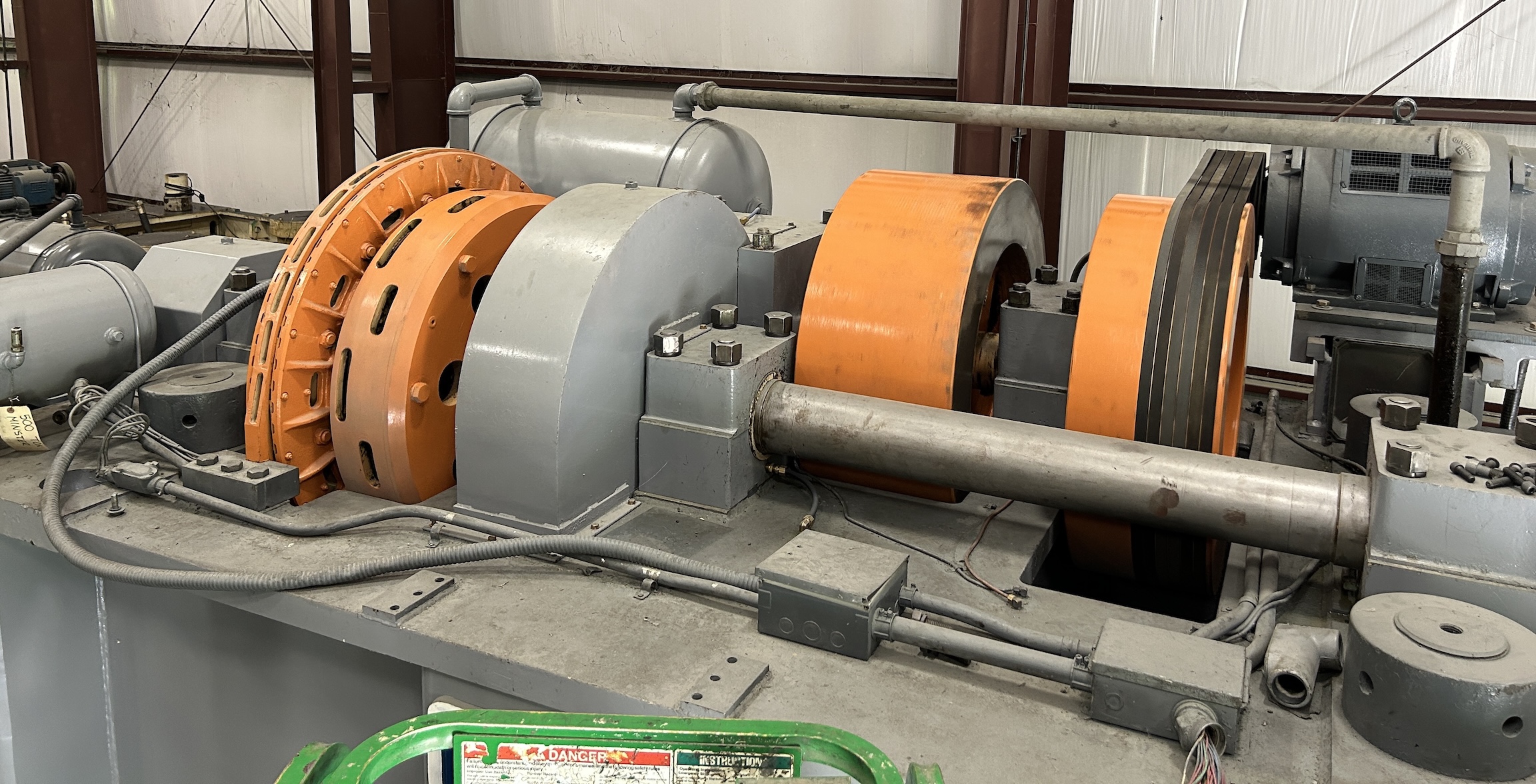

clutch minster air clutch / brake combination
PRESS CONTROLS existing omnilink press controlLER

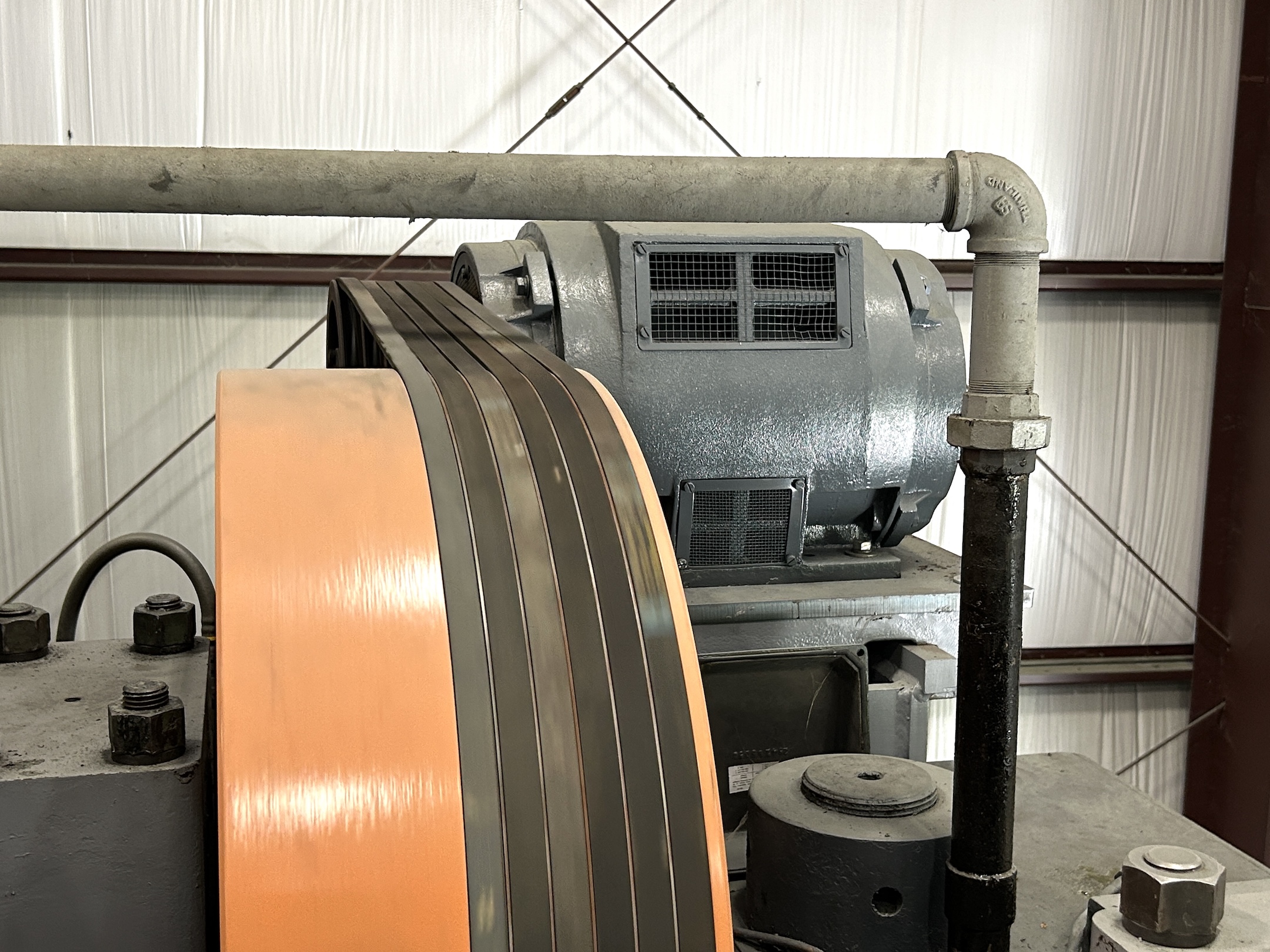

ELECTRIC MOTOR 75 hp 1750 rpm 240/480v-3-60 motor w/vfd
approx dimensions 18′ h x 174″ rl x 9′ fb
approx weight 166,000 lbs

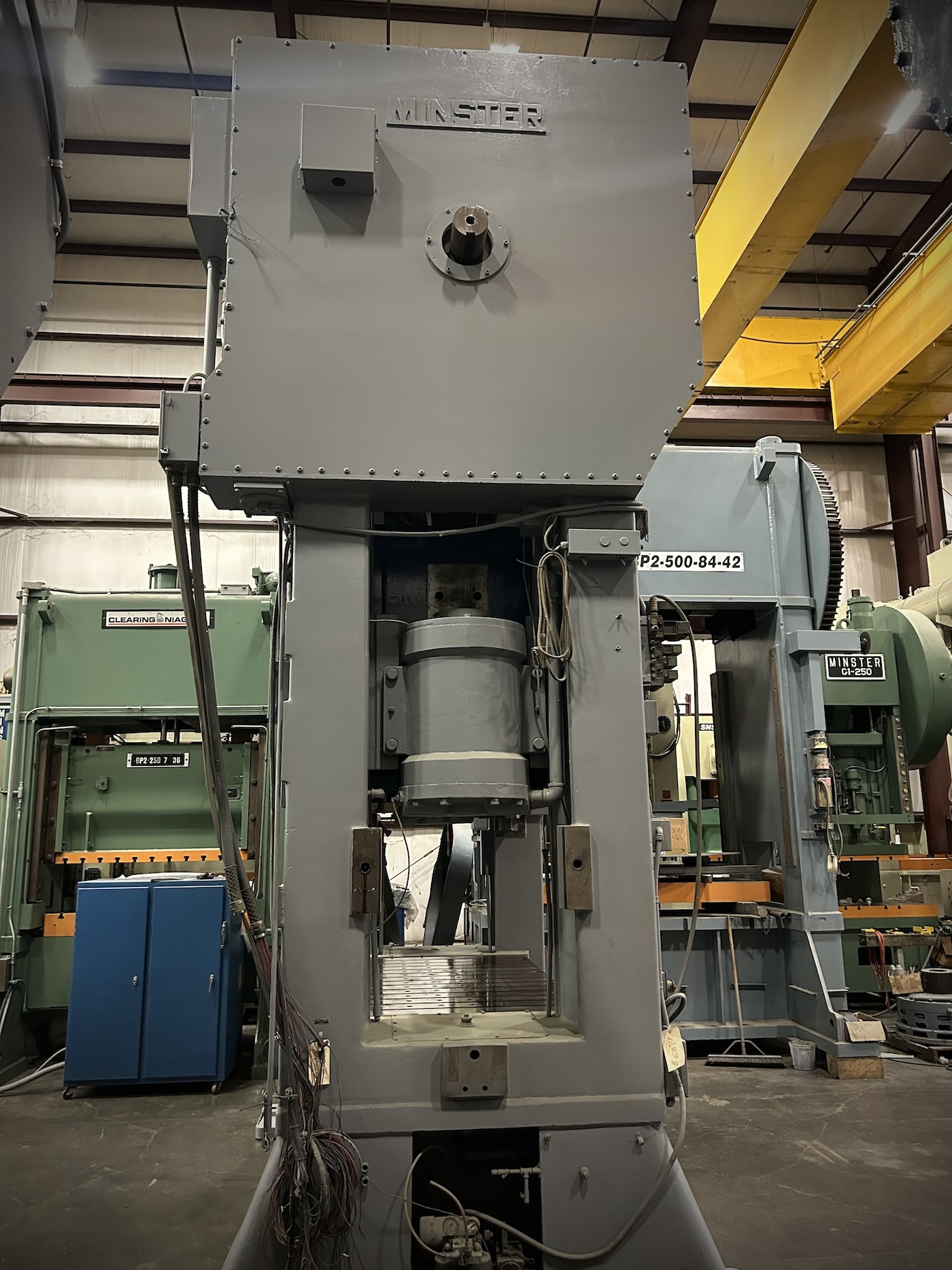

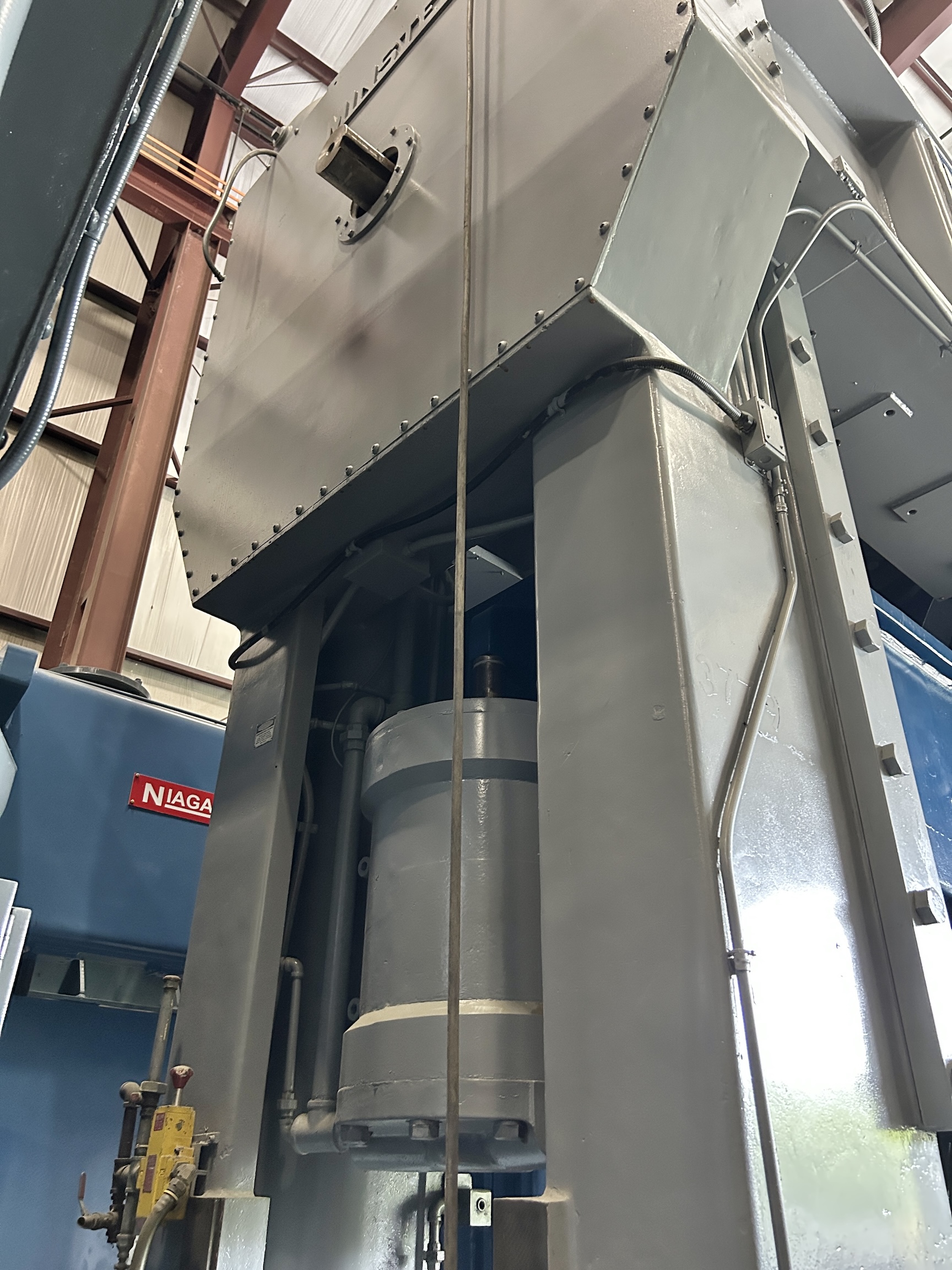

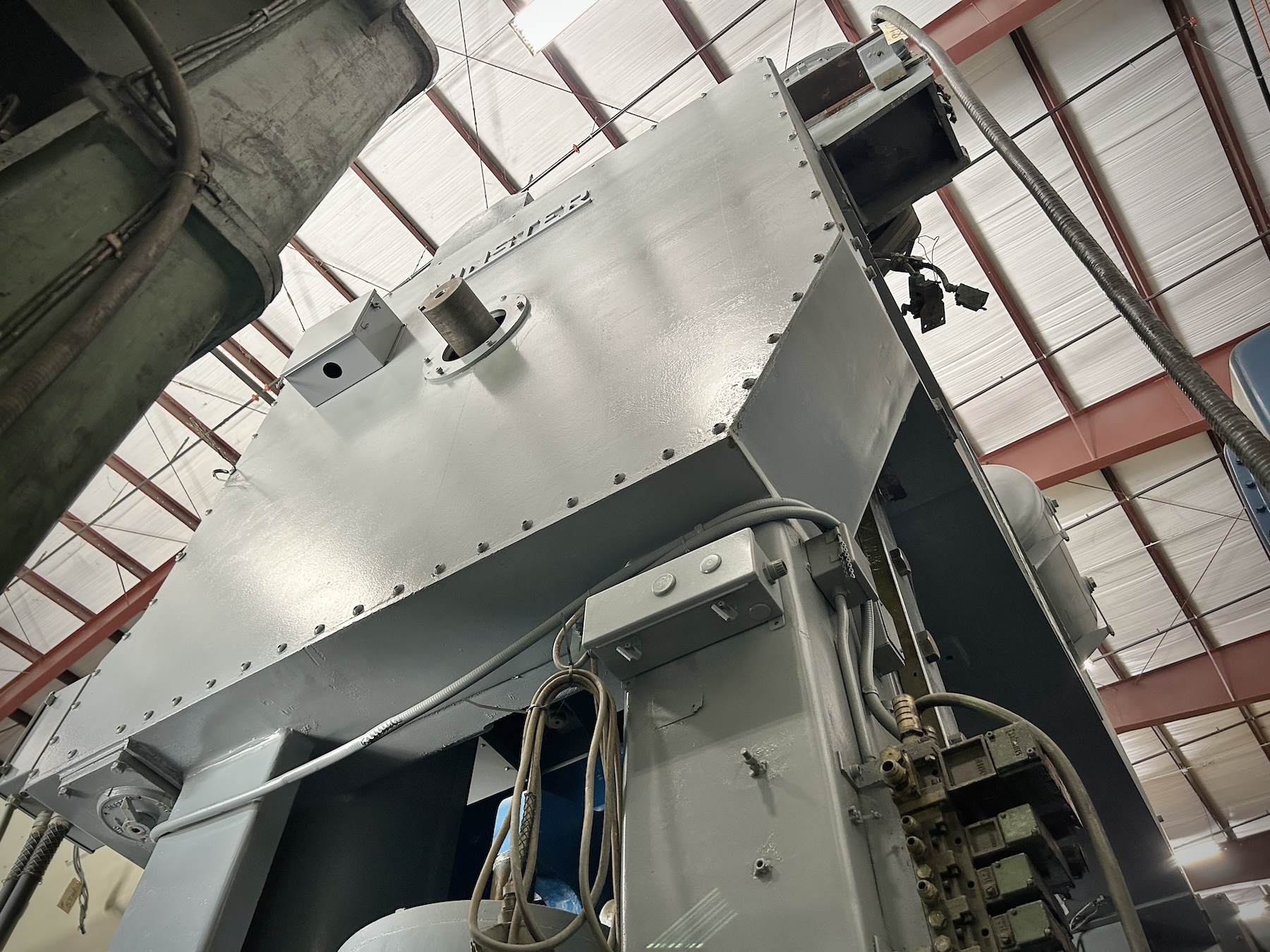

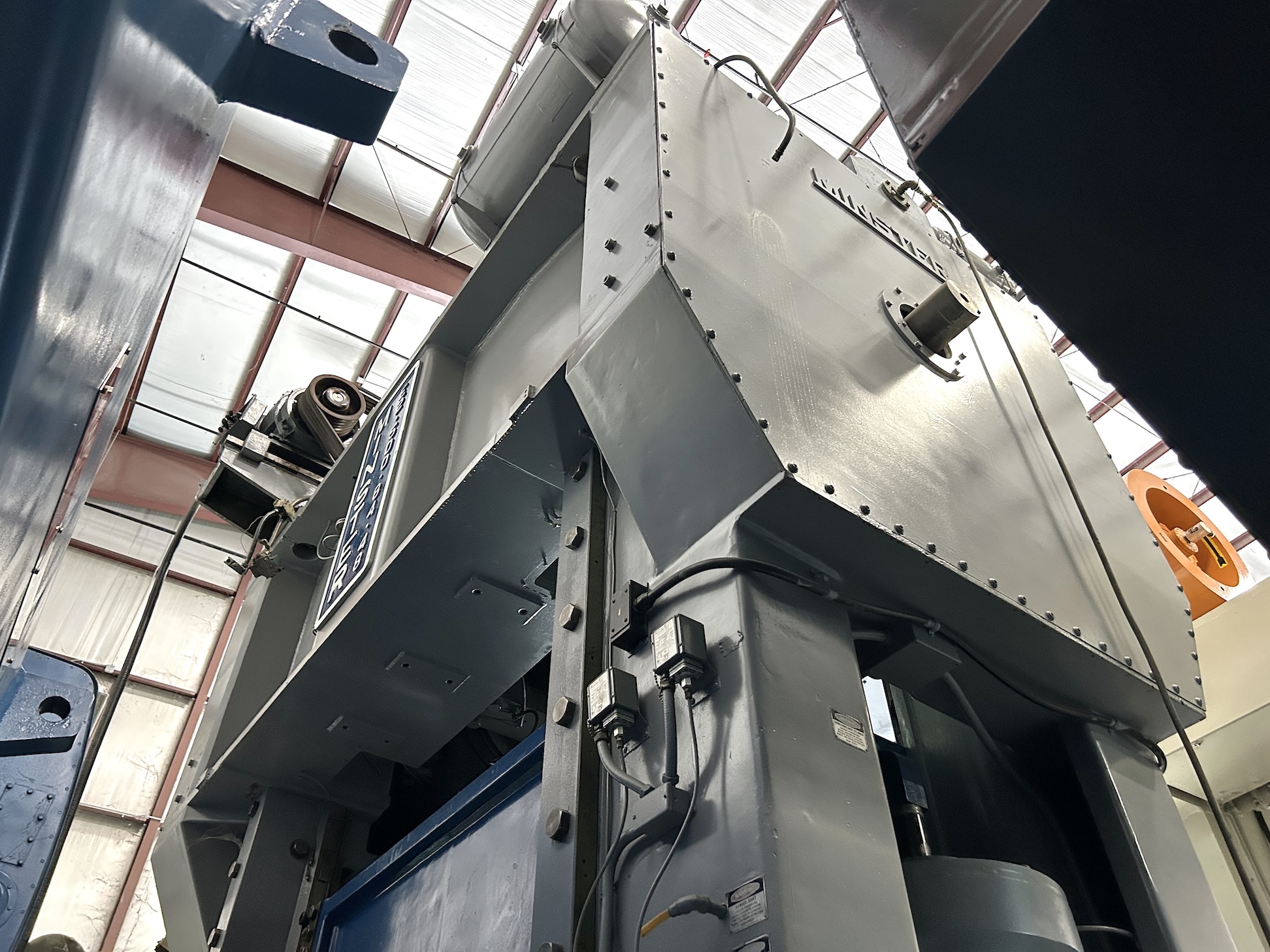

Equipped With dual air counterbalances, floor standing, tie rod frame construction, single back geared, twin drive upper connection clearance: left .015″, right: .014″ (on a 20.755″ crank)
Note __
Location This Used Press is Located in Our Columbia, TN Warehouse
