Description

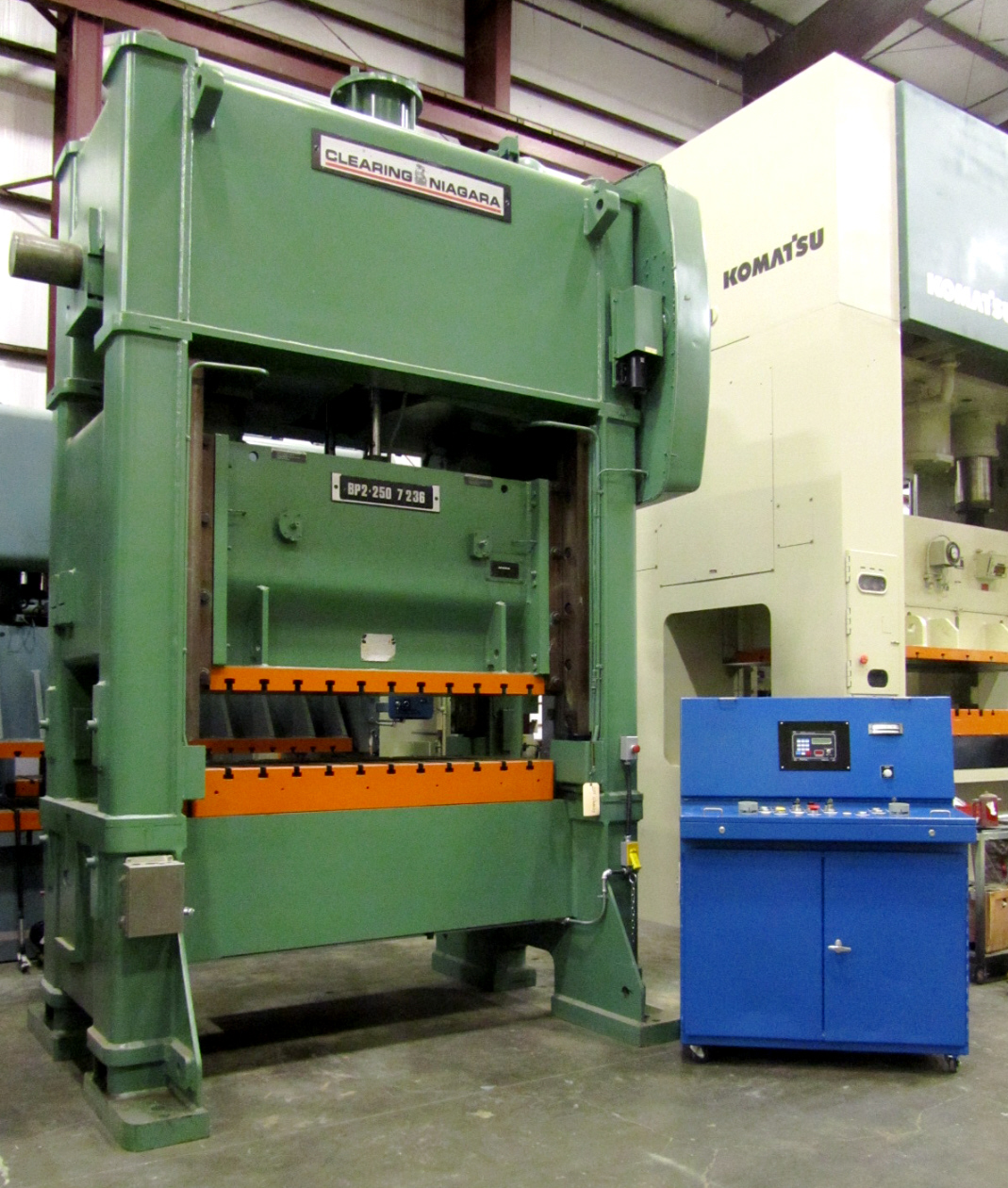

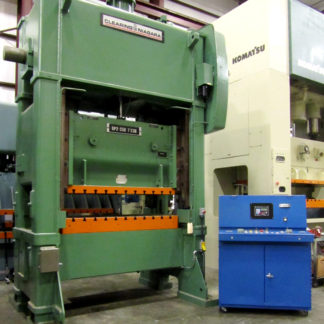

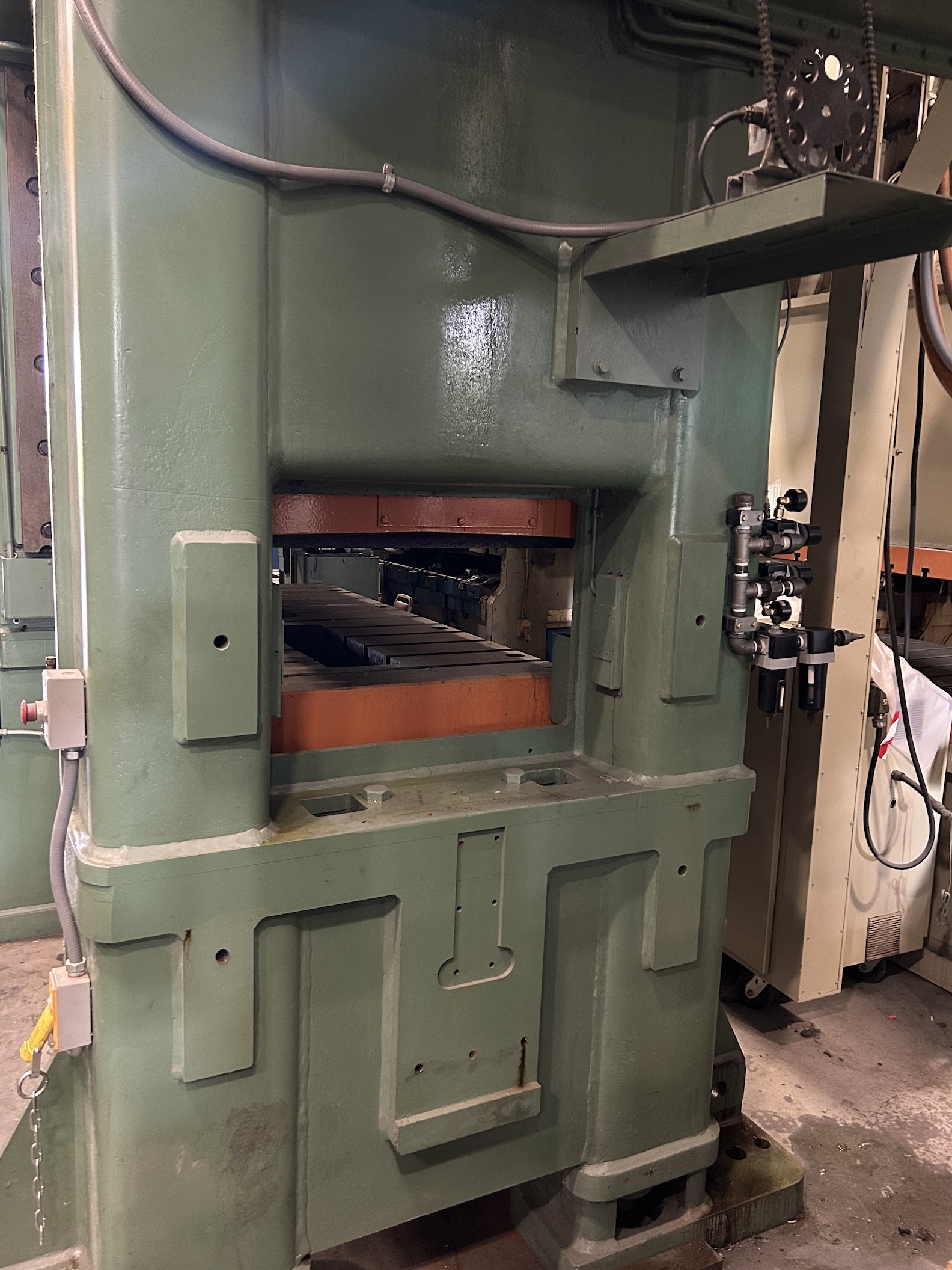

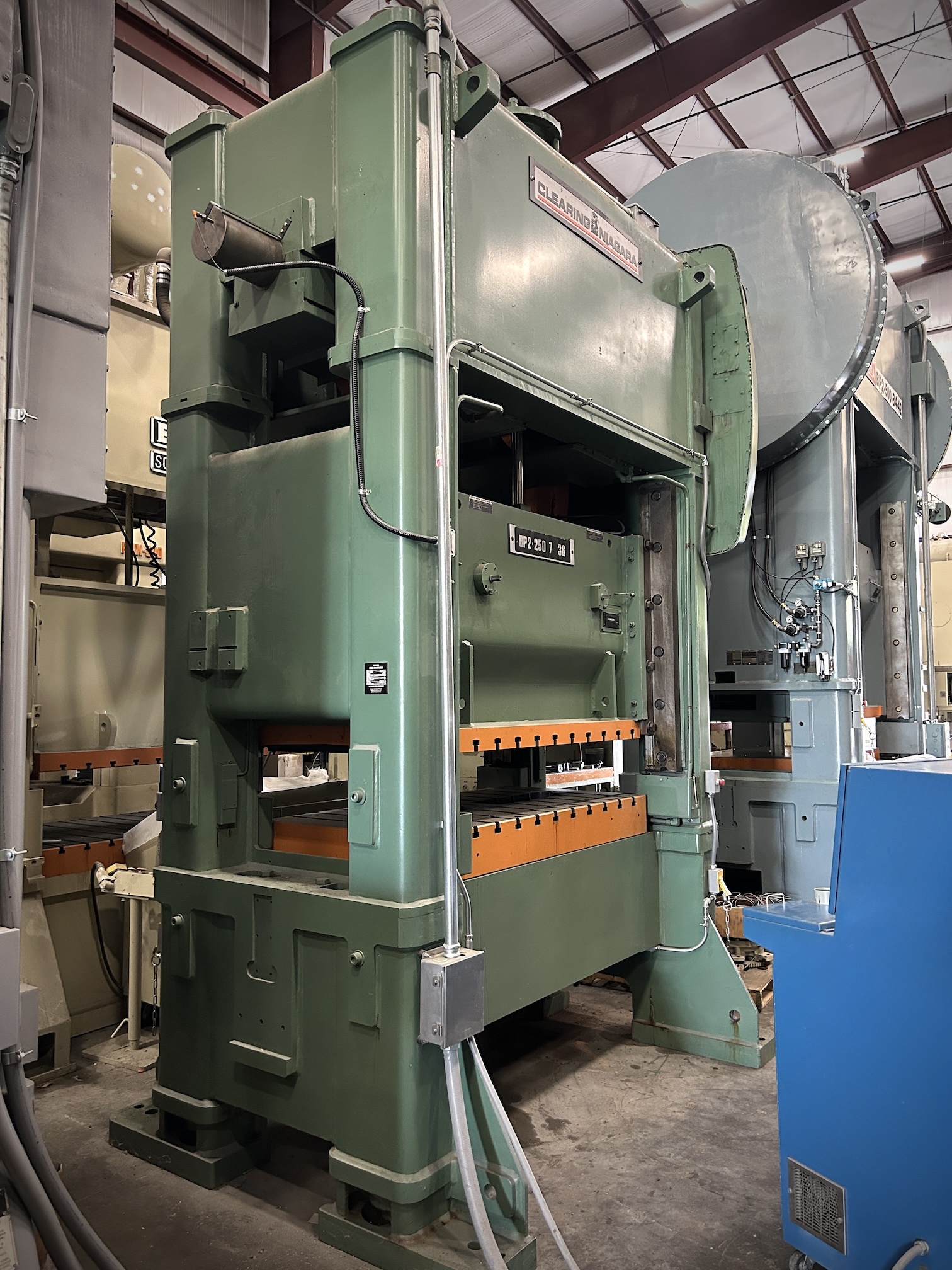

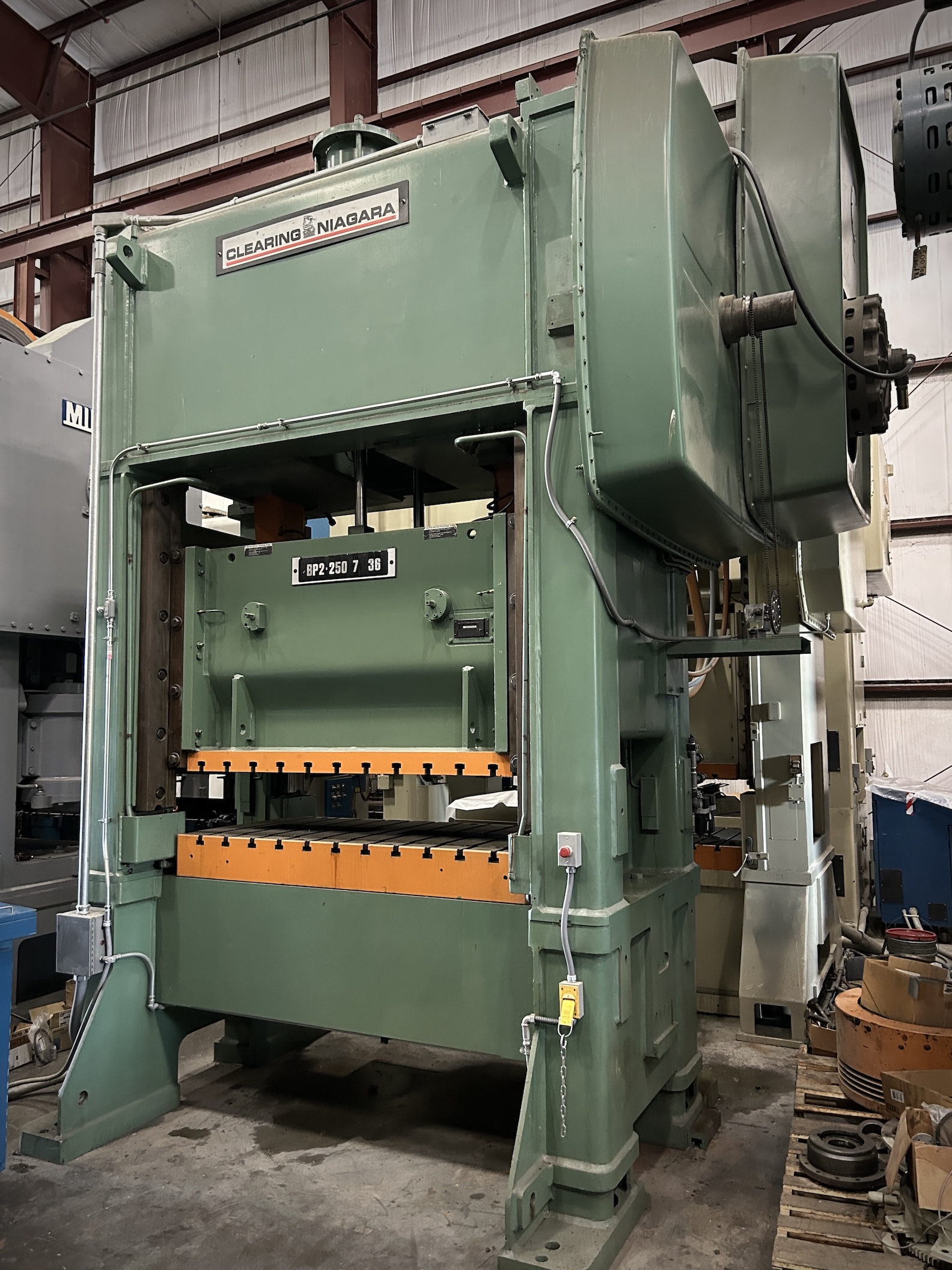

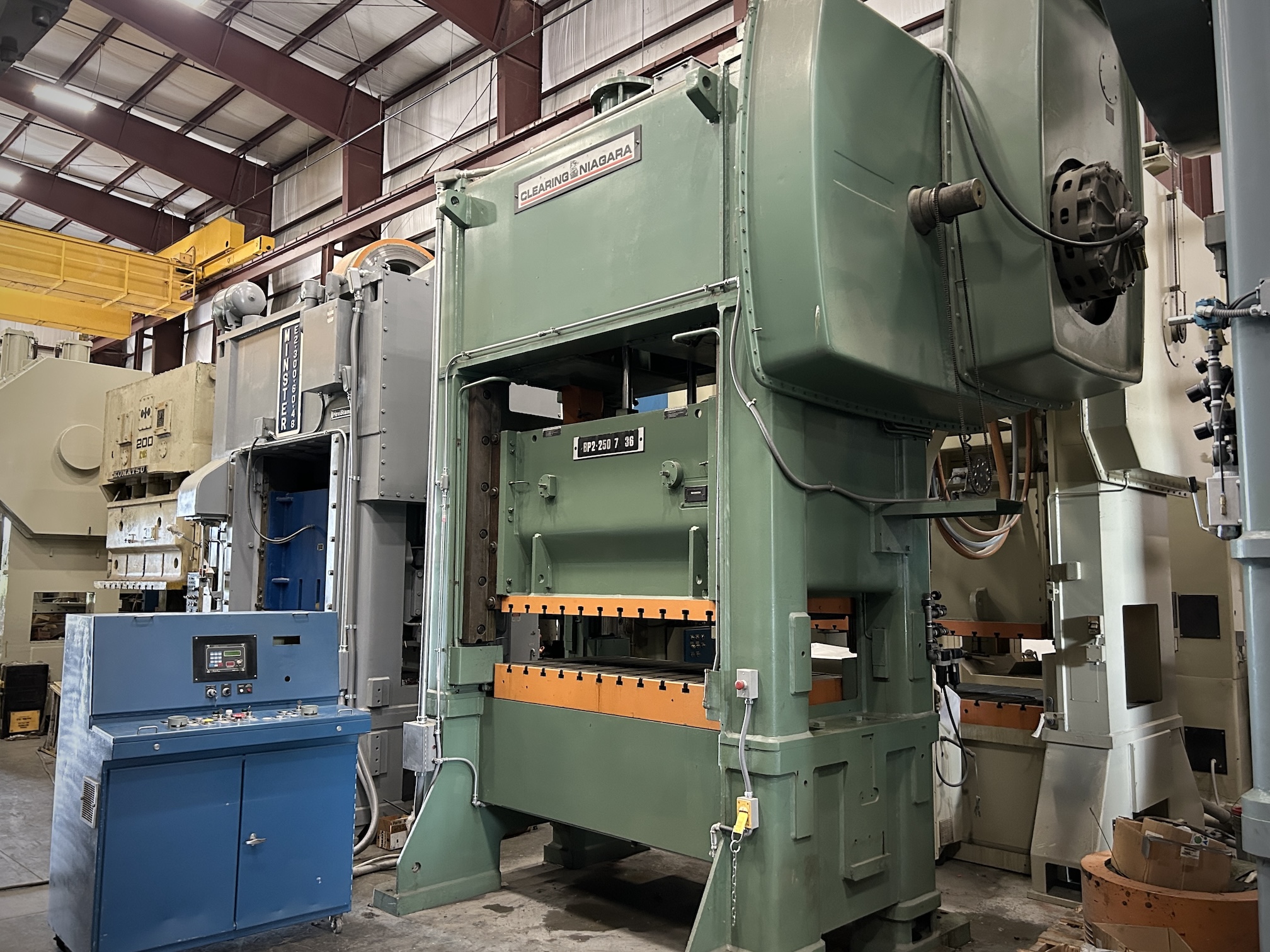

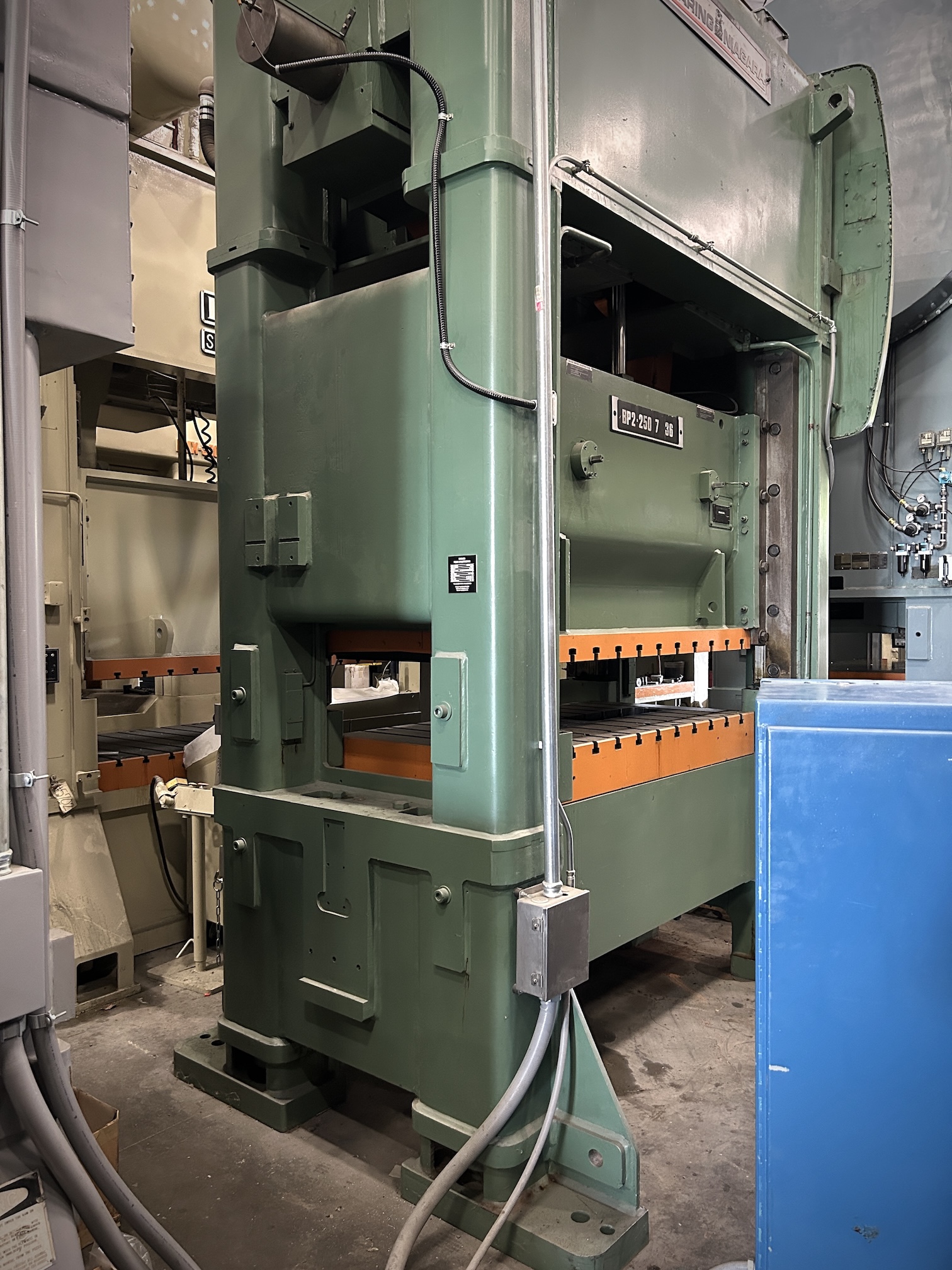

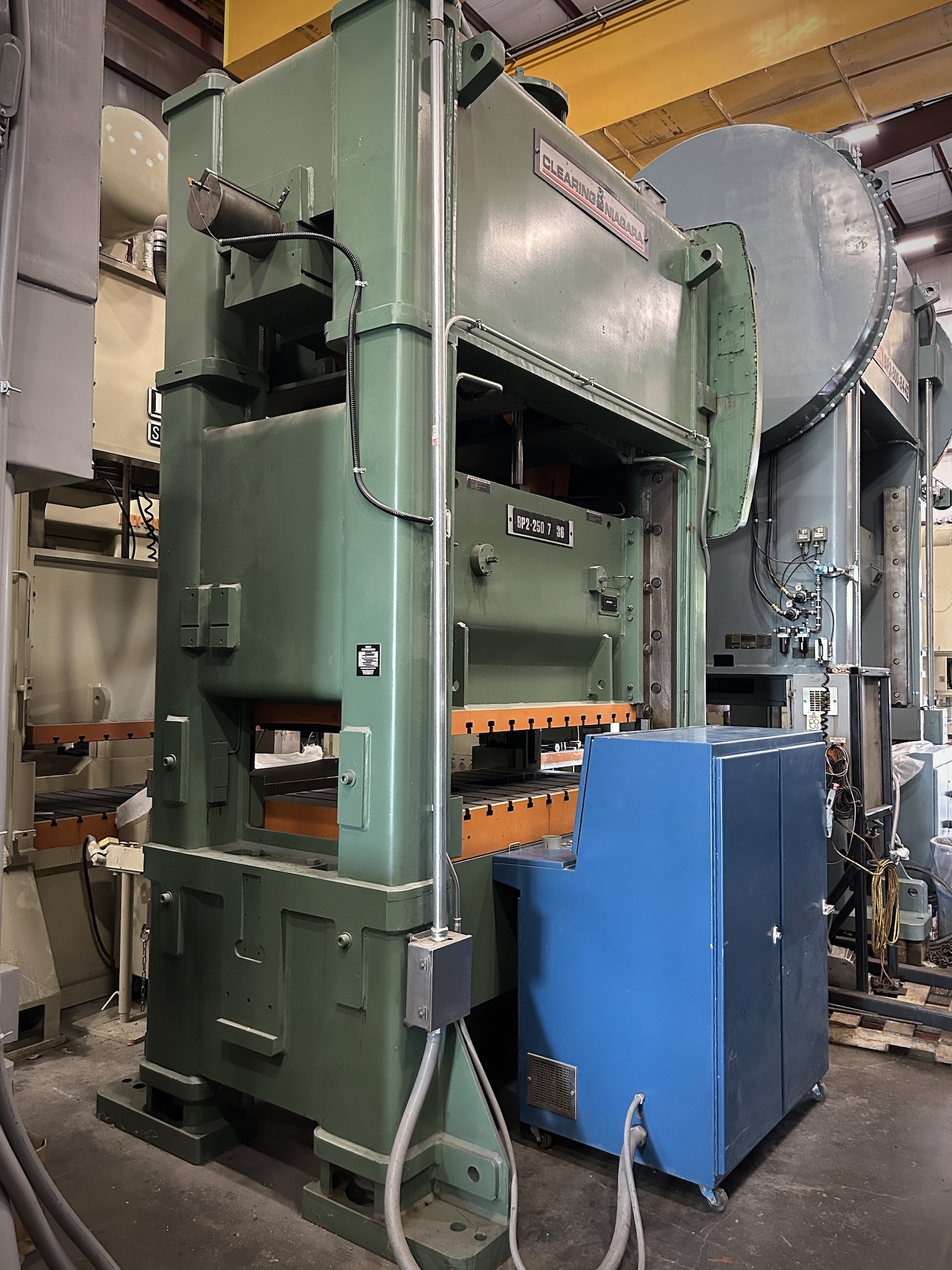

Straight Side Press • Used 275 Ton Press for Sale
Manufacturer: Niagara
Model: Niagara BP2-250-72-36 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1996
Machine #: 4699
Buy Now: $

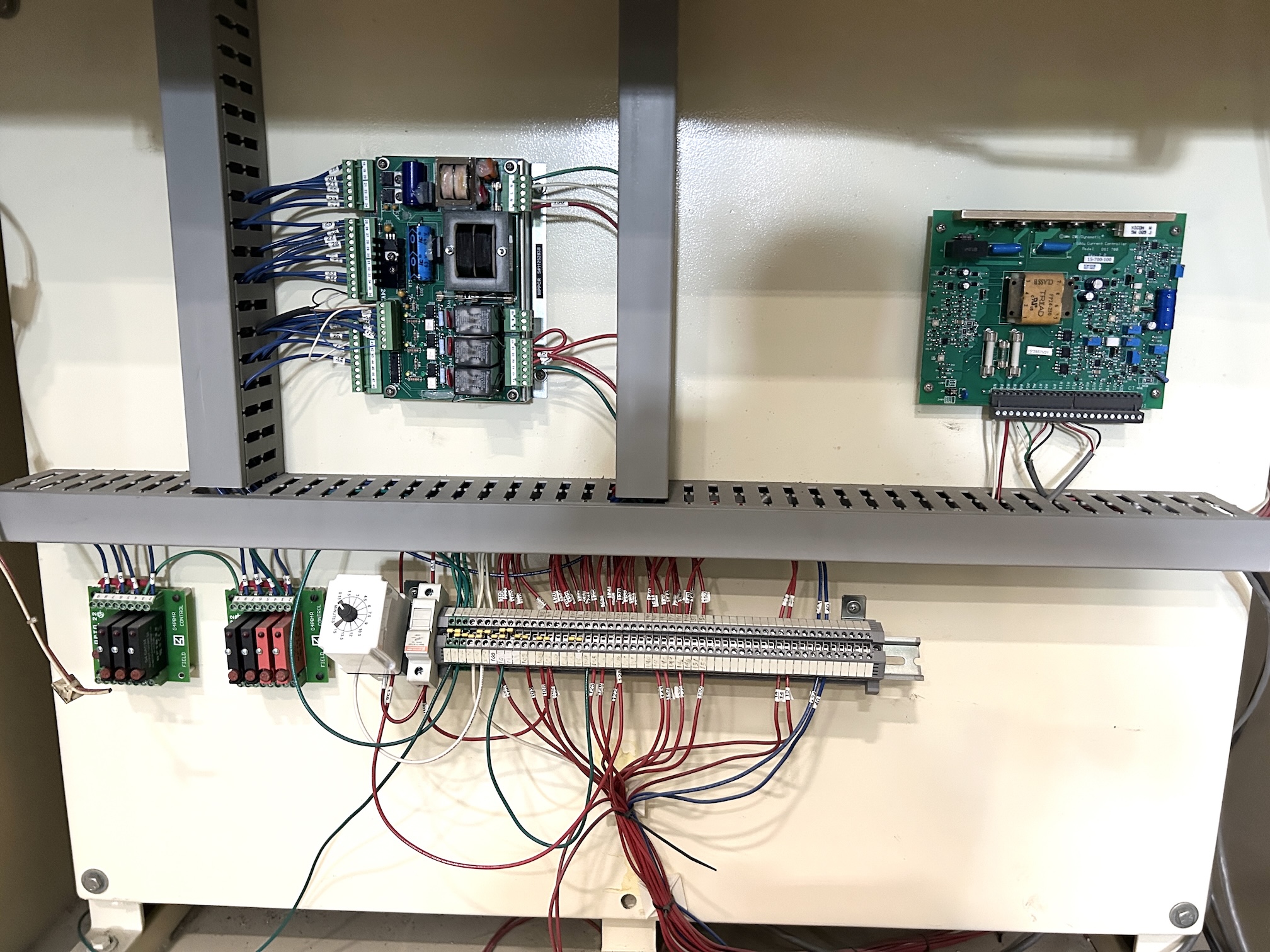

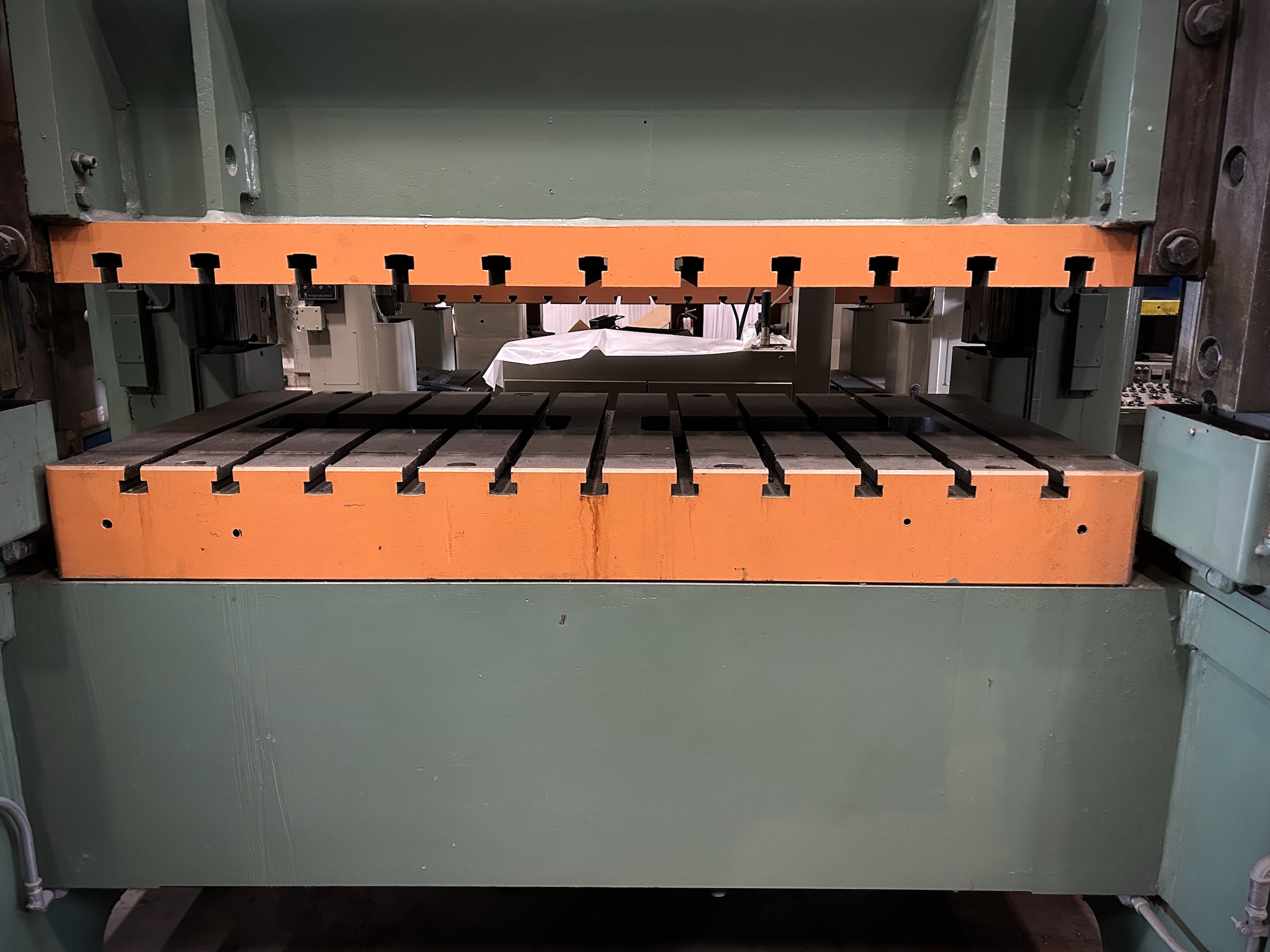

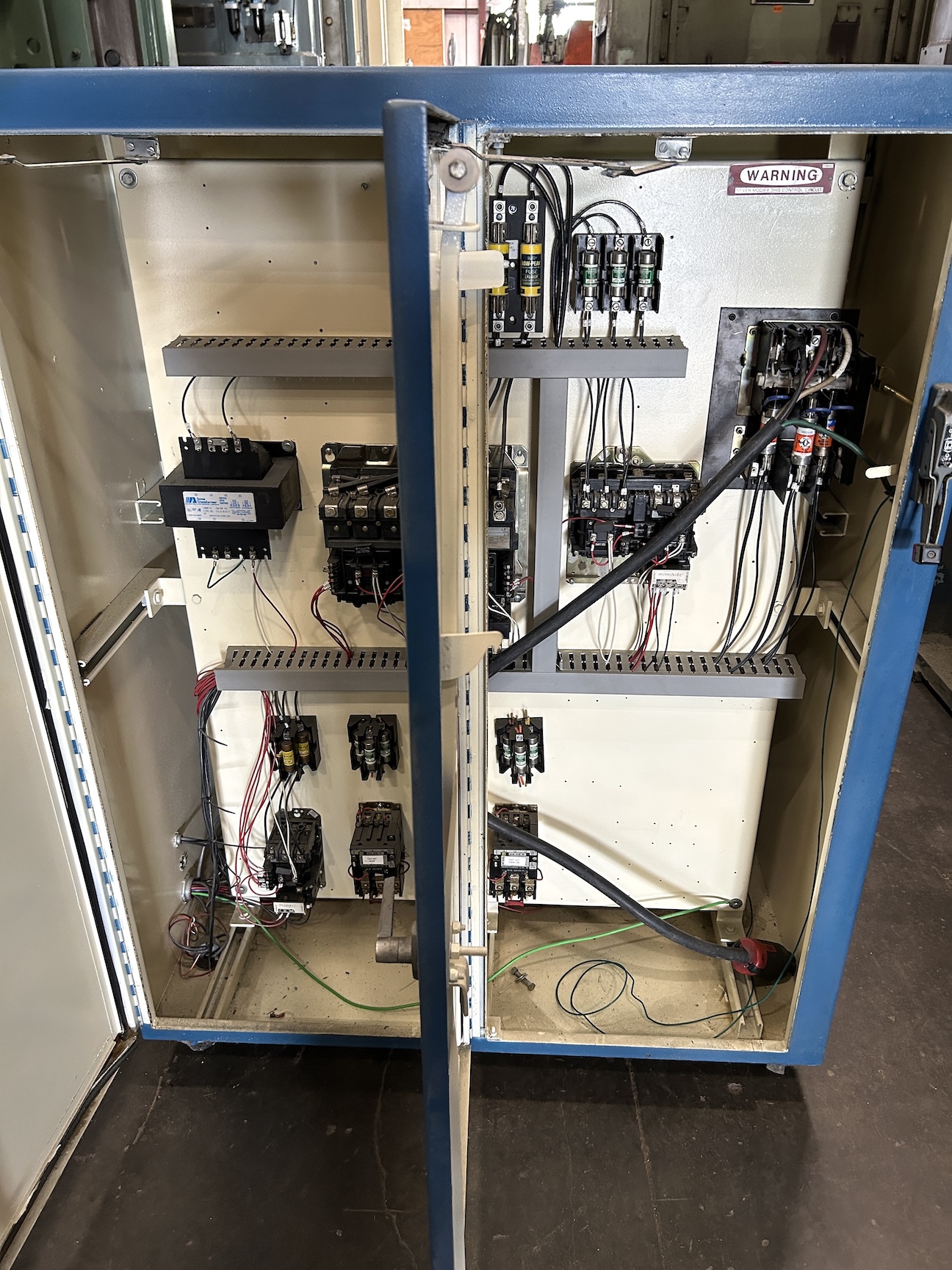

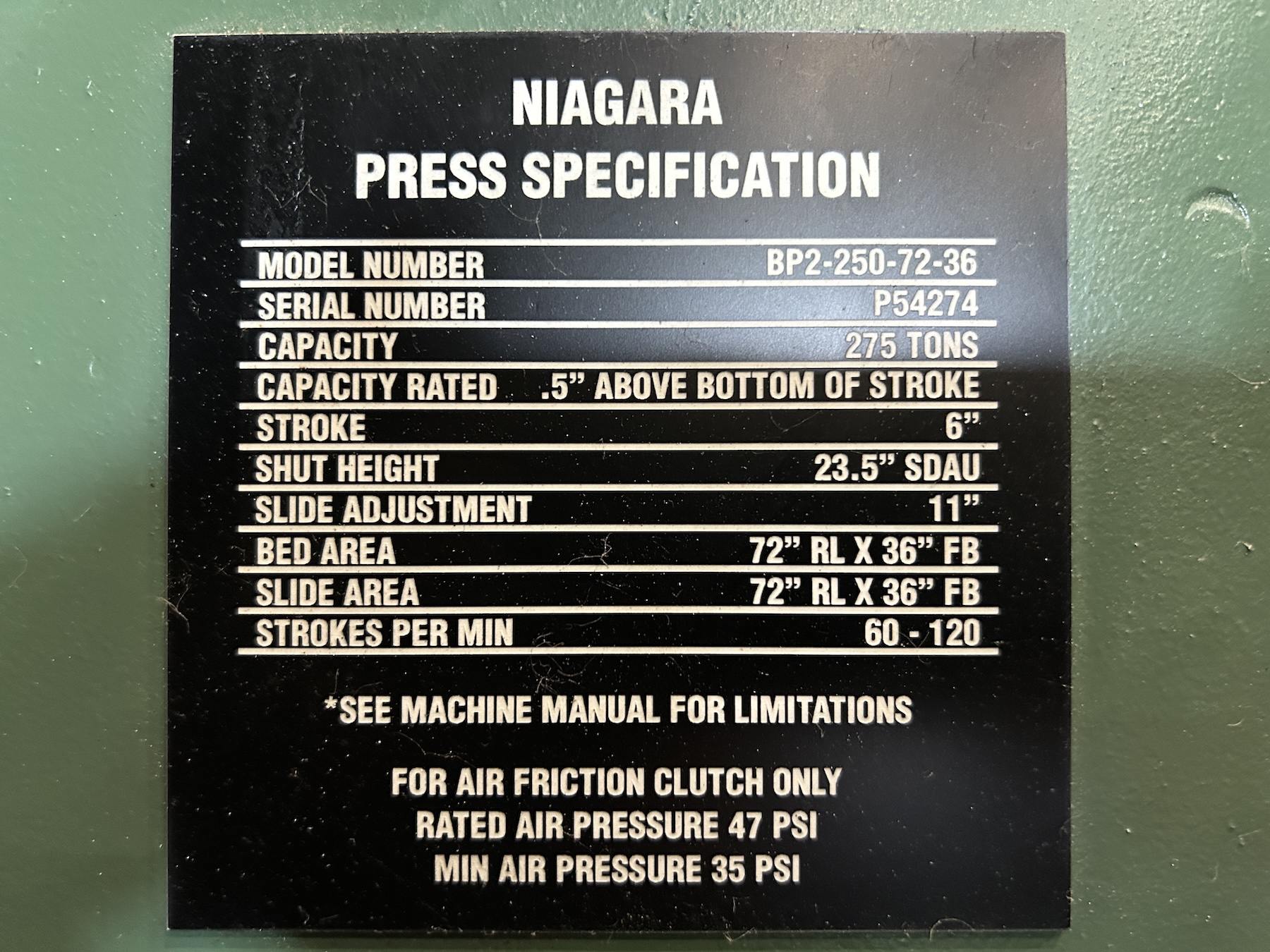

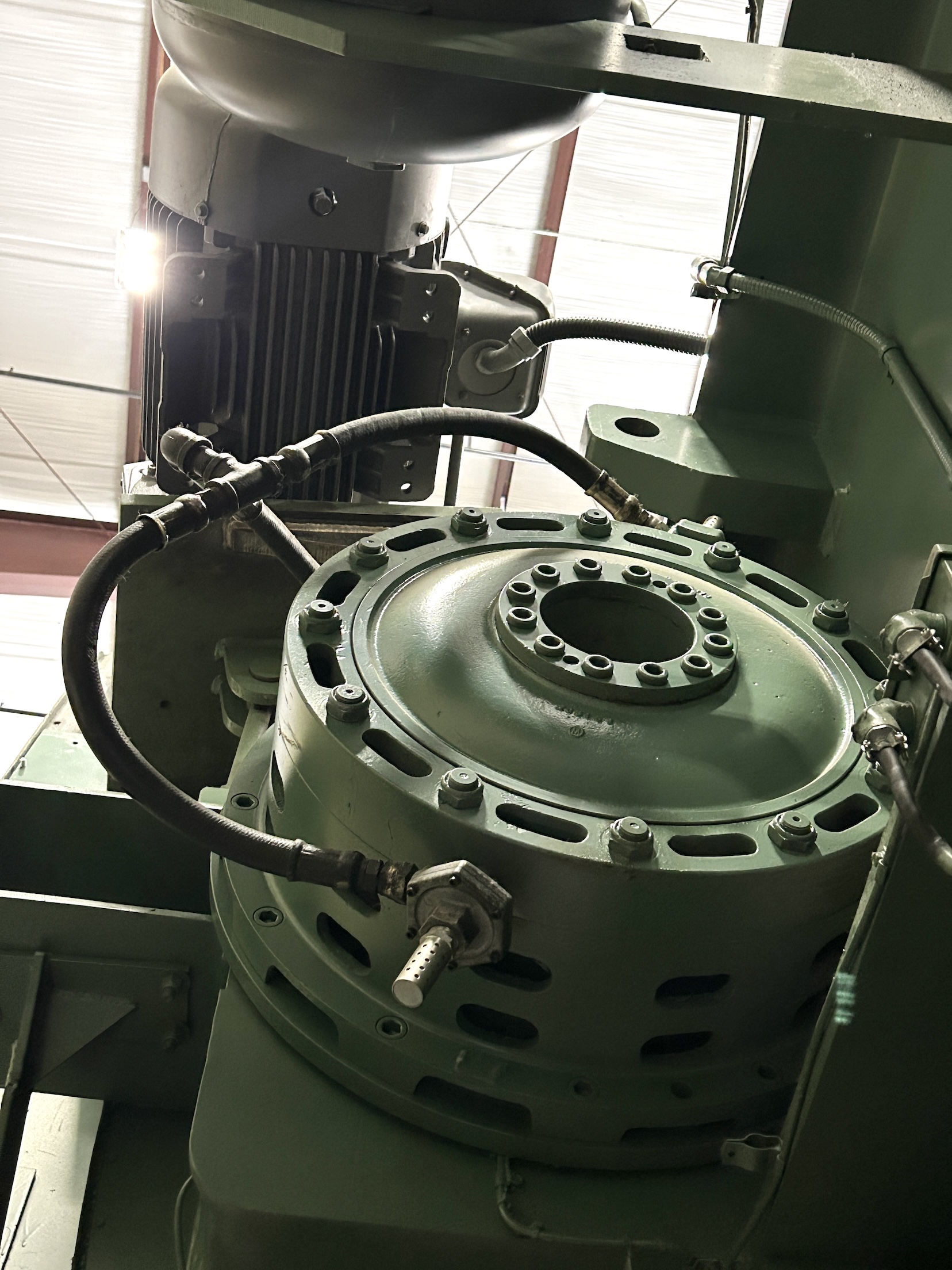

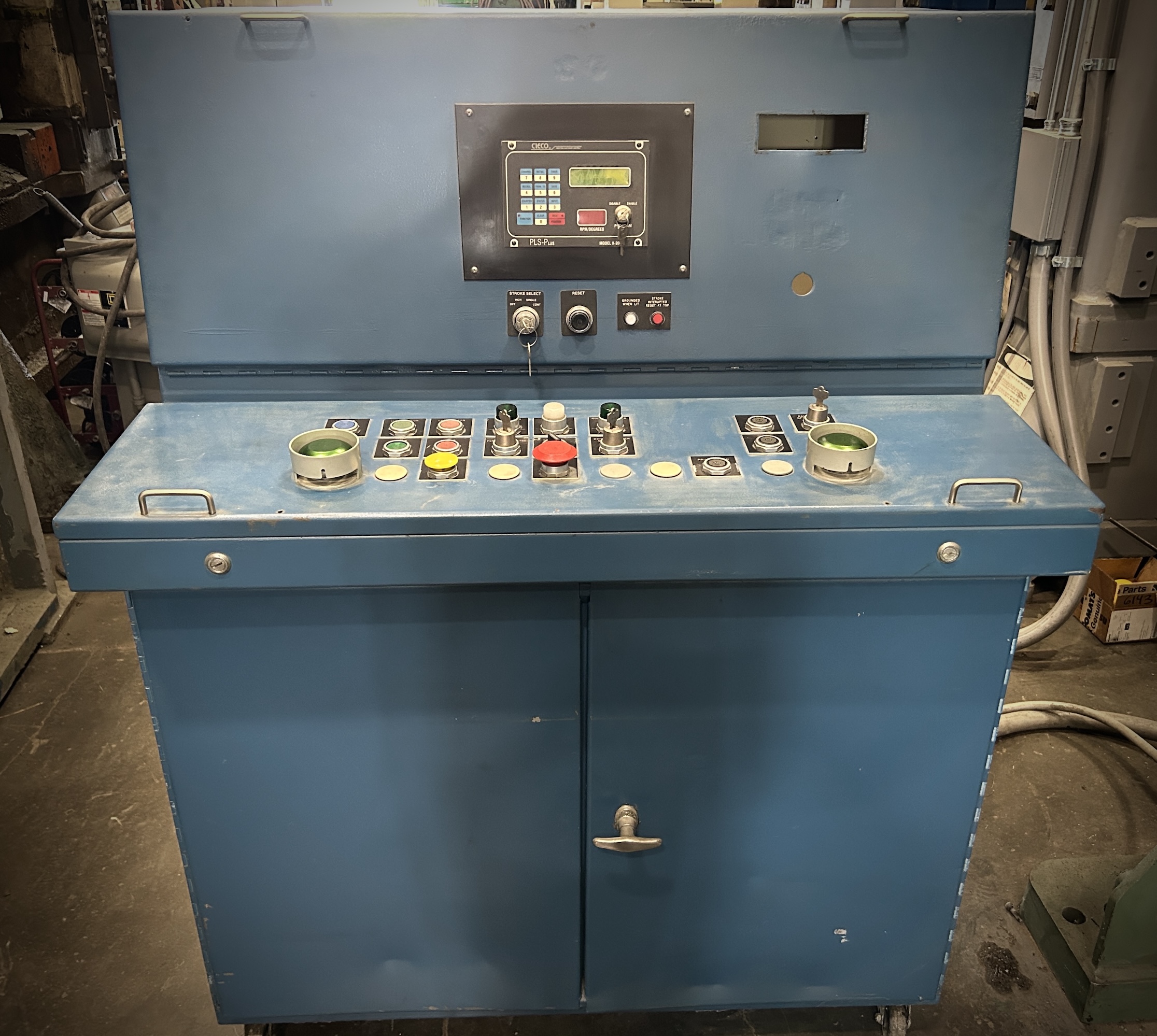

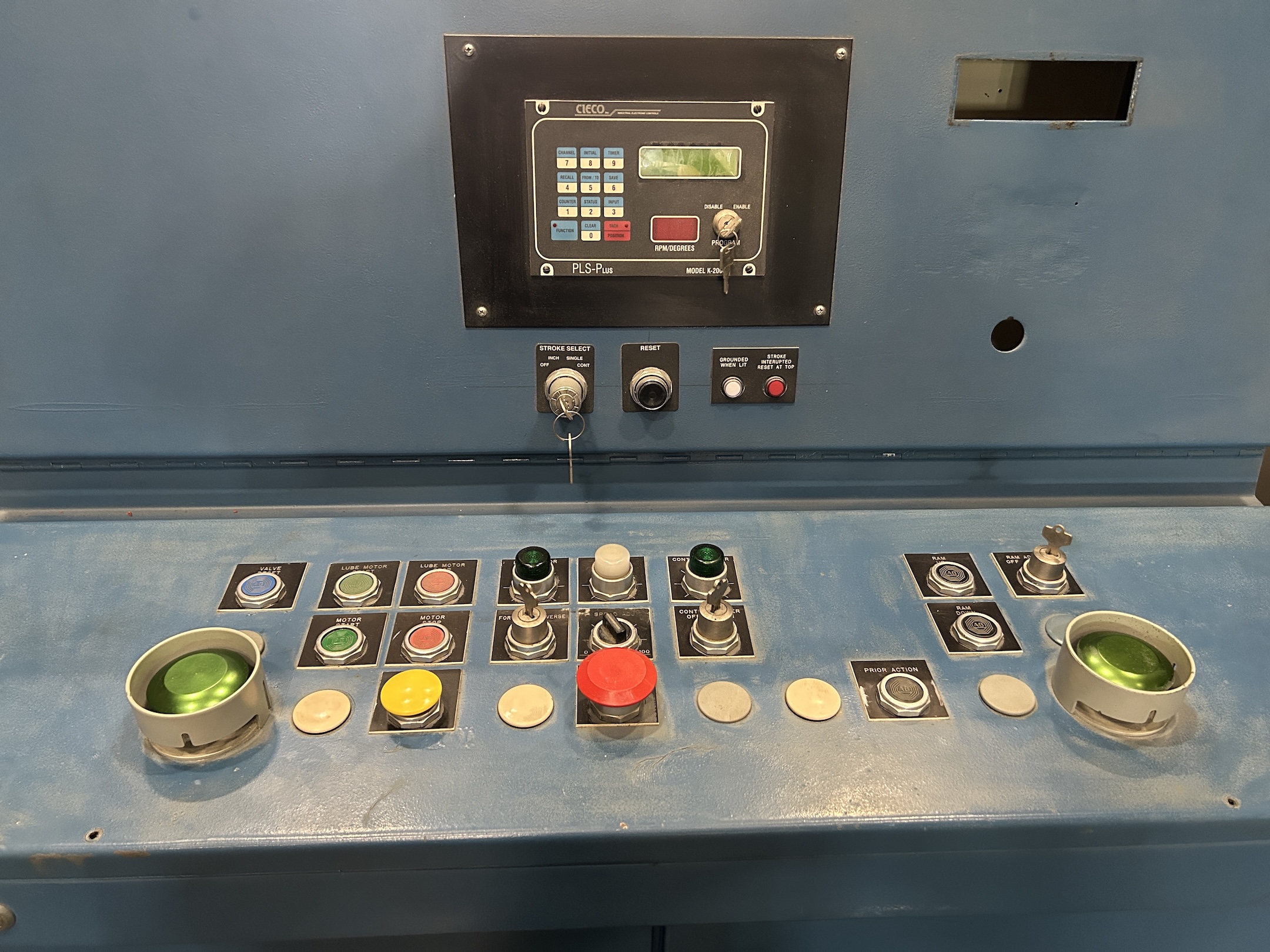

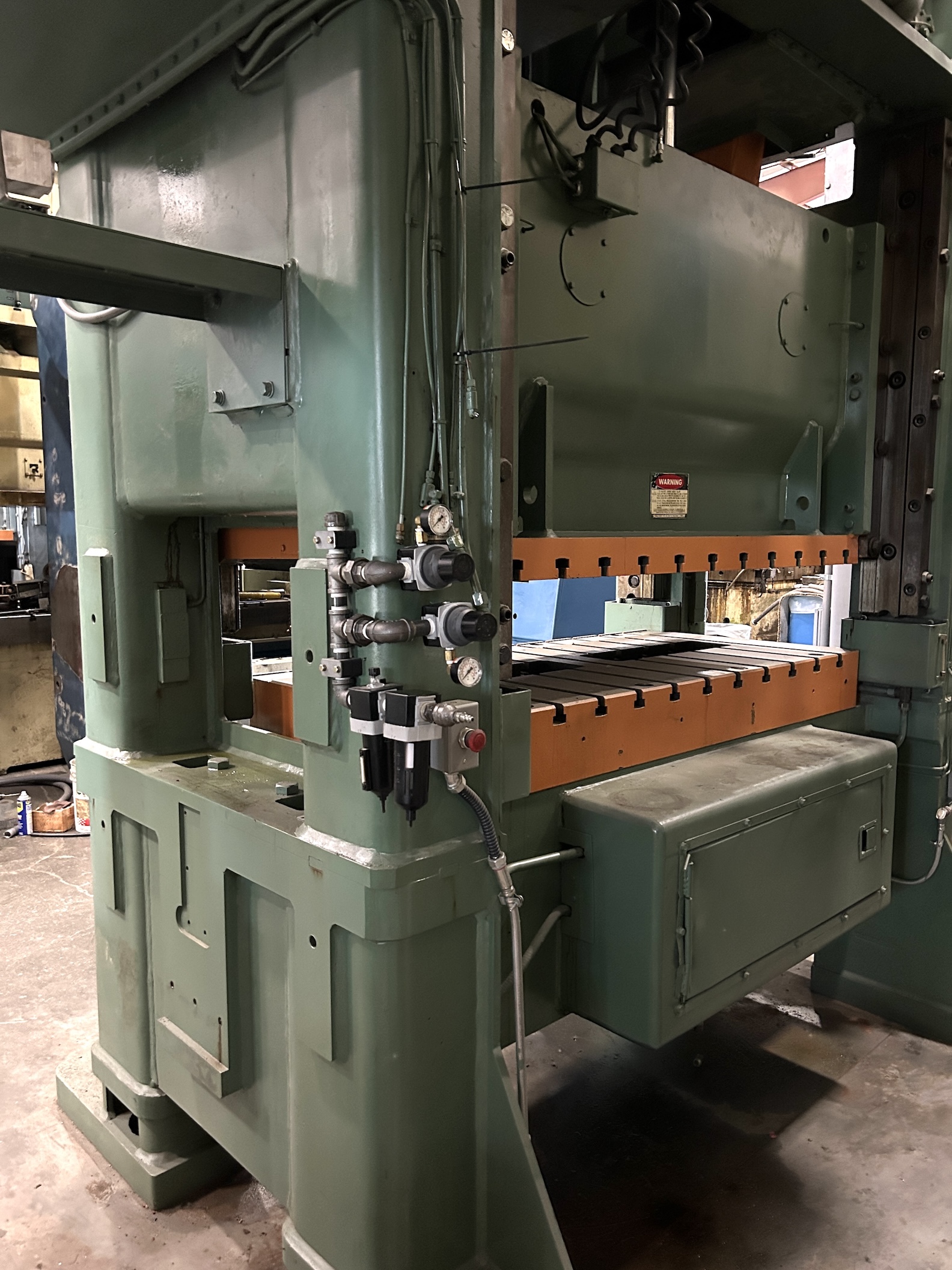

| CAPACITY | 275 US TONS | STROKE | 6″ | MAX SHUT HEIGHT TO BED | 23.5″ SDAU | BED AREA | 72″ X 36″ (RL X FB) | SPEED | 60 – 120 SPM | RAM ADJUSTMENT | 11″ MOTORIZED | RAM AREA | 72″ RL X 36″ FB | BOLSTER PLATE | 8″ H X 72″ RL X 36″ FB (T SLOTTED) | DIST UPRIGHTS / FLOOR TO BED | 72″ / 44″ | WINDOW SIZE | 27.5″ W X 19.5″ H | CLUTCH | NIAGARA AIR CLUTCH & BRAKE | ELECTRICS | 50 HP 1750 RPM 230/460V-3-60 EDDY CURRENT MOTOR & new cieco pls plus press control | APPROX DIMENSIONS | 15.5′ H X 12.5′ W X 9′ FB | APPROX WEIGHT | 67,500 LBS | Equipped With | DUAL AIR COUNTERBALANCED RAM, RECIRCULATING LUBRICATION, TIE ROD FRAME CONSTRUCTION RECONDITIONING COMPLETED: NEW CIECO PLS PLUS PRESS CONTROL BLANCHARD GROUND BOLSTER PLATE REBUILT CLUTCH REBUILT COUNTER BALANCES | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
