Machine Specifications

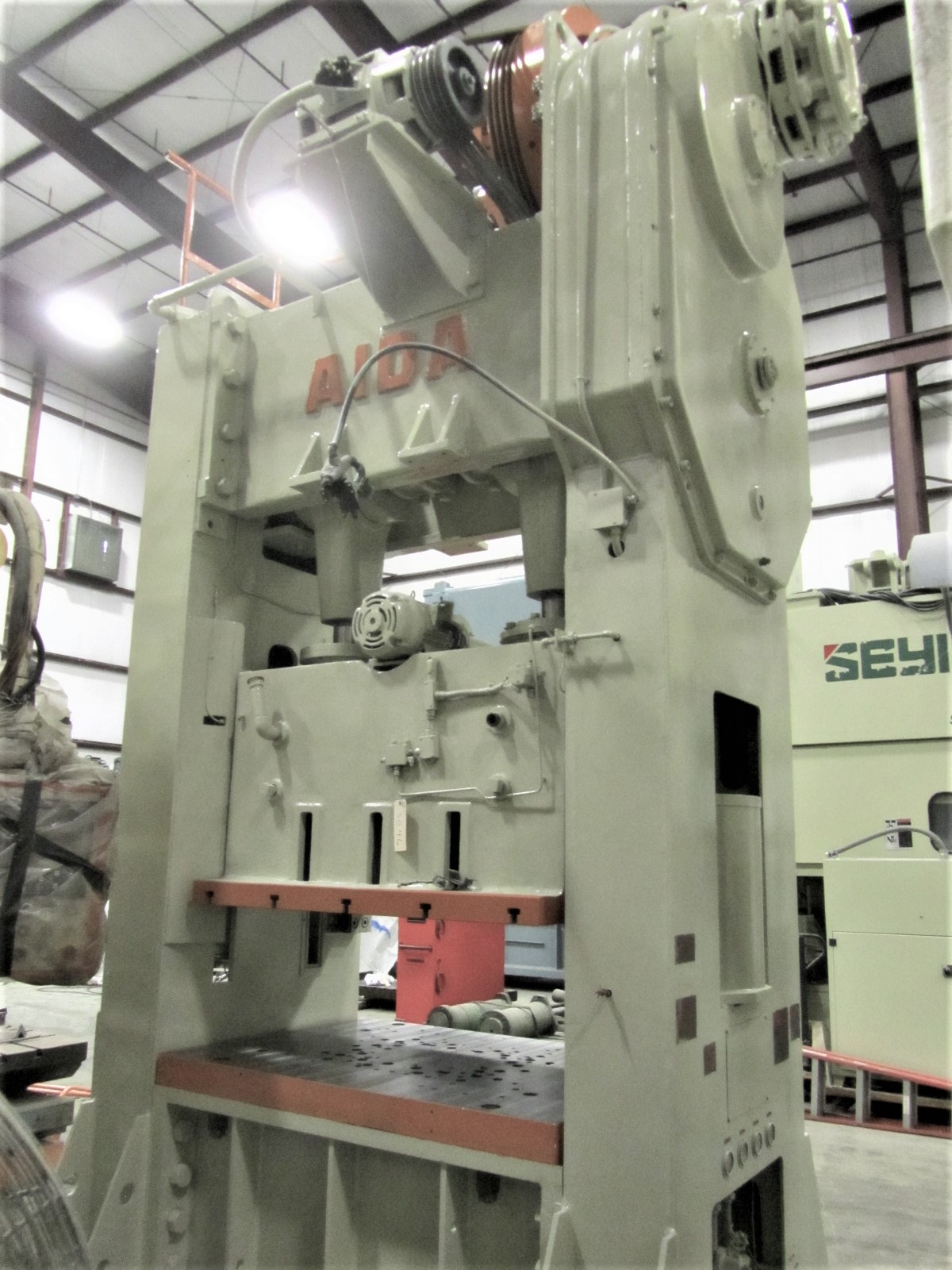

Straight Side Press for Sale
Manufacturer: Aida
Model: Aida PD-STG-200M Press
Condition: In Process
Location: Columbia, TN Warehouse
Year: 1967
Machine #: 5046
Buy Now: $49,500
| CAPACITY | 220 TONS | STROKE | 11.8″ | MAX SHUT HEIGHT | 16.5″ SDAU OVER BOLSTER | BED AREA | 59.8″ X 42.2″ (RL X FB) | SPEED | 25 SPM | RAM ADJUSTMENT | 4.9″ MOTORIZED | RAM AREA | 53.5″ X 39.3″ (RL X FB) T-SLOTTED | BOLSTER PLATE | 60″ X 42.5″ (RL X FB) X 4″ THICK SOLID PLATE | DISTANCE BETWEEN UPRIGHTS | 61″ | FLOOR TO BED HEIGHT | 28.5″ | WINDOW SIZE | 16″ WIDE x 34″ HIGH | CLUTCH | AIDA AIR CLUTCH / BRAKE COMBINATION | PRESS CONTROLS | new cieco 1100r control INCLUDED AT reconditioned price (NOT AS-IS PRICE) | ELECTRIC MOTOR | 20 hp 1750 rpm 240/480v-3-60 motor & existing relay control | APPROX DIMENSIONS | 108″ X 72″ (RL X FB) X 173″ HIGH | APPROX WEIGHT | 44,000 LBS | Equipped With | 30.8 ton / 5.9″ stroke air cushion in bed, steel frame construction, dual air counterbalances, floor standing w/o cushion, cushion in floor, gears in oil uPDATE: MACHINED bolster plate STEAM CLEANED, SANDED, PRIMED & PAINTED | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
