Minster Model B1-32 ½” Stroke, 10½” Shut Height, 22″ x 15″ Bed, 100-200 SPM, Nice!

Machine #3636
(Columbia, TN Warehouse)

Machine Specifications

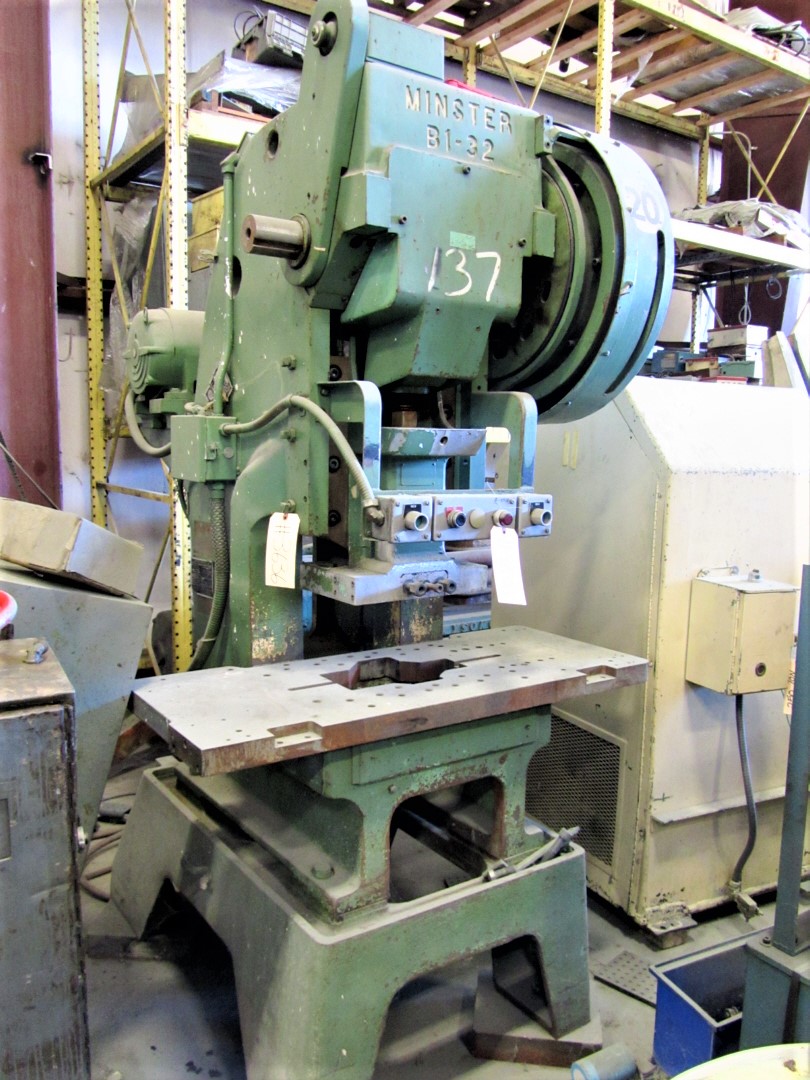

Used 32 Ton Minster Gap Frame Press for Sale • High Speed Production Press

Model: Minster B1-32
Year: 1965
Condition: Very Good
Location: Columbia, TN Warehouse
Reference: Machine #3636

CAPACITY 32 TON
STROKE 1/2″
SHUT HEIGHT TO BED 10-1/2″ SDAU
BED AREA 22″ RL X 15″ FB
SPEED 100 – 200 SPM
RAM ADJUSTMENT 2-1/4″
RAM AREA 14″ RL X 9-1/2″ FB
BOLSTER SIZE 2″ X 45-1/2″ RL X 17-1/2″ FB
DIST. BETWEEN UPRIGHTS 11″
DIST. FLOOR TO BED 32-1/2″
CLUTCH AIR CLUTCH & BRAKE
ELECTRICS 7.5 HP, 1675 RPM, 208/220/440/3/60V, eddy current louis allis vari-drive
APPROX. DIMENSIONS 7’6″H X 4′ RL X 6′ FB
APPROX. WEIGHT 6,000 LBS.
Equipped With floor standing base air tank cast iron frame construction bronze gibbing flywheel guard automatic oil lubrication system **no main control panel – nice machine!!**
Note _
Location This used 32 Ton Minster Press is located in our Columbia, TN Warehouse
