Description

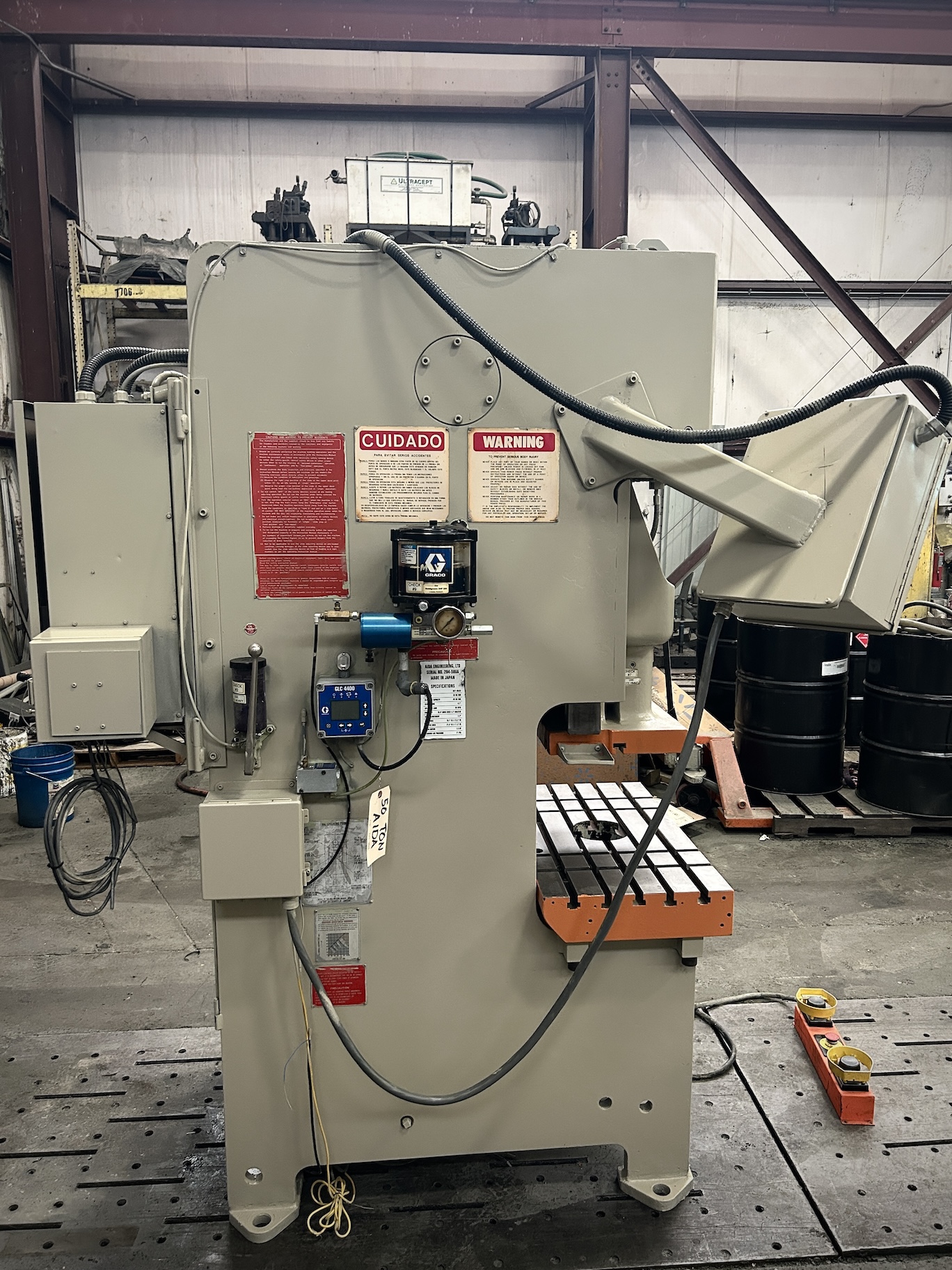

Single Point Press • Used 50 Ton Press for Sale

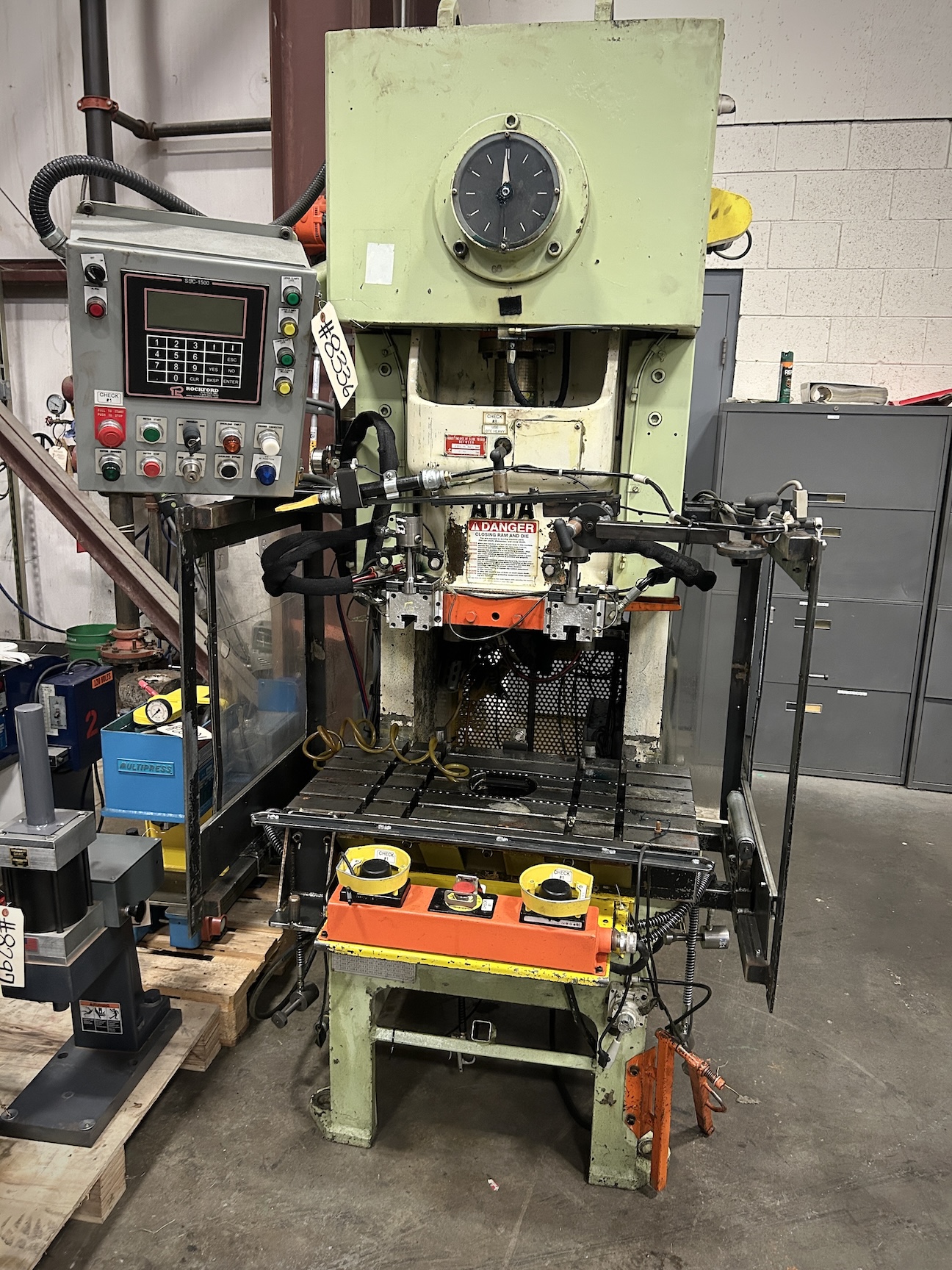

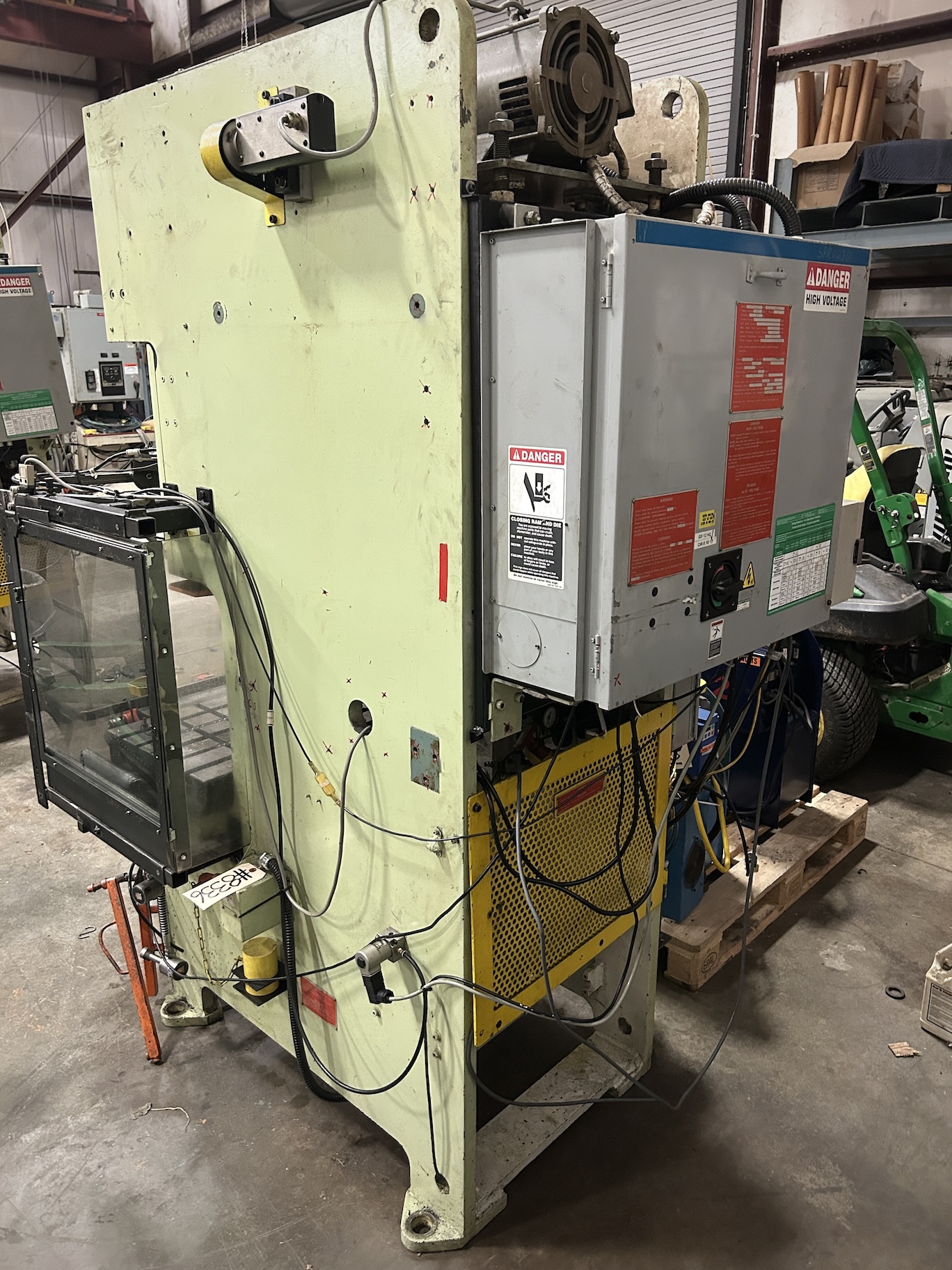

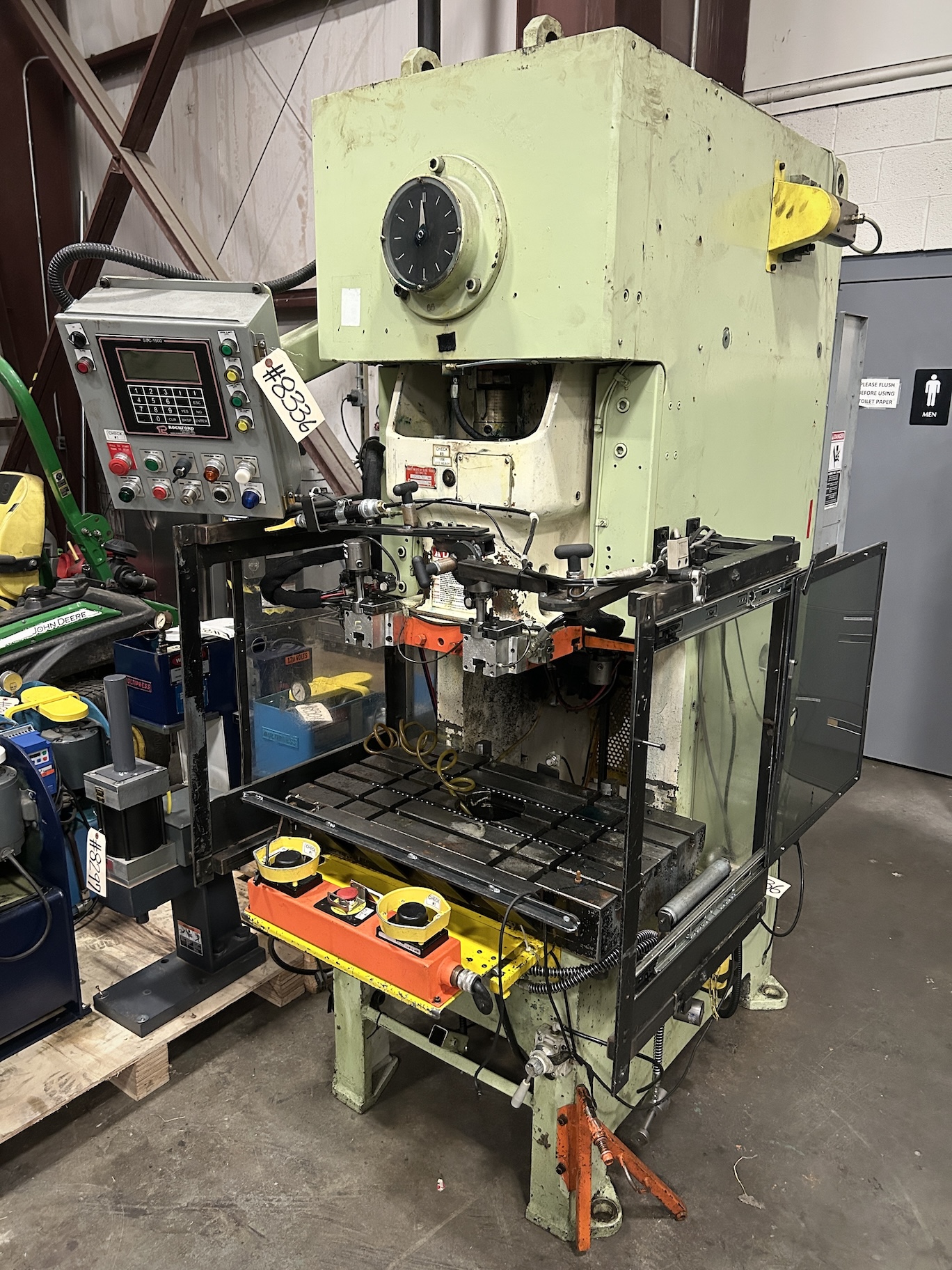

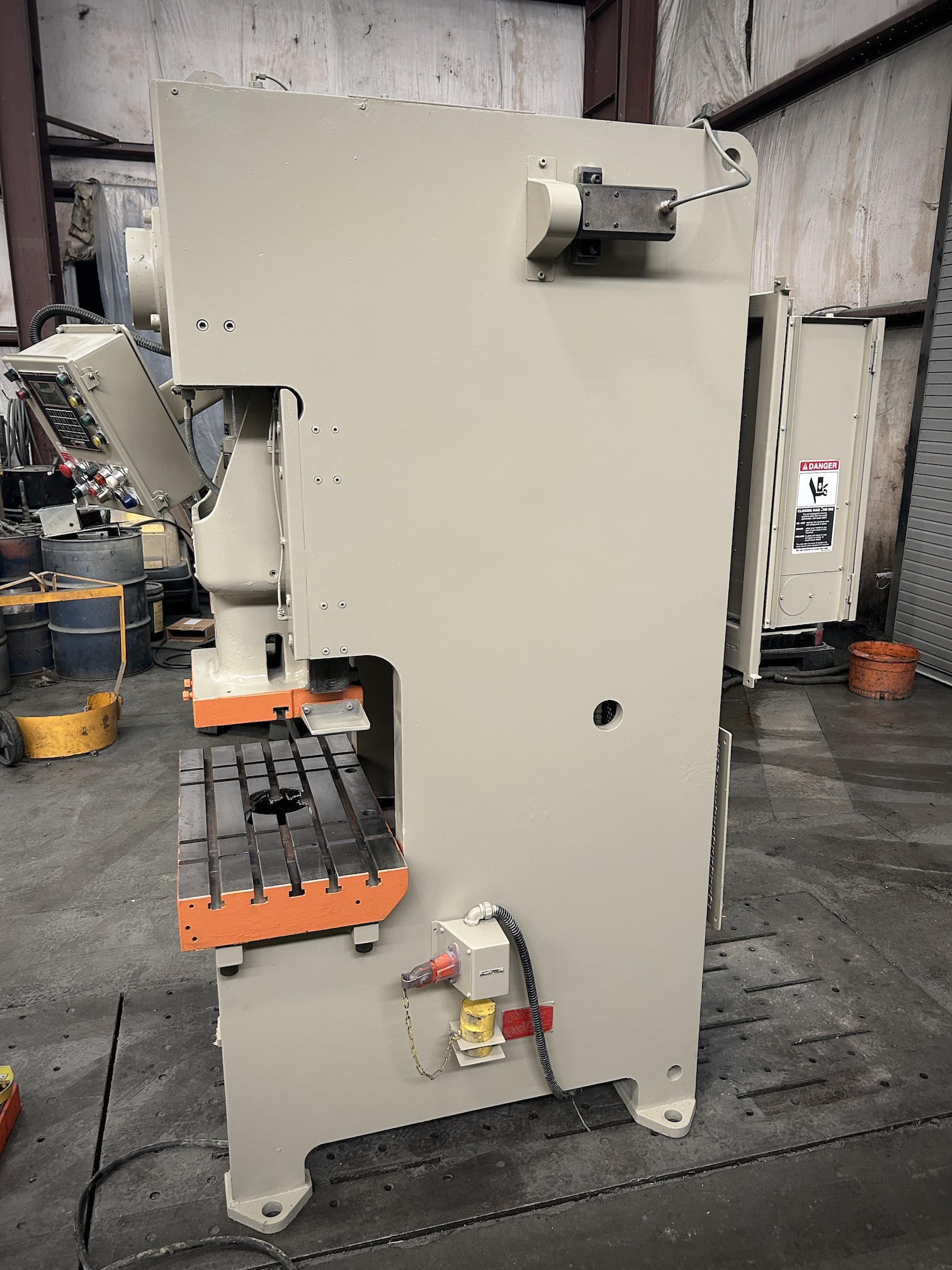

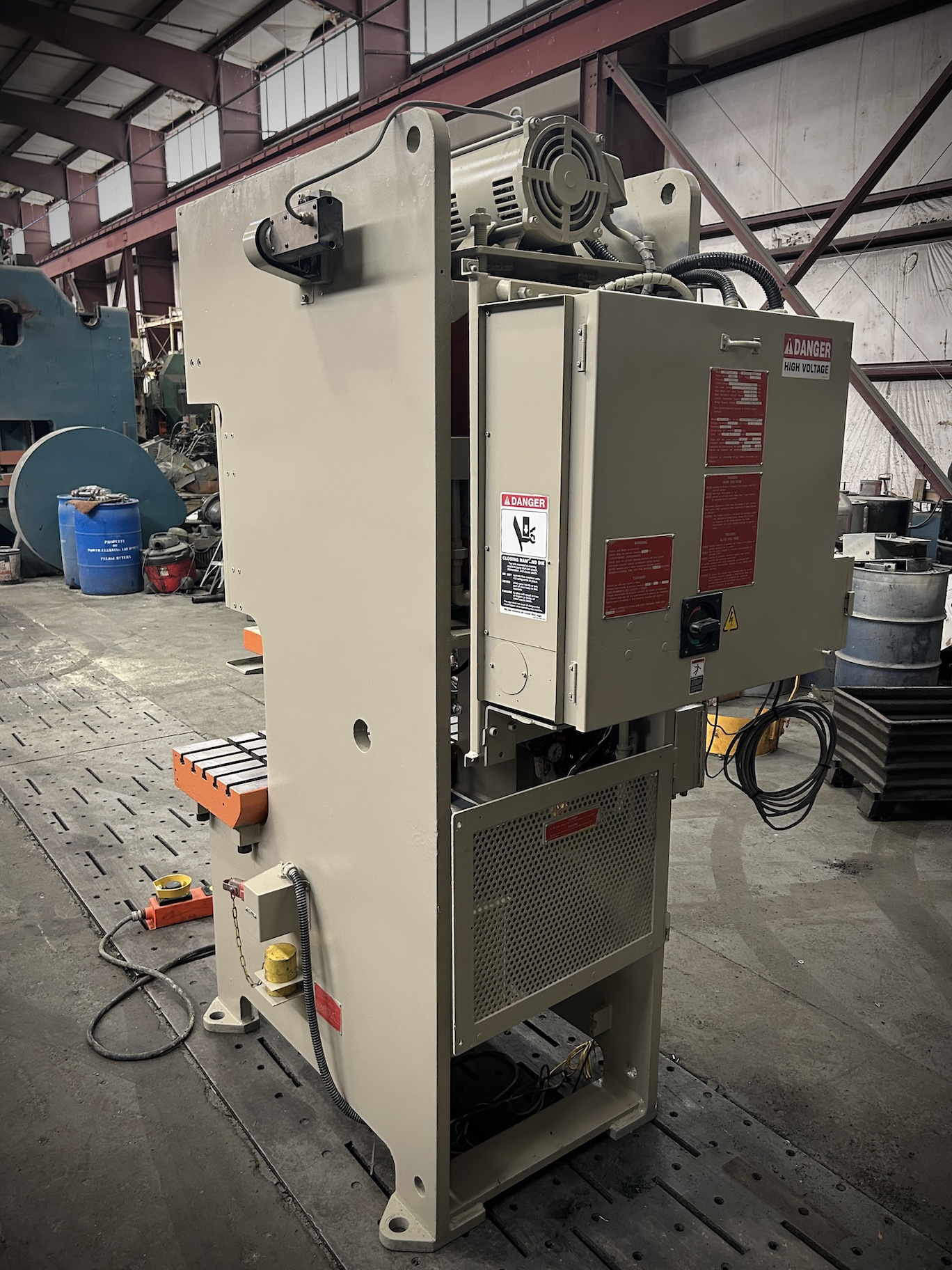

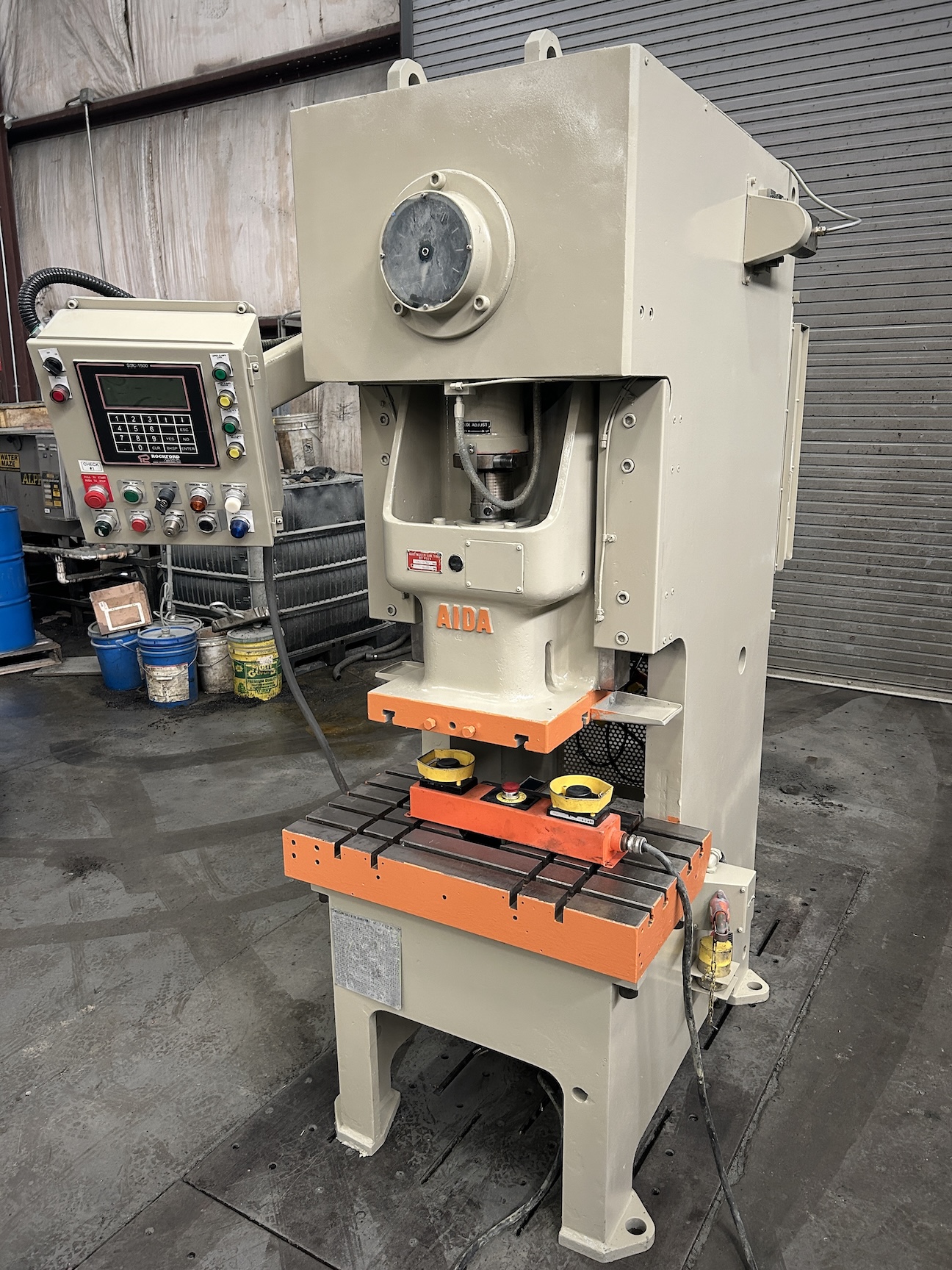

Model: Aida NC1-45(2) Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1986
Machine #: 8336
Buy Now: $

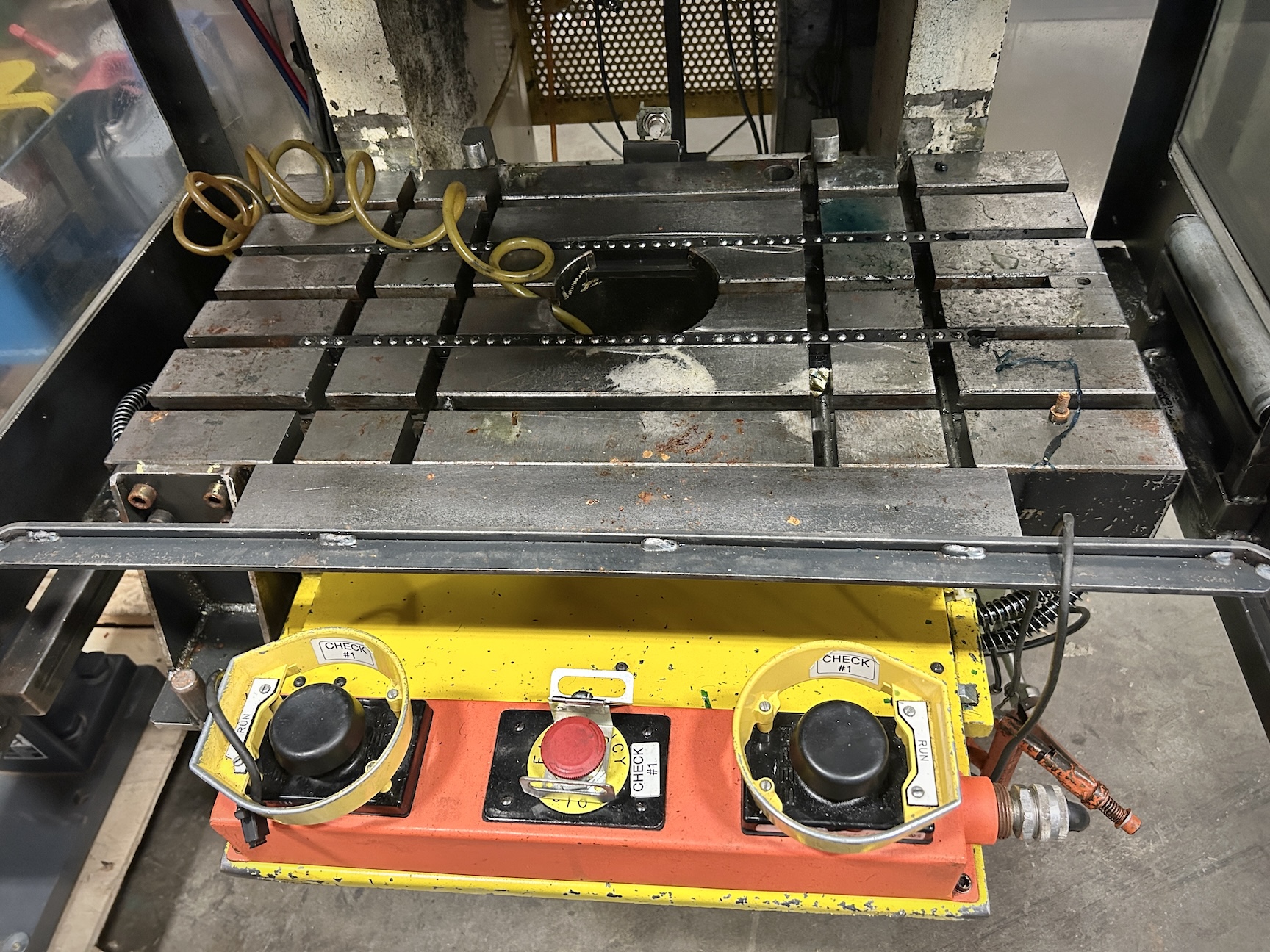

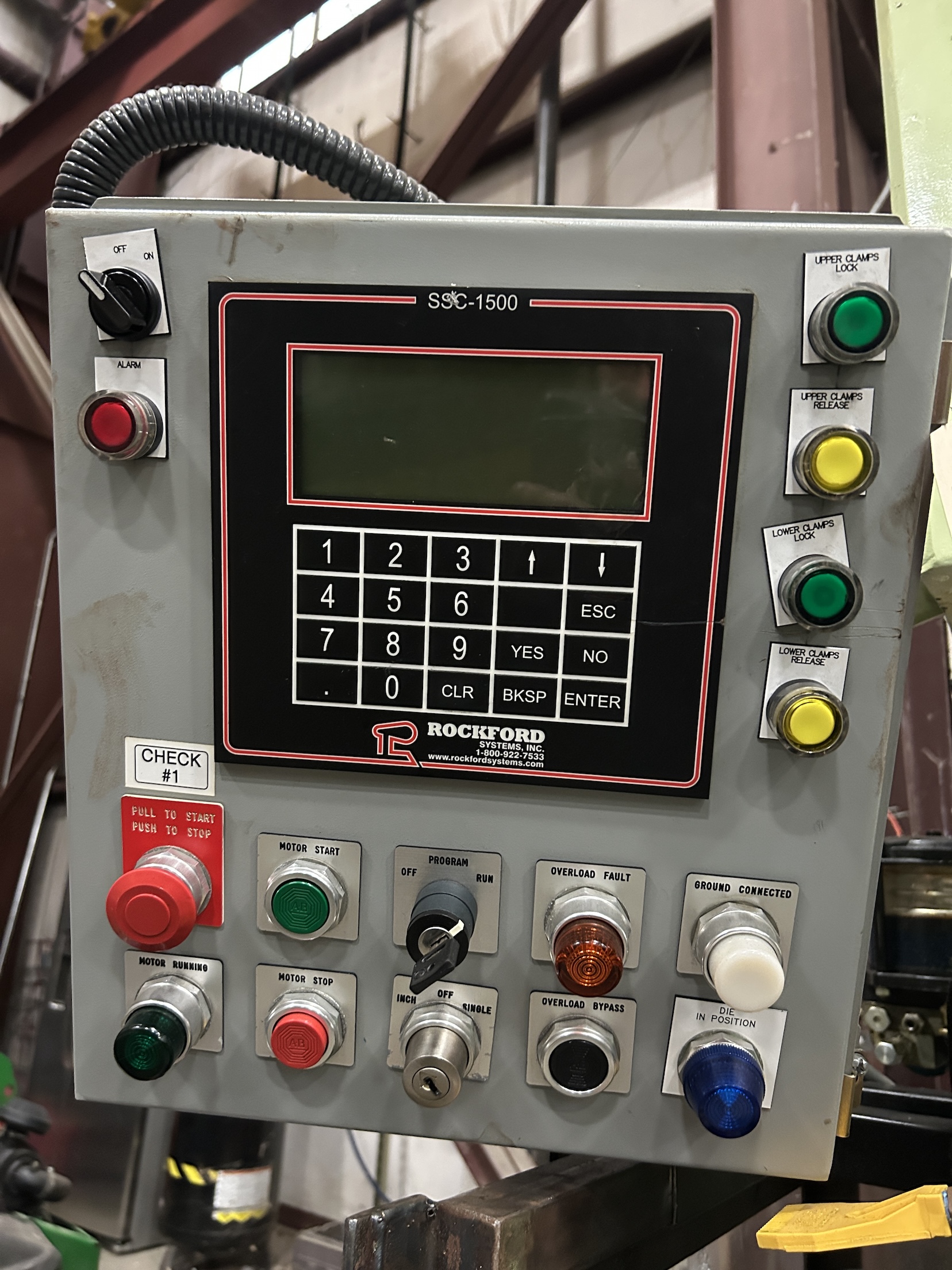

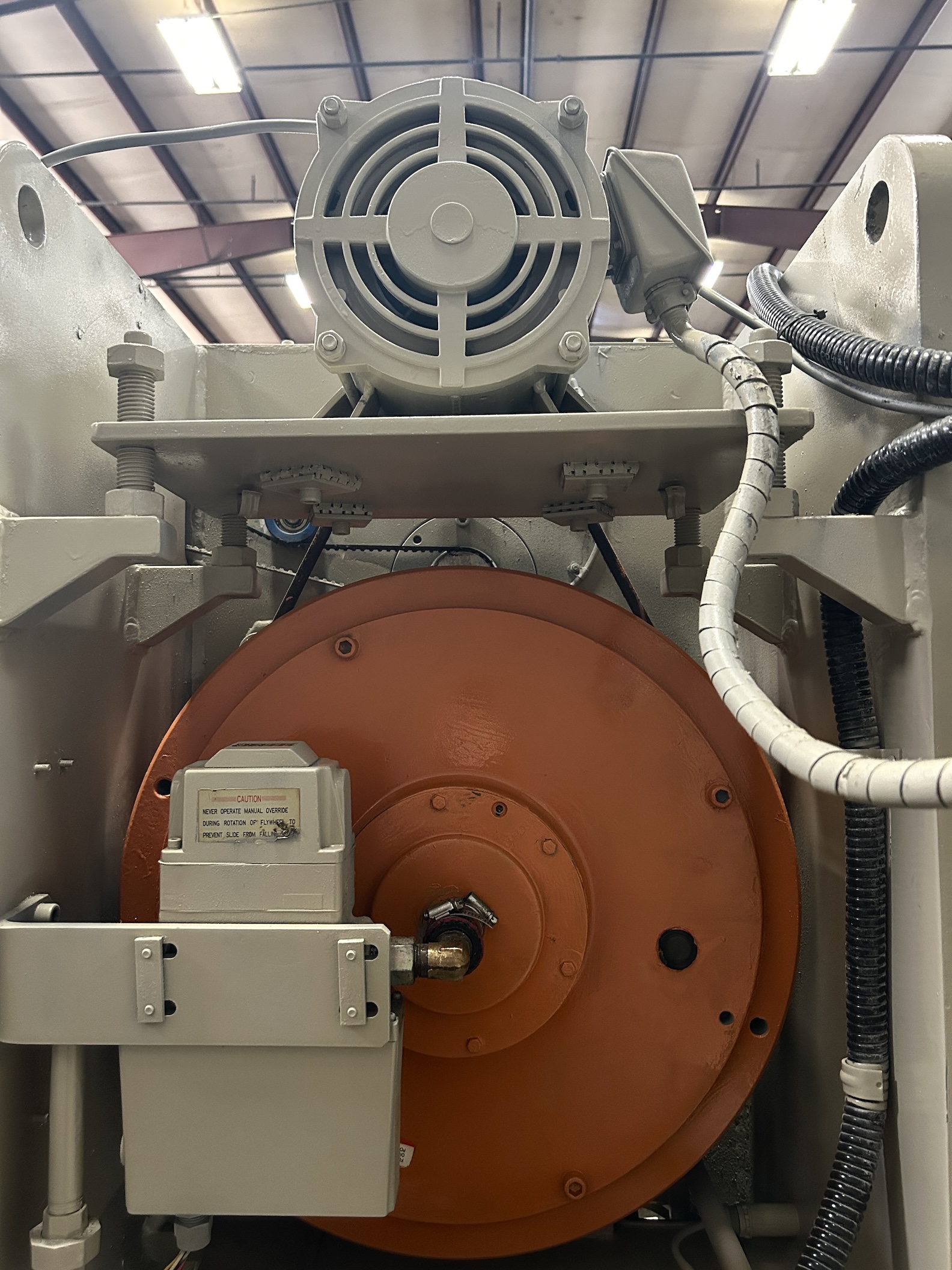

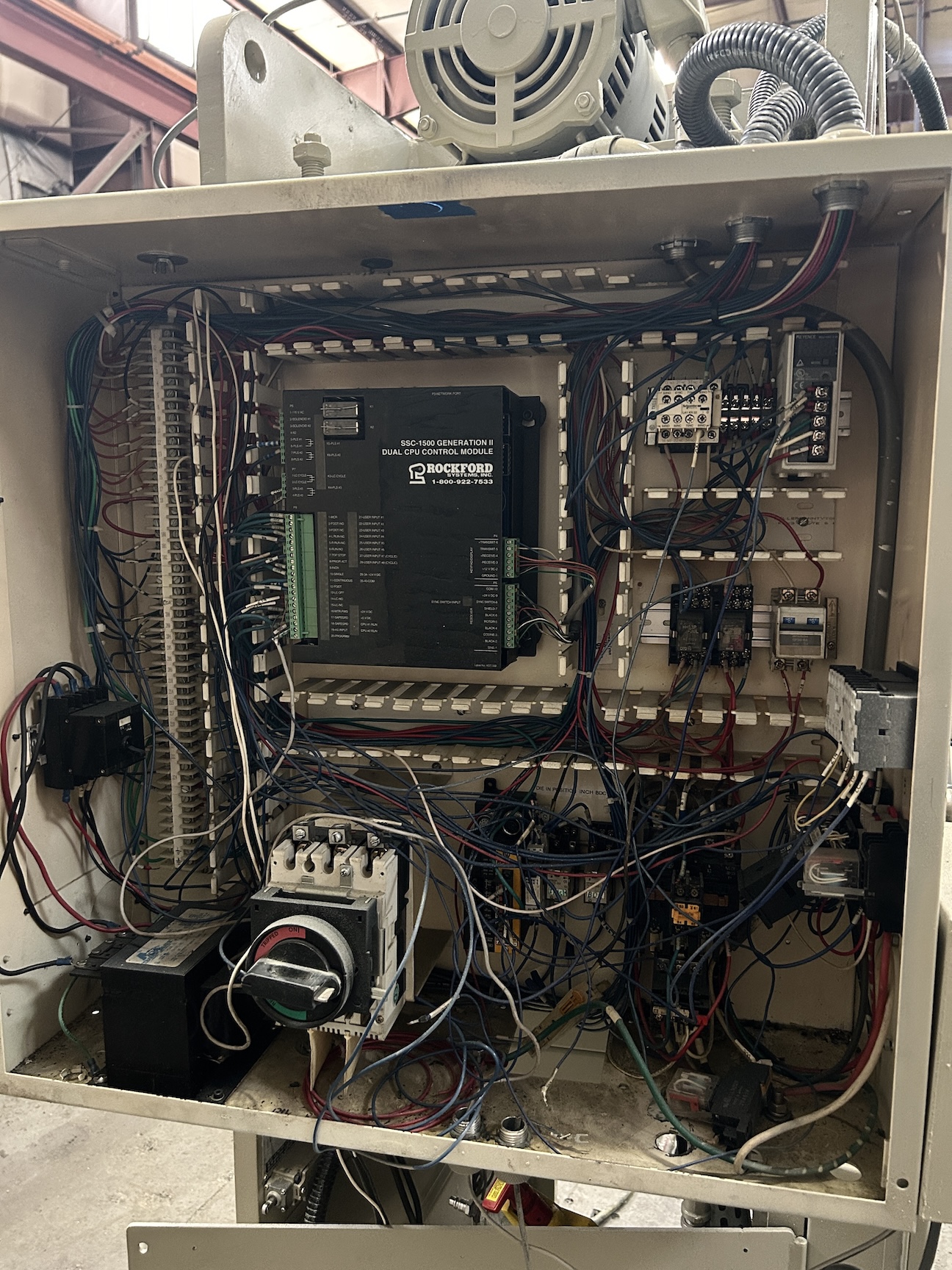

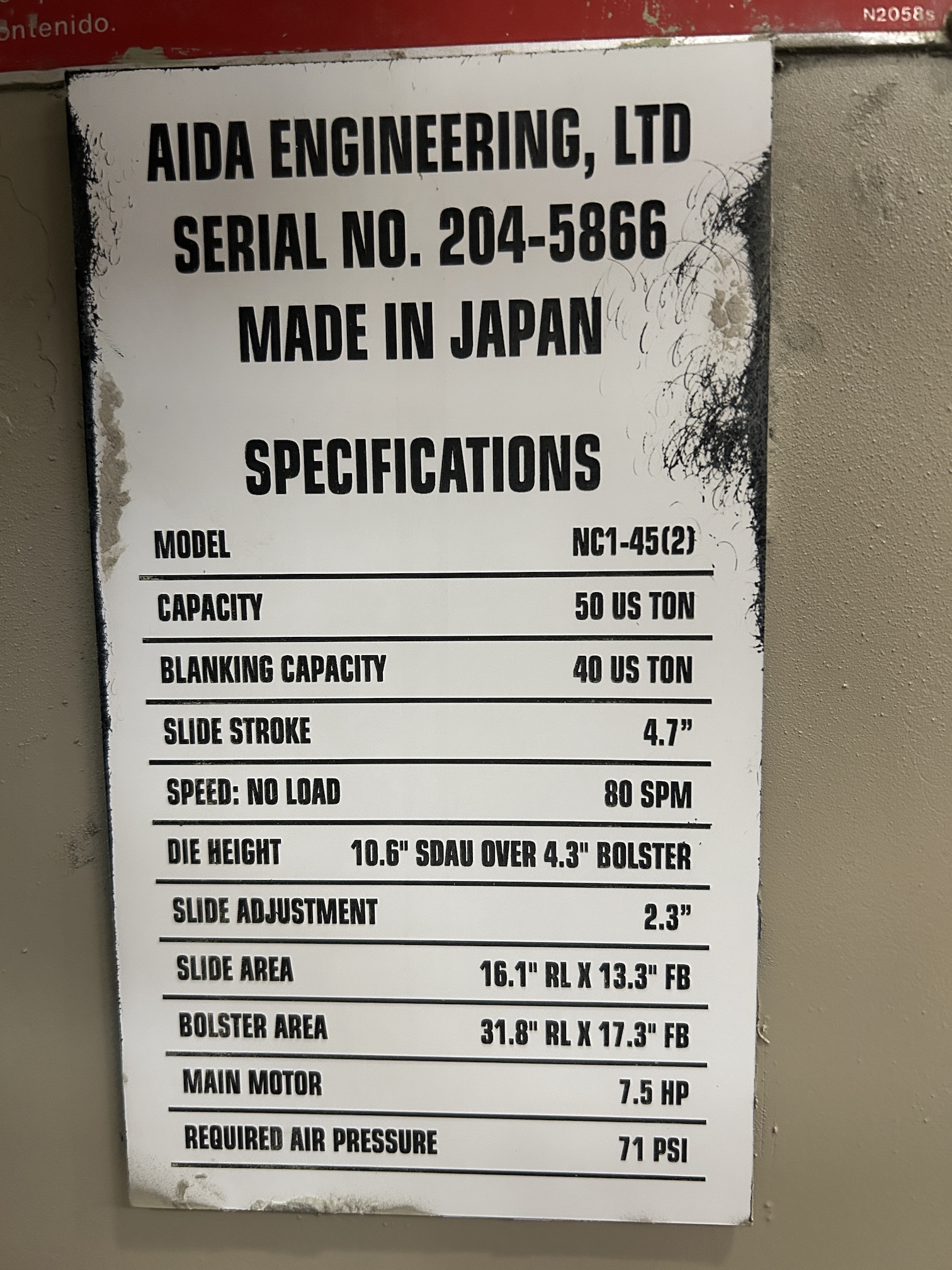

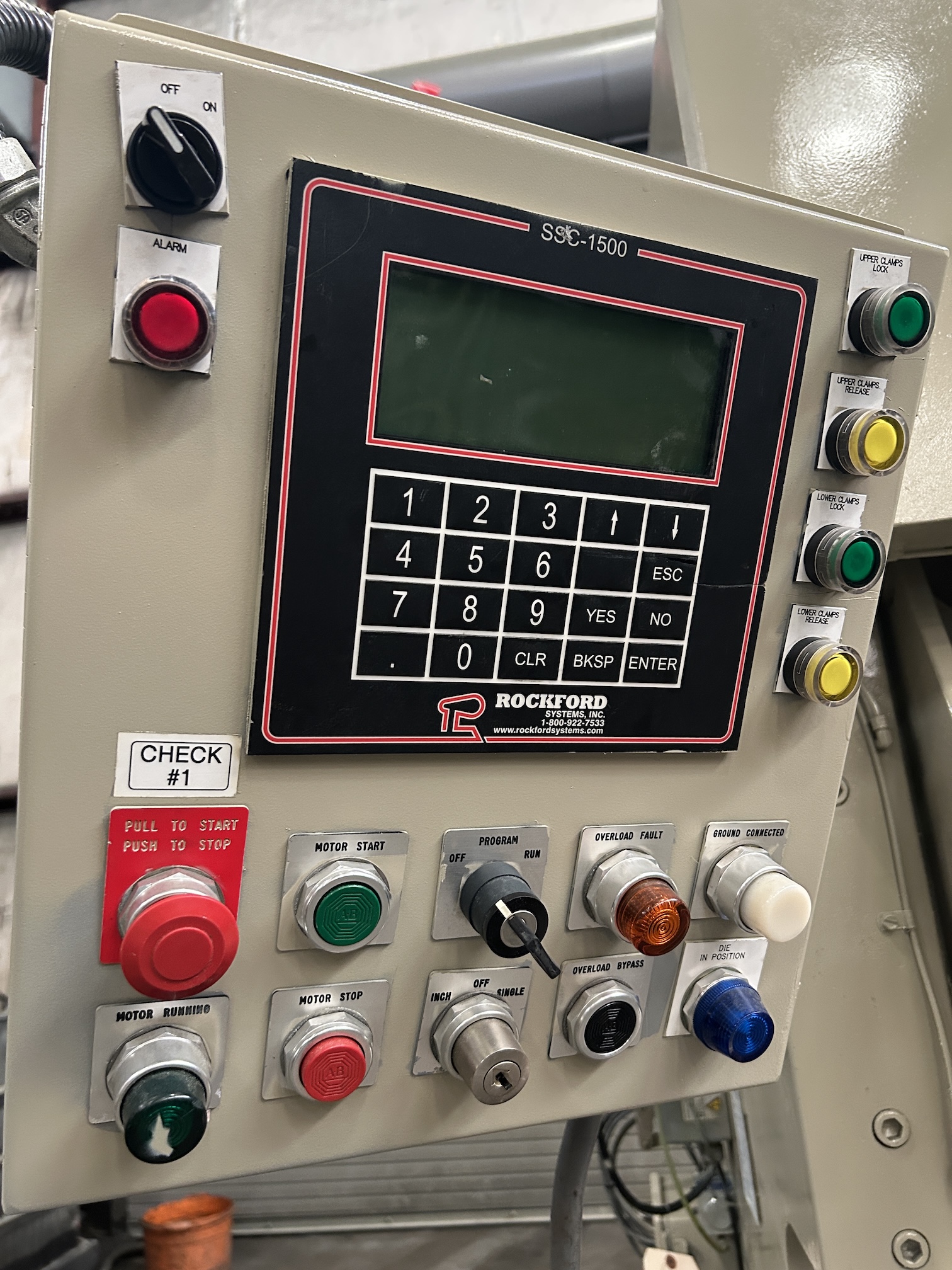

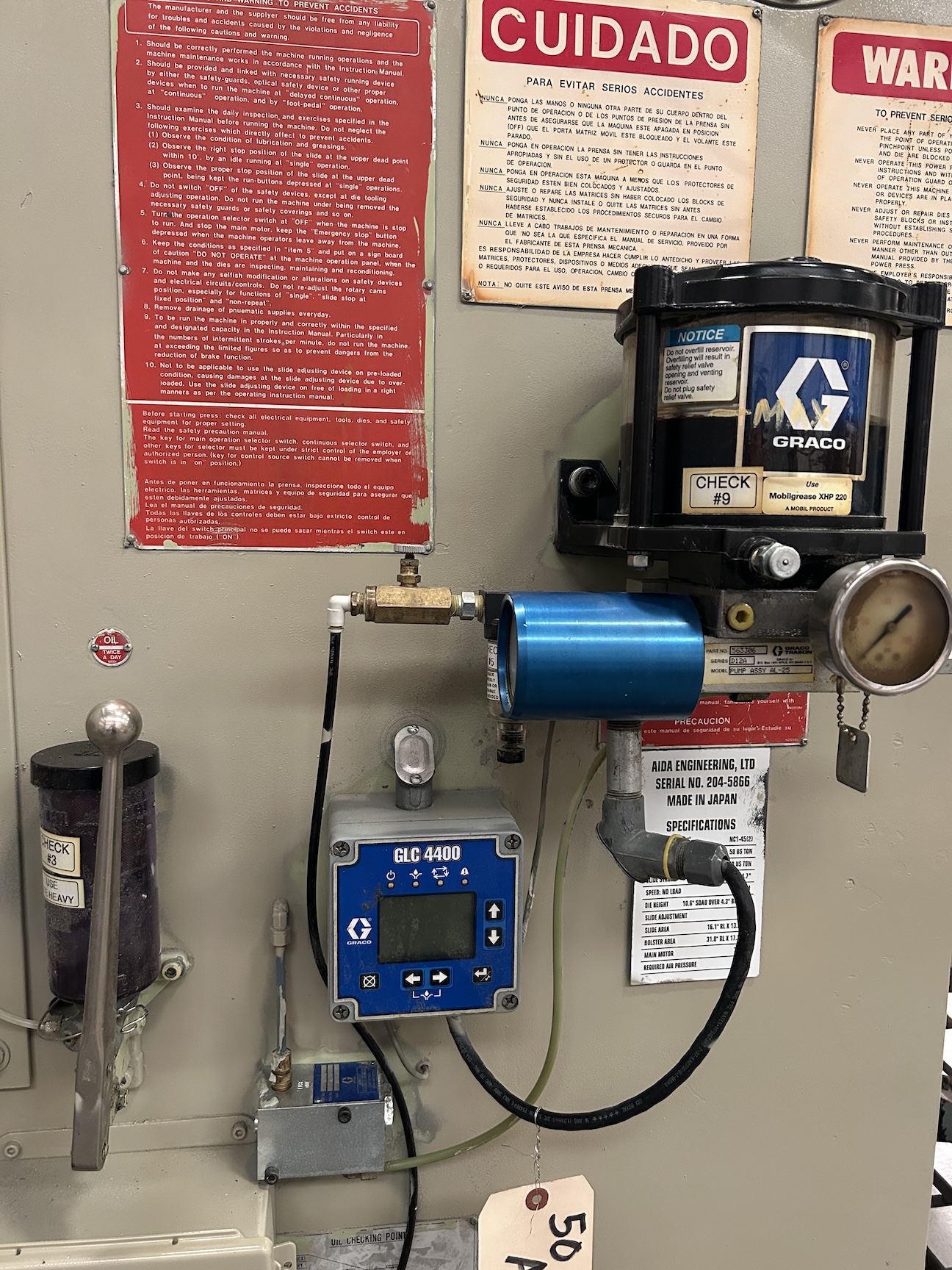

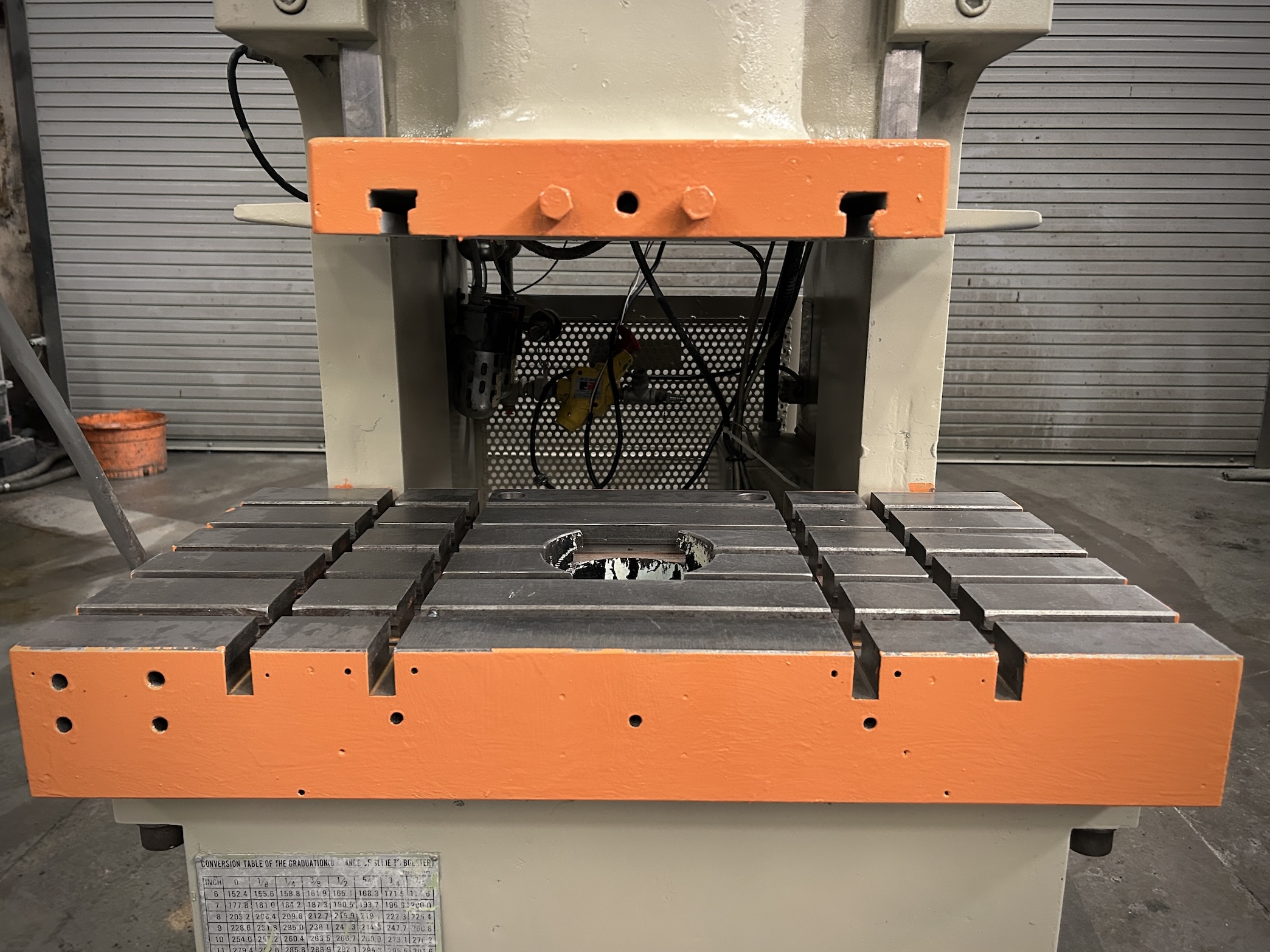

| CAPACITY | 50 US TON | BLANKING CAPACITY | 40 US TON | STROKE | 4.7" | MAX DIE HEIGHT | 10.6" SDAU OVER BOLSTER | BED AREA | 31.8" X 17.3" (RL X FB) | SPEED | 80 SPM | SLIDE ADJUSTMENT | 2.3" | SLIDE AREA | 16.1" X 13.3" (RL X FB) (T-SLOTTED) | BOLSTER PLATE | 4.3" H X 31.8" RL X 17.3" FB (T-SLOTTED) | DISTANCE BETWEEN UPRIGHTS | 19.6" | DISTANCE FLOOR TO BED | 27" | CLUTCH | AIDA WET CLUTCH / BRAKE COMBINATION | ELECTRICS | 7.5 HP 1750 RPM 480v-3-60 MOTOR & ROCKFORD SSC-1500 PRESS CONTROL | APPROX DIMENSIONS | 78" H X 52" RL X 109" FB | APPROX WEIGHT | 9,000 LBS. | Equipped With | FLOOR STANDING, SINGLE BACK GEARED, HIGHLY RIGID FRAME W/LOW ANGULAR DEFLECTION, FAST ACTING HYDRAULIC OVERLOAD SYSTEM, 6-POINT FULL LENGTH BRONZE GIBS, BRAKE STOP-TIME MONITOR, AUTOMATIC LUBRICATION SYSTEM FOR GIBS & CRANKSHAFT BEARINGS, AIDA SAFETY CONTROLLER, & QUILL MOUNTED FLYWHEEL W/FLYWHEEL BRAKE | Note |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
