Description

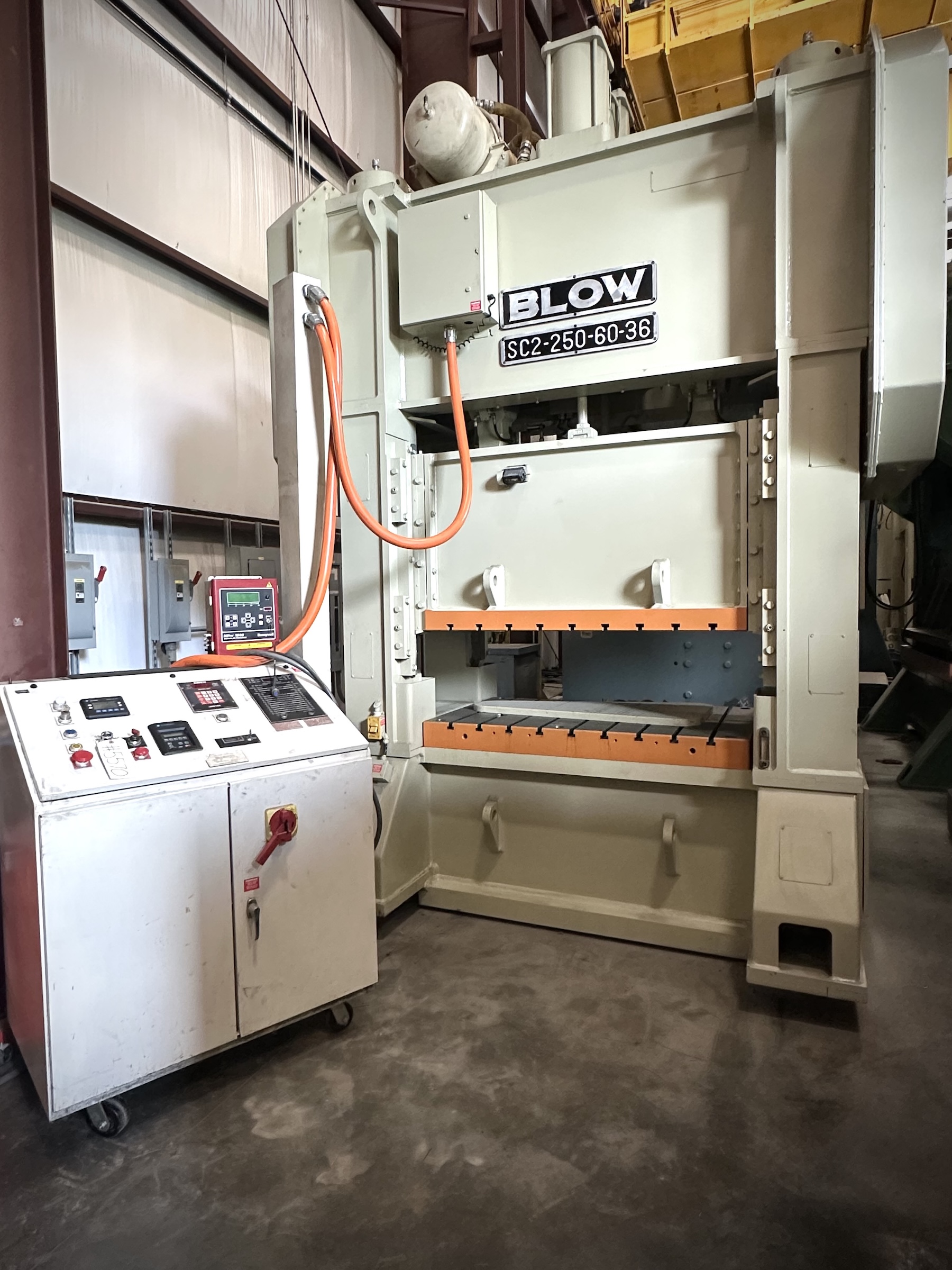

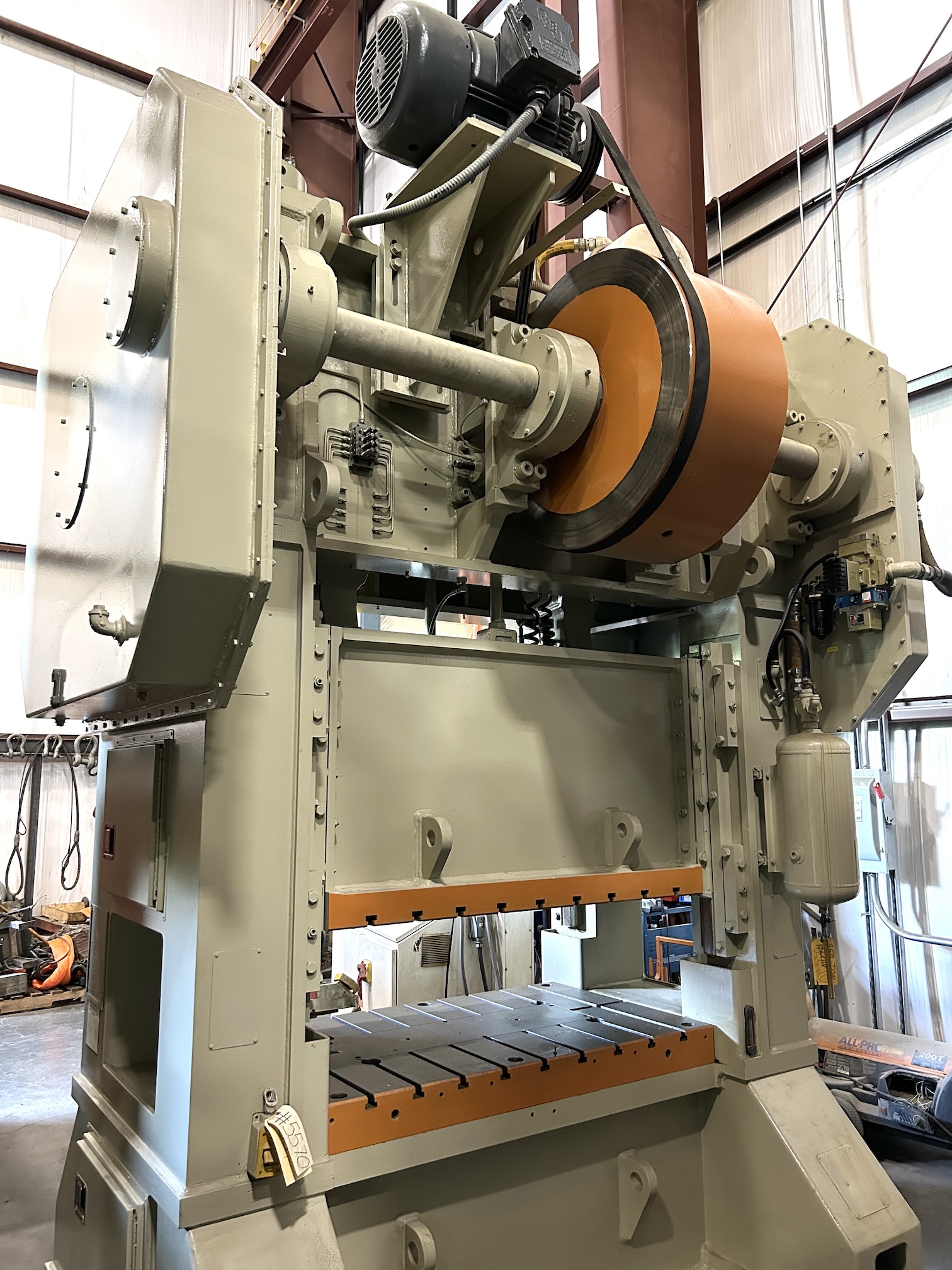

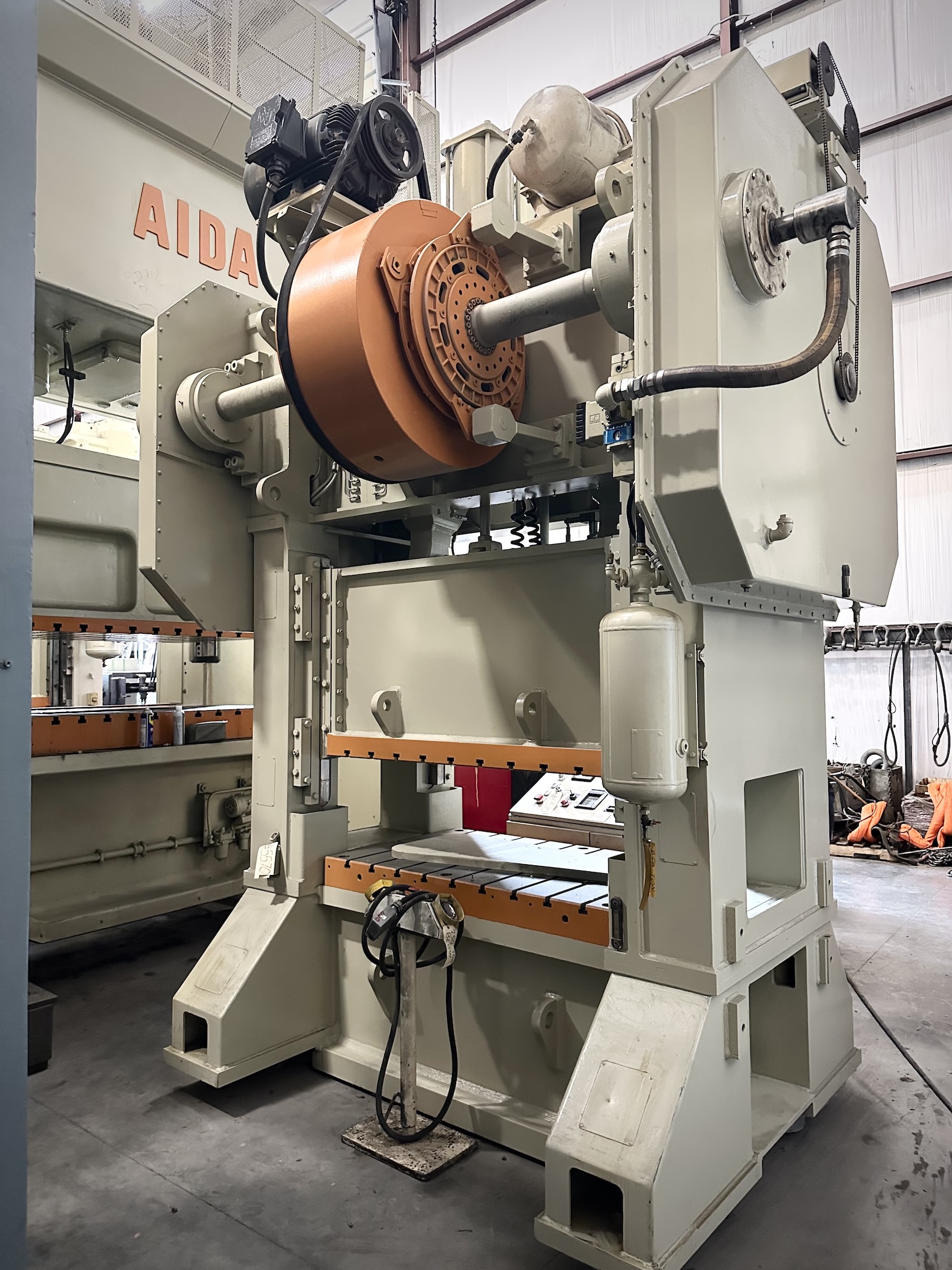

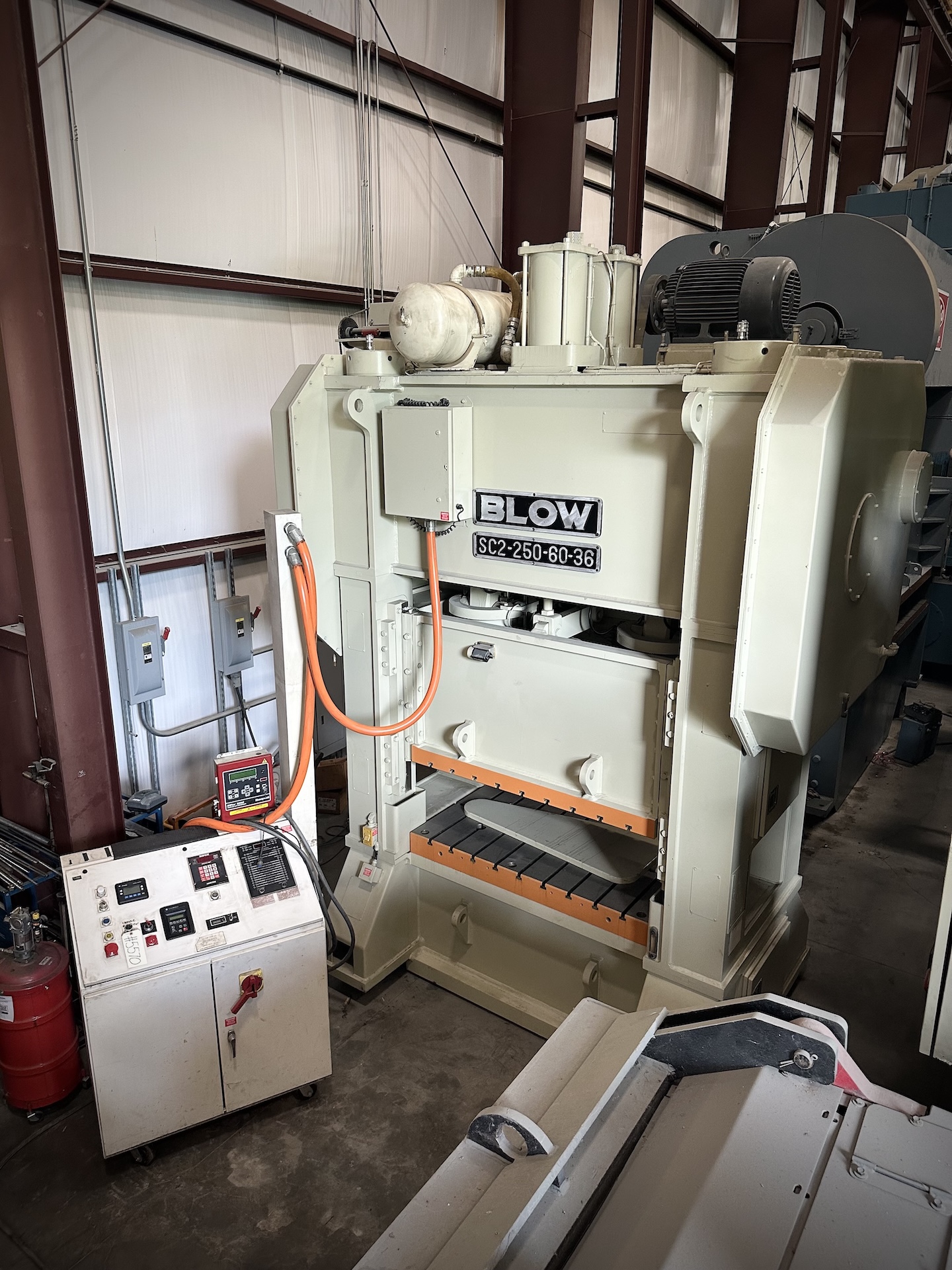

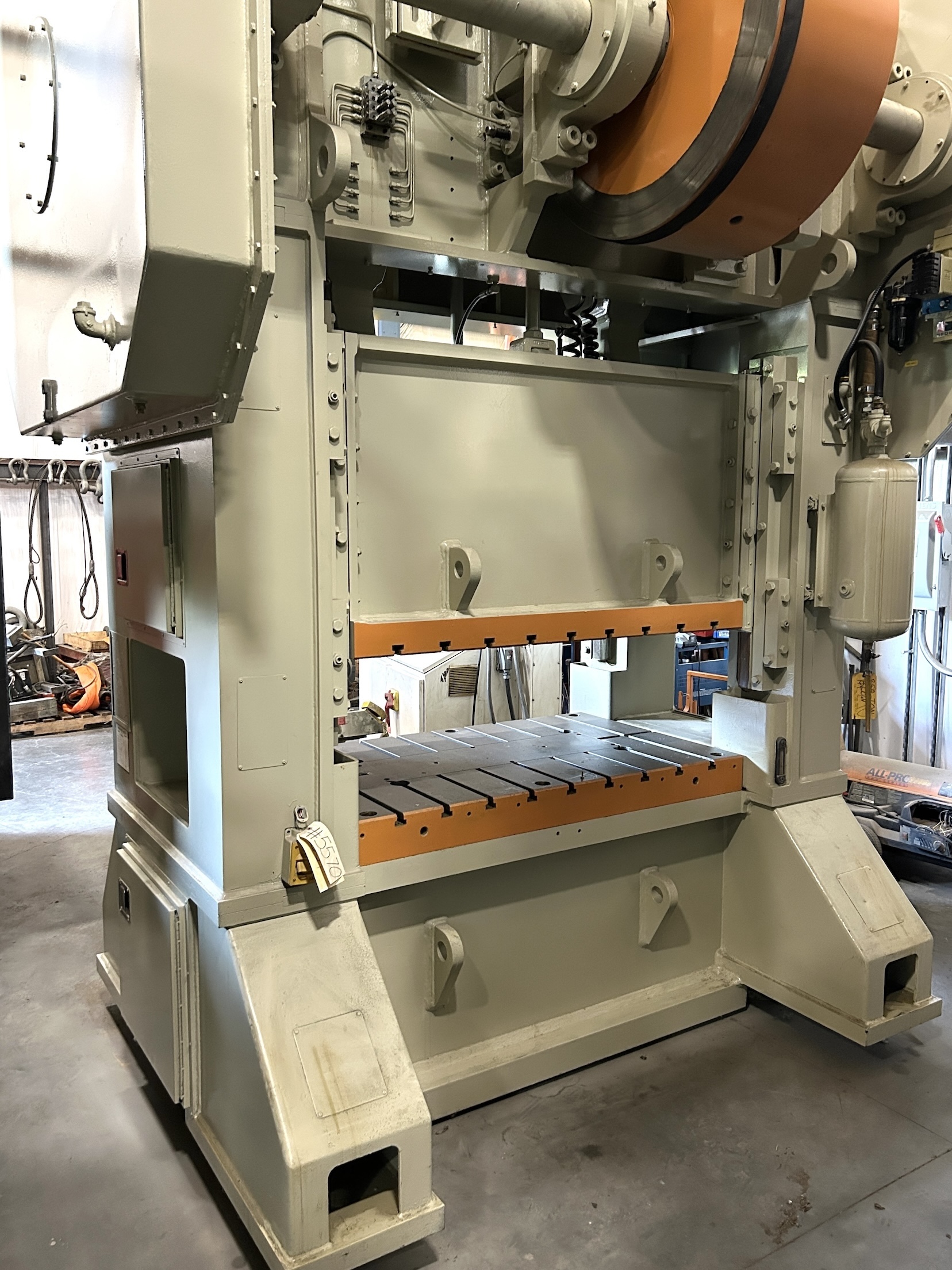

Straight Side Press • Used 250 Ton Press for Sale
- Machine #
- 5570
- Condition
- Very Good
- Location
- Columbia, TN Warehouse
- Year
- 2002

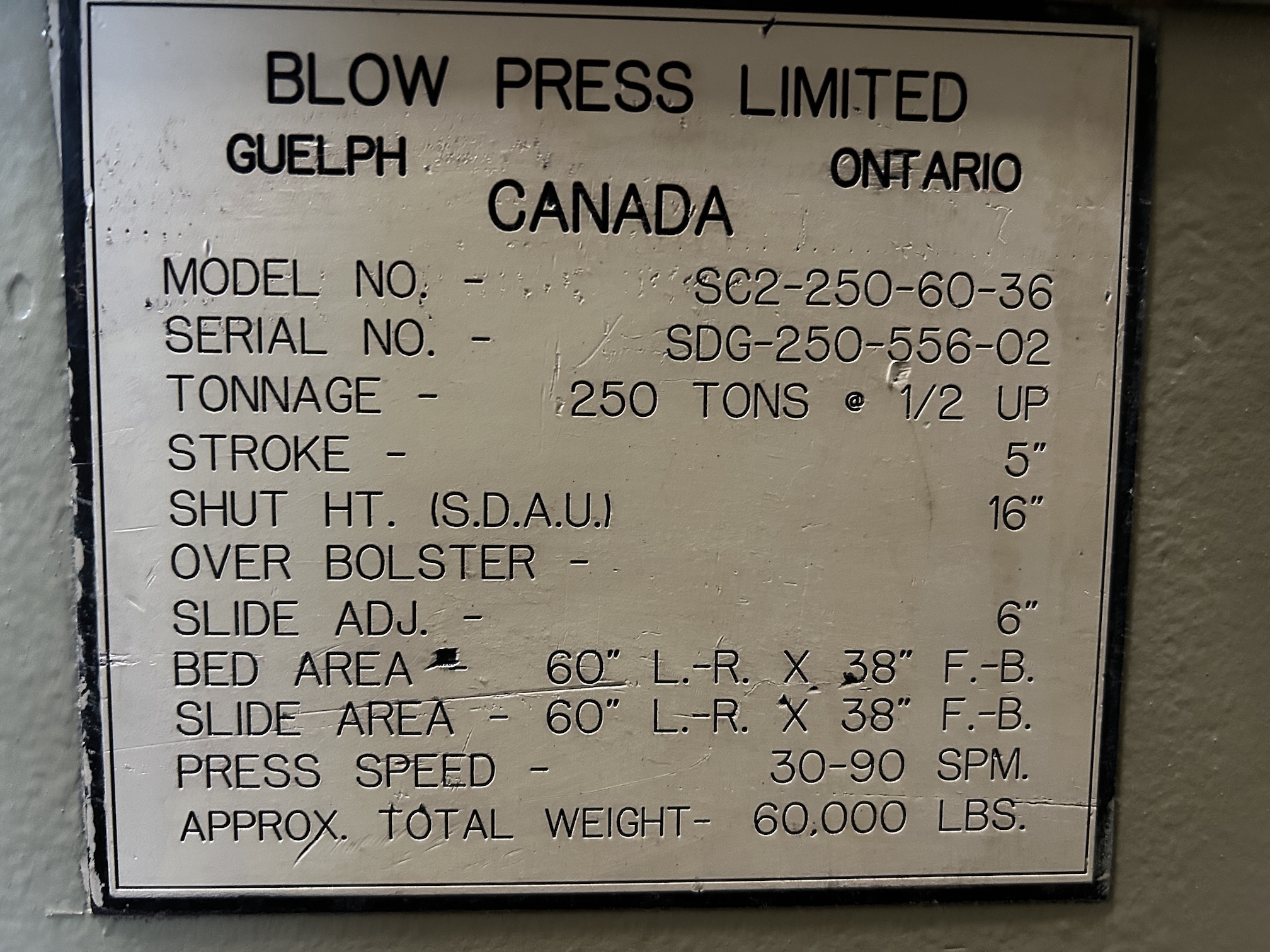

- Model
- Blow SC2-250-60-36
Buy Now: $
| CAPACITY | 250 TONS |
|---|---|
| STROKE | 5" |
| MAX. SHUT HEIGHT to bed | 21" sdau (16" over bolster) |
| BED AREA | 60" X 36" (RL X FB) |
| SPEED | 30 - 90 SPM |
| slide adjustment | 6" MOTORIZED |
| slide area | 60" RL X 36" FB (T-SLOTTED) |

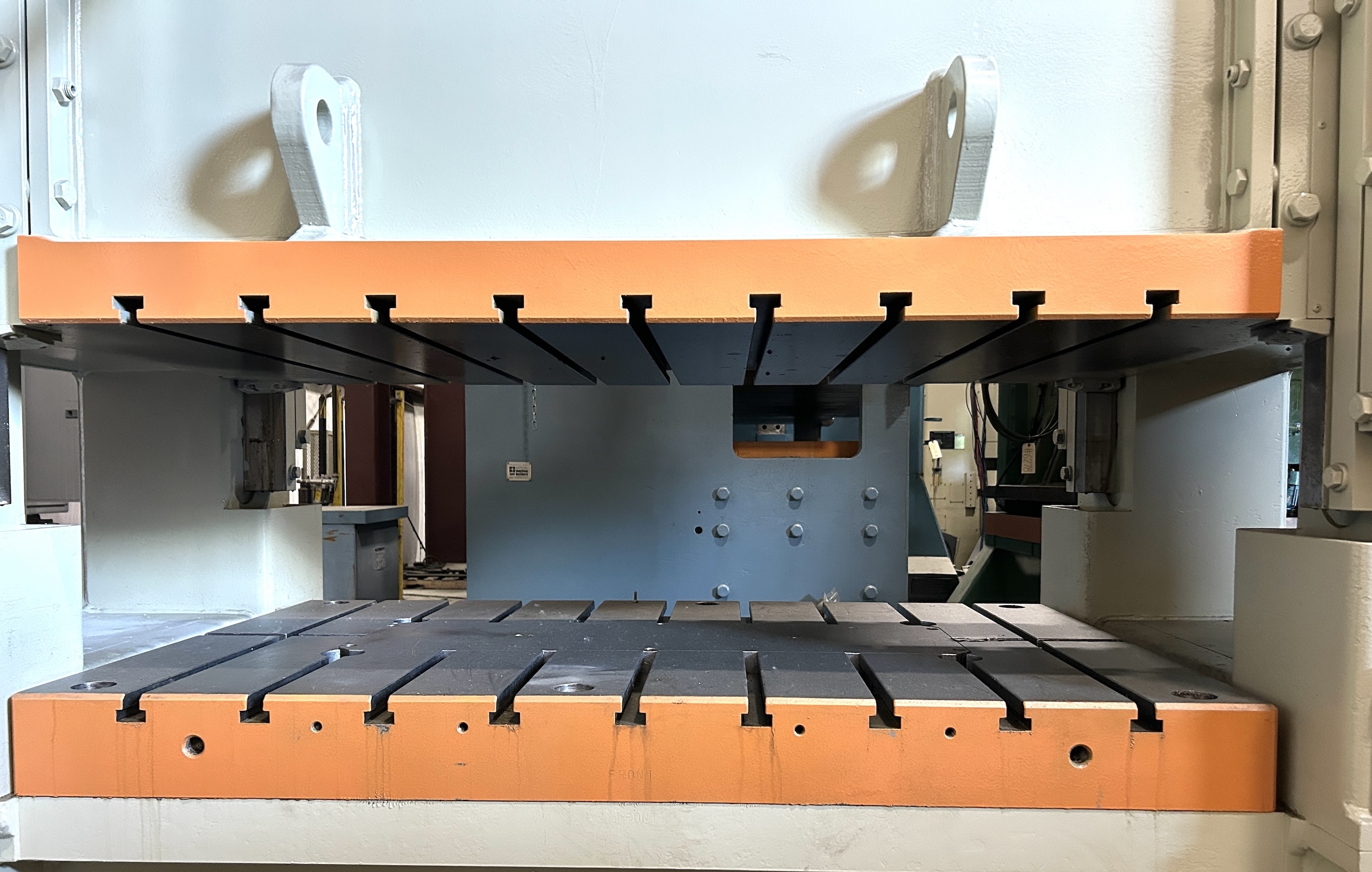

| BOLSTER PLATE | 5" H X 60" RL X 36" FB (T-SLOTTED) |
| DISTANCE UPRIGHTS / FLOOR TO BED | 61" / 33" |

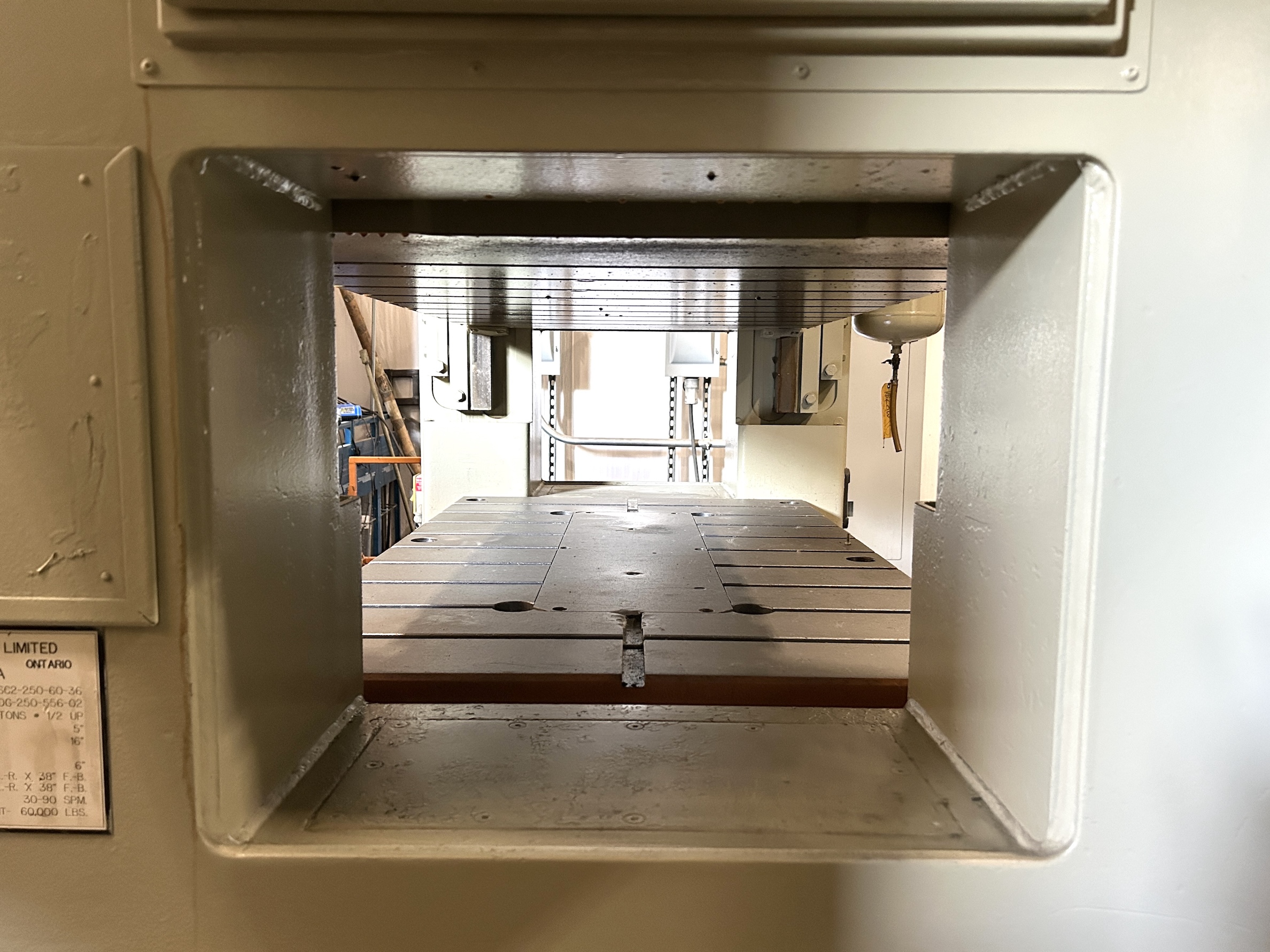

| WINDOW SIZE | 22" W X 17.75" H |

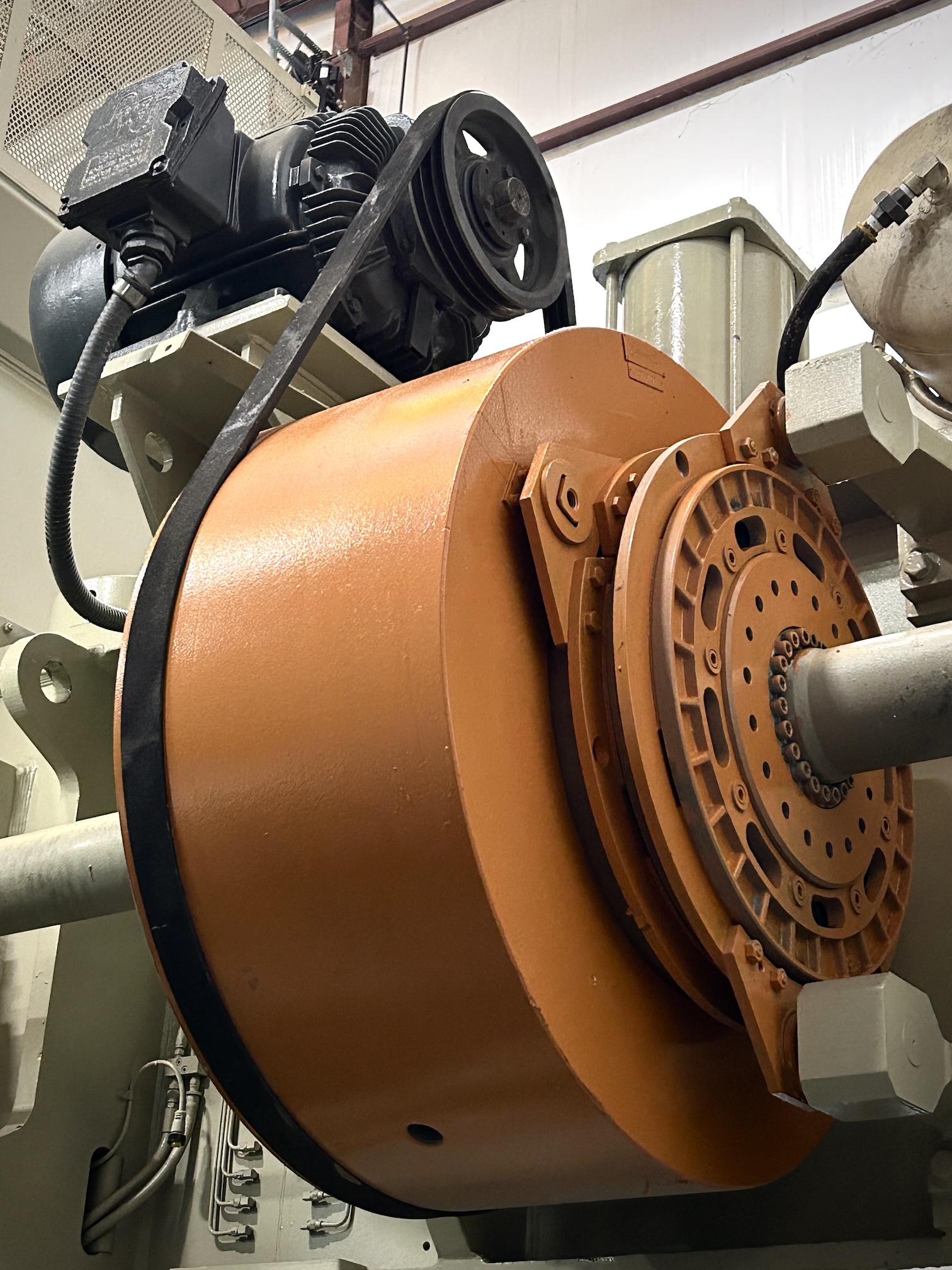

| CLUTCH | WICHITA COMBINATION AIR CLUTCH / BRAKE |

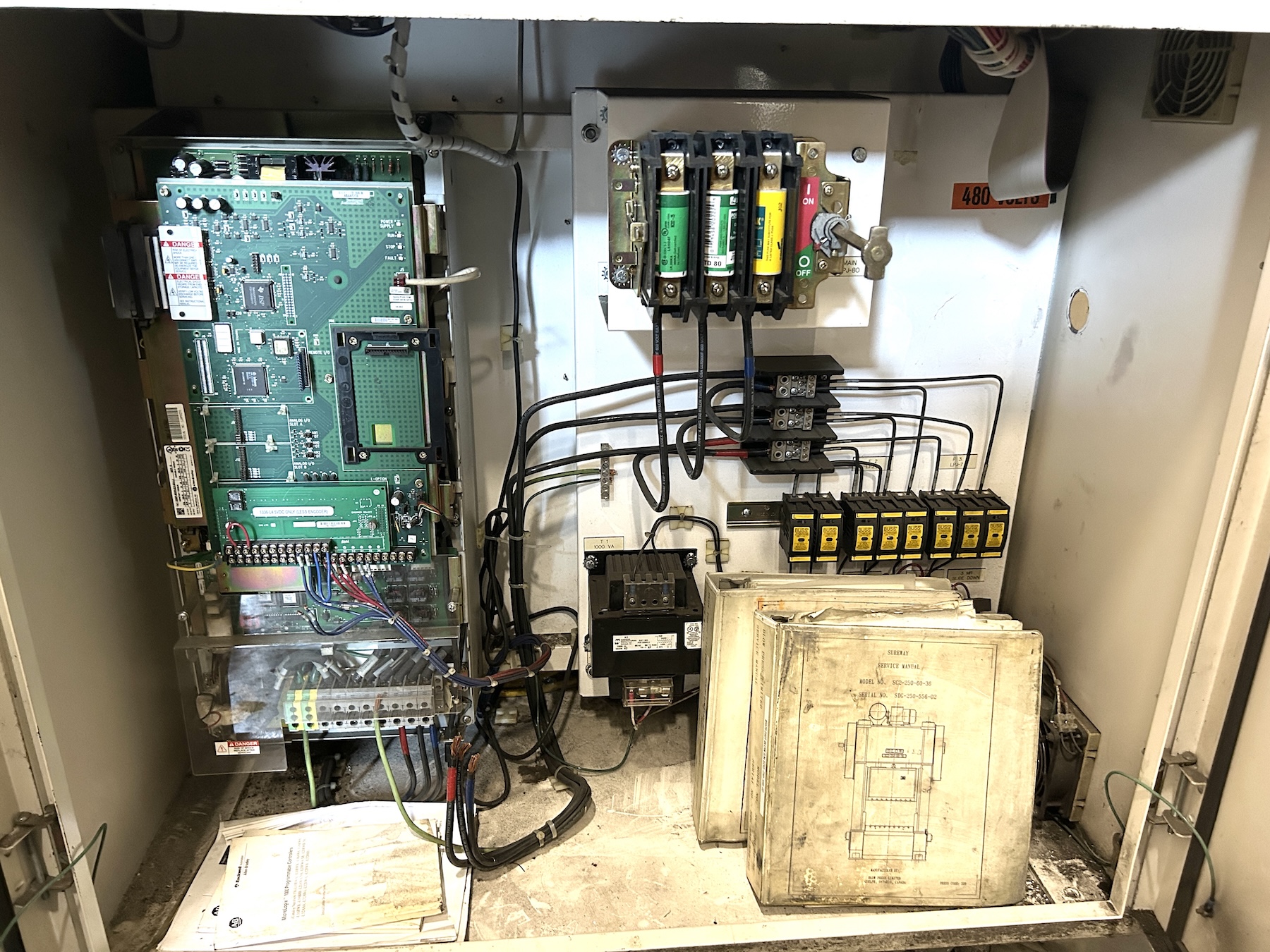

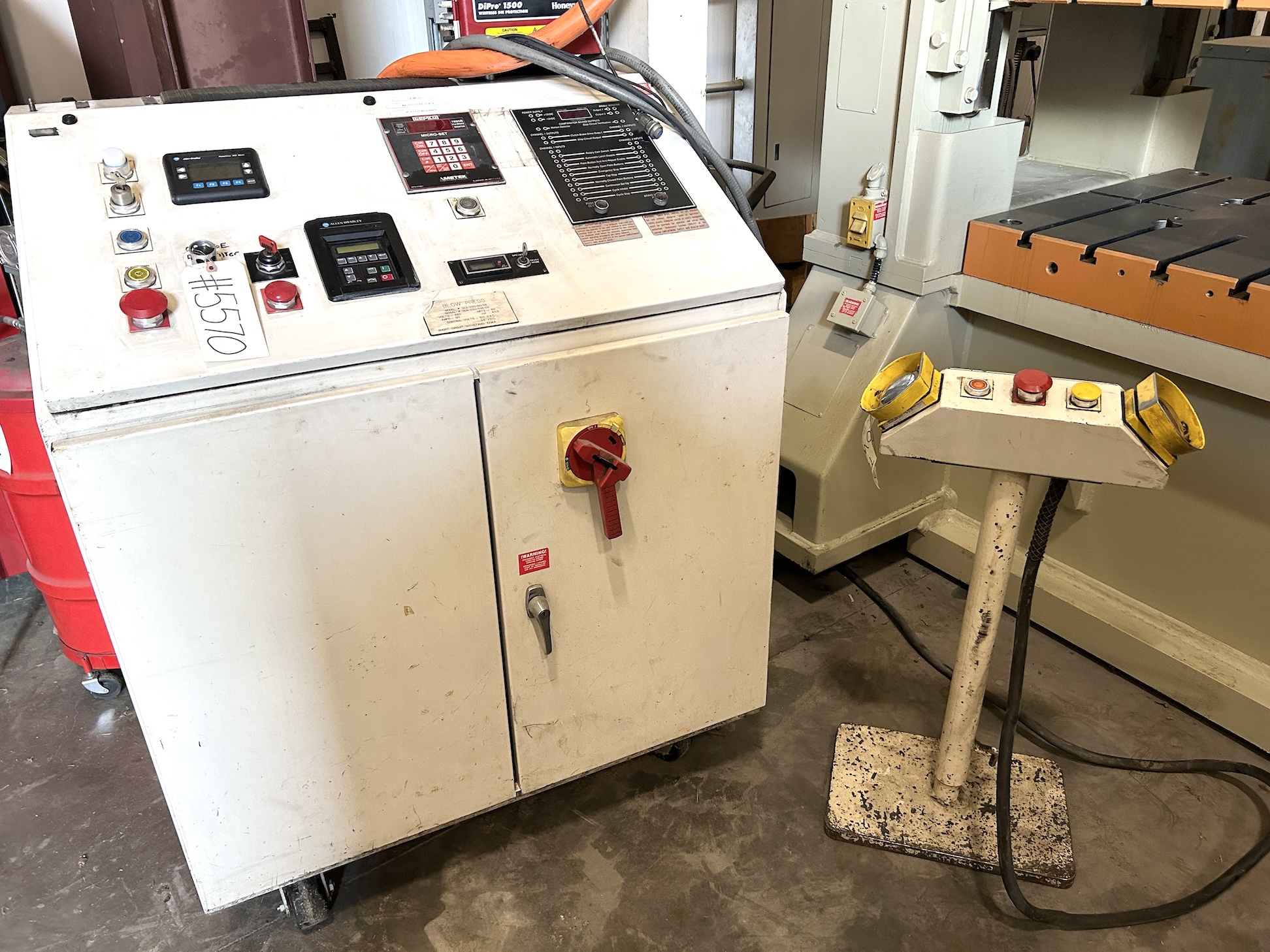

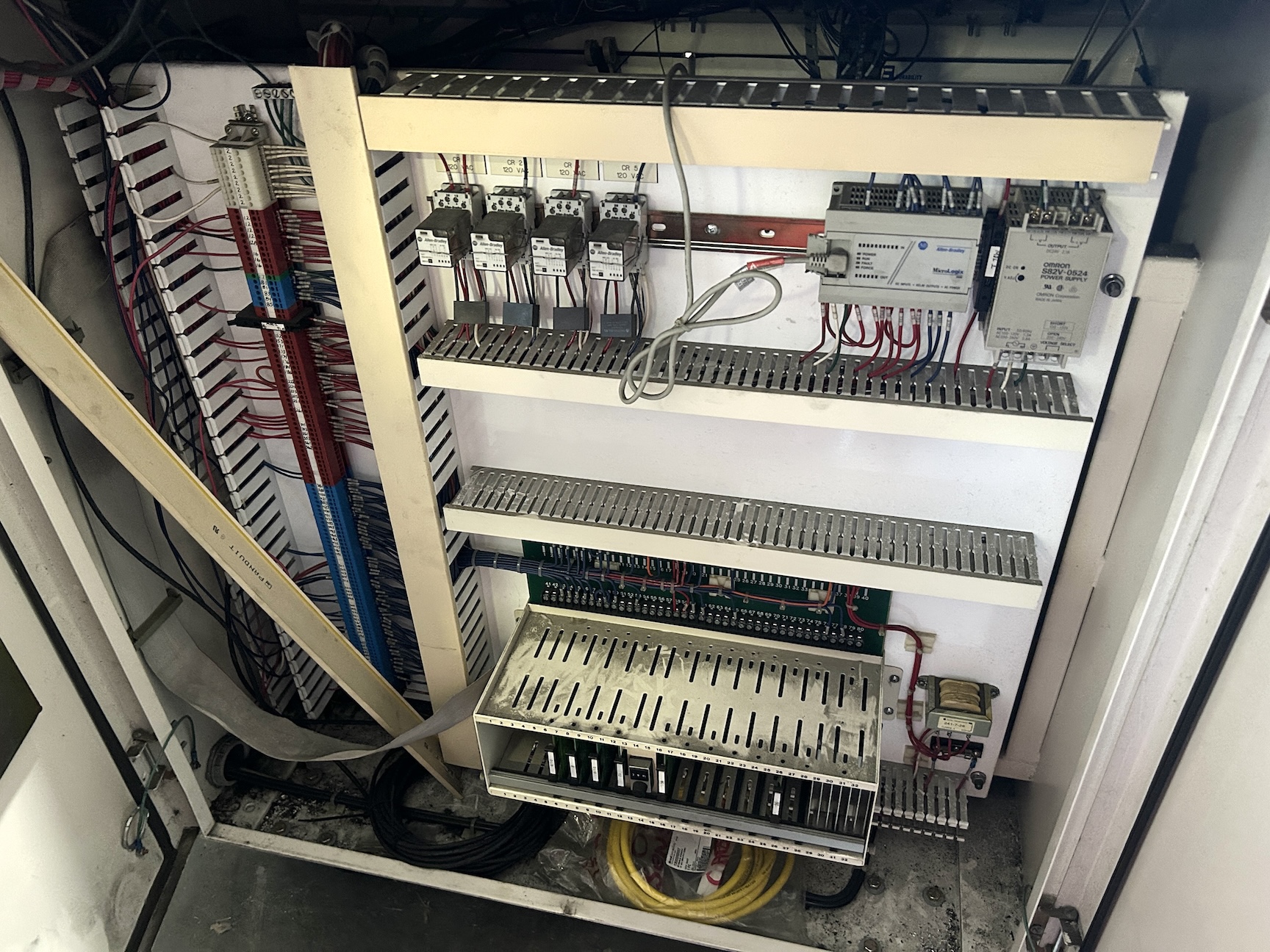

| ELECTRICS | 40 HP 1750 RPM 240/480V-3-60 MOTOR W/480V VFD & LINK PRESS CONTROL |
| APPROX. DIMENSIONS | 13.5' H X 10' RL X 7.5' FB |
| APPROX. WEIGHT | 60,000 LBS |

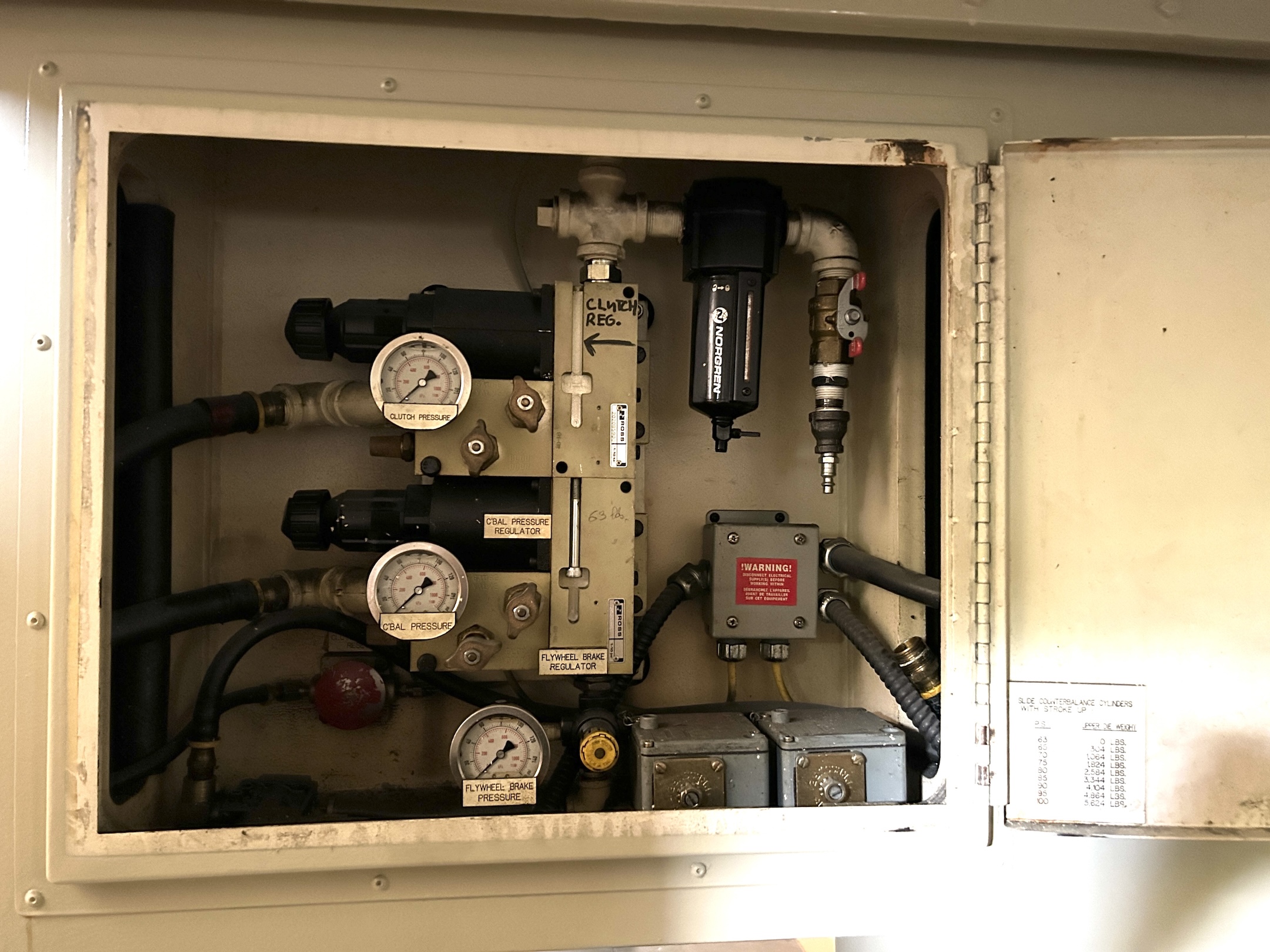

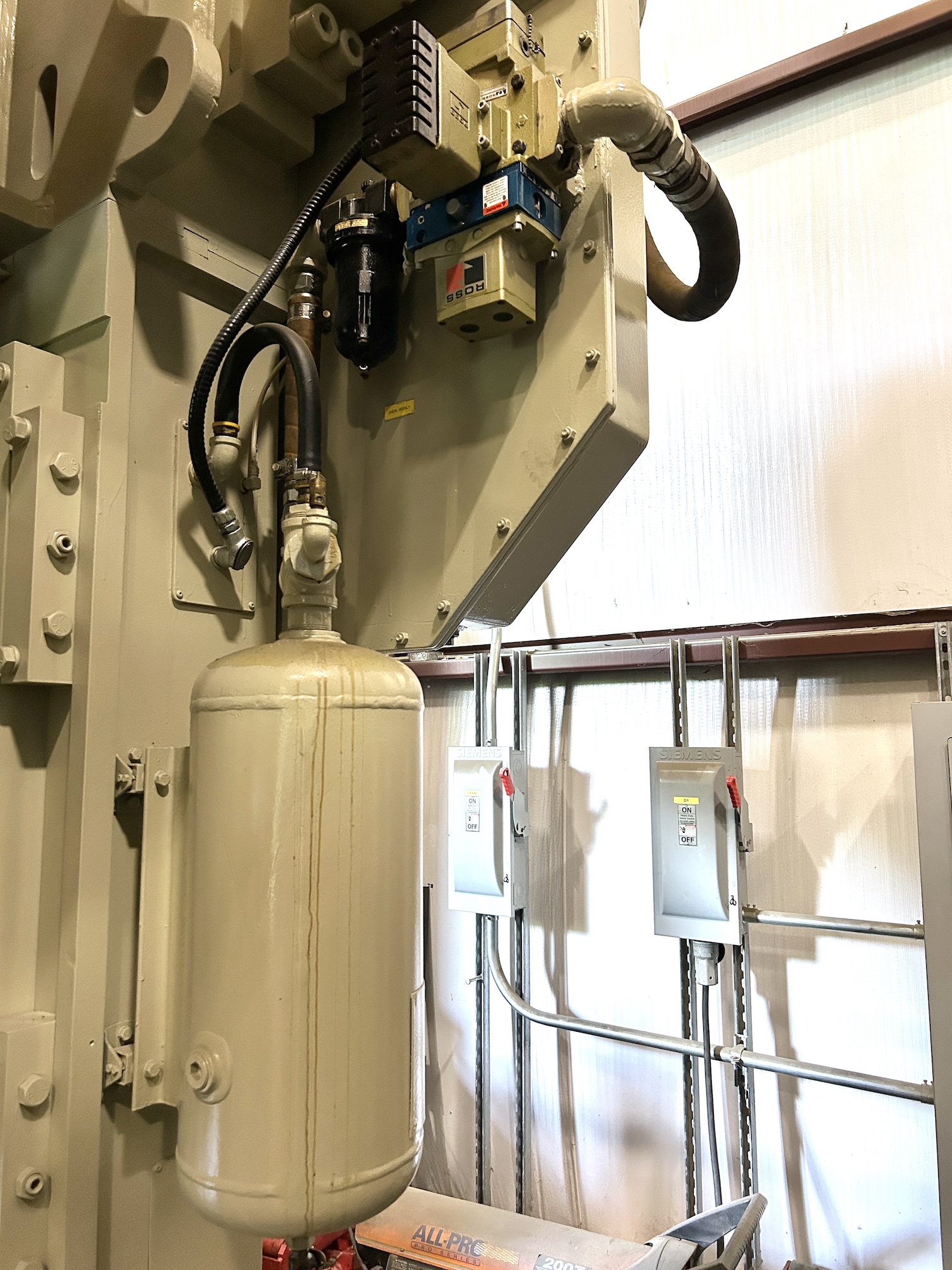

| Equipped With | DUAL AIR COUNTERBALANCEs, TIE ROD FRAME CONSTRUCTION, floor standing when mounted on isolator pads |
| Note | __ |
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
