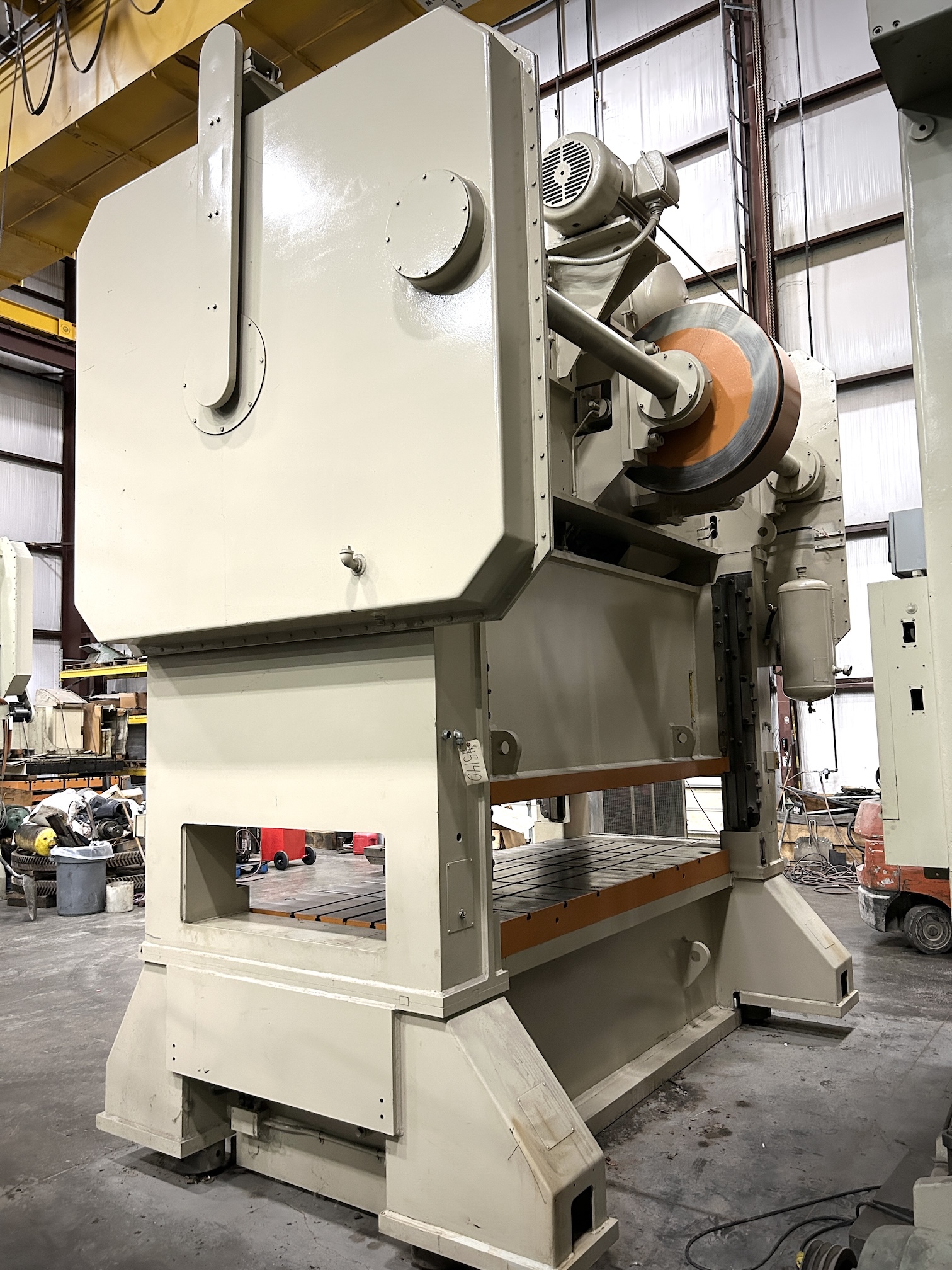

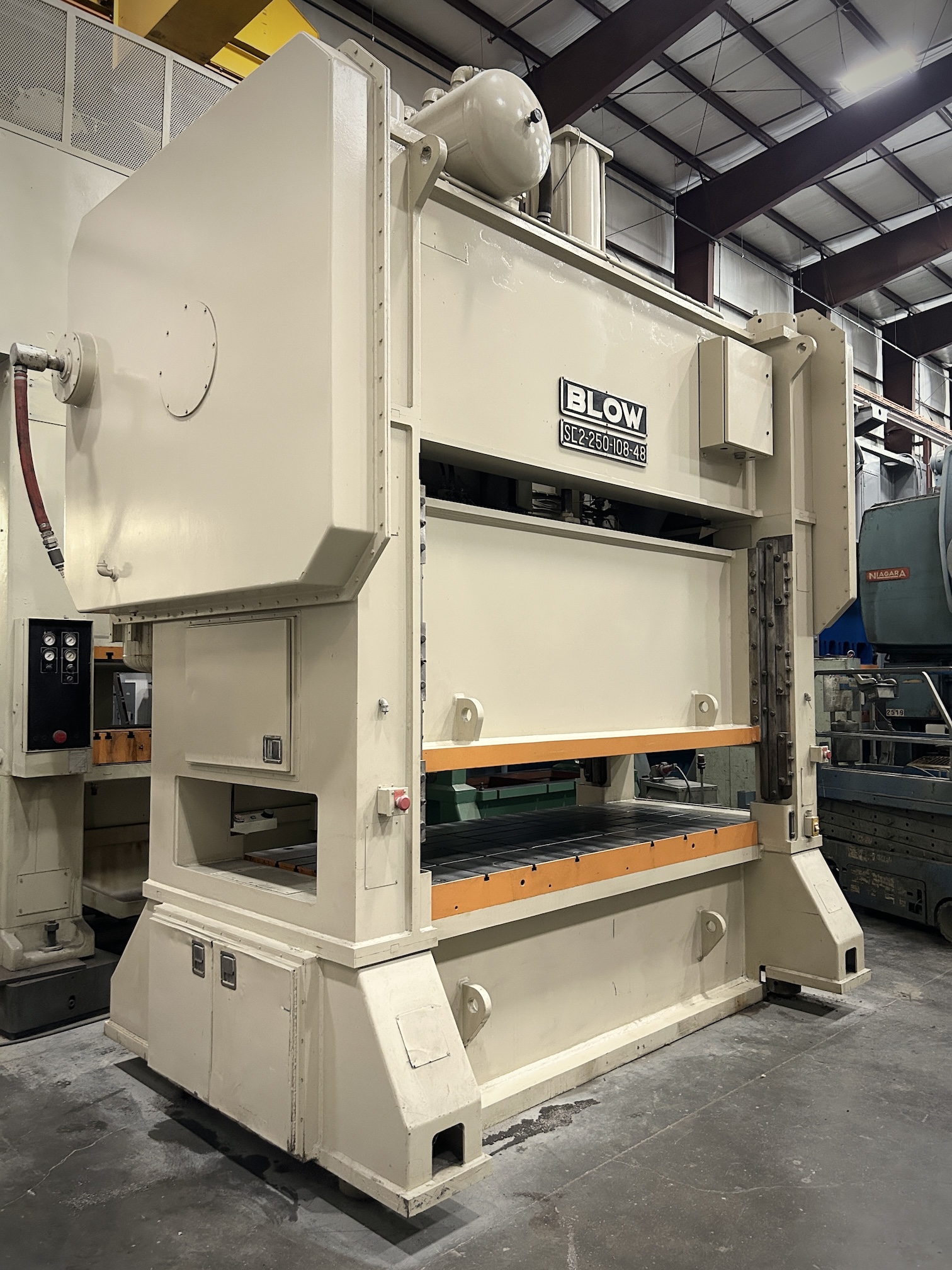

250 Ton Blow Press • Used Blow SC2-250-108-48 Press

250

250
Ton
108″
Bed R-L
6″
Stroke
Speed: 35-70 SPM
New in 2001

Rebuilt Ram

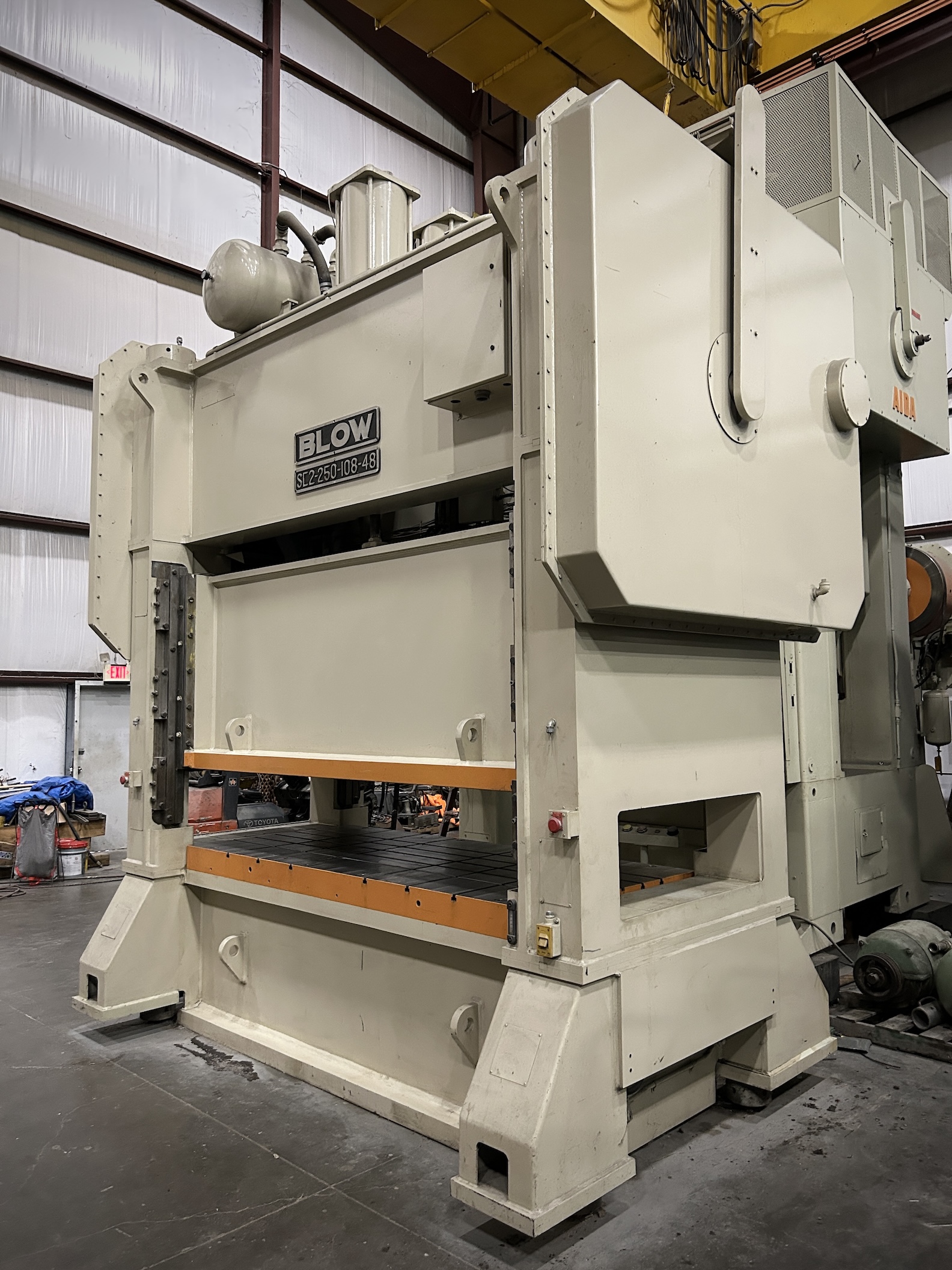

250 Ton Used Press – Straight Side Press

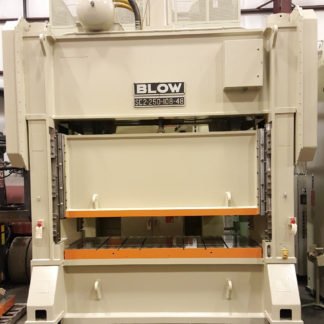

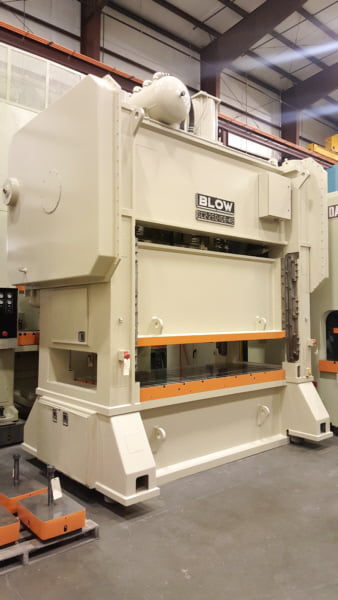

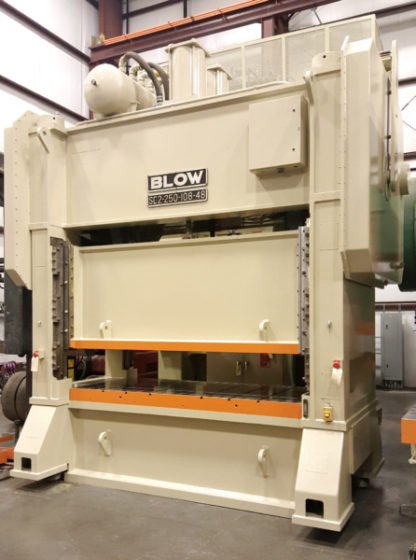

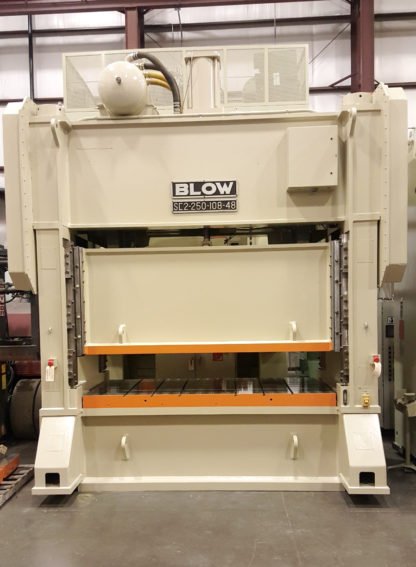

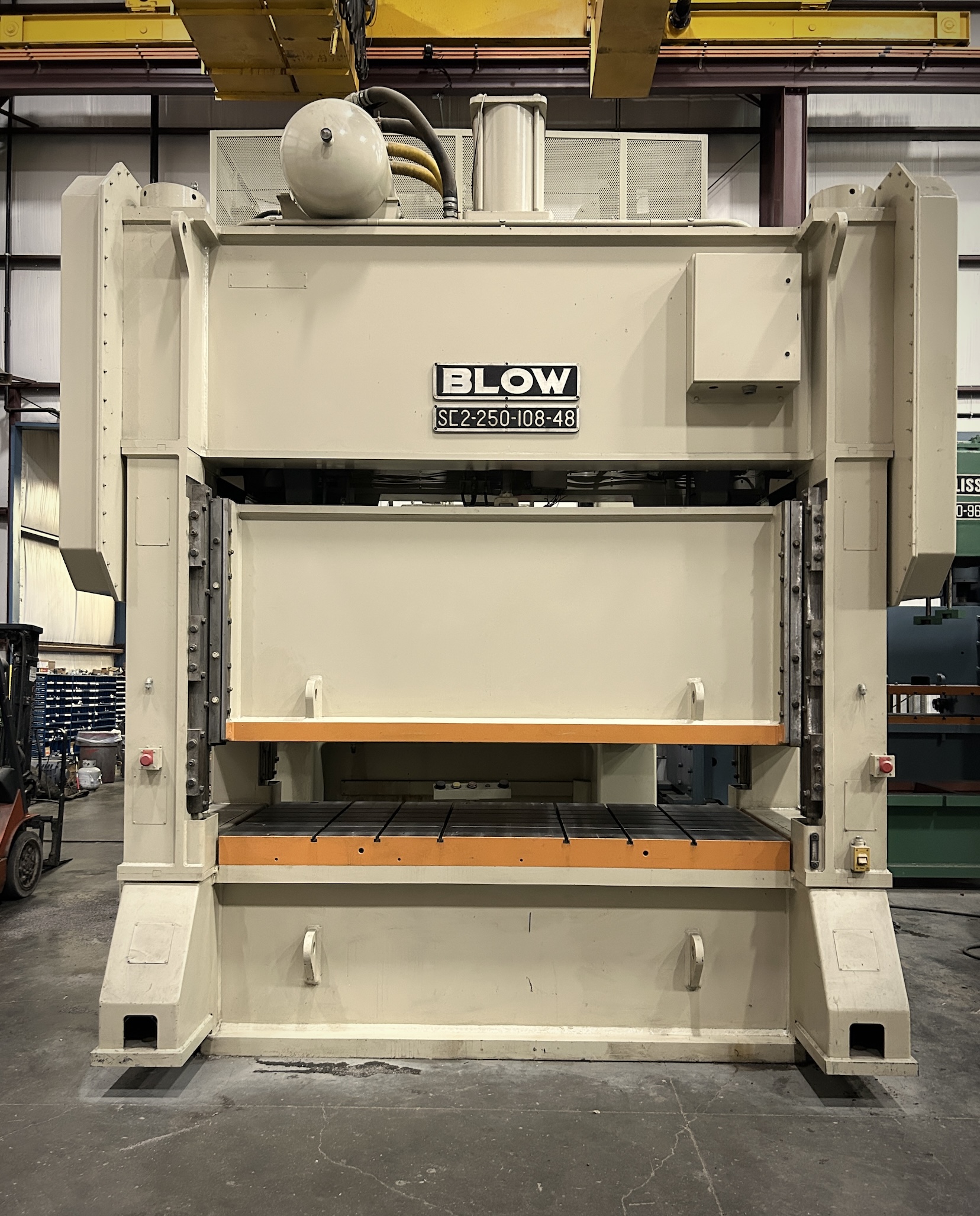

Model: Blow SC2-250-108-48
6″ STR, 16″ SH Over Balster, 108″ x 48″ Bed, 35-70 SPM, 10″ Adjustment, 2001, RECONDITIONING NOW

Stamping Presses for Sale
Used Blow Mechanical Press
Machine #5140
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Blow
Model: Blow SC2-250-108-48 Press
Condition: In Process
Location: Columbia, TN Warehouse
Year: 2001
Machine #: 5140
Buy Now: $





CAPACITY 250 TON
STROKE 6″
MAX SHUT HEIGHT 16″ (SDAU OVER BOLSTER)
BED AREA 108″ X 48″ (rl x FB)
SPEED 35 – 70 SPM (VARIABLE)

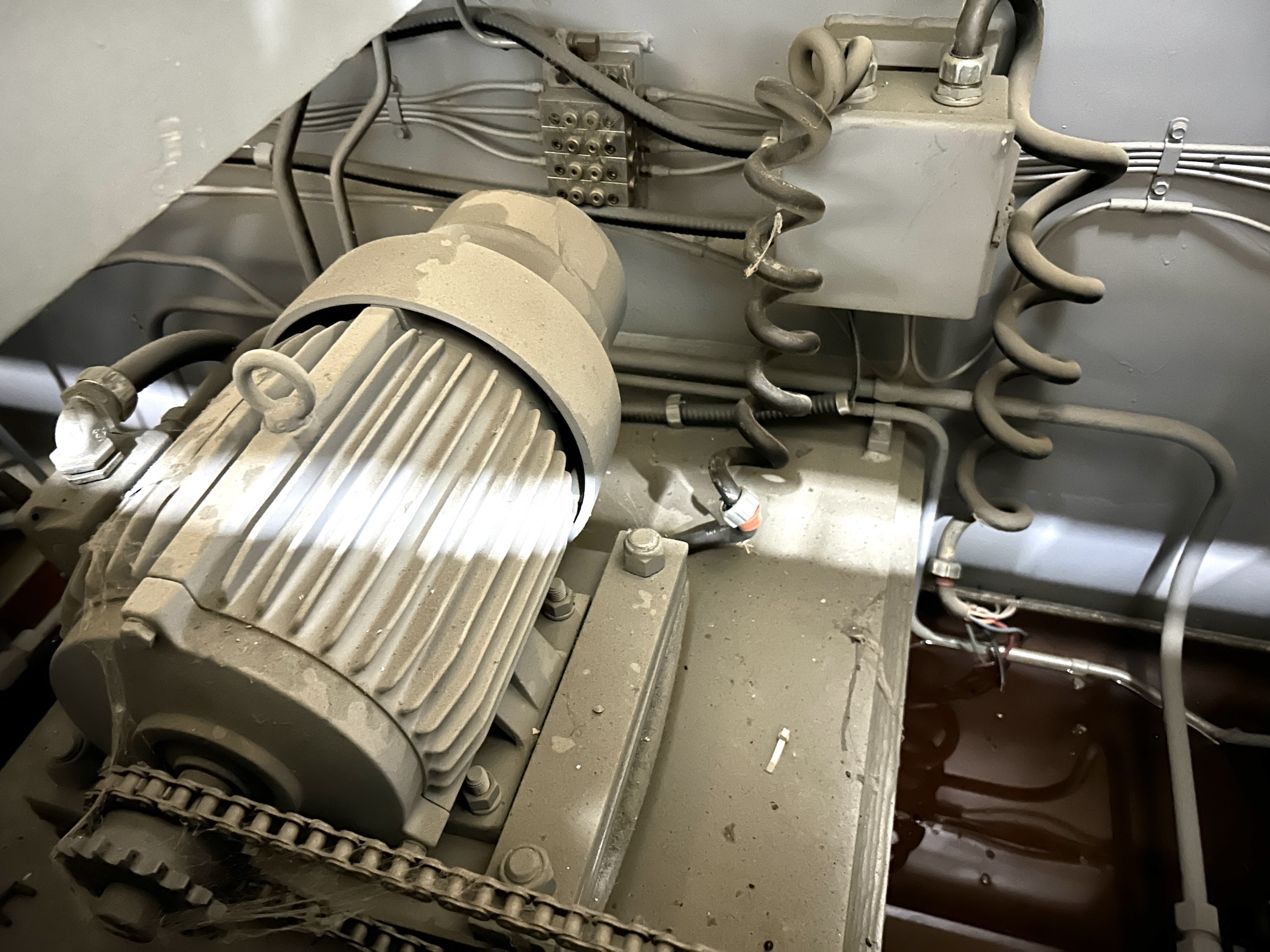

RAM ADJUSTMENT 10″ MOTORIZED
RAM AREA 108″ RL X 48″ FB (T-SLOTTED R/L)

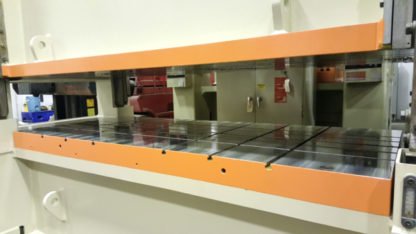

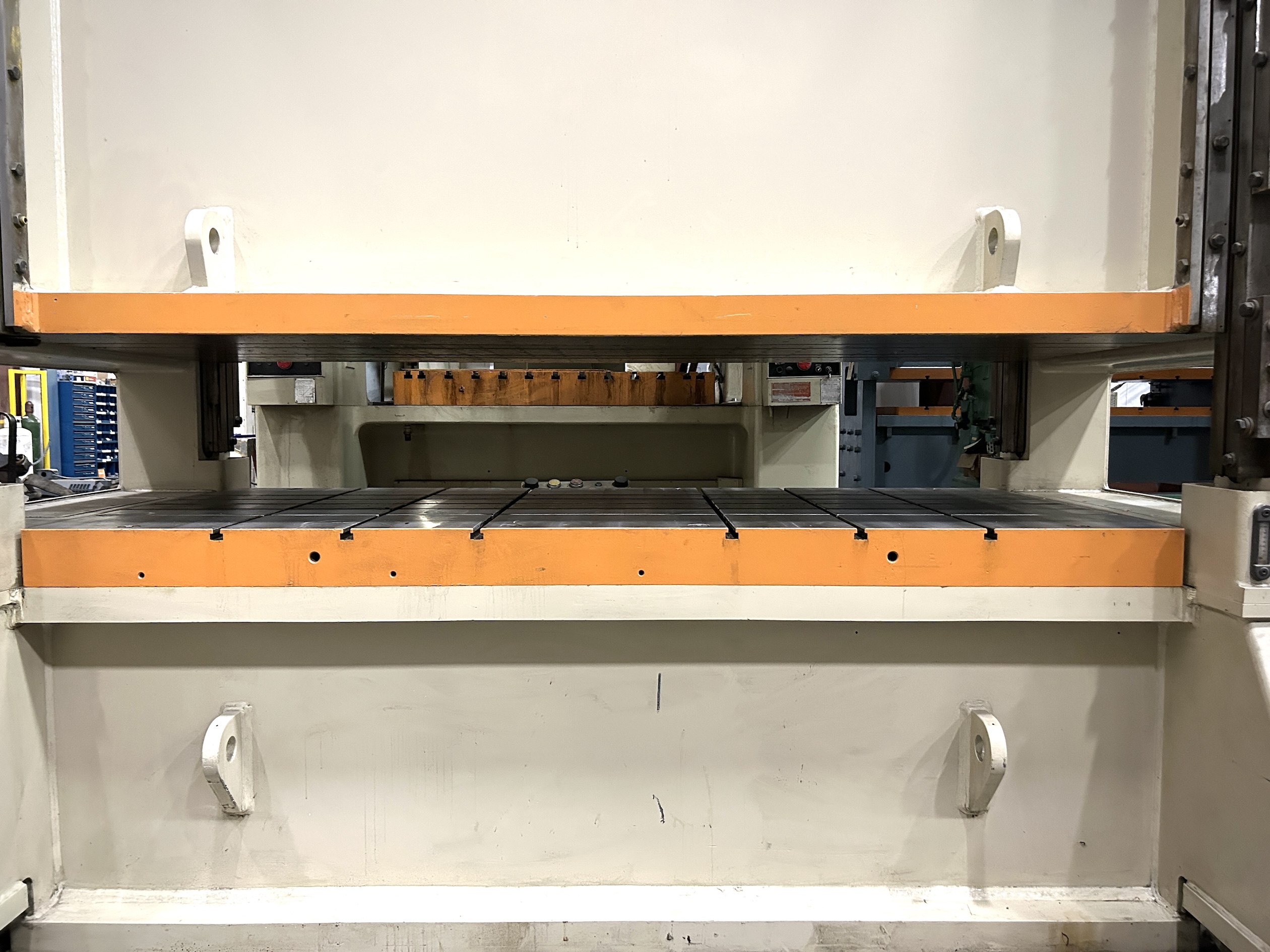

BOLSTER PLATE 5.5″ x 108″ RL X 48″ FB (T-SLOTTED)
DIST UPRIGHTS / FLOOR TO BED 109″ / 36″

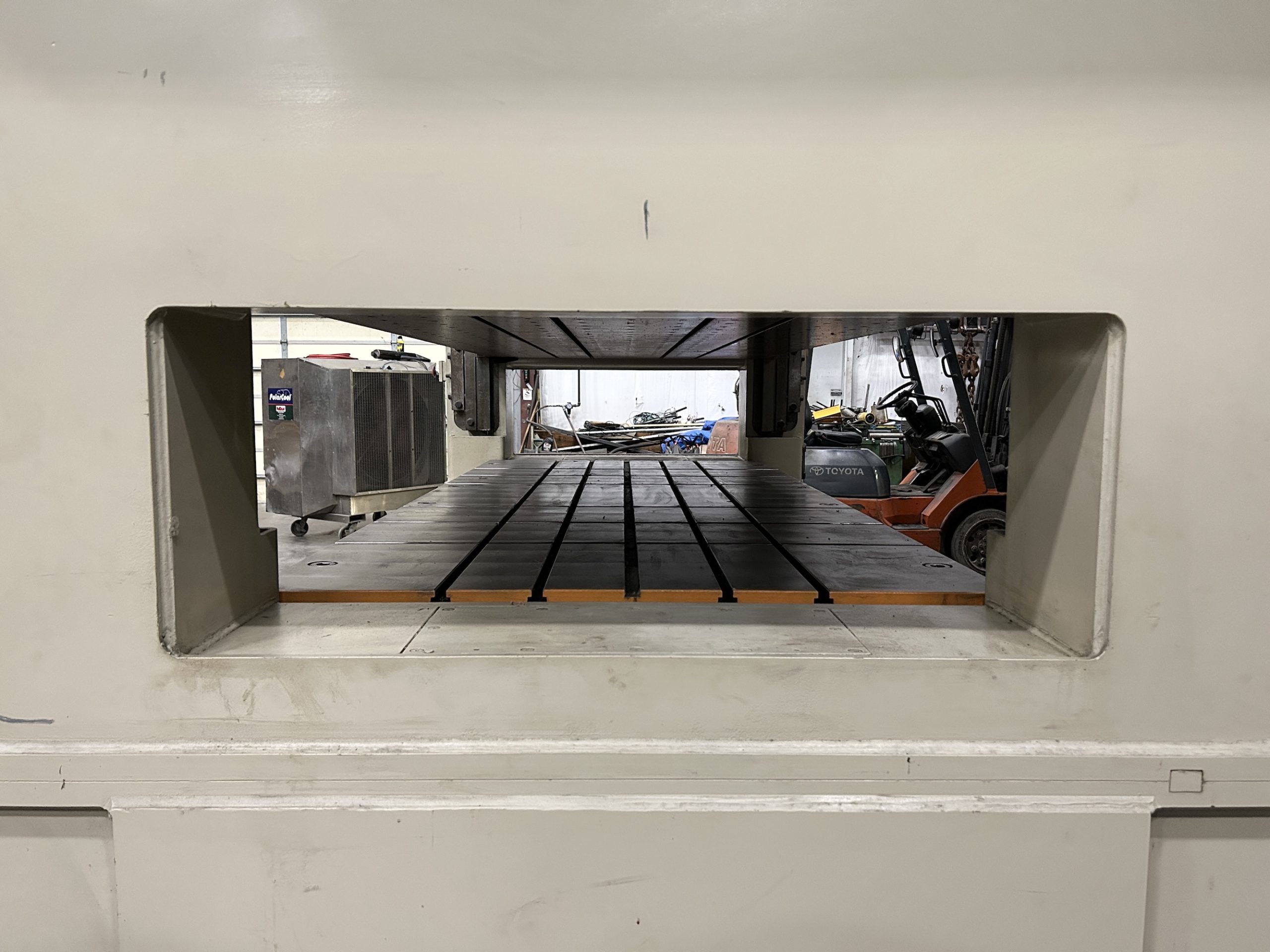

WINDOW SIZE 43″ FB X 16″ H

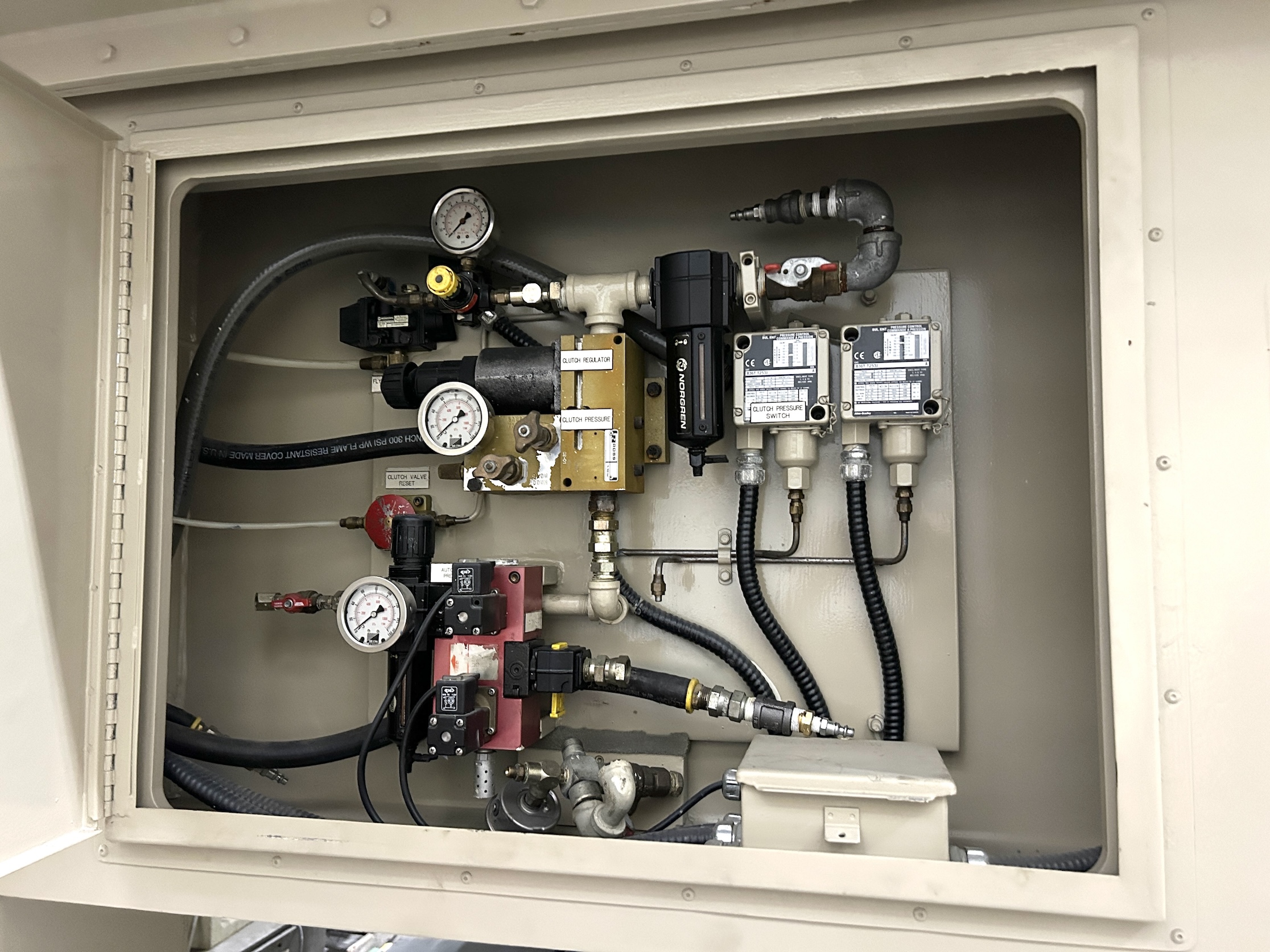

CLUTCH AIR CLUTCH & BRAKE
ELECTRICS 45.5 HP 1750 rpm 480V-3-60 motor & existing WINTRISS CONTROL CONSOLE
APPROX DIMENSIONS 16′ H X 12’3″ W X 9′ FB
APPROX WEIGHT 100,000 LBS.

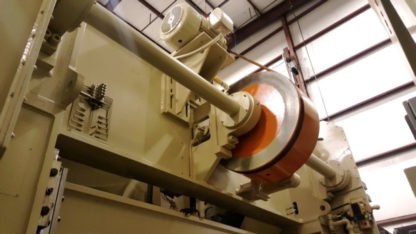

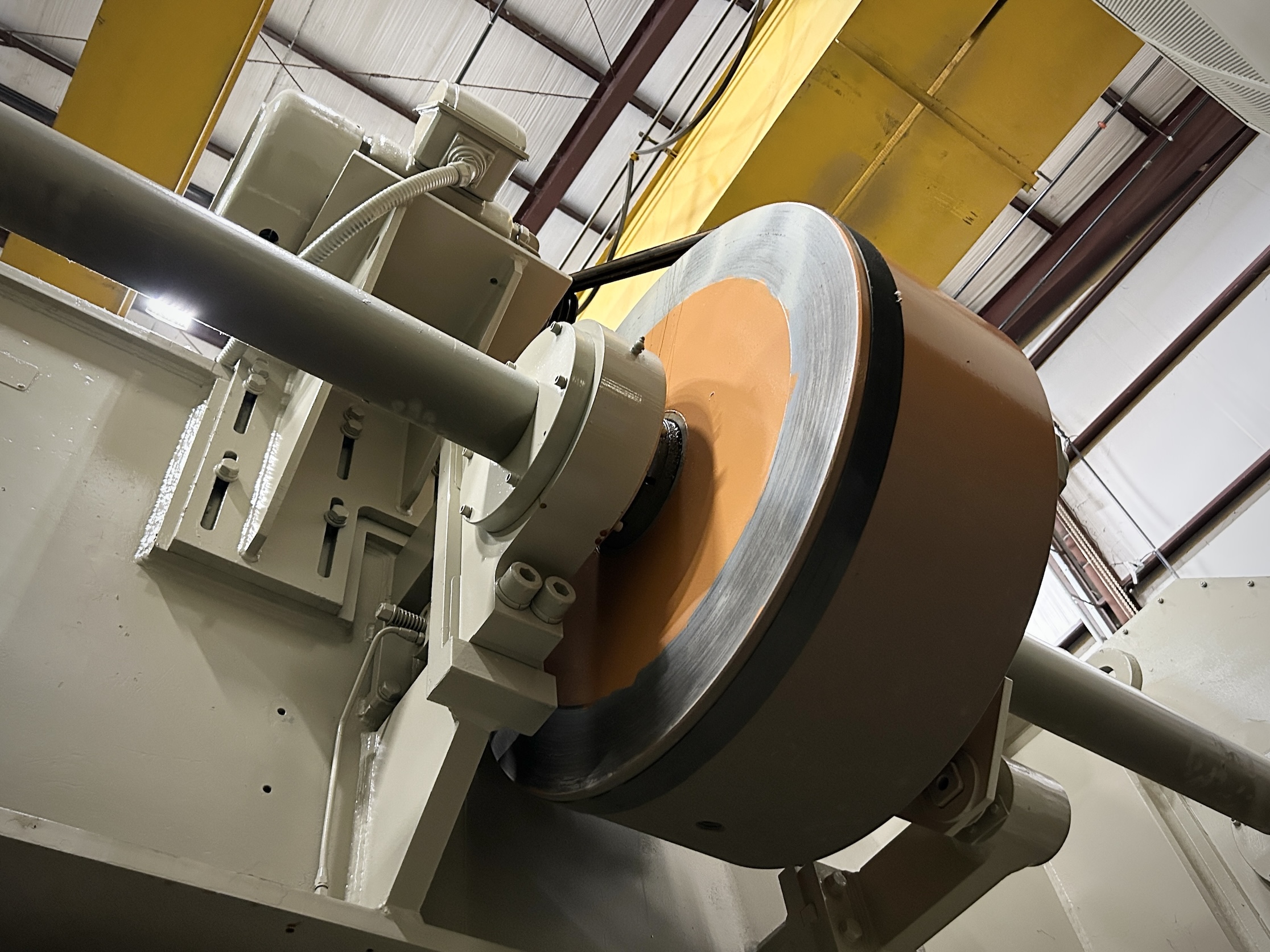

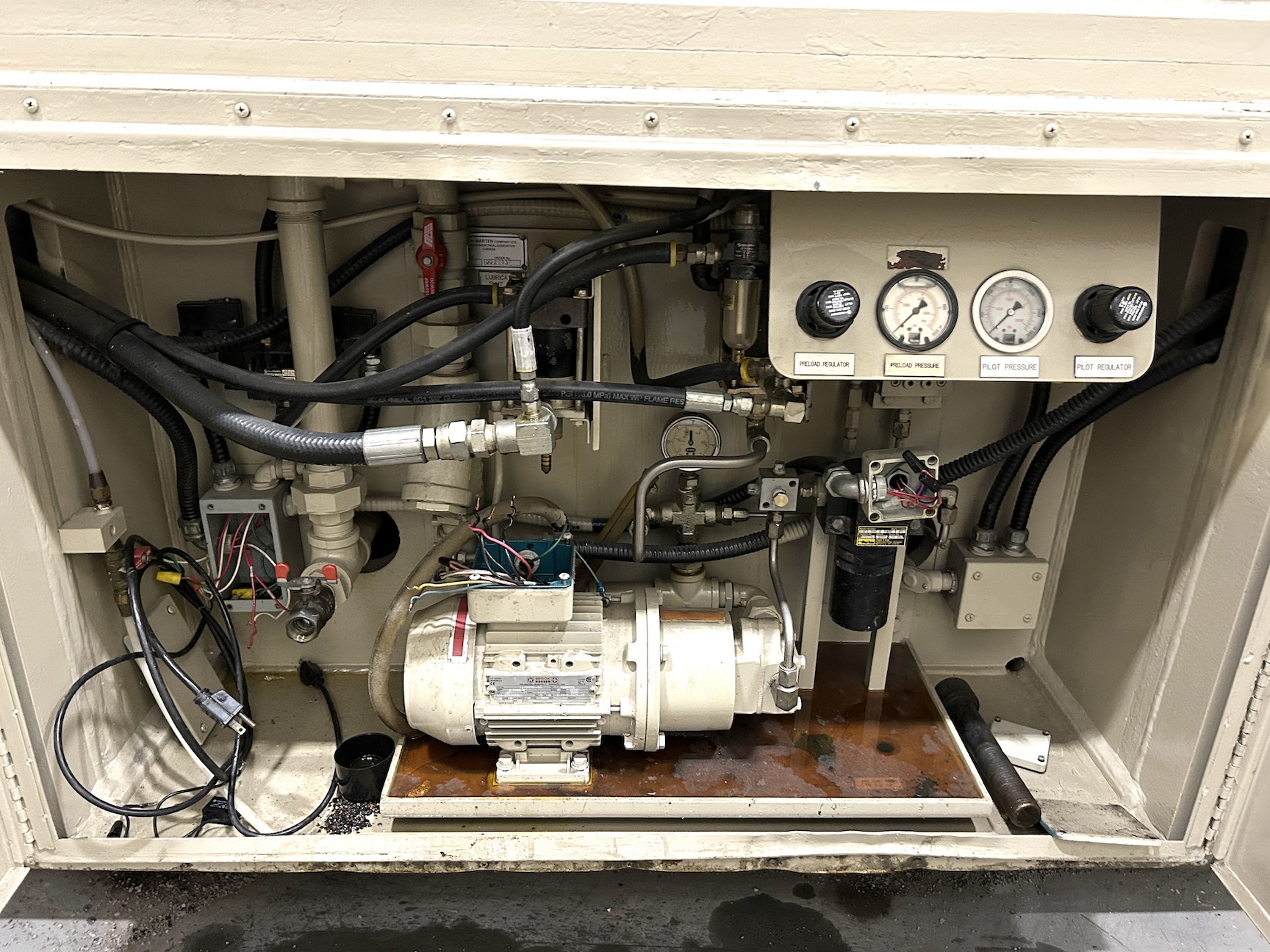

Equipped With STEEL FRAME CONSTRUCTION, TIE ROD KEYED FRAME, TWIN GEAR DRIVE W/GEARS IN OIL, SINGLE BACK GEARED, FLOOR STANDING BASE, AIR COUNTERBALANCED RAM, HYDRAULIC OVERLOADS, RECIRCULATING OIL LUBRICATION SYSTEM, REBUILT RAM
Note RECONDITIONING COMPLETED: RAM WAS REBUILT OVERLOADS WERE REBUILT BOLSTER WAS MILLED
Location This Used Press is Located in Our Columbia, TN Warehouse
