350 Ton Minster Press • Used Minster MS2-350-108-42 Press

350

350
Ton
108″
Bed R-L
10″
Stroke
Speed: 30 SPM
New in 1

1

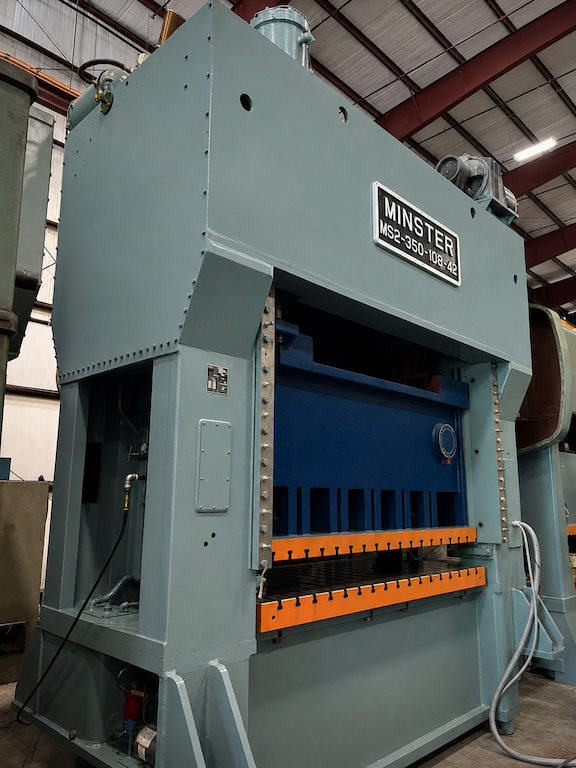

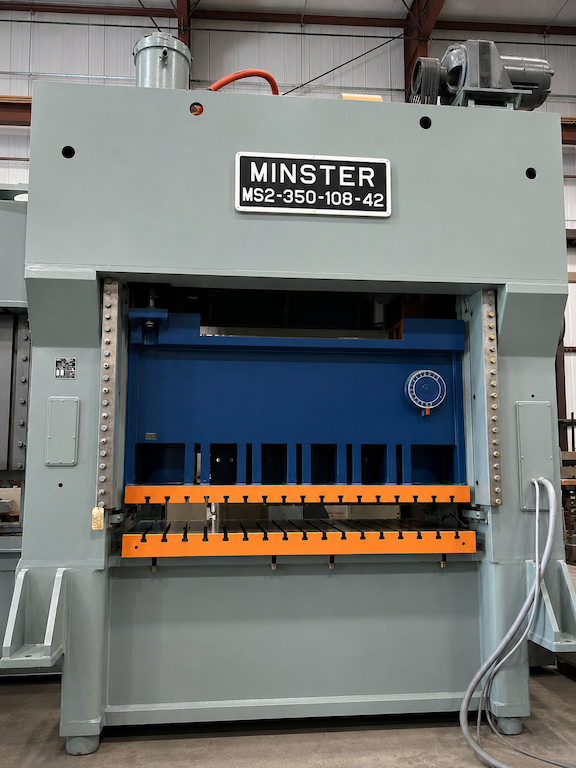

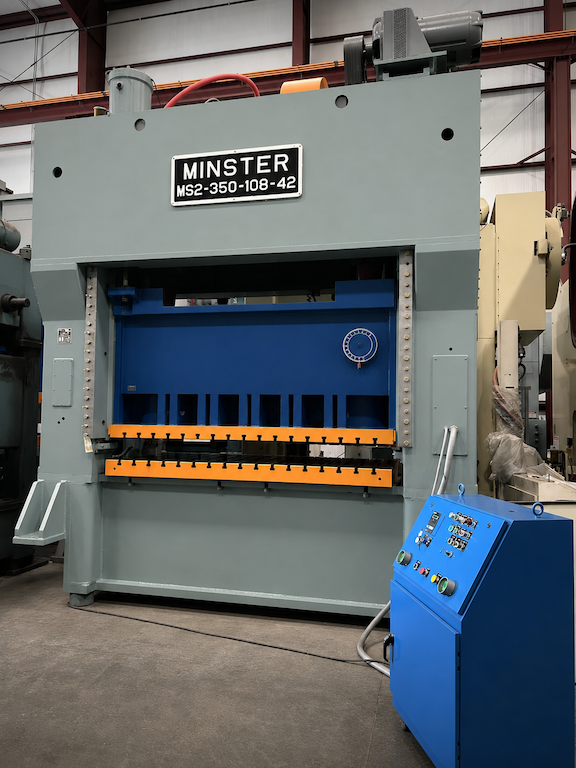

350 Ton Used Press – Straight Side Press
Model: Minster MS2-350-108-42
10″ STR, 27″ SH, 108X42 BED, 30 SPM, 14″ ADJ, RECONDITIONING NOW

Stamping Presses for Sale
Used Minster Mechanical Press
Machine #5839
Columbia, TN Warehouse
Sale Price: $

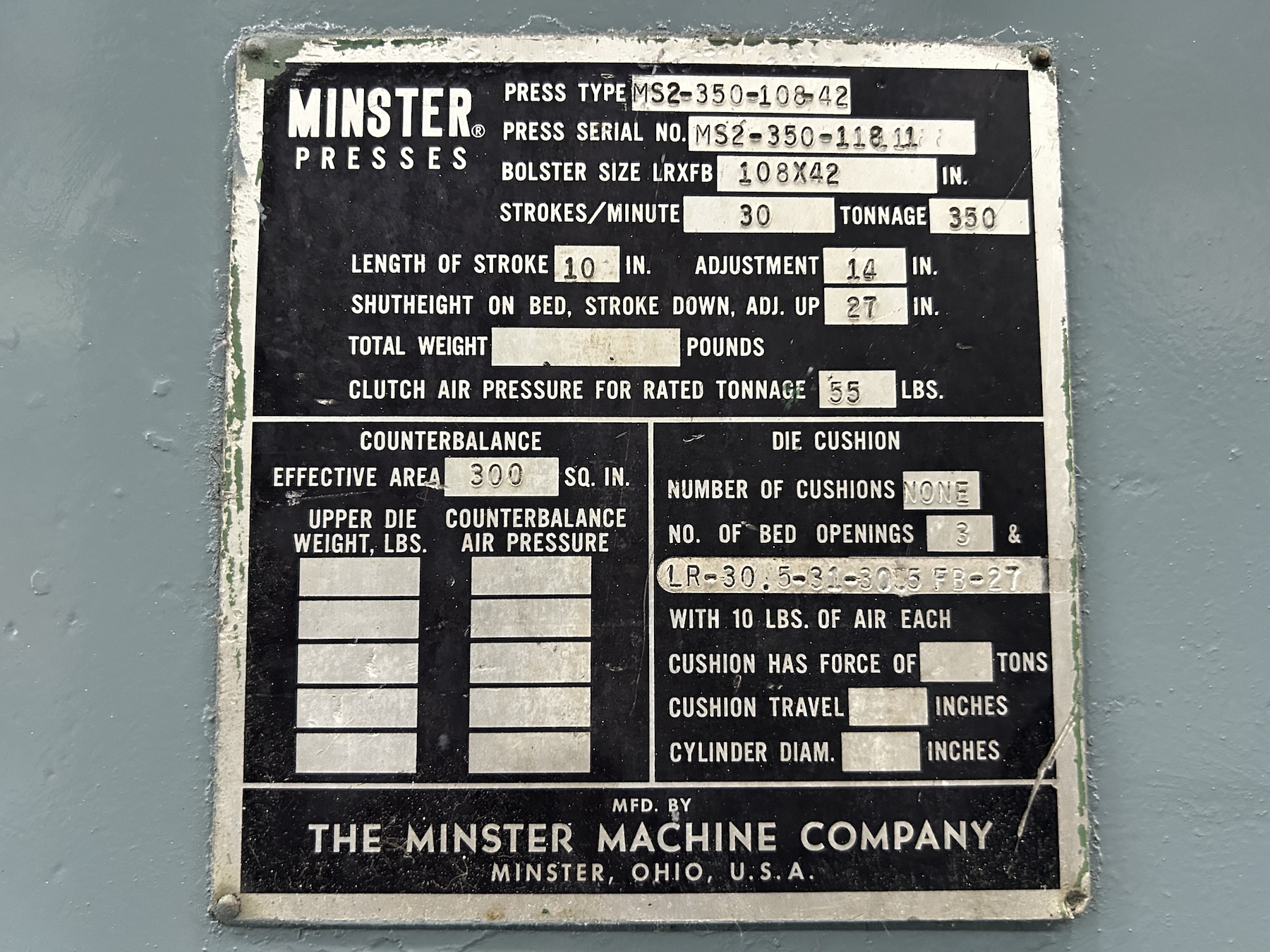

Machine Specifications

Straight Side Press for Sale

Manufacturer: Minster
Model: Minster MS2-350-108-42 Press
Condition: In Process
Location: Columbia, TN Warehouse
Year: Year Unknown
Machine #: 5839
Buy Now: $





CAPACITY 350 TONS
STROKE 10″
MAX SHUT HEIGHT TO BED 27″ SDAU
BED AREA 108″ RL X 42″ FB
SPEED 30 SPM
RAM ADJUSTMENT 14″ (MOTORIZED)

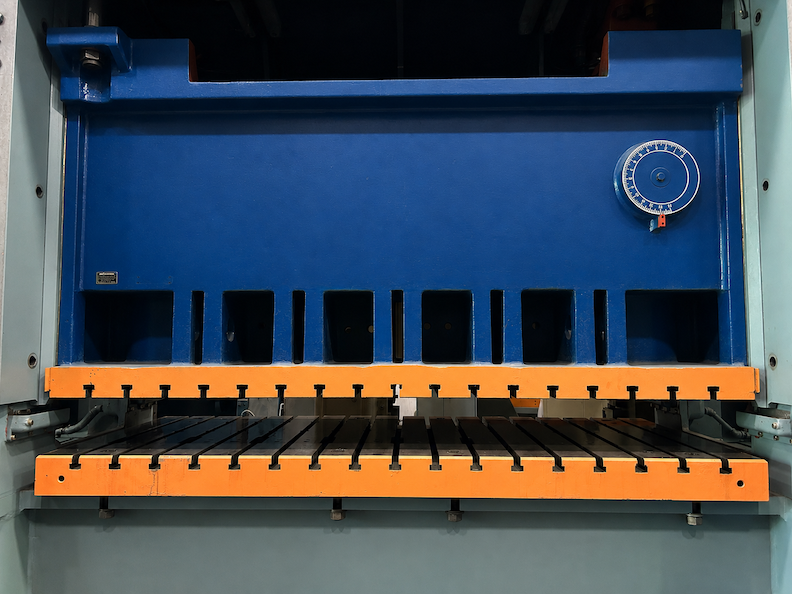

RAM AREA 108″ RL X 42″ FB (T-SLOTTED) – “REBUILT”
BOLSTER PLATE 6″ H X 108″ RL X 48″ FB (T-SLOTTED)
DIST UPRIGHTS / FLOOR TO BED 111″ / 24″
WINDOW SIZE 24″ W X 22″ H
CLUTCH MINSTER AIR CLUTCH / BRAKE COMBINATION

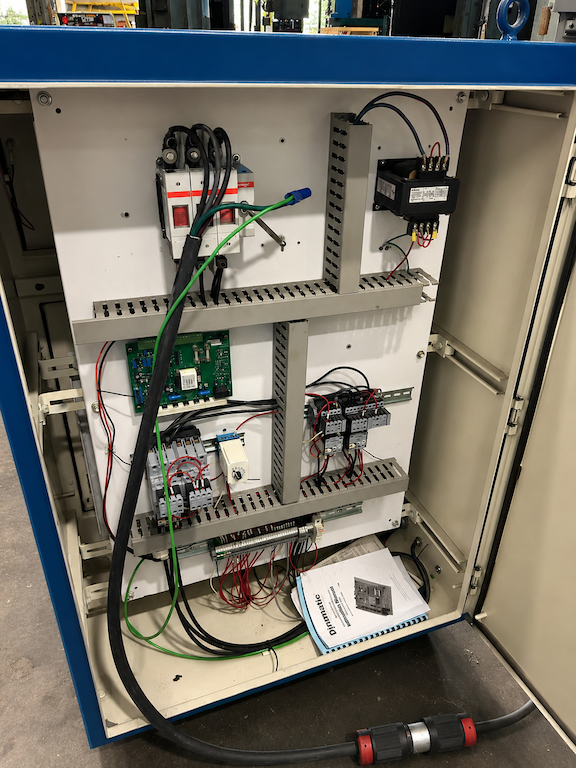

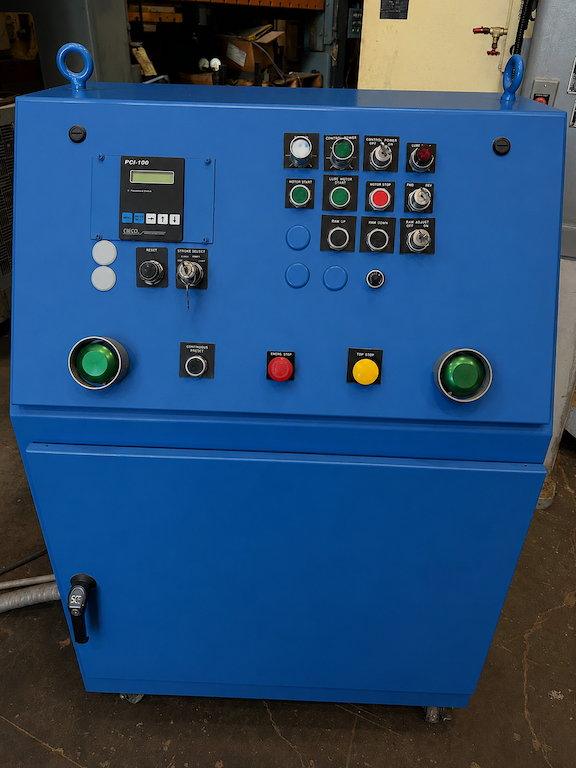

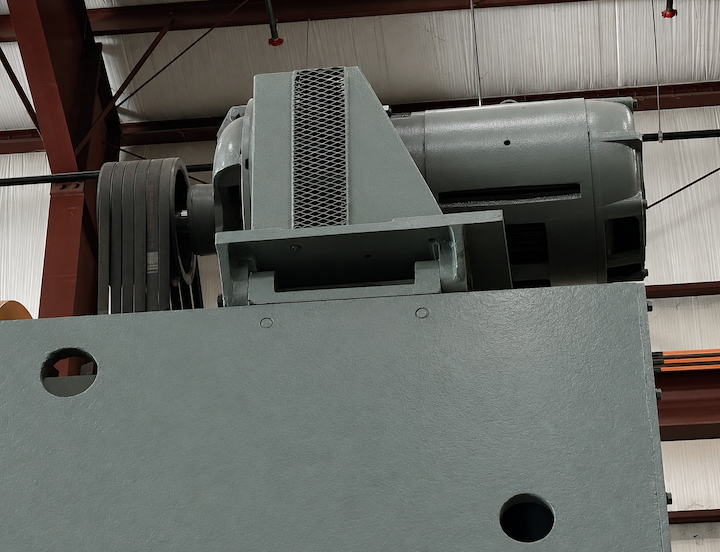

ELECTRICS rebuilt 50 HP 1750 RPM 480v-3-60 eddy current MOTOR & new CIECO 1100RL6 INCLUDED in reconditioned price
APPROX DIMENSIONS 184″ H X 14.5′ RL X 7′ FB
APPROX WEIGHT 118,000 LBS

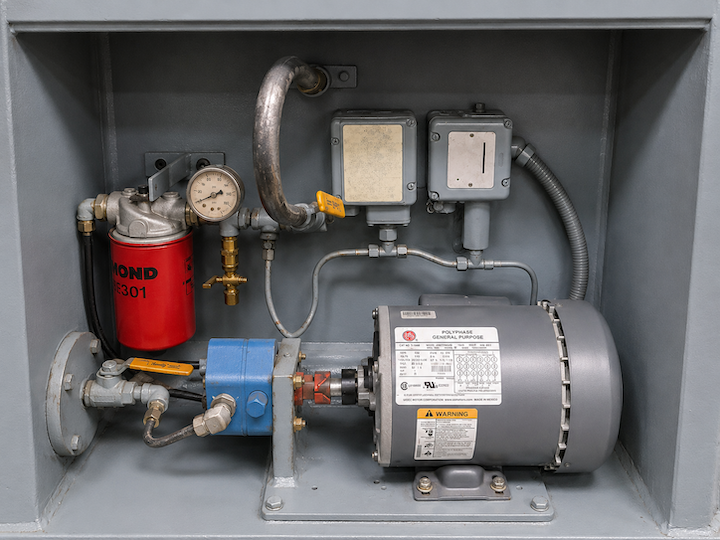

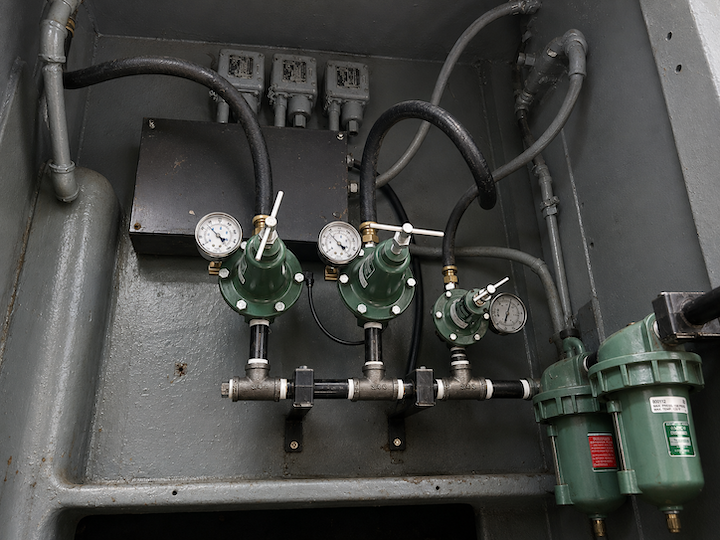

Equipped With RECONDITIONING NOW, REBUILT RAM, 3 OPENINGS FOR CUSHIONS IF ADDED LATER, DUAL AIR COUNTERBALANCED RAM, SINGLE BACK GEARED, TIE ROD FRAME, MINSTER RECIRCULATING LUBRICATION SYSTEM, CAST IRON FRAME
Note __
Location This used press is located in our Columbia, TN Warehouse
