286 Ton Stamtec Used Press for Sale • Stamtec S2-260 Press

286

286
Ton
96″
Bed R-L
12″
Stroke
Speed: 25-50 SPM
New in 1989

1
Straight Side Press
Model: Stamtec S2-260
12″ STR, 31.5″ DIE HEIGHT, 96X48 BED, 6″ ADJ, 25-50 SPM

Straight Side Double Crank Press for Sale
Used Stamtec Mechanical Press with Air Clutch
Machine #6308
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Stamtec
Model: Stamtec S2-260 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1989
Machine #: 6308
Buy Now: $





CAPACITY 286 US TONS
STROKE 12″
DIE HEIGHT 31.5″ OVER BOLSTER BOLSTER SDAU
BED SIZE 96″ x 48″ (RL X FB)
SLIDE ADJUSTMENT 6″ MOTORIZED
SPEED 25 – 50 SPM
SLIDE AREA 96″ x 48″ (RL X FB) t-slotTED
BOLSTER PLATE 96″ x 48″ (RL X FB) t-slotTED X 6.5″ hIGH t-slotTED

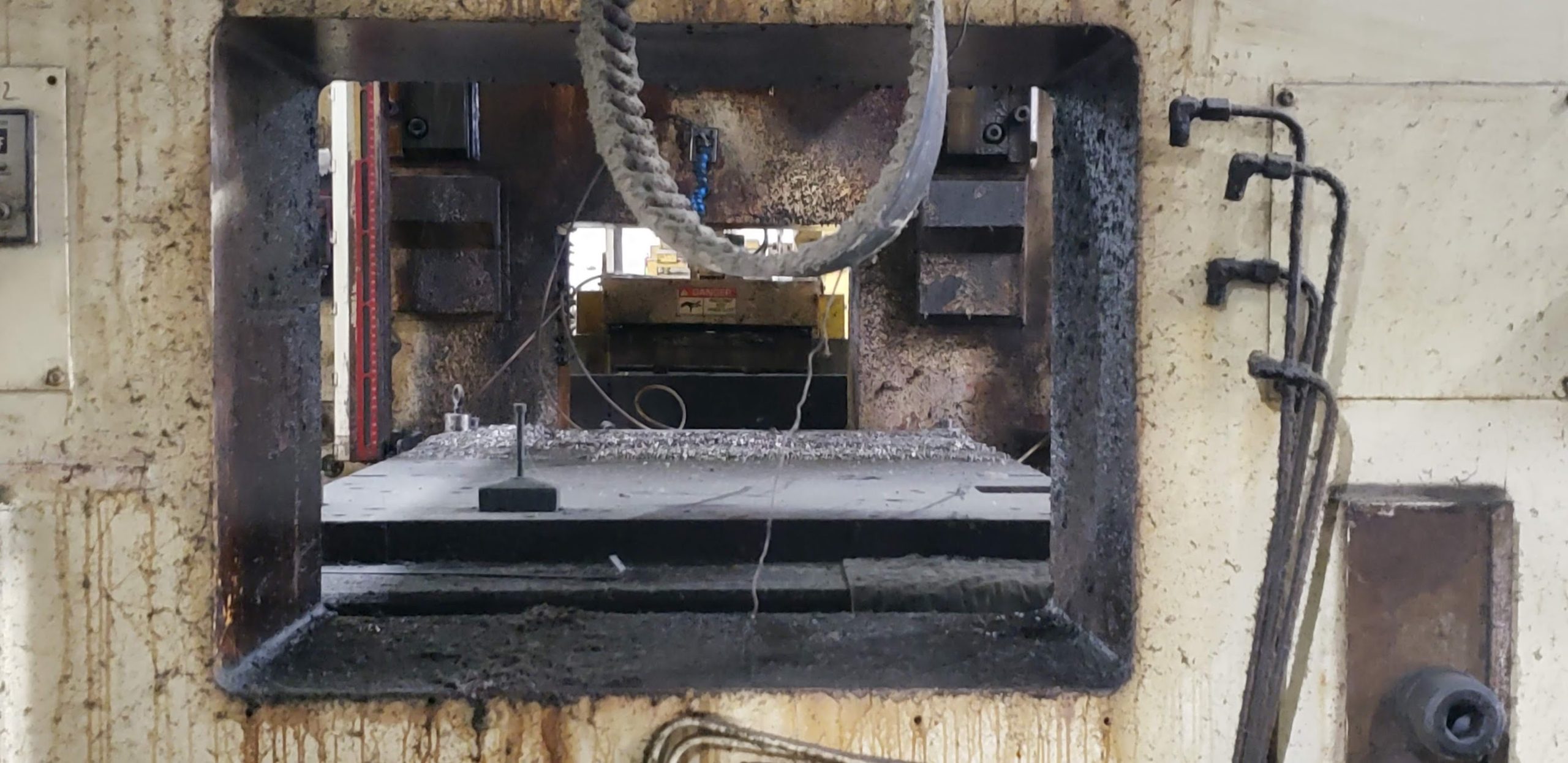

WINDOW SIZE 27″ WIDE X 19″ HIGH
distance between uprights 108″
FLOOR TO BED HEIGHT 47.5″
CLUTCH STAMTEC AIR CLUTCH / BRAKE COMBINATION

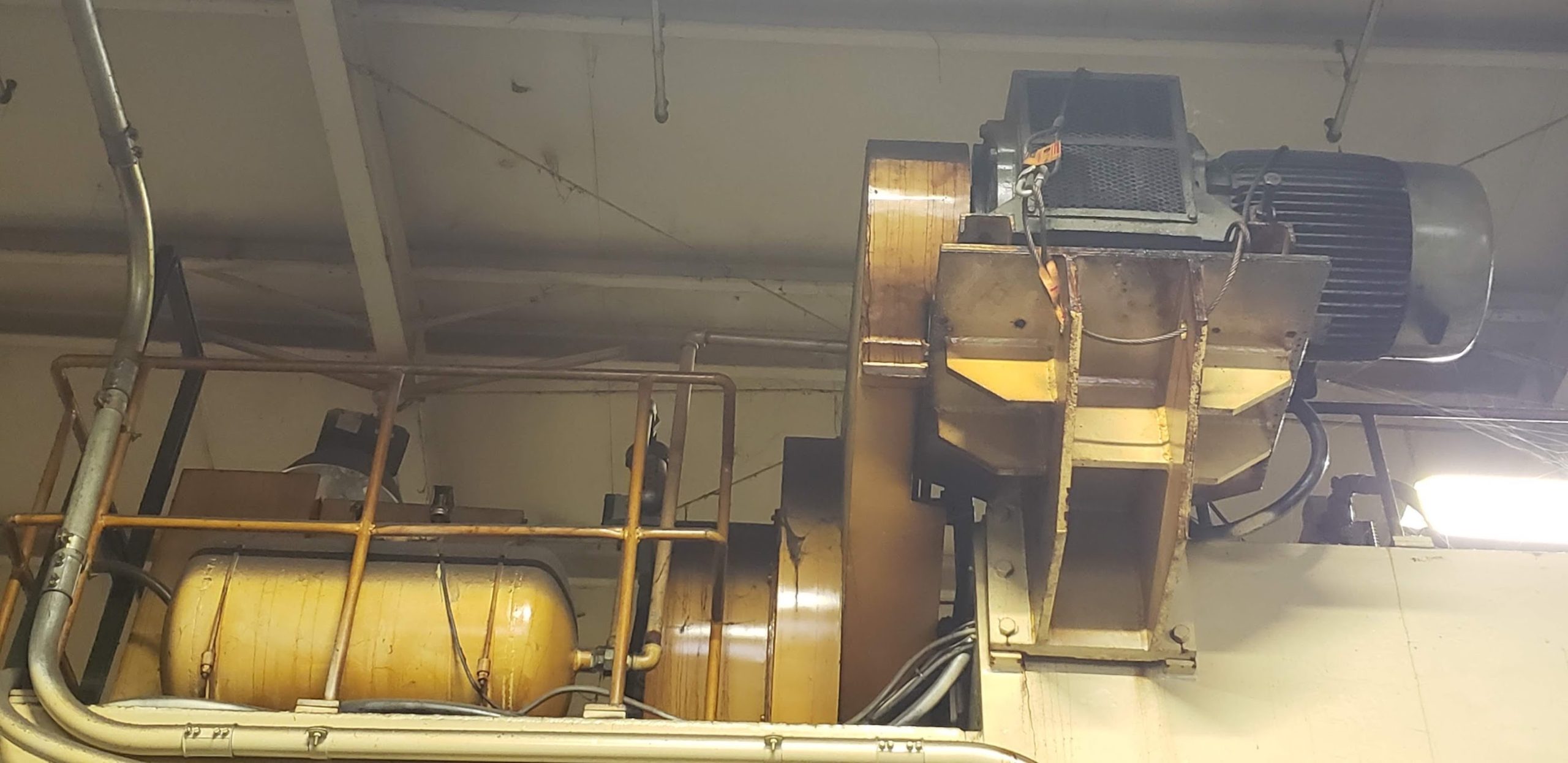

ELECTRICS 40 HP 1750 RPM 240V-3-60 EDDY CURRENT MOTOR & STAMTEC RELAY PRESS CONTROL
APPROX DIMENSIONS 20′ H X 20′ RL X 9.5′ FB
APPROX WEIGHT 108,000 LBS

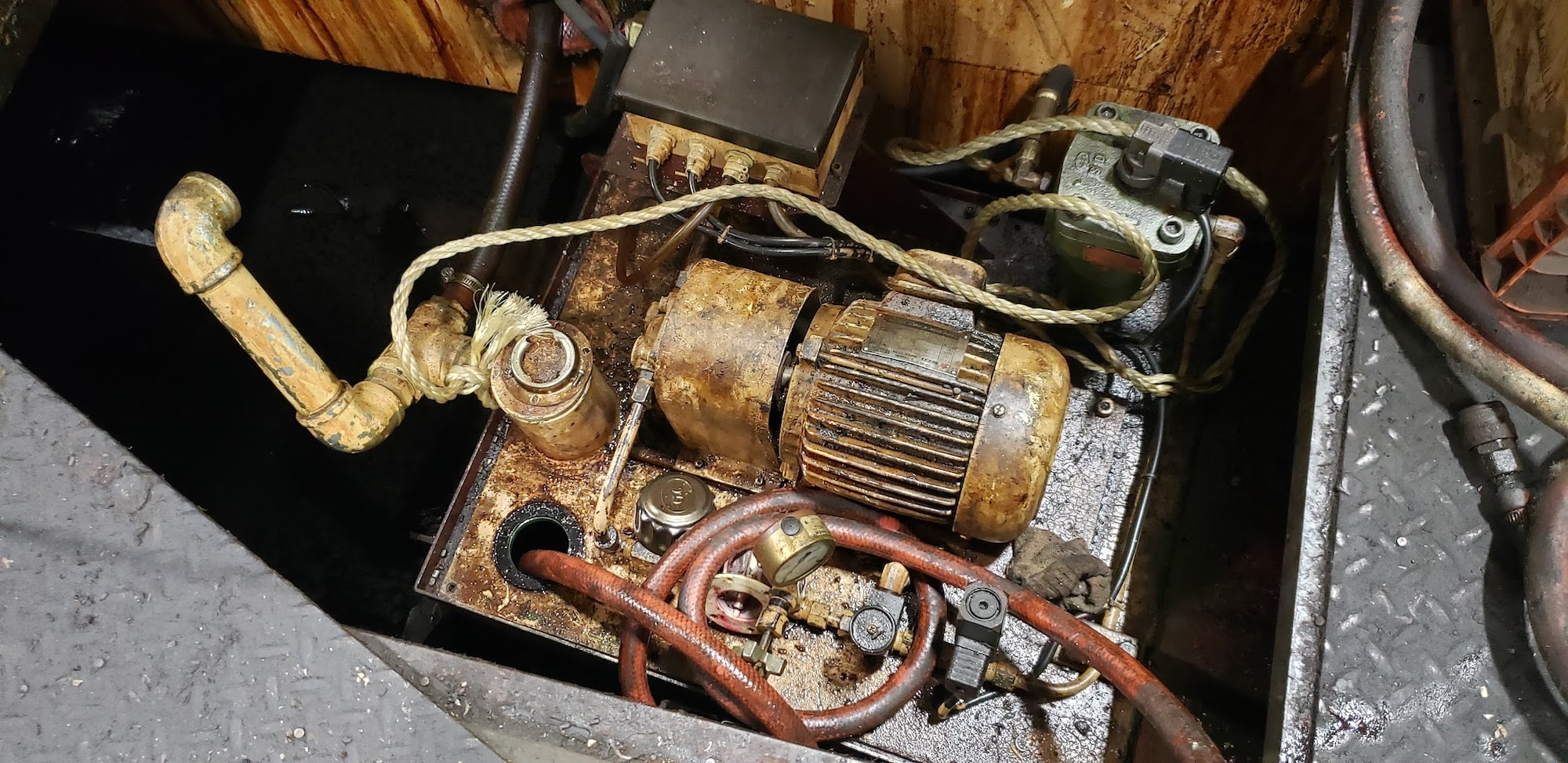

Equipped With RECIRCULATING LUBRICATION RESERVOIR W/PUMP DUAL AIR COUNTERBALANCED RAM FLOOR STANDING
Note __
Location This used press is located in our Columbia, TN Warehouse
