Machine Specifications
Heated Platen Press for Sale
Manufacturer: Wabash
Model: Wabash CMG302H-12-ASTM Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1997
Machine #: 6989
Buy Now: $

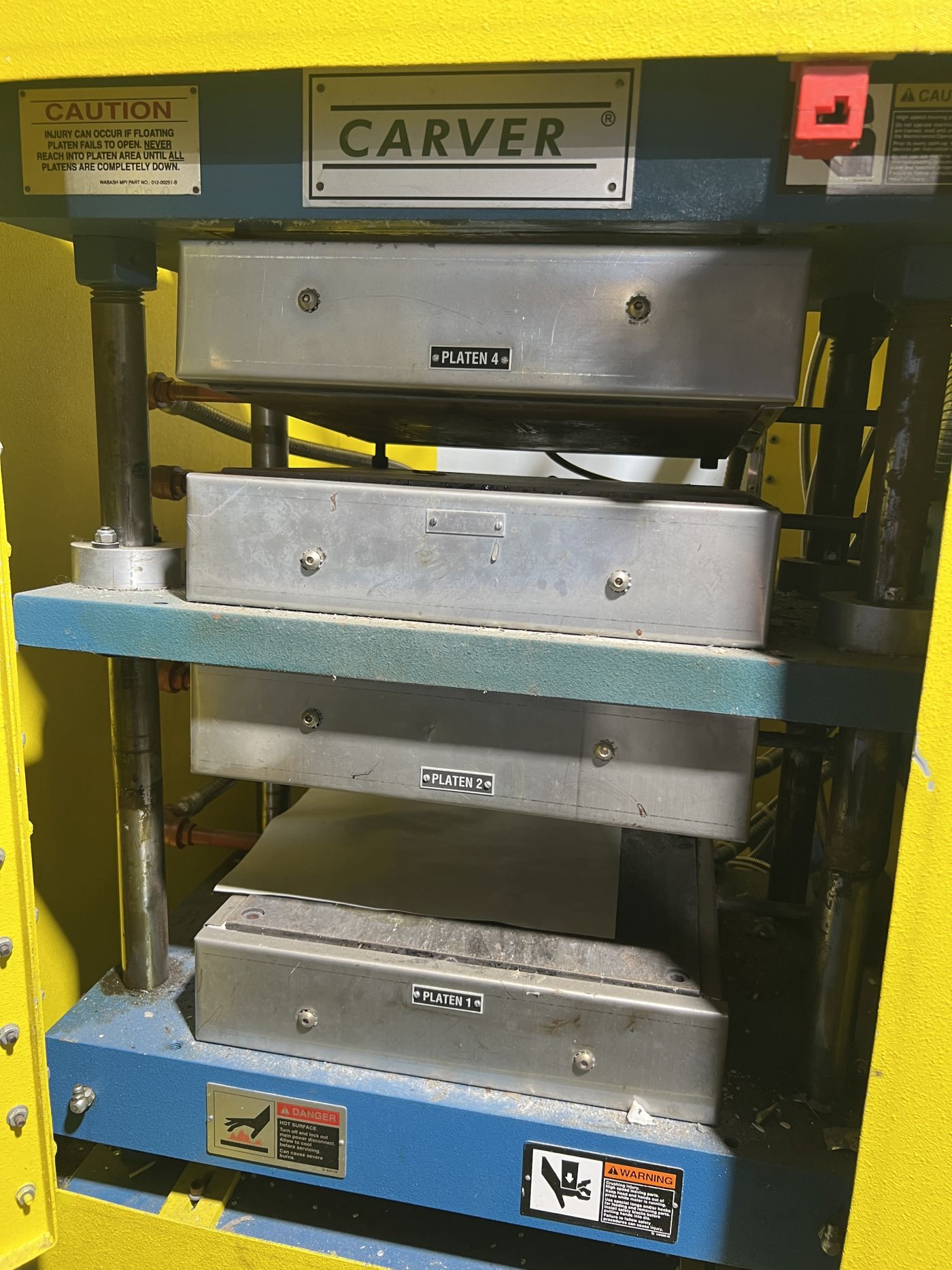

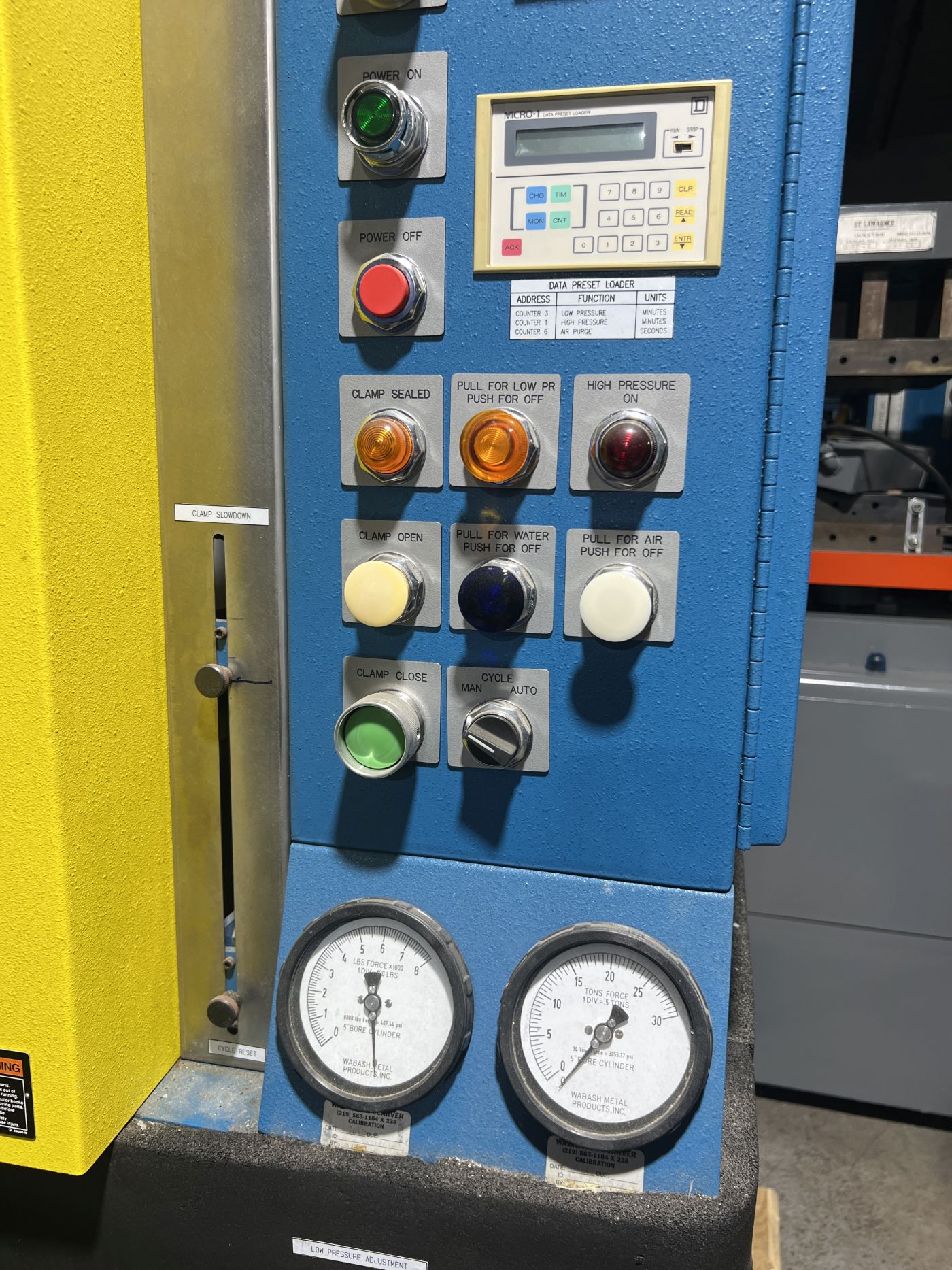

| MAX. capacity | 30 TONS | MAX. STROKE | 6″ | MAX. DAYLIGHT | 20″ | OVERALL BED & RAM | 21″ X 15″ (RL X FB) | DISTANCE BETWEEN POSTS | 17.25″ X 8″ (RL X FB) | USABLE BED & RAM AREA | 17.25″ X 15″ (RL X FB) | ELECTRICALLY HEATED PLATENS | (4) 12″ X 12″ (RL X FB) X 3″ THICK – 3,400 WATTS EACH | SPEEDS | __ | POST SIZE | 1.25″ DIA. | RAM ROD SIZE | 2″ DIA. | CYLINDER SIZE | 5″ DIA. BORE PISTON | FLOOR TO BED HEIGHT | 41″ | PRESS CONTROLS | SQUARE D MICRO-1 CONTROLLER | HYDRAULIC UNIT | CASAPPA COMBINATION PUMP – 15 GALLON RESERVOIR | ELECTRIC MOTOR | 2 HP 460V-3-60 MOTOR | 28 FULL LOAD AMPS | APPROX. OVERALL DIMENSIONS | 45″ X 50″ (RL X FB) X 79″ HIGH | APPROX. WEIGHT | APPROX. 3,500 LBS. | Equipped With | WATER COOLED HEAT EXCHANGER, AIR COOLED HEAT EXCHANGER, TEMPERATURE CONTROLLED WATER SAVER VALVE, DYNISCO PT-130-3M PRESSURE TRANSDUCER | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
