Machine Specifications

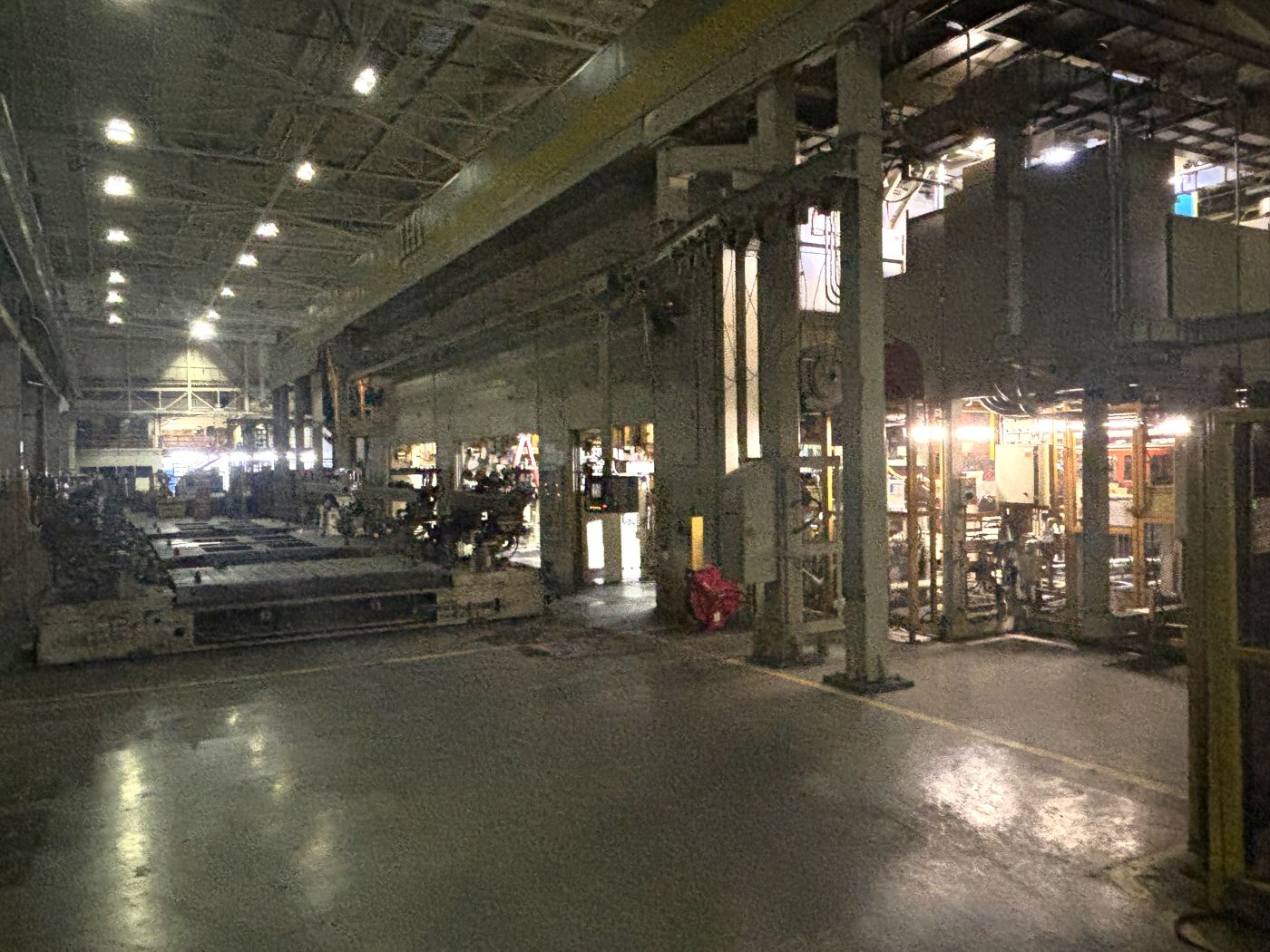

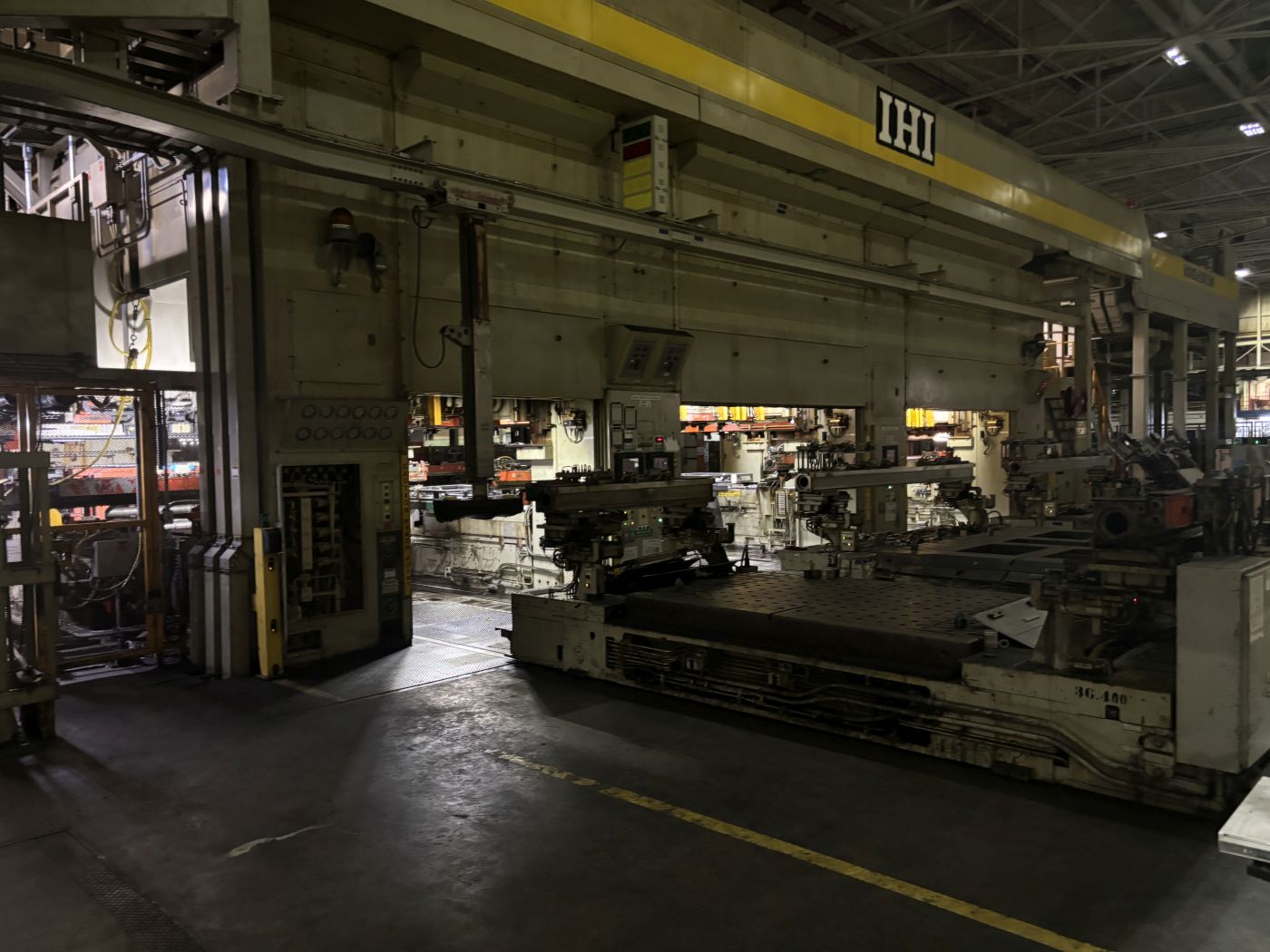

Industrial Sized Transfer Press for Sale
Manufacturer: IHI
Model: IHI TS12-4500-108×72 Press
Condition: As-Is
Location: **On Location**
Year: Year Unknown
Machine #: 8122
Buy Now: $
| CAPACITY SLIDE 1 | 1,500 TONS | CAPACITY SLIDE 2 | 2,000 TONS | CAPACITY SLIDE 3 | 1,000 TONS | SHUT HEIGHT | 58″ (EACH SLIDE / RAM) | LENGTH OF STROKE | 40″ (EACH SLIDE / RAM) | RAM ADJUSTMENT | 6″ (EACH SLIDE / RAM) | BED AREA AT EACH STATION | 108″ X 72″ (RL X FB) – 5 STATIONS | WORKING PRESSURE OF CLUTCH | 60 PSI | FEED STROKE | 72″ | CLAMP STROKE | 20″ MAX. | LIFT STROKE | 10″ MAX. | TRANSFER RAIL INSIDE CLOSED DISTANCE | 60″-96″ | PRESS CONTROLS | __ | CLUTCH | AIR CLUTCH AND BRAKE | APPROX. DIMENSIONS | __ | APPROX. WEIGHT | __ | Equipped With | Note |
|---|---|
| Location | This Used Press is Located in Our **On Location** |
