Description
Heated Platen Transfer Press • Used 50 Ton Press for Sale
Model: Hull Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: Year Unknown
Machine #: 8257
Buy Now: $

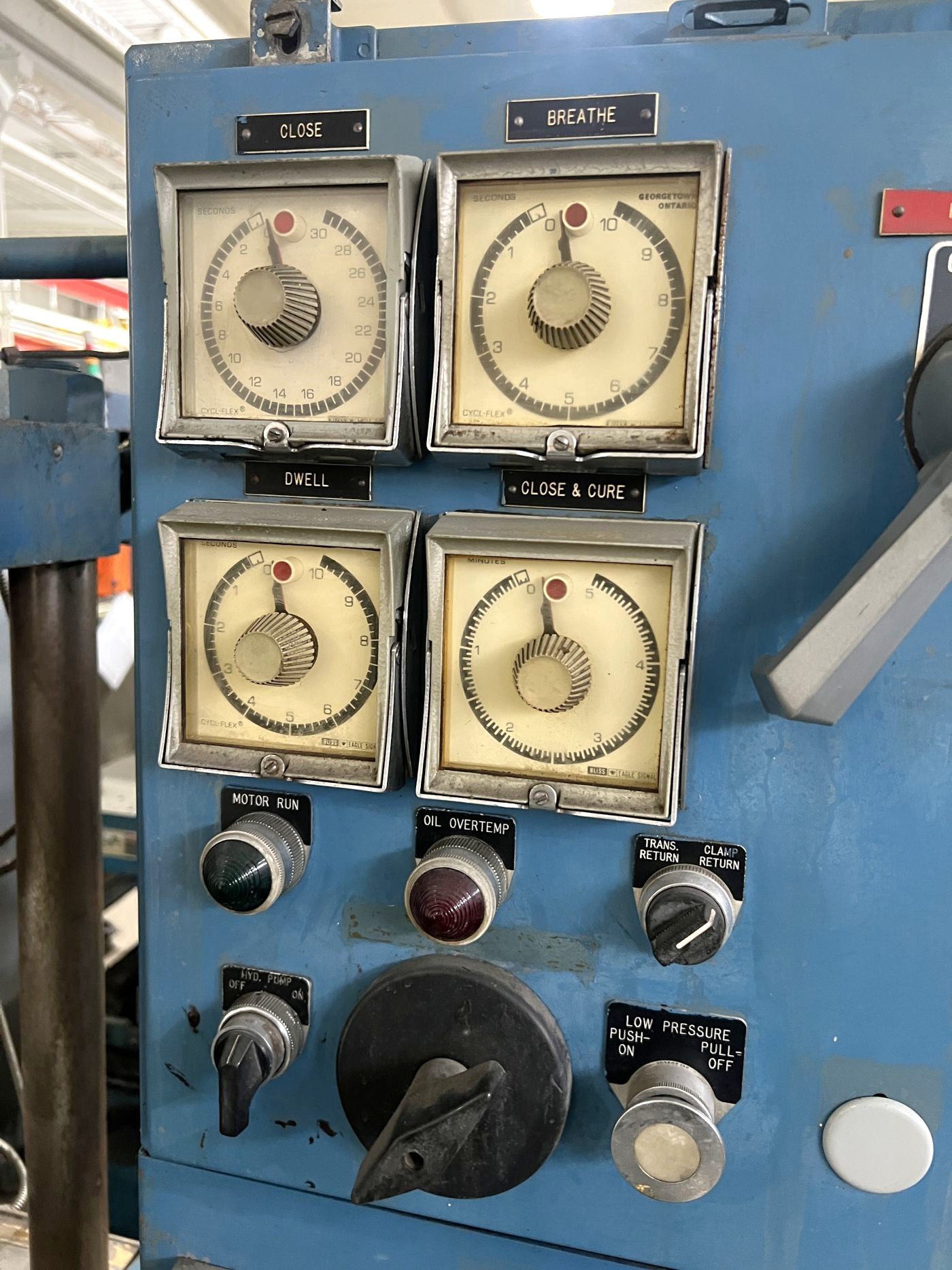

| MAX. CAPACITY | 50 TONS | MAX. STROKE | 8" | MAX. DAYLIGHT | 24" - (10" BETWEEN PLATENS) | OVERALL BED & RAM AREA | 26.5" X 20.75" (RL X FB) | DISTANCE BETWEEN POSTS | 20.5" X 14" (RL X FB) | USABLE BED AREA | 20.5" X 20.75" (RL X FB) | ELECTRIC HEATED PLATENS | 15" X 15" (RL X FB) X 2.5" THICK + .5" INSULATION (3" TOTAL) | RISER PLATE | 8" HIGH MOUNTED ON CROWN OF PRESS | FLOOR TO BED HEIGHT | 46" | SPEEDS | 400 IPM CLOSING / 20 IPM PRESSING / 150 IPM RETURN | RAM ROD SIZE | 5" DIA. | CYLINDER SIZE | APPROX. 6.5" OR 7" DIA. BORE | POSTS / 4 COLUMN SIZE | 2.25" | PRESS CONTROLS | STRUTHERS DUNN RELAY LOGIC CONTROLLER WITH SPEED CONTROL | HYDRAULIC SYSTEM | DOUBLE A GEROTOR HYDRAULIC PUMP MODEL: H3-H8-F-10B1 | ELECTRIC MOTOR | 7.5 HP 230/460V-3-60 MOTOR | APPROX. DIMENSIONS | 64" X 42" (RL X FB) X 82" HIGH | APPROX. WEIGHT | APPROX. 4,500 LBS. | TRANSFER CYLINDER | 4" DIA. BORE - 12.566 SQ IN | TRANSFER ROD | 2.5" DIA. - 4.908 SQ IN | TRANSFER ROD SIDE AREA | 7.657 SQ IN | Equipped With | PRESSURE AND SPEED CONTROLS SETTINGS ON FRONT OF PRESS, CYCLE TIMERS FOR CLOSE / BREATH / DWELL / CURE, MOLD HEATER RECEPTACLES | Note | CURRENTLY WITHOUT TRANSFER CYLINDER (CAN BE ADDED WITH RECONDITIONING) |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
