286 Ton Stamtec Used Press for Sale • Stamtec S2-260 Press

286

286
Ton
96″
Bed R-L
12″
Stroke
Speed: 25-50 SPM
New in 1990

1
Straight Side Used Press

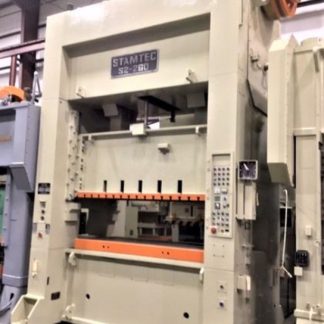

Model: Stamtec S2-260
12″ STR, 23.8″ DIE HEIGHT, 96X48 BED, 6″ ADJ, 25-50 SPM, Cushions in Bed, 1990, UNDER POWER

Stamping Presses for Sale
Used Stamtec Mechanical Press
Machine #5677
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Used Press for Sale

Manufacturer: Stamtec
Model: Stamtec S2-260 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1990
Machine #: 5677
Buy Now: $





CAPACITY: 286 us TONS
STROKE: 12″
SHUT HEIGHT: 23.8″ TO BOLSTER (SDAU)
BED AREA: 96″ RL X 48″ FB
RAM ADJUSTMENT: 6″ (MOTORIZED)
SPEED: 25 – 50 SPM (VARIABLE)
RAM AREA: 96″ RL X 48″ FB
BOLSTER 6.5″ H X 96″ RL X 48″ FB (APPROX)
WINDOW SIZE: 20″ H X 27.5″ WIDE
DIST UPRIGHTS / FLOOR TO BED: 108″ / 47.5″
CLUTCH: AIR CLUTCH & BRAKE
ELECTRICS; 40 HP 1750 RPM 240/480V-3-60 EDDY CURRENT DRIVE EDDY-CURRENT MOTOR & CONTROL
APPROX. DIMENSIONS: 20′ H X 20′ RL X 9.5′ FB
APPROX. WEIGHT: 108,000 LBS
Equipped With AIR COUNTERBALANCED RAM TWIN GEAR DRIVE WITH GEARS IN OIL AUTOMATIC OIL LUBRICATION SYSTEM HYDRAULIC OVERLOADS IN THE RAM AIR CUSHIONS IN THE BED STEEL FRAME, TIE ROD CONSTRUCTION
Note __
Location This used press is located in our Columbia, TN Warehouse
