Description

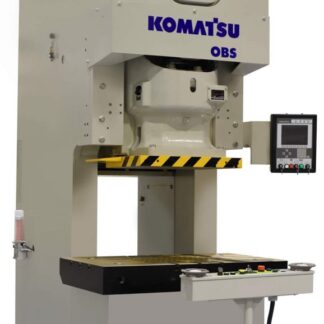

New Single Point Press • New 165 Ton Press for Sale
- Machine #
- 7015
- Condition
- New
- Location
- Warehouse on Location
- Year
- 2026
- Model
- Komatsu OBS150S
Buy Now: $
| CAPACITY | 165 US TON AT .24" OFF BOTTOM |
|---|---|
| STROKE | 7.87" |
| MAX DIE HEIGHT | 16.54" SDAU OVER 6.5" BOLSTER |
| BED AREA | 49.21" X 29.92" (RL X FB) |
| SLIDE AREA | 27.56" X 21.65" (RL X FB) (T-SLOTTED) |
| SLIDE ADJUSTMENT | 3.9" MOTORIZED |
| SPEED | 27 - 55 SPM |
| BOLSTER PLATE | 49.21" X 29.92" (RL X FB) X 6.5" THICK (T-SLOTTED PLATE) |
| DISTANCE BETWEEN UPRIGHTS | 28.3" |
| FLOOR TO BOLSTER PLATE HEIGHT | 35.4" |
| SHANK HOLE DIAMETER | 3.13" |
| CLUTCH | KOMATSU WET CLUTCH / BRAKE COMBINATION |
| PRESS CONTROLS | SIT - SYSTEM INTEGRATED TERMINAL KOMATSU CONTROLLER |
| ELECTRIC MOTOR | 15 HP 1750 RPM 240/480V-3-60 |
| APPROX. DIMENSIONS | 49" X 76" x 127.1" (RL X FB x h) |
| APPROX. WEIGHT | 33,000 LBS. |
| Equipped With | RIGID FRAME TO PREVENT DEFLECTION, HELICAL GEARS WITH SPLINES FOR ALL DRIVE CONNECTIONS, WET CLUTCH, HEAVY DUTY SLIDE CONSTRUCTION, HYDRAULIC OVERLOAD PROTECTION SYSTEM |
| Note | __ |
| Location | This New Press is Located in Our Warehouse on Location |
