Description

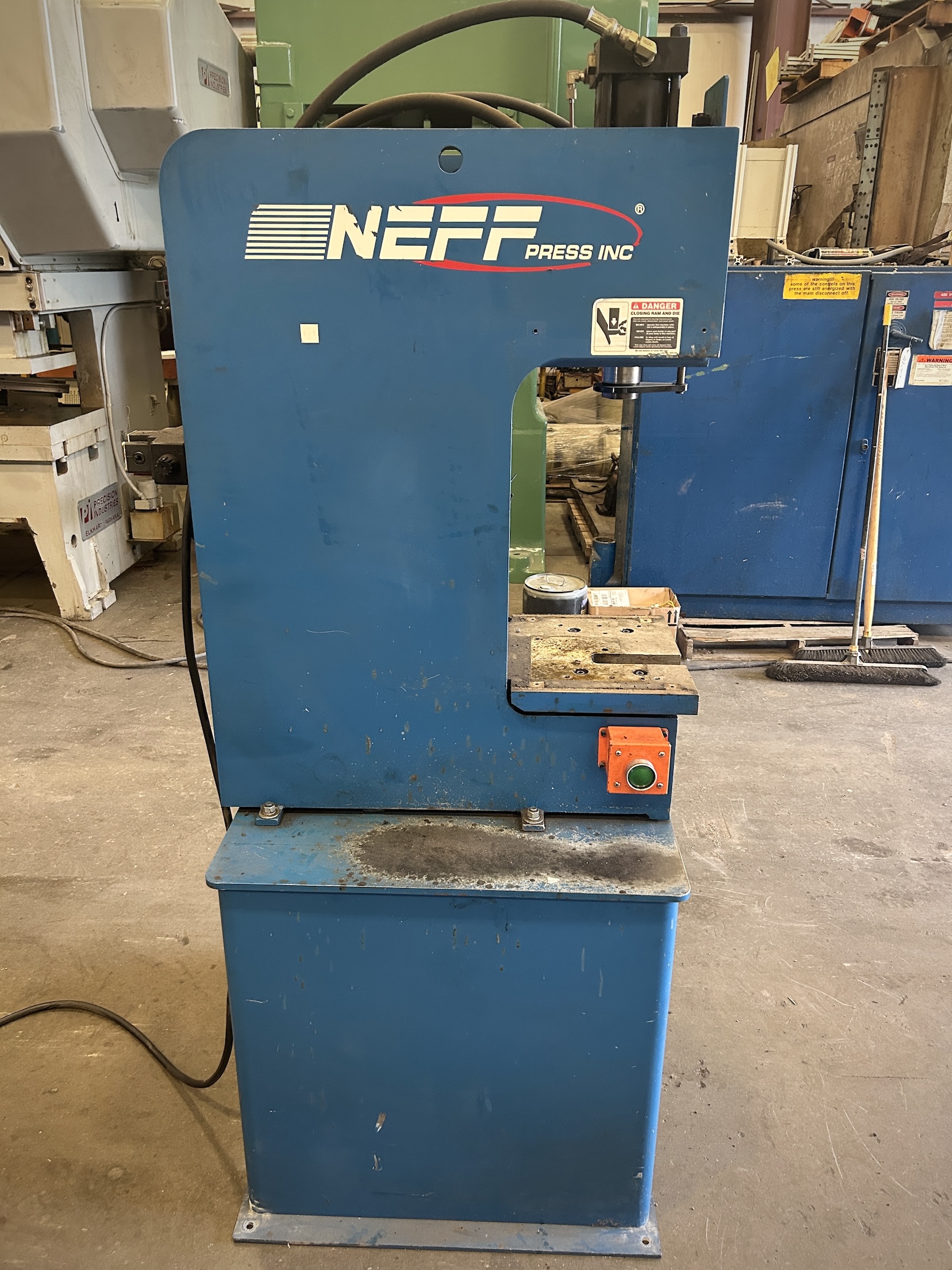

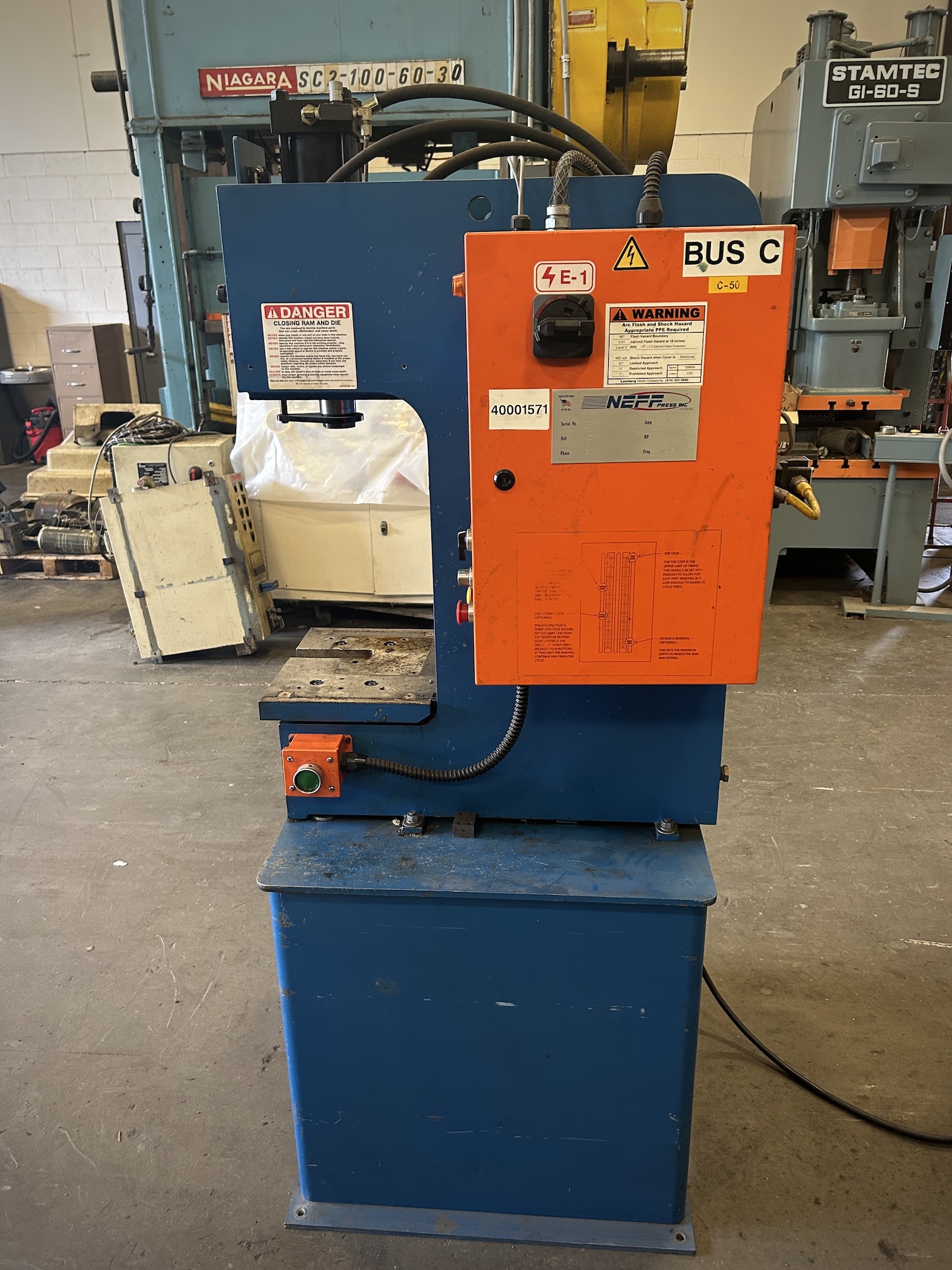

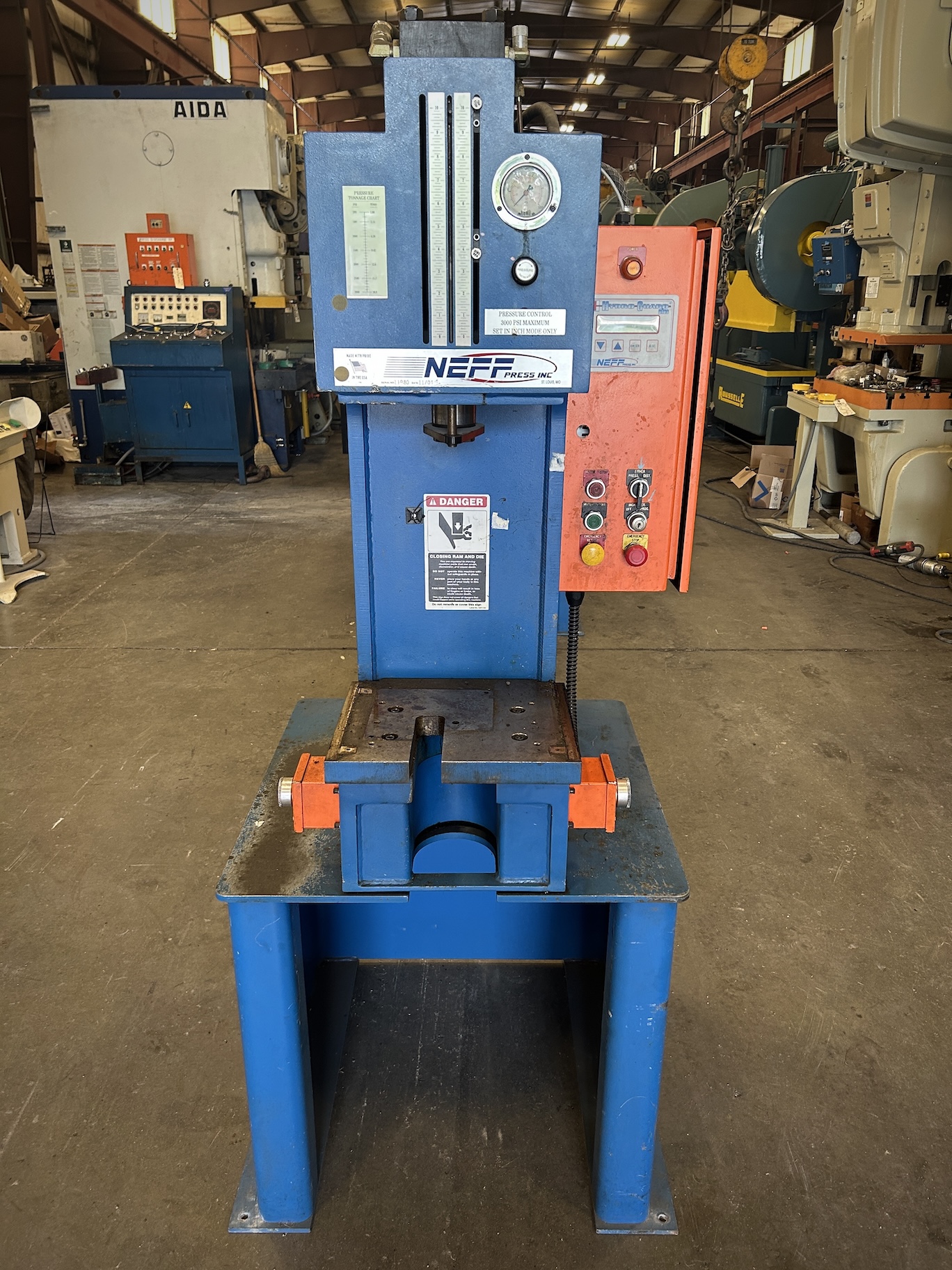

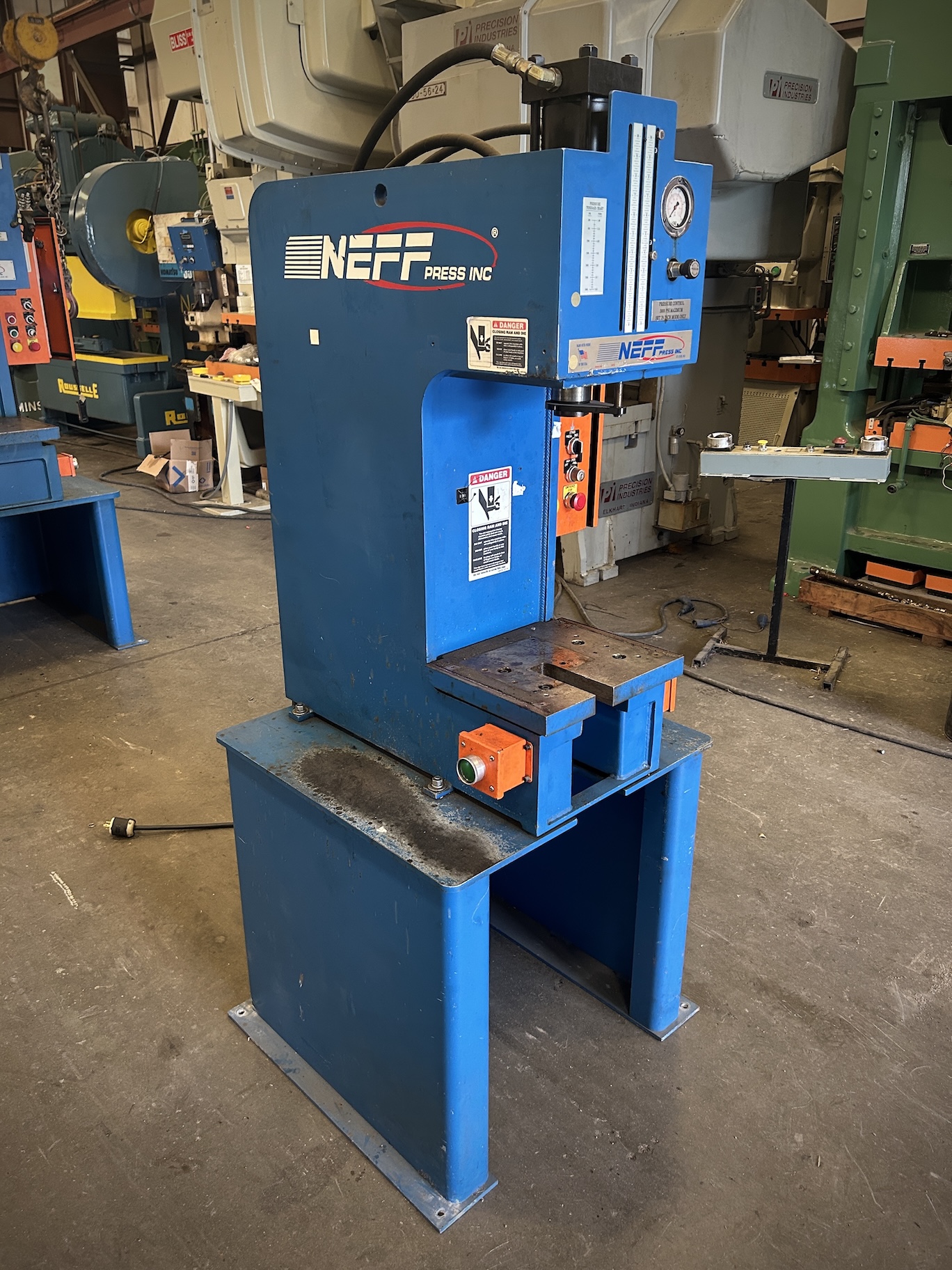

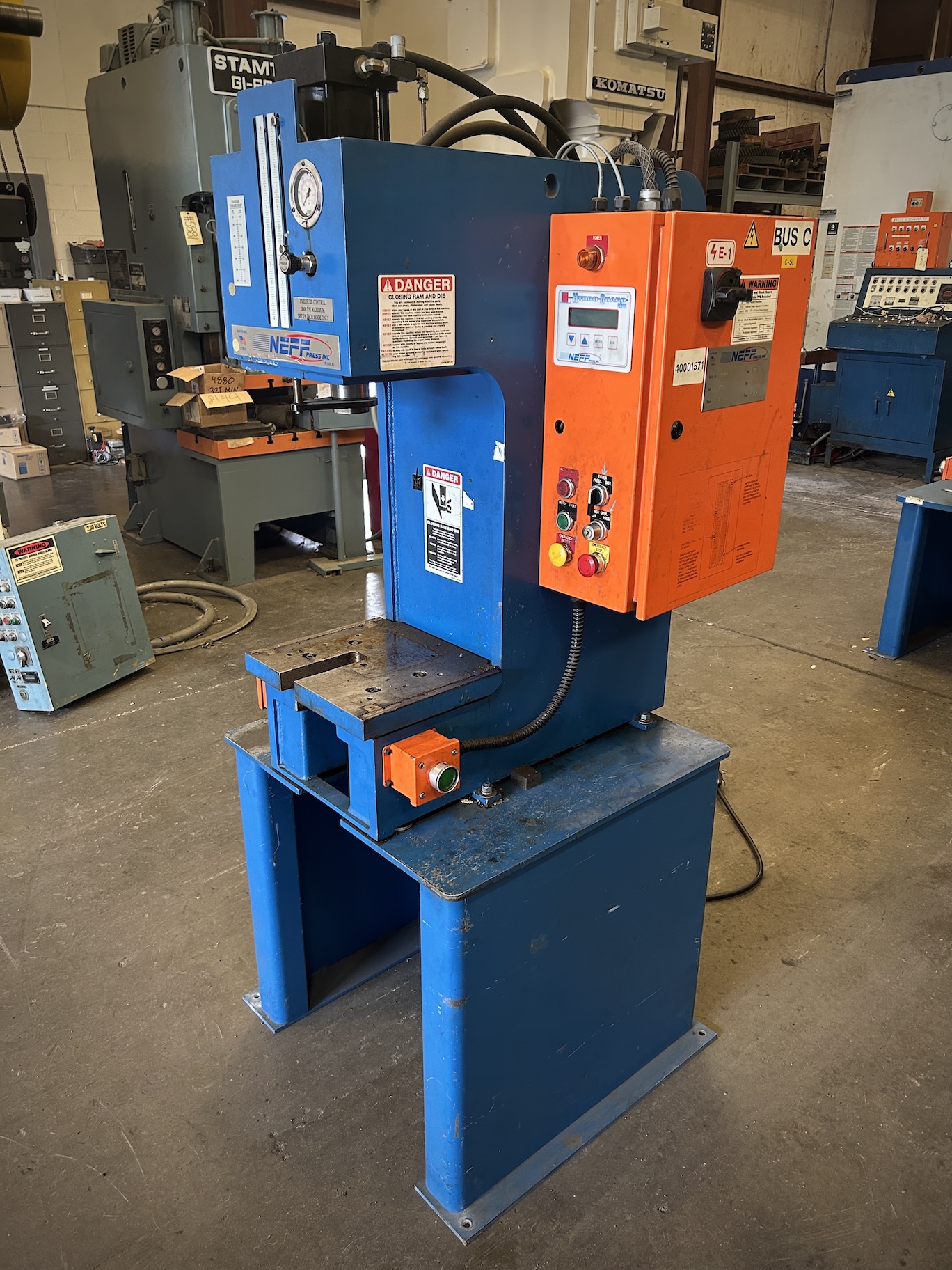

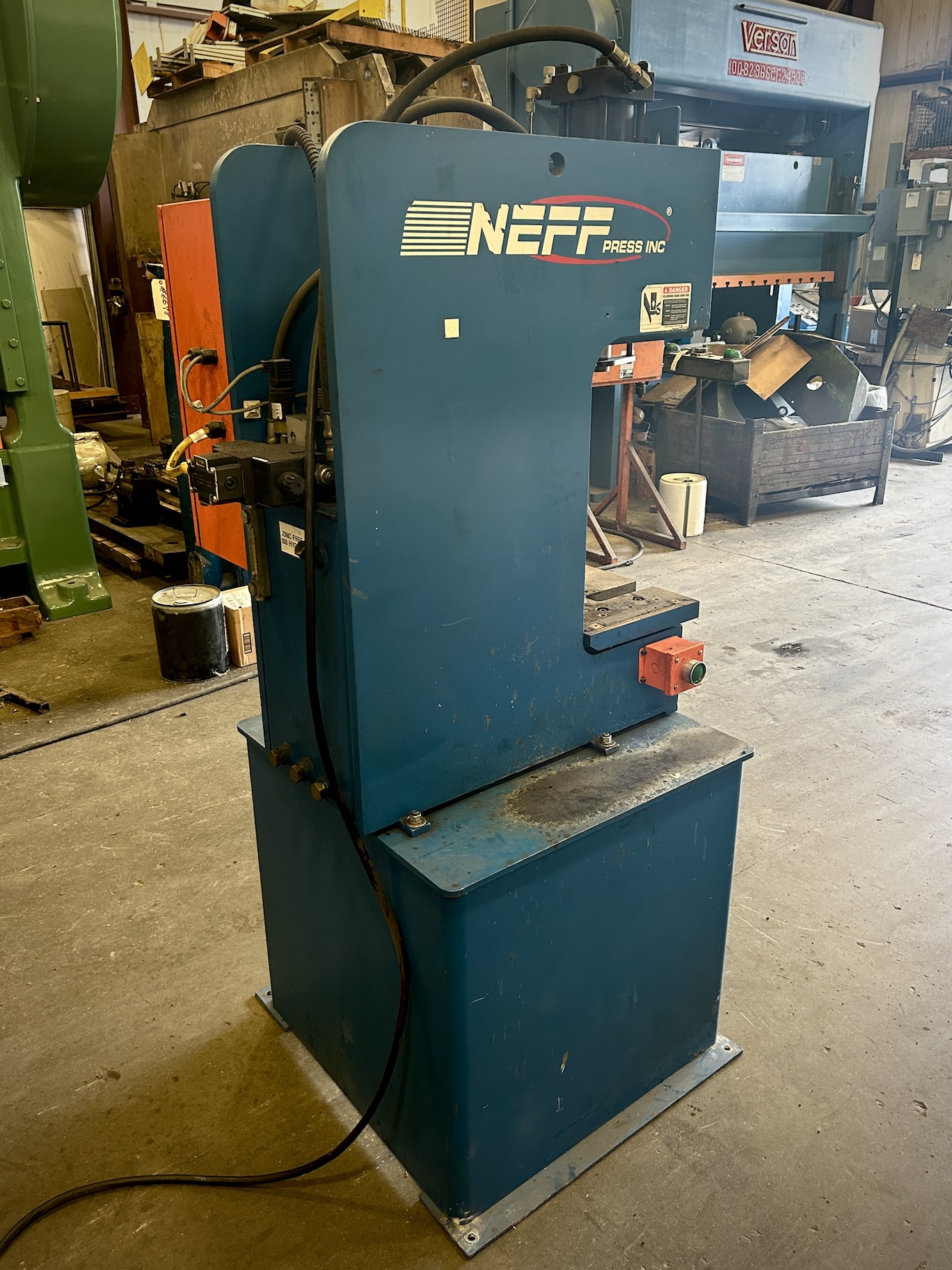

Gap Frame Hydraulic Press • Used 19 Ton Press for Sale

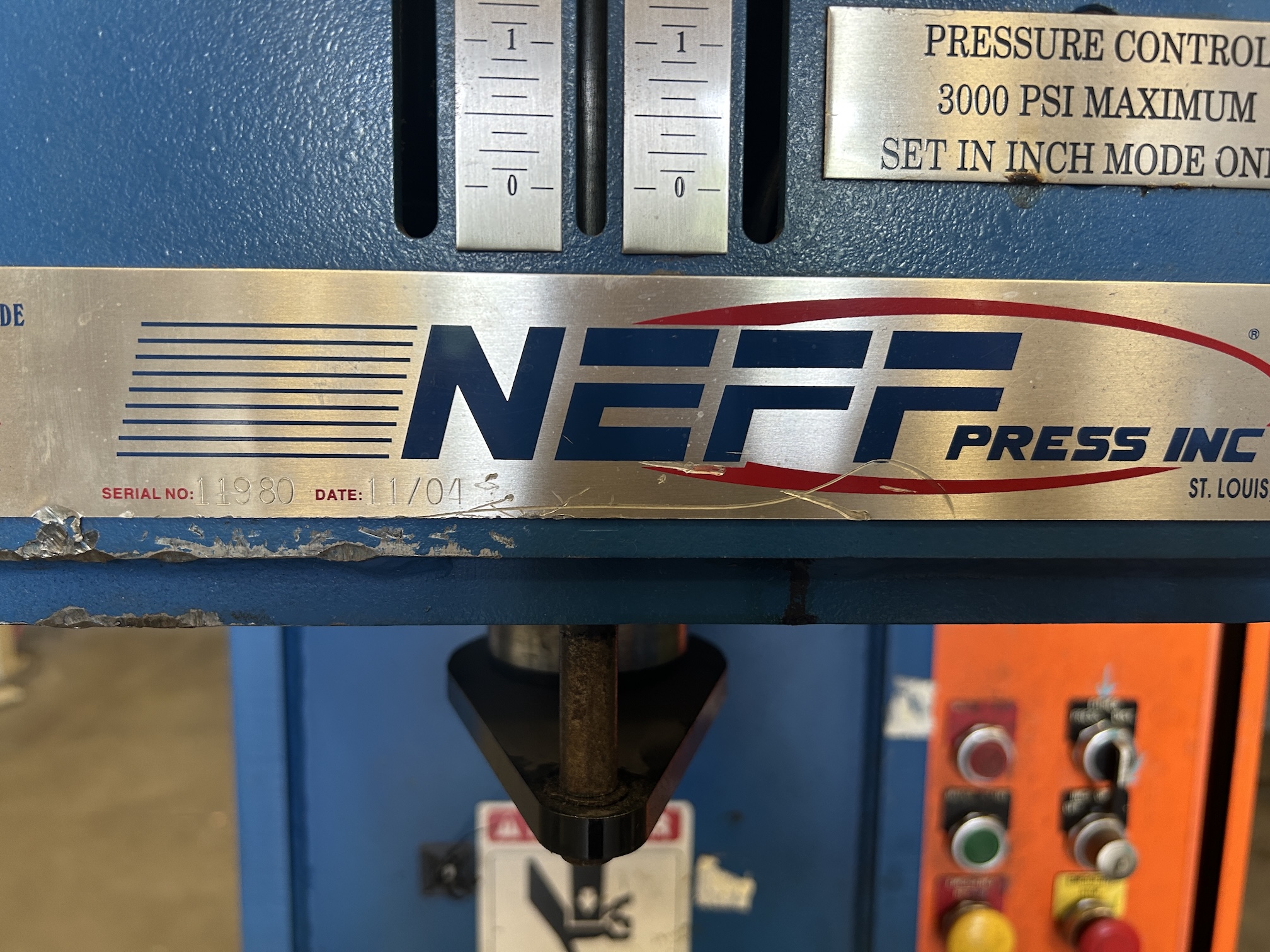

Model: Neff D15-5M Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 2004
Machine #: 8456
Buy Now: $

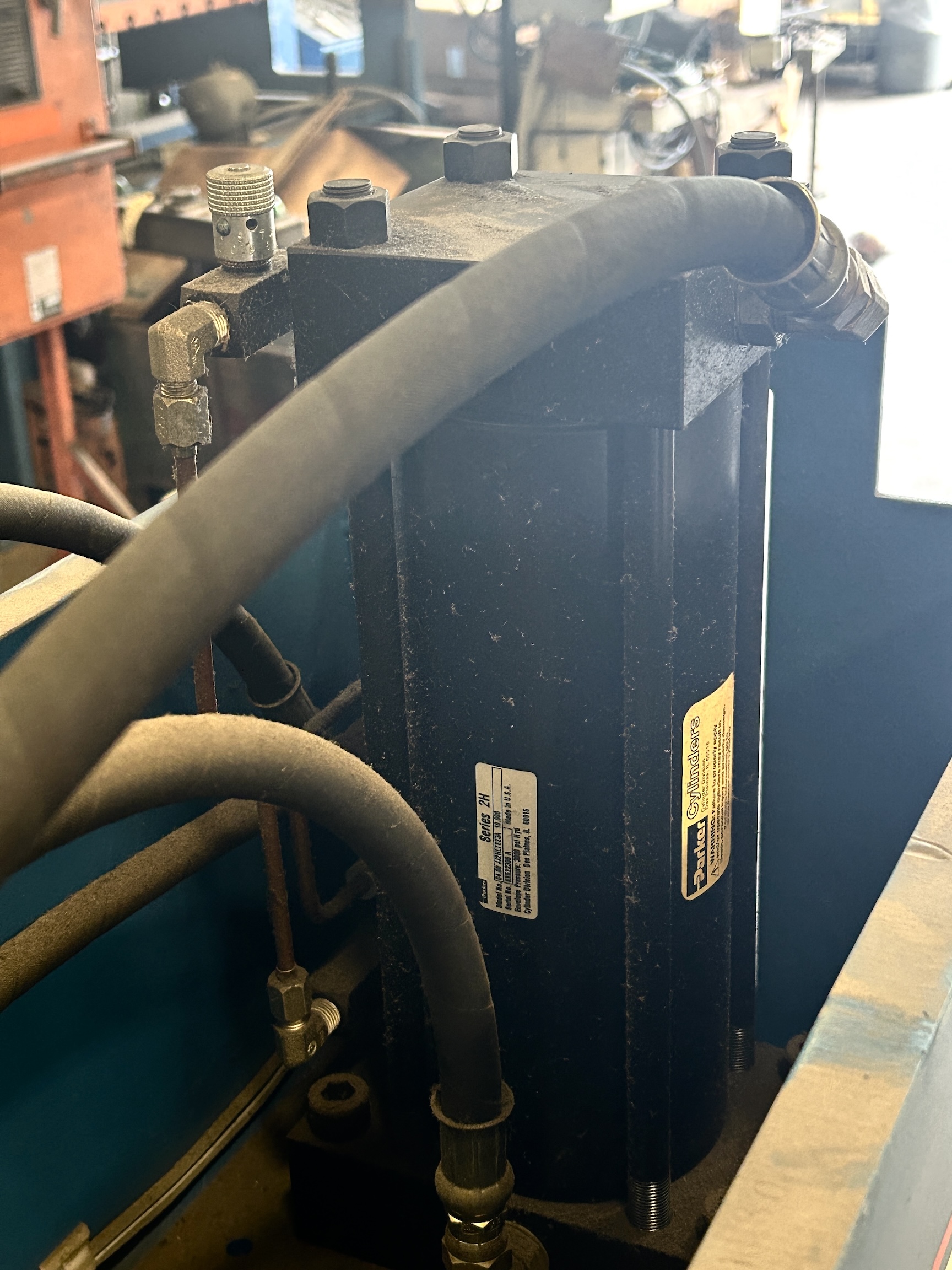

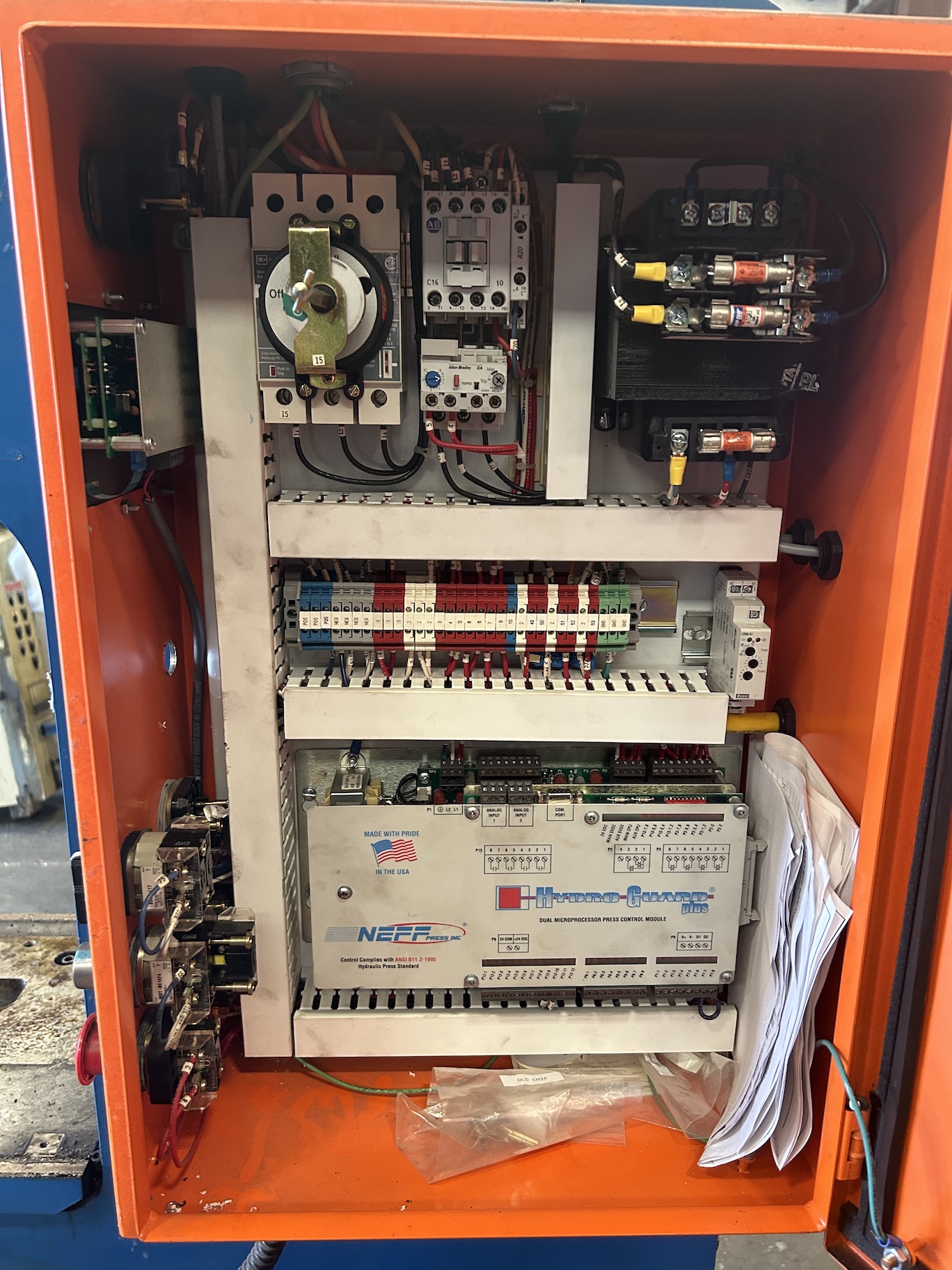

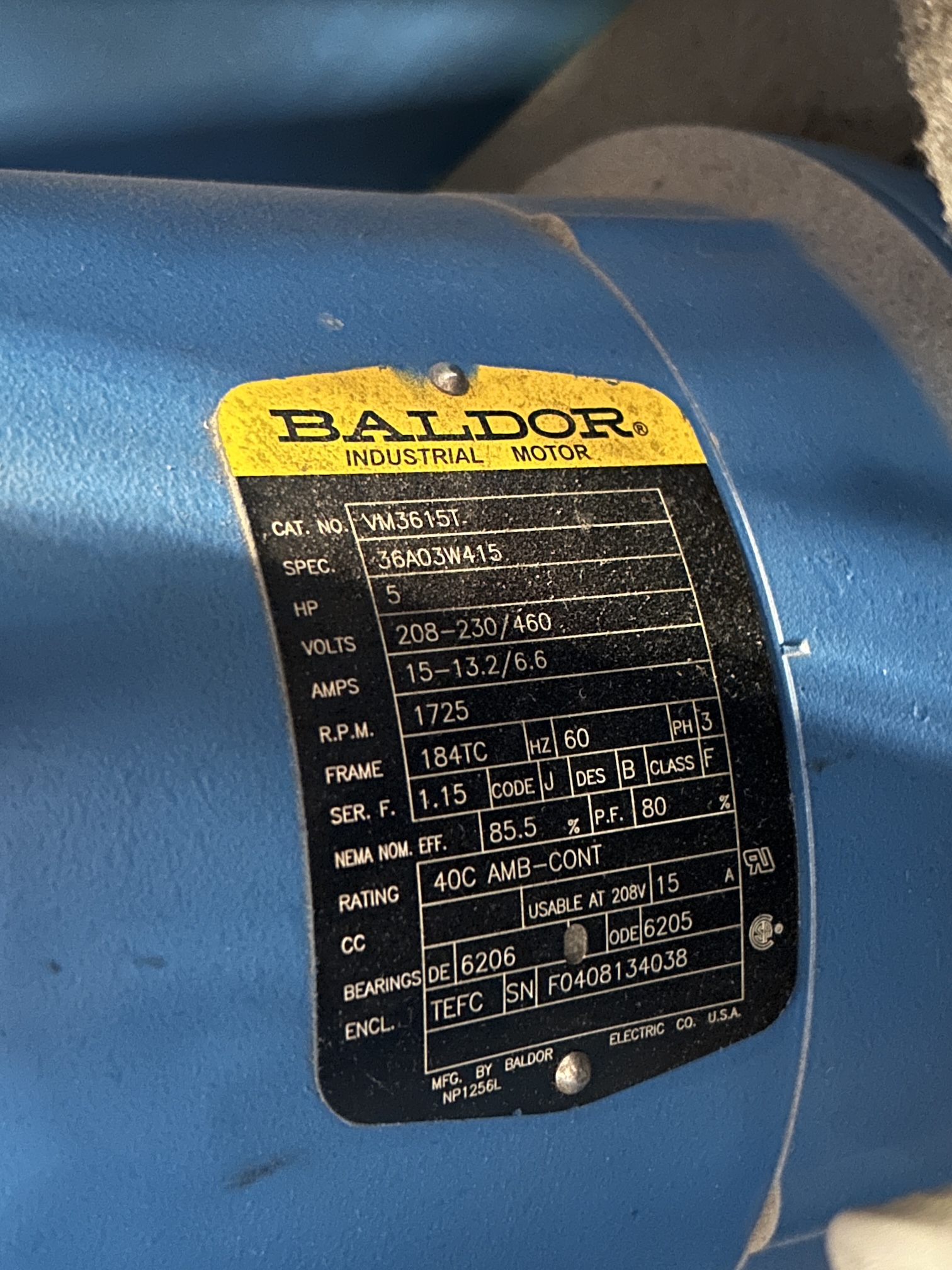

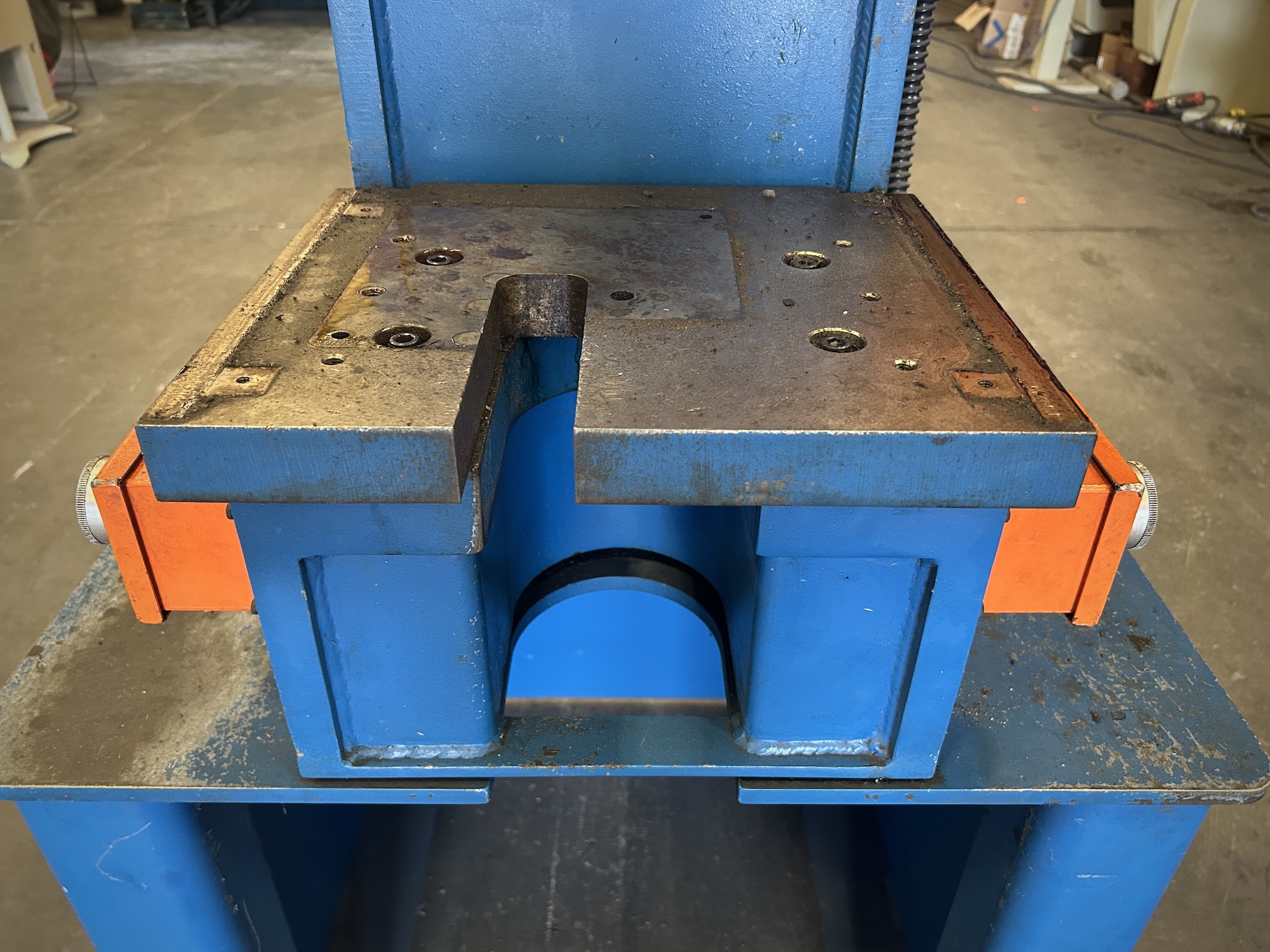

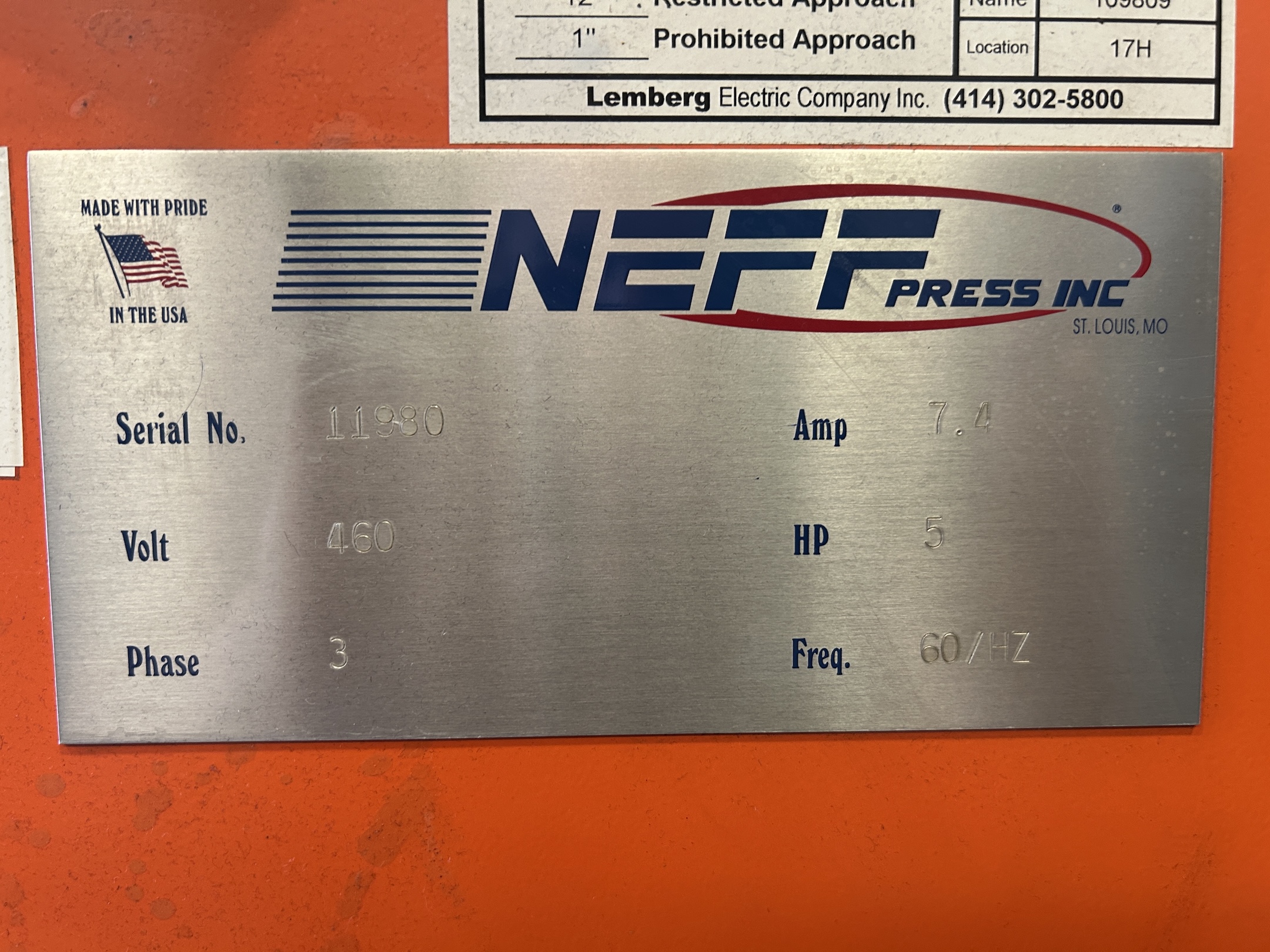

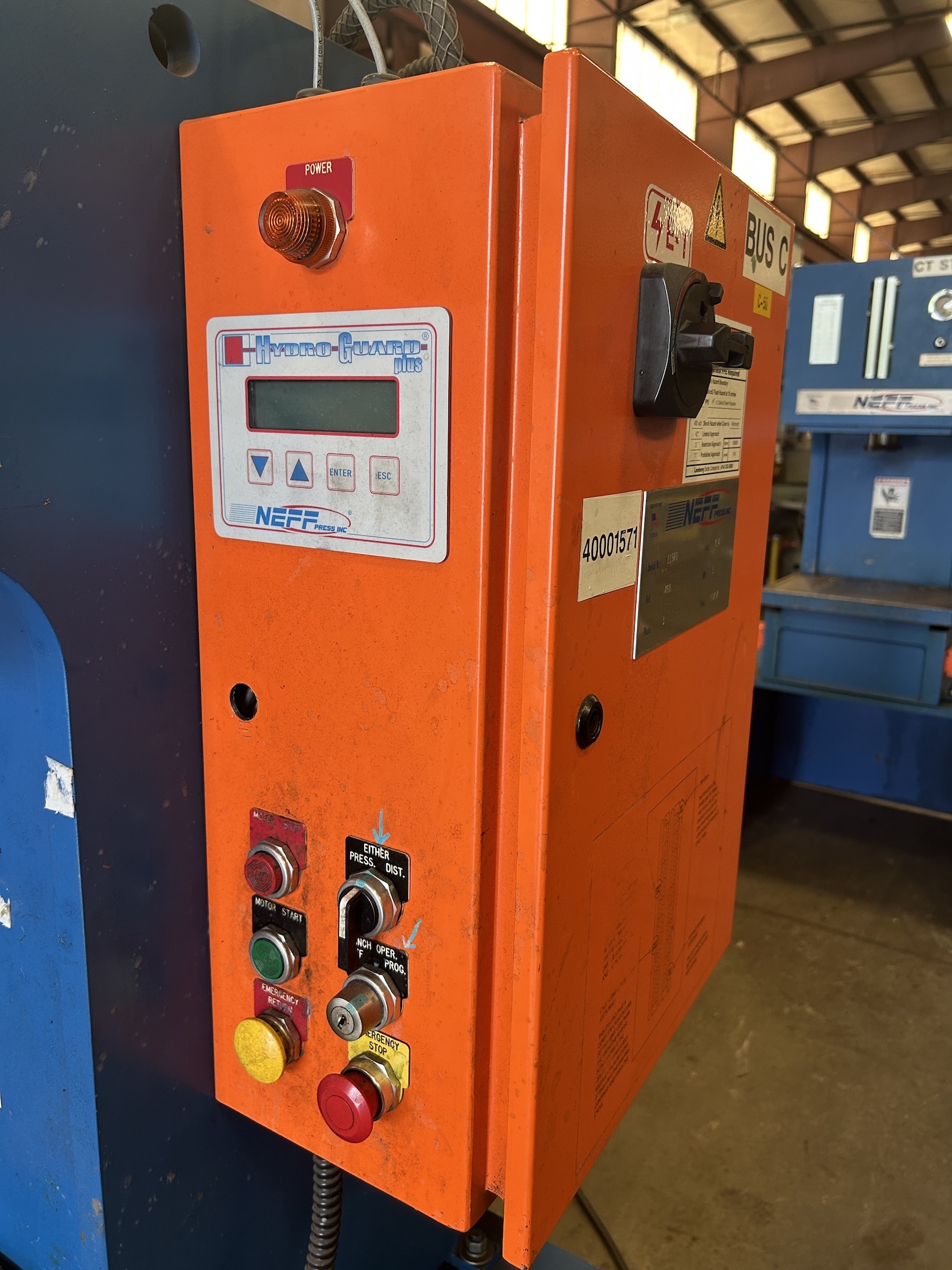

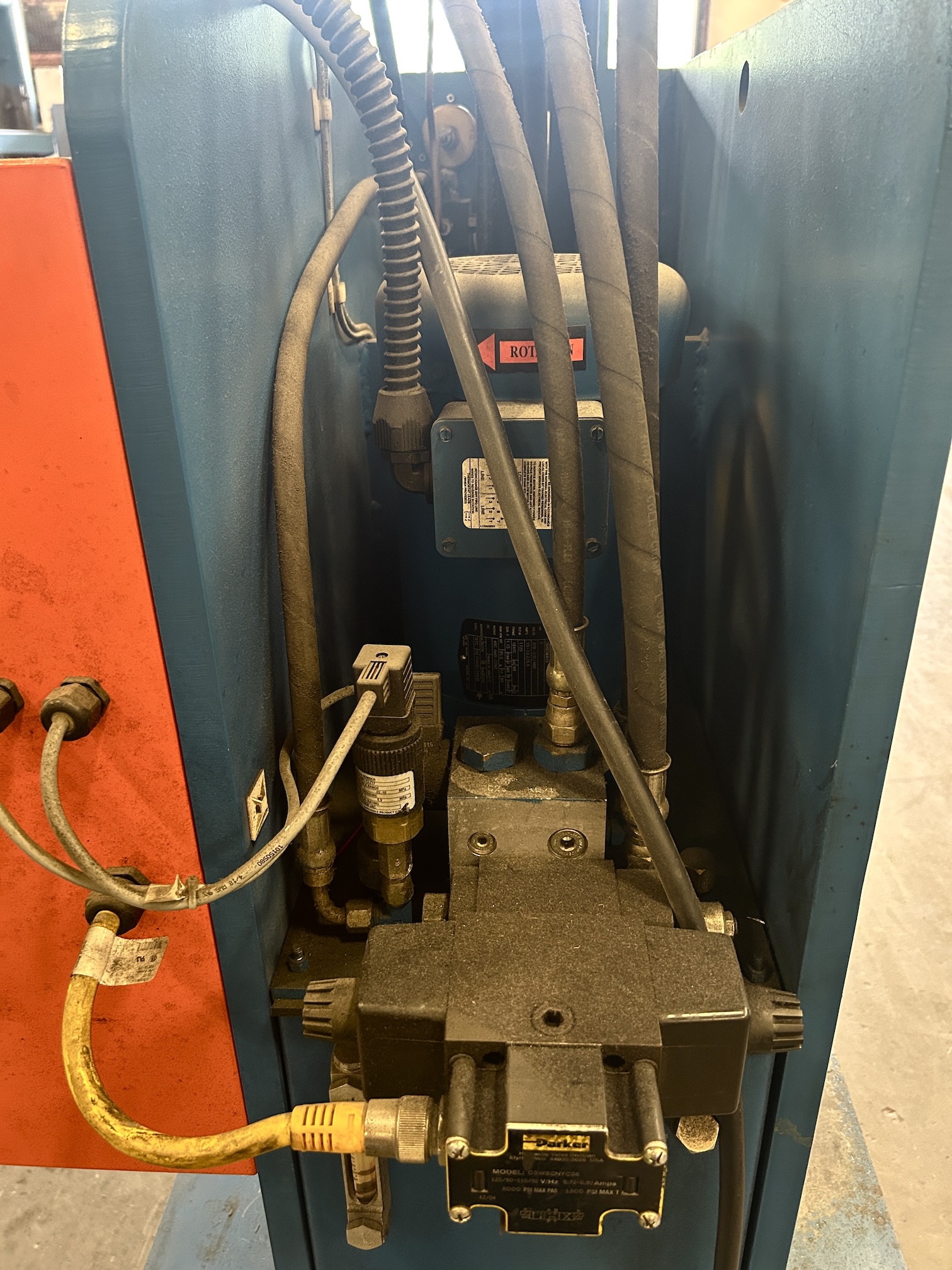

| CAPACITY | 19 ton @ 3,000 psi | STROKE | 7" max | MAX DAYLIGHT TO BED | 18" | BED AREA | 15" x 12.25" (rl x fb) | RAM AREA | 2.5" od | THROAT DEPTH | 7" | CYLINDER SIZE | 4" od | RAM SPEEDS | rapid advance - 153 ipm pressing - 60 ipm return - 98 ipm | DISTANCE FLOOR TO BED | 37" | ELECTRICS | 5 hp 1750 rpm 480v-3-60 motor & control. | hydraulics | 3.25 gpm, 150 - 3,000 operation psi. 12 gallon reservoir. | APPROX. DIMENSIONS | 78" h x 33" rl x 36" fb | APPROX. WEIGHT | 1,750 lbs including base | Equipped With | FLOOR STANDING, LIFETIME FRAME WARRANTY FROM MANUFACTURER | Note |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
