121 Ton Sutherland Press • Used Sutherland MARK 121 Press

121

121
Ton
45.3″
Bed R-L
4.3″
Stroke
Speed: 45-90 SPM
New in 2000

Nice PLC Controls

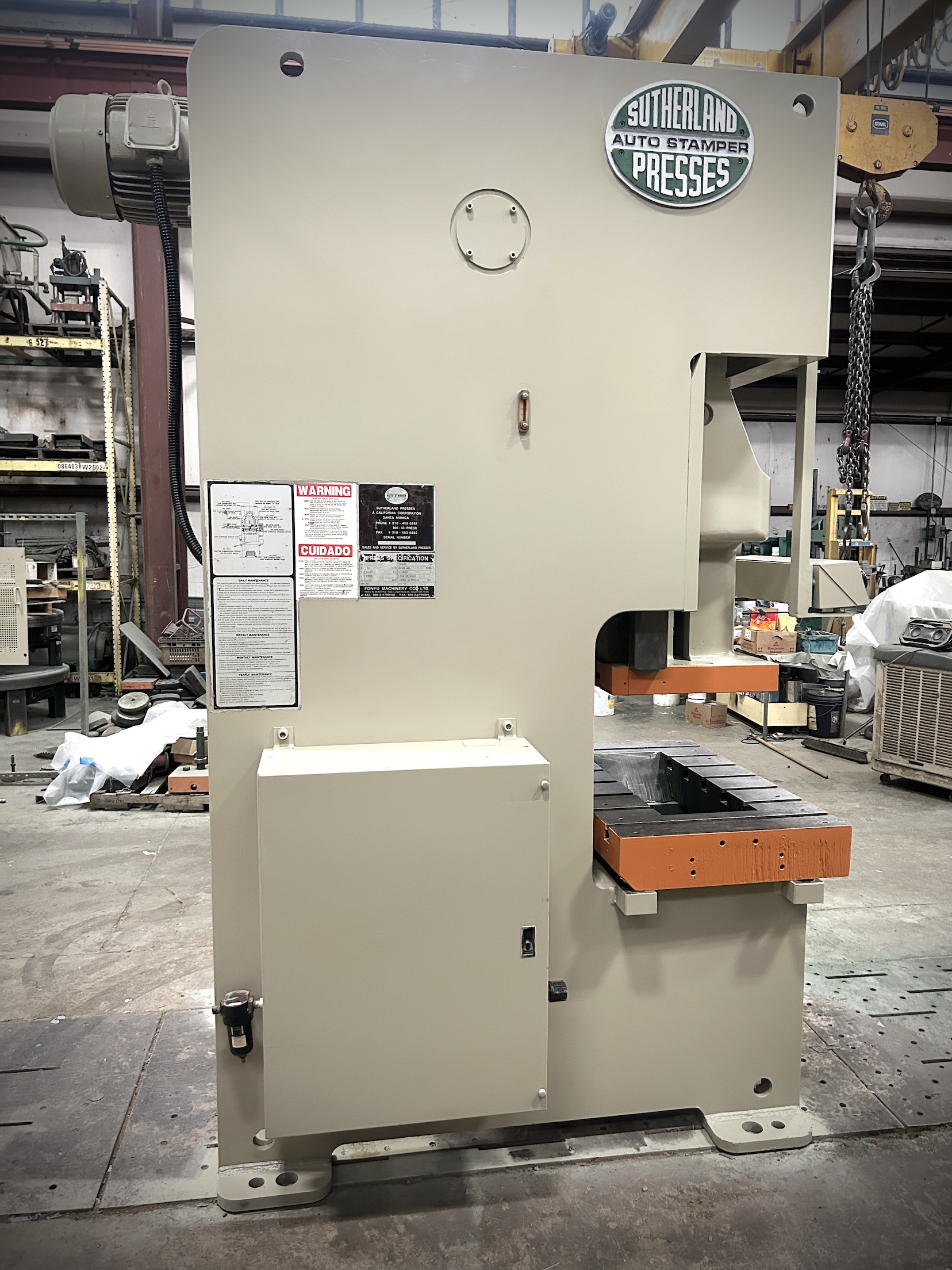

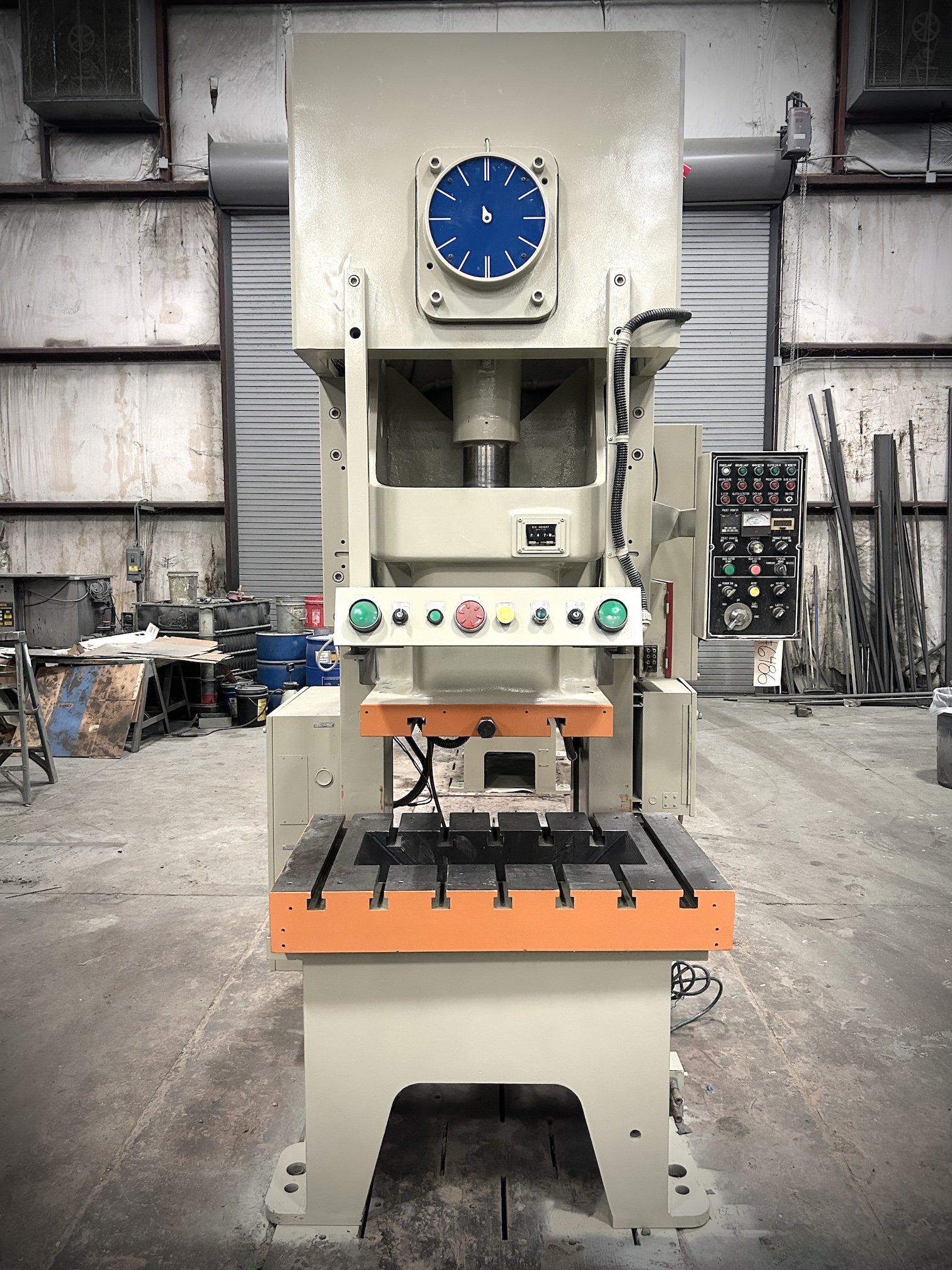

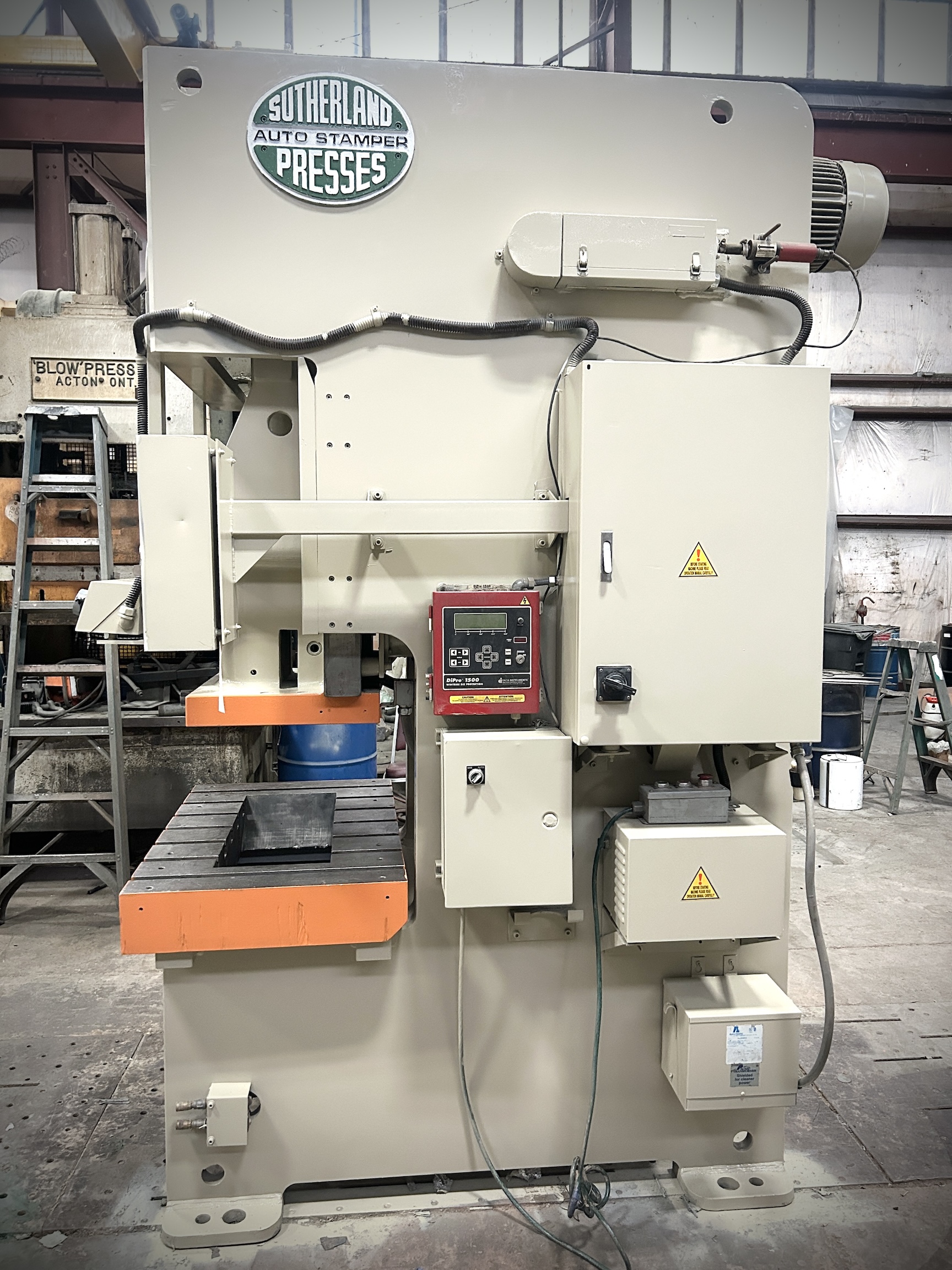

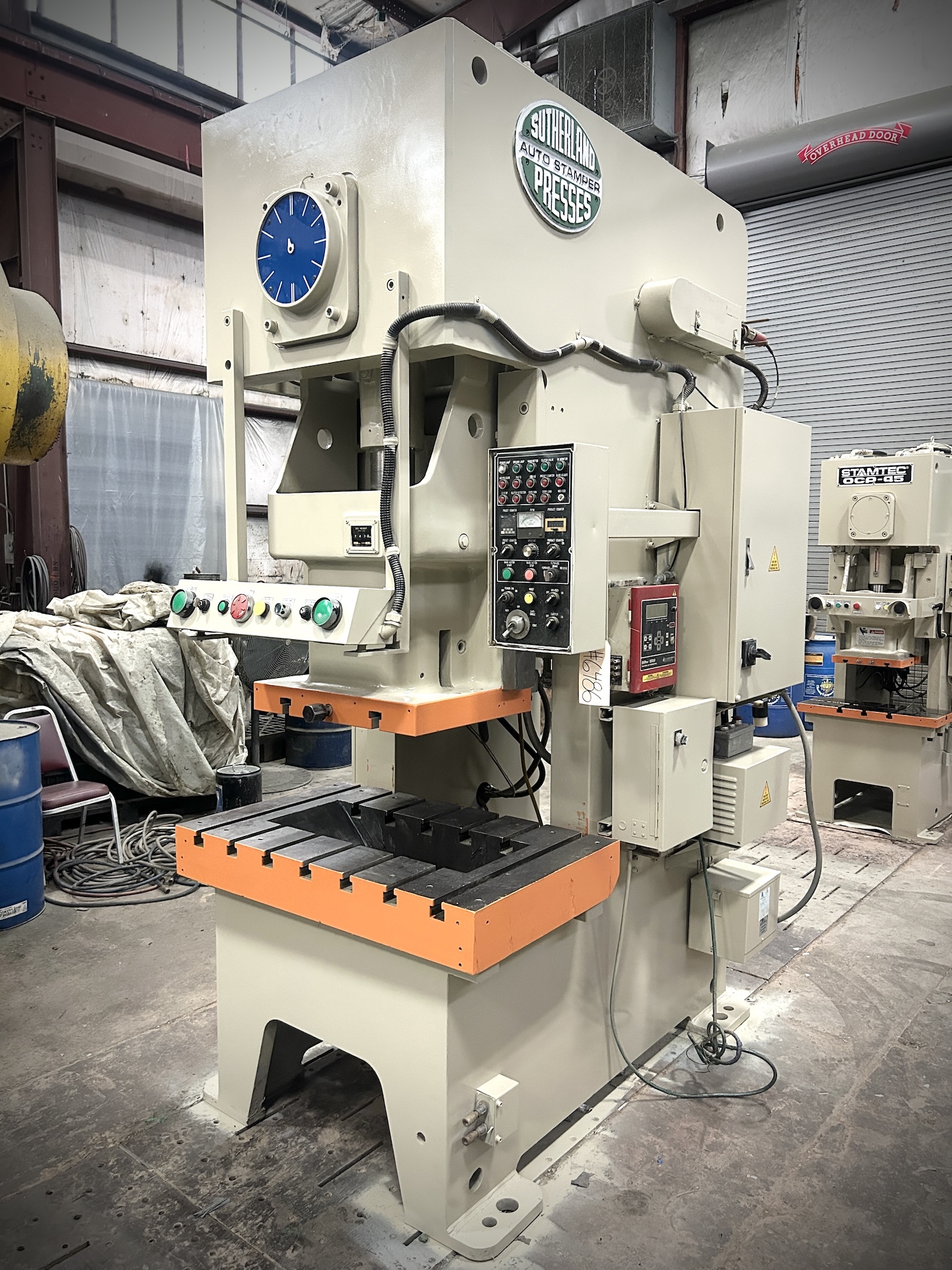

121 Ton Used Press – C Frame Press
Model: Sutherland MARK 121
4.3″ Stroke, 12.6″ Die Height, 45″ x 27″ Bed Area, 45-90 SPM

Gap Frame Presses for Sale
Used Sutherland Punch Press (Mechanical)
Machine #6486
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

C Frame Press for Sale

Manufacturer: Sutherland

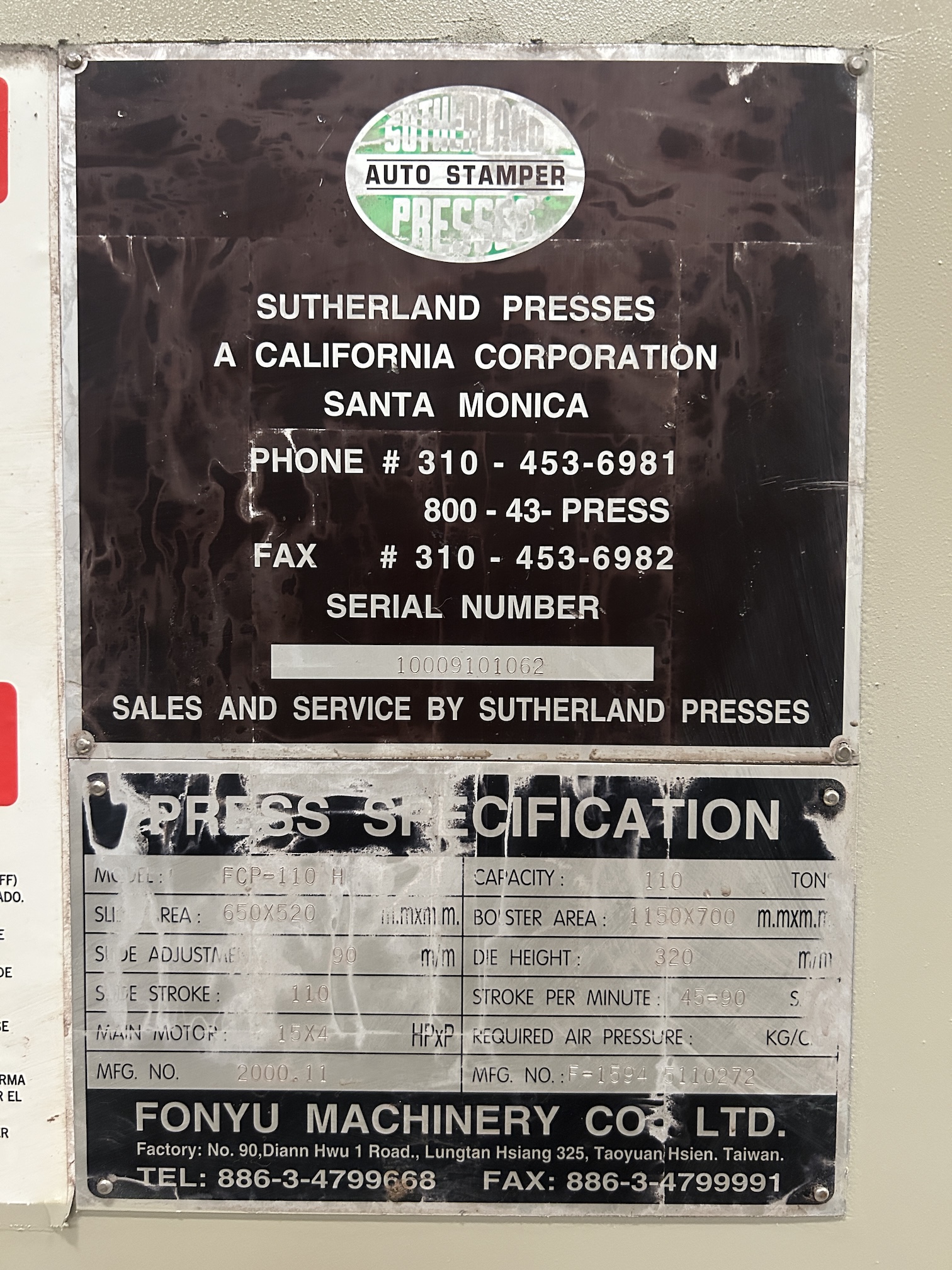

Model: Sutherland FCP-110H / Mark-121 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 2000
Machine #: 6486
Buy Now: $





CAPACITY 121 US TONS
STROKE 4.3″
MAX DIE HEIGHT 12.6″ SDAU OVER 6″ H BOLSTER PLATE
SLIDE ADJUSTMENT 3.5″ MOTORIZED
BED AREA 45.3″ RL X 27.6″ FB
BOLSTER PLATE 6″ H X 45.3″ RL X 27.6 FB (T-SLOTTED)
SLIDE AREA 25.6″ RL X 20.5″ FB (t-slotted)
SPEED 45 – 90 SPM
FLOOR TO BED HEIGHT 31″
DISTANCE BETWEEN UPRIGHTS APPROX. 26.3″
THROAT APPROX. 14.3″
CLUTCH SUTHERLAND AIR CLUTCH/BRAKE COMBINATION

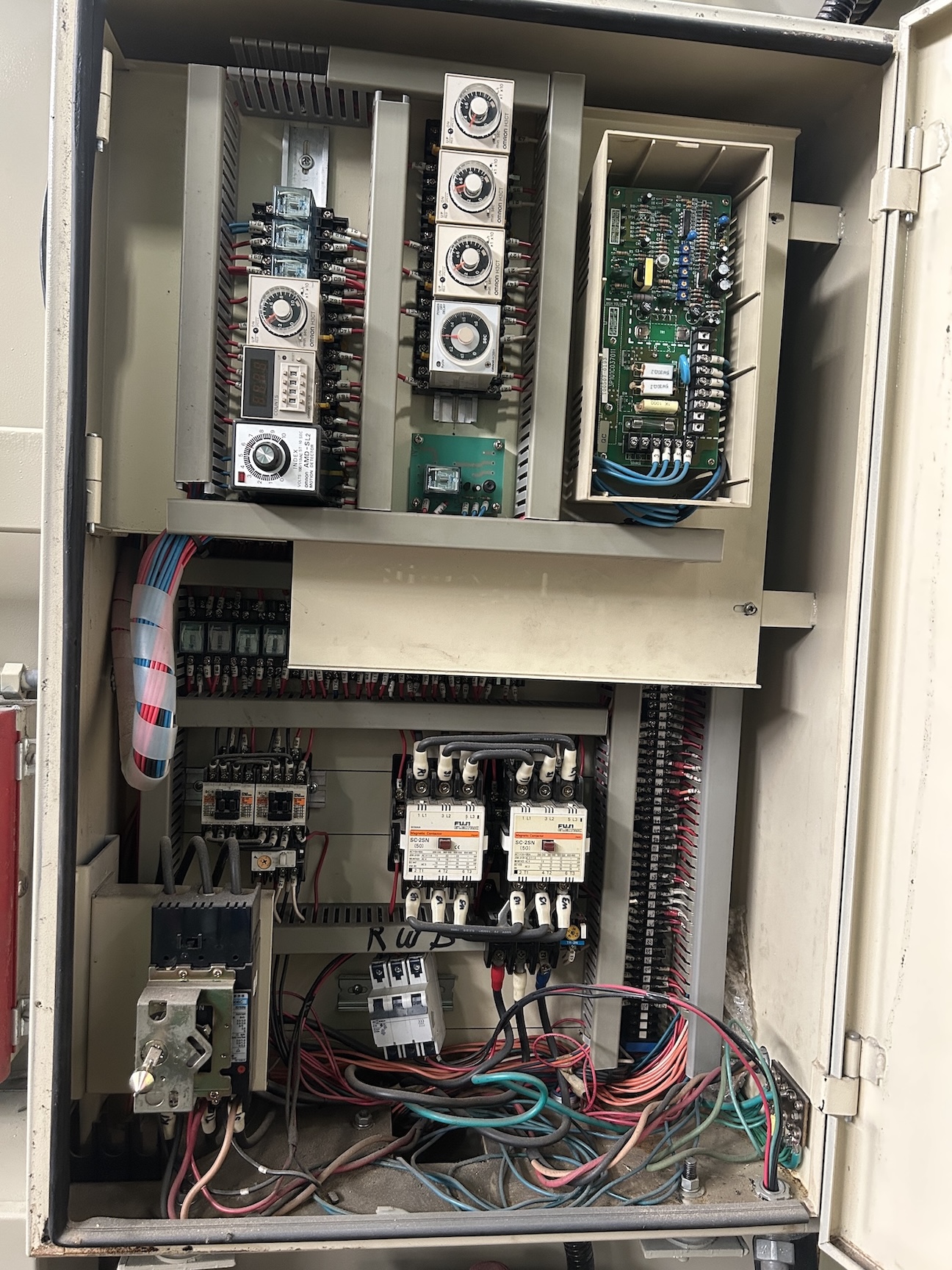

PRESS CONTROLS SUTHERLAND PLC CONTROLLER

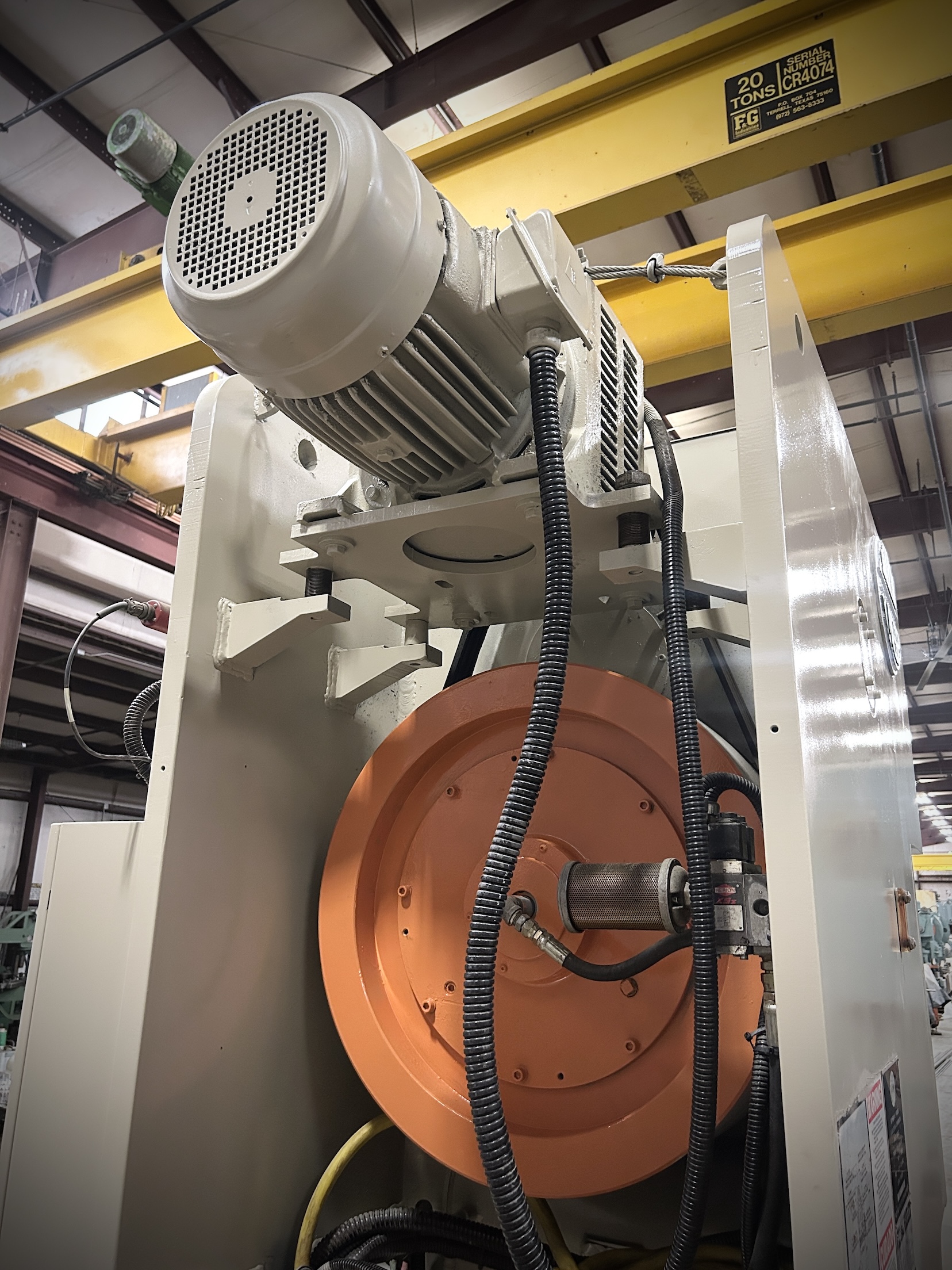

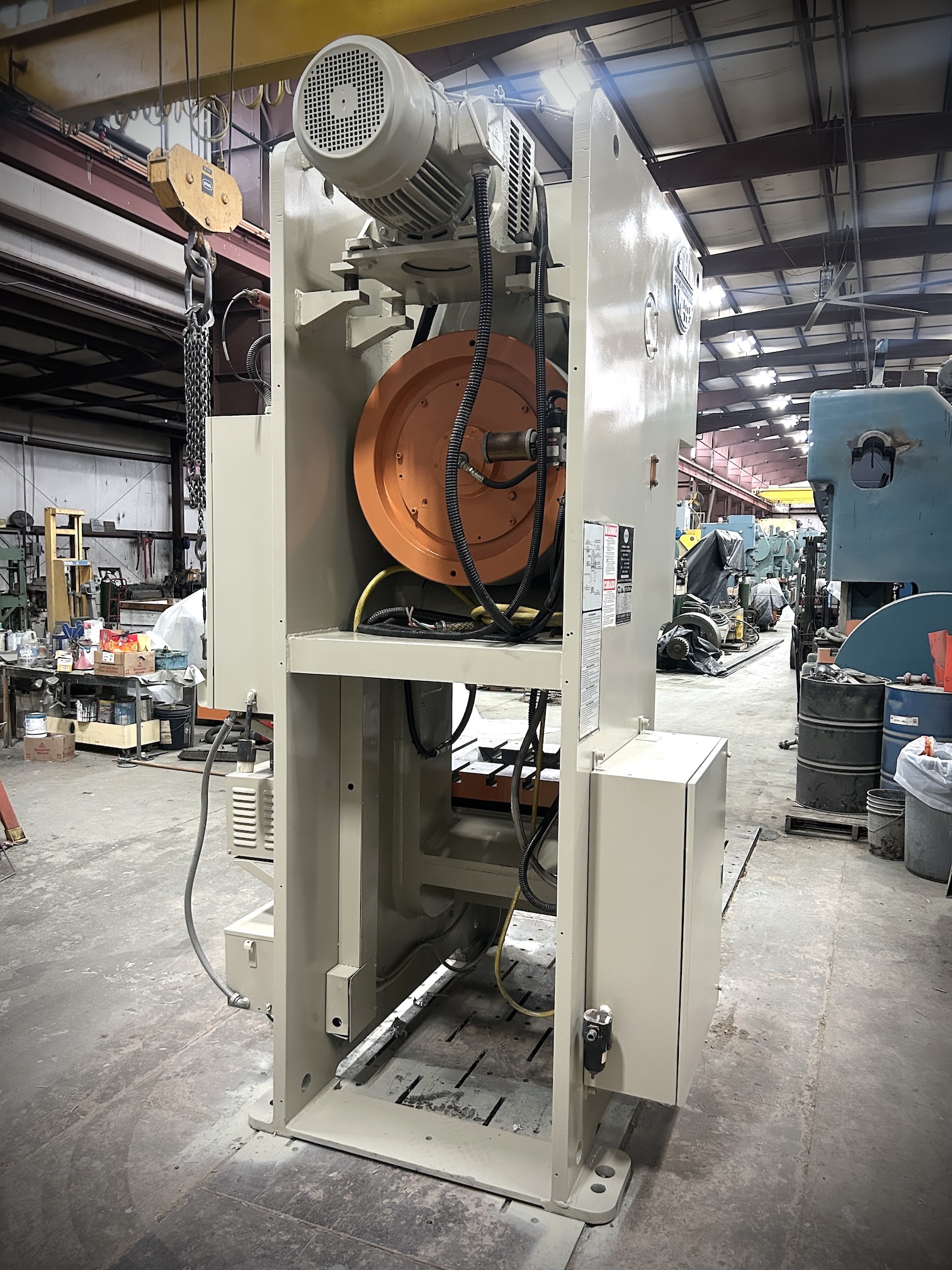

MOTOR 15 HP 1750 RPM 240/480V-3-60
APPROX. DIMENSIONS 120″ H X 67″ RL X 80″ FB
APPROX. WEIGHT 21,500 LBS
Equipped With FLOOR STANDING, HYDRAULIC OVERLOADS, AIR COUNTERBALANCE, BACK GEARED
Note SERVO FEEDER #6533 SOLD SEPARATELY
Location This used press is located in our Columbia, TN Warehouse
