125 Ton Bliss Press • Used Bliss S2-125-60-36 Press

125

125
Ton
60″
Bed R-L
5″
Stroke
Speed: 40-80 SPM
New in 1

1

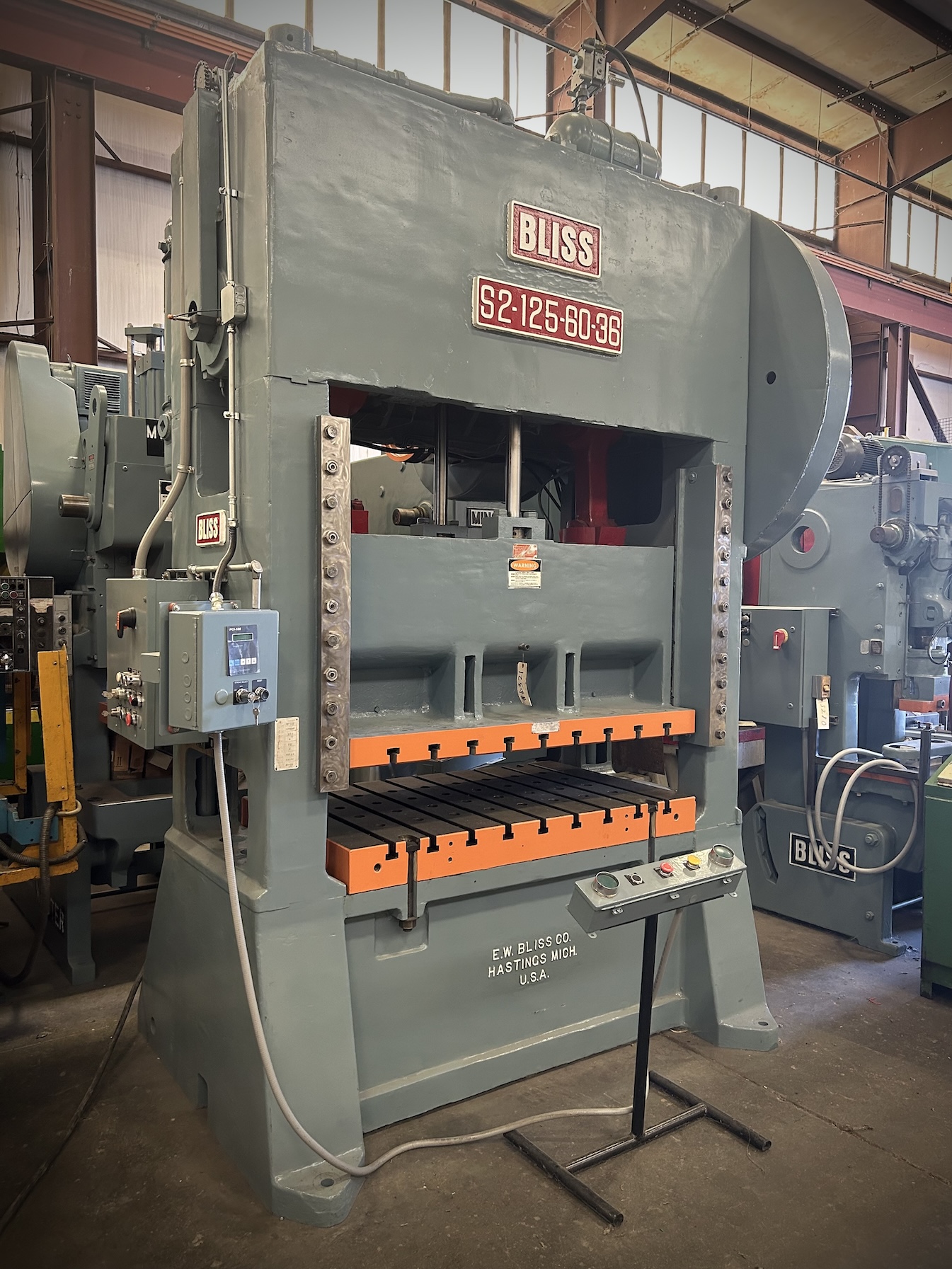

125 Ton Used Press – Straight Side Press
Model: Bliss S2-125-60-36
5″ ST. , 22″ SH, 60 X 36 BED, 40/80 SPM, 25 HP,
AC, 1966.

Straight Side Double Crank Press for Sale
Used Bliss Stamping Press (Mechanical)
Machine #6321
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Bliss
Model: Bliss S2-125-60-36 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1966
Machine #: 6321
Buy Now: $





CAPACITY: 125 TON
STROKE: 5″
SHUT HEIGHT TO BED: 22″ (SDAU)
BED AREA: 60″ X 36″ (RL X FB)
RAM ADJUSTMENT: 8″ (MOTORIZED)
SPEED: 40 – 80 spm
RAM AREA: 60″ X 36″ (rL X FB) T-SLOTTED BOLSTER PLATE
BOLSTER SIZE: 60″ X 36″ (RL X FB) X 5.5″ HIGH T-SLOTTED PLATE
WINDOWS: 24″ FB X 12″ H
CLUTCH: BLISS AIR CLUTCH & BRAKE.
DIST UPRIGHTS / FLOOR TO BED: 65″ / 32″

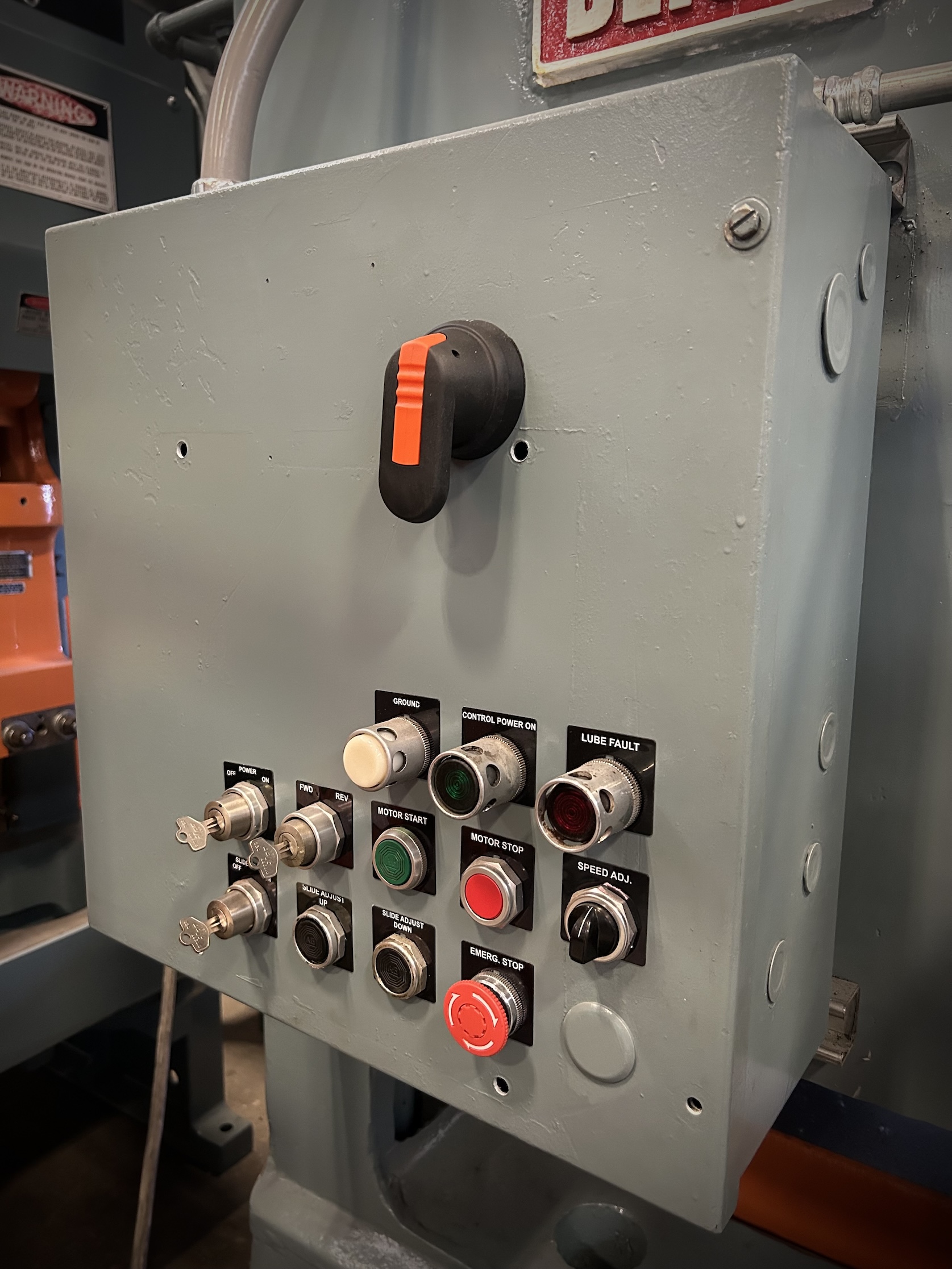

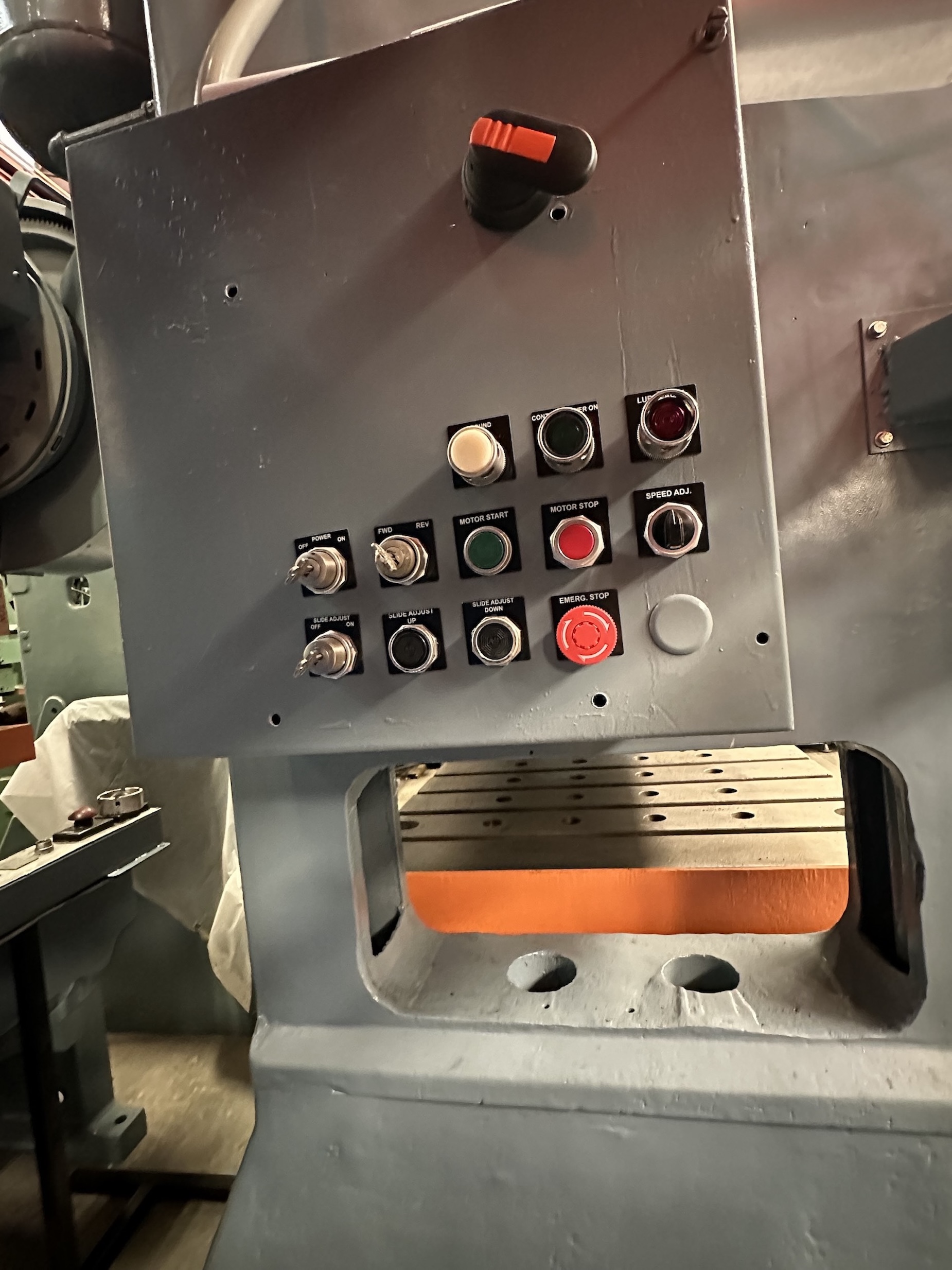

ELECTRICS: 25 HP 1750 RPM 240/480v-3-60 eddy current motor W/CIECO 1100R6 CONTROLS.
APPROX. DIMENSIONS: 150″ H X 114″ RL X 42″ FB
APPROX. WEIGHT: 36,000 LBS.
Equipped With AIR COUNTERBALANCED RAM CAST IRON FRAME CONSTRUCTION AUTOMATIC GREASE LUBRICATION SYSTEM TIE ROD, KEYED FRAME CONSTRUCTION SINGLE BACK GEARED WITH GEARS IN OIL FLOOR STANDING BASE
Note __
Location This used press is located in our Columbia, TN Warehouse
