Description
Gap Frame Press • Used 176 Ton Press for Sale

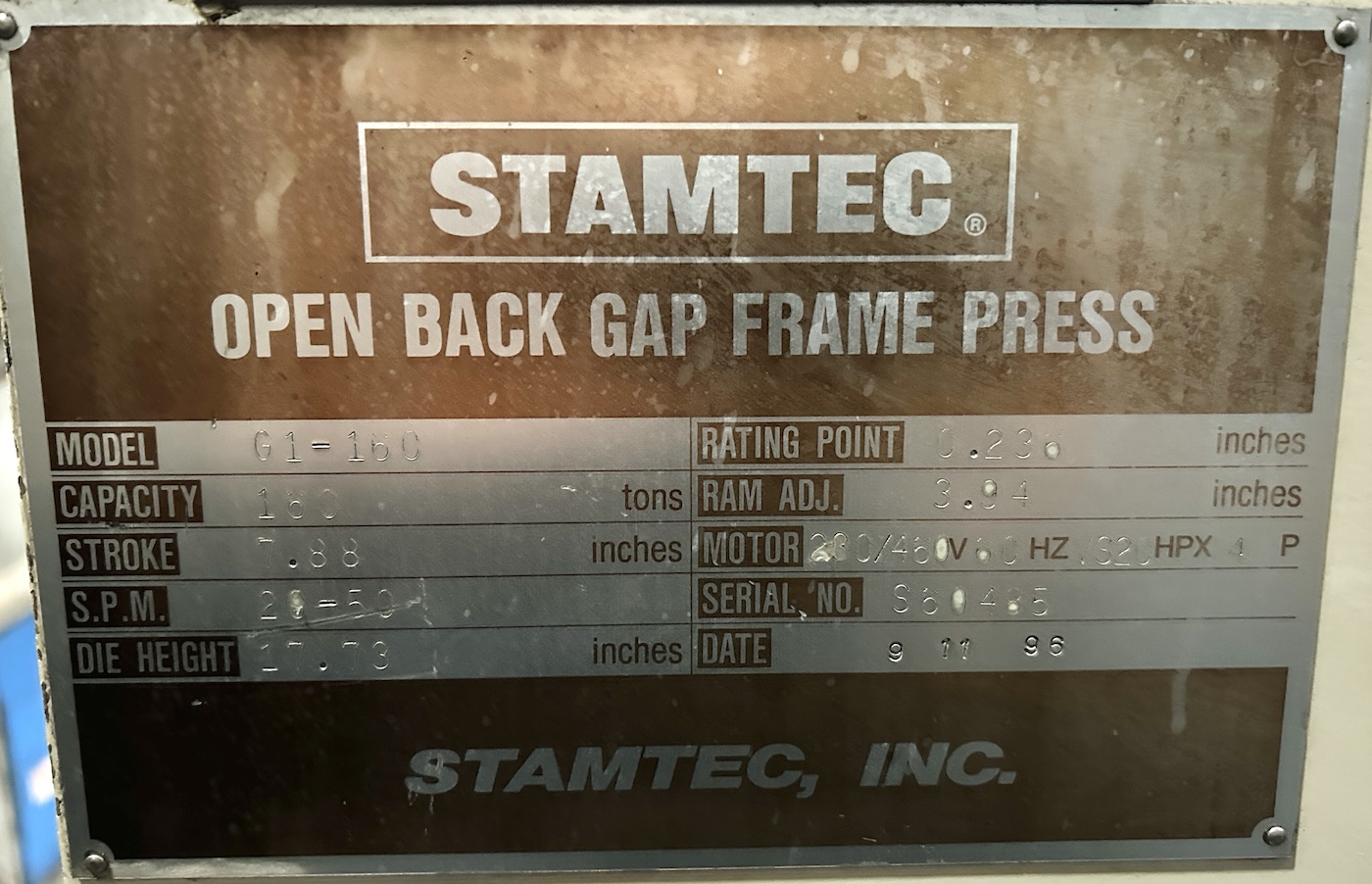

Model: Stamtec G1-160 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1996
Machine #: 8140
Buy Now: $
| capacity | 176 us ton | stroke | 7.9" | max die height | 17.7" sdau over bolster | bed area | 49.2" x 31.5" (rl x fb) | speed | 20 - 50 spm | slide adjustment | 3.8" motorized | slide area | 27.6" x 22.8" (rl x fb) (t-slotted) | bolster plate | 5.9" h x 49.2" rl x 31.5" fb (t-slotted) | distance between uprights | approx. 15.4" | distance floor to bed | approx. 36" | clutch | stamtec wet clutch / brake combination | electrics | 20 hp 1750 rpm 240/480v-3-60 eddy current drive & existing stamtec press control | approx dimensions | 129" h x 91" rl x 60" fb | approx weight | 35,000 lbs | Equipped With | HYDRAULIC OVERLOAD PROTECTION, LOW DEFLECTION, SUPER RIGID STEEL FRAME, EXTRA LONG 6 PT CENTERED GIBS, REMOVABLE BOLSTER & SLIDE PLATE, AUTOMATIC LUBRICATION SYSTEM, DUAL AIR COUNTERBALANCES, SINGLE BACK GEARED DESIGN, FLOOR STANDING | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
