Description

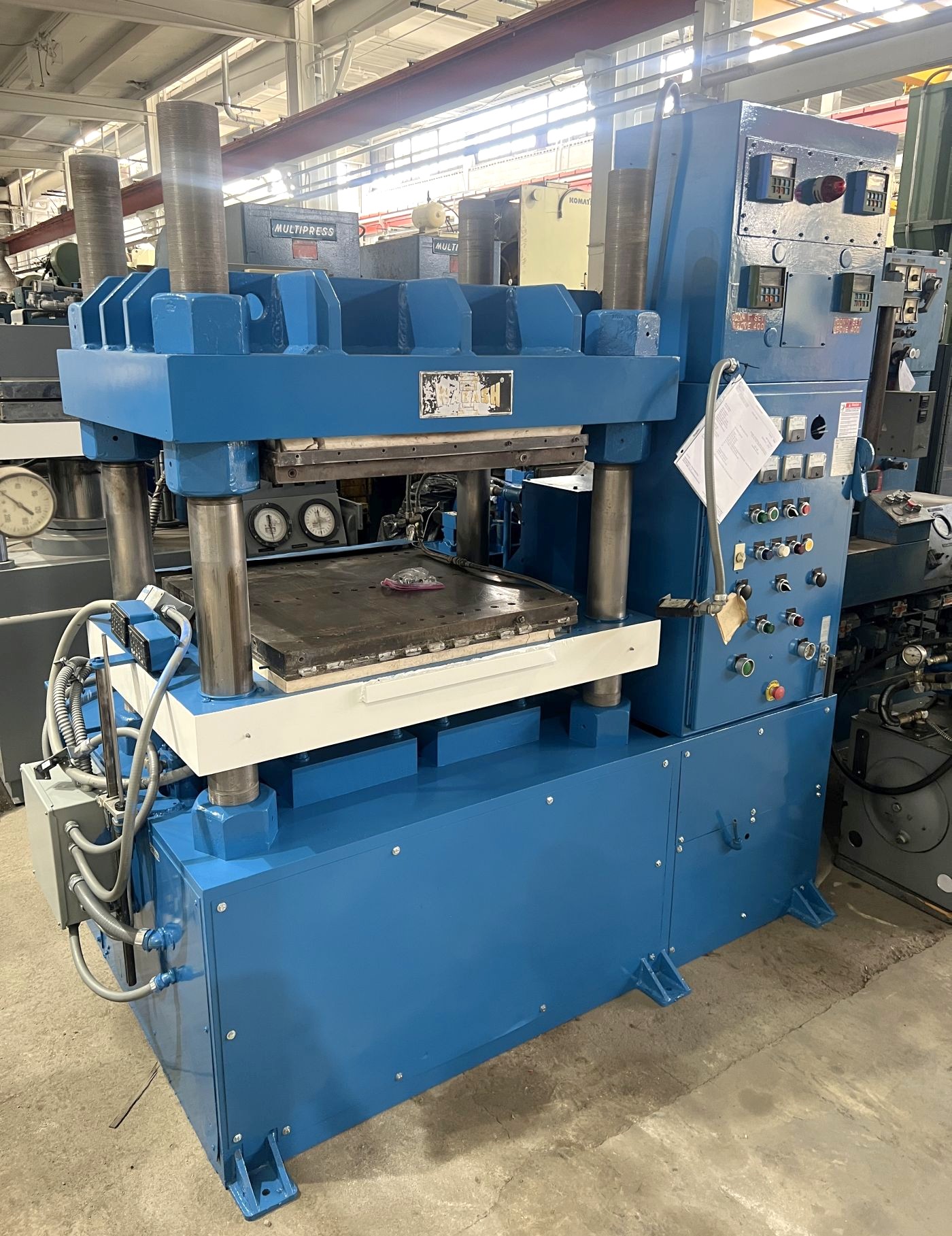

High Tonnage Heated Platen Press • Used 200 Ton Press for Sale
Model: Wabash 200-3030-2TMACX Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1980
Machine #: 8309
Buy Now: $

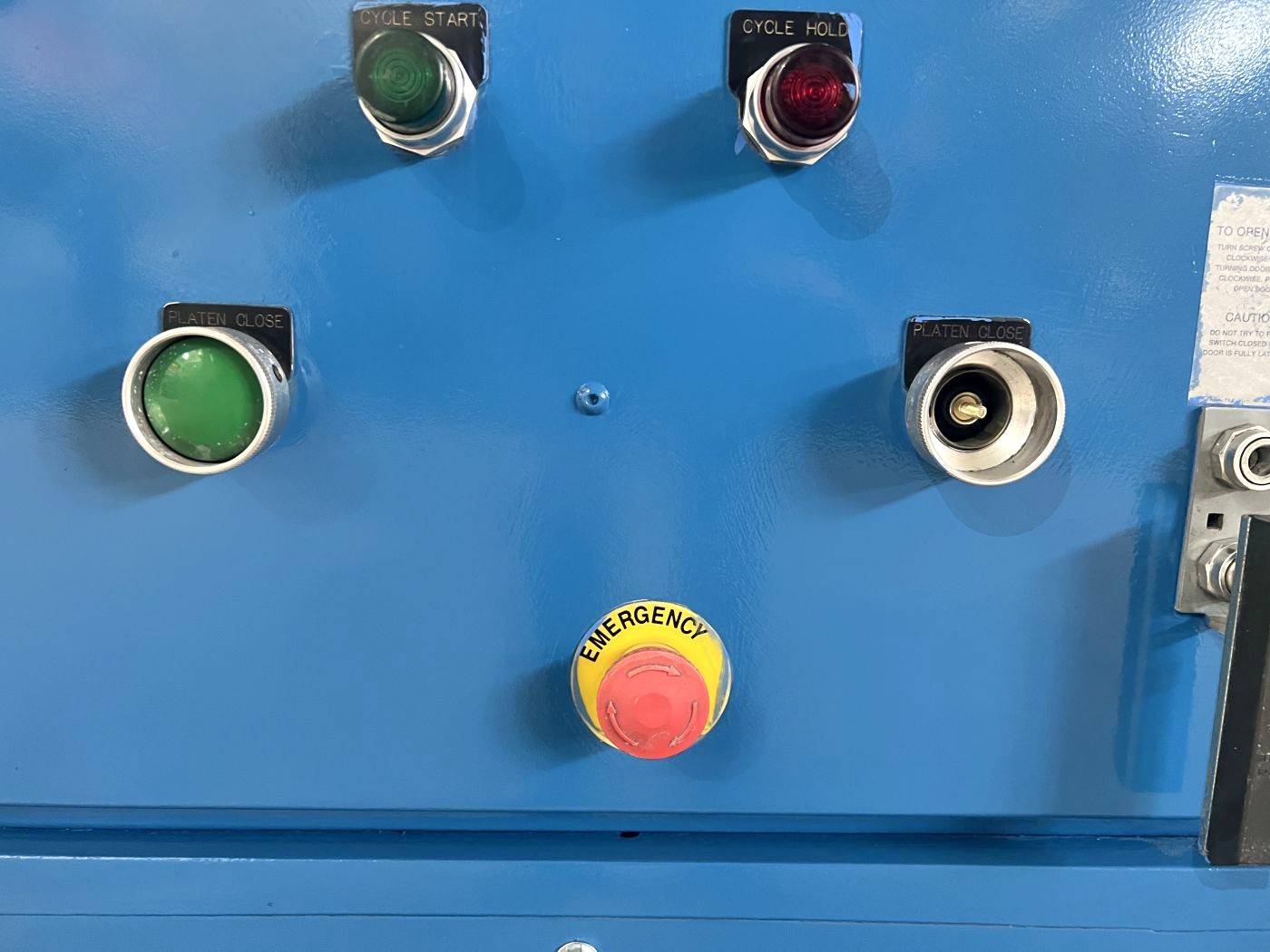

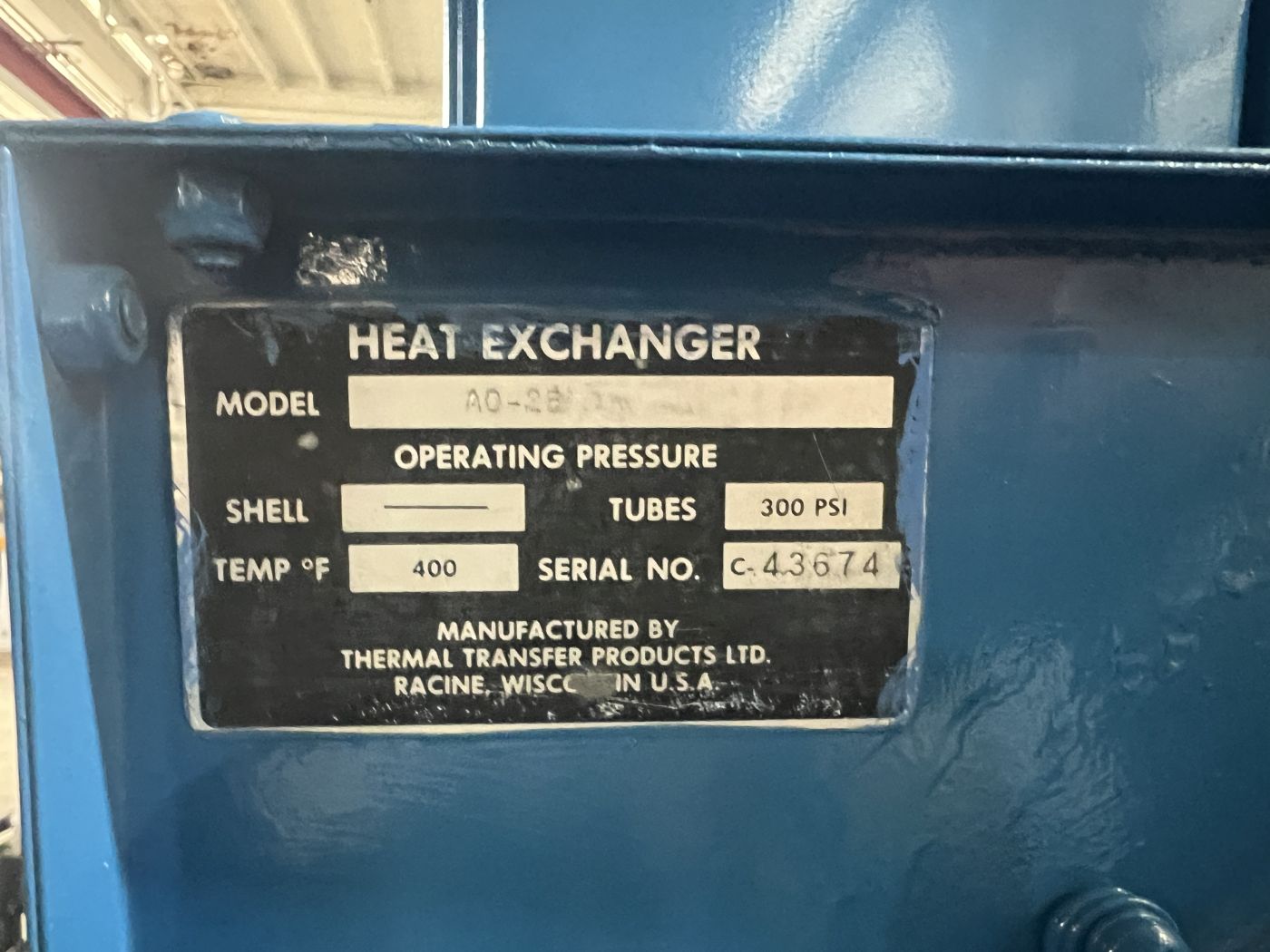

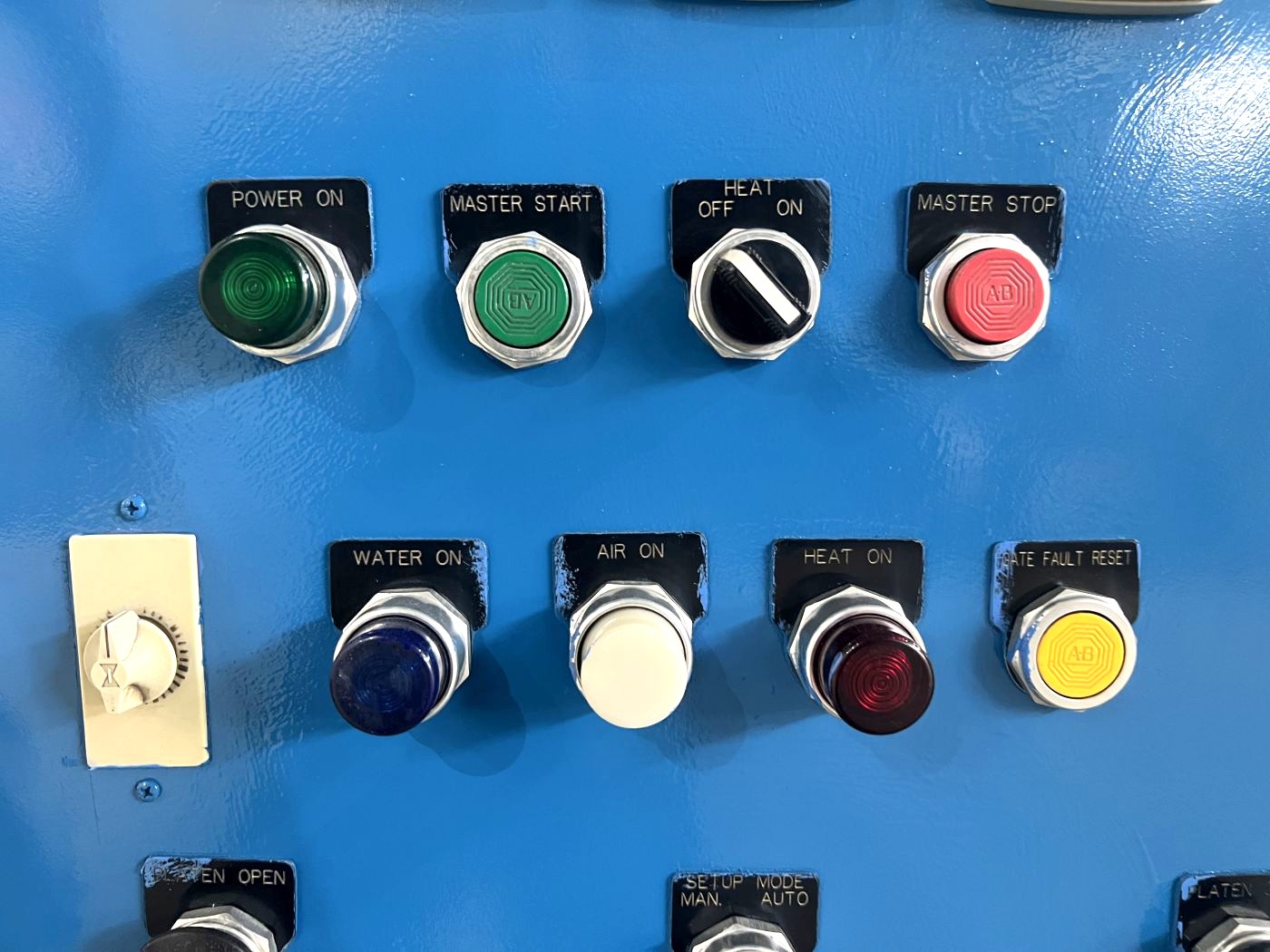

| MAX. CAPACITY | 200 TONS AT 2,550 PSI | MAX. STROKE | 12" | MAX. DAYLIGHT TO BED | 12" TO 24" | OVERALL BED / RAM AREA | 48" X 32" (rL X FB) | DISTANCE BETWEEN POSTS | 36" X 20" (RL X FB) | USABLE BED AREA | 36" X 32" (RL X FB) | ELECTRIC HEATED PLATENS | 30" X 30" (RL X FB) X 3.25" THICK WITH INSULATION - 1,500 WATTS PER PLATEN (Air & Water Cooled) | CYLINDER SIZE | (2) 10" BORE - HYDRO-LINE MODEL N2G | RAM ROD SIZE | 4.5" | POSTS / 4 COLUMNS SIZE | 4" | FLOOR TO BED HEIGHT | 43" | PRESS CONTROLS | RELAY LOGIC CONTROLLER | HYDRAULIC SYSTEM | 66 GALLON RESERVOIR | ELECTRIC MOTOR | APPROX. 10 HP MOTOR | APPROX. DIMENSIONS | 97" X 77" (RL X FB) X 96" HIGH | APPROX. WEIGHT | __ | Equipped With | AIR & WATER COOLED HEATED PLATEN SYSTEM, THERMAL TRANSFER PRODUCTS MODEL AO-25 HEAT EXCHANGER | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
