220 Ton Stamtec Used Press for Sale • Stamtec S2-200 Press

220

220
Ton
72″
Bed R-L
3.93″
Stroke
Speed: 60-120 SPM
New in 1998

1
Straight Side Used Press

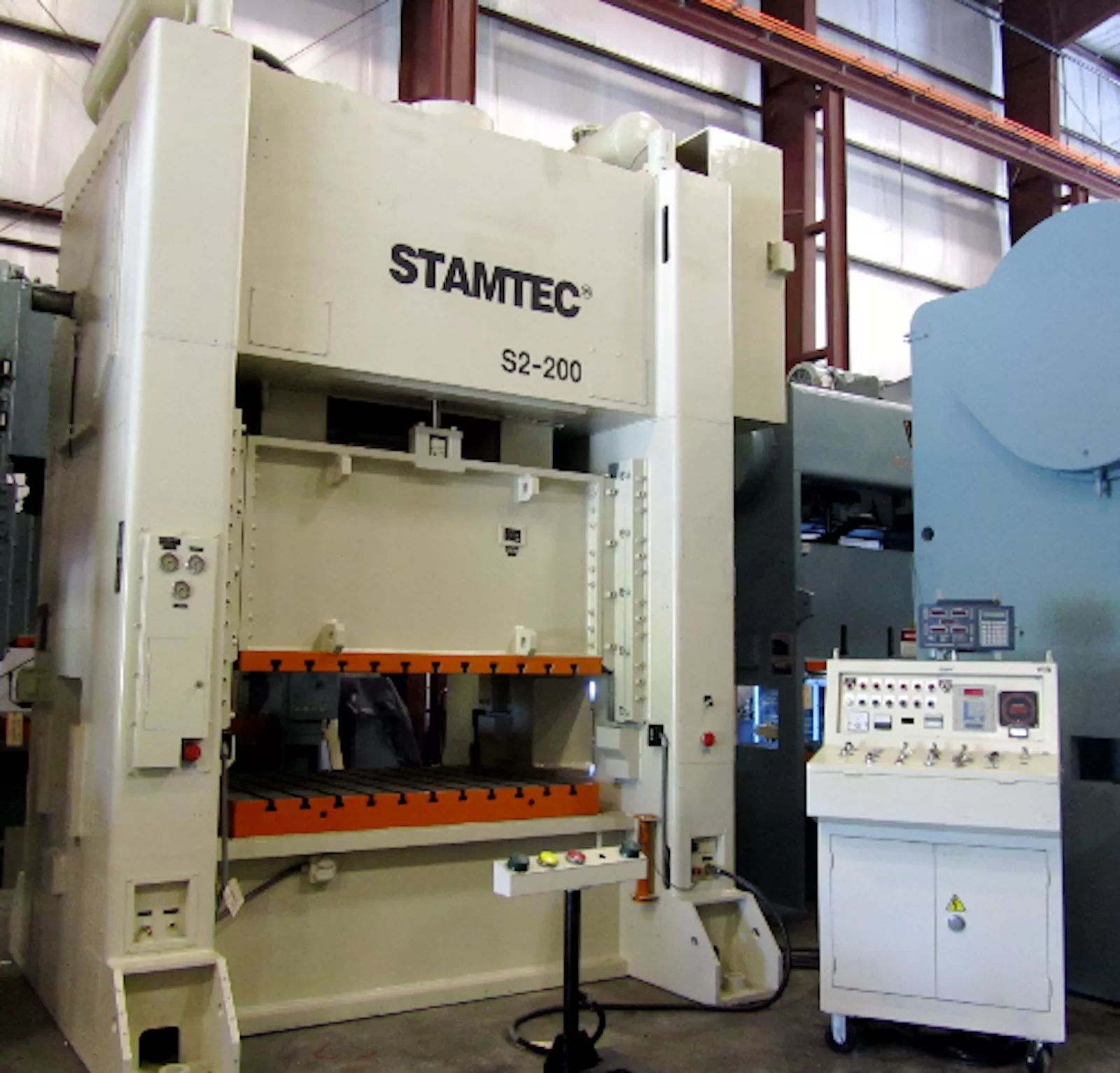

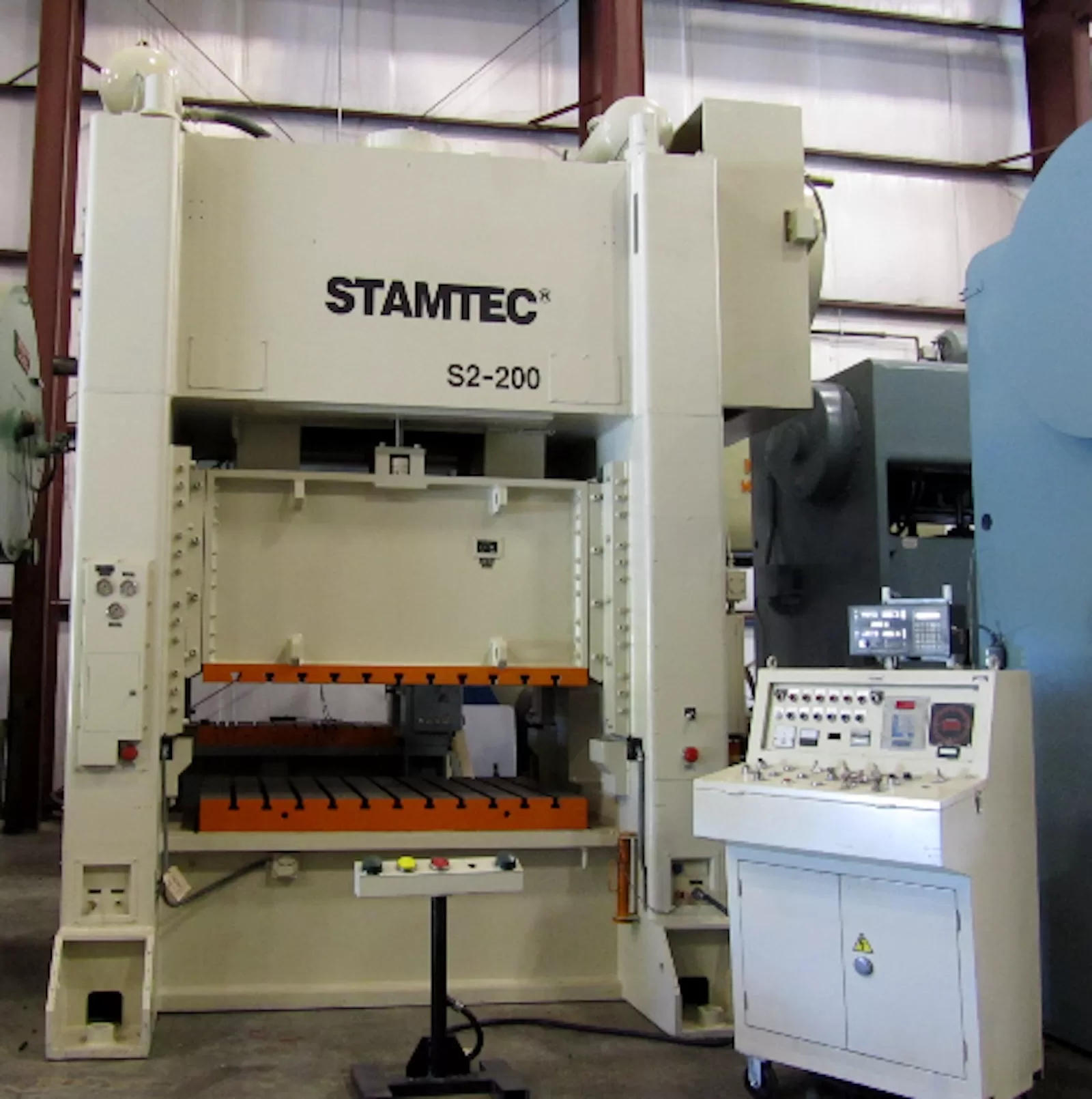

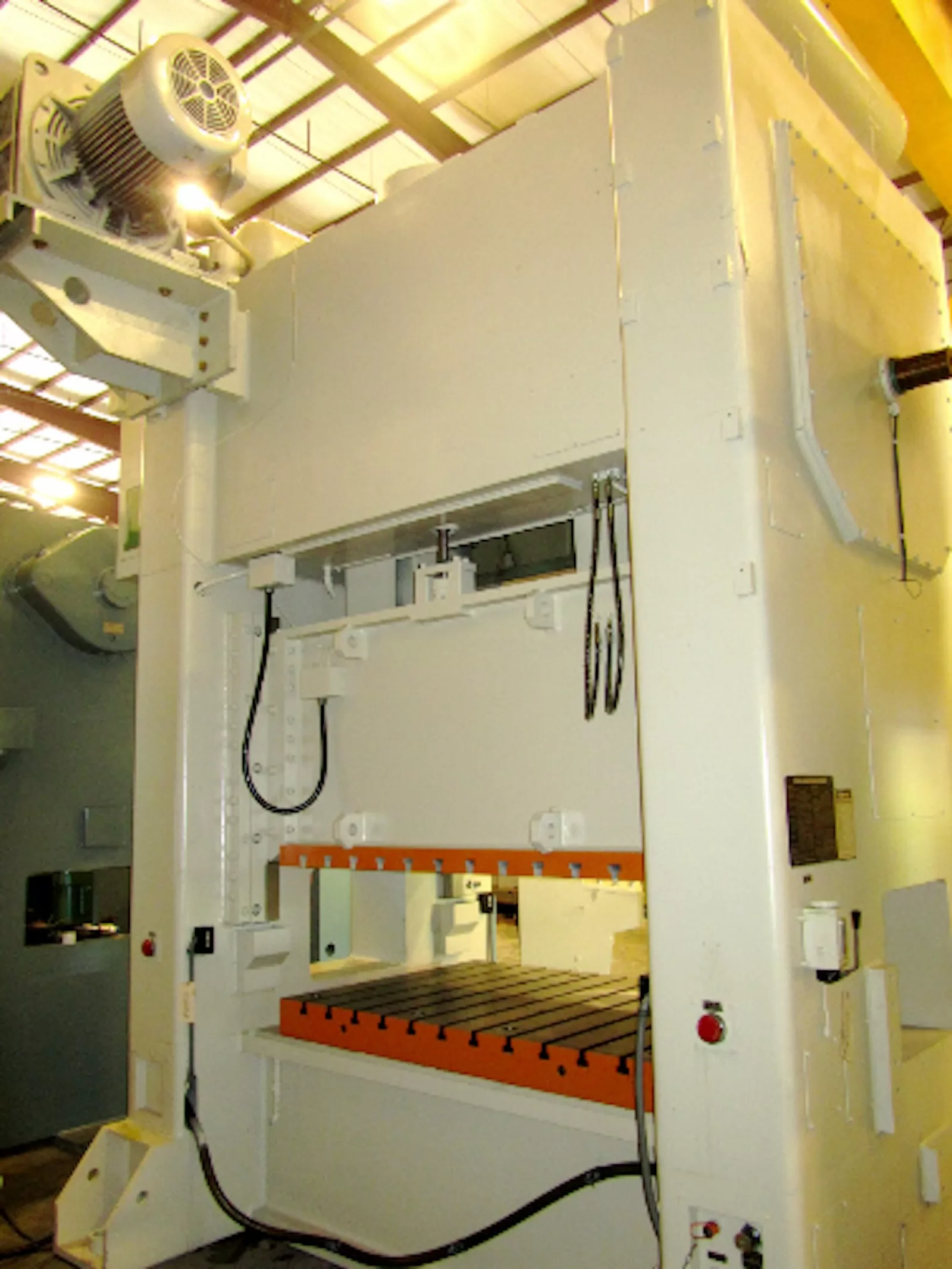

Model: Stamtec S2-200
3.94″ STR, 22.09″ SH OB, 72X48 BED, 60-120 SPM, RECONDITIONED & UNDER POWER, PRICE CUT

High Speed Presses for Sale
Used Stamtec Stamping Press (Mechanical)
Machine #4732
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Used Press for Sale

Manufacturer: Stamtec
Model: Stamtec S2-200-72-48 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1998
Machine #: 4732
Buy Now: $





CAPACITY 220 US TON @ .256″ (ABOVE BOTTOM)
STROKE 3.93″
SHUT HEIGHT OVER ( 6″) BOLSTER 22.09″

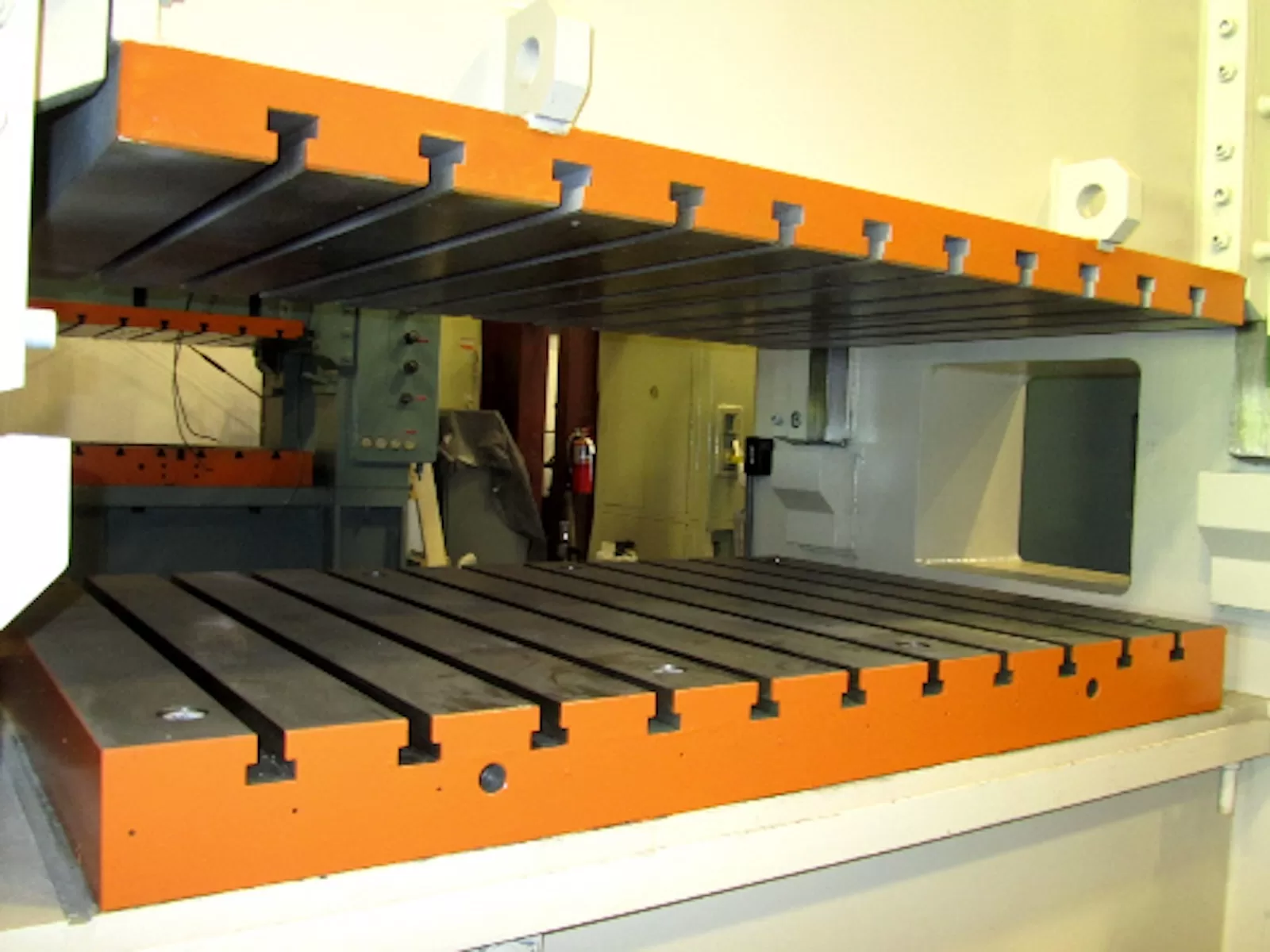

BED AREA 72.10 ” RL X 48.07″ FB
RAM AREA: 72.10 ” RL x 48.07″ FB (T-SLOTTED)

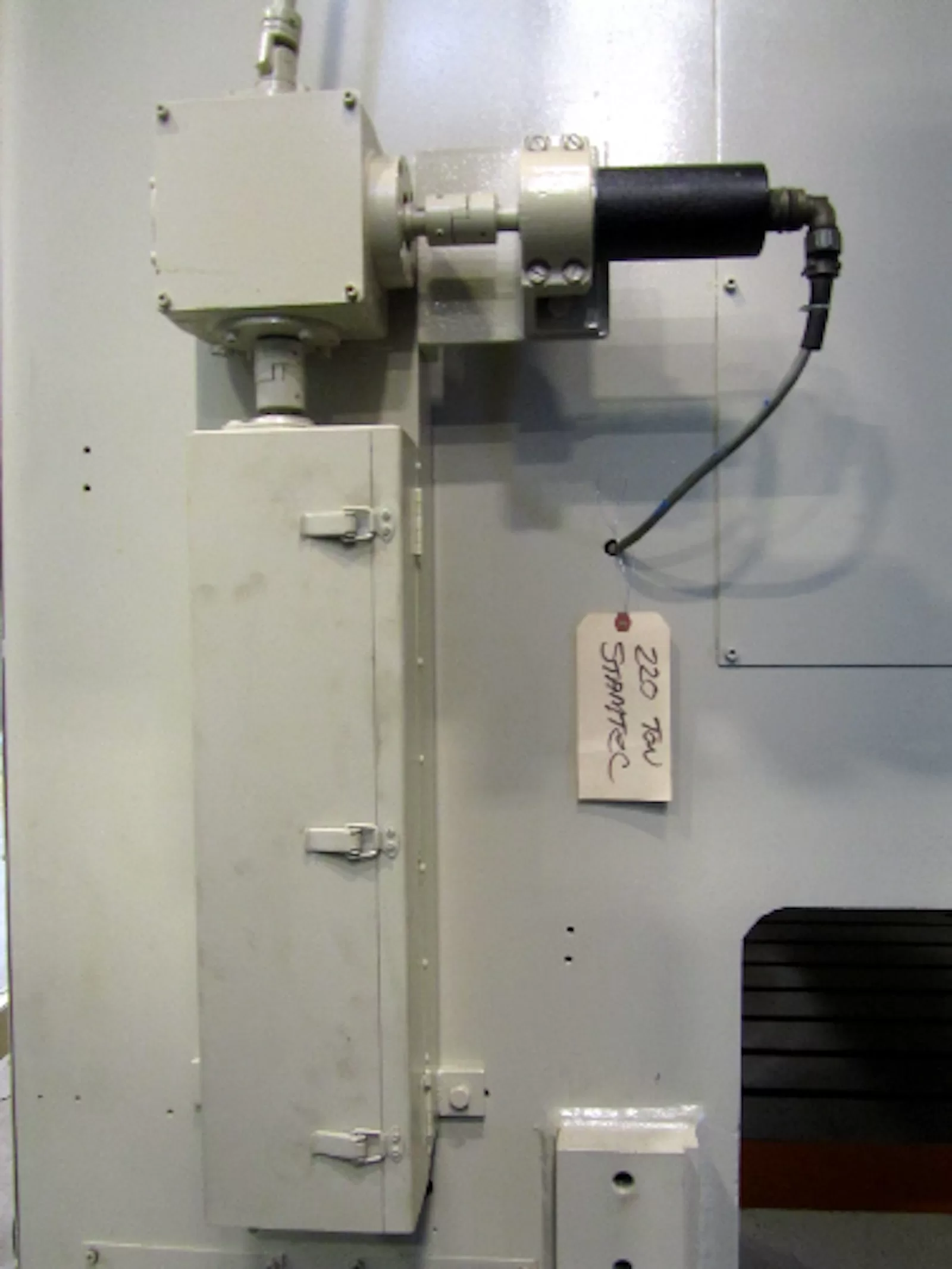

RAM ADJUSTMENT: 5.91″ (MOTORIZED)
SPEED: 60 – 120 SPM (VARIABLE)
BOLSTER SIZE: 6″ H X 72.10 ” RL X 48.07″ FB (T-SLOTTED)

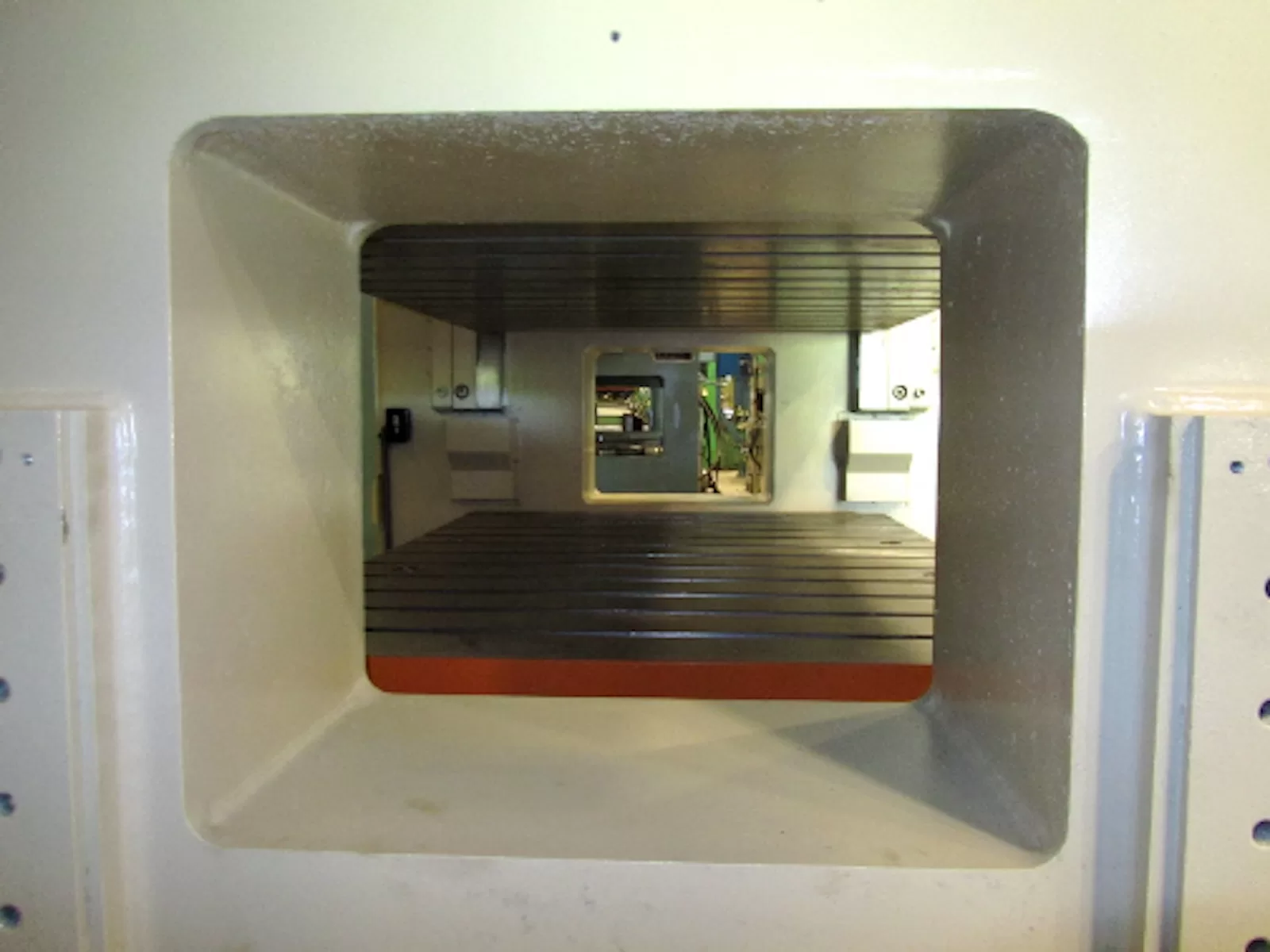

WINDOW SIZE: 23-1/2″ FB X 19-1/2″ H
DIST UPRIGHTS / FLOOR TO BED: 85-1/2″ / 31″

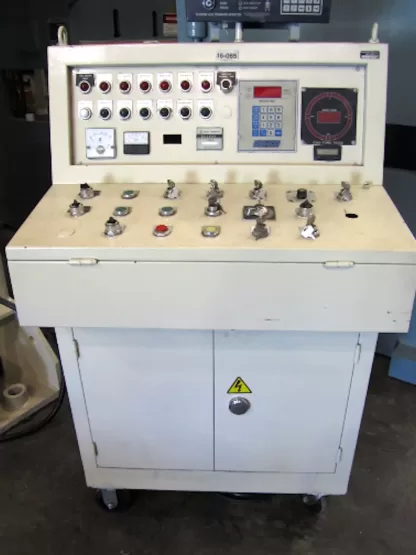

ELECTRICS: 50 HP, 1800 RPM, 460V-3-60 EDDY-CURRENT DRIVE WITH STAMTEC CONTROL CONSOLE.
APPROX DIMENSIONS: 15 ‘ H X 13 ‘ W X 8’6″ FB
APPROX WEIGHT: 65,000 LBS.

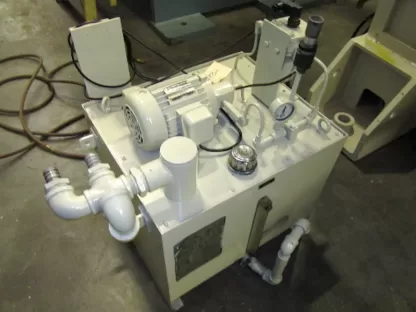

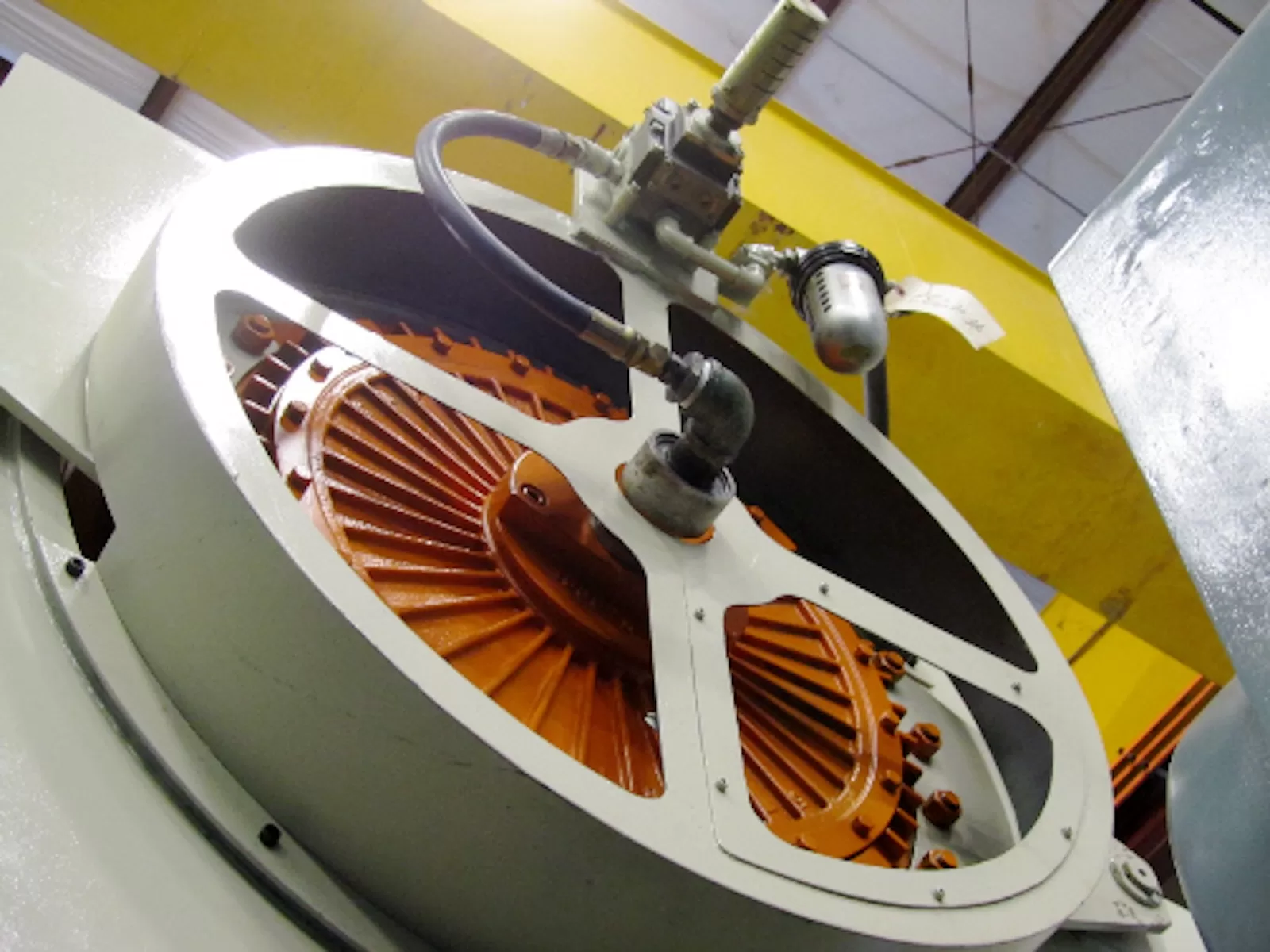

Equipped With STEEL FRAME CONSTRUCTION & TIE RODS FLOOR STANDING BASE AIR COUNTERBALANCED RAM RECIRCULATING OIL LUBRICATION SYSTEM TWIN GEAR DRIVE W/GEARS IN OIL BLANCHARD GROUND BOLSTER PLATE TONNAGE MONITORING & DIE PROTECTION
Note __
Location This used press is located in our Columbia, TN Warehouse
