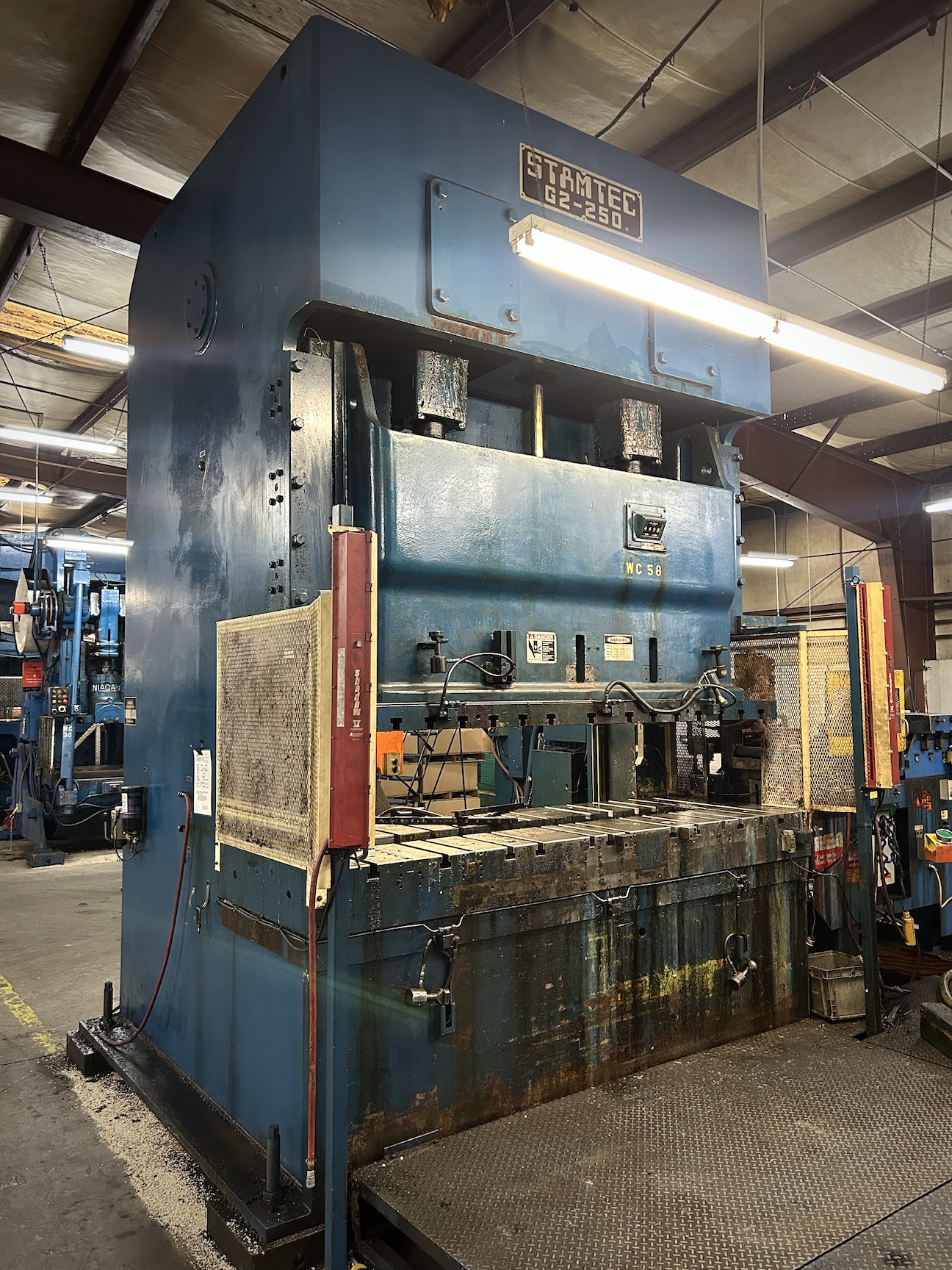

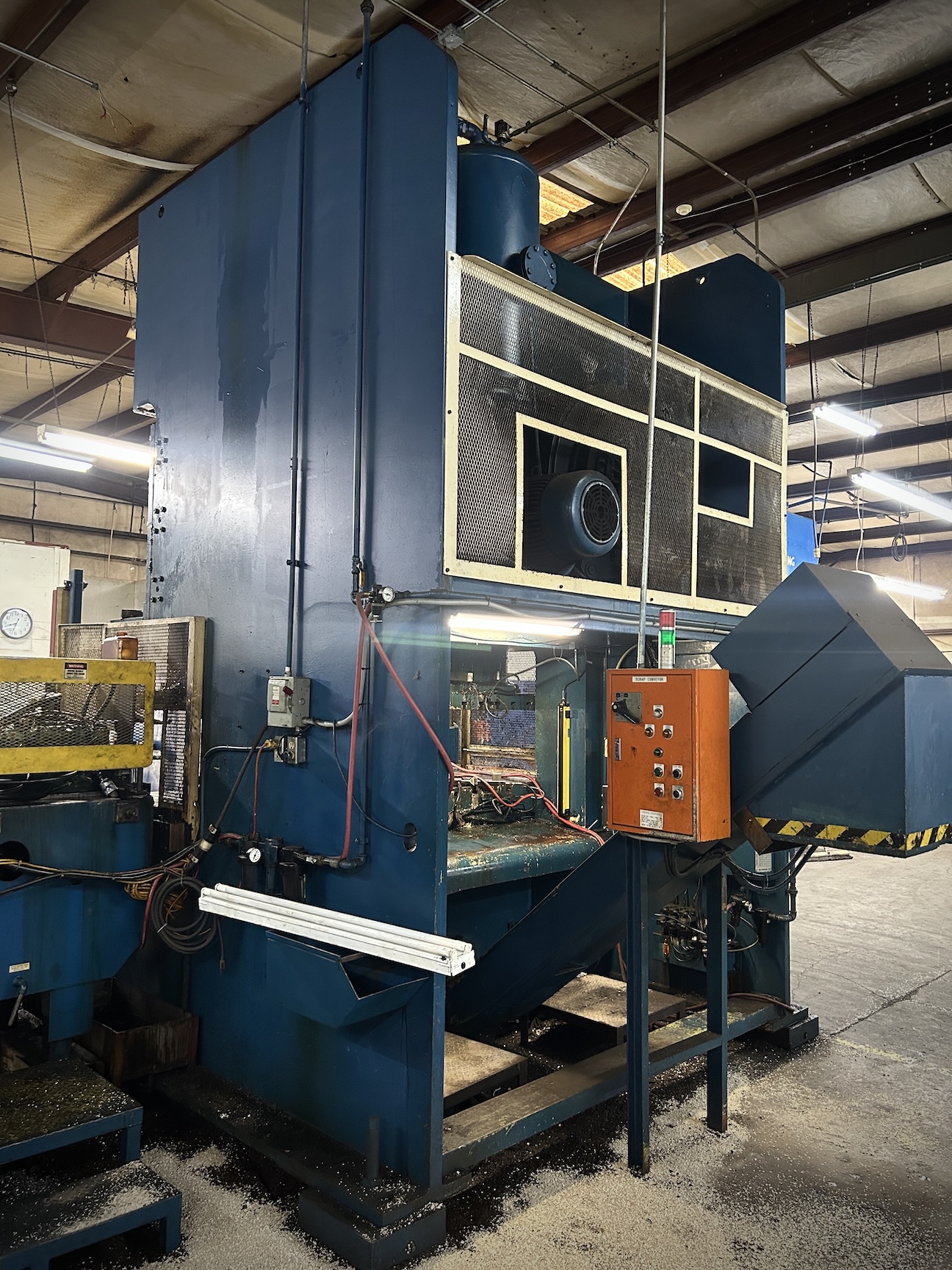

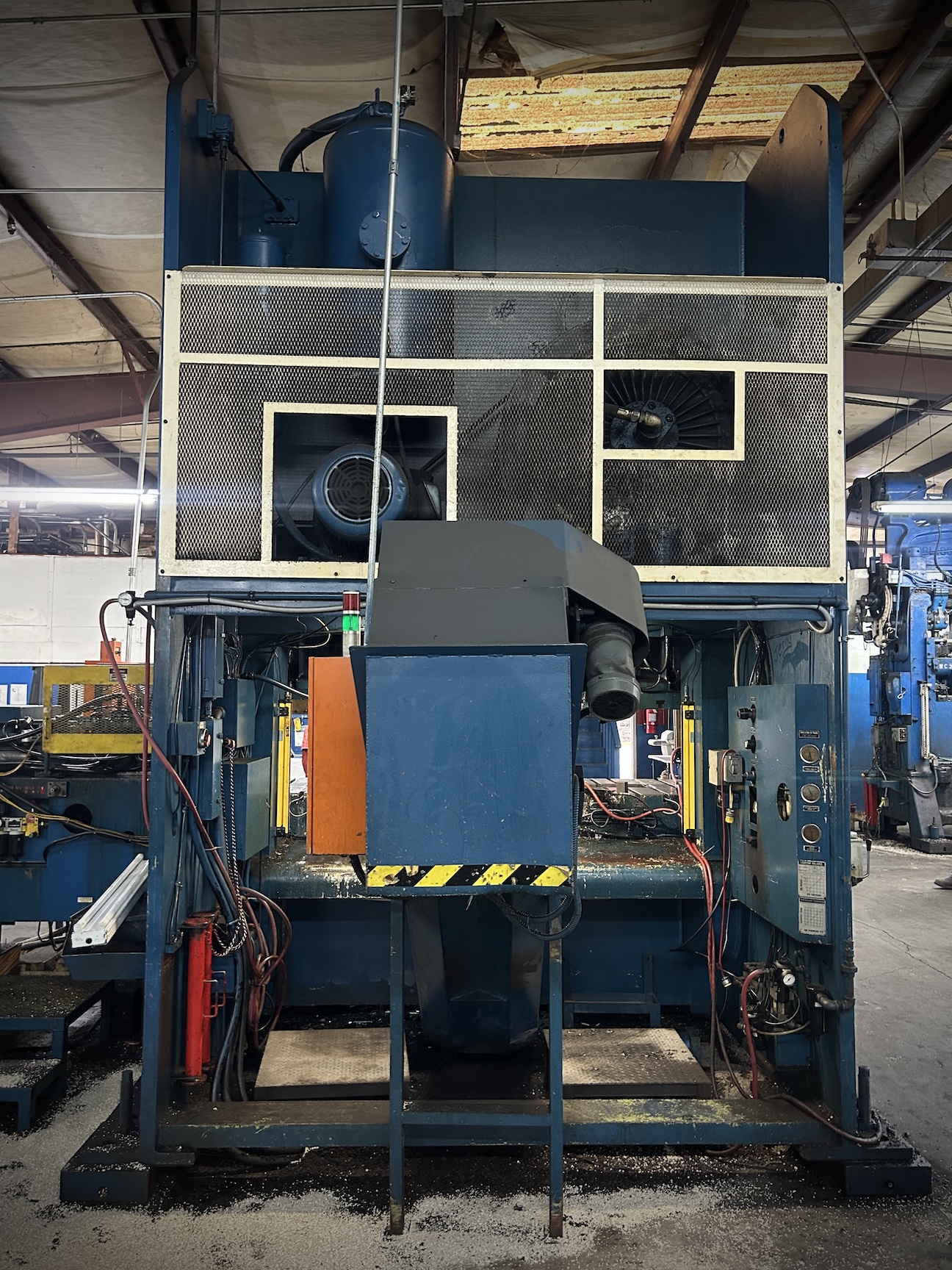

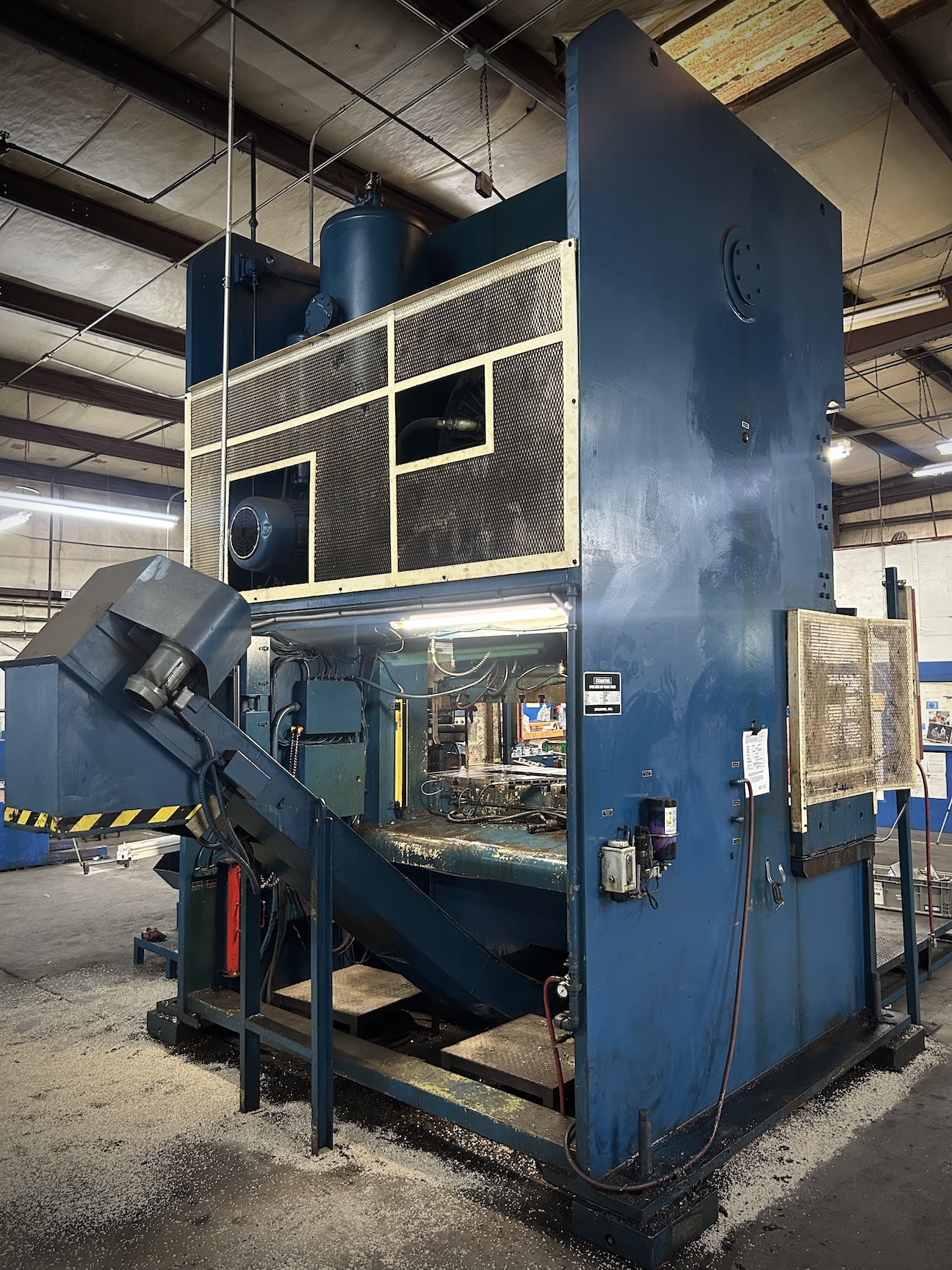

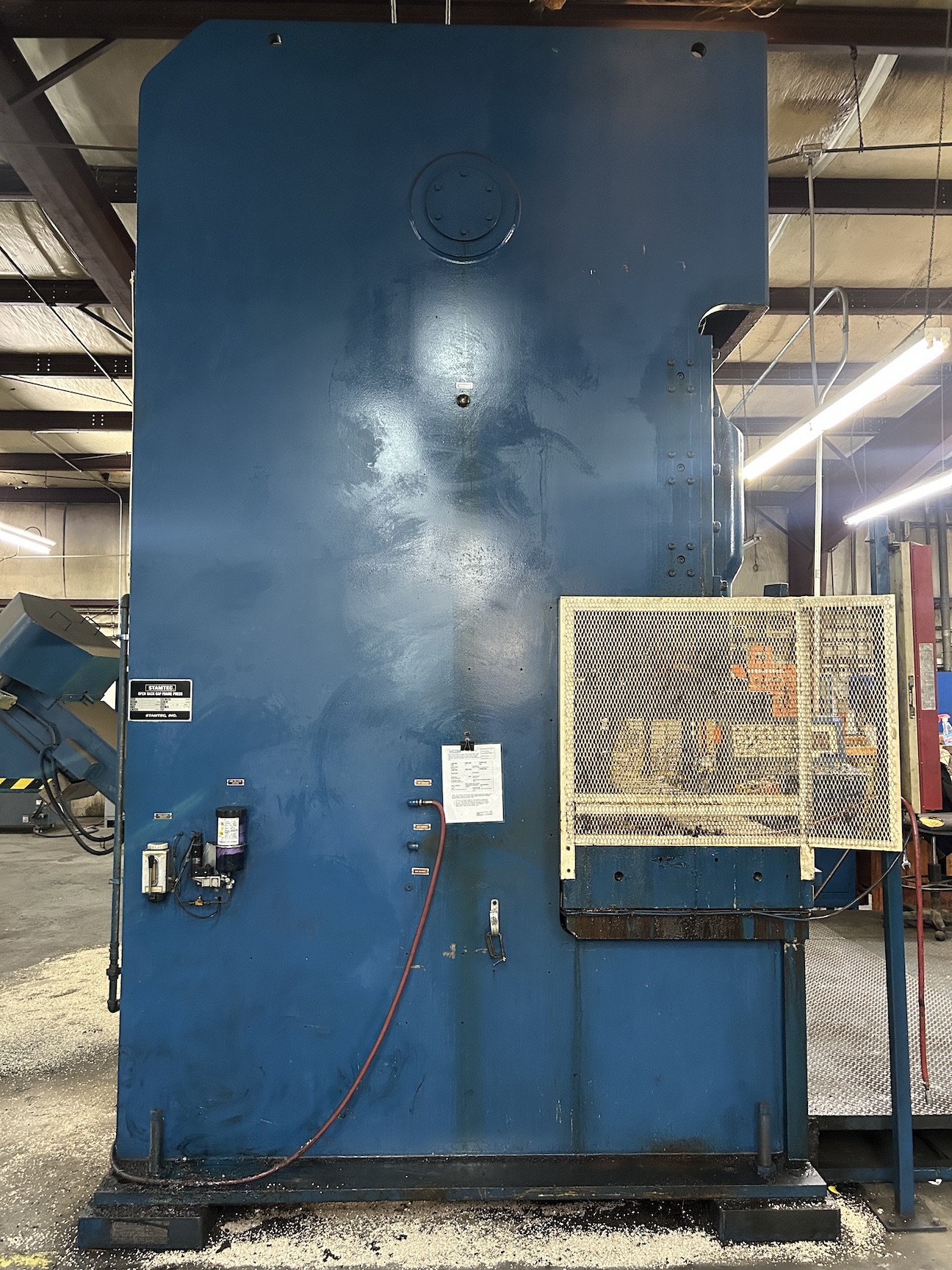

Double Point Press • Used 275 Ton Press for Sale

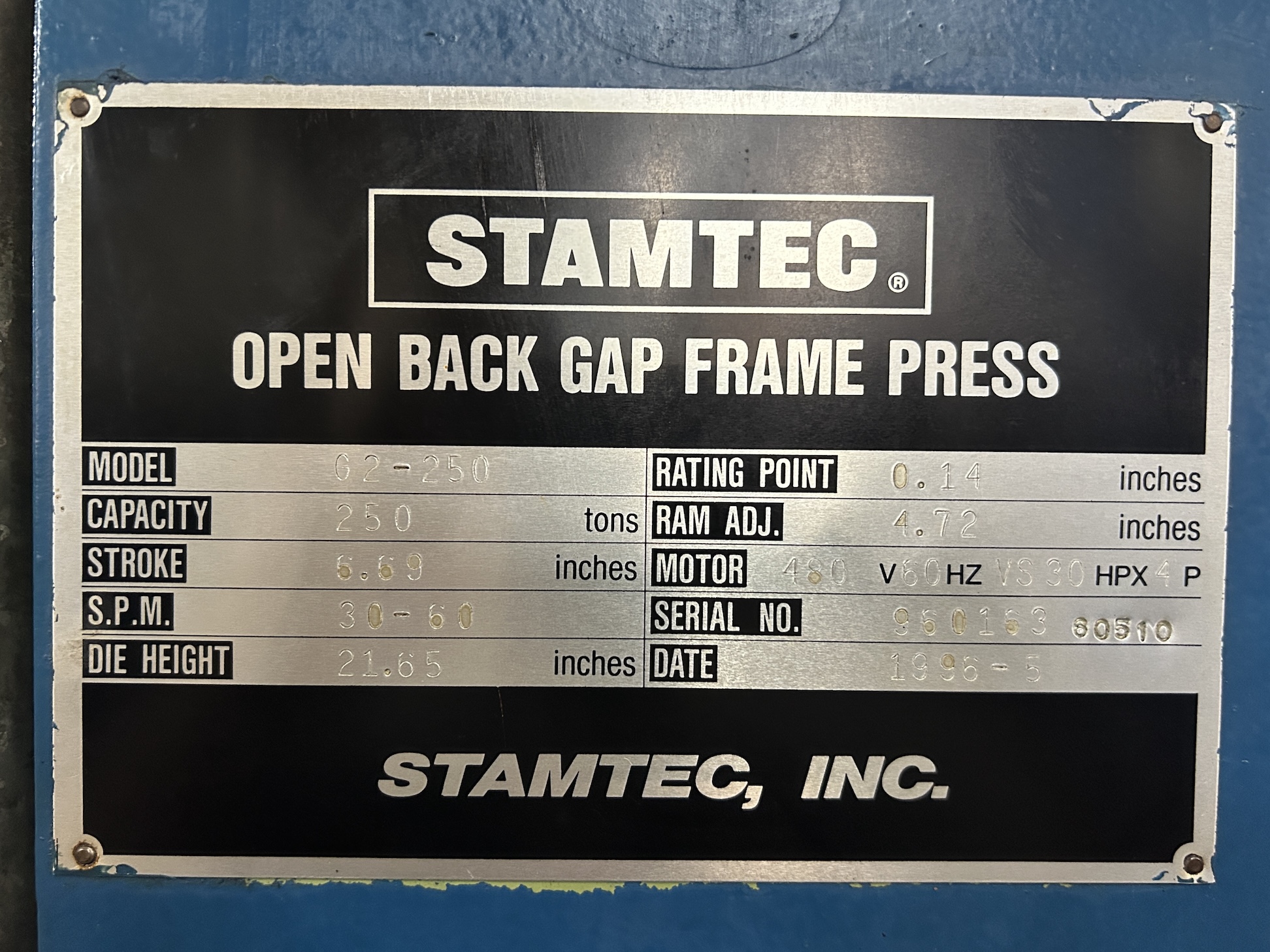

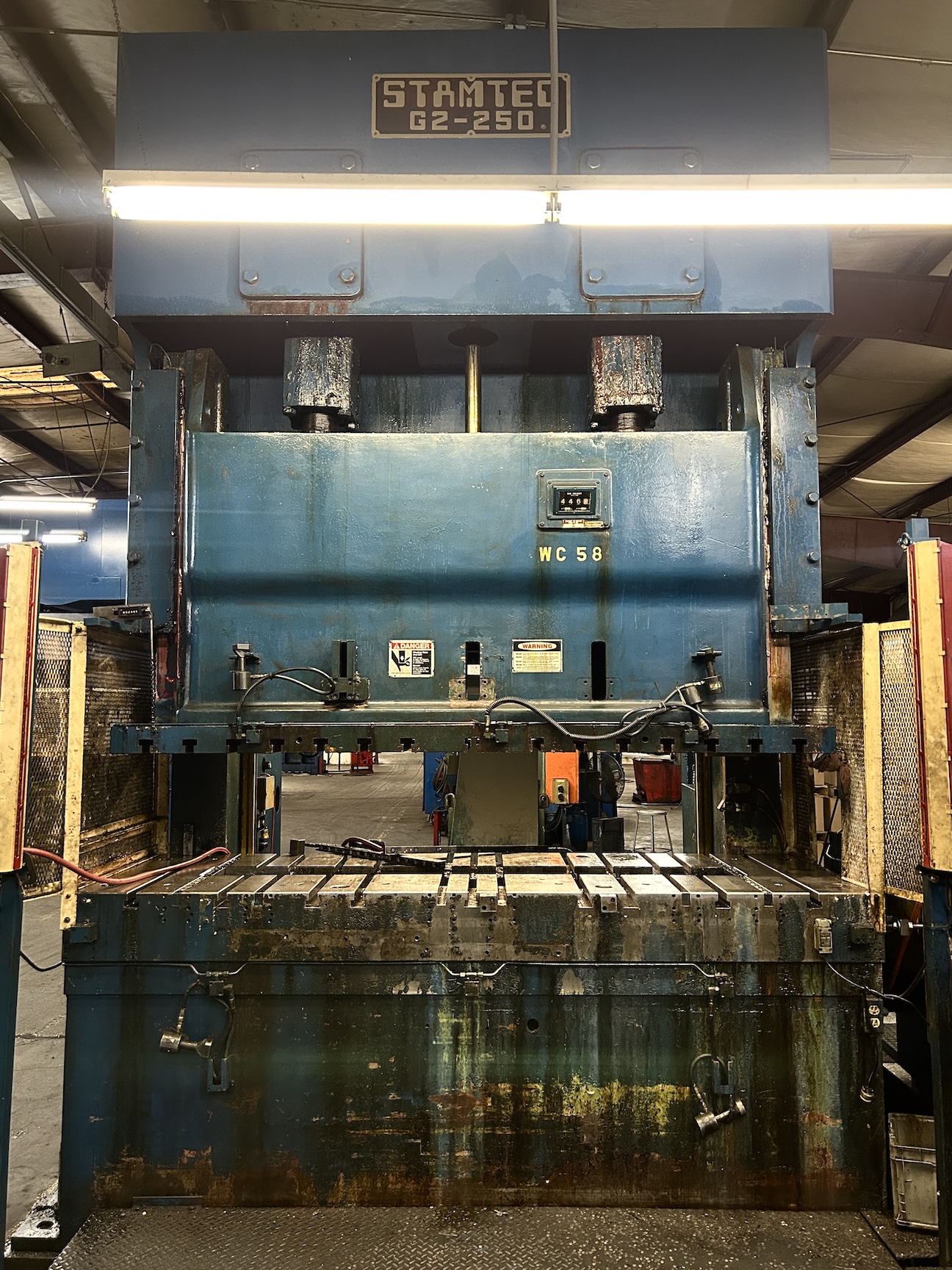

Model: Stamtec G2-250 Press
Condition: Very Good
Location: **On Location**
Year: 1996
Machine #: 8396
Buy Now: $

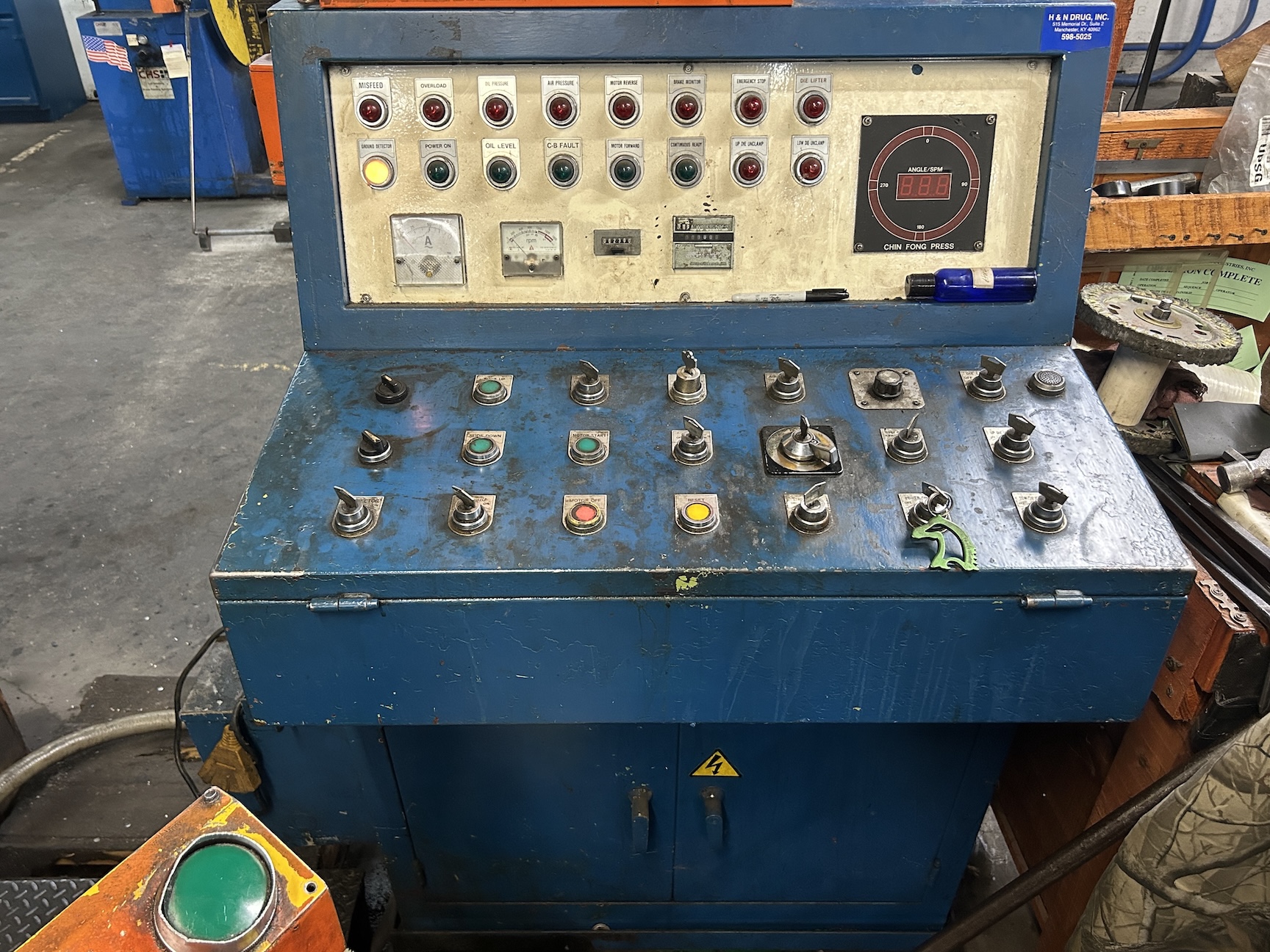

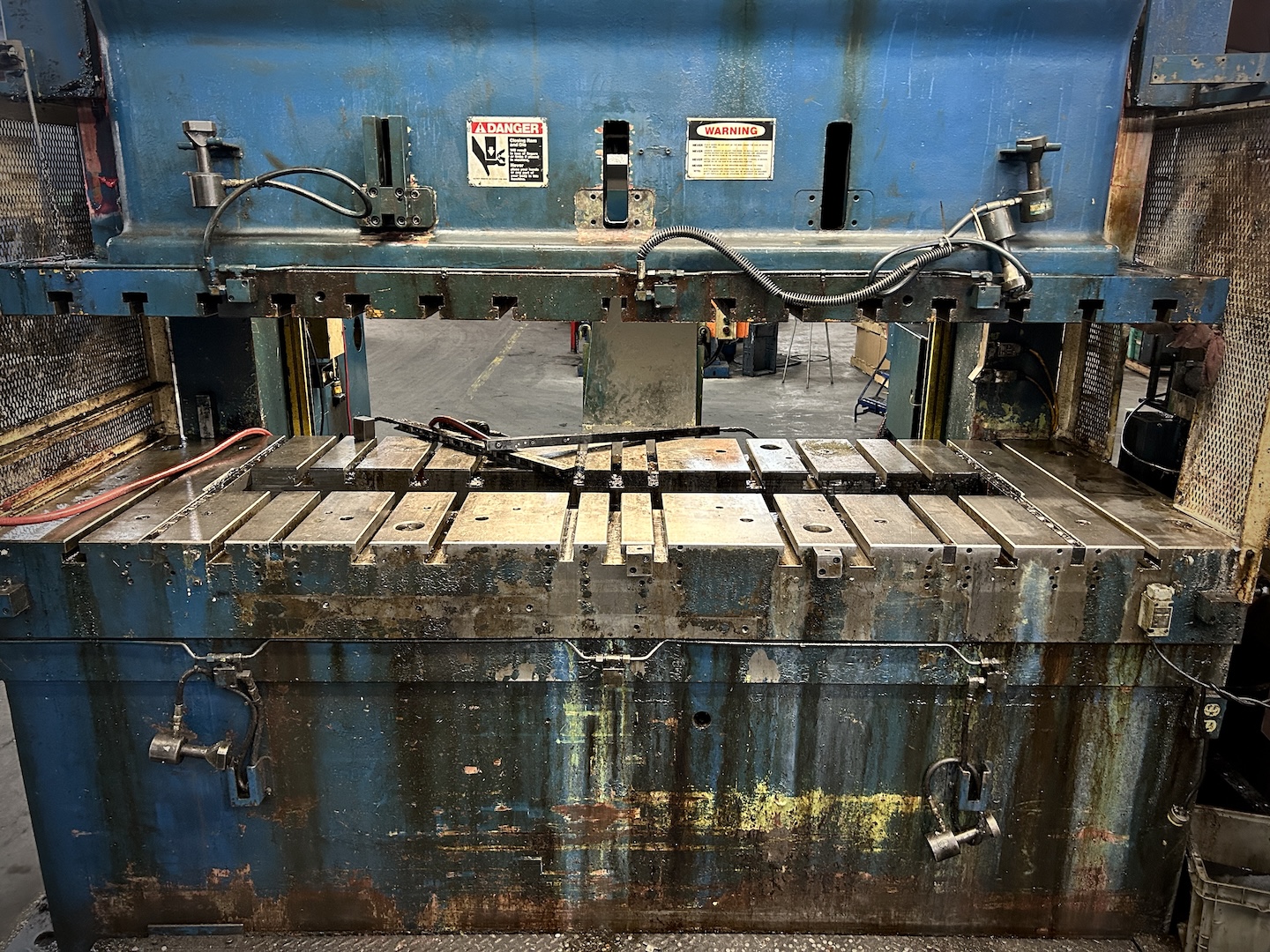

| capacity | 275 us ton | stroke | 6.7" | max die height | 21.7" sdau over bolster plate | bed area | 106.3" x 35.4" (rl x fb) | speed | 30 - 60 spm | slide adjustment | 4.7" motorized | slide area | 82.7" x 27.6" (rl x fb) (t-slotted) | bolster plate | 6.3" h x 106.3" rl x 35.4" fb (t-slotted) | distance between uprights | 83.5" | distance floor to bed | 37" without isolator pads | clutch | stamtec air clutch / brake combination | electrics | 25 hp 1750 rpm 480v-3-60 motor & new cieco 1100r6 press control for recond. price | approx dimensions | 177" H X 120" RL X 101" FB | approx weight | 90,000 lbs. | Equipped With | flywheel brake, hydraulic overload system, air counterbalance system, automatic lubrication system, removable, flanged, t-slotted slide plate & bolster, motorized slide adjustment, & floor standing | Note |
|---|---|
| Location | This Used Press is Located in Our **On Location** |
