Description

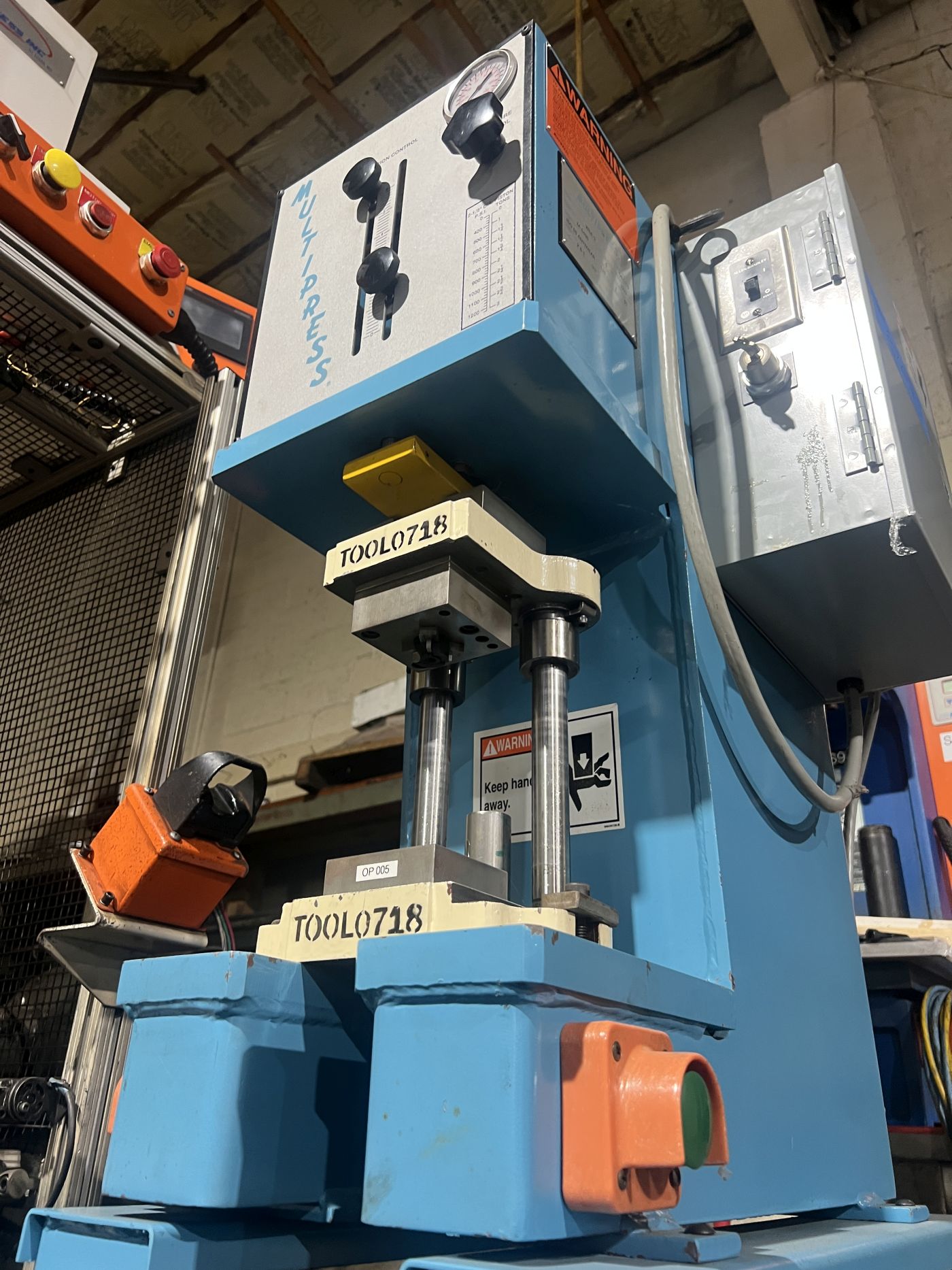

C Frame Hydraulic Press • Used 3 Ton Press for Sale
Model: Multipress W6A-3 Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 2003
Machine #: 8247
Buy Now: $
| MAX. CAPACITY | 3 TONS AT 1,222 PSI | MAX. STROKE | 7" | MAX. DAYLIGHT TO BED | 11" | BED AREA | 16.25" X 9.75" (RL X FB) | CYLINDER SIZE | 2.5" DIA. BORE - PARKER SERIES 3L TB3LLTS23 (1,400 MAX. PSI) | RAM ROD | 1.75" DIA. | RAM PLATE SIZE | 4.75" X 3.25" (RL X FB) | THROAT DEPTH | 5" | FLOOR TO BED HEIGHT | 5" - ON 25.25" TABLE -> 30.25" TOTAL WORKING HEIGHT | SPEEDS | __ | PRESS CONTROLS | ALLEN-BRADLEY MICROLOGIX 1000 CONTROLLER | HYDRAULIC SYSTEM | 5 GALLON RESERVOIR - 2 & 1 GPM PUMP OUTPUT | ELECTRIC MOTOR | .75 HP 115/230V-1-60 RELIANCE ELECTRIC MOTOR | 11/5.5 AMPS | Approx. Dimensions | 23" X 30" (RL X FB) X 35" HIGH | Approx. Ship Weight | __ | Equipped With | MANUAL POSITION & PRESSURE CONTROL VALVES ON FRONT OF PRESS | Note | CYLINDER IS RATED FOR 7" STROKE BUT THE CURRENT POSITION ADJUSTMENT LIMITS THE PRESS TO 6" |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
