Machine Specifications

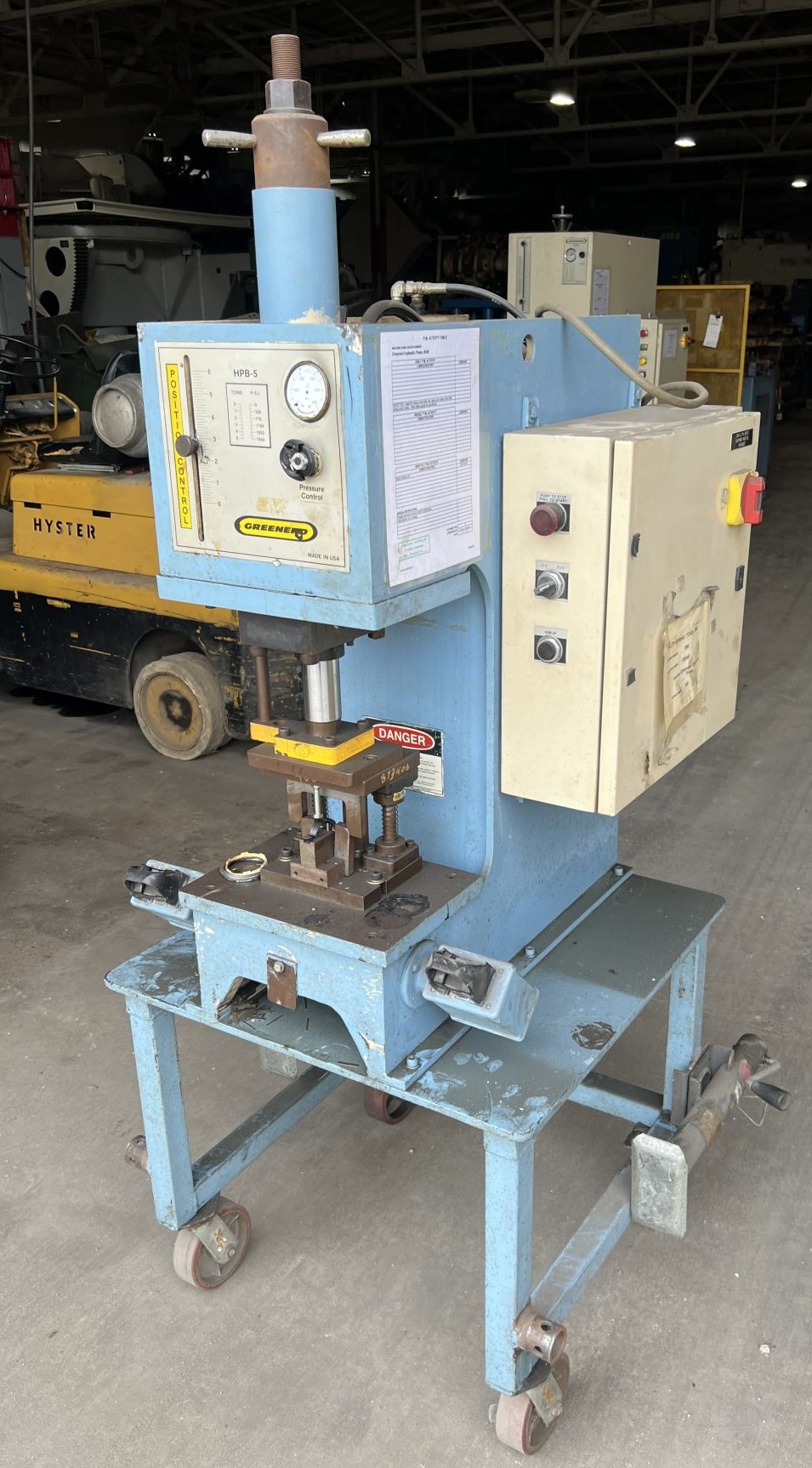

Gap Frame Assembly Press for Sale
Manufacturer: Greenerd
Model: Greenerd HPB-5 Press
Condition: Very Good
Location: Jackson, MI Falahee Building
Year: 1997
Machine #: 8072
Buy Now: $
| MAX. CAPACITY | 5 TONS AT 2,040 PSI | Max. stroke | 6″ | max daylight | 12″ | Bed area | 14″ x 10 (rl x FB) | Ram Area | 4″ x 4″ (RL x fb) | Throat Depth | 7.25″ | Floor to Bed Height | APPROX. 36″ | Cylinder Size | 2.5″ dia. Bore | Ram Rod size | 1.38″ DIA. | SPEEDS | 329 IPM CLOSING / 94 IPM PRESSING / 473 IPM OPENING | PRESS CONTROLS | ALLEN-BRADLEY MICROLOGIX 1000 CONTROLLER | Electric Motor | 3 HP 230/460V-3-60 LINCOLN A.C. MOTOR | 8.4/4.2 AMPS | Hydraulics | BARNES 1300486 PUMP | 12 GAL. MILLER FLUID POWER RESERVOIR | Approx. Dimensions | 49″ X 42″ (RL X FB) X 77″ HIGH – pRESS ONLY, NOT ON TABLE HEIGHT IS 50″ | Approx. Weight | APPROX. 850 LBS. | Equipped With | EK-505-0 THERMAL TRANSFER PRODUCTS HEAT EXCHANGER (WATER) TO KEEP HYDRAULIC OIL COOL DURING LONG DURATION OPERATION, AIR COOLER OPTIONAL (NEED TO VERIFY IF ON PRESS) | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Falahee Building |
