60 Ton Minster Press • Used Minster #70-4 Press

60

60
Ton
32″
Bed R-L
6″
Stroke
Speed: 65 SPM
New in 1

1
60 Ton Used Press – C Frame Press
Model: Minster #70-4
6″ STR, 14.25″ SH, 32X21 BED, 65 SPM, 3″ ADJ

Gap Frame Presses for Sale
Used Minster Punch Press (Mechanical)
Machine #6923
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

C Frame Press for Sale

Manufacturer: Minster
Model: Minster 70-4 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1977
Machine #: 6923
Buy Now: $





CAPACITY 60 TONS
STROKE 6″
MAX SHUT HEIGHT TO BED 14.25″ SDAU

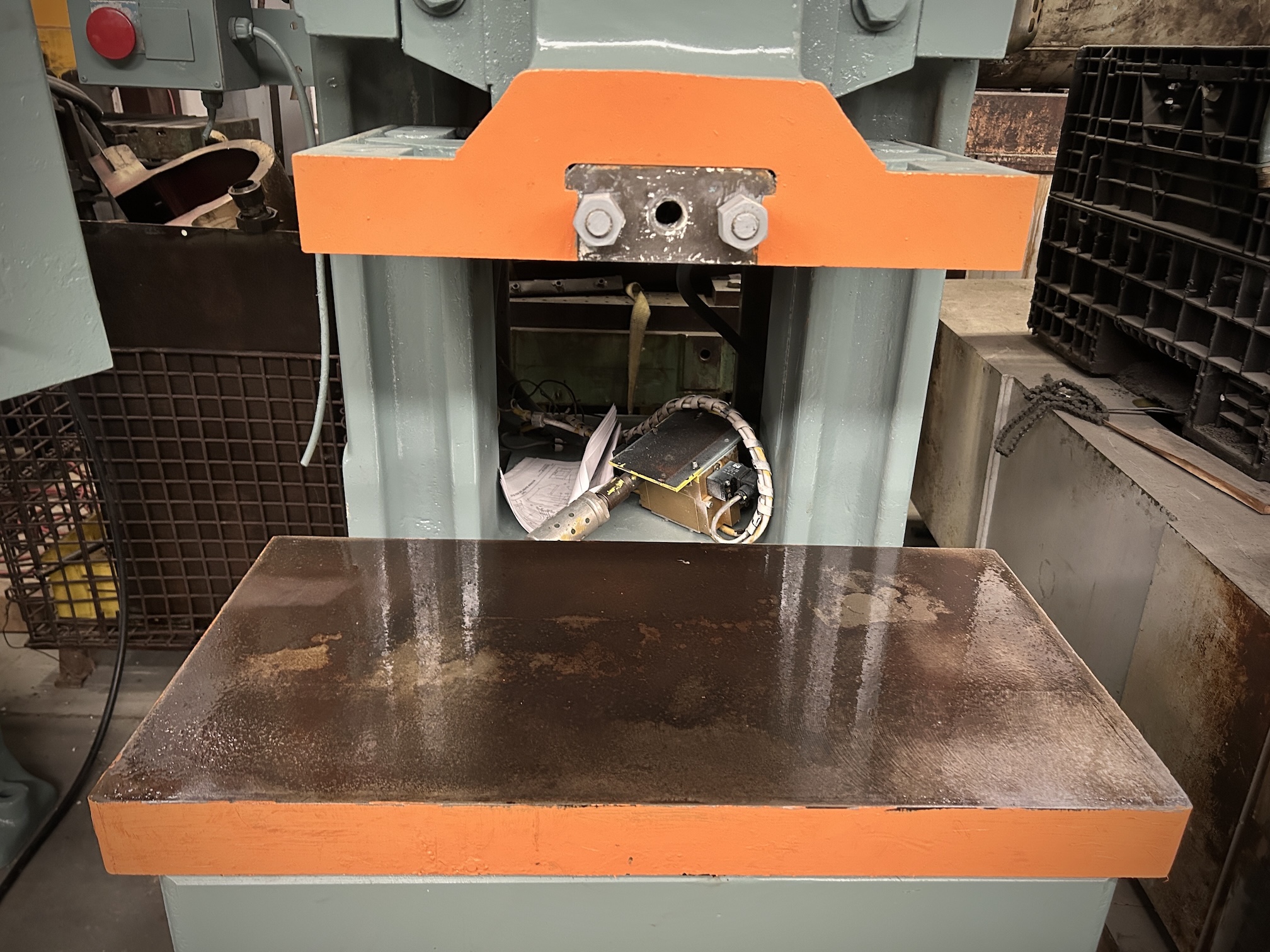

BED AREA 32″ RL X 21″ FB
SPEED 65 SPM
SLIDE ADJUSTMENT 3″ MANUAL
SLIDE AREA 21″ RL X 14″ FB
BOLSTER PLATE APPROX 2.5″ H X 32″ RL X 21″ FB
DISTANCE BETWEEN UPRIGHTS 15″
DISTANCE FLOOR TO BED APPROX 33″
CLUTCH MINSTER AIR CLUTCH / BRAKE COMBINATION

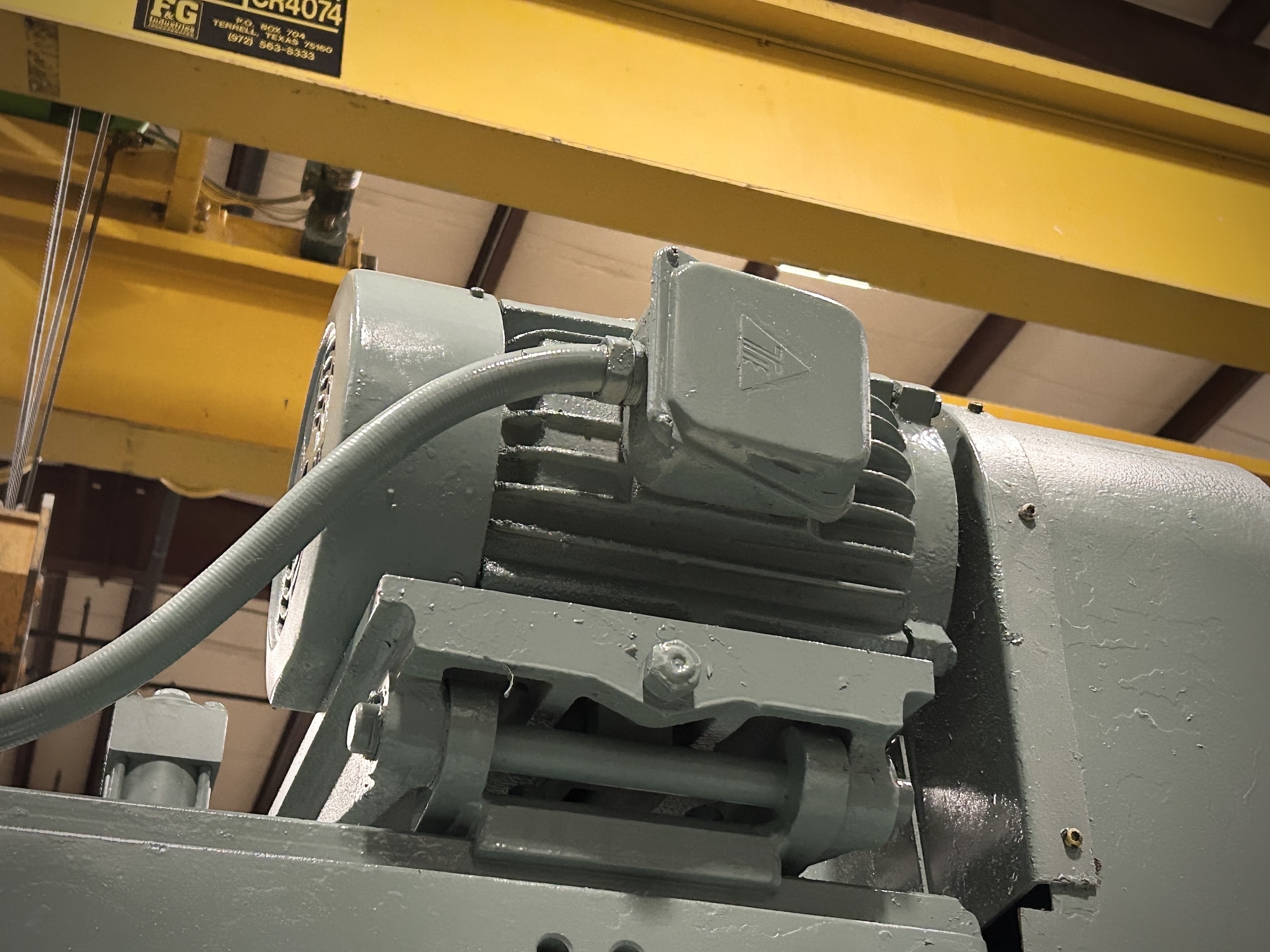

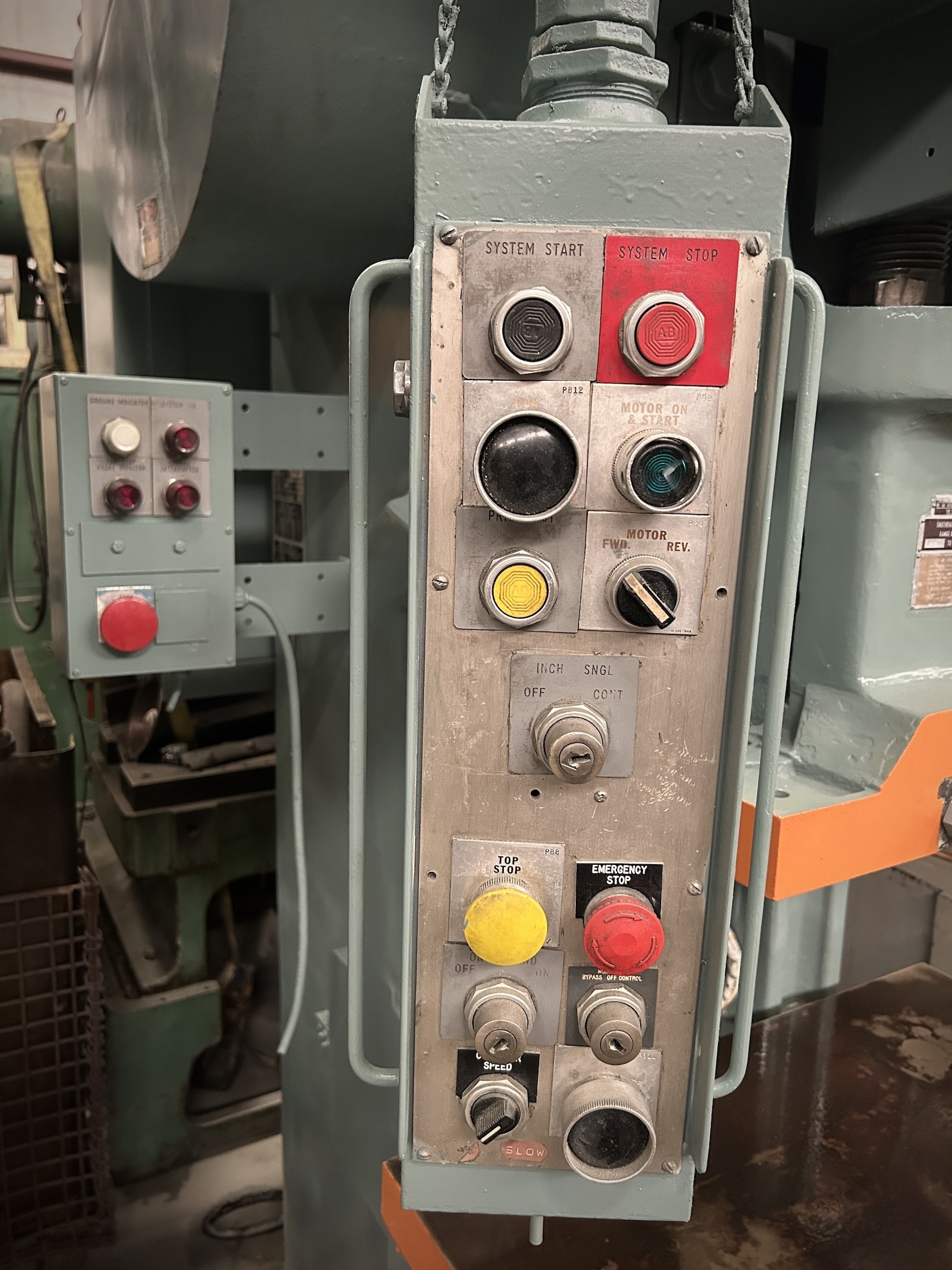

ELECTRICS APPROX 7.5 HP 1750 RPM 480V-3-60 MOTOR & MINSTER RELAY PRESS CONTROL
APPROX DIMENSIONS 115″ H X 60″ RL X 72″ FB
APPROX WEIGHT 14,000 lbs
Equipped With AIR COUNTERBALANCES, FLOOR STANDING, CAST IRON FRAME
Note __
Location This used press is located in our Columbia, TN Warehouse
