Machine Specifications
OBI Press for Sale
Manufacturer: Komatsu

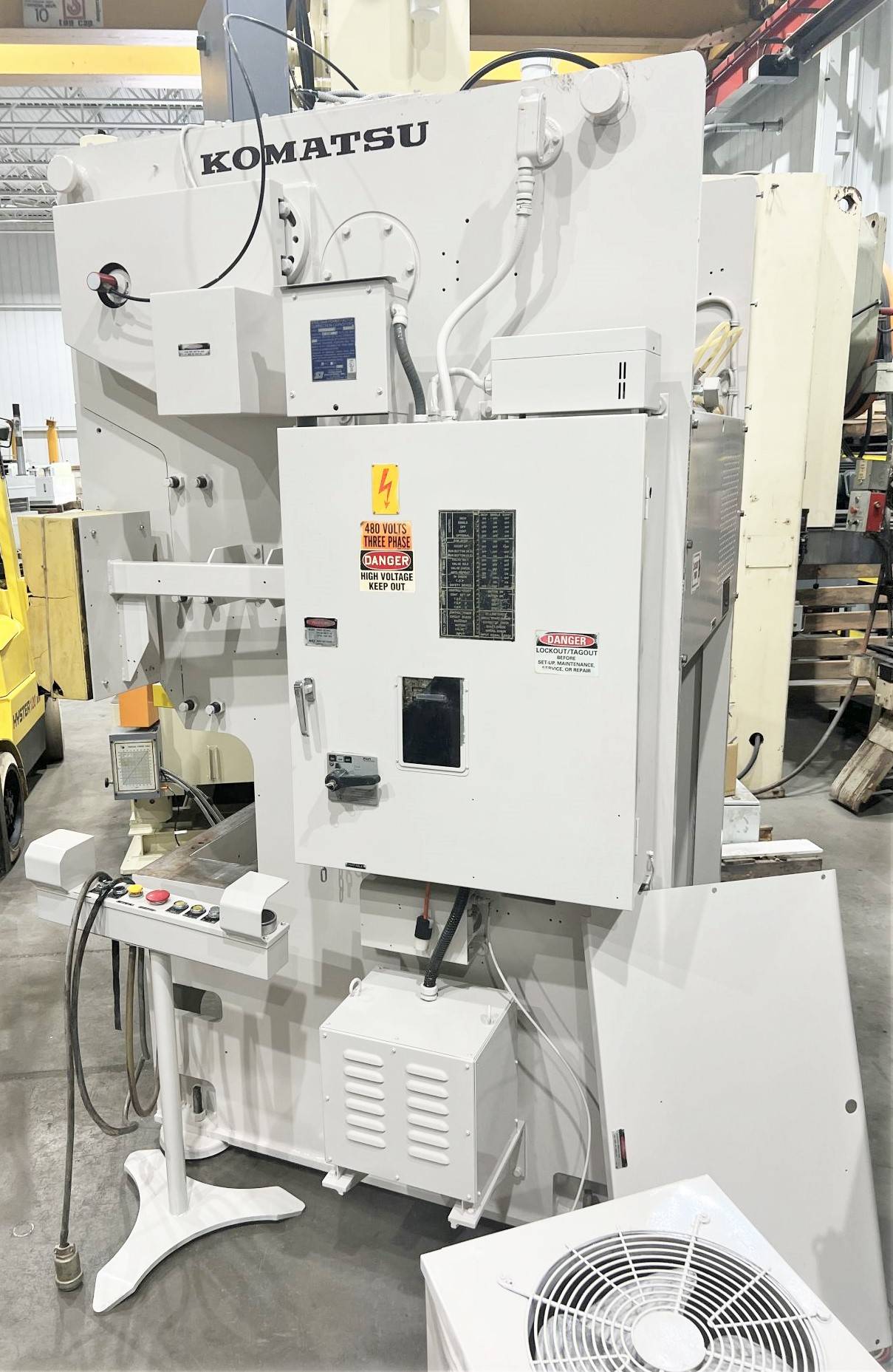

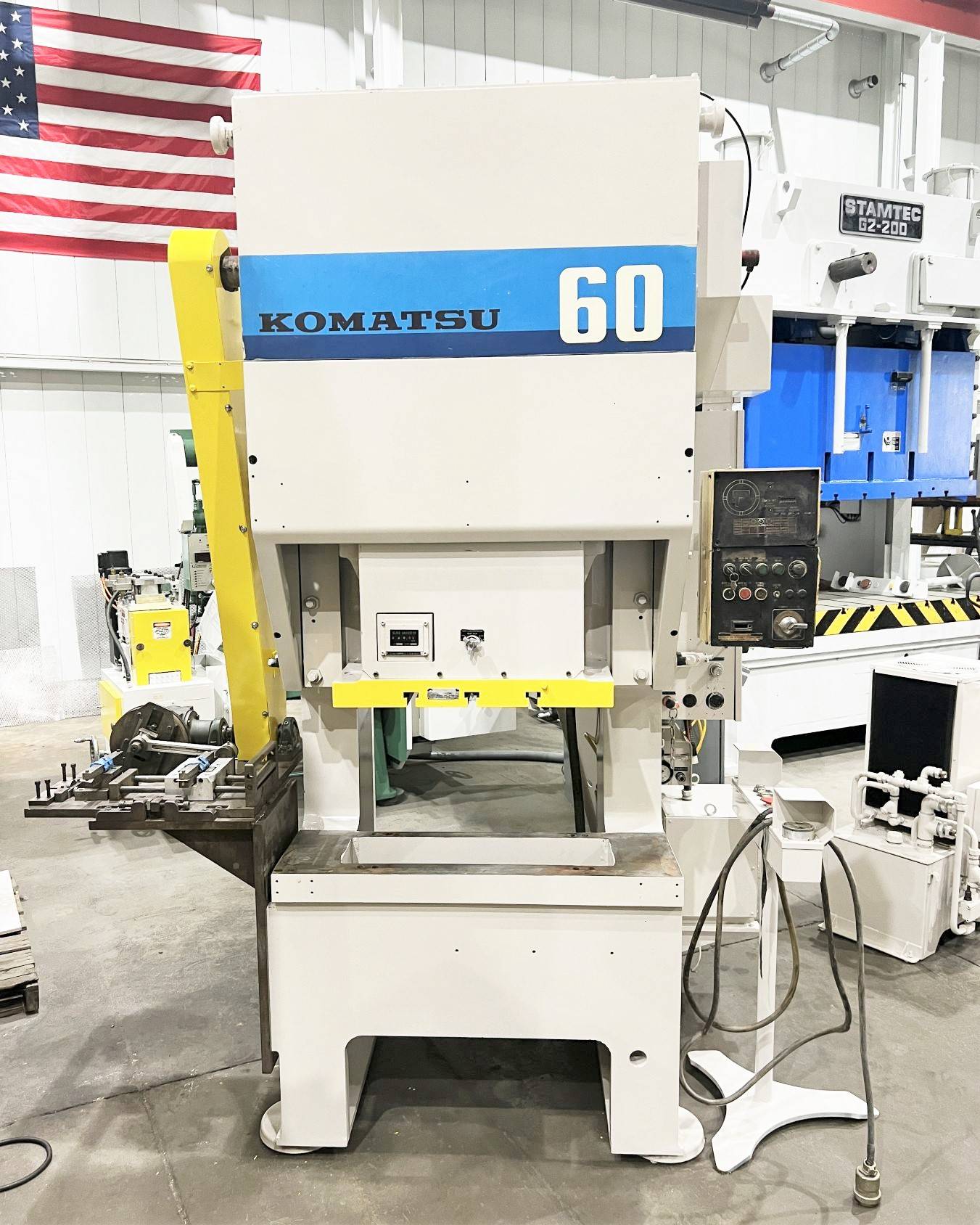

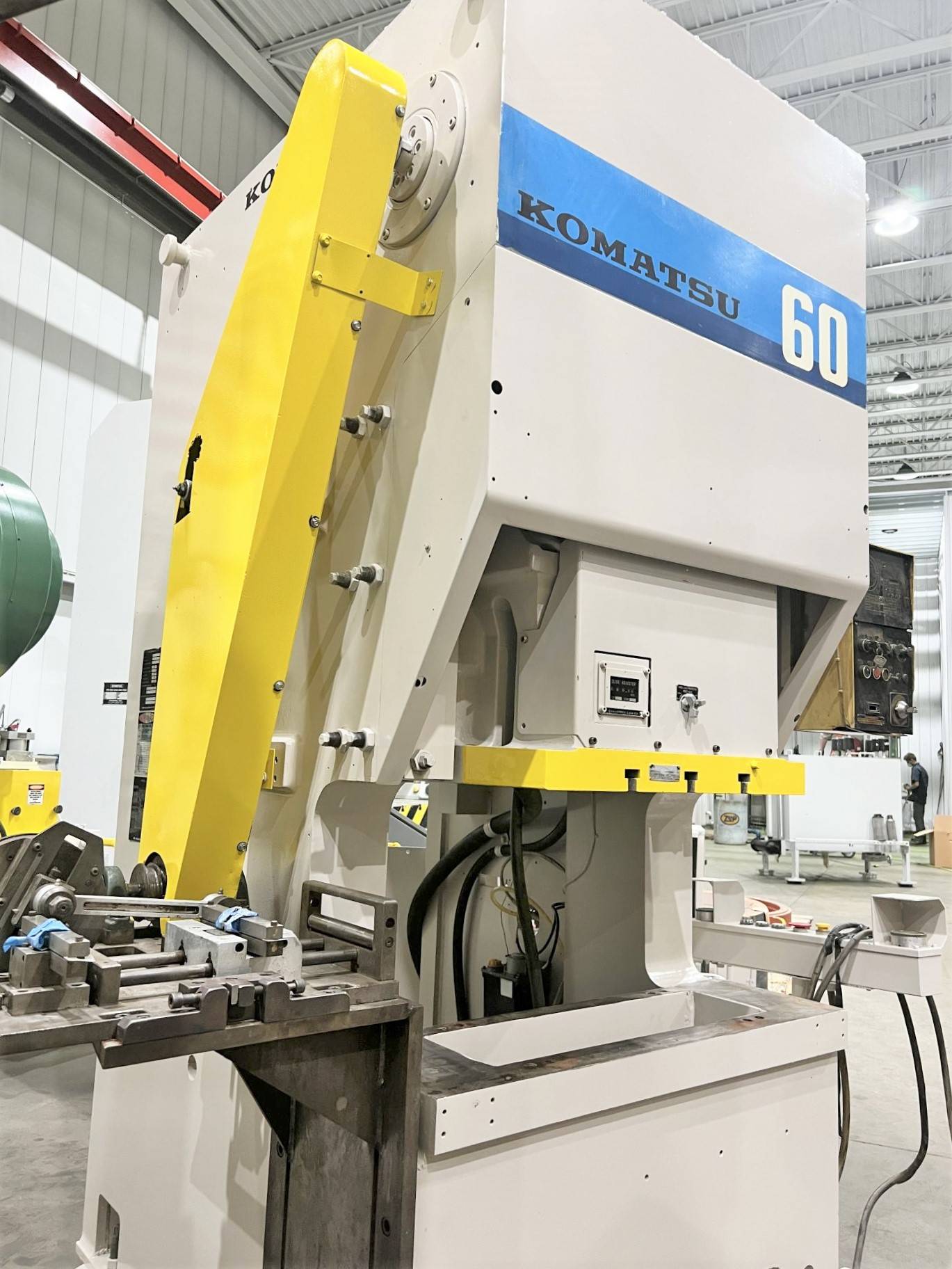

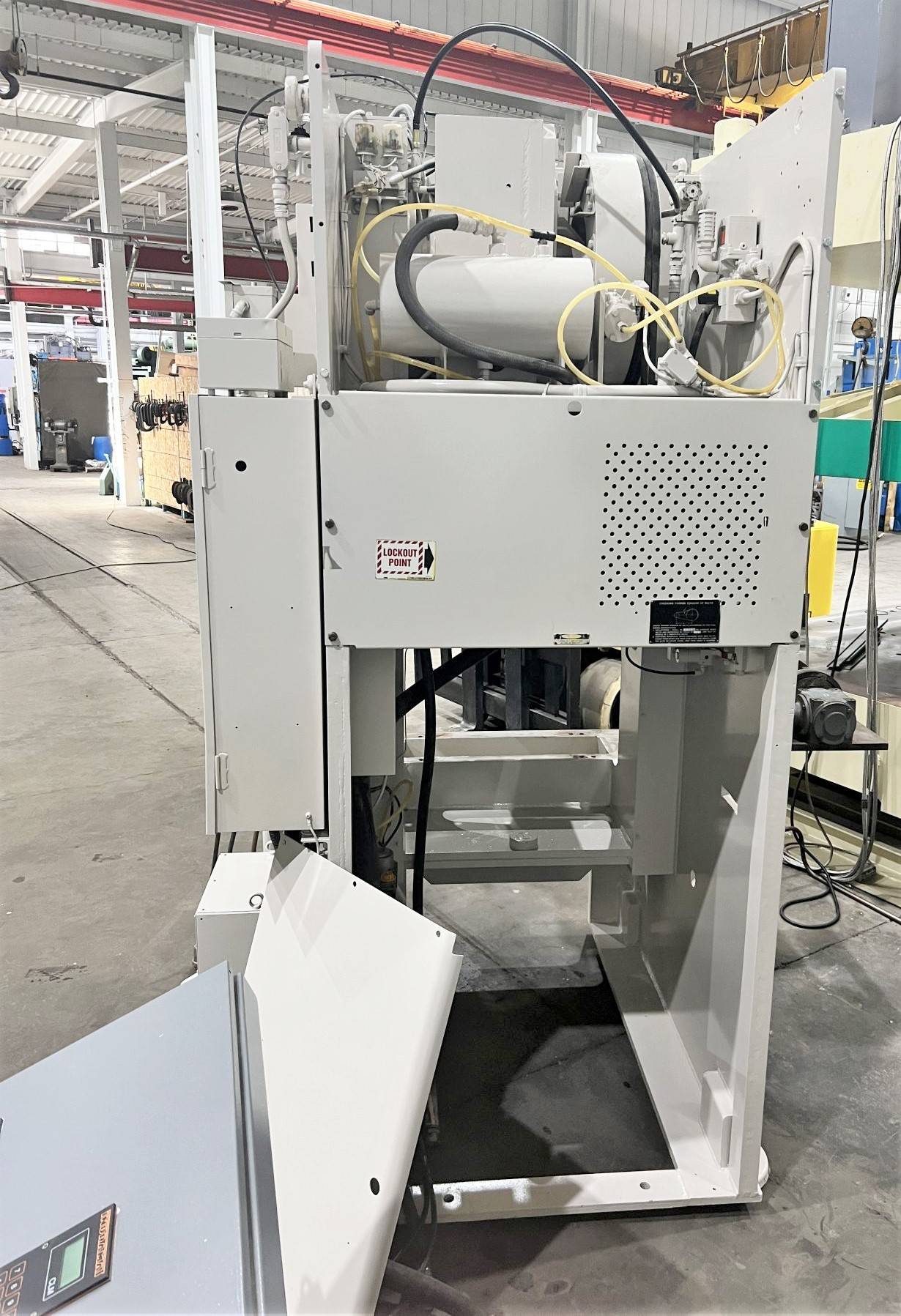

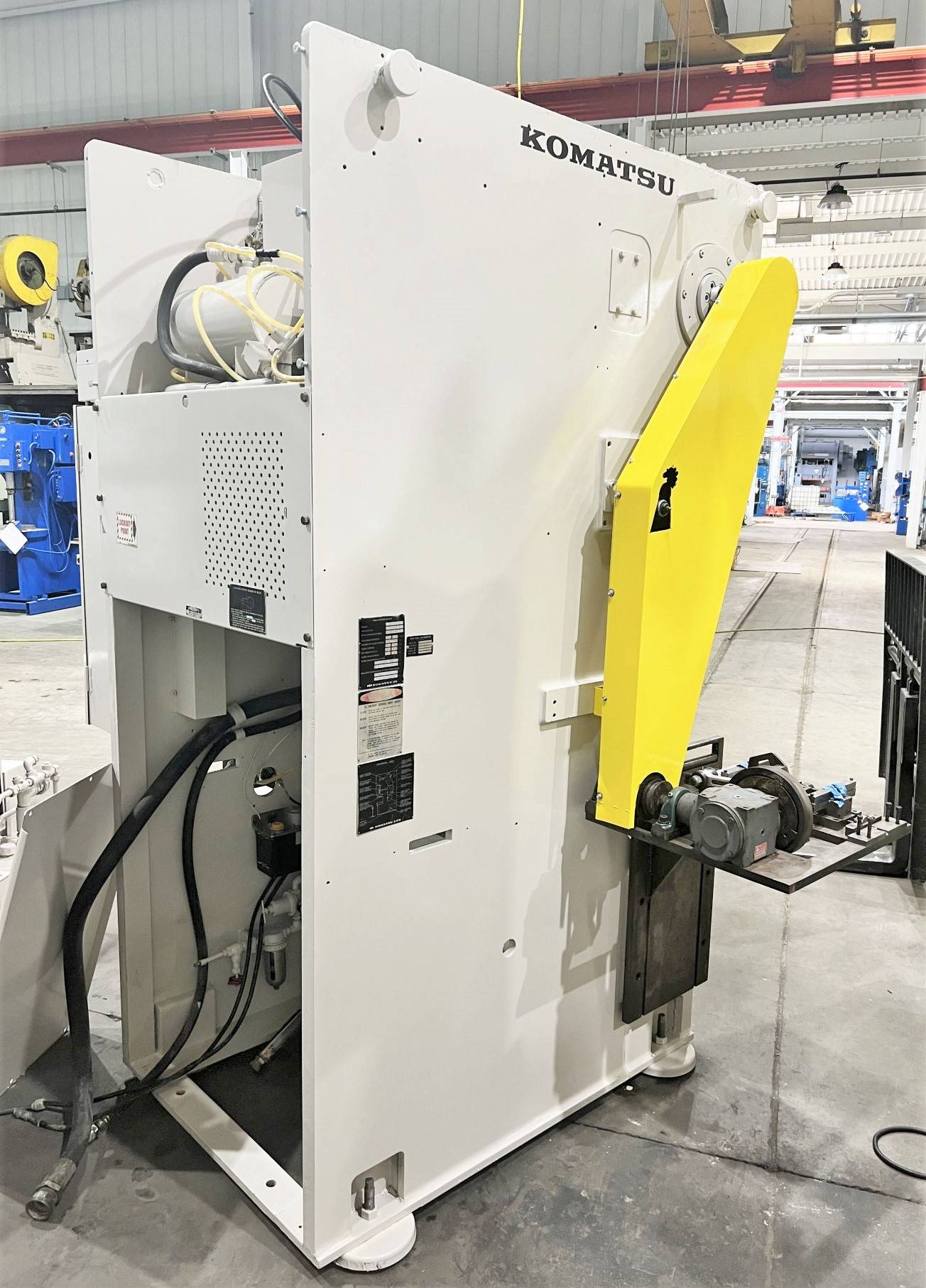

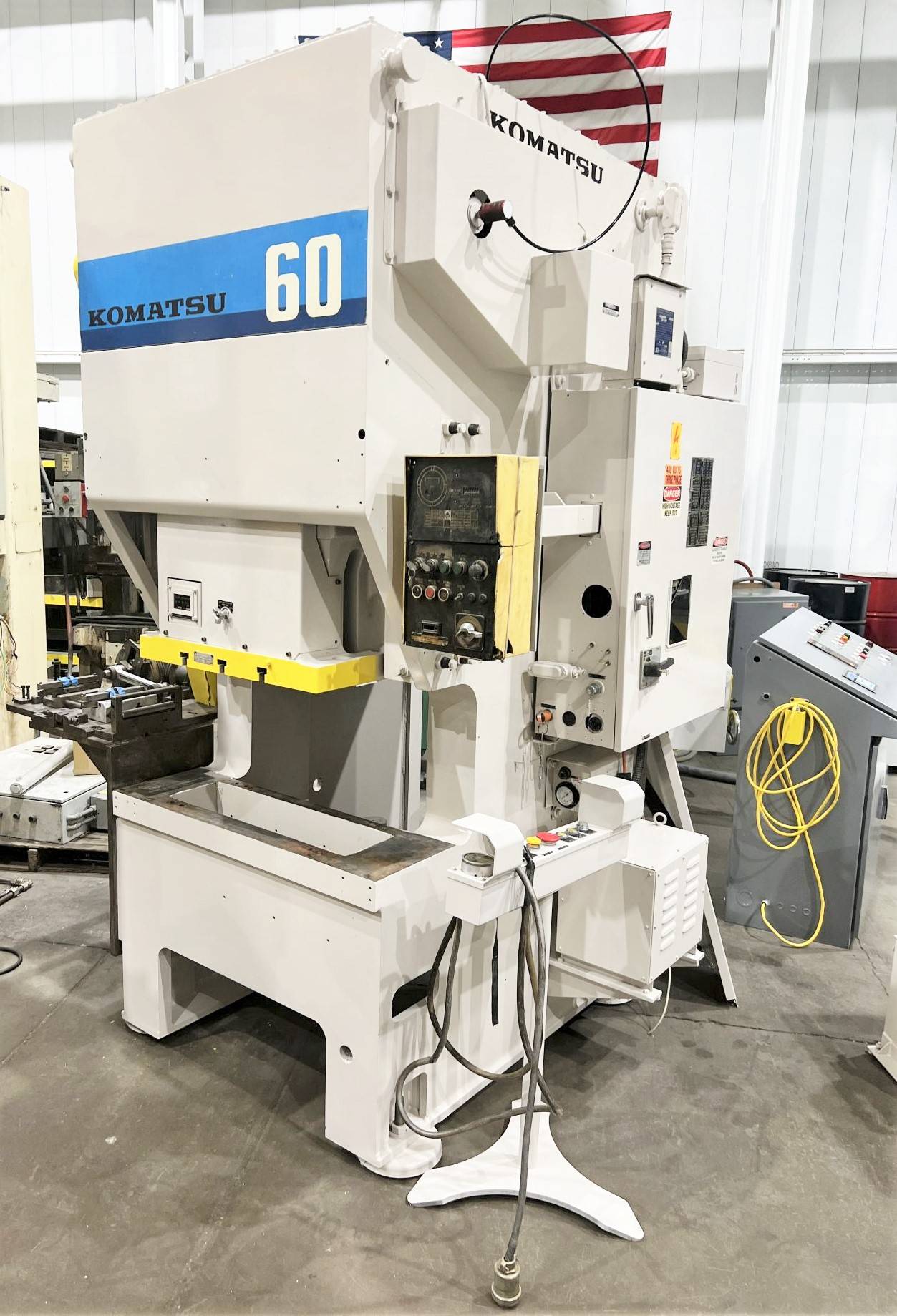

Model: Komatsu OBP60 Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1987
Machine #: 6388
Buy Now: $

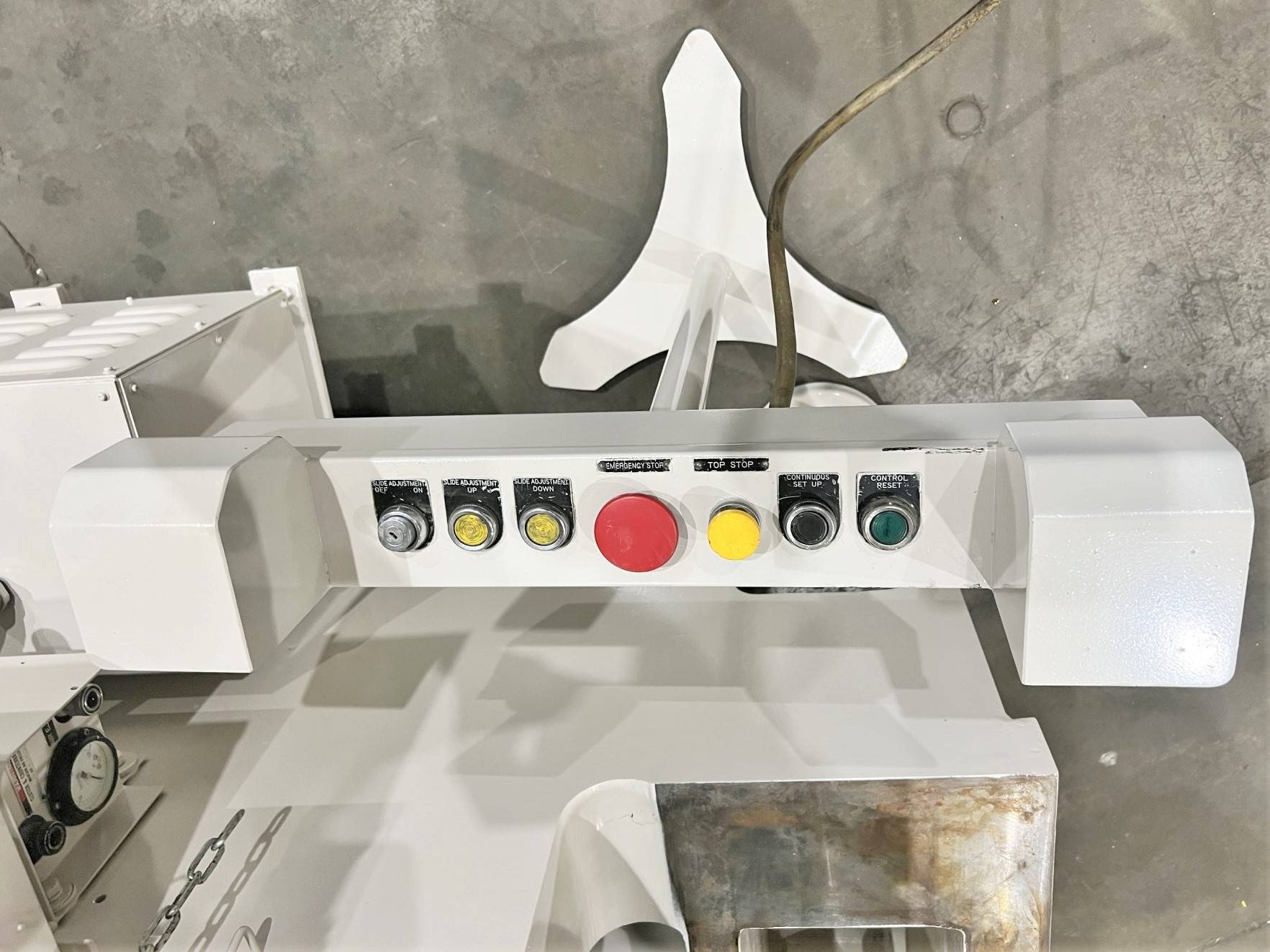

| CAPACITY | 66 US TONS | STROKE | 2.75″ | MAX DIE HEIGHT | 11.8″ SDAU OVER 5.1″ THICK BOLSTER PLATE | BED AREA | 41.7″ X 13″ (RL X FB) | SPEED | 30 – 225 SPM | SLIDE ADJUSTMENT | 2.75″ | SLIDE AREA | 27.6″ X 15.7″ (RL X FB) flanged ram | BOLSTER PLATE | 41.73″ X 17.71″ (RL X FB) X 5.12″ THICK WITH 29.75″ X 6″ (RL X FB) HOLE IN CENTER | DISTANCE BETWEEN UPRIGHTS | 28.25″ | FLOOR TO BED HEIGHT | 30.25″ | THROAT DEPTH | 10″ | CLUTCH | KOMATSU AIR CLUTCH / BRAKE COMBINATION | PRESS CONTROLS | komatsu relay press control | ELECTRIC MOTOR | 10 hp 1750 rpm 240/480v-3-60 motor | APPROX DIMENSIONS | 90″ X 65″ (RL X FB) X 106″ HIGH OR 71″ X 65″ WITHOUT FEEDER | APPROX WEIGHT | 15,000 lbs | Equipped With | oil cooler floor standing cast steel frame TWO PLUNGER GUIDES FOR IMPROVED ACCURACY | Note | MANUAL IS ON FILE WITH ALMA MACHINERY OFFICE (TO BE DOWNLOADED) |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
