Description
Gap Frame Press • Used 75 Ton Press for Sale

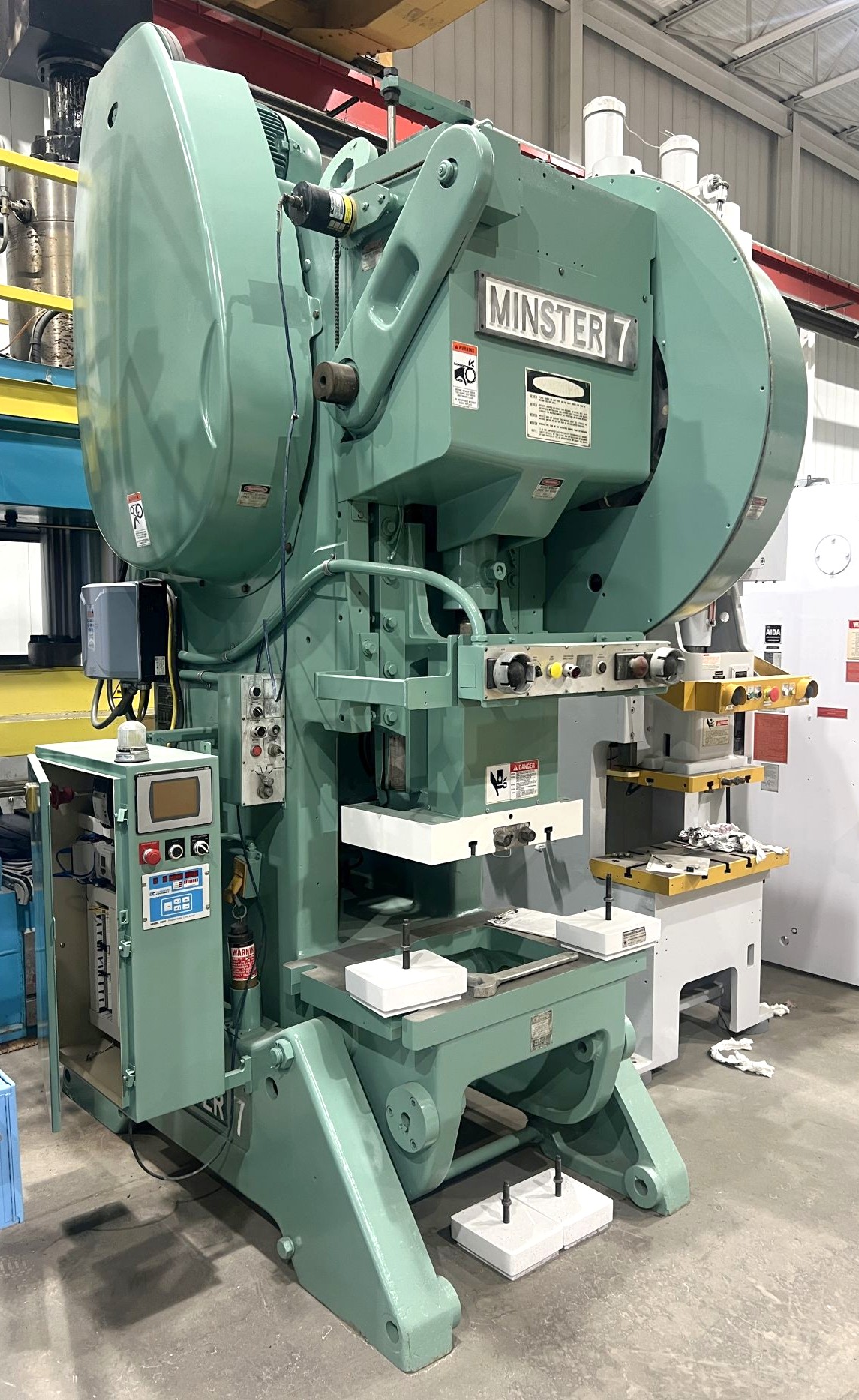

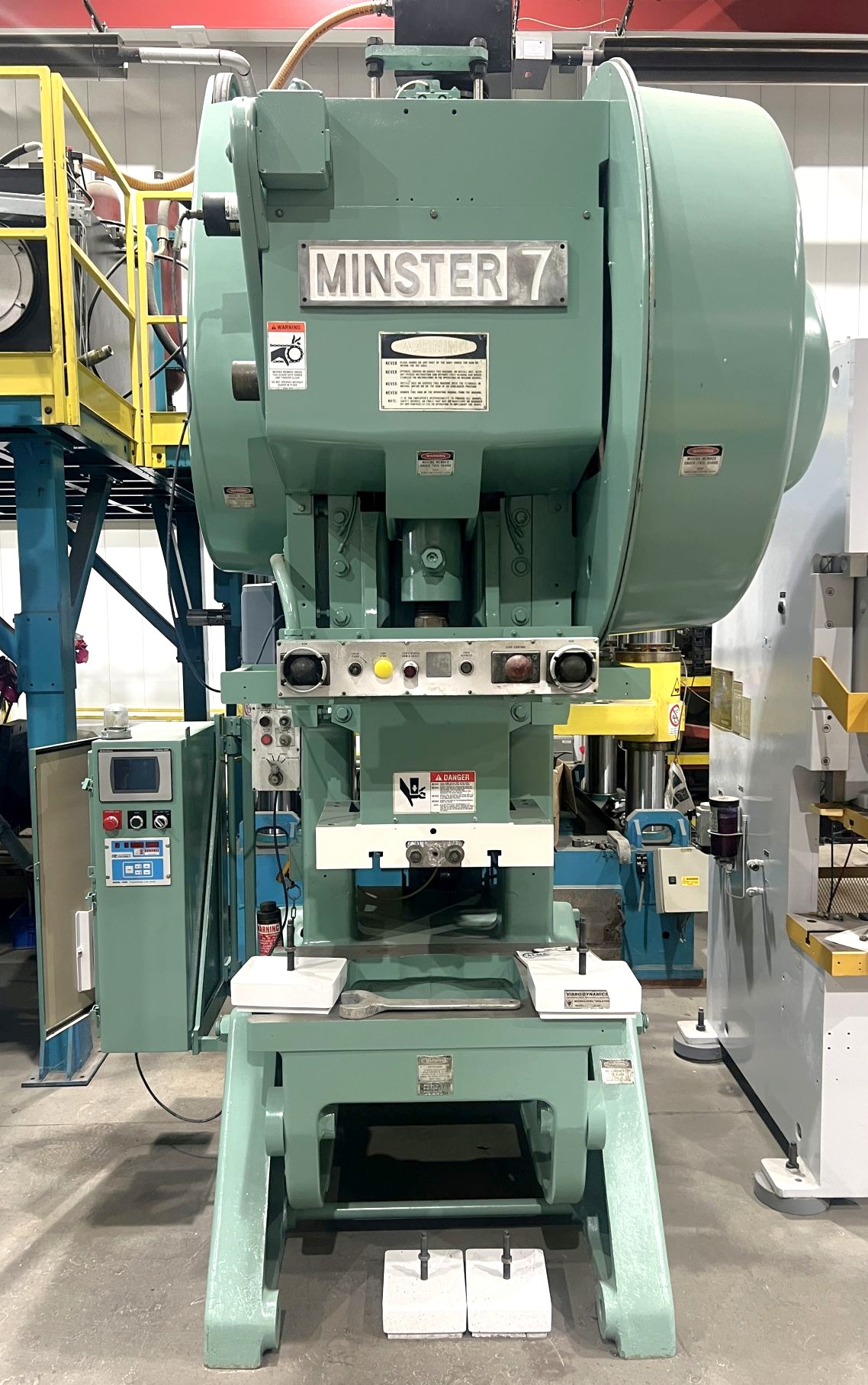

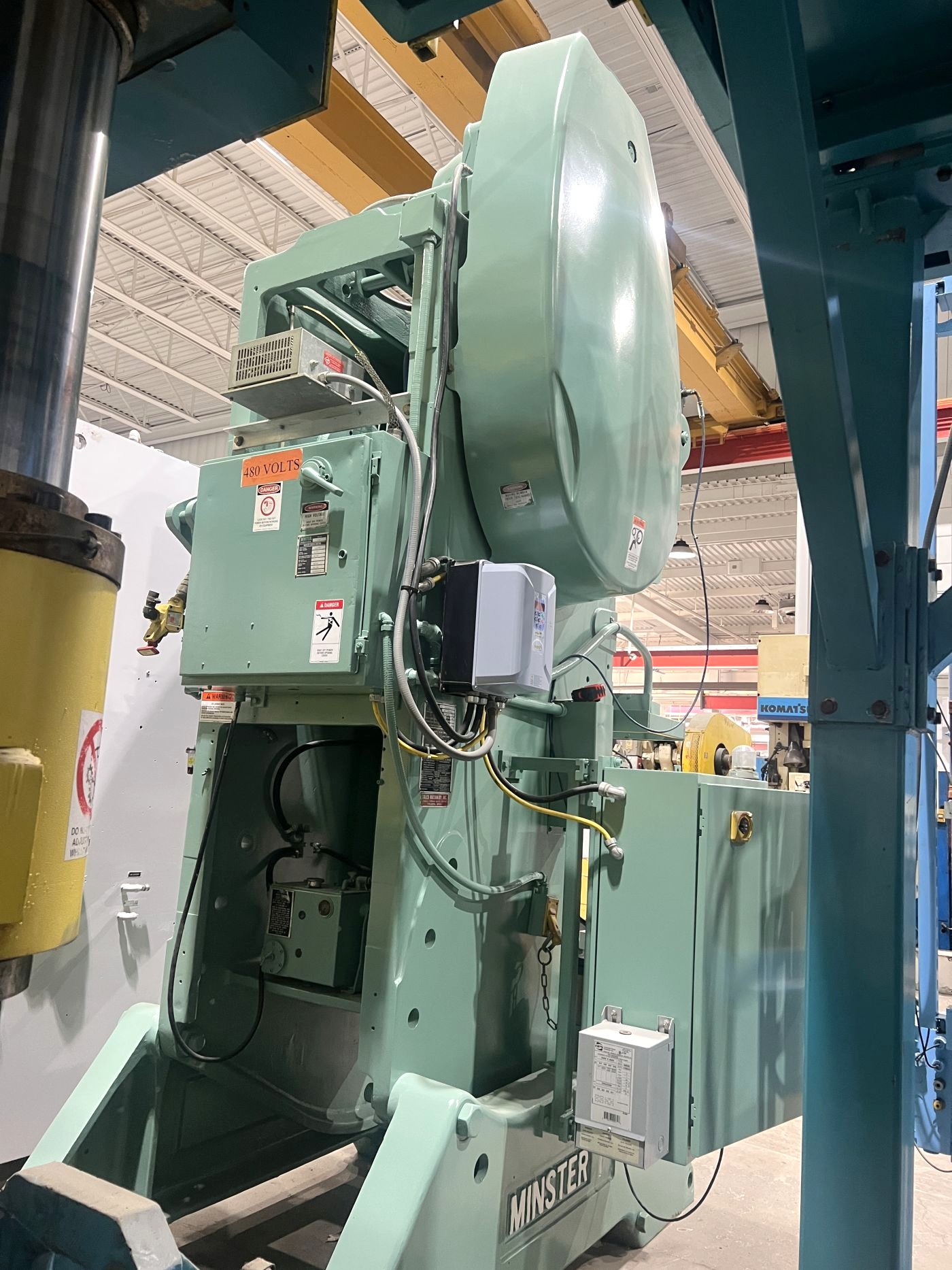

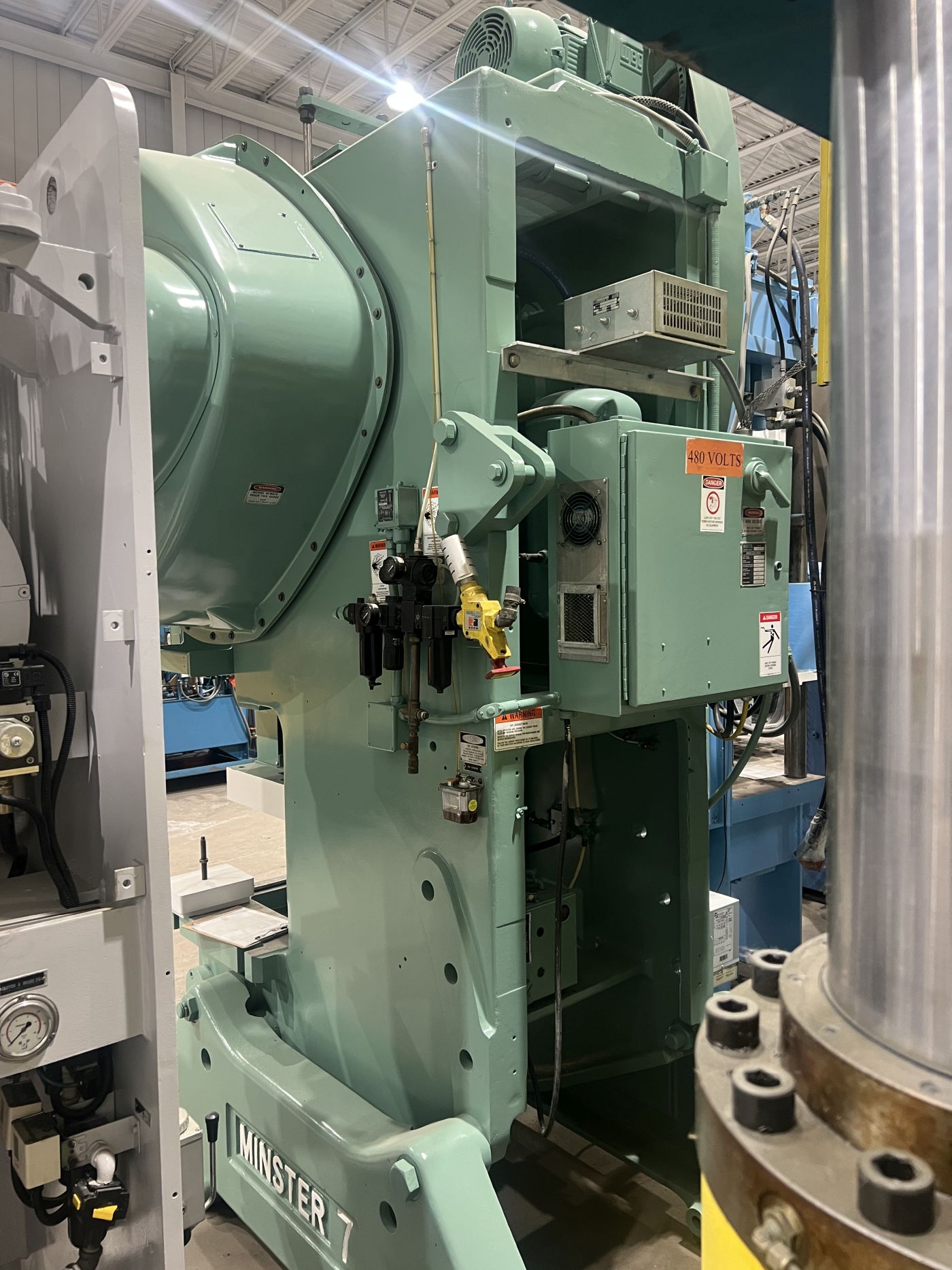

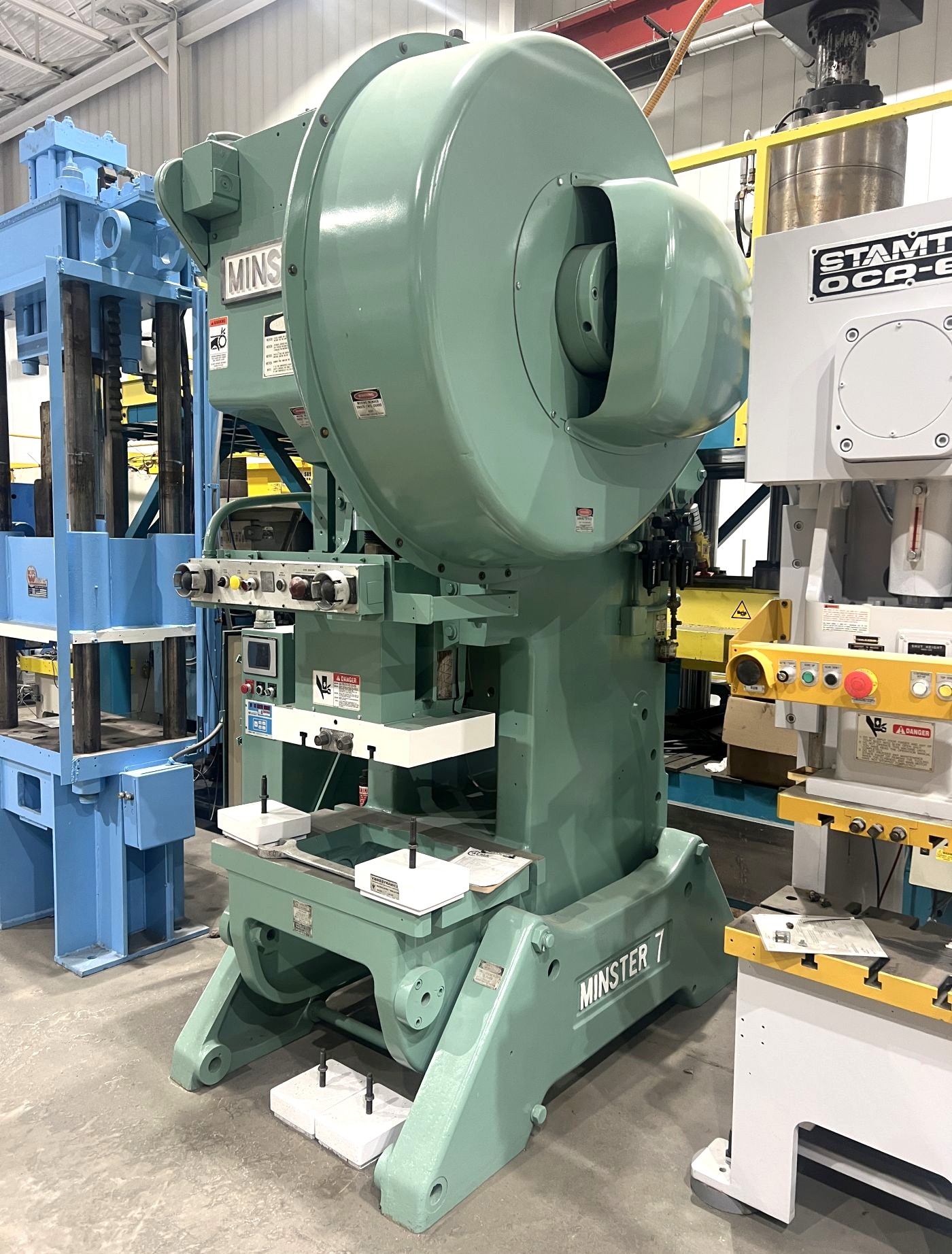

Model: Minster 7 Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1975
Machine #: 8161
Buy Now: $

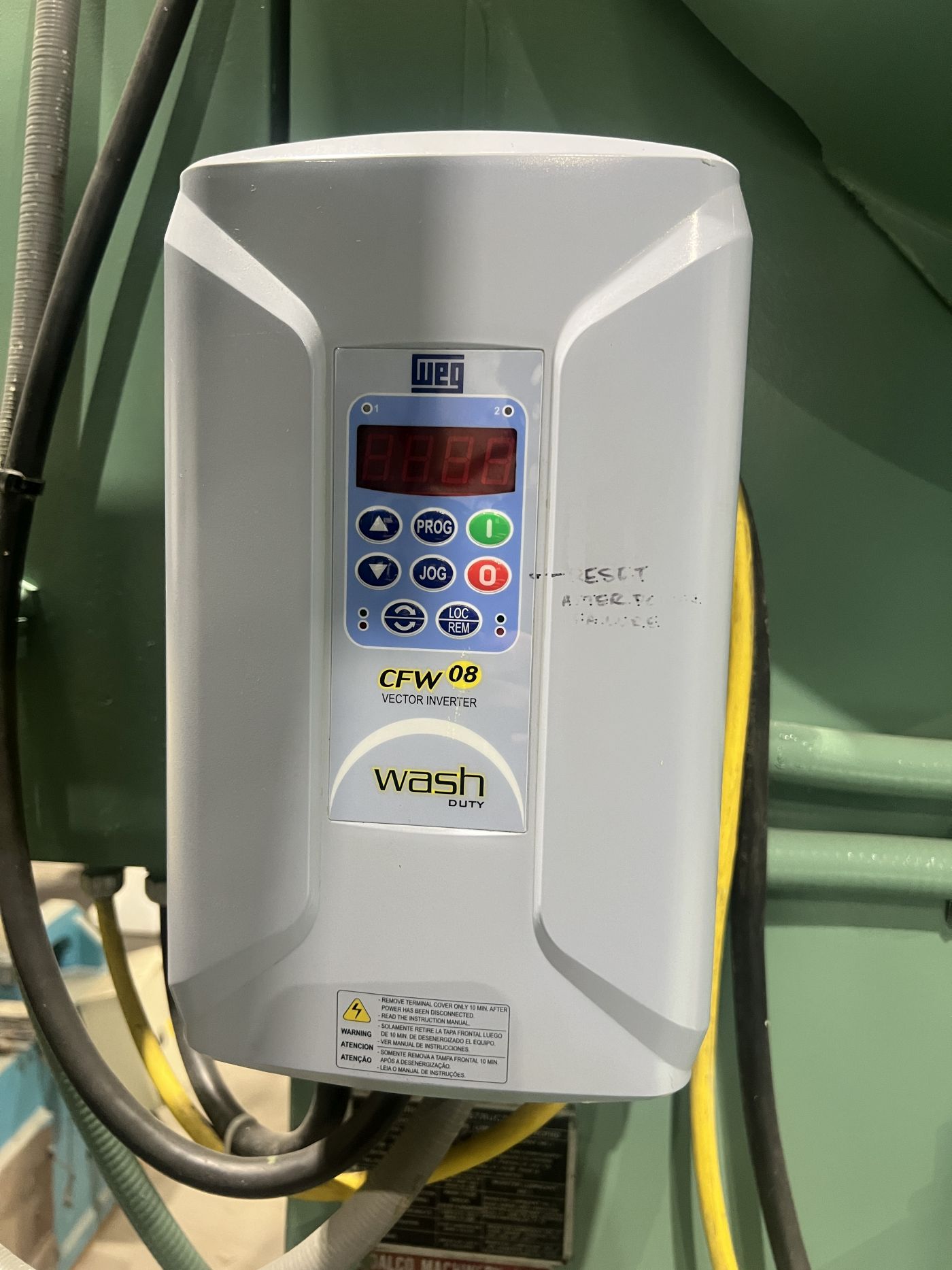

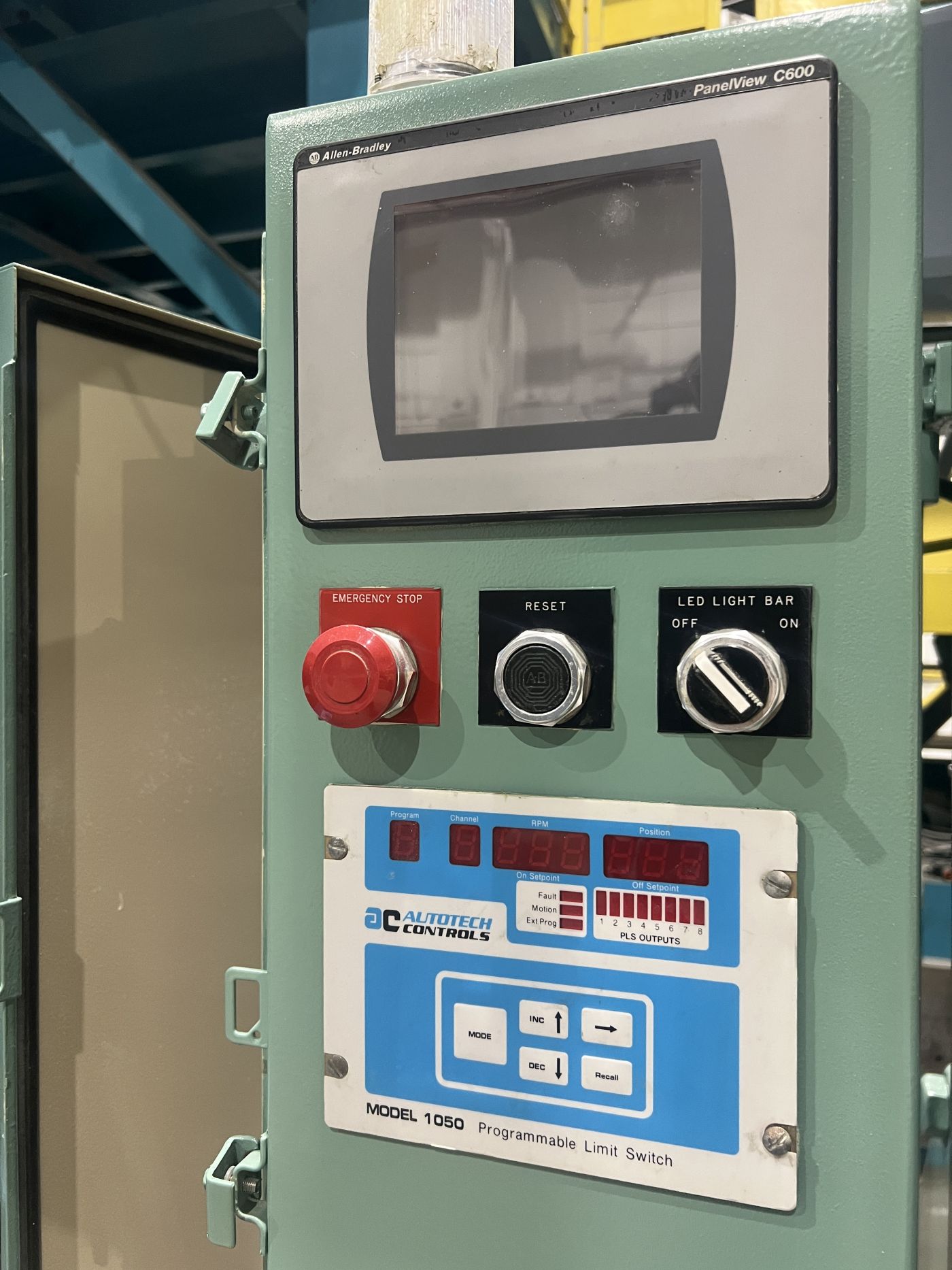

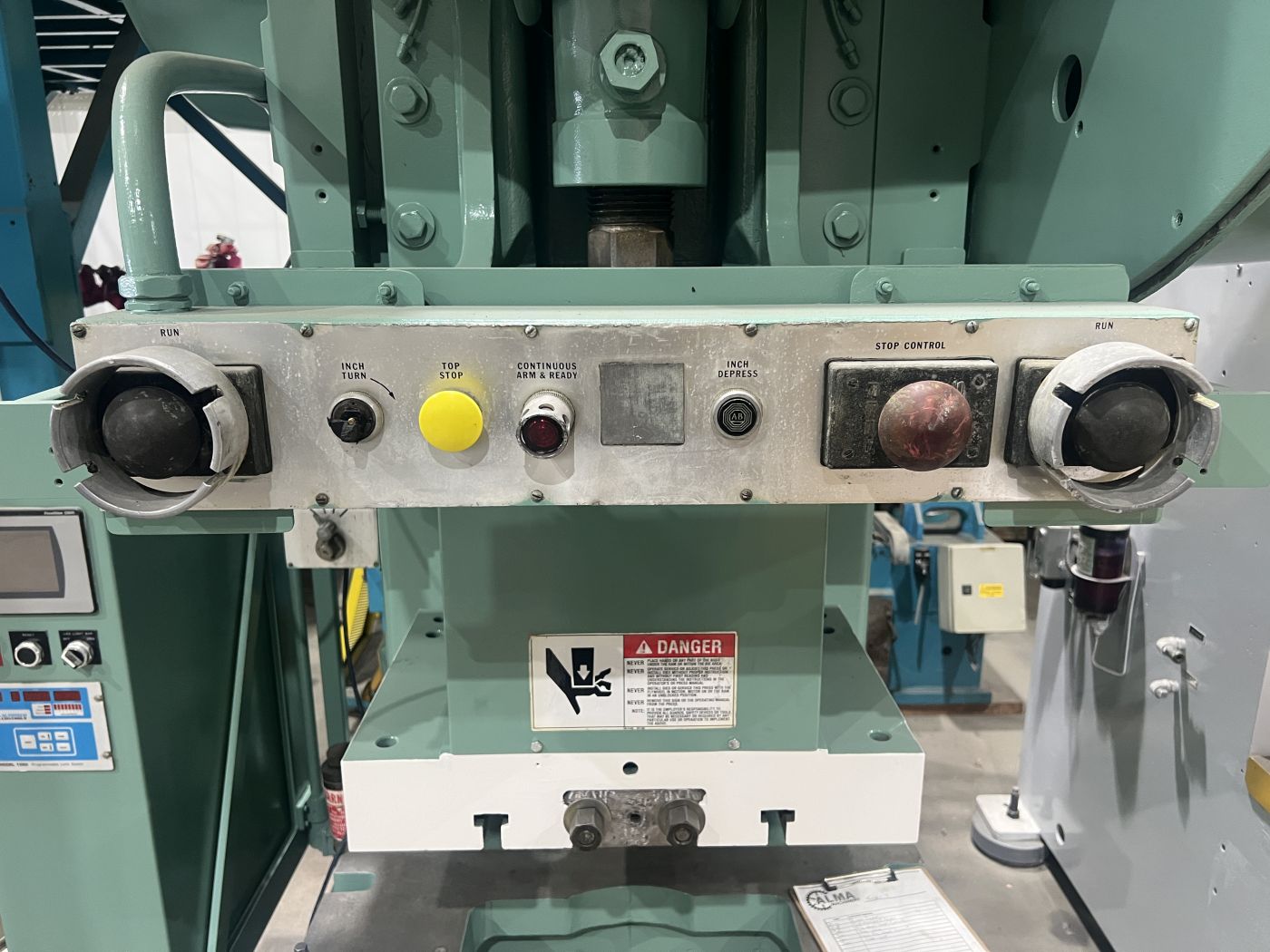

| capacity | 75 ton | stroke | 6" | max shut height to bed | 14.5" sdau | bed area | 36" x 24" (rl x fb) | speed | 45 spm | slide adjustment | 3" manual | slide area | 36" x 17" (rl x fb) | bolster plate | TO BE ADDED: 36" X 24" (RL X FB) X 2.5 - 3.5" THICK | distance between uprights | 18" | distance floor to bed | 33.8" | air clutch | minster air clutch / brake combination | press controls | UPDATED ALLEN-BRADLEY MICROLOGIX 1100 CONTROLS | OPERATOR STAND | AB PANELVIEW C600 OPERATORS TOUCHSCREEN | electric motor | 7.5 hp 1750 rpm motor WITH WEG CFW-8 N4X WASH DOWN DUTY vARIABLE FREQUENCY DRIVE | approx. dimensions | 80" X 100" (RL X FB) X 146" HIGH | approx. weight | 16,000 lbs | Equipped With | AC AUTOTECH CONTROLS RESOLVER SAC-RL100-M11 | Note | ISOLATOR PADS SHOWN IN PHOTOS NOT INCLUDED. |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
