Description

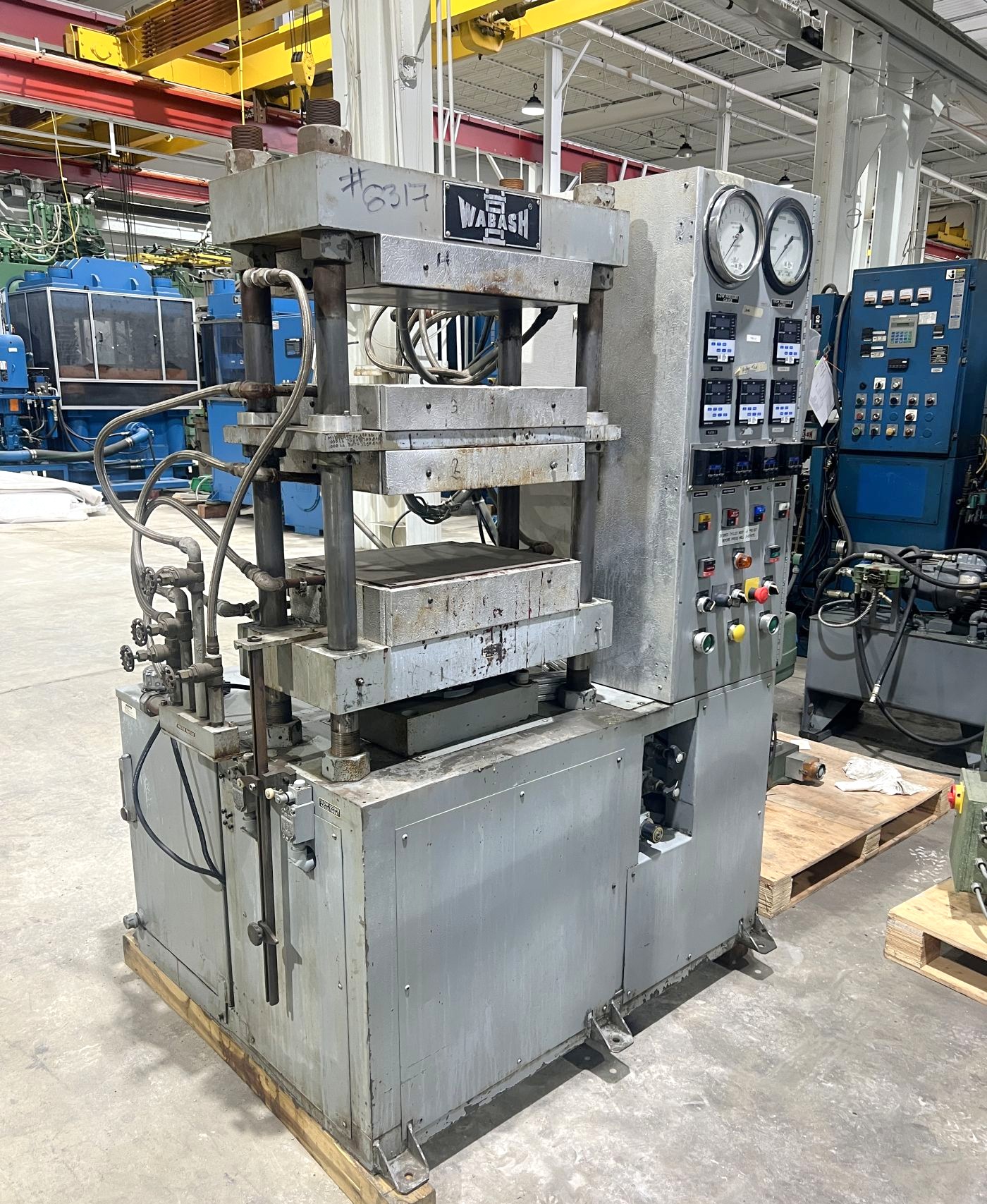

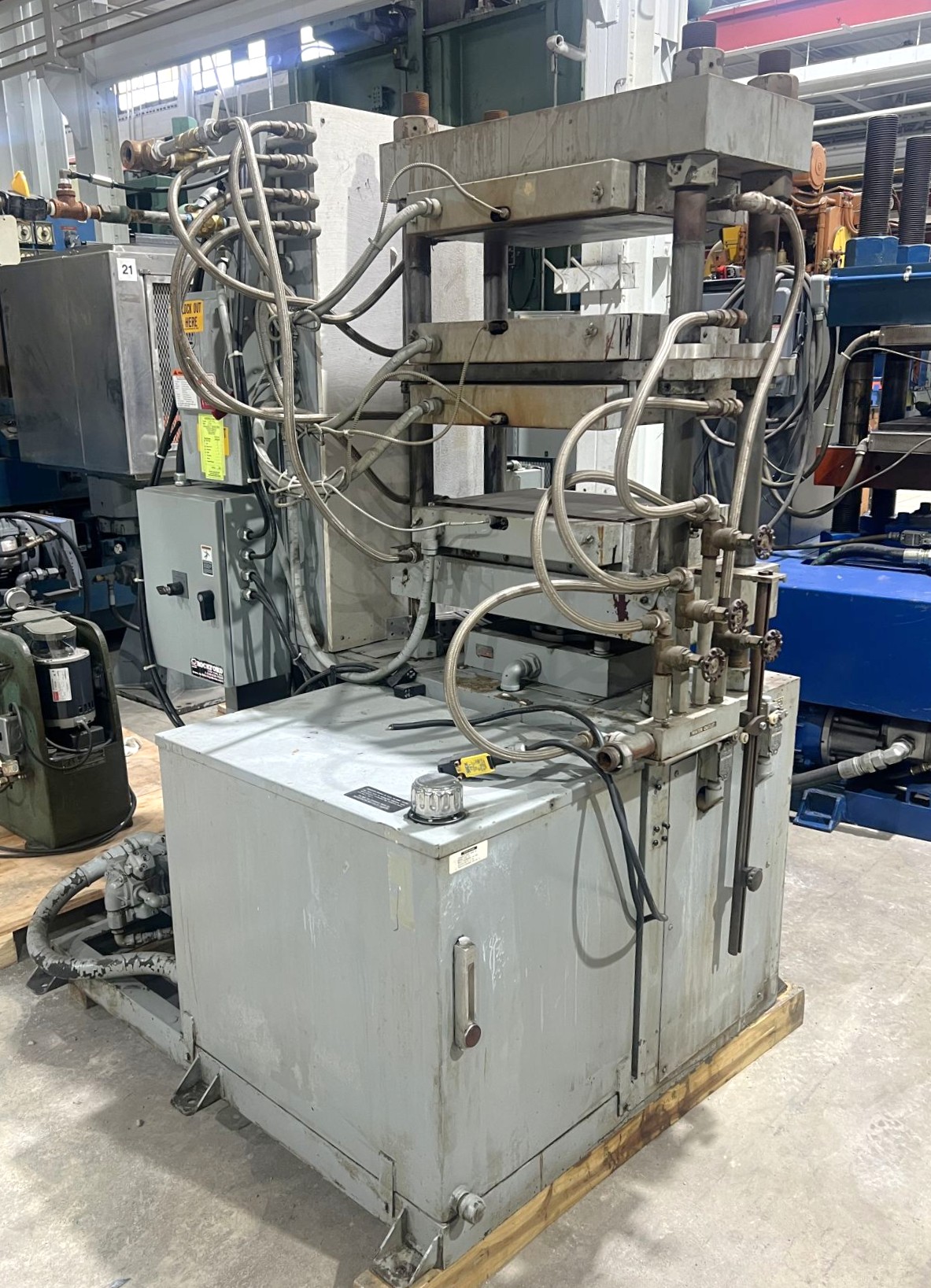

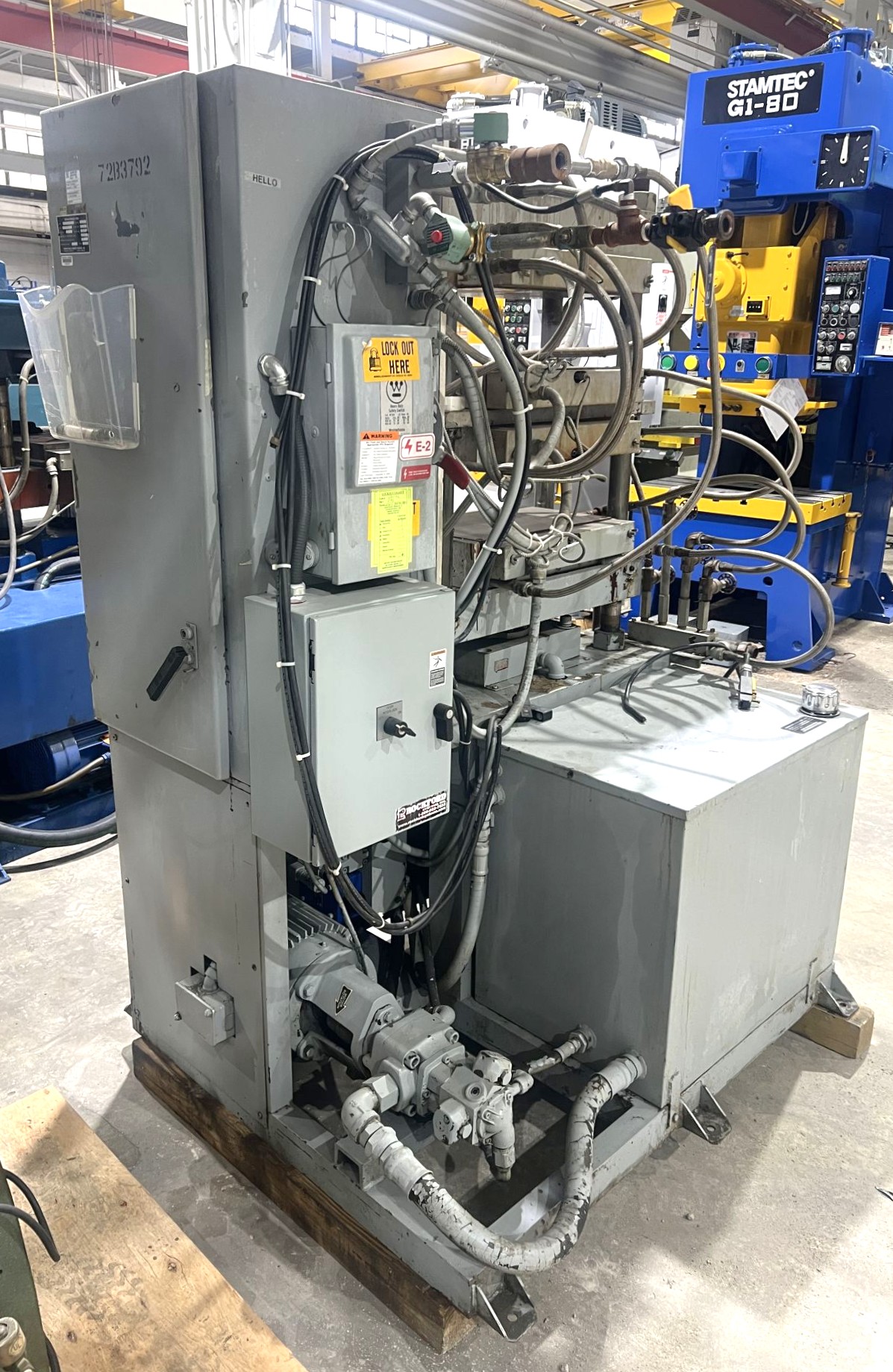

4 Column Press • Used 75 Ton Press for Sale
Model: Wabash 75-1812-4TMX Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: Year Unknown
Machine #: 8317
Buy Now: $

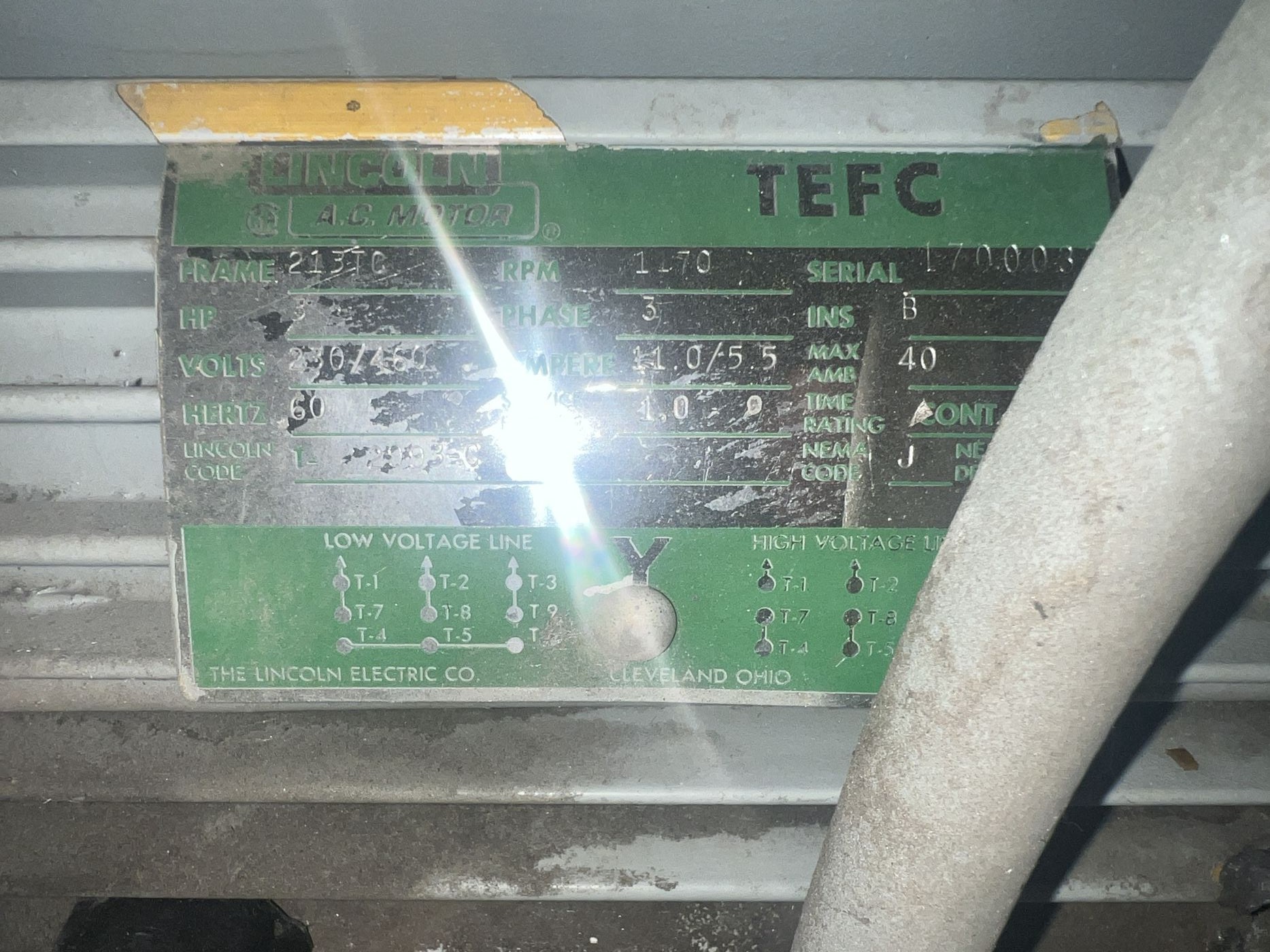

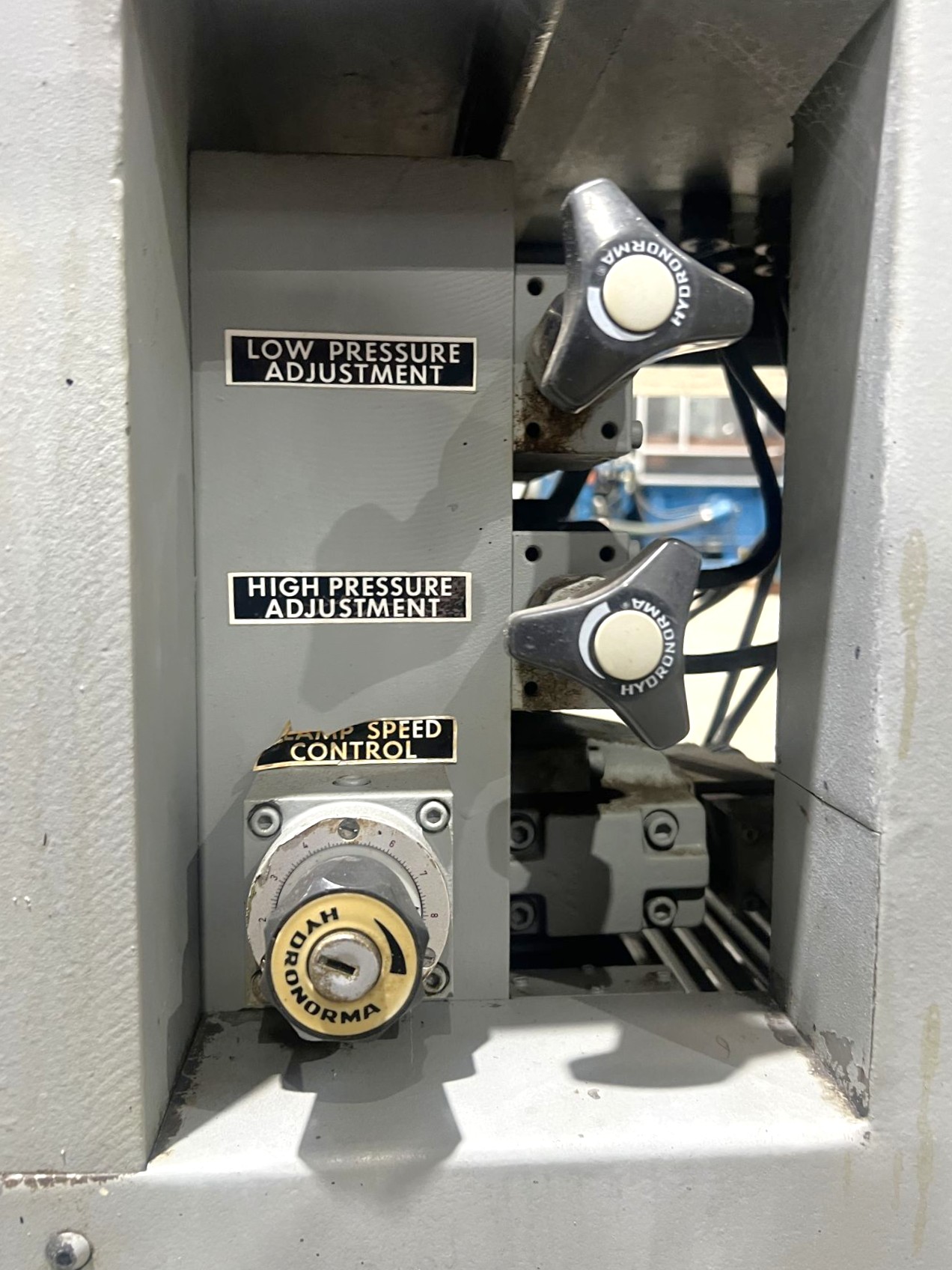

| MAX. CAPACITY | 75 TONS | MAX. STROKE | 12" | MAX. DAYLIGHT | 27" | OVERALL BED & RAM AREA | 28" X 13" (RL X FB) | DISTANCE BETWEEN POSTS | 21.75" X 6.75" (RL X FB) | USABLE BED & RAM AREA | 21.75" X 13" (RL X FB) | ELECTRICAL HEATED PLATENS | 18" X 12" (RL X FB) - 4.1" THICK BOTTON / 2.8" THICK OTHER PLATENS (1.125" PLATE) - 20,400 WATTS | CYLINDER SIZE | 8" DIA. BORE PISTON | ROD SIZE | 3" DIA. | 4 COLUMN / POSTS SIZE | 2" DIA. | FLOOR TO BED HEIGHT | 38" | PRESS CONTROLS | ALLEN-BRADLEY RELAY LOGIC BULLETIN 700 CONTROLLER | HYDRAULIC SYSTEM / UNIT | REXROTH 1PH2V2-20/360RLR1ME4 EXTERNAM GEAR HYDRAULIC PUMP | ELECTRIC MOTOR | 3 HP 230/460V-3-60 LINCOLN A.C. MOTOR | 11 / 5.5 AMPS | ELECTRICAL NOTE | PLATENS ARE WIRED FOR 480V - 3 PHASE - 60 HZ | APPROX. DIMENSIONS | 63" X 50" (RL X FB) X 73" HIGH | APPROX. WEIGHT | 4,800 LBS. | Equipped With | LOW / HIGH PRESSURE ADJUSTMENT (MANUAL), SPEED CONTROL HYDRONORMA VALVE (MANUAL), WATER AND AIR COOLED PLATENS SYSTEM | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
