Machine Specifications
Heated Platen Press for Sale
Manufacturer: Wabash
Model: Wabash G75H-18-BX Press
Condition: Like New
Location: Jackson, MI Cooper Building
Year: 2000
Machine #: 6106
Buy Now: $

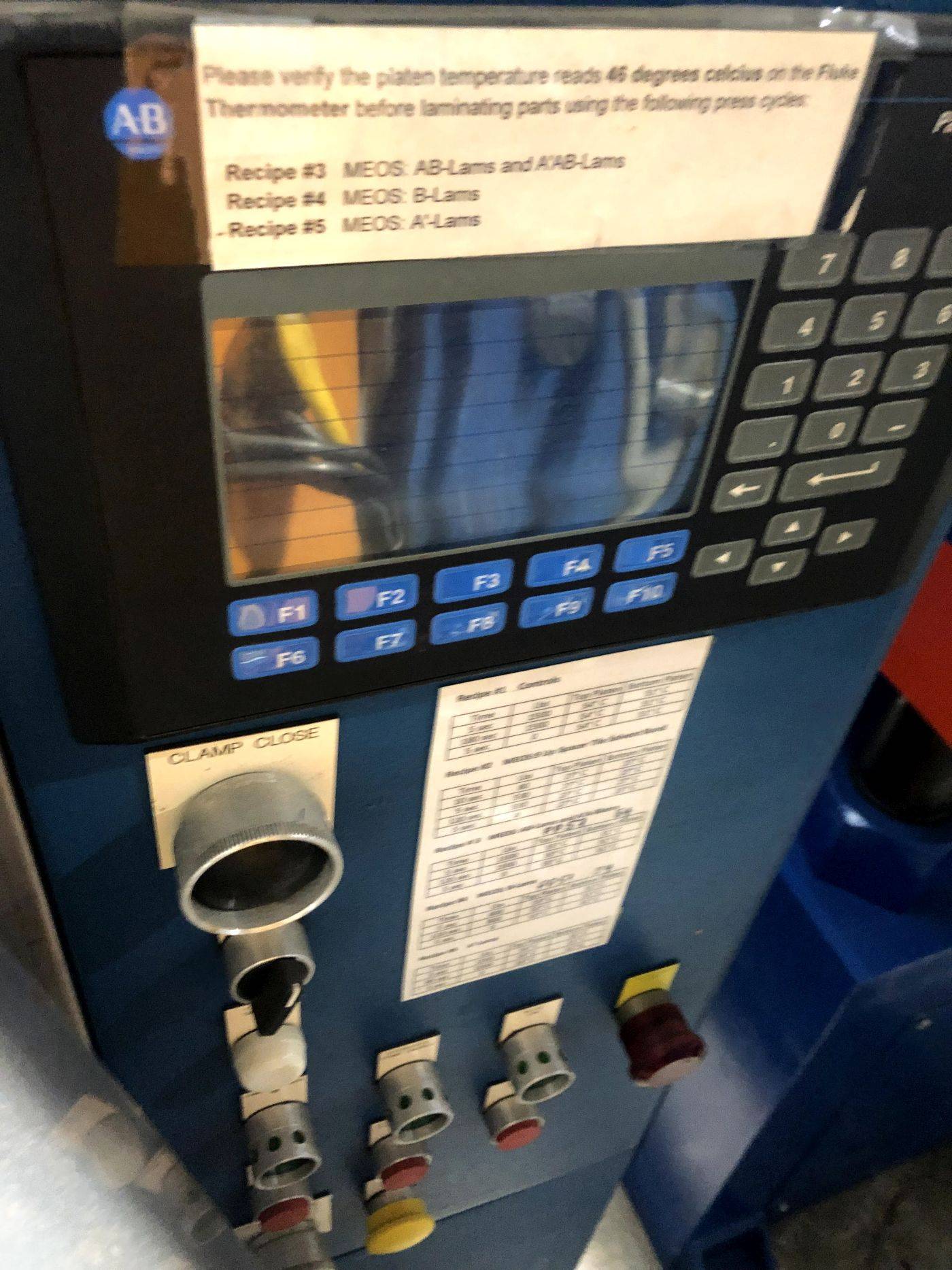

| CAPACITY | 75 TONS @ 3,000 PSI | STROKE | 8″ | DAYLIGHT | 27″ | OVERALL BED & RAM AREA | 28″ X 19″ (RL X FB) | DISTANCE BETWEEN POSTS | 21.5″ X 11″ (RL X FB) | HEATED PLATENS | 18″ X 18″ (RL X FB) – 343 DEGREES c / 650 DEG F (8,000 WATTS EACH) – 2.75″ THICK PLATENS | USABLE BED AREA | 21.5″ X 19″ (RL X FB) | FLOOR TO BED | 40″ | RAM ROD SIZE | 5.5″ DIA. | CYLINDER SIZE | 8″ DIA. BORE | 4 COLUMN / POSTS SIZE | 2″ DIA. | SPEEDS | APPROX 5 IPM PRESSING | PRESS CONTROLS | ALLEN-BRADLEY SLC 5/03 CONTROLLER WITH AB Panelview 550 DIGITAL TOUCHSCREEN | HYDRAULICS | 35 GALLON HYDRAULIC TANK | ELECTRICAL | 5 HP 230/460V-3-60 LINCOLN E1 MOTOR | 13/6.5 AMPS | OVERALL DIMENSIONS | 52″ X 46″ (RL X FB) X 70″ HIGH | HYDRAULIC UNIT 40″ X 37″ (RL X FB) X 46″ HIGH | APPROX. WEIGHT | 4,500 LBS. | Equipped With | __ | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
