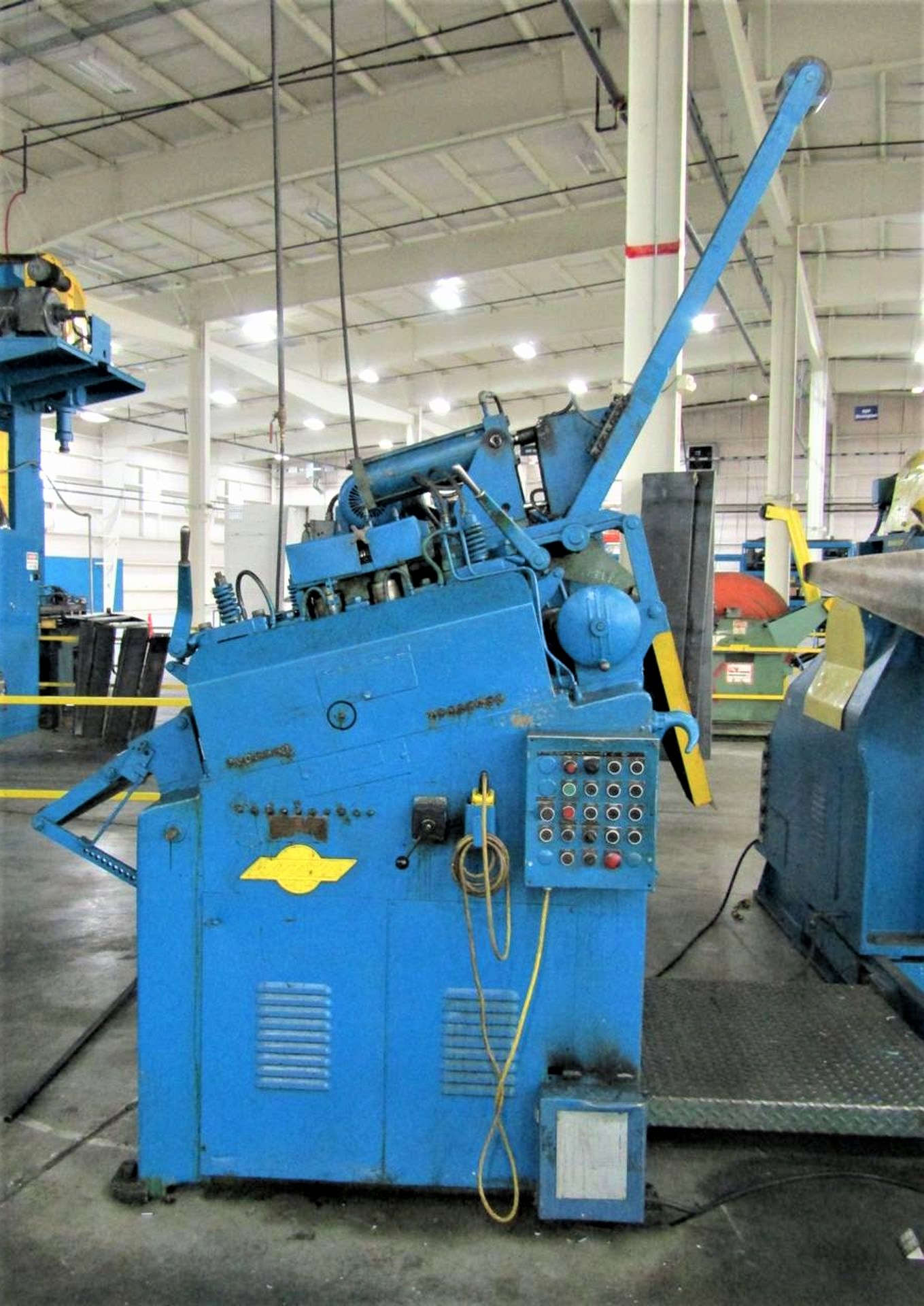

36″ Wide x .020″ Littell Powered Straightener (5-Roll)

19

5
# of Rolls
38
Stock Width
0.020
Material Thickness

New in 1

1
Model 638-5PD

Littell Flattening Machines for Sale
Used Automation Material Straightener
Machine #5977
Columbia, TN Warehouse
Starting Price: $

Machine Specifications

Used Metal Straightener for Sale

Littell Model: 638-5PD
Condition: Very Good
Location: Columbia, TN Warehouse #5977
Year: 1964
Buy Now: $





CAPACITY 38″ W X .020″ TH
powered STRAIGHTENING ROLLS LAYOUT 2 OVER 3
STRAIGHTENING ROLLS DIMENSIONS 4″ OD X 38.5″ W SMOOTH FINISH
POWERED ENTRY PINCH ROLLS 2
ENTRY PINCH ROLLS DIMENSIONS 6.25″ OD X 38.5″ W HOB KNURL FINISH
POWERED EXIT PINCH ROLLS 2
EXIT PINCH ROLLS DIMENSIONS 6.25″ OD X 38.5″ W HOB KNURL FINISH
PASS LINE HEIGHT 53″ ENTRY & 64″ EXIT
SPEED 18 – 160 FEET PER MINUTE
ELECTRICS 10 HP 1750 RPM 480V-3-60 MOTOR & CONTROL
APPROX OVERALL DIMENSIONS 8′ H X 10′ L X 6.5′ FB
APPROX WEIGHT 7500 LBS
Equipped With AIR OPERATED, MANUALLY ADJUSTED COIL NOSE FLATTENER MANUALLY OPERATED THREAD-UP TABLE & COIL PEELER
Note __
Location Machine is located in Columbia, TN Warehouse
