Machine Specifications
Heated Platen Press • Used 100 Ton Press for Sale
Manufacturer: Dake
Model: Dake 45-201 Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1988
Machine #: 8152
Buy Now: $

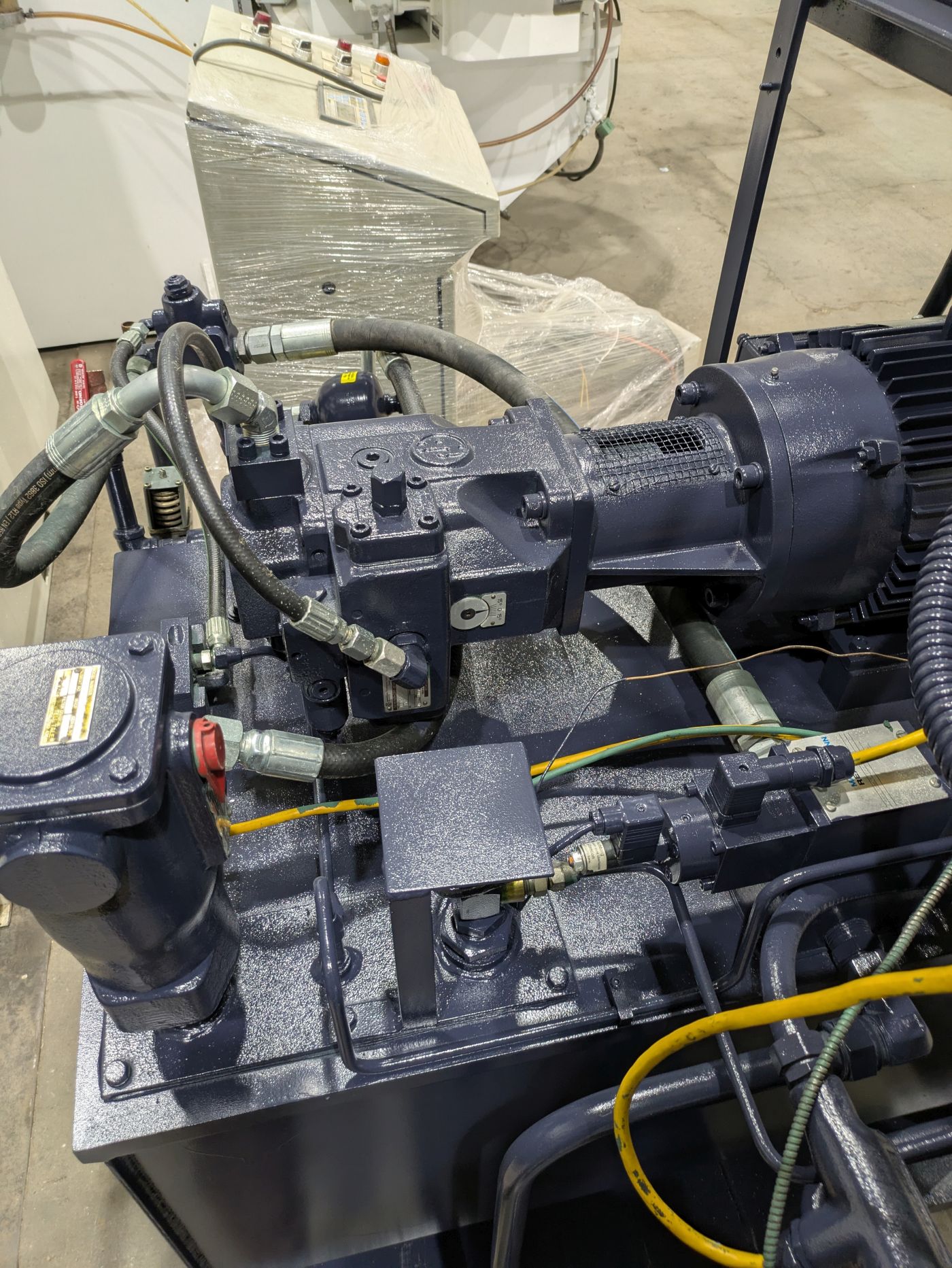

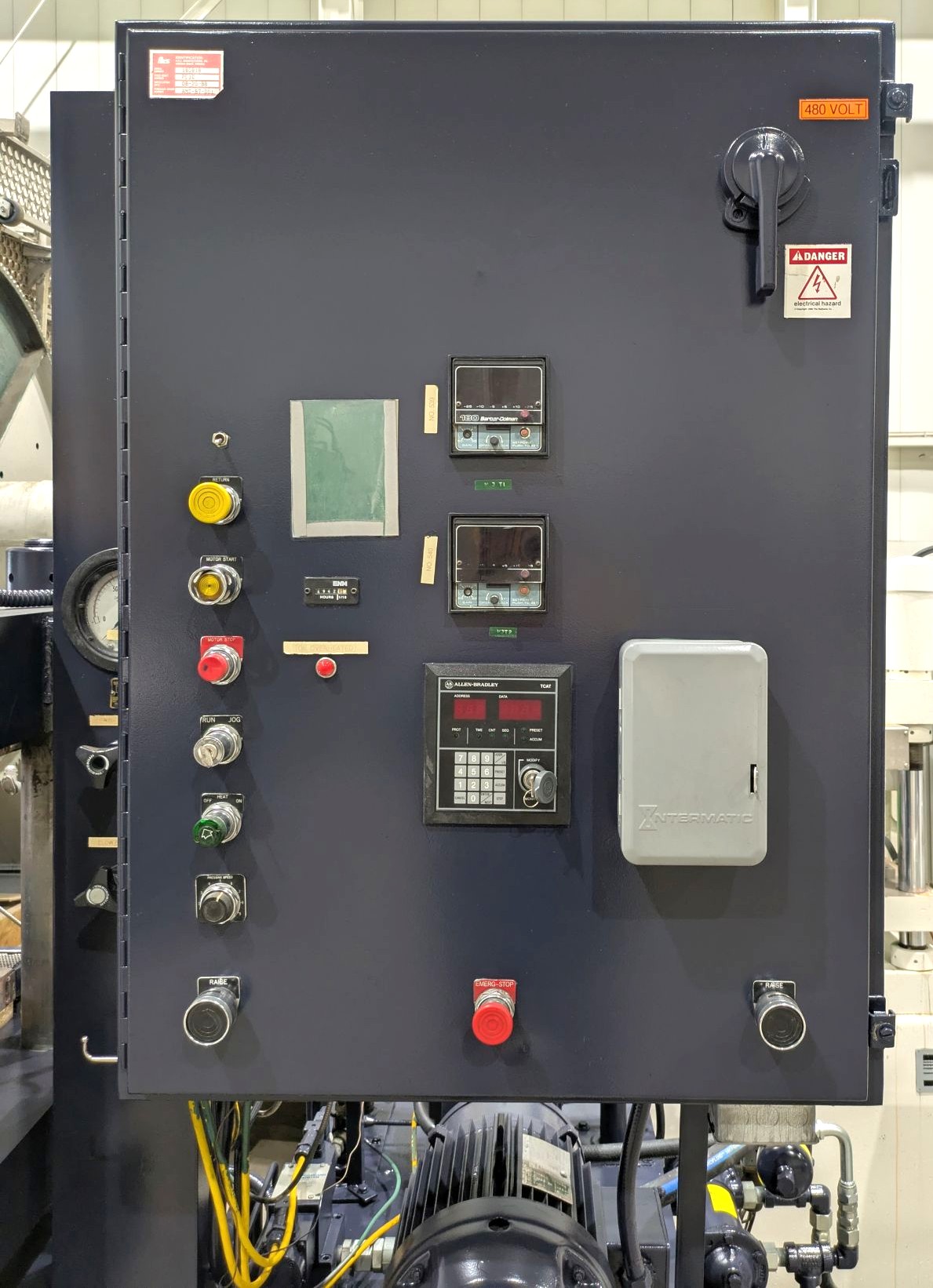

| MAX. CAPACITY | 100 TONS AT 4,000 PSI (43 TONS ON THE DOWN STROKE) | MAX. STROKE | 12″ | Max. Daylight | 12″ | overall bed & ram area | 38.5″ x 26″ (RL x FB) | distance between posts | 28″ X 16″ (RL X FB) | useable bed area | 28″ x 26″ (RL x FB) | electric heated platenS | 25″ X 25″ (RL X FB) – 100-600 DEG. F – 10 HEATERS PER PLATEN, 15.7 AMPS | floor to bed height | APPROX. 42″ | speeds (INCHES PER MINUTE) | 48 ADVANCE / 1-8 PRESSING / 110 RETURN | cylinder size | 8″ DIA. | ram rod size | 6″ DIA. | posts / 4 column size | 3.5″ DIA. | PRESS controls | Allen Bradley SLC 500 PLC | electric motor | 10 HP 230/460-3-60 MOTOR | hydraulic UNIT / HYDRAULIC PUMP | 60 GALLON RESERVOIR – REXROTH AA4VS040DR/10R-PKD63N PISTON PUMP | APPROX. DIMENSIONS | 78″ X 48″ (RL X FB) X 92″ HIGH | approx. weight | 8,800 LBS. | Equipped With | DRIP TRAY FOR MACHINE TO SIT IN, HEAT EXCHANGER, LIMIT SWITCH CAMS | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
