Machine Specifications
OBI Press for Sale
Manufacturer: Bliss

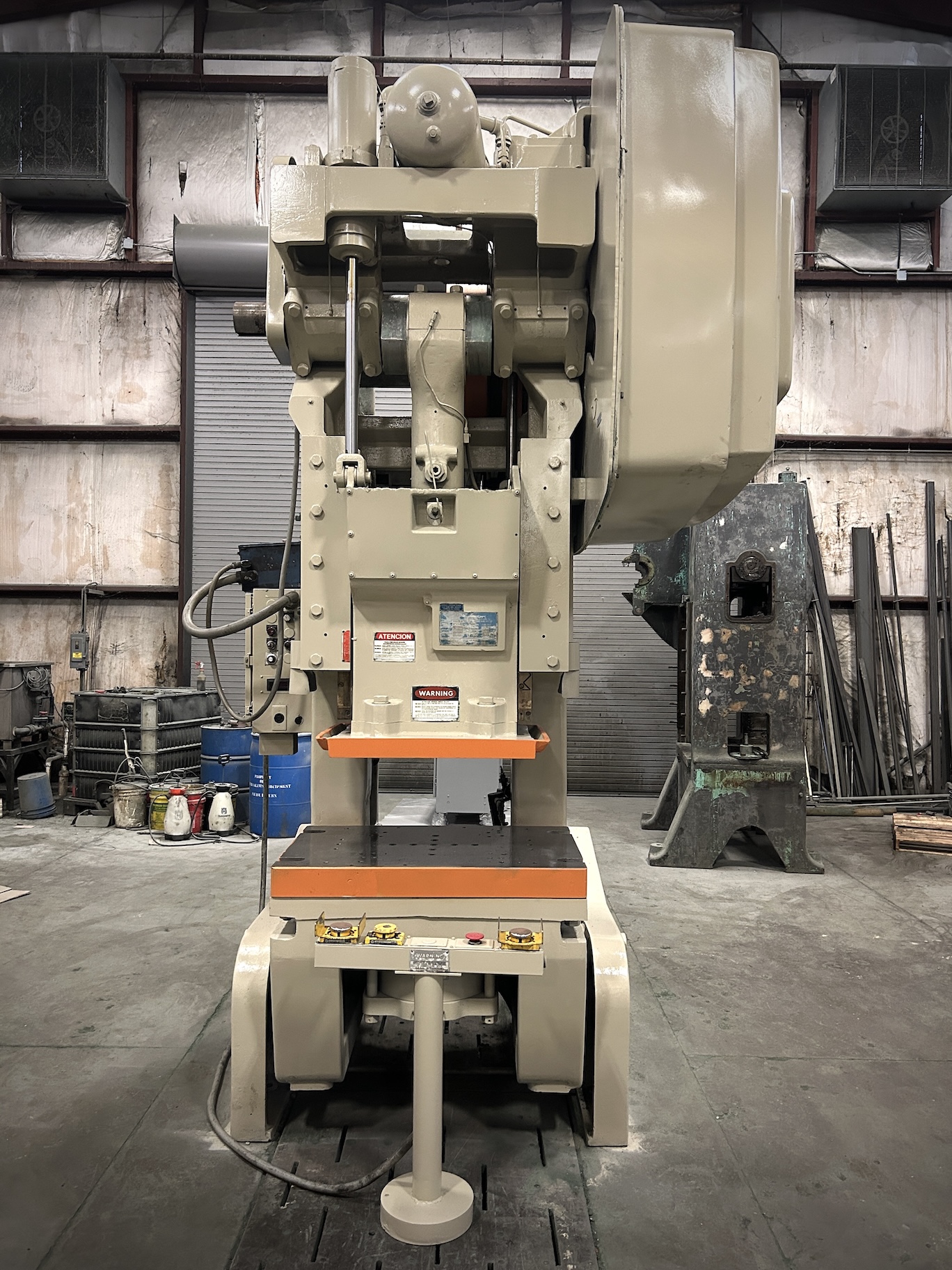

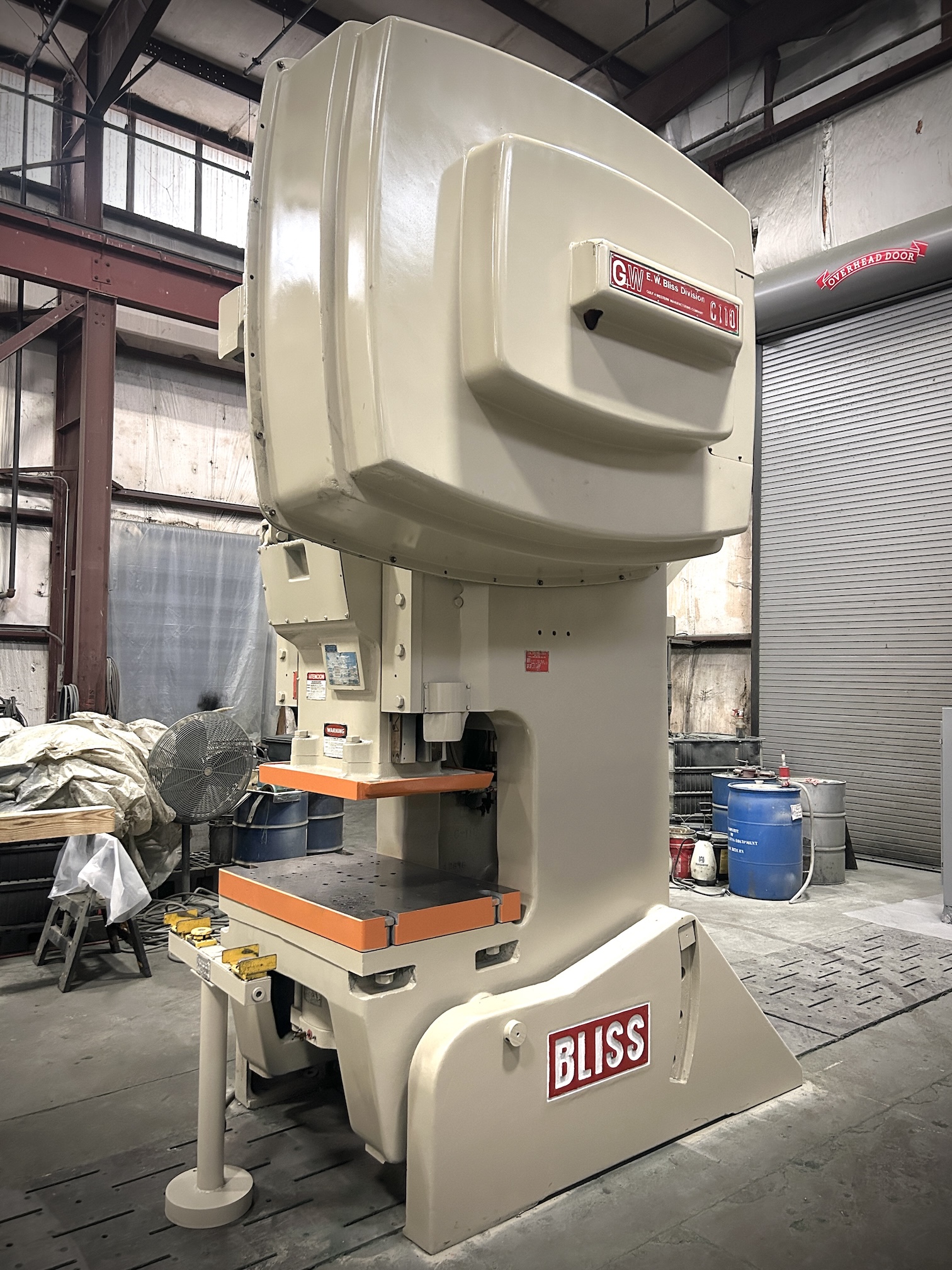

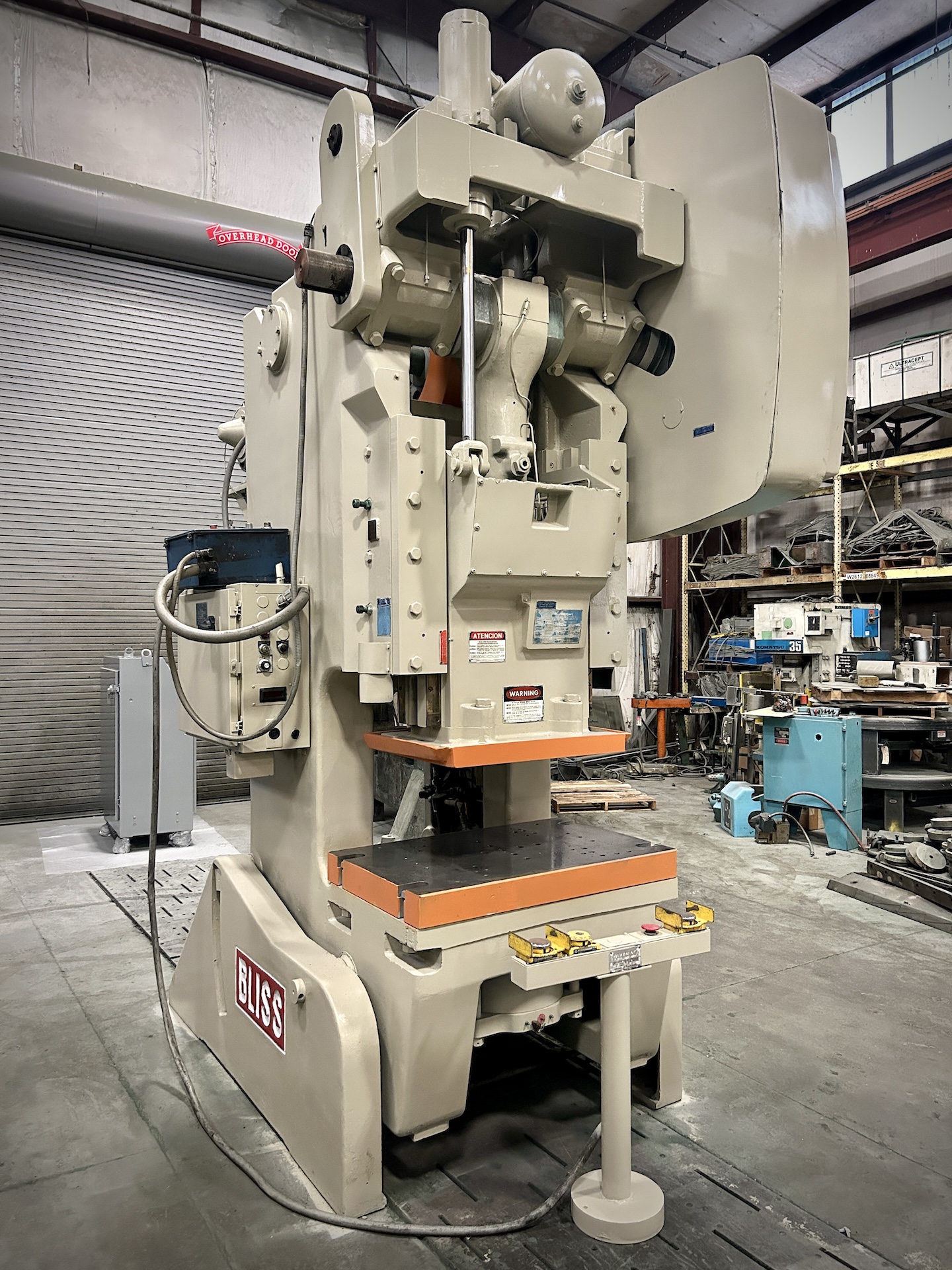

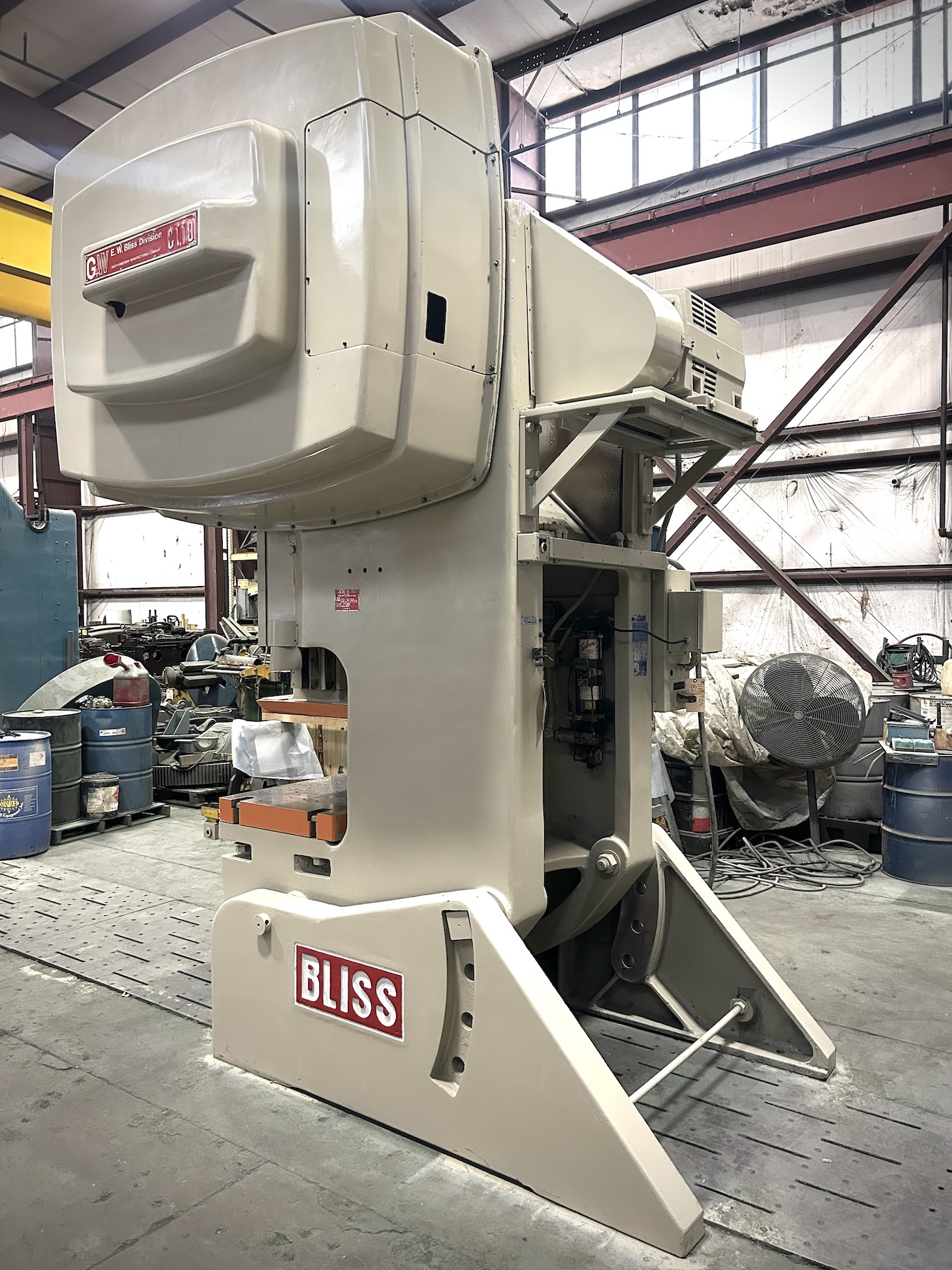

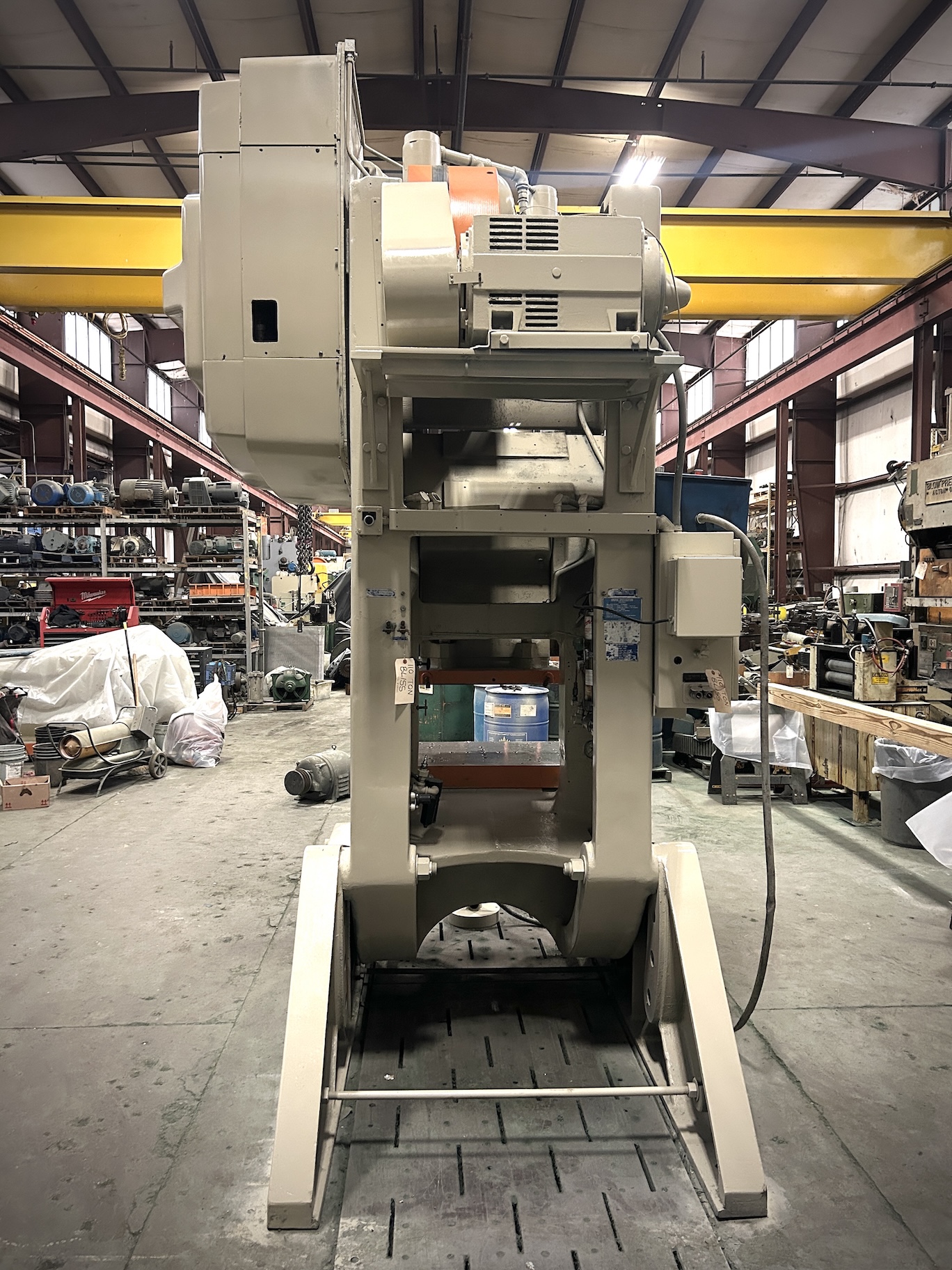

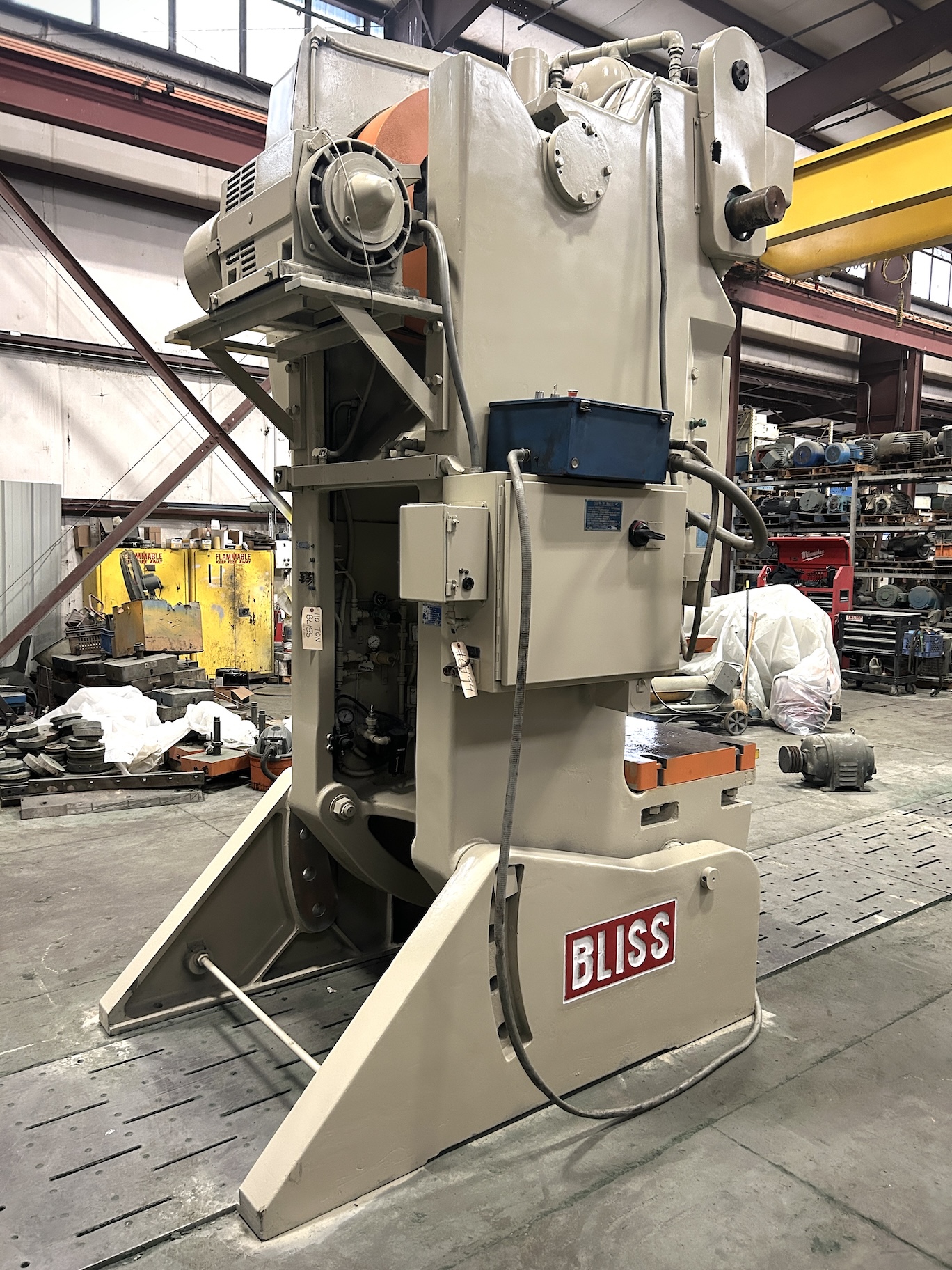

Model: Bliss C-110 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1979
Machine #: 6494
Buy Now: $

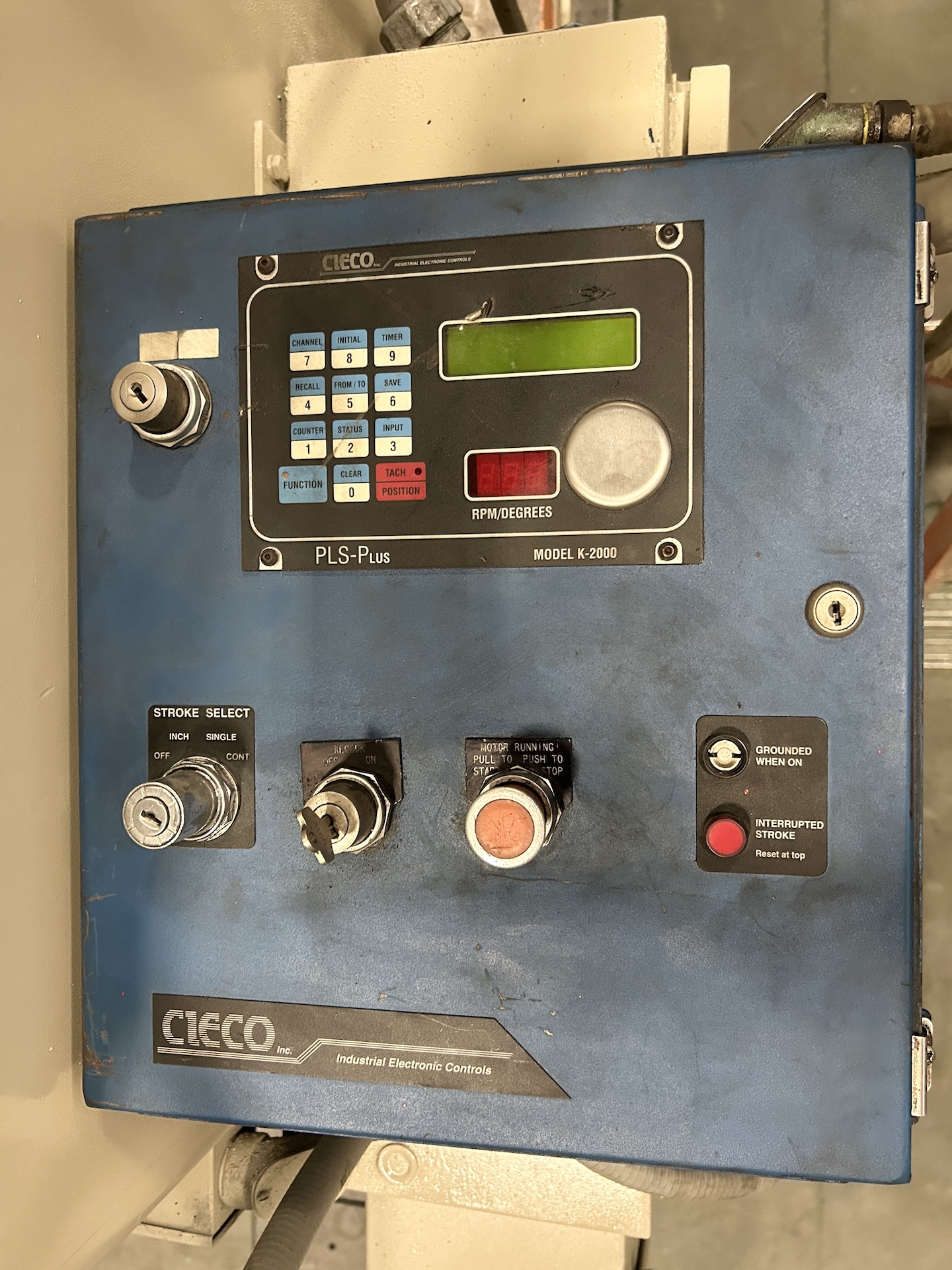

| CAPACITY | 110 TON | STROKE | 6″ | MAX SHUT HEIGHT TO BED | 19″ SDAU | BED AREA | 42″ RL X 27″ FB | SPEED | 20 – 40 SPM VARIABLE | SLIDE ADJUSTMENT | 4″ MOTORIZED | SLIDE AREA | 28.25″ RL X 23″ FB | BOLSTER PLATE | 3.5″ H X 42″ RL X 27″ FB (SOLID) | DIST UPRIGHTS / FLOOR TO BED | 24″ / 35.75″ | CLUTCH | BLISS AIR CLUTCH / BRAKE COMBINATION | ELECTRICS | 20 HP 1750 RPM 240/480V-3-60 EDDY CURRENT MOTOR & EXISTING CIECO PLS-PLUS PRESS CONTROL | APPROX DIMENSIONS | 12.5′ H X 100″ RL X 108″ FB | APPROX WEIGHT | 30,000 LBS | Equipped With | air cushion, air counterbalances, floor standing, inclinable. | Note | 4 IN STOCK |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
