Description

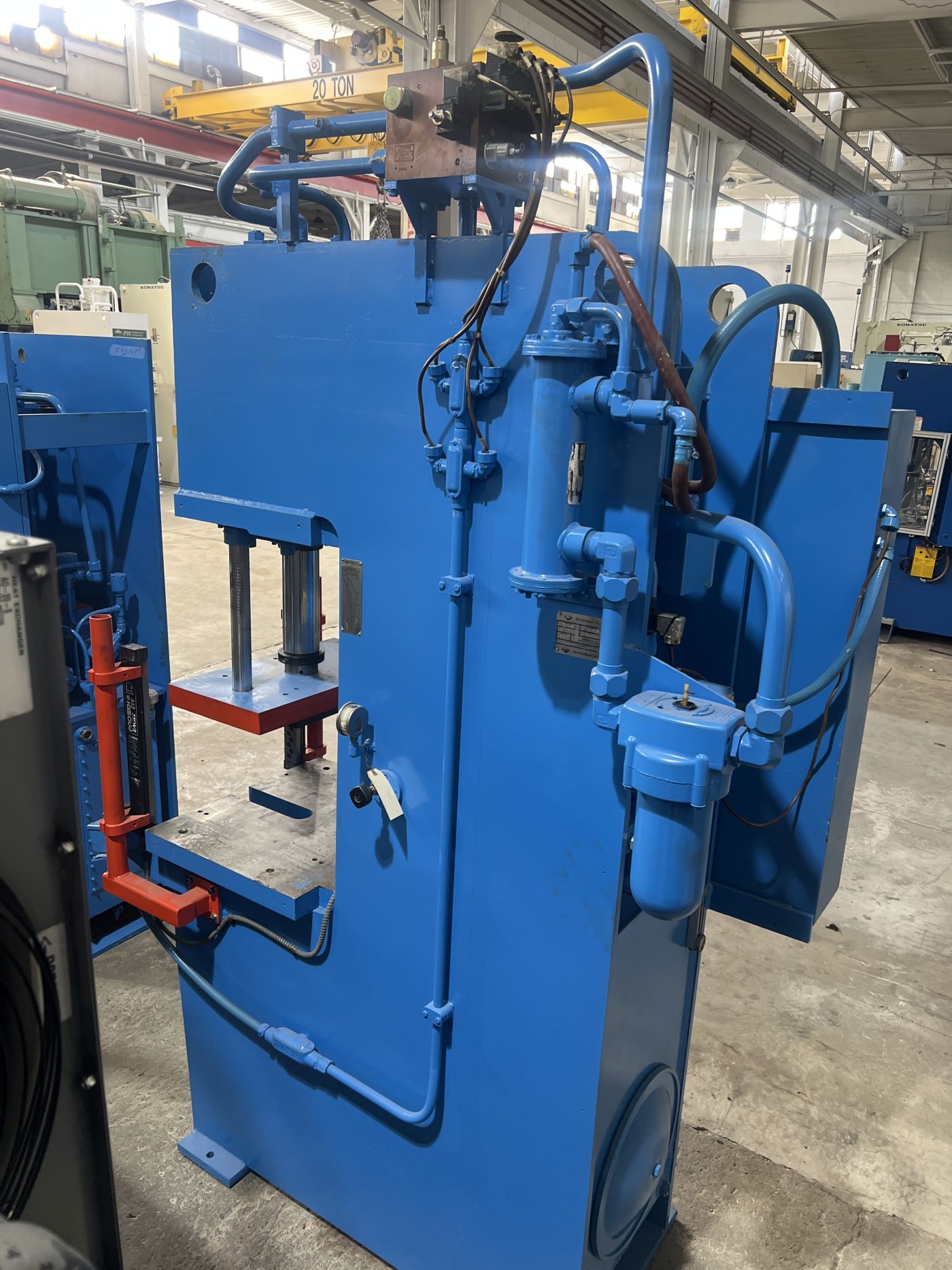

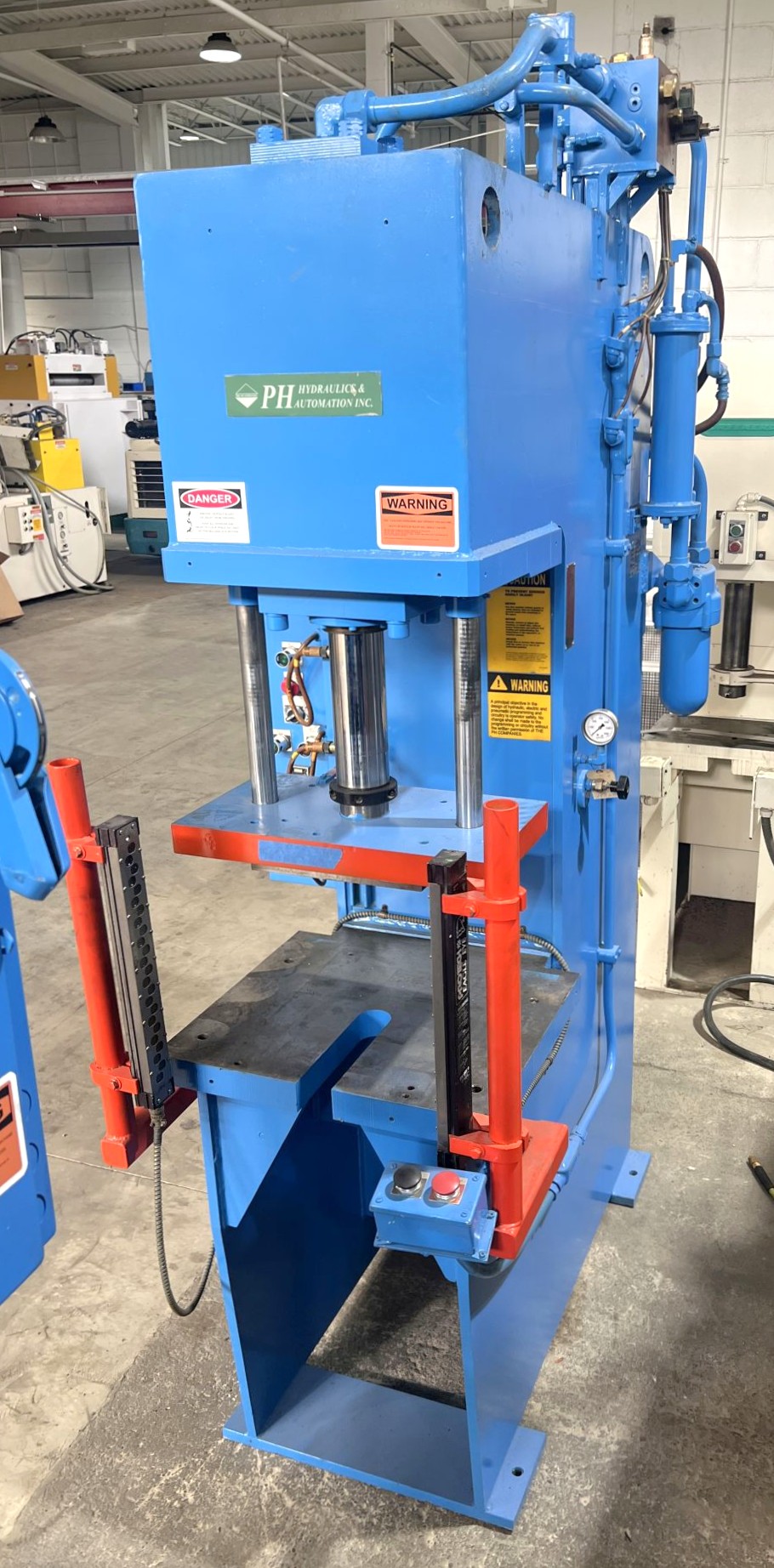

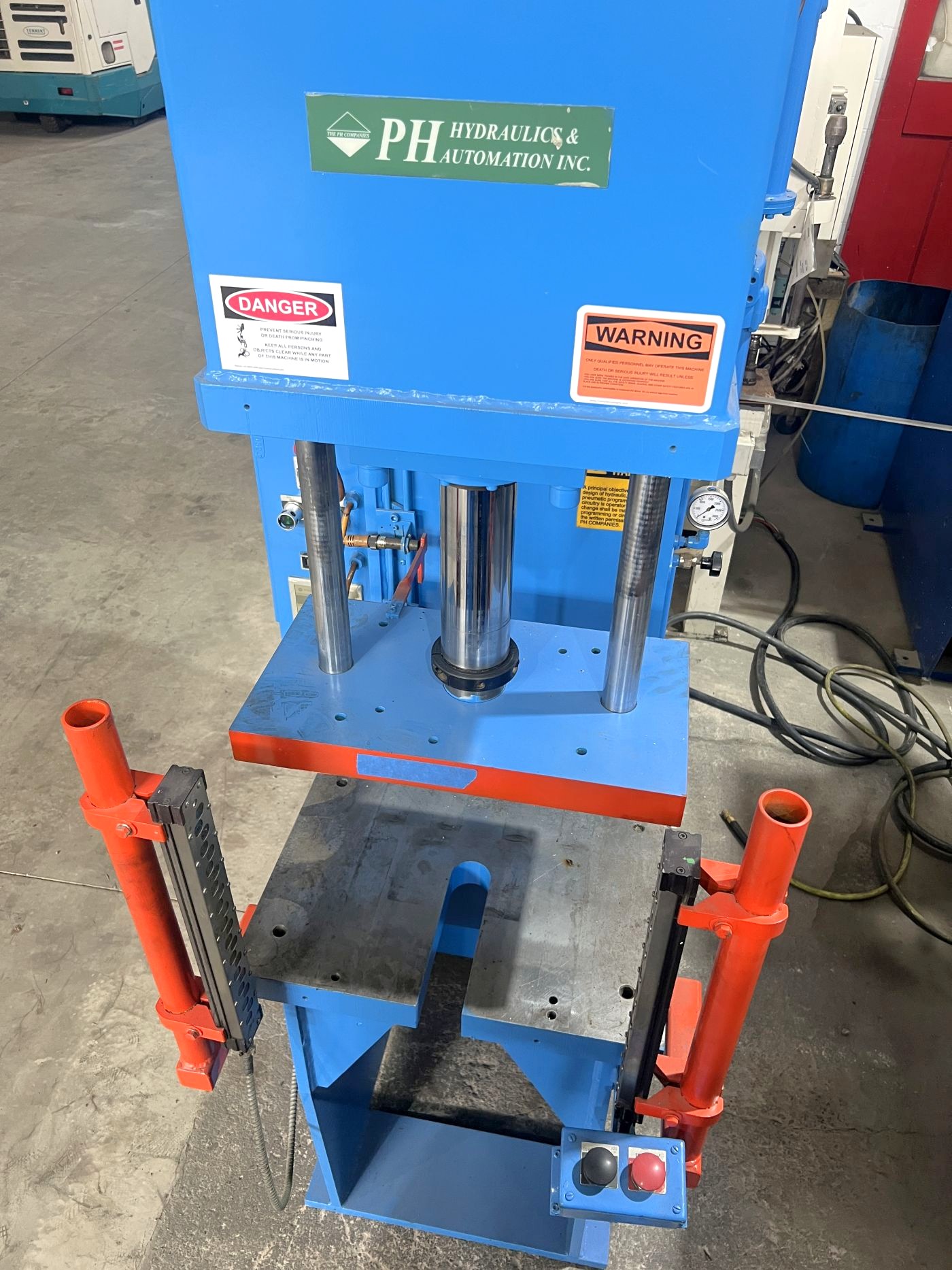

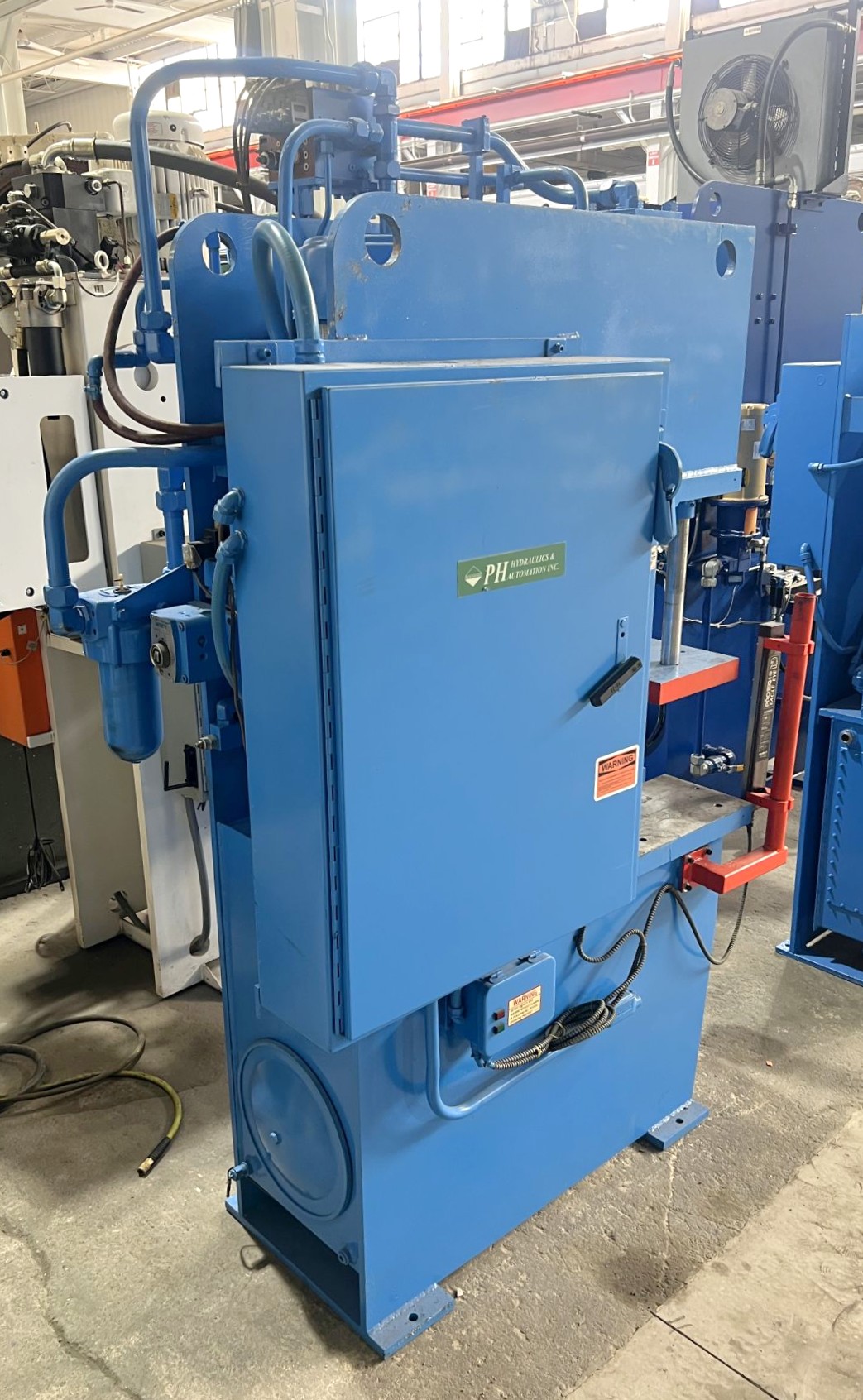

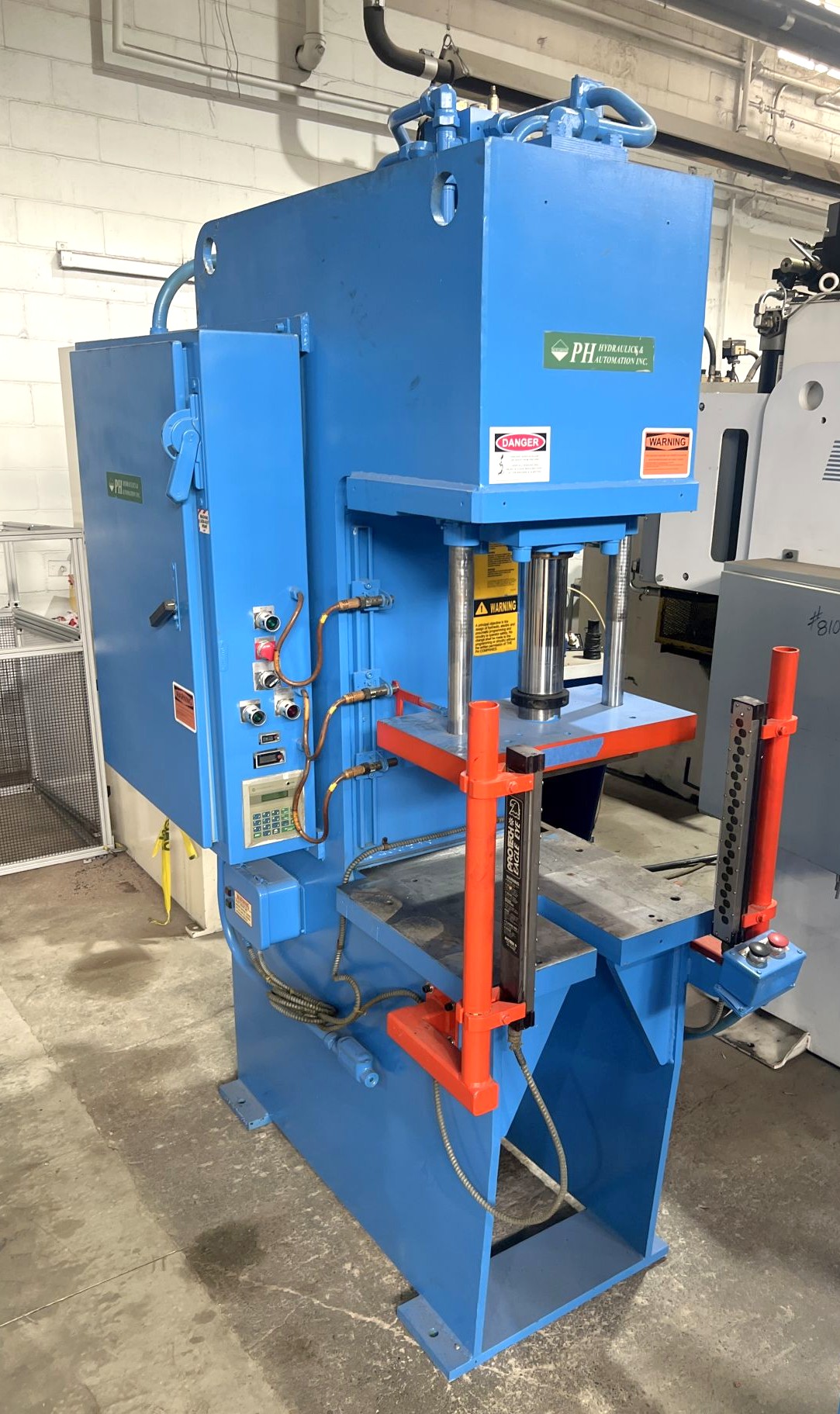

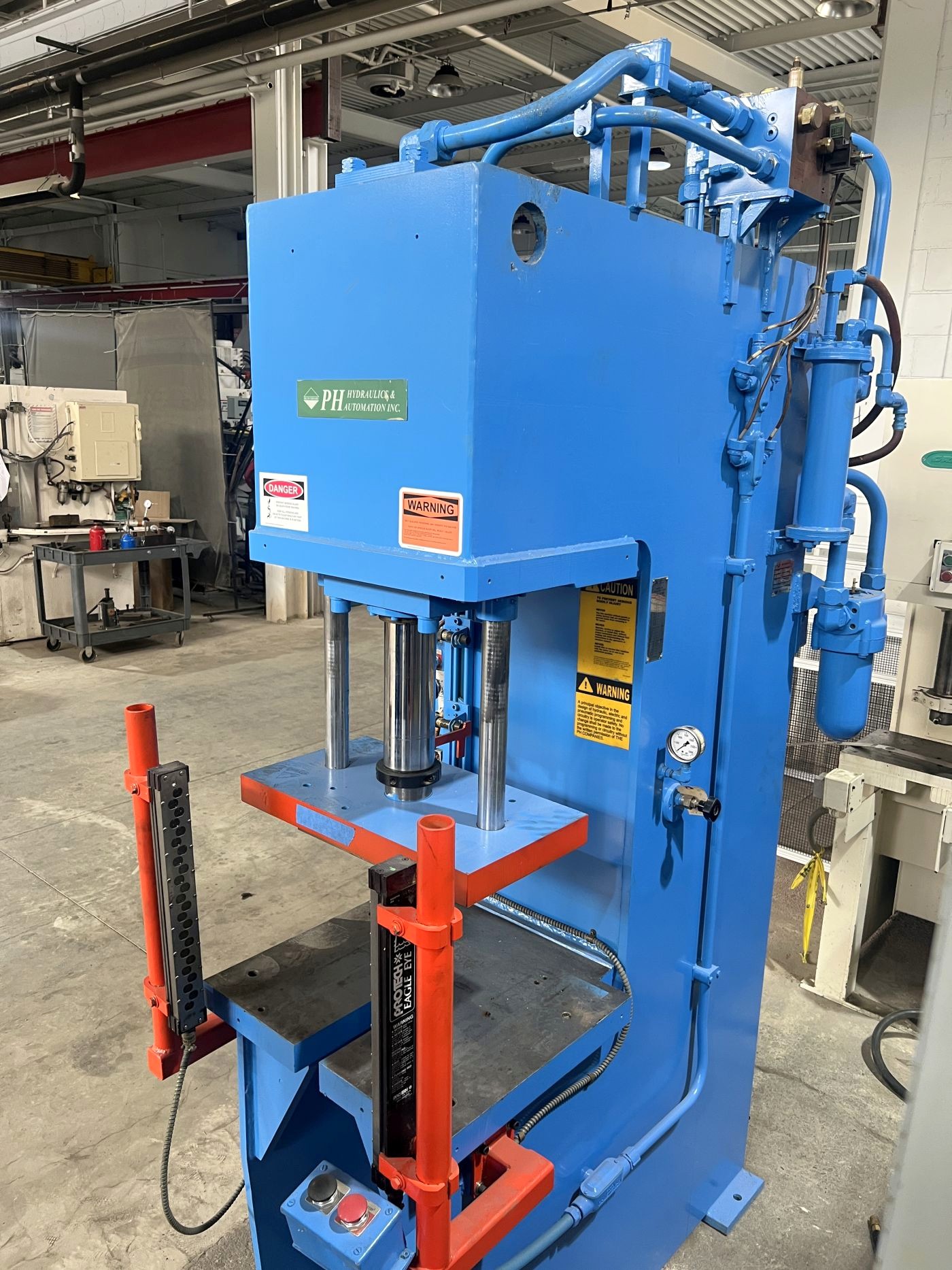

C Frame Hydraulic Press • Used 20 Ton Press for Sale
- Machine #
- 8255
- Condition
- Very Good
- Location
- Jackson, MI Cooper Building
- Year
- Year Unknown
- Model

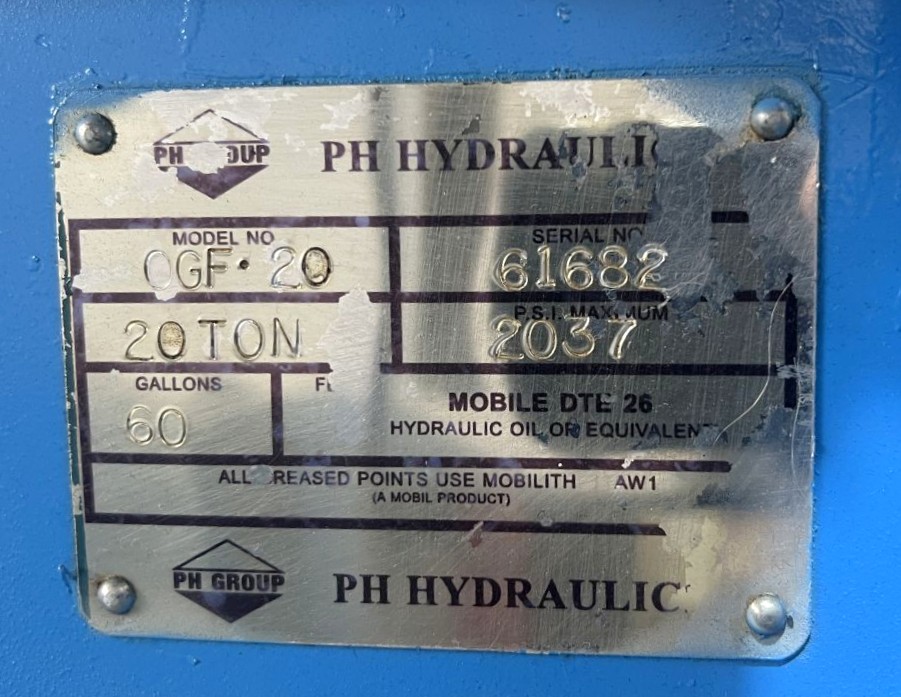

- PH OGF-20
Buy Now: $
| MAX. CAPACITY | 20 TONS |
|---|---|
| MAX. STROKE | 18" |
| MAX. DAYLIGHT | 20" |
| BED AREA | 24" X 20.25" (RL X FB) |

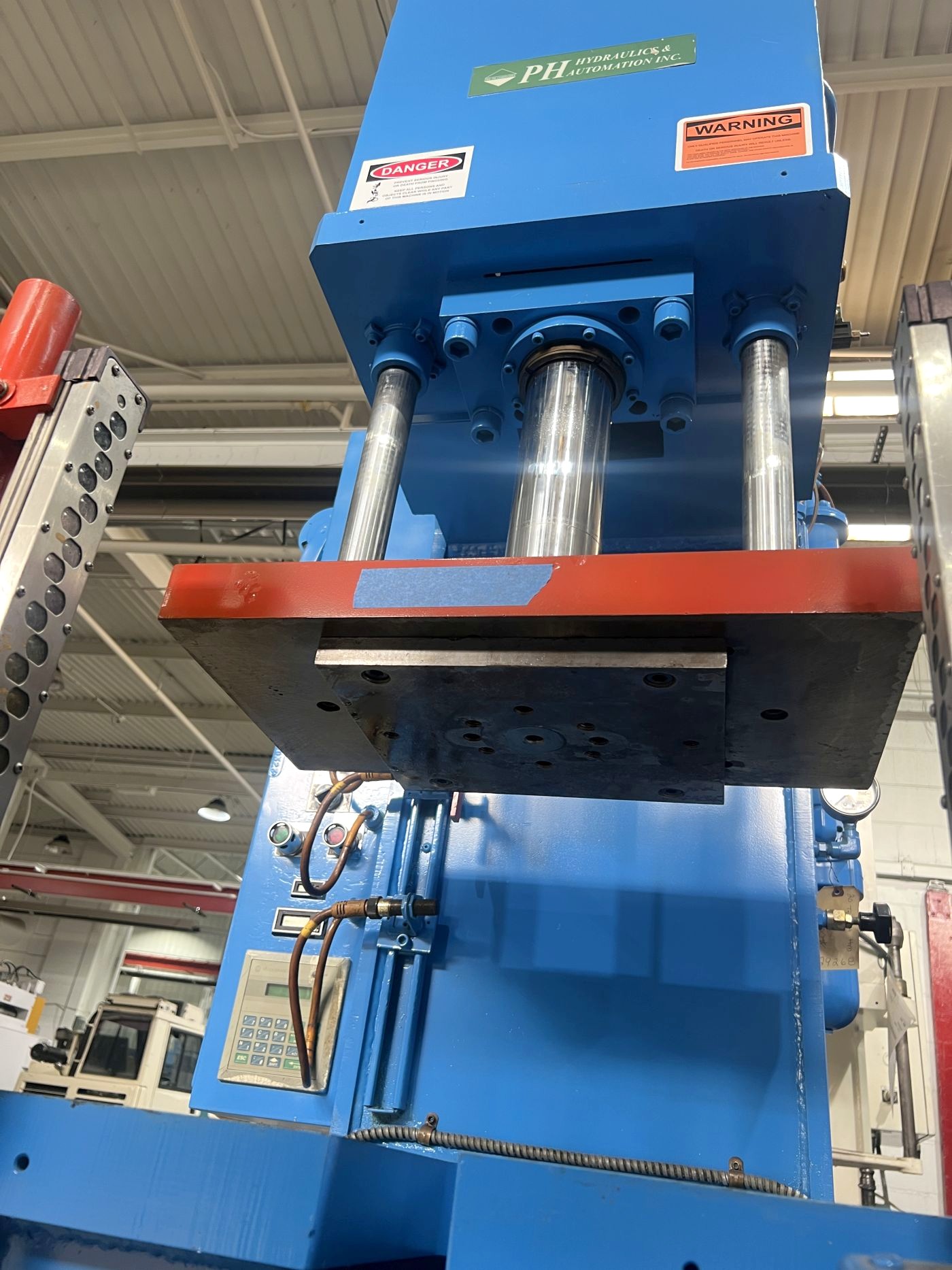

| RAM / SLIDE AREA | 22" x 12" (rl x fb) WITH 1.75" DIA. GUIDE POSTS |

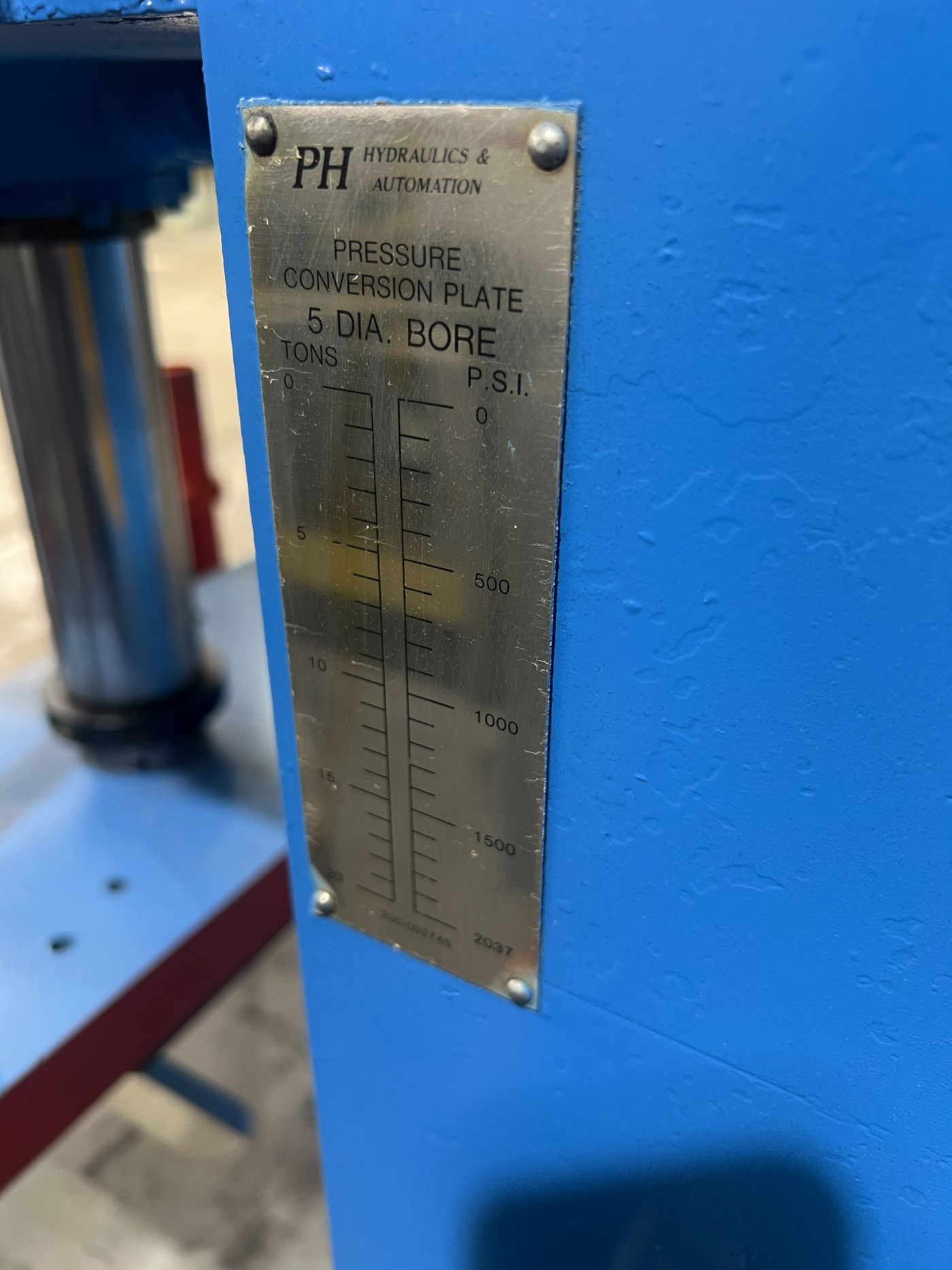

| CYLINDER SIZE | 5" DIA. BORE |
| RAM ROD SIZE | 3.25" DIA. |
| THROAT DEPTH | 14" TO SIDE FRAME / 14.26" TO BACK |
| FLOOR TO BED HEIGHT | 36" |
| SPEEDS | VARIABLE SPEED - APPROX. 266 IPM CLOSING / 130 IPM PRESSING / 254 IPM RETURN |

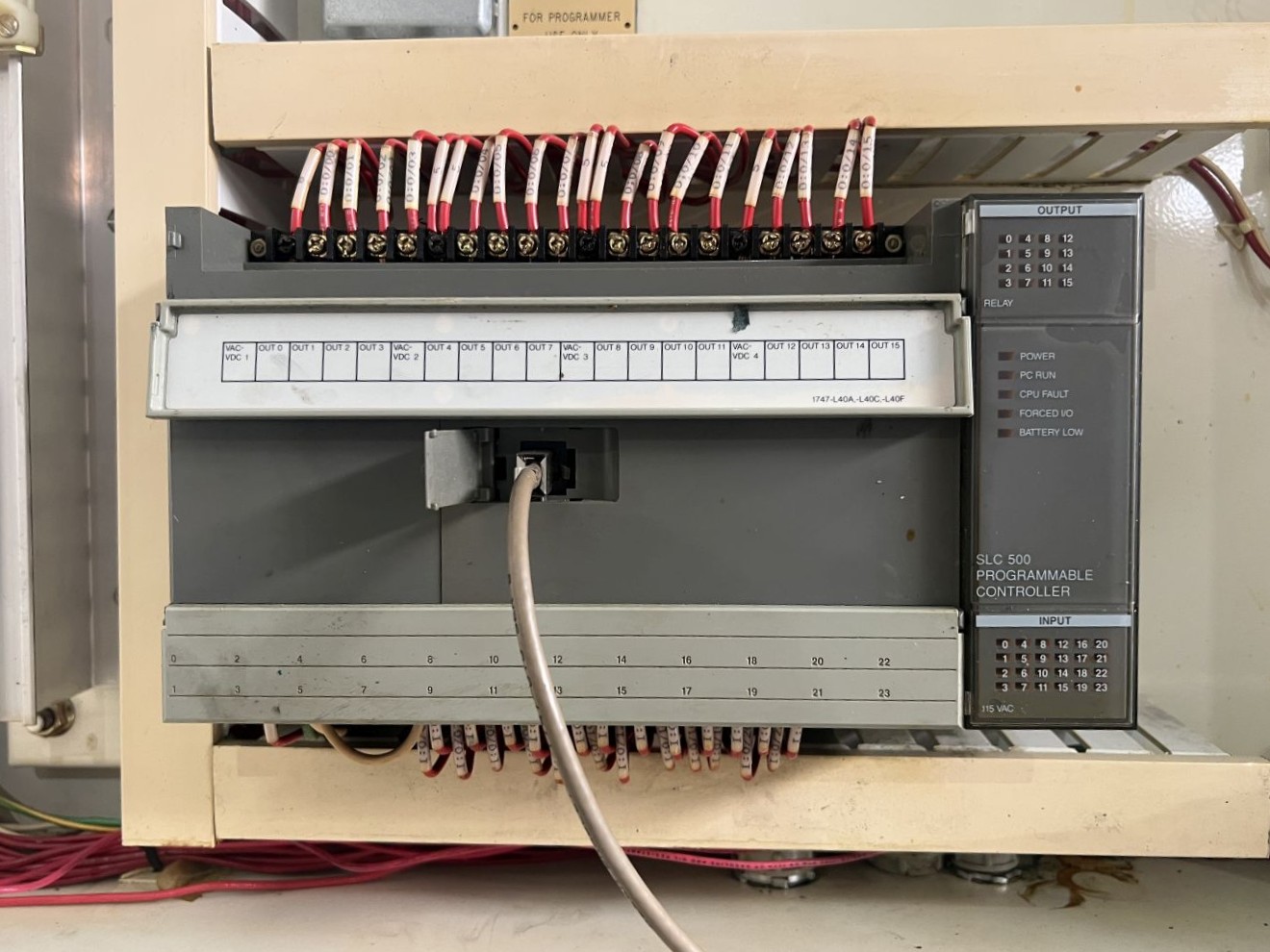

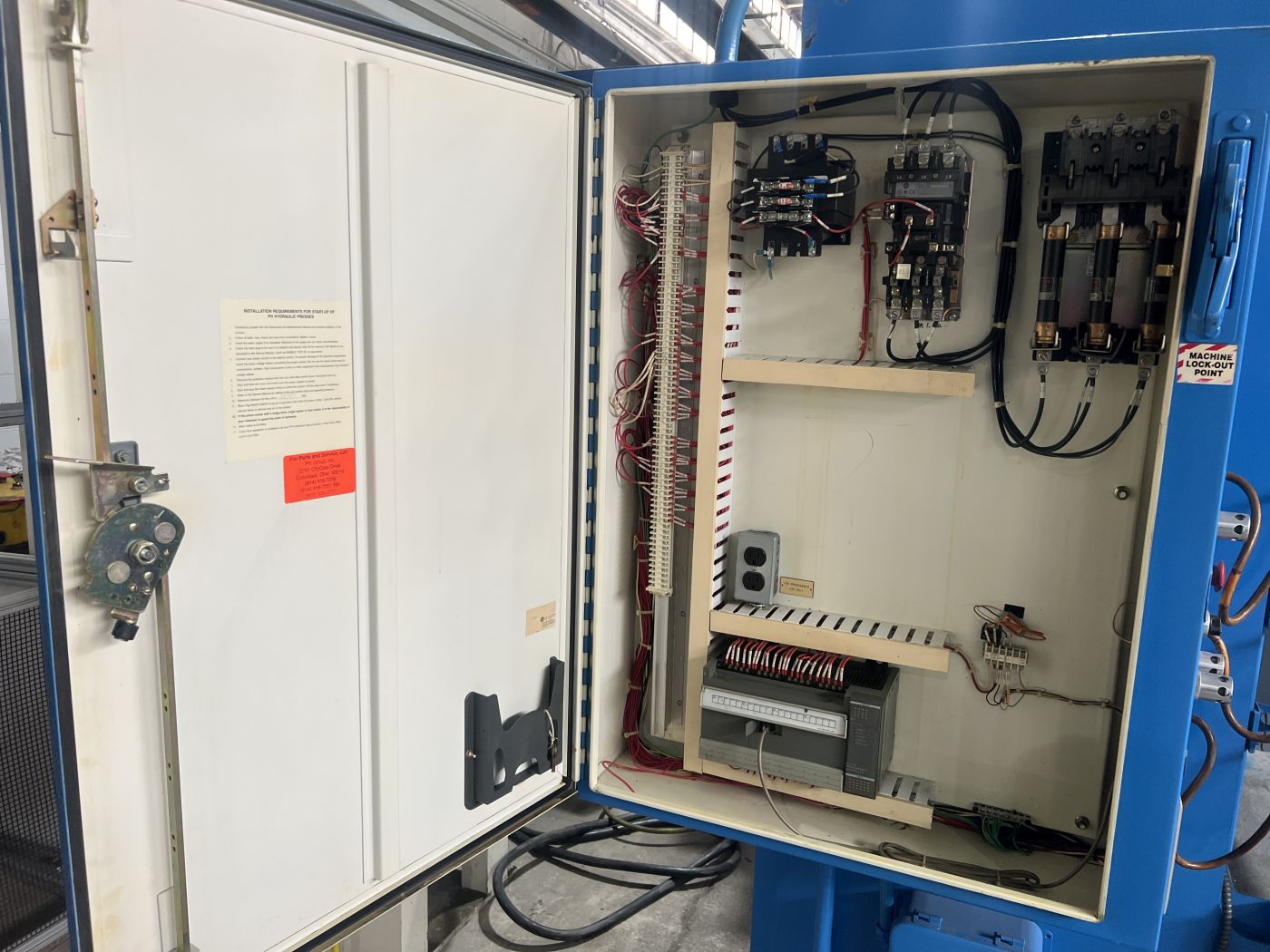

| PRESS CONTROLS | ALLEN-BRADLEY SLC 500 PROGRAMMABLE CONTROLLER |
| HYDRAULIC SYSTEM | SELF-CONTAINED HYDRAULIC PUMP | 60 GALLON RESERVOIR |

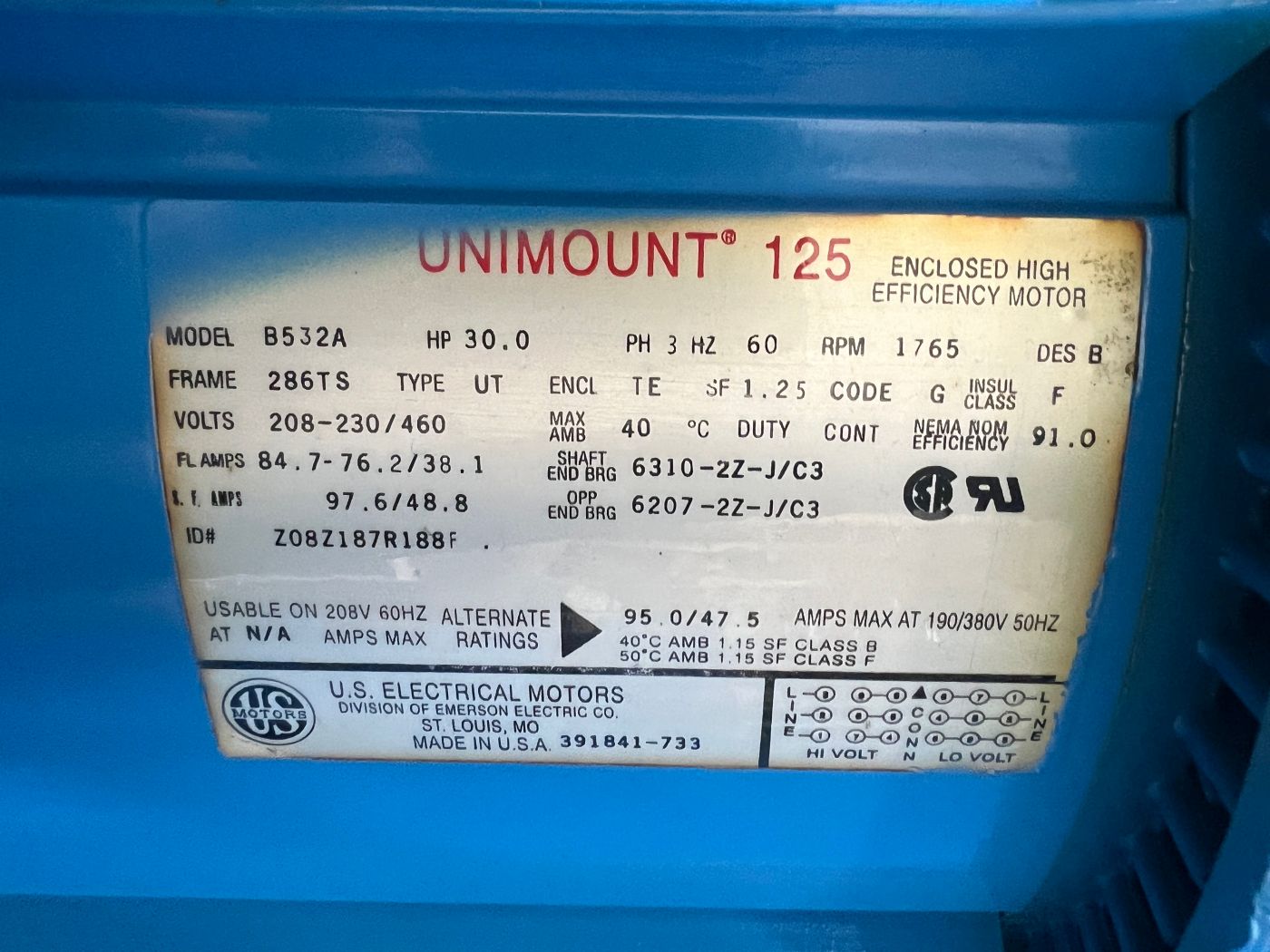

| ELECTRIC MOTOR | 30 HP 208-230/460V-3-60 US MOTORS MOTOR | 84.7-76.2 / 38.1 AMPS |
| APPROX. DIMENSIONS | 44" X 72" (RL X FB) X 107" HIGH |
| APPROX. WEIGHT | 4,200 LBS. |

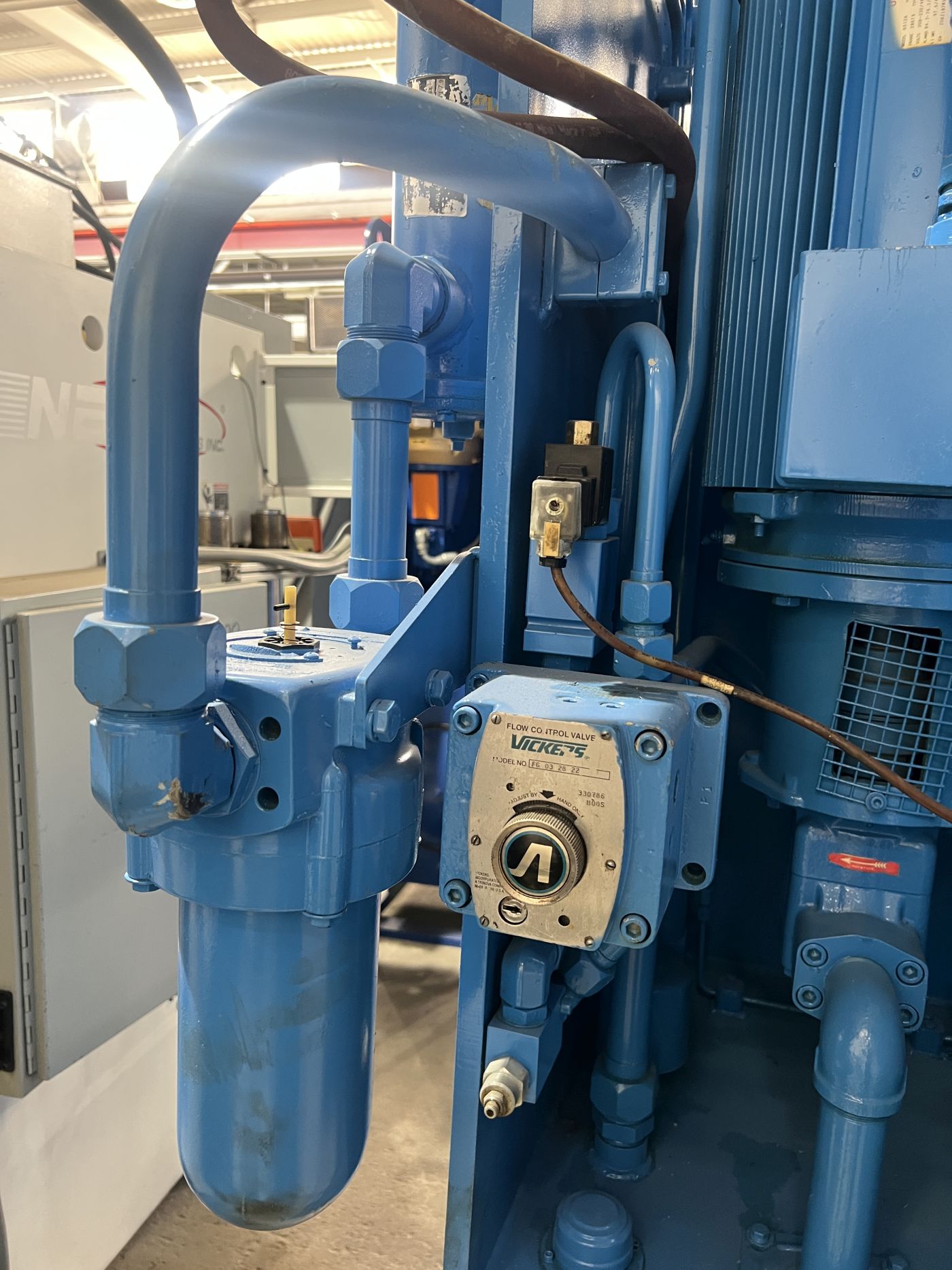

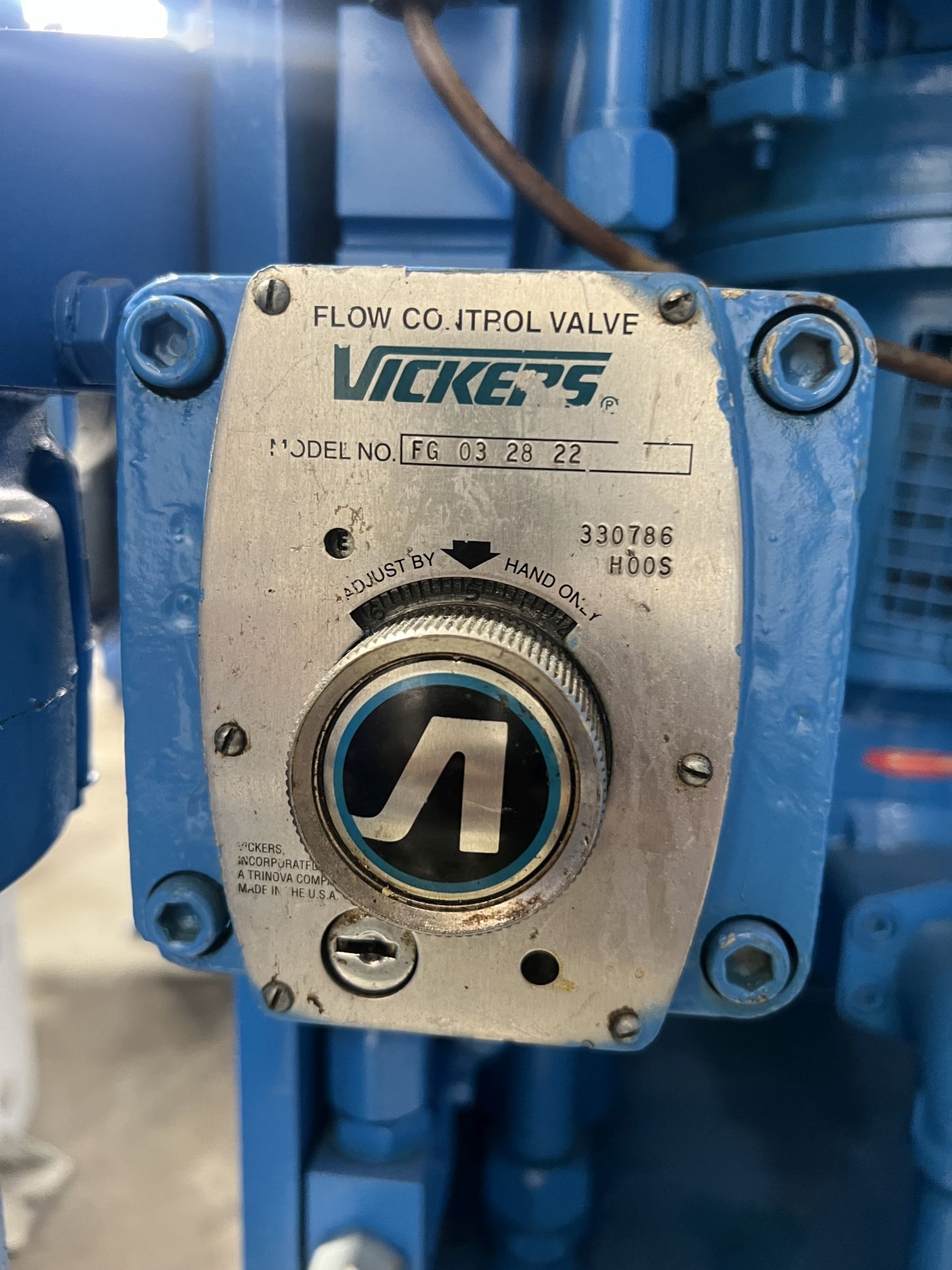

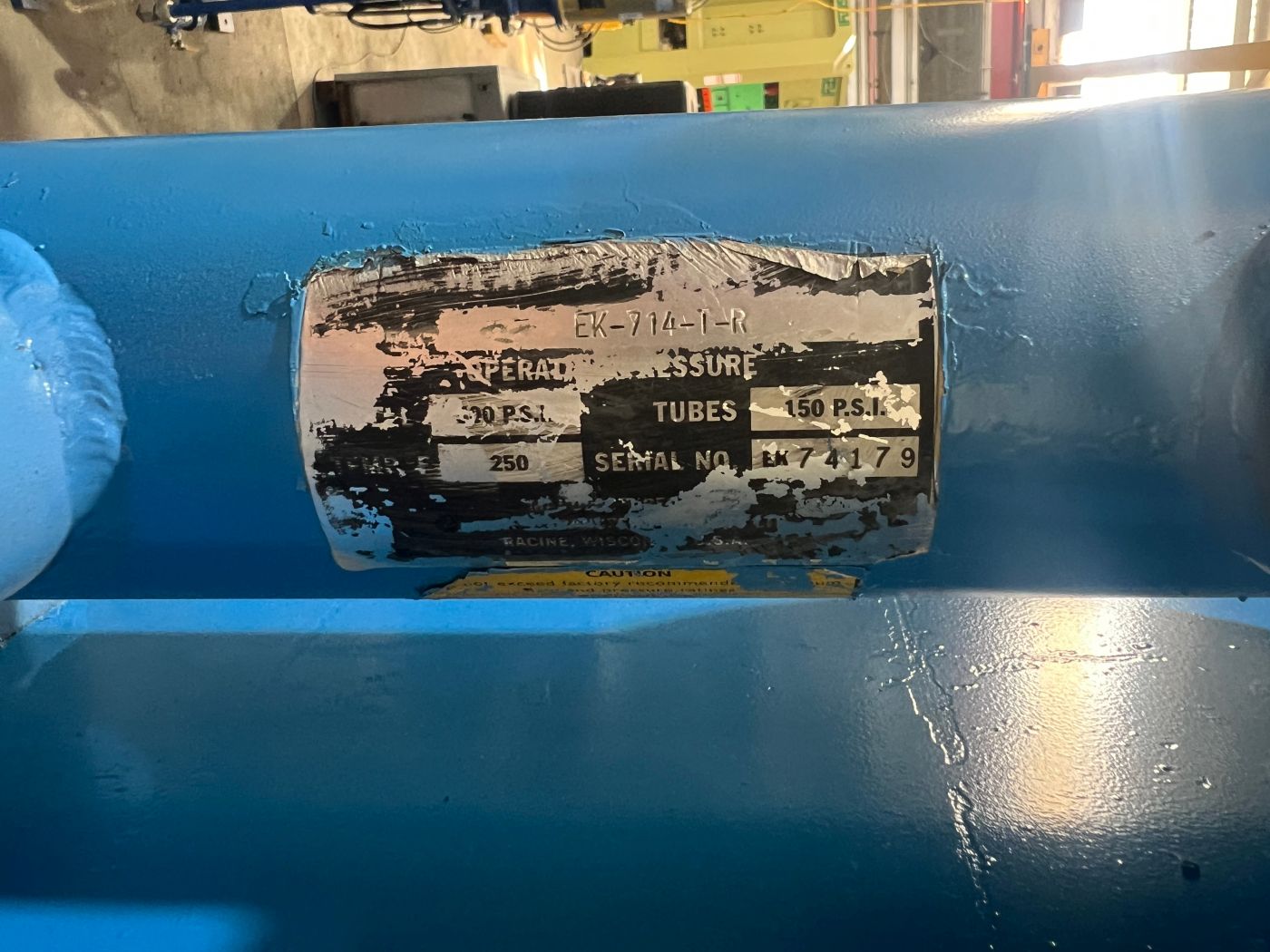

| Equipped With | SHELL-AND-TUBE HEAT TRANSFER PRODUCTS HEAT EXCHANGER MODEL EK-714-T-R, ADJUSTABLE SPEED THROUGH VICKERS FLOW CONTROL VALVE MODEL FG 03 28 22 MOUNTED TO BACK OF THE PRESS |
| Note | MOBILE DTE 26 OR ISO VG 68 ANTI-WEAR HYDRAULIC OIL RECOMMENDED |
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
