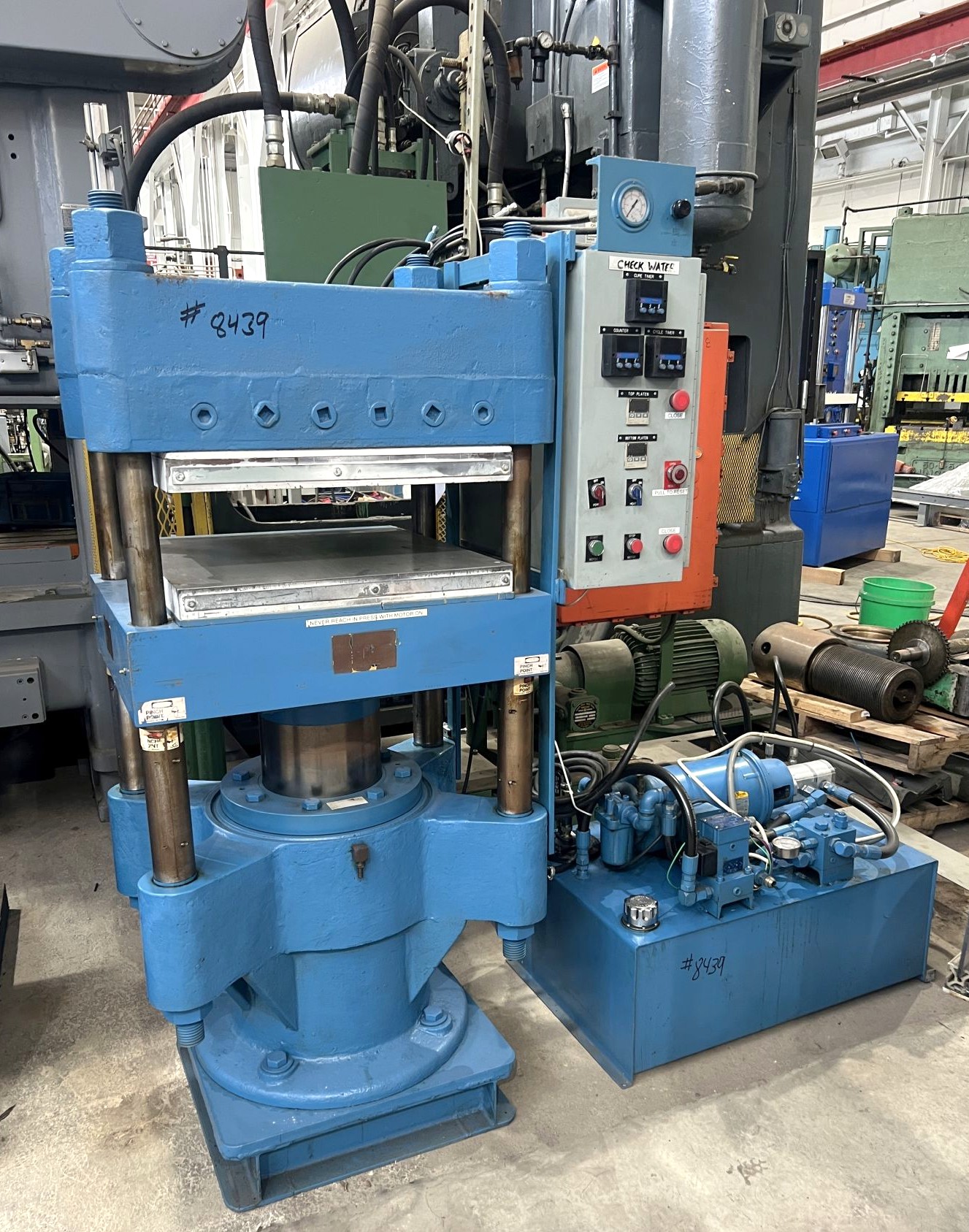

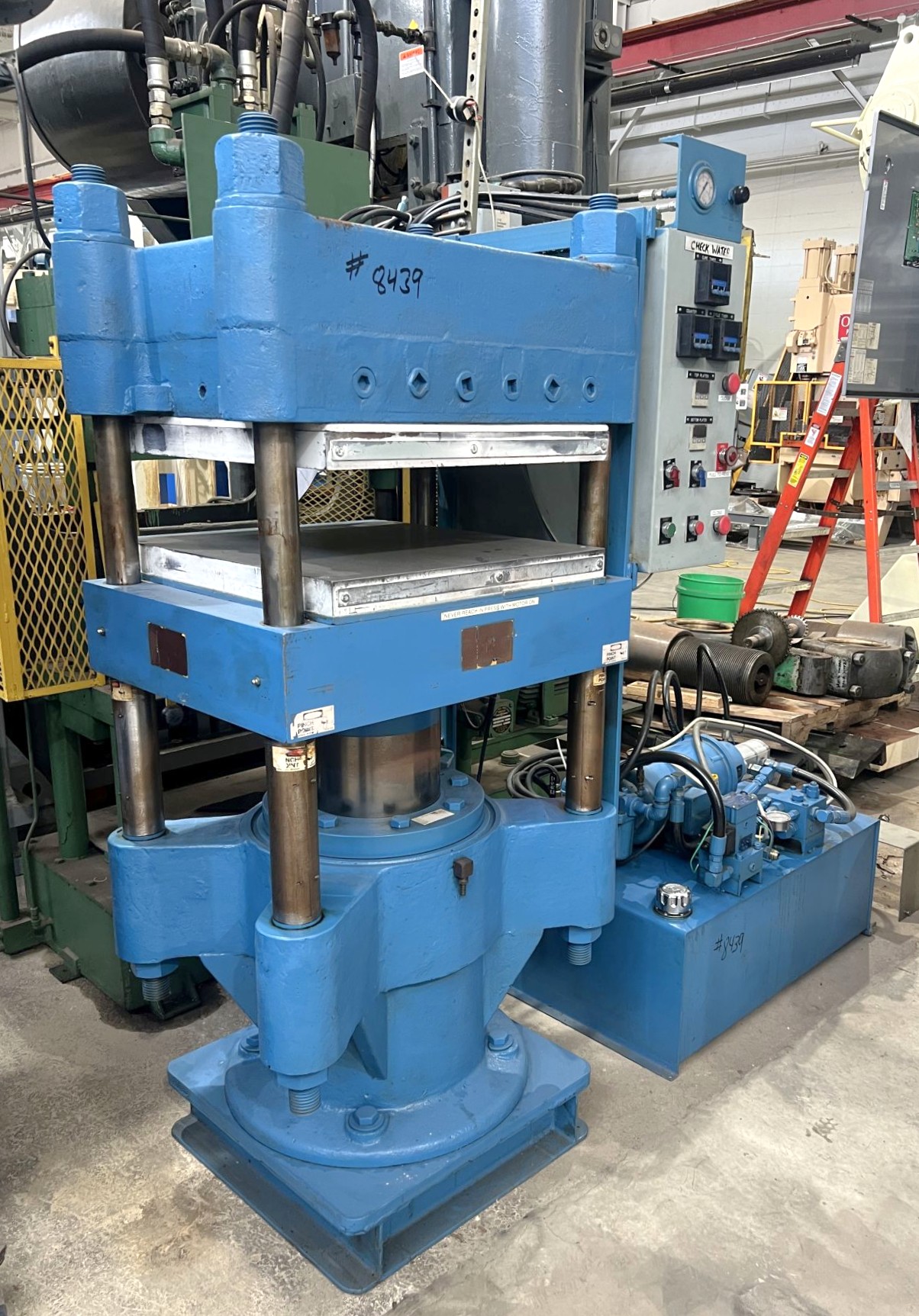

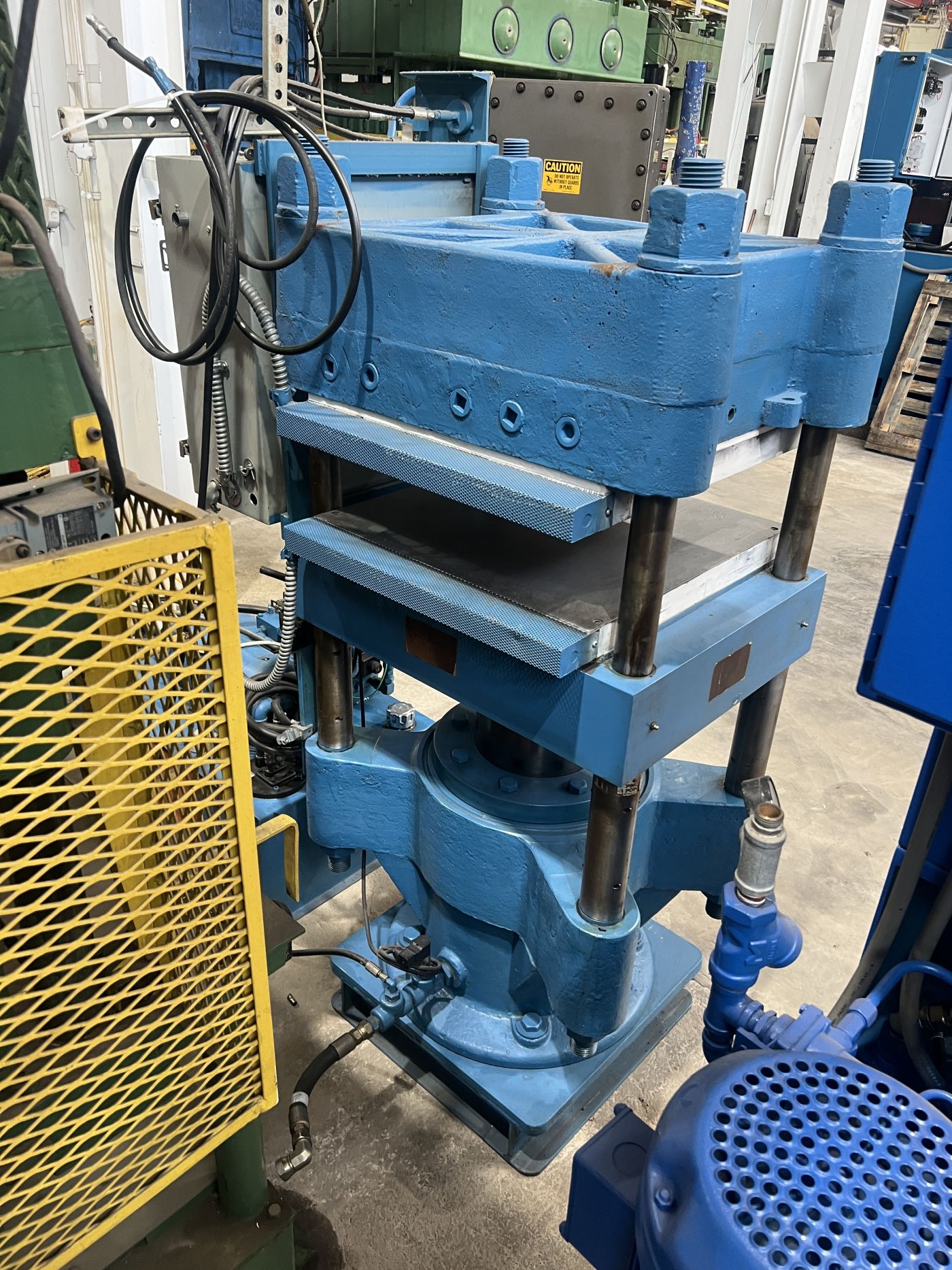

Heated Platen Press • Used 110 Ton Press for Sale
- Machine #
- 8439
- Condition
- Very Good
- Location
- Jackson, MI Cooper Building
- Year
- Year Unknown
- Model
- Reliable
Buy Now: $
| MAX. CAPACITY | APPROX. 110 TONS |
|---|---|
| MAX. STROKE | APPROX. 12" |
| MAX. DAYLIGHT | __ |

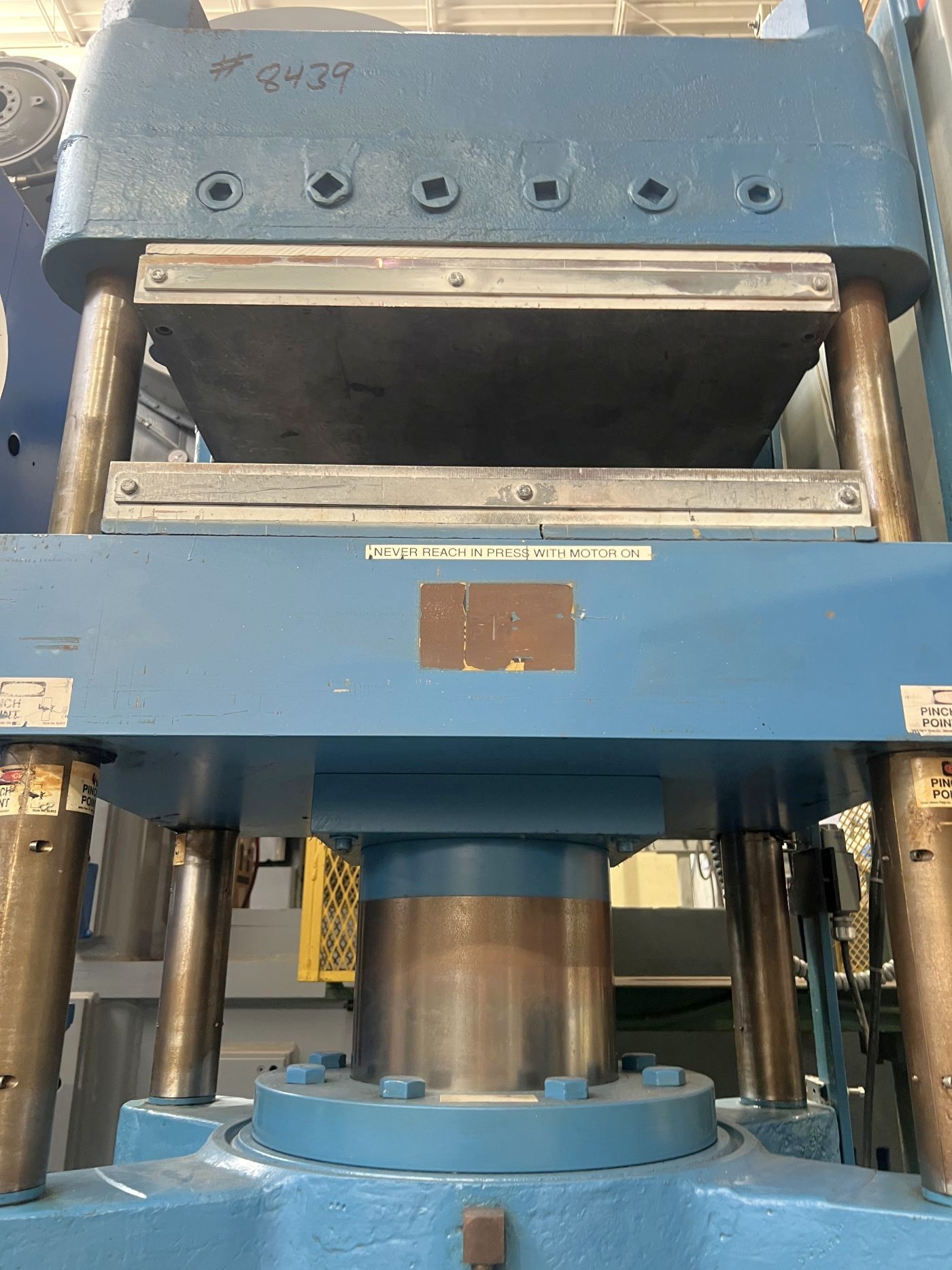

| OVERALL BED & RAM AREA | 30.625" X 24" (RL X FB) |
| DISTANCE BETWEEN POSTS | 24.75" X 16.75" (RL X FB) |
| USABLE BED & RAM AREA | 24.75" X 24" (RL X FB) |

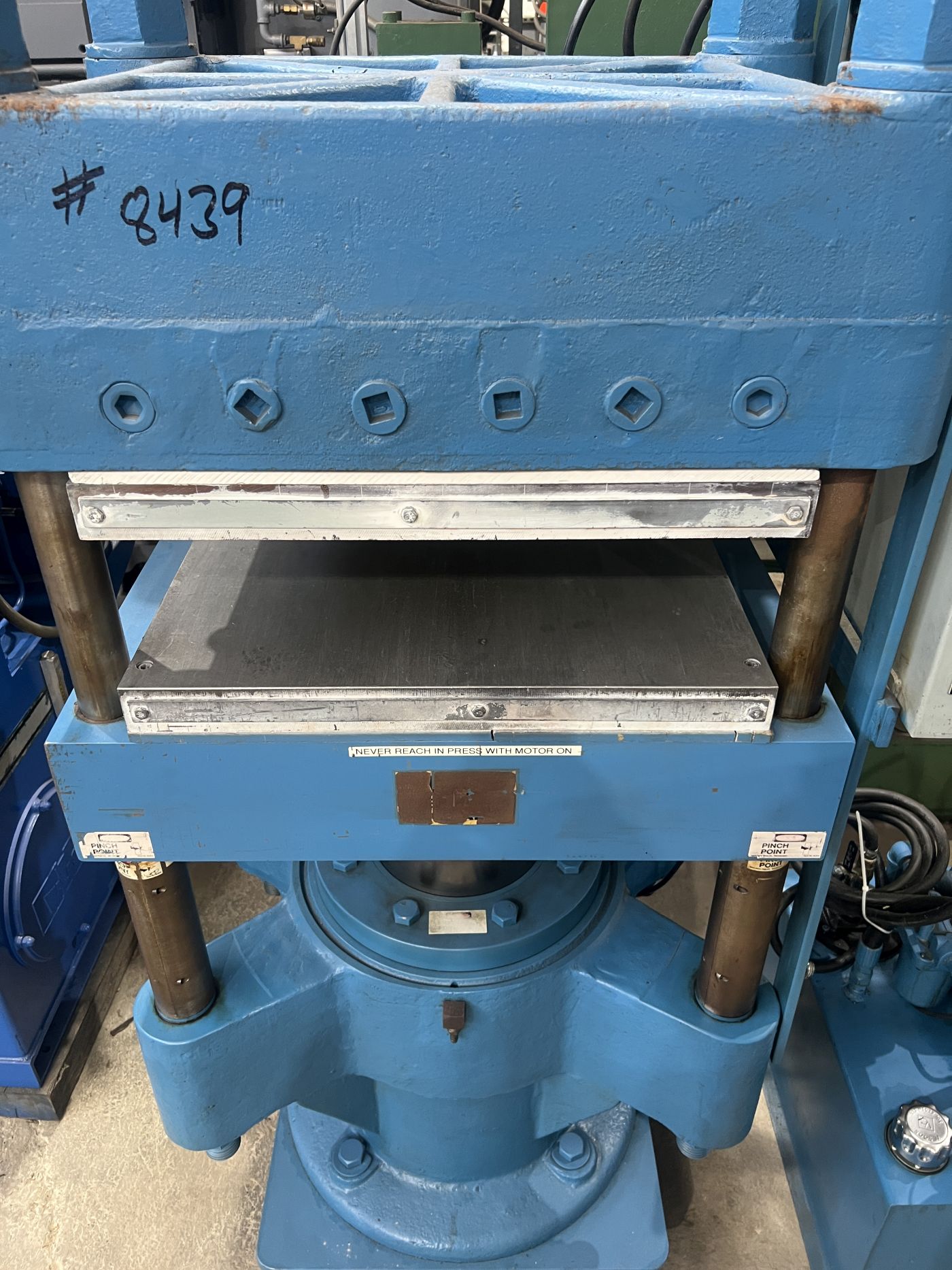

| ELECTRICAL HEATED PLATENS | 24" X 24" (RL X FB) X 2.5" THICK |
| SPEEDS | __ |
| CYLINDER SIZE | APPROX. 15" DIA. BORE |
| ROD SIZE | 9.5" DIA. |
| 4 COLUMN / POSTS SIZE | 2.25" DIA. |
| FLOOR TO BED HEIGHT | 46" | 39.75" PLUS 6.25" RISER |

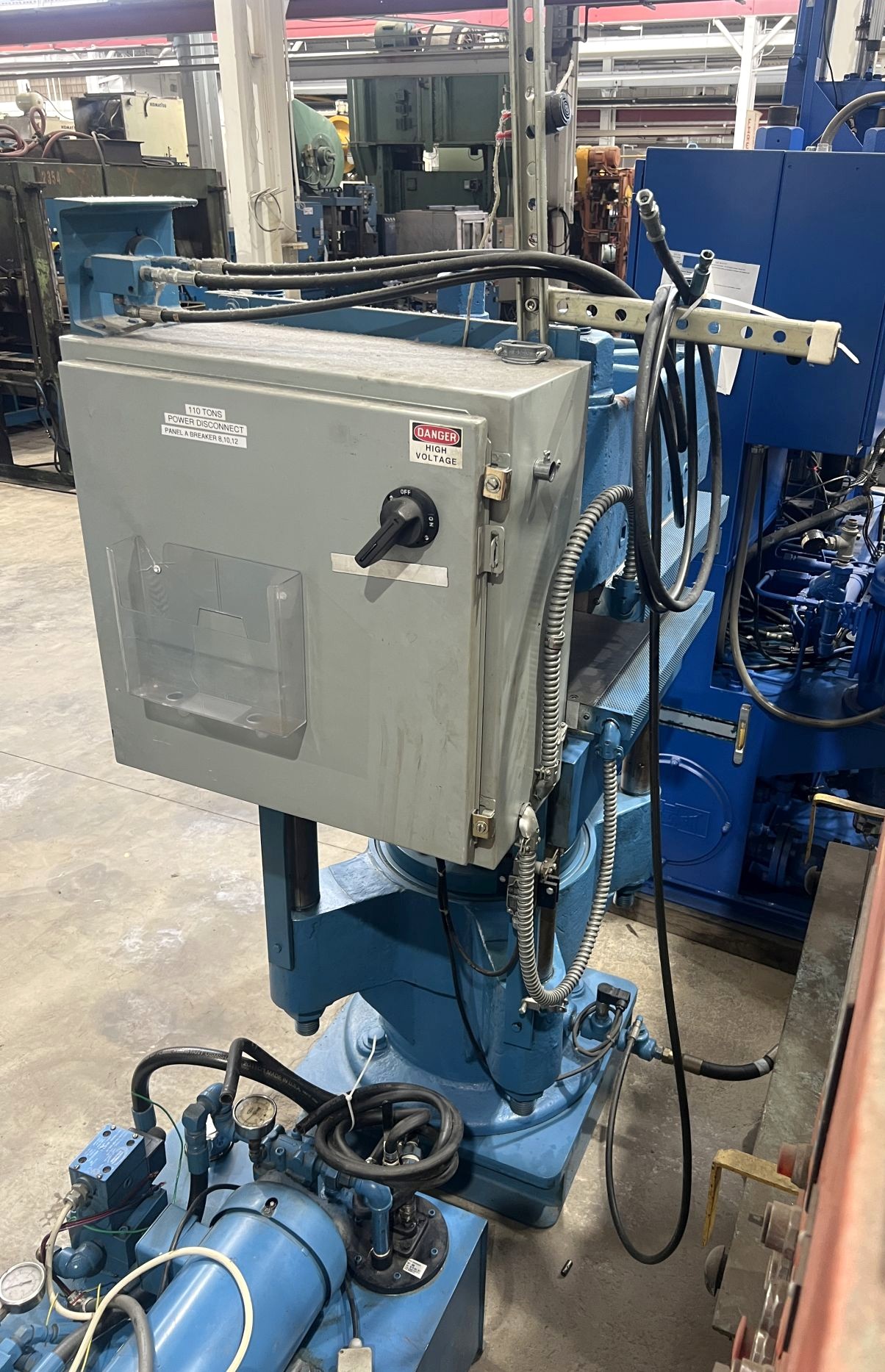

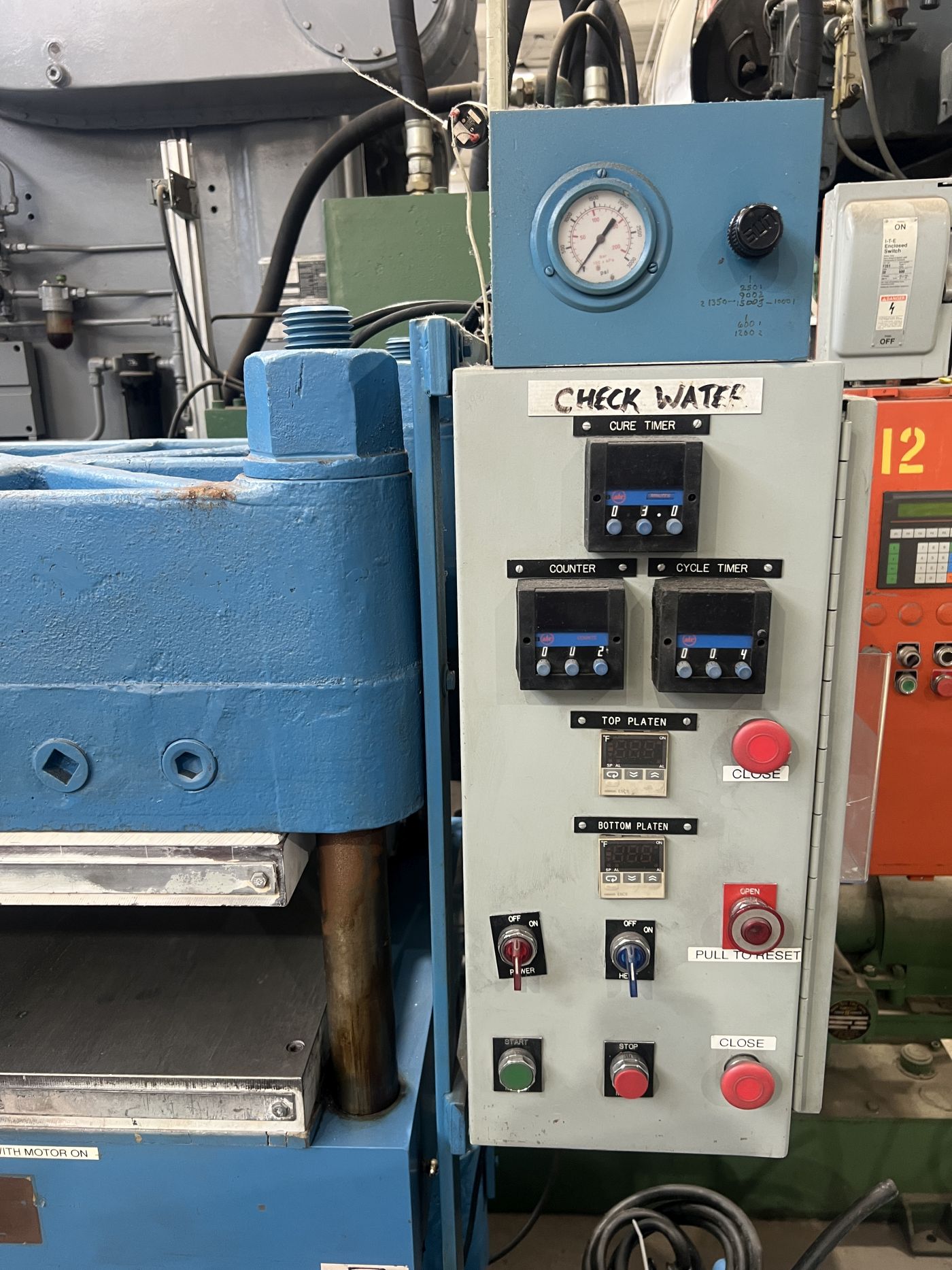

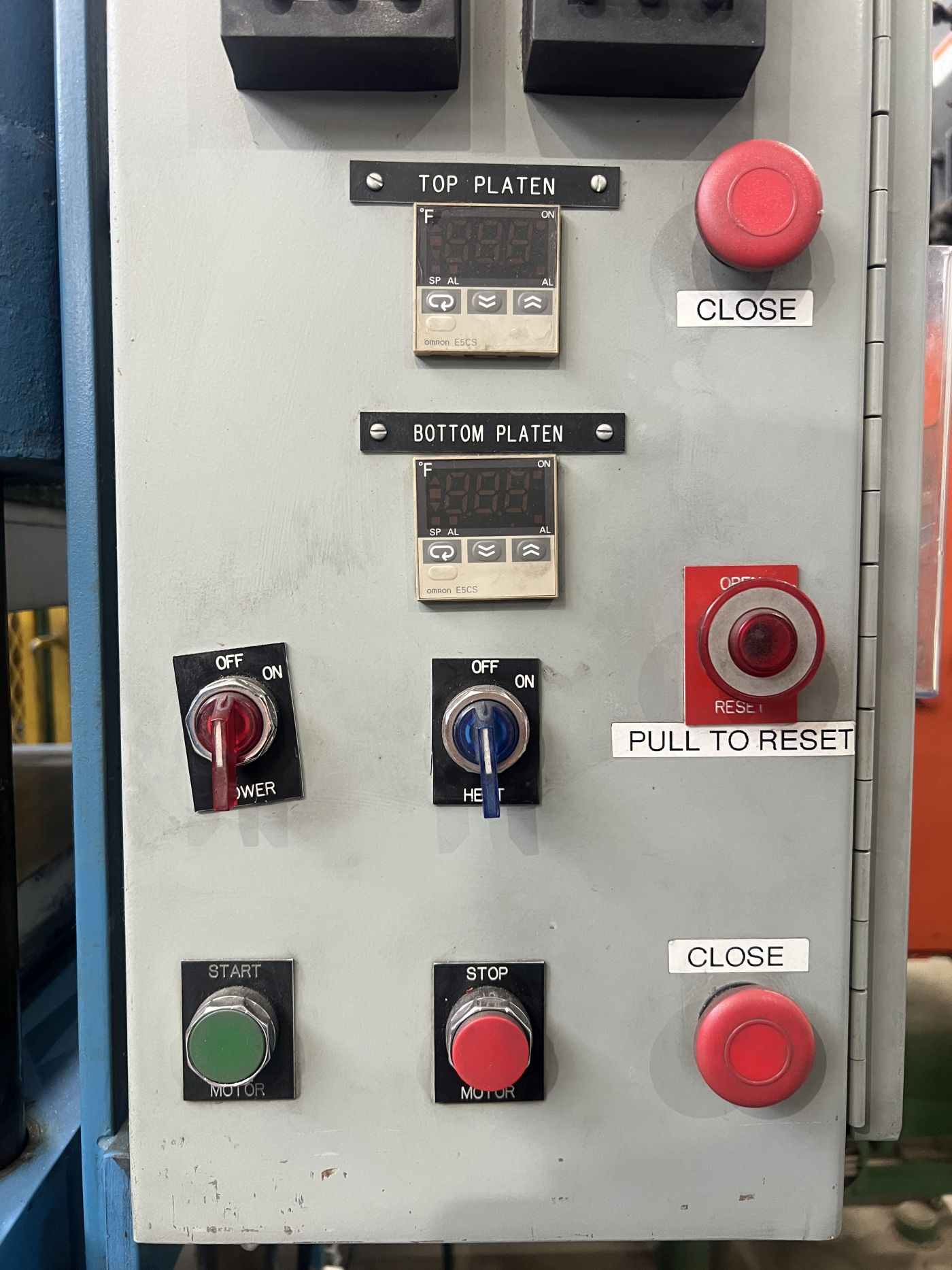

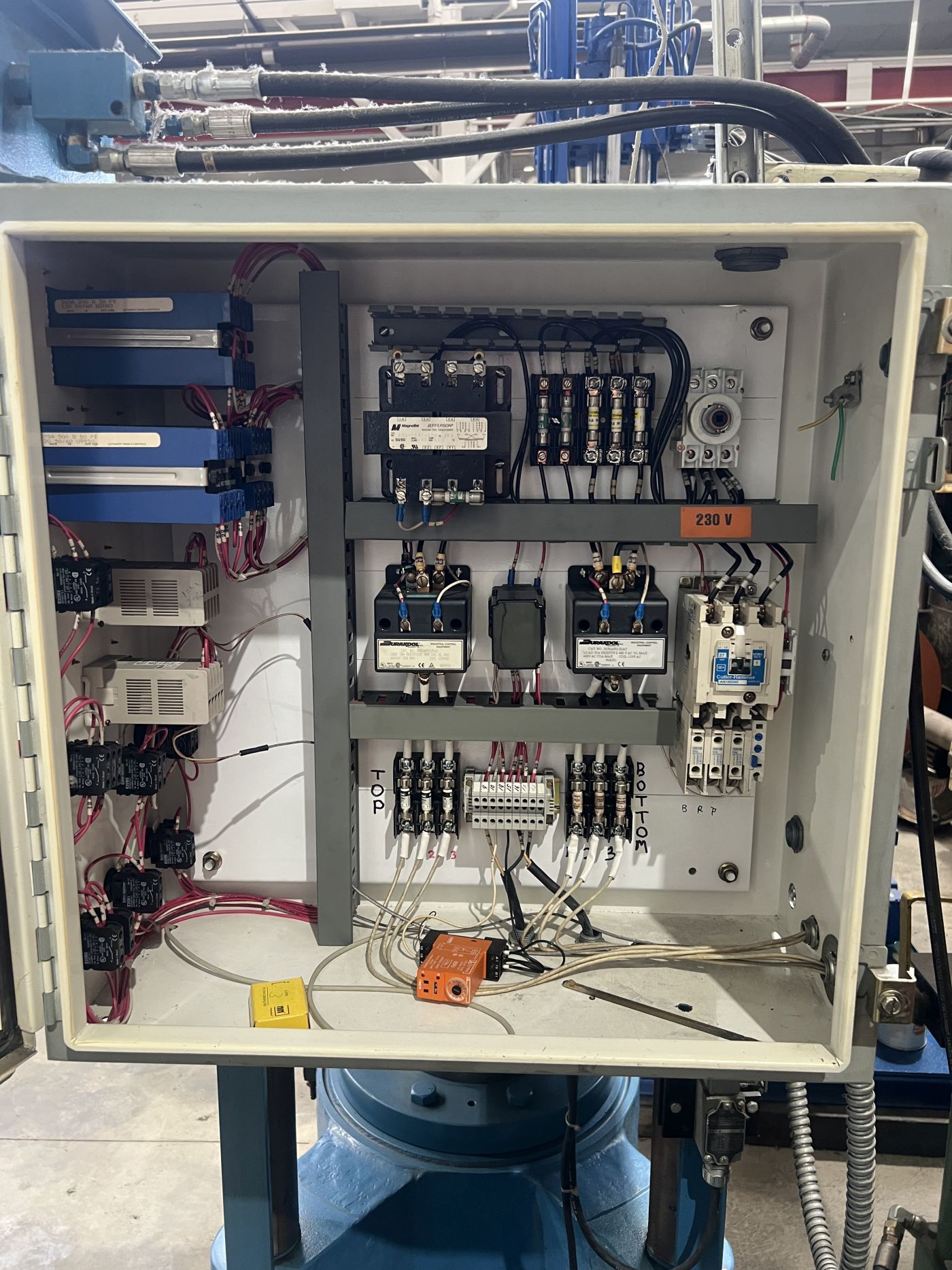

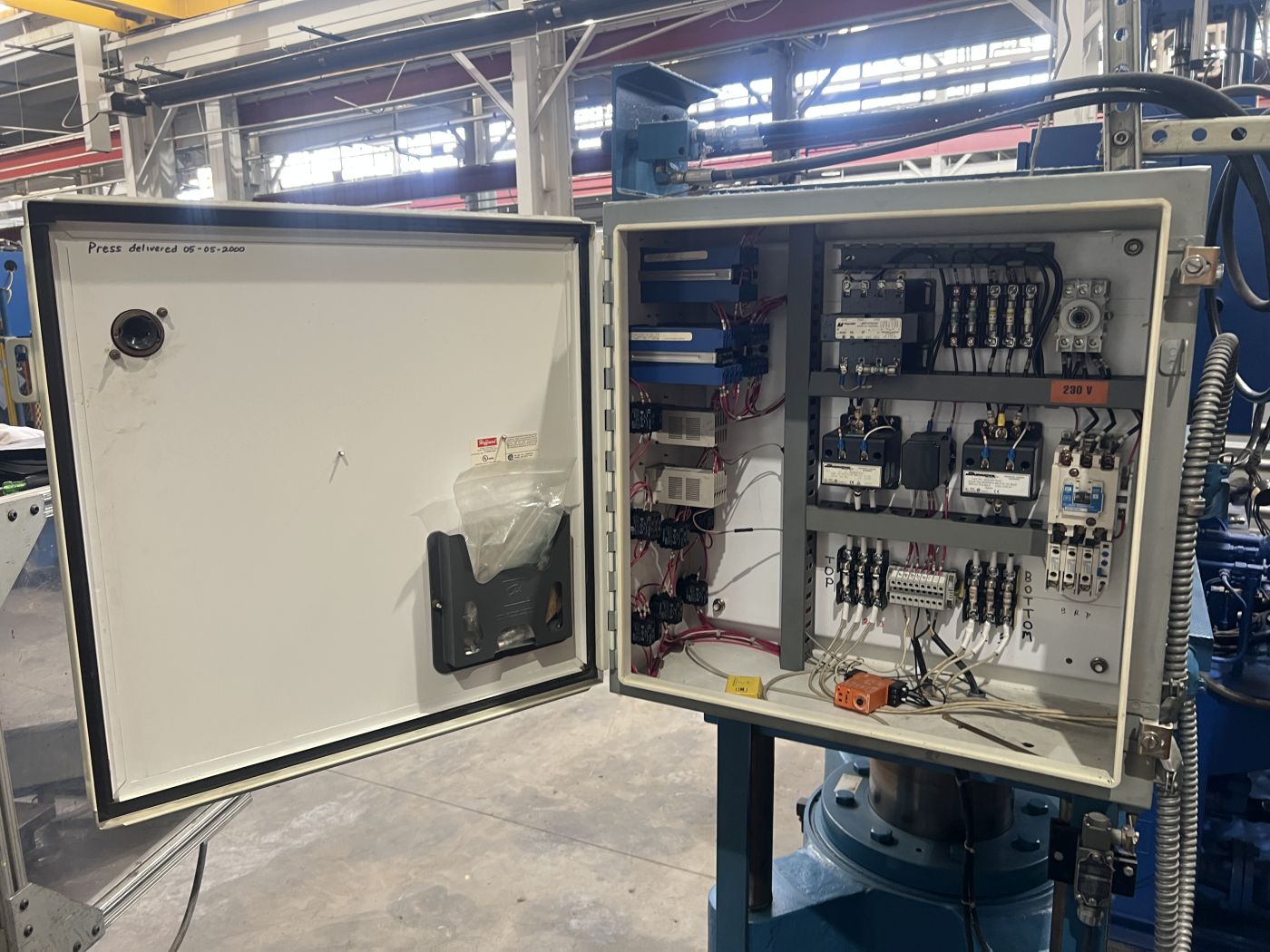

| PRESS CONTROLS | RELAY LOGIC WITH OMRON E5CS DIGITAL TEMP CONTROLLERS, DIGITAL TIMERS & PUSH BUTTONS |

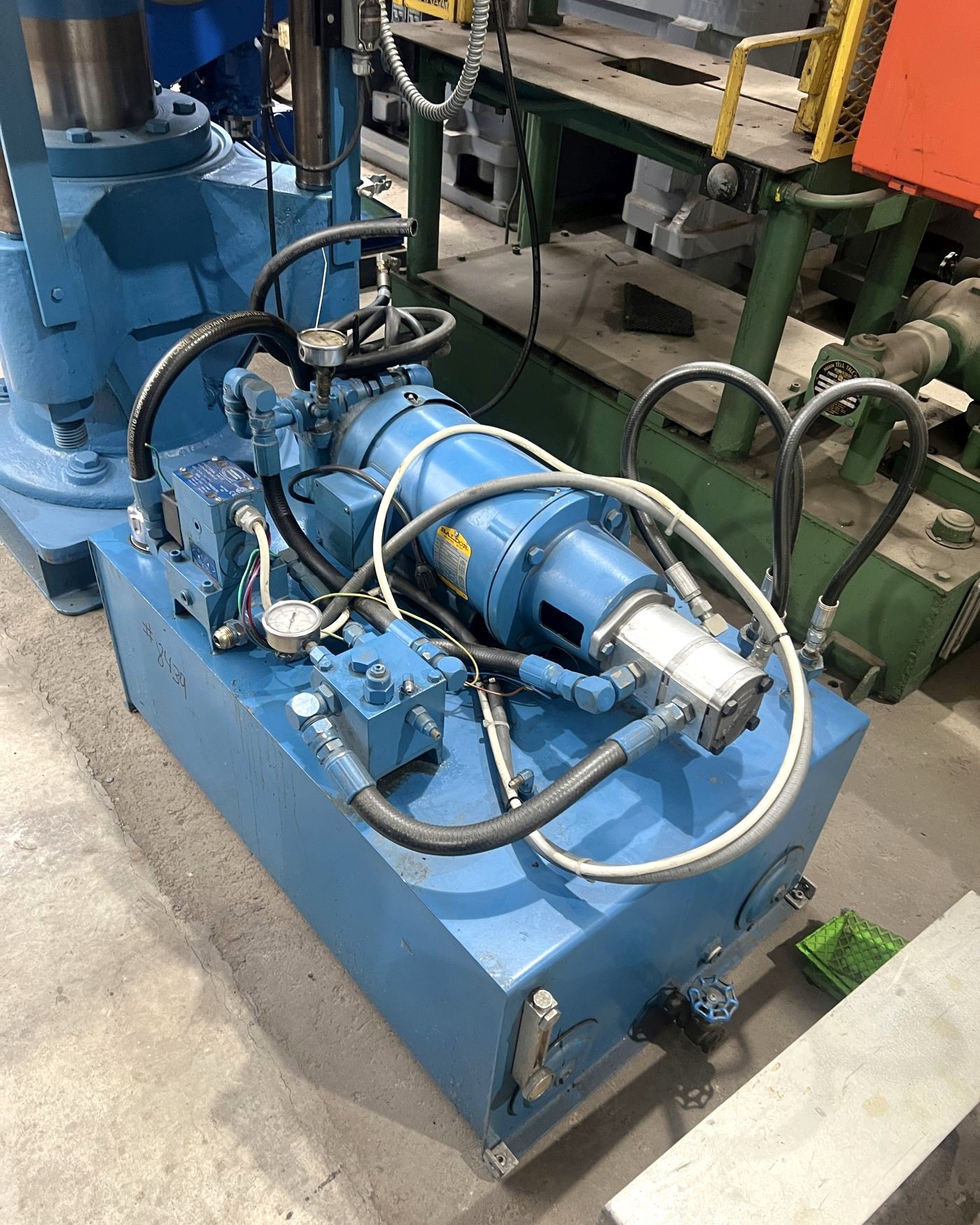

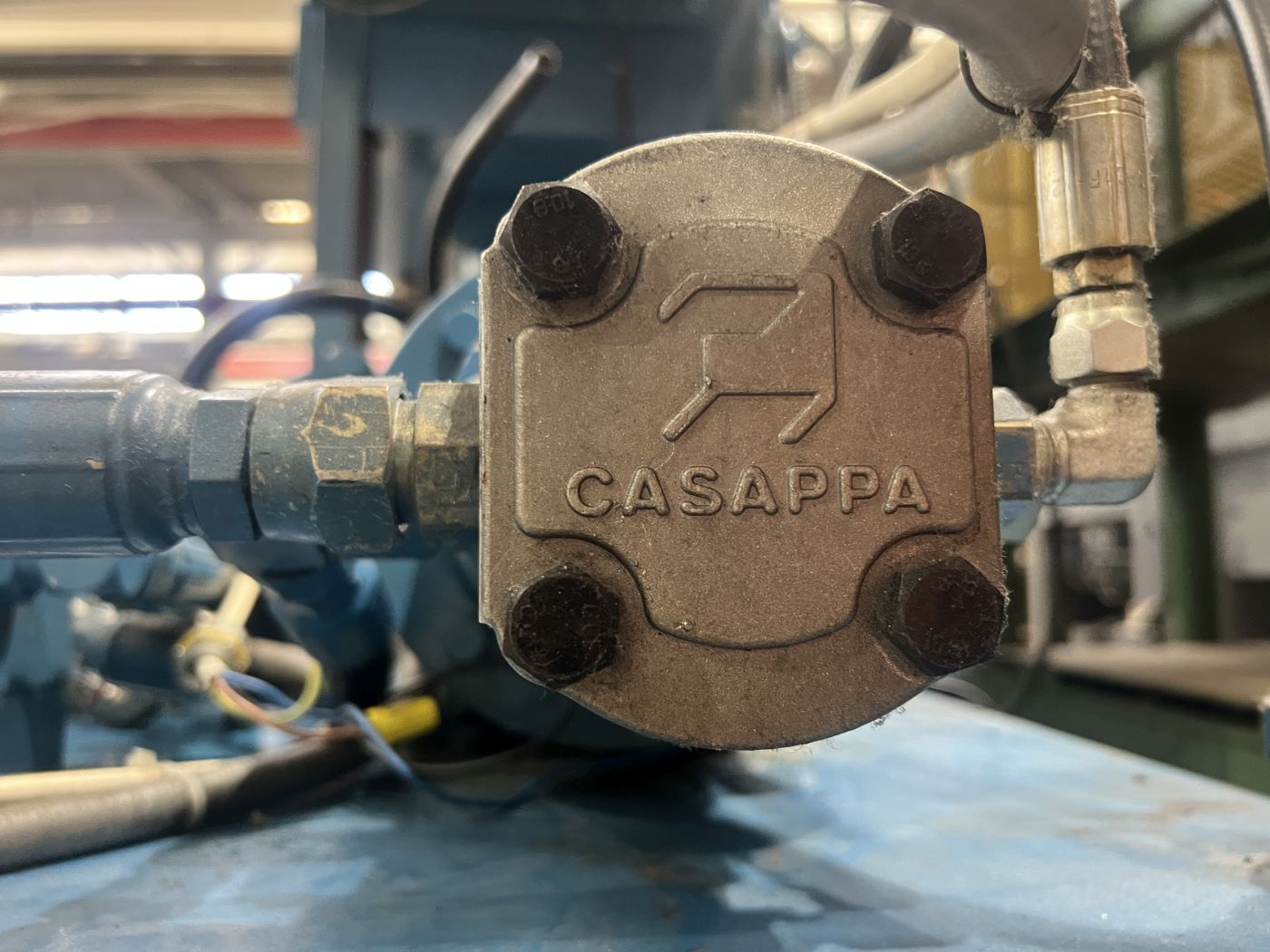

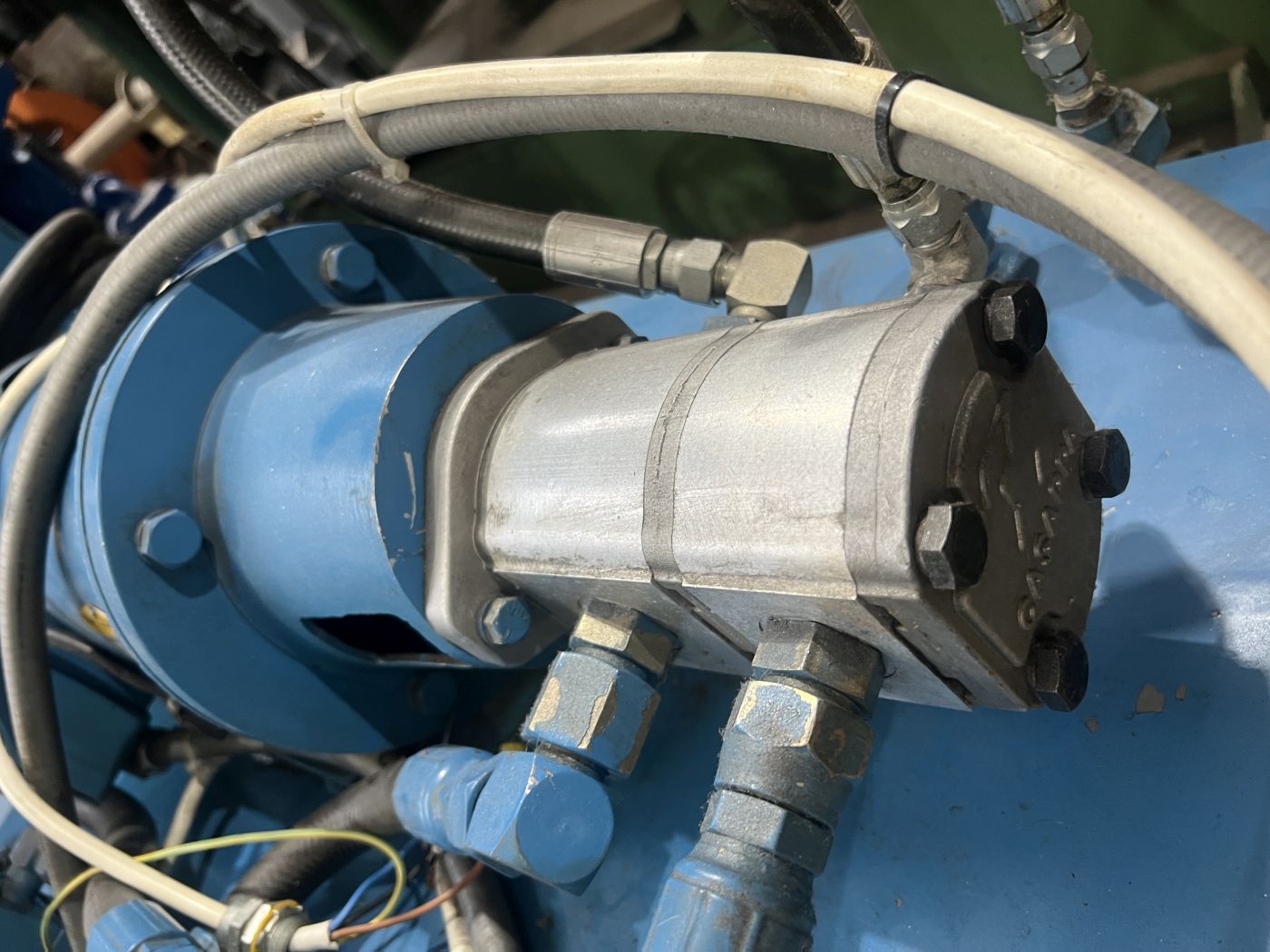

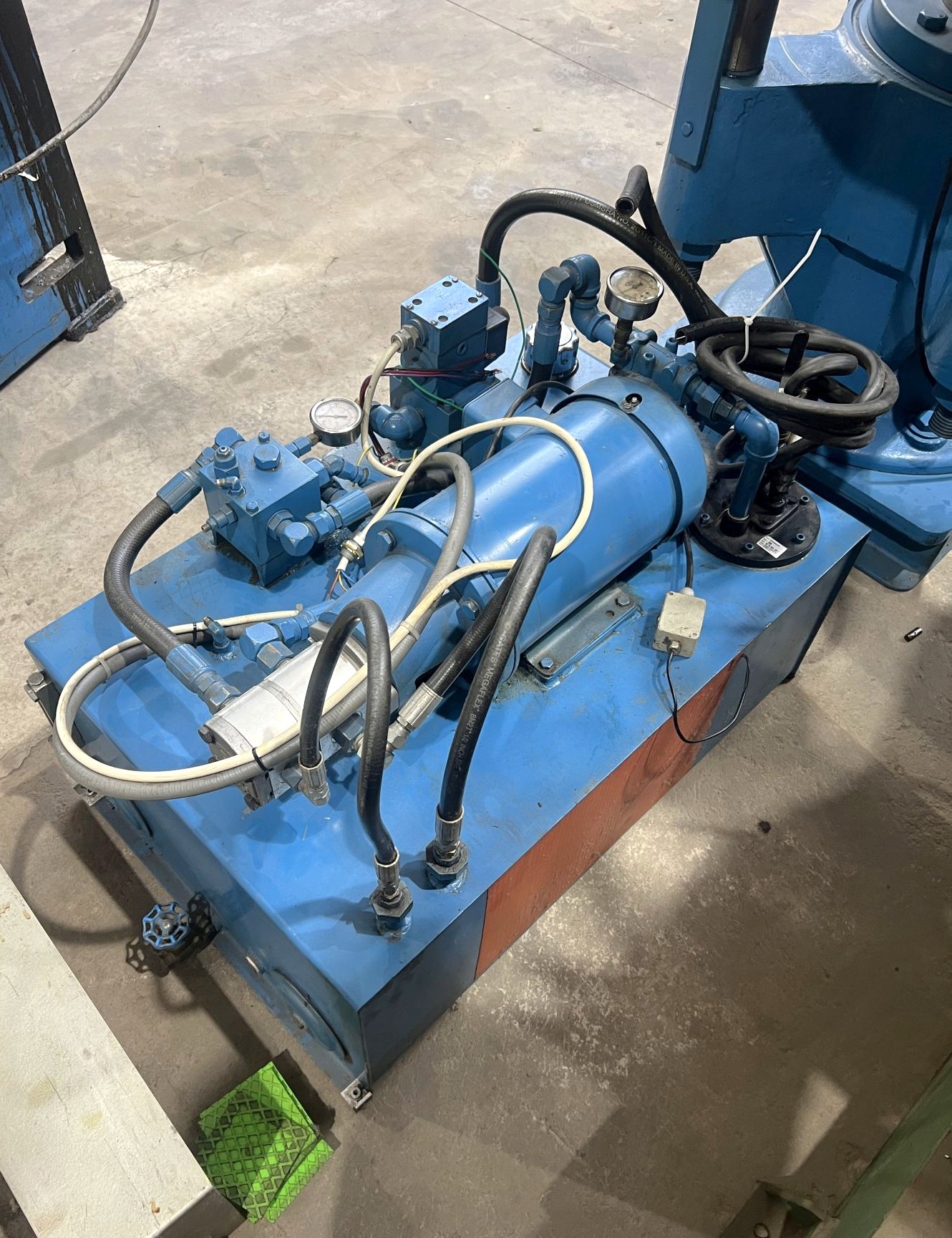

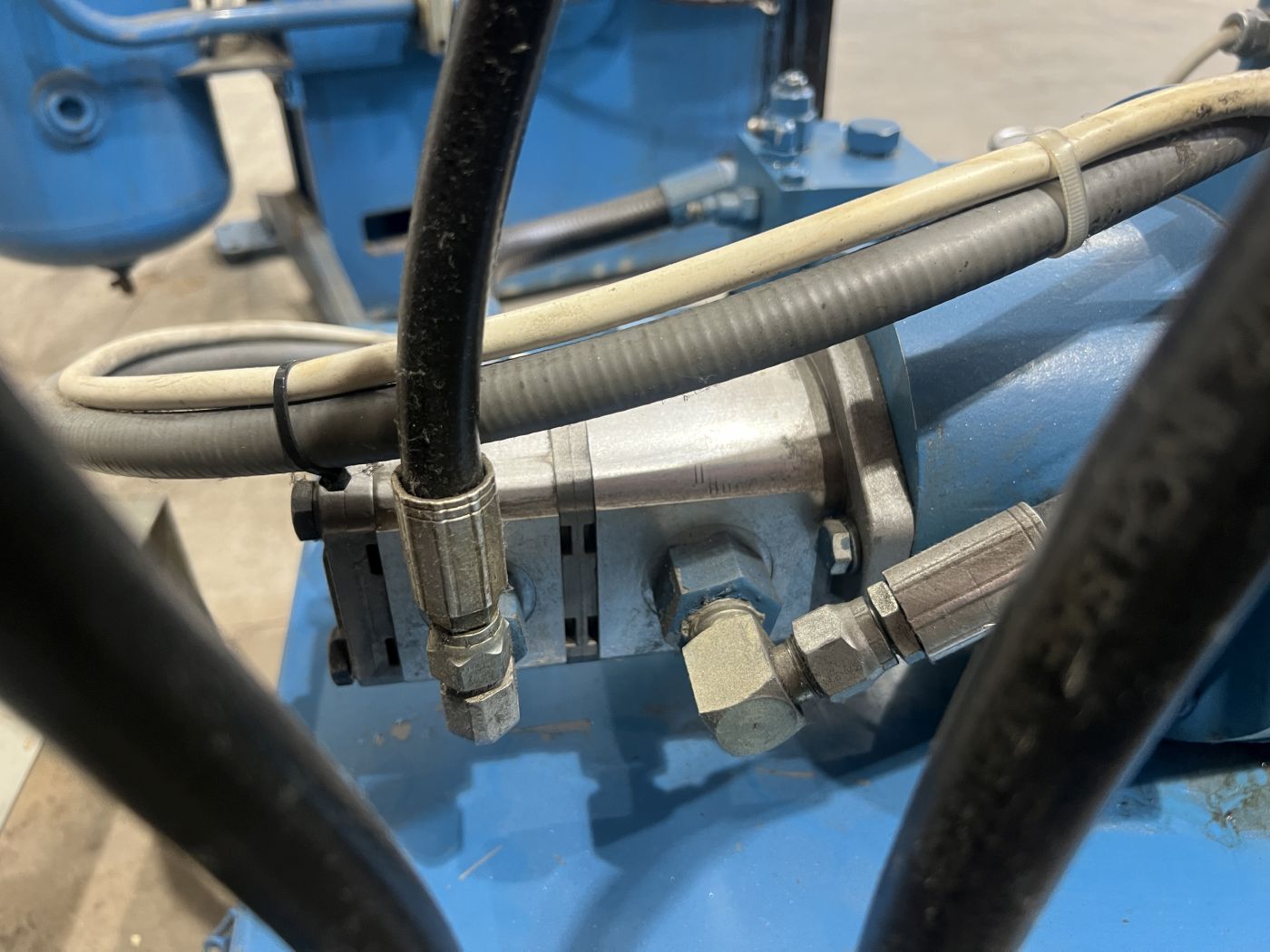

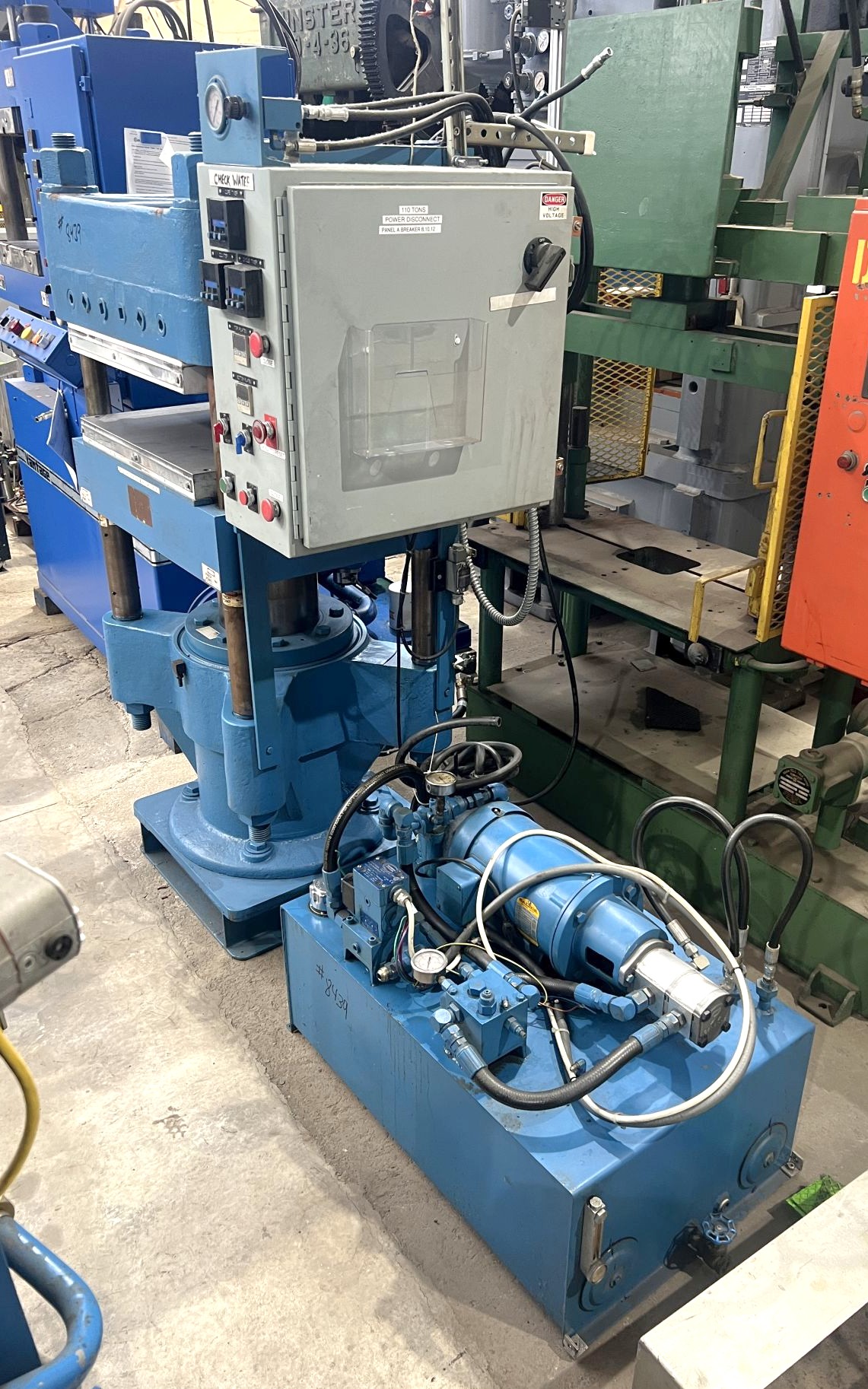

| HYDRAULIC SYSTEM / UNIT | CASAPPA PUMP ON SELF-CONTAINED FLOOR-MOUNTED RESERVOIR |

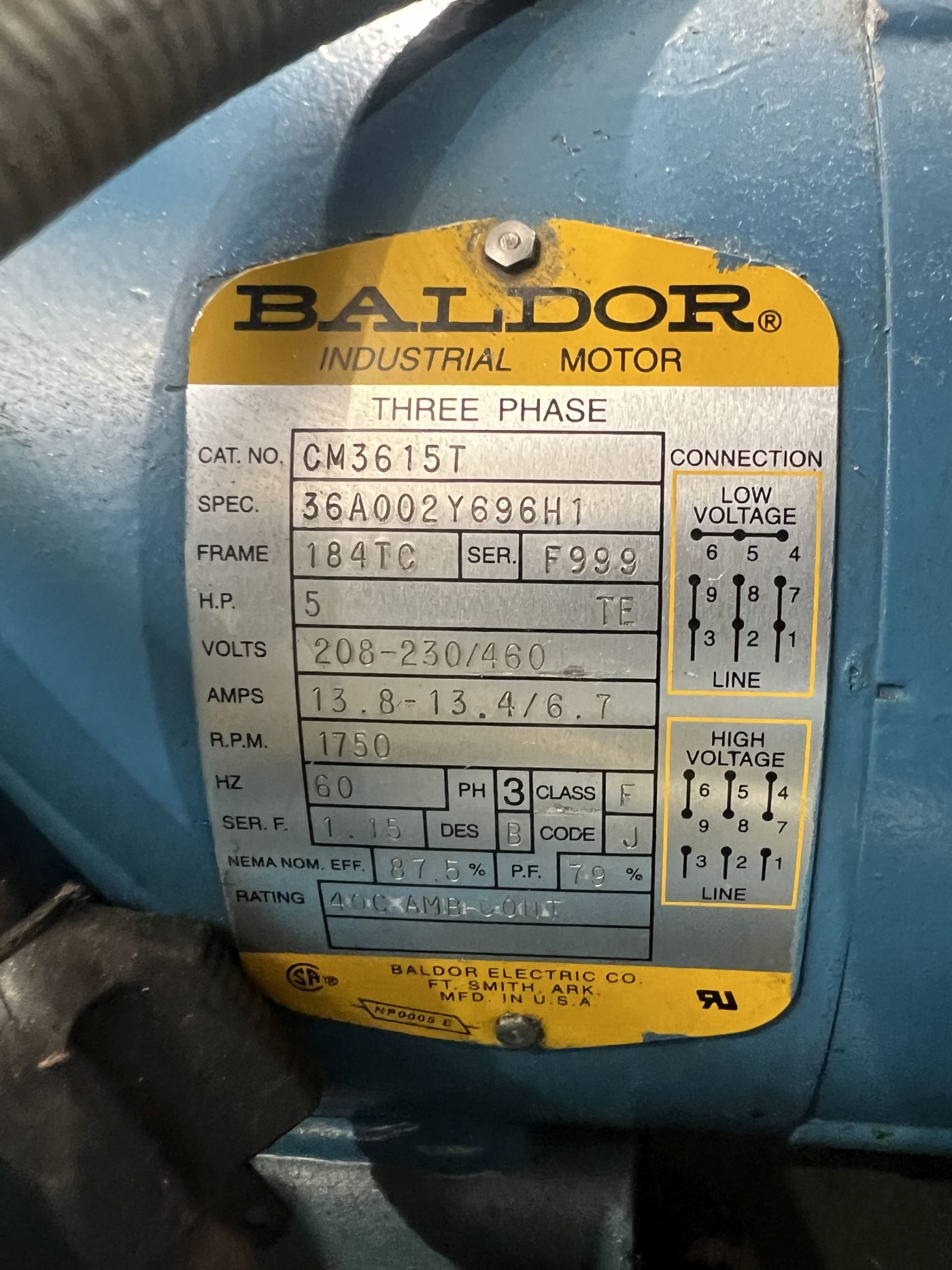

| ELECTRIC MOTOR | 5 HP 208-230/460V-3-60 BALDOR INDUSTRIAL MOTOR | 13.8 - 13.4 / 6.7 AMPS |

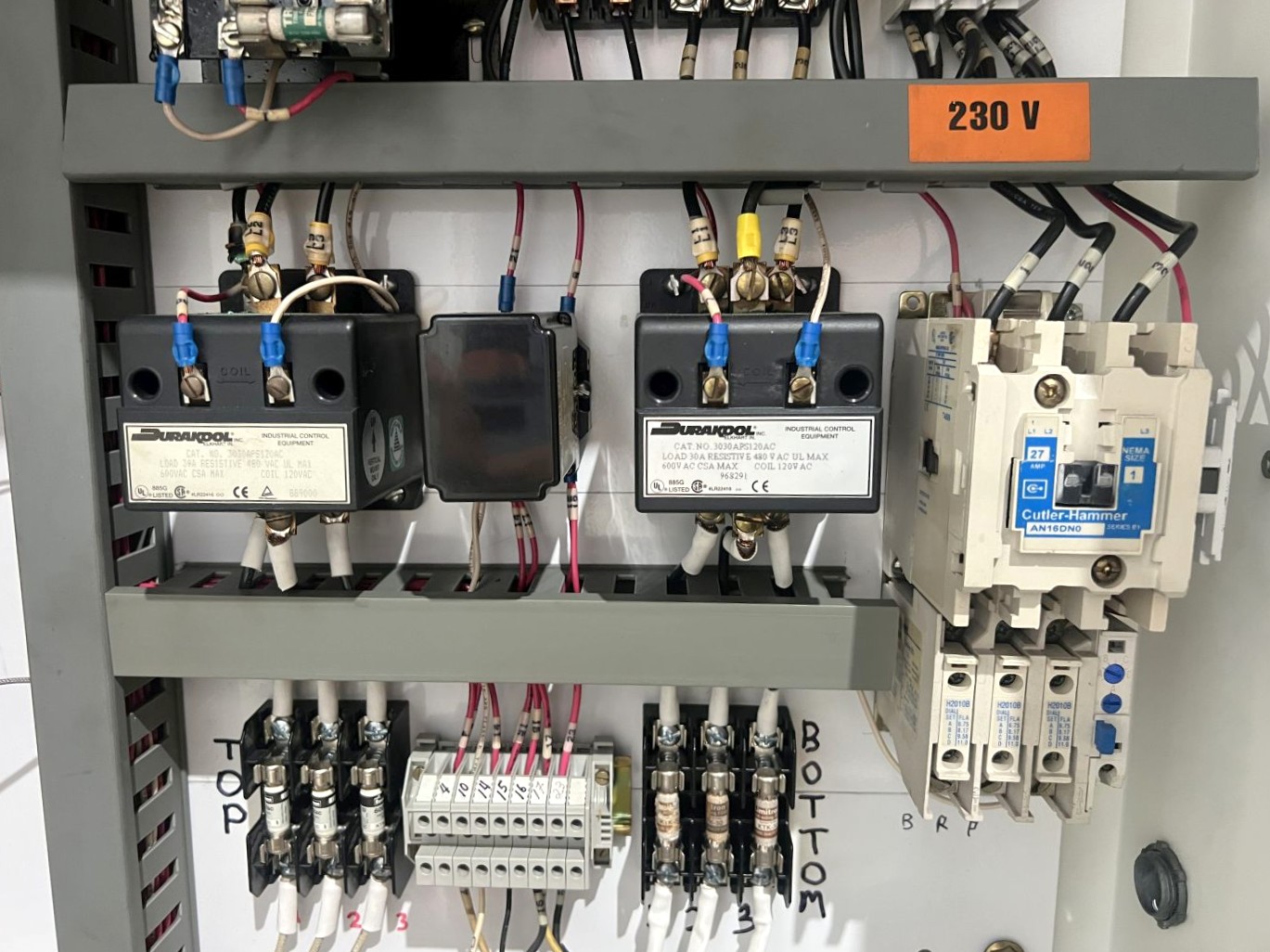

| ELECTRICAL NOTE | WIRED FOR 230V |
| PRESS DIMENSIONS | 50" X 57" (RL X FB) X 72" (PLUS 6.25" RISER) |
| HYDRAULIC UNIT DIMENSIONS | 46" X 30" (RL X FB) X 28" HIGH |
| WEIGHT | APPROX. 10,000 LBS. |
| Equipped With | __ |
| Note | __ |
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
