Machine Specifications
Gap Frame Press for Sale
Manufacturer: Stamtec

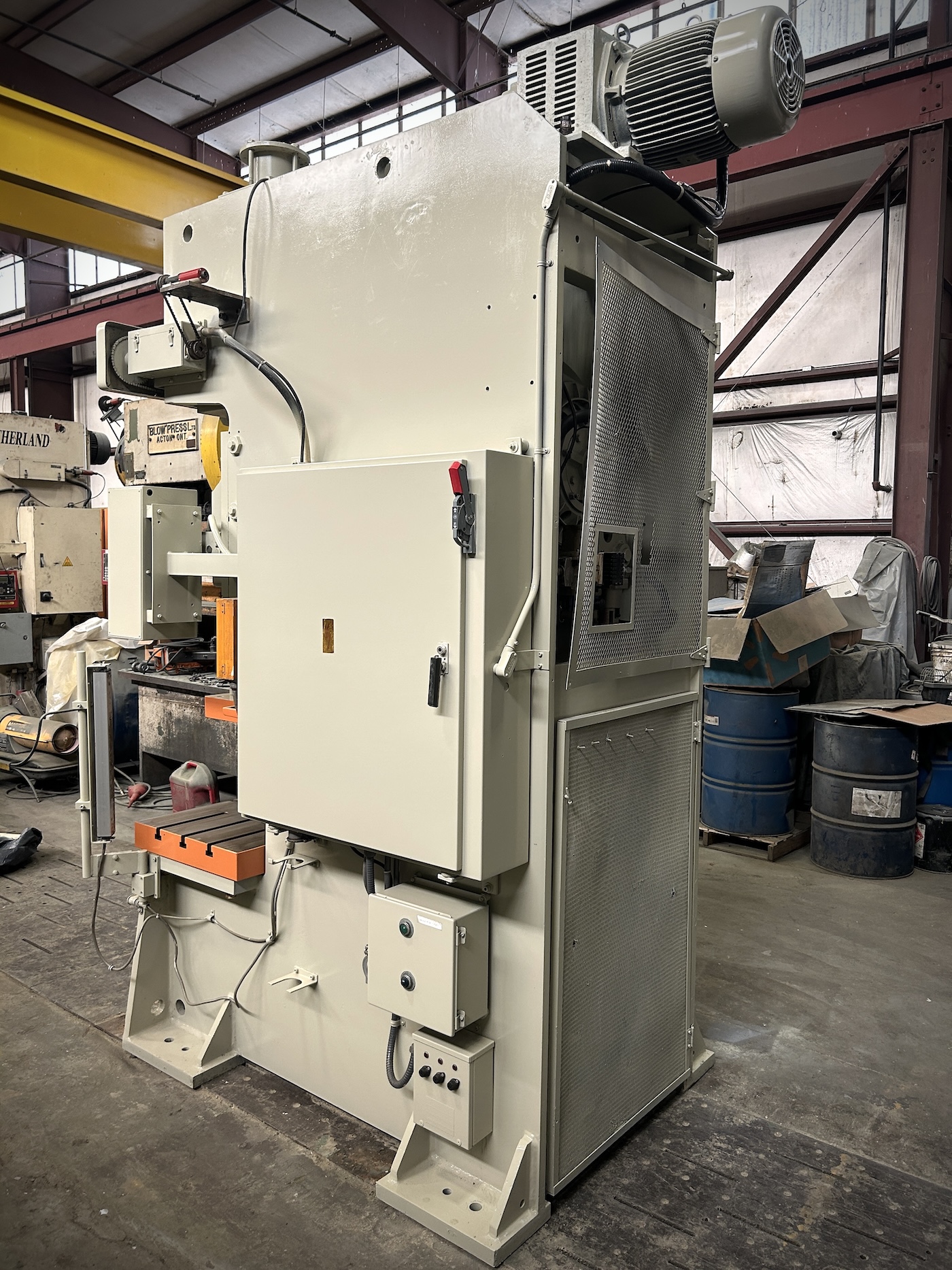

Model: Stamtec G1-110-S Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1990
Machine #: 8137
Buy Now: $
| capacity | 121 us ton | stroke | 7.1″ | max die height | 17.7″ sdau over bolster | bed area | 45.3″ x 23.6″ (rl x fb) | speed | 30 – 60 spm | slide adjustment | 3.2″ motorized | slide area | 25.6″ x 20.5″ (rl x fb) | bolster plate | 4.7″ h x 45.3″ rl x 23.6″ fb | distance between uprights | distance floor to bed | 33.3″ | clutch | stamtec wet clutch / brake combination | electrics | 15 hp 1750 rpm 480v-3-60 eddy current drive & stamtec press control | approx dimensions | 132″ h x 65″ rl x 84″ fb | approx weight | 19,000 lbs | Equipped With | Note |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
