Description

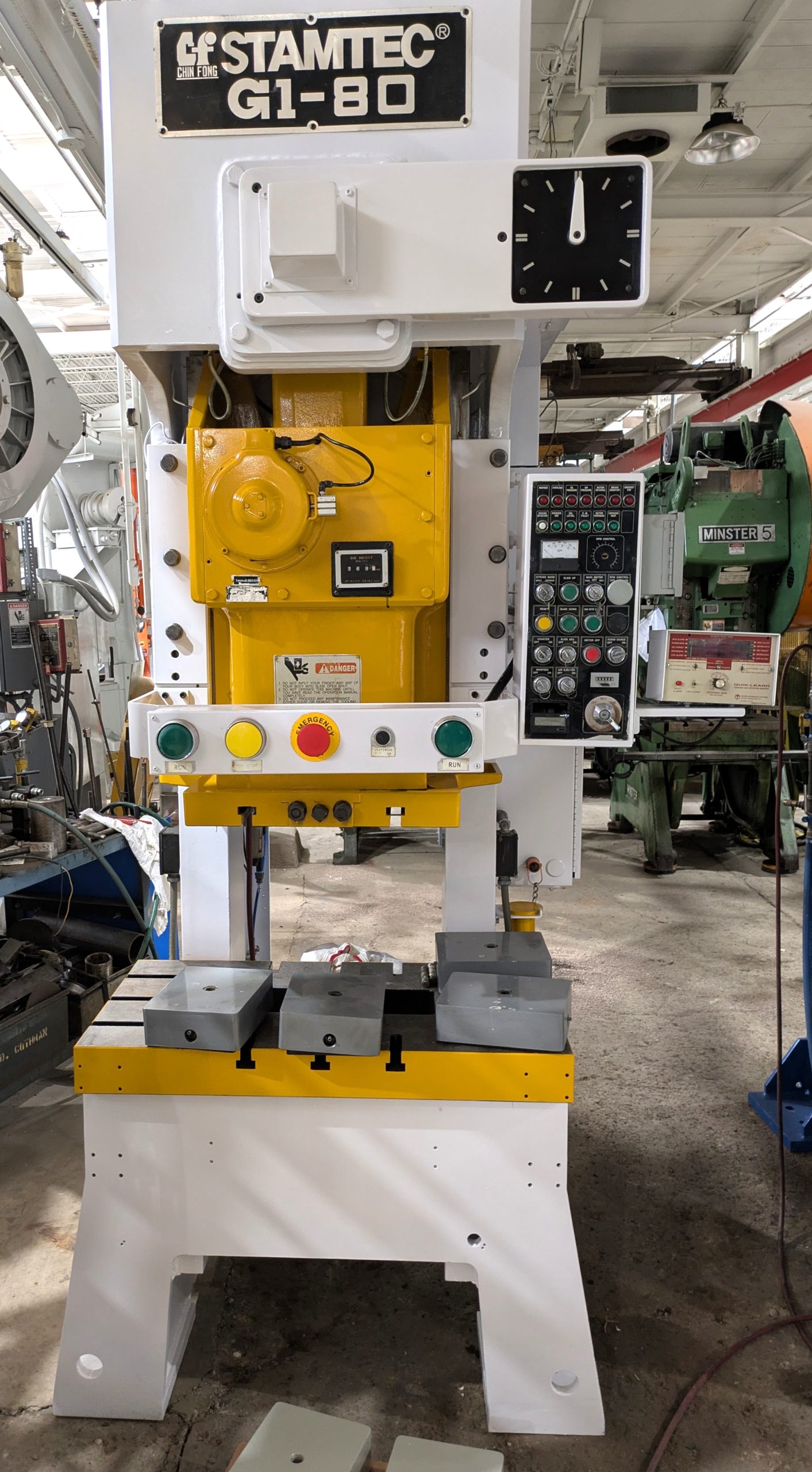

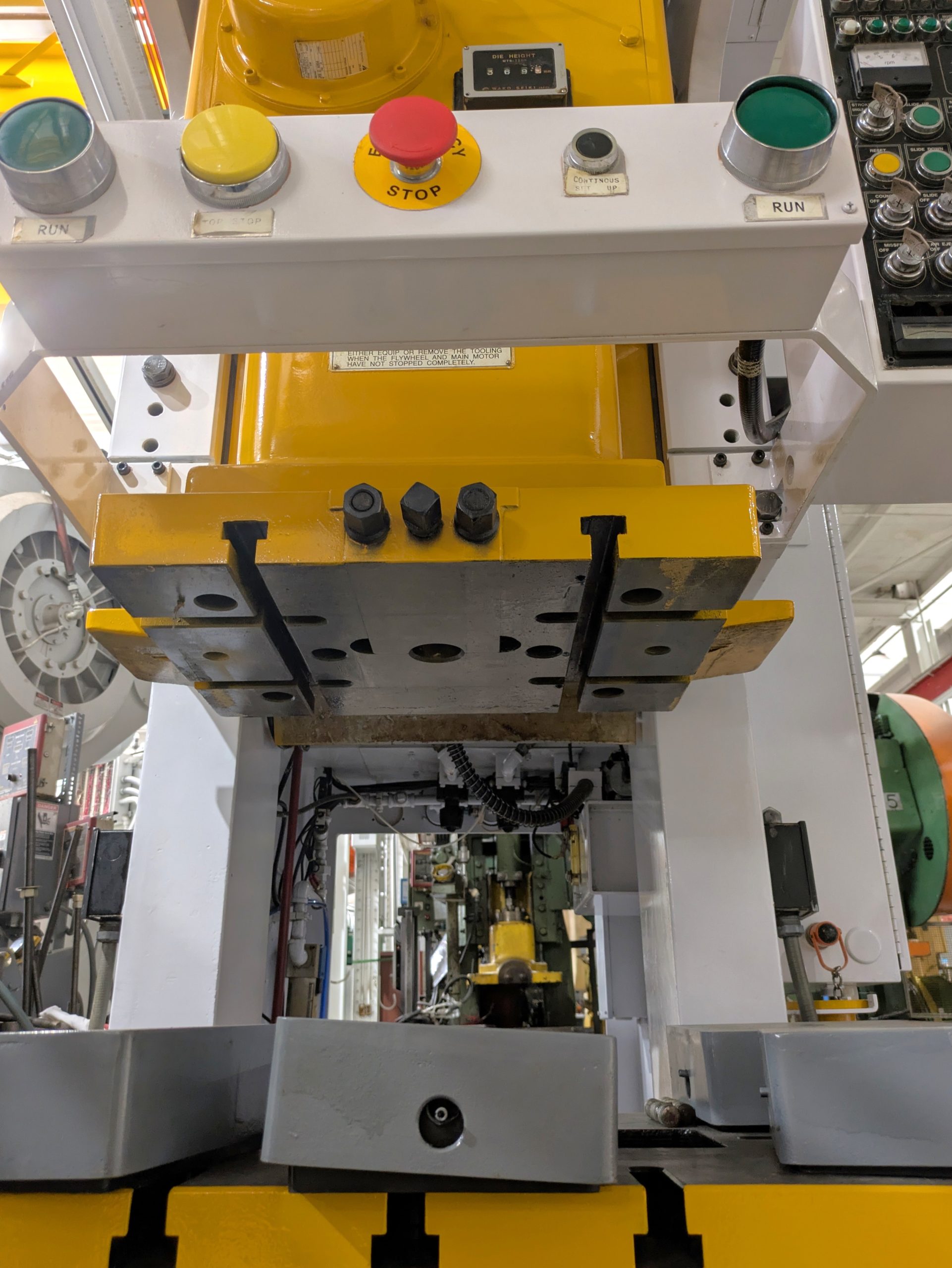

C Frame Press • Used 80 Ton Press for Sale
- Machine #
- 8274
- Condition
- Very Good
- Location
- Jackson, MI Cooper Building
- Year
- 2001
- Model
- Stamtec G1-80
Buy Now: $
| capacity | 88 us ton |
|---|---|
| stroke | 2.8" |
| max die height | 14.6" SDAU OVER 4" BOLSTER |
| bed area | 39.4" X 21.7" (RL X FB) |
| speed | 50 - 120 SPM |
| slide adjustment | 3.2" MOTORIZED |
| slide area | 22.1" X 16.6" (RL X FB) T-SLOTTED |

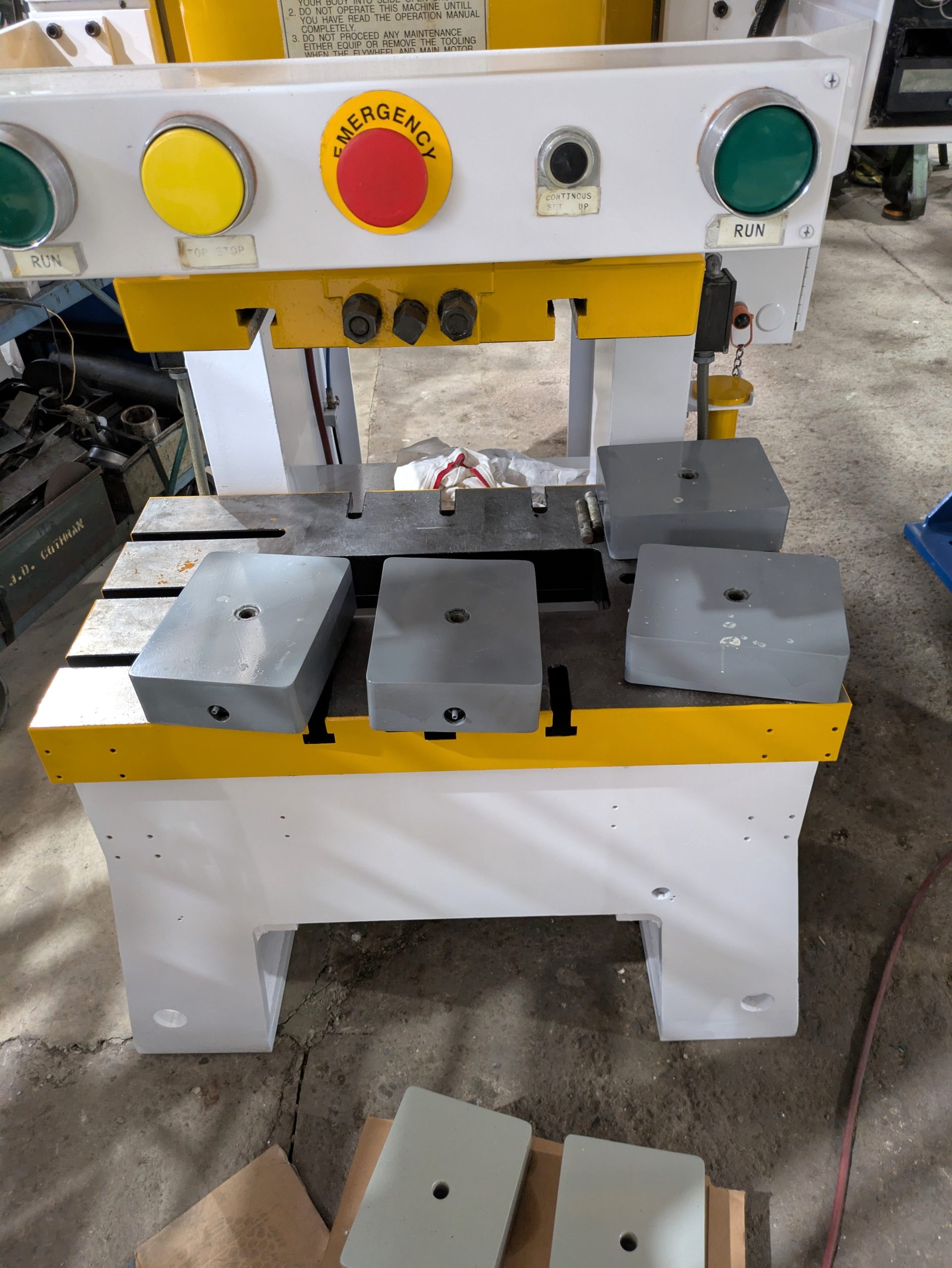

| bolster plate | 39.4" X 21.7" (RL X FB) 4" THICK T-SLOTTED |
| distance between uprights | 21" |
| distance floor to bed | 29" |
| clutch | STAMTEC AIR CLUTCH / BRAKE COMBINATION |

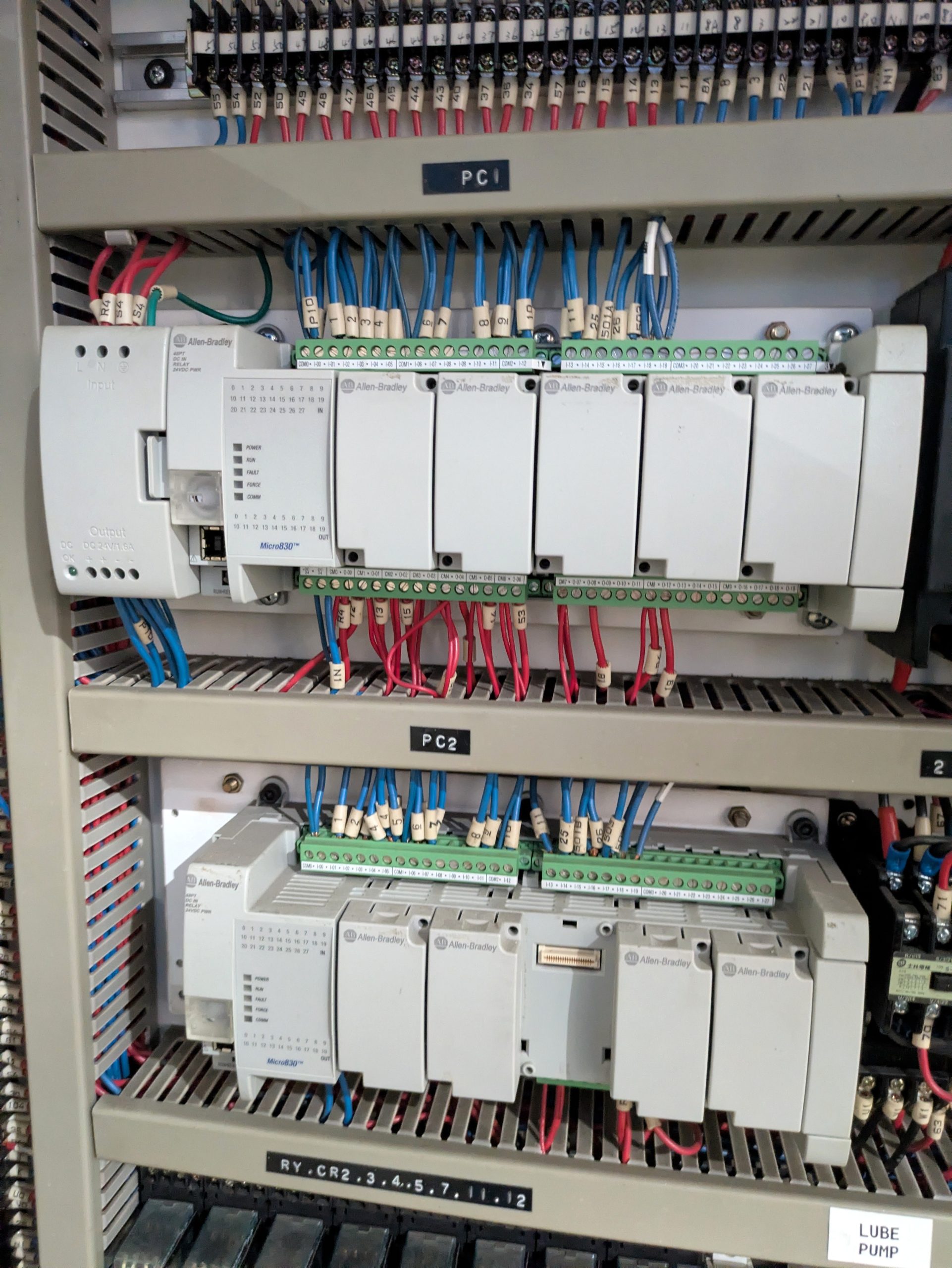

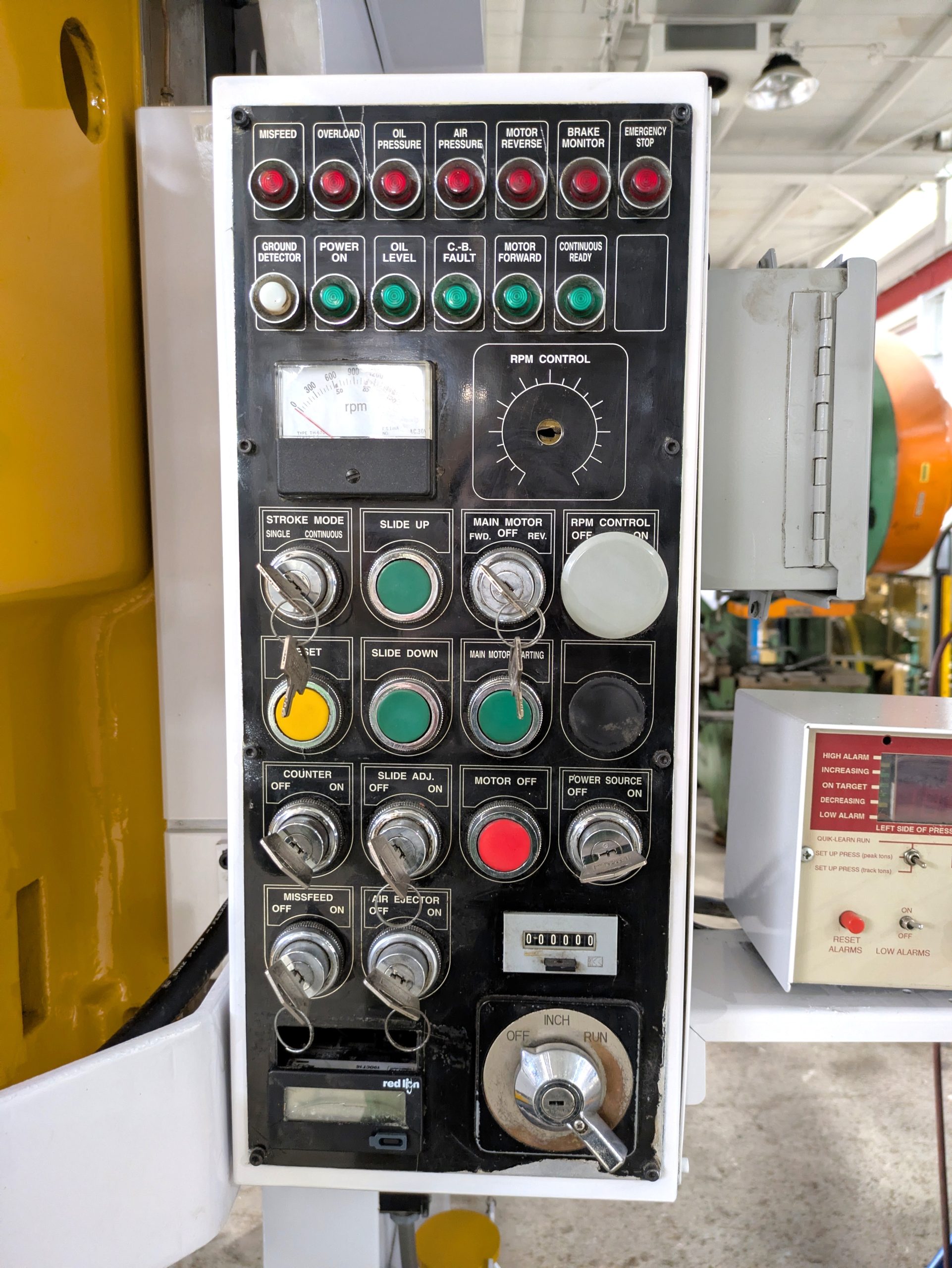

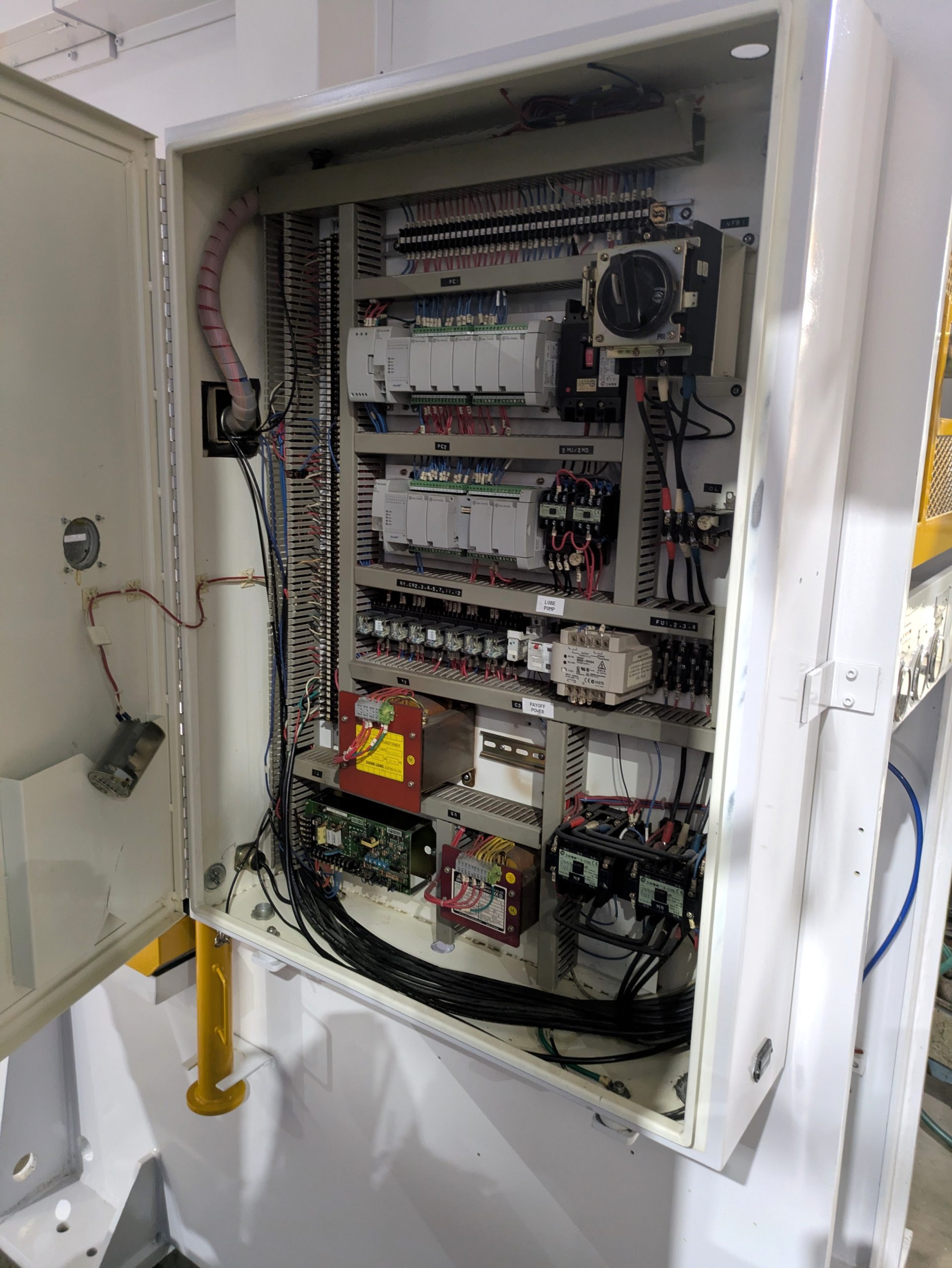

| electrics | 10 HP 1750 RPM 240/480V-3-60 EDDY CURRENT DRIVE & STAMTEC PRESS CONTROL |
| approx dimensions | 60" X 75" (RL X FB) X 125" HIGH (INCLUDING MOTOR) |
| approx weight | 15,500 lbs |

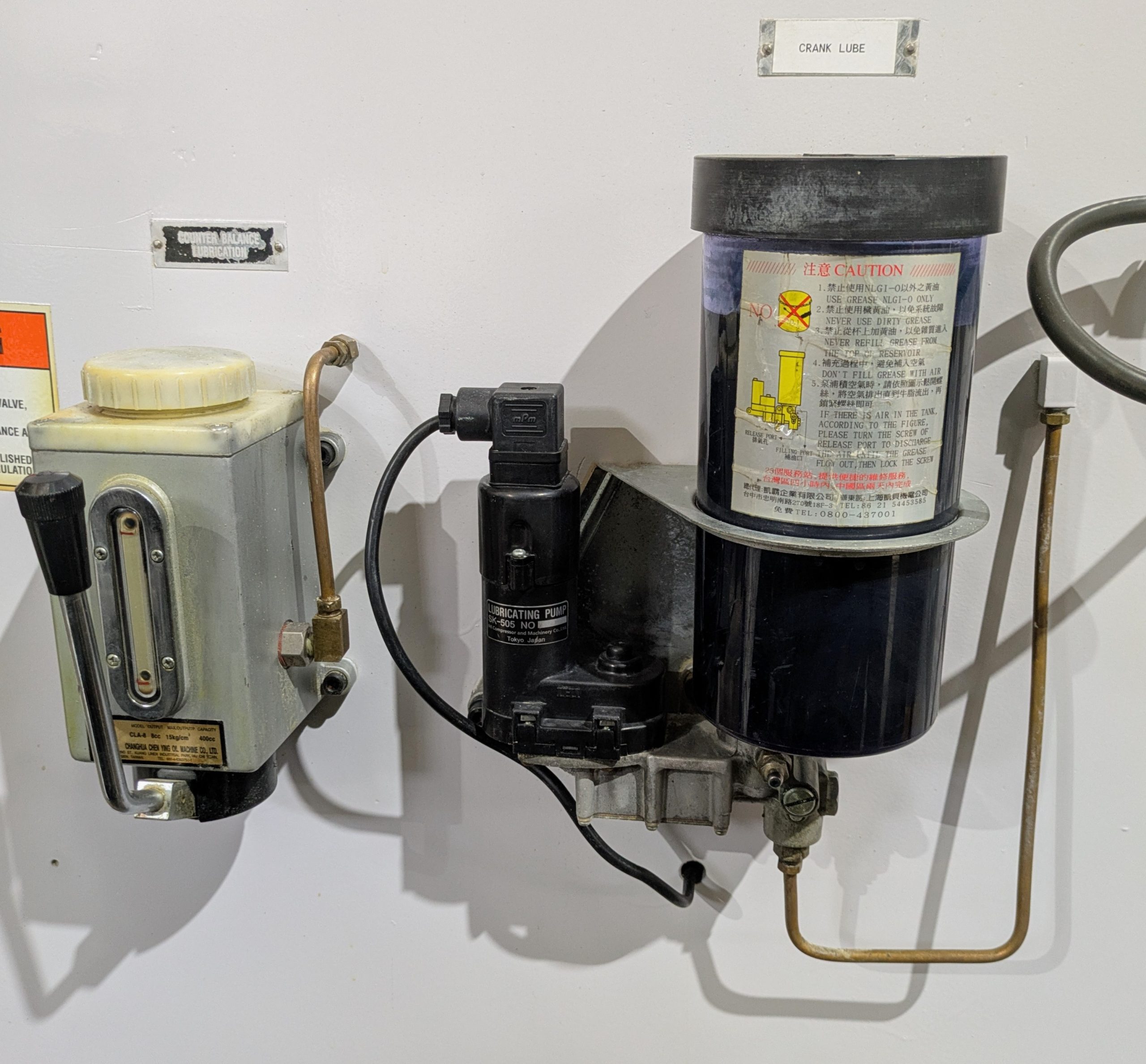

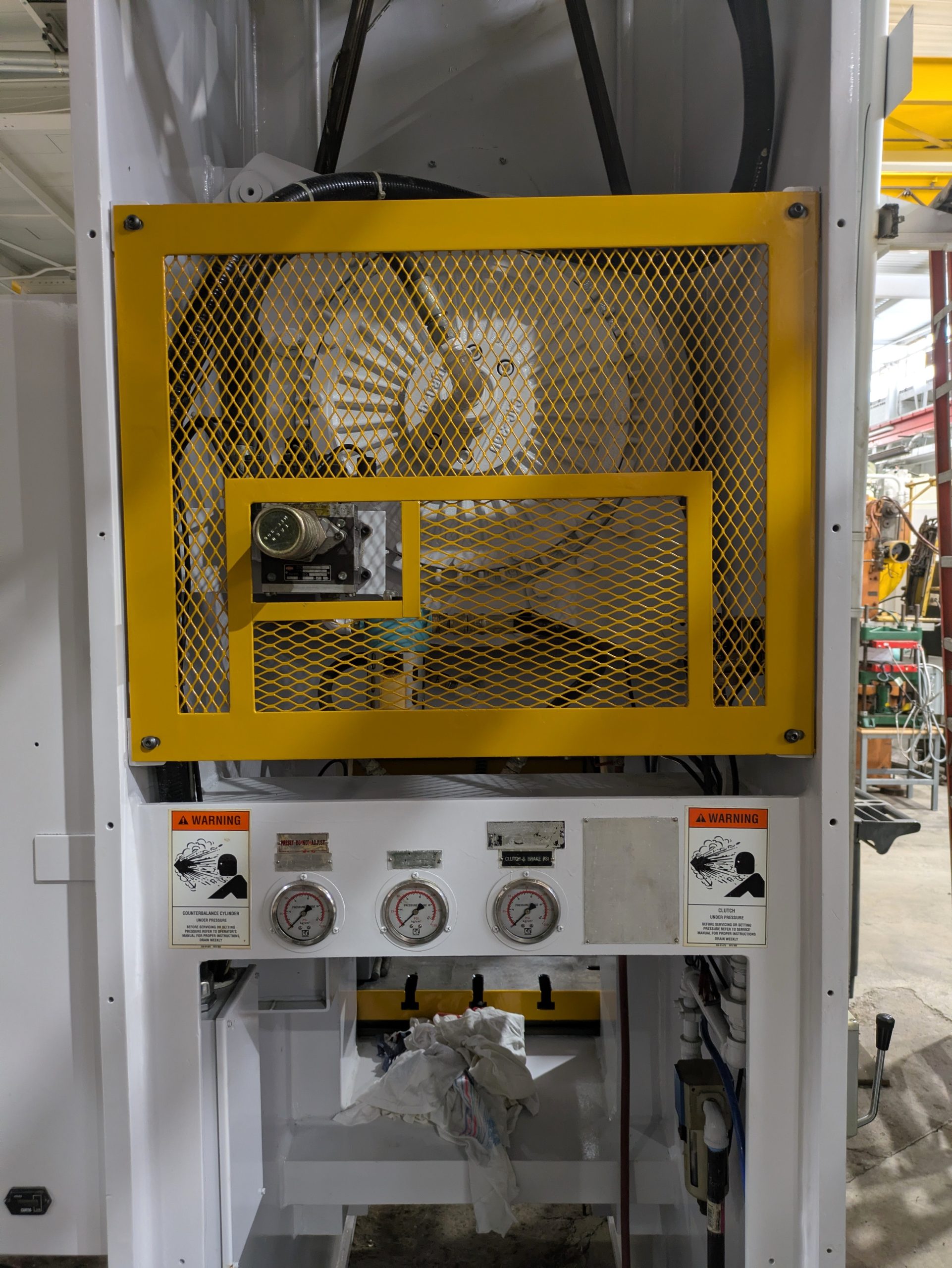

| Equipped With | HYDRAULIC OVERLOAD PROTECTION, LOW DEFLECTION, SUPER RIGID STEEL FRAME, EXTRA LONG 6 PT CENTERED GIBS, REMOVABLE BOLSTER & SLIDE PLATE, AUTOMATIC LUBRICATION SYSTEM, DUAL AIR COUNTERBALANCES, SINGLE BACK GEARED DESIGN, FLOOR STANDING |
| Note | __ |
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
