Description
C Frame Press • Used 88 Ton Press for Sale
- Machine #
- 8260
- Condition
- Very Good
- Location
- Columbia, TN Warehouse
- Year
- 2000
- Model

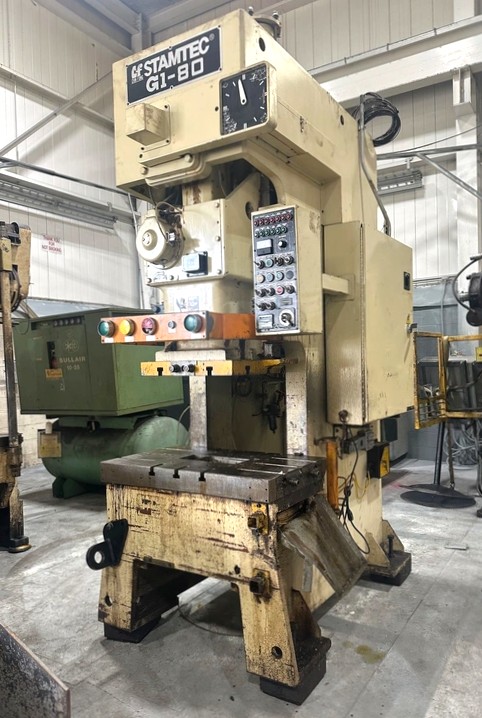

- Stamtec G1-80
Buy Now: $
| CAPACITY | 88 US TON |
|---|---|
| STROKE | 2.8" |
| MAX DIE HEIGHT | 14.6" SDAU OVER |
| BED AREA | 39.4" RL X 21.7" FB |
| SPEED | 50 - 120 SPM |
| SLIDE ADJUSTMENT | 3.2" MOTORIZED |
| SLIDE AREA | 22.1" RL X 16.5" FB (T-SLOTTED) |
| BOLSTER PLATE | 39.4" RL X 21.7" FB (T-SLOTTED) |
| DISTANCE BETWEEN UPRIGHTS | 21" |
| DISTANCE FLOOR TO BED | 29" |
| CLUTCH | STAMTEC AIR CLUTCH / BRAKE COMBINATION |
| ELECTRICS | 10 HP 1750 RPM 240/480V-3-60 EDDY CURRENT DRIVE & STAMTEC PRESS CONTROL |
| APPROX DIMENSIONS | 125" H (INCL MOTOR) X 60" RL X 75" FB |
| APPROX WEIGHT | 14,500 lbs |
| Equipped With | HYDRAULIC OVERLOAD PROTECTION, LOW DEFLECTION, SUPER RIGID STEEL FRAME, EXTRA LONG 6 PT CENTERED GIBS, REMOVABLE BOLSTER & SLIDE PLATE, AUTOMATIC LUBRICATION SYSTEM, DUAL AIR COUNTERBALANCES, SINGLE BACK GEARED DESIGN, FLOOR STANDING |
| Note | __ |
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
