Description

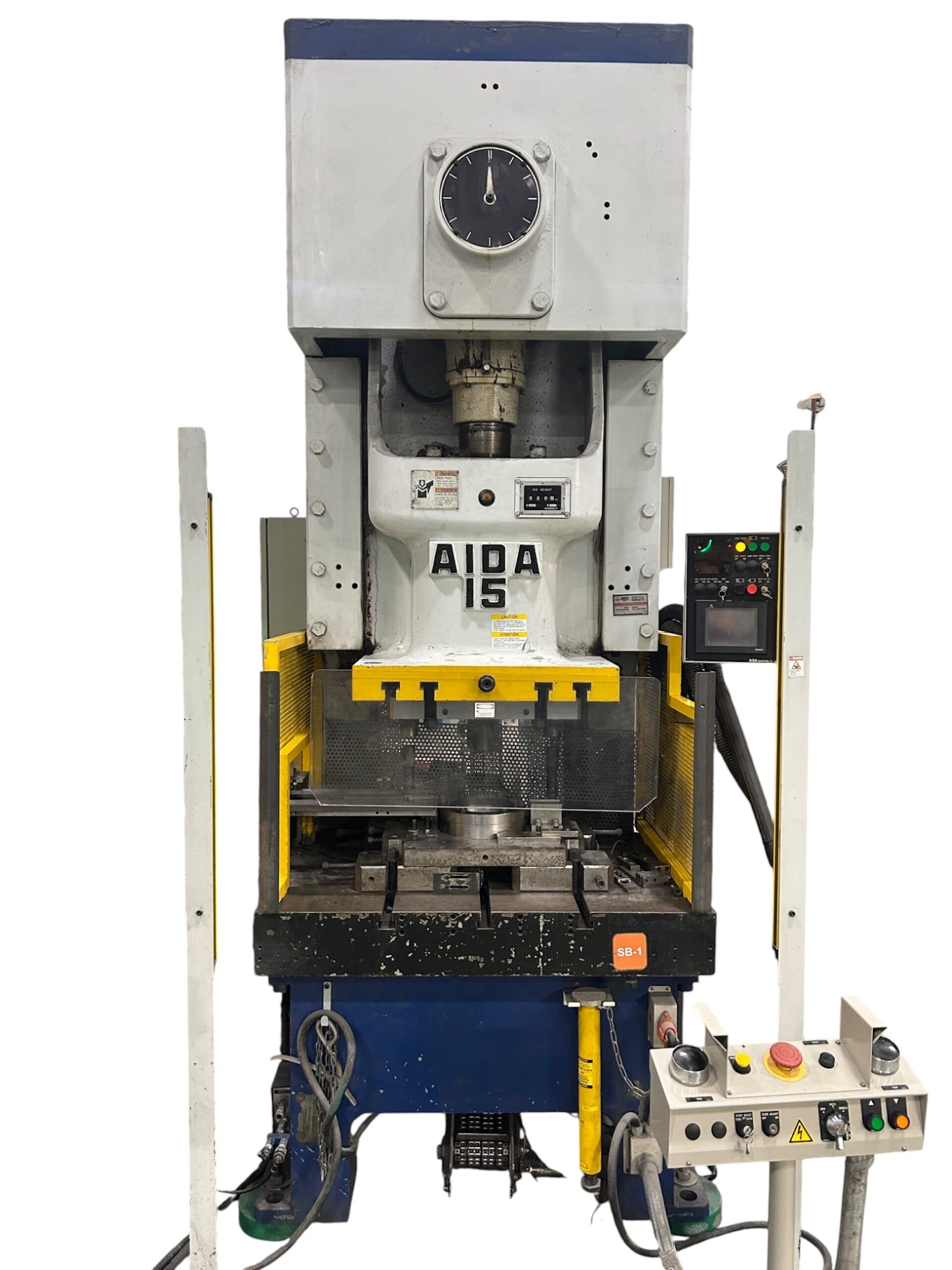

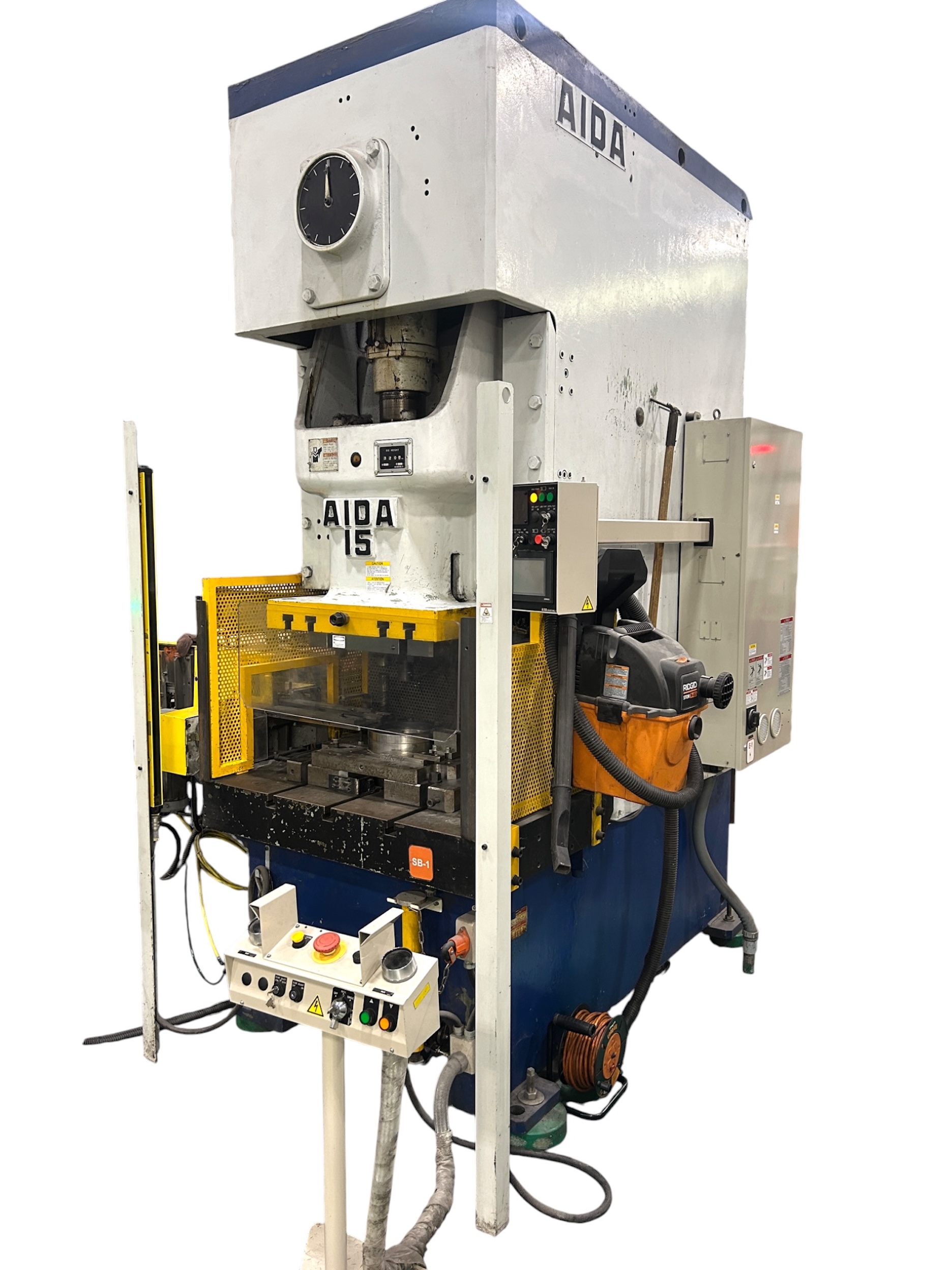

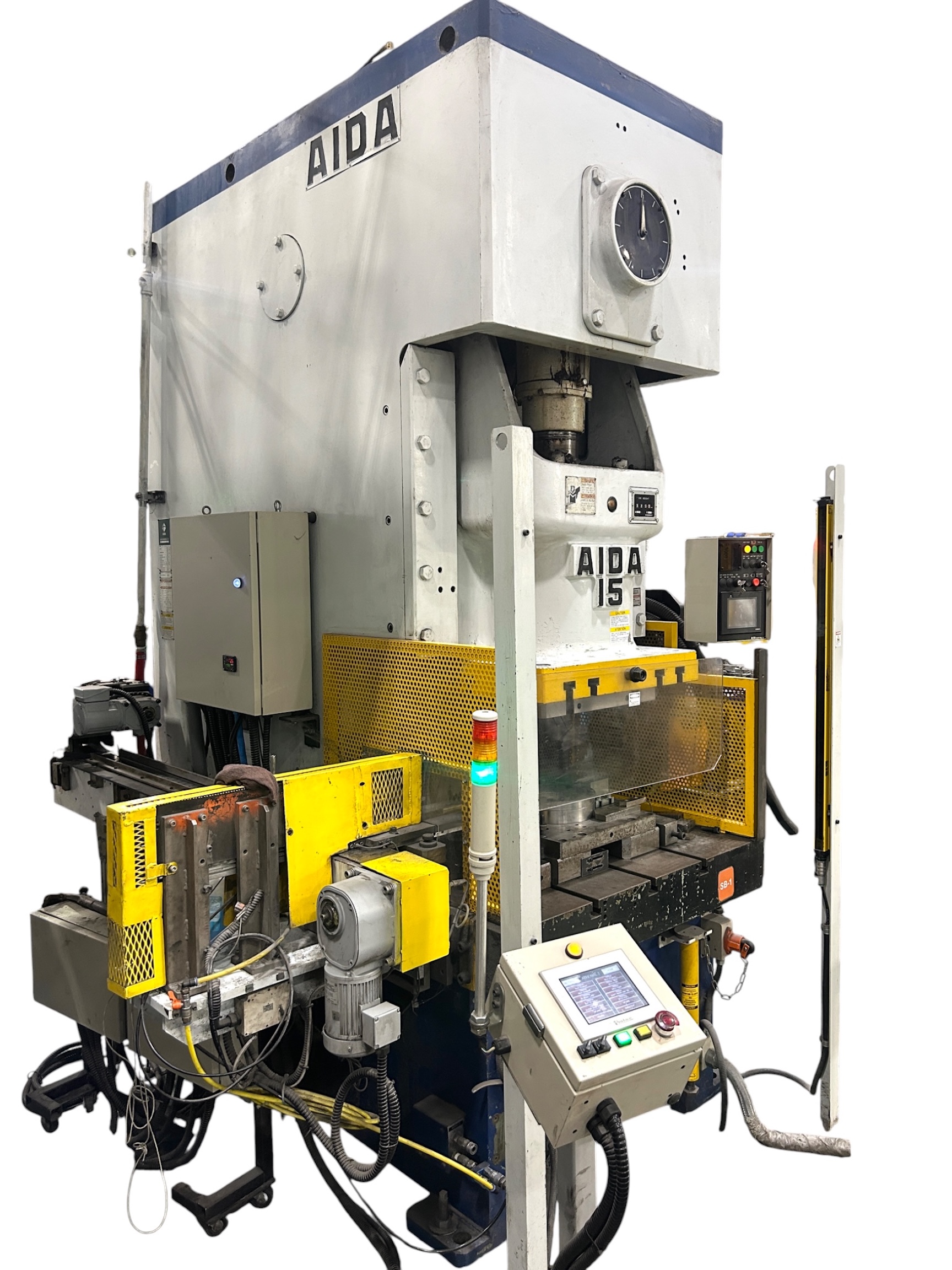

C Frame Press • Used 165 Ton Press for Sale

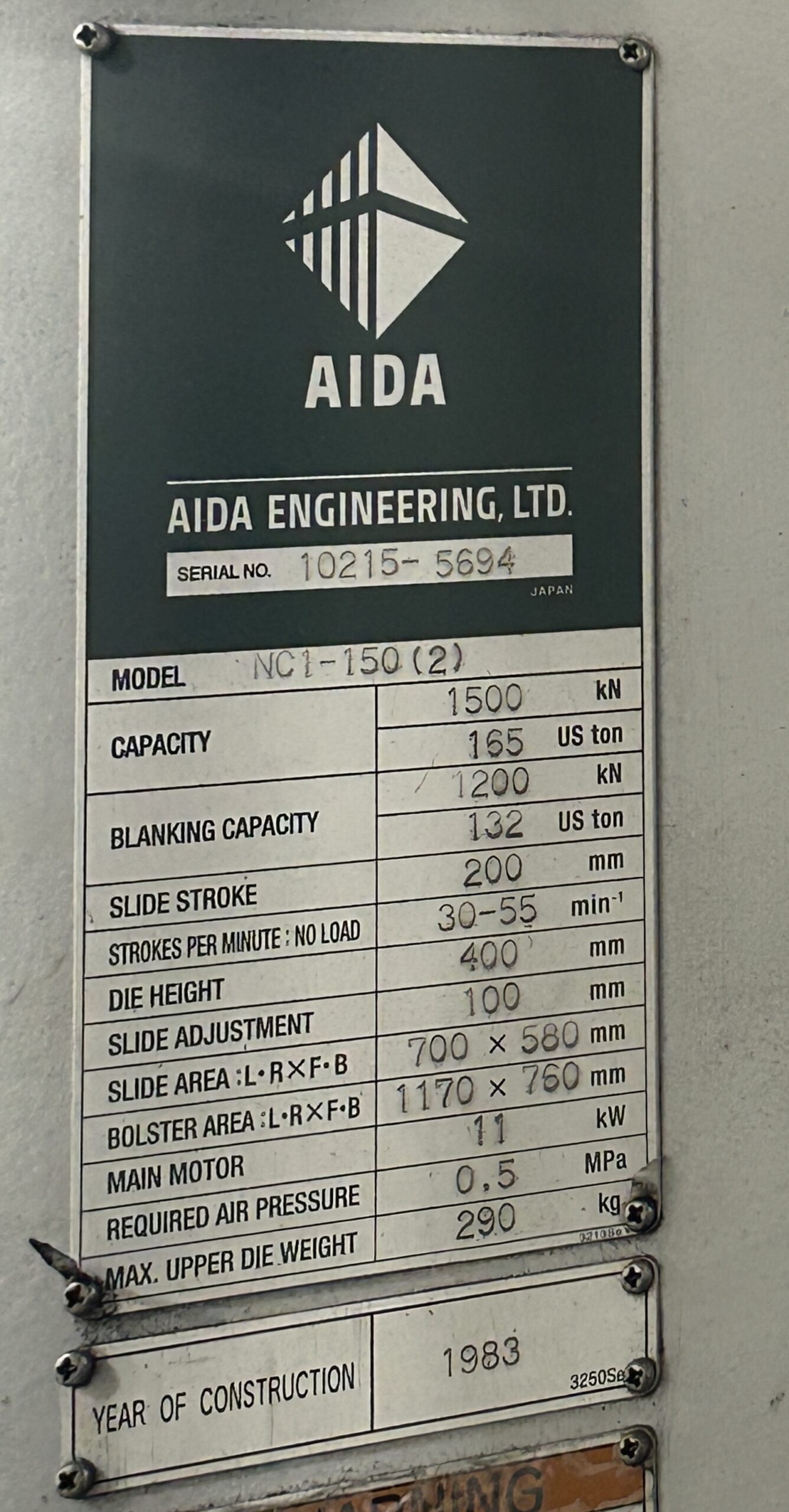

Manufacturer: Aida
Model: Aida NC1-150(2) Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1983
Machine #: 8293
Buy Now: $
| capacity | 165 us ton | blanking capacity | 132 us ton | stroke | 7.9″ | max die height | 15.7″ sdau over 6.5″ H bolster | bed area | 46.1″ rl x 30″ fb | speed | 30 – 55 spm | slide adjustment | 3.9″ motorized | slide area | 27.6″ rl x 22.8″ fb (t-slotted) | bolster plate | 6.5″ H X 46.1″ RL X 30″ FB (T-SLOTTED) | distance between uprights | 29″ | floor to bed | 22.8″ | clutch | AIDA AIR CLUTCH & BRAKE COMBINATION | electrics | 15 HP 1750 RPM 480V-3-60 MOTOR & aida PRESS CONTROL | approx dimensions | 126″ h (INCL. ISOLATORS) X 64″ RL X 82″ FB | approx weight | 31,000 LBS | Equipped With | FLOOR STANDING, AIR COUNTERBALANCES, HIGHLY RIGID FRAME TO MINIMIZE DEFLECTION, BALL & SOCKET CONNECTIONS, HYDRAULIC OVERLOAD PROTECTION SYSTEM, HARDENED & GROUND PINION & GROUND MAIN GEAR, QUILL MOUNTED FLYWHEEL | Note | AVAILABLE JANUARY 2026. |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
