Description

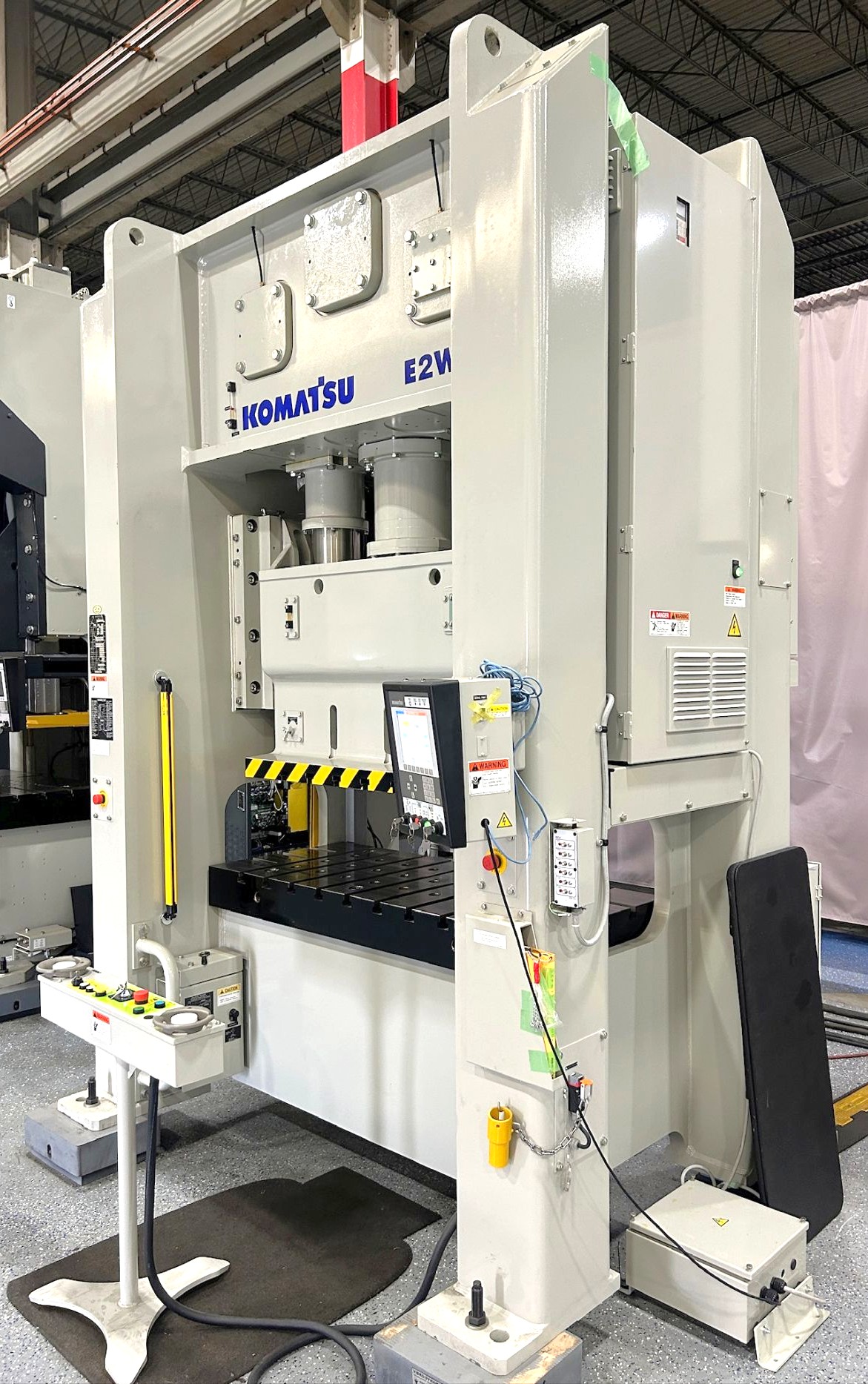

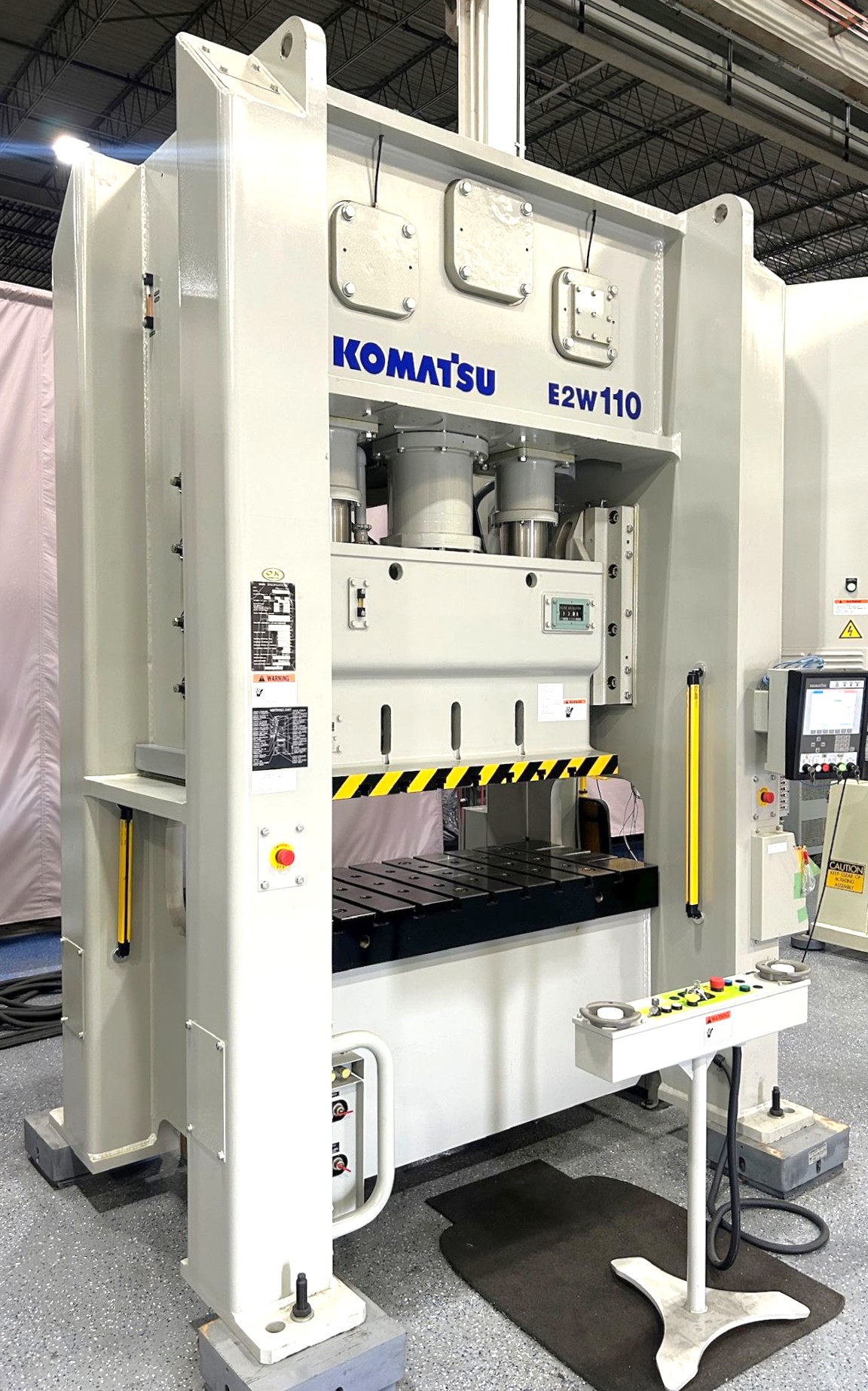

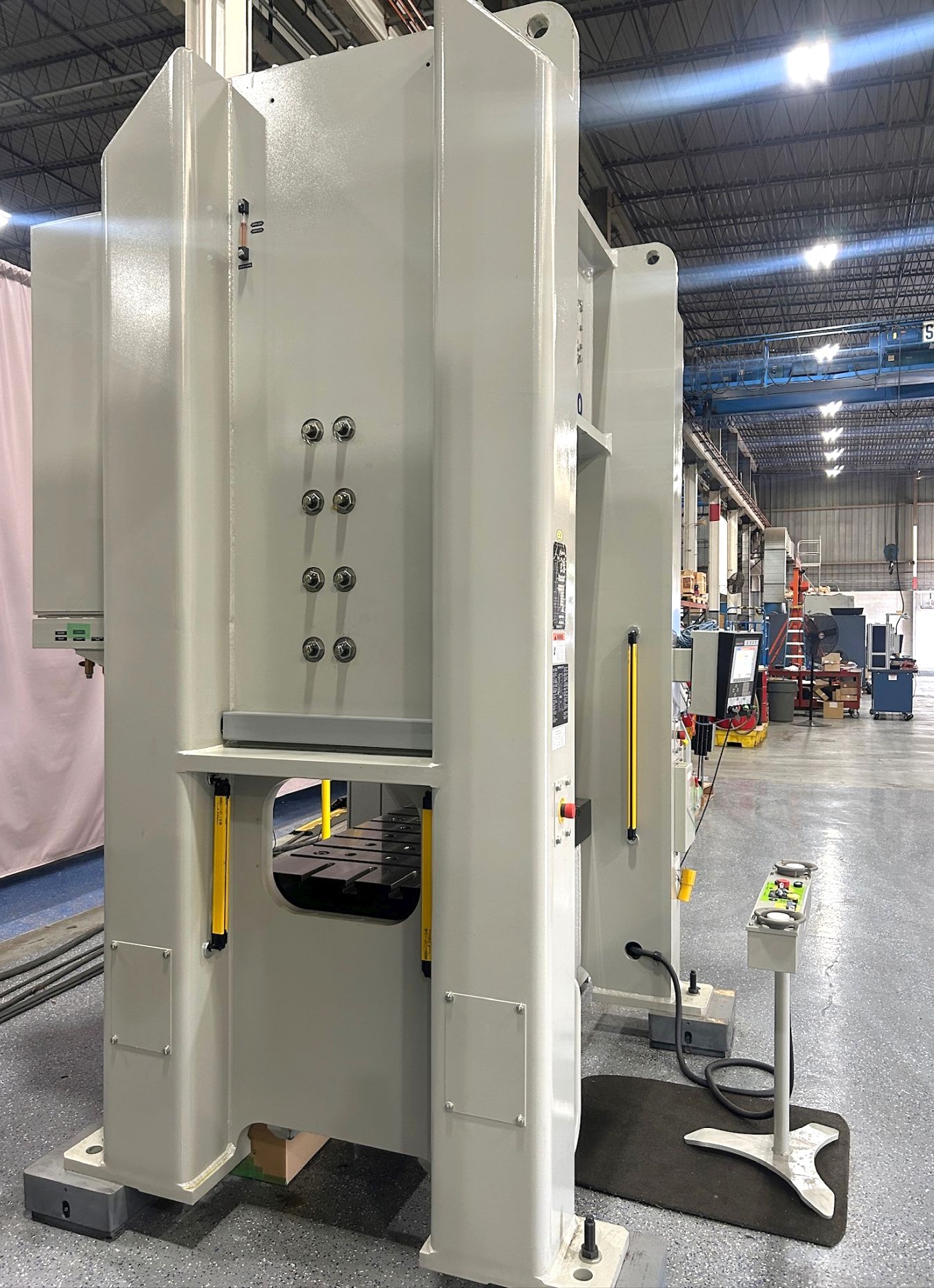

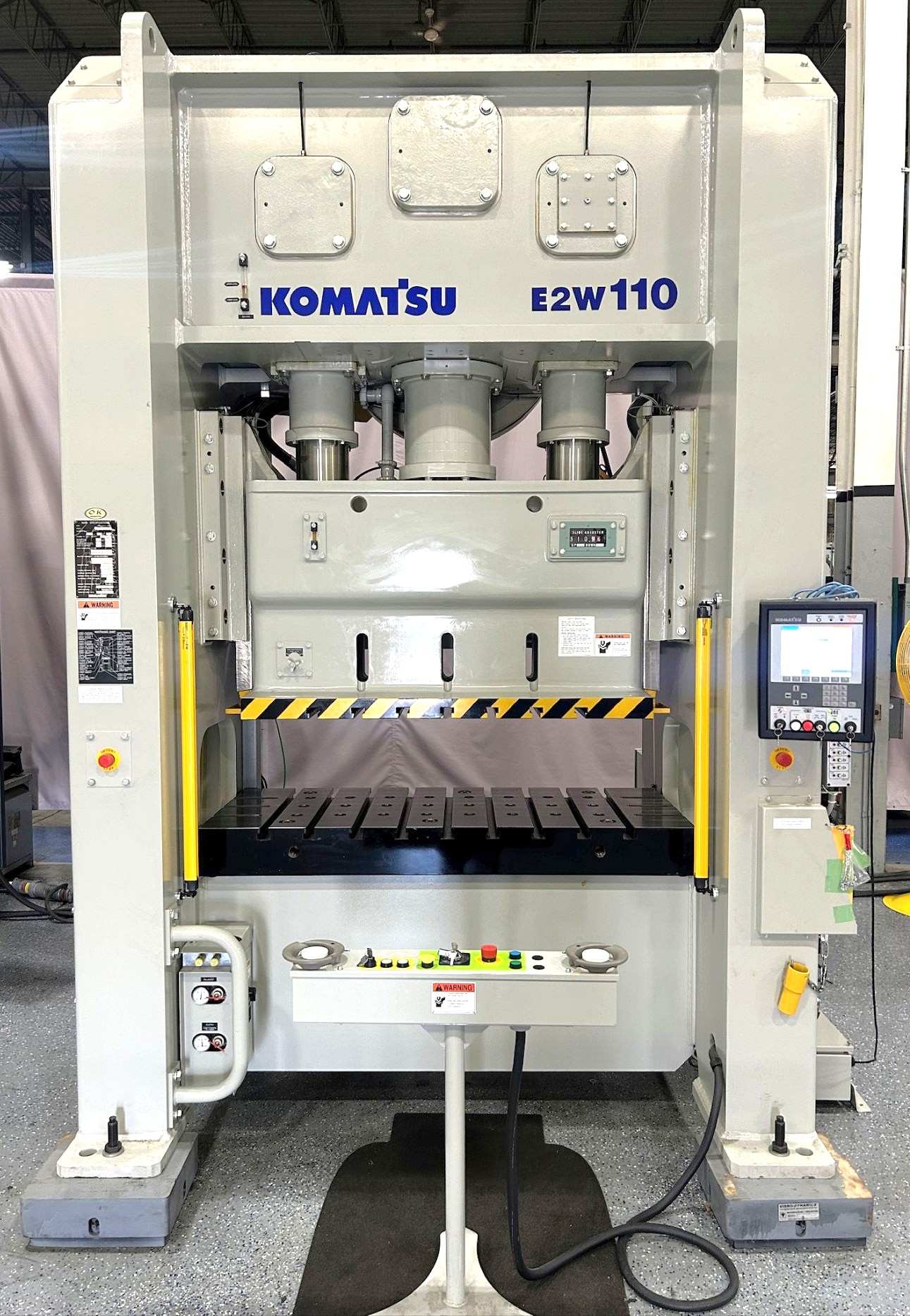

New Straight Side Press • New 121 Ton Press for Sale
- Machine #
- 7020
- Condition
- New
- Location
- Warehouse on Location
- Year
- 2026
- Model
- Komatsu E2W110HVS
Buy Now: $
| CAPACITY | 121 US TON AT .236" OFF BOTTOM |
|---|---|
| STROKE | 4.3" |
| max die height | 15.75" sdau over 6.3" bolster |
| BED AREA | 65.4" X 27.5" (RL X FB) |

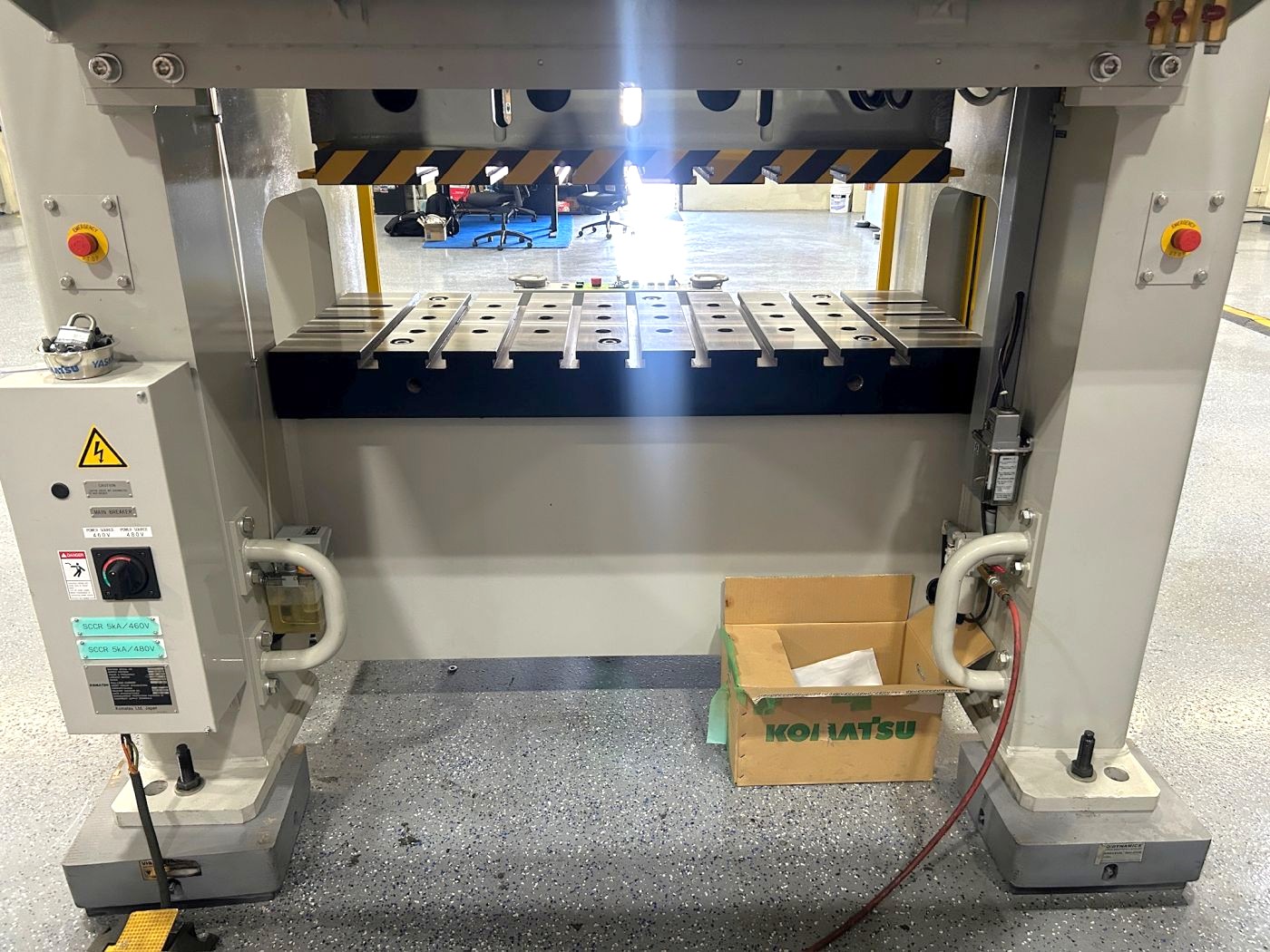

| bolster Plate | 65.4" X 27.5" (RL X FB) X 6.3" THICK (T-SLOTTED) |
| slide area | 55.1" X 20.5" (RL X FB) (t-slotted) |
| SLIDE ADJUSTMENT | 3.9" motorized |
| SPEED | 50 - 100 SPM |

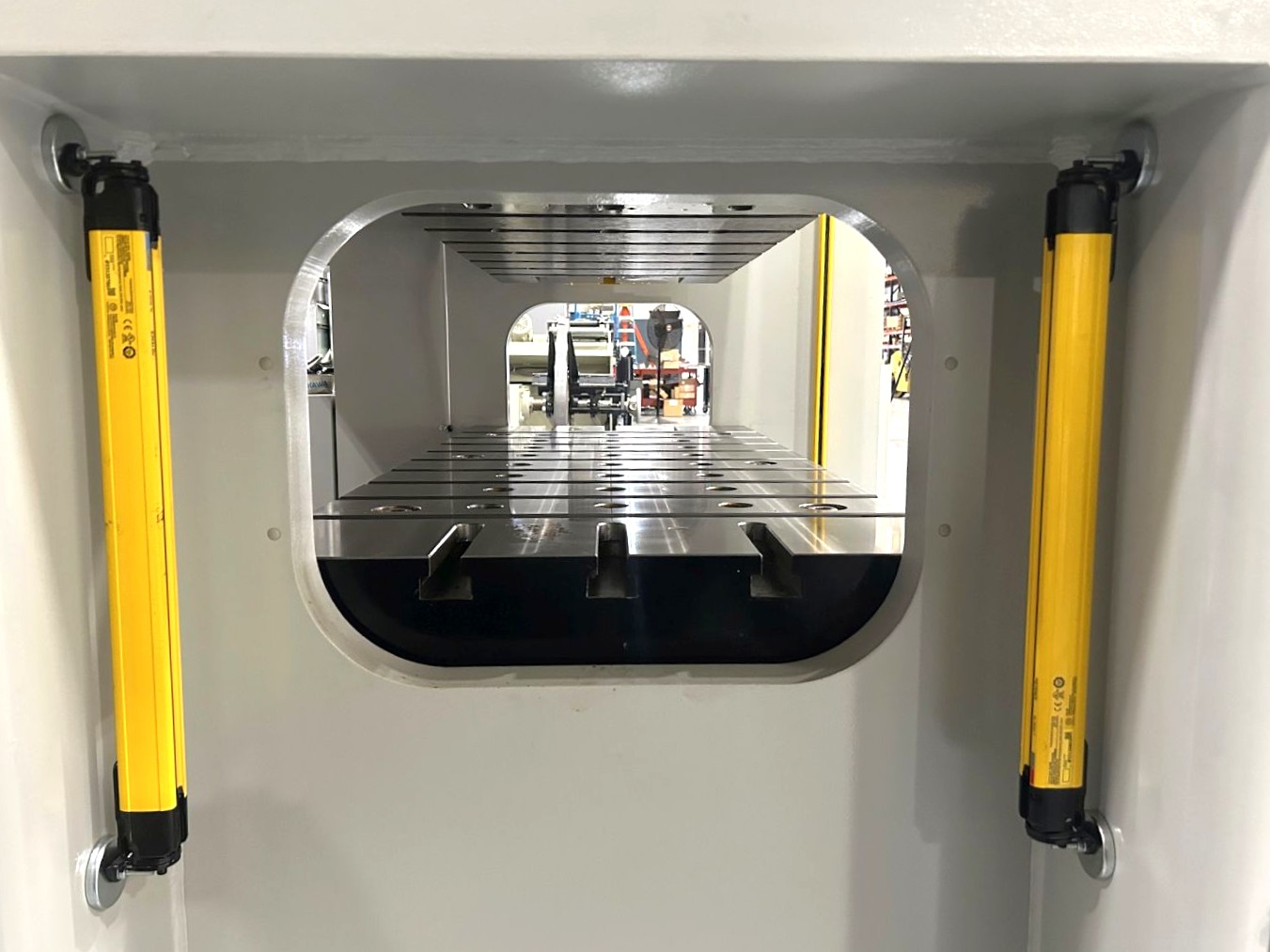

| WINDOW SIZE | 20.9" WIDE X 16.1" HIGH |
| CLUTCH | komatsu wet clutch / brake combination |

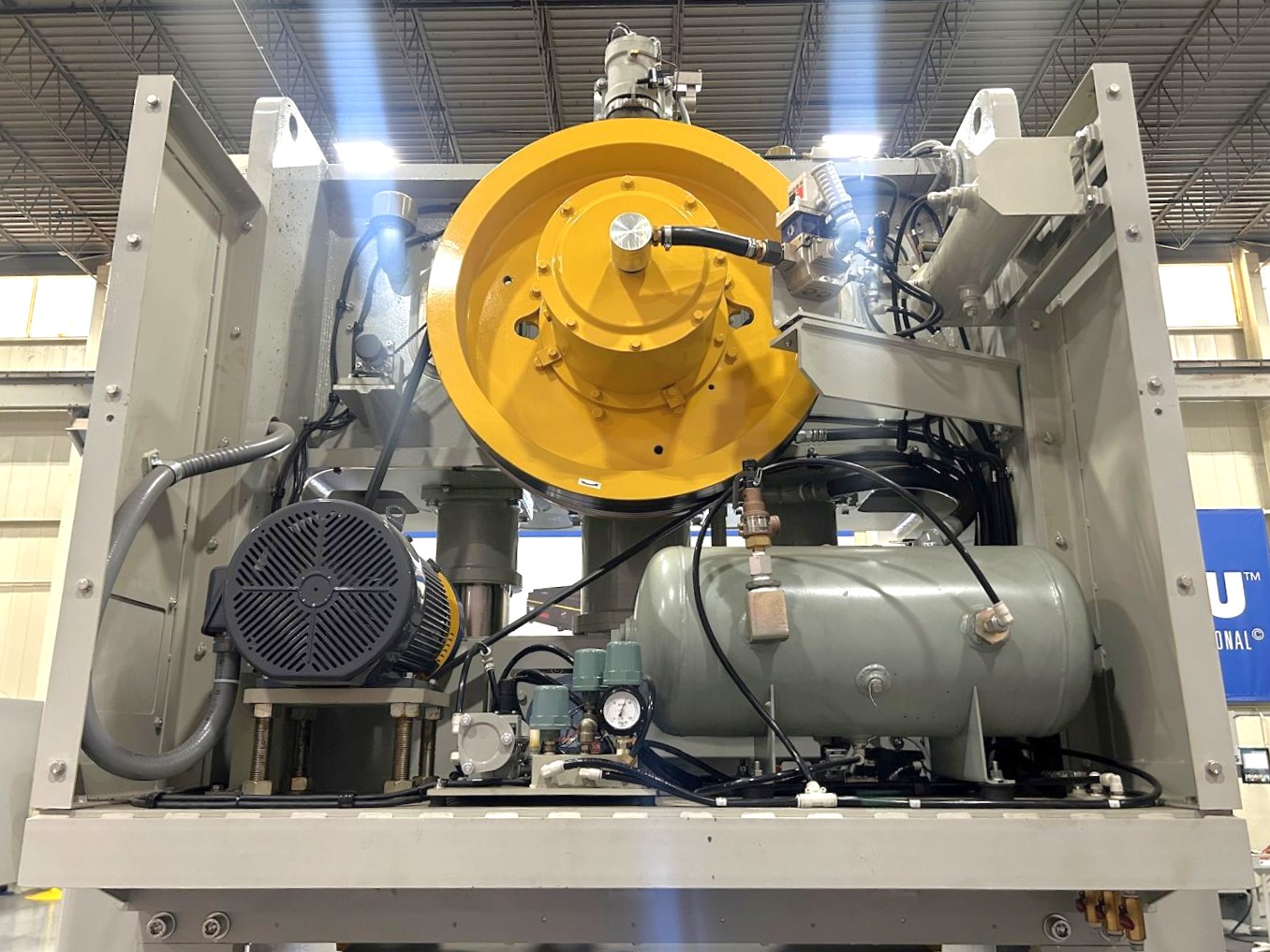

| ELECTRIC MOTOR | 15 HP 1750 rpm 480V-3-60 - APPROX. 21 fla |

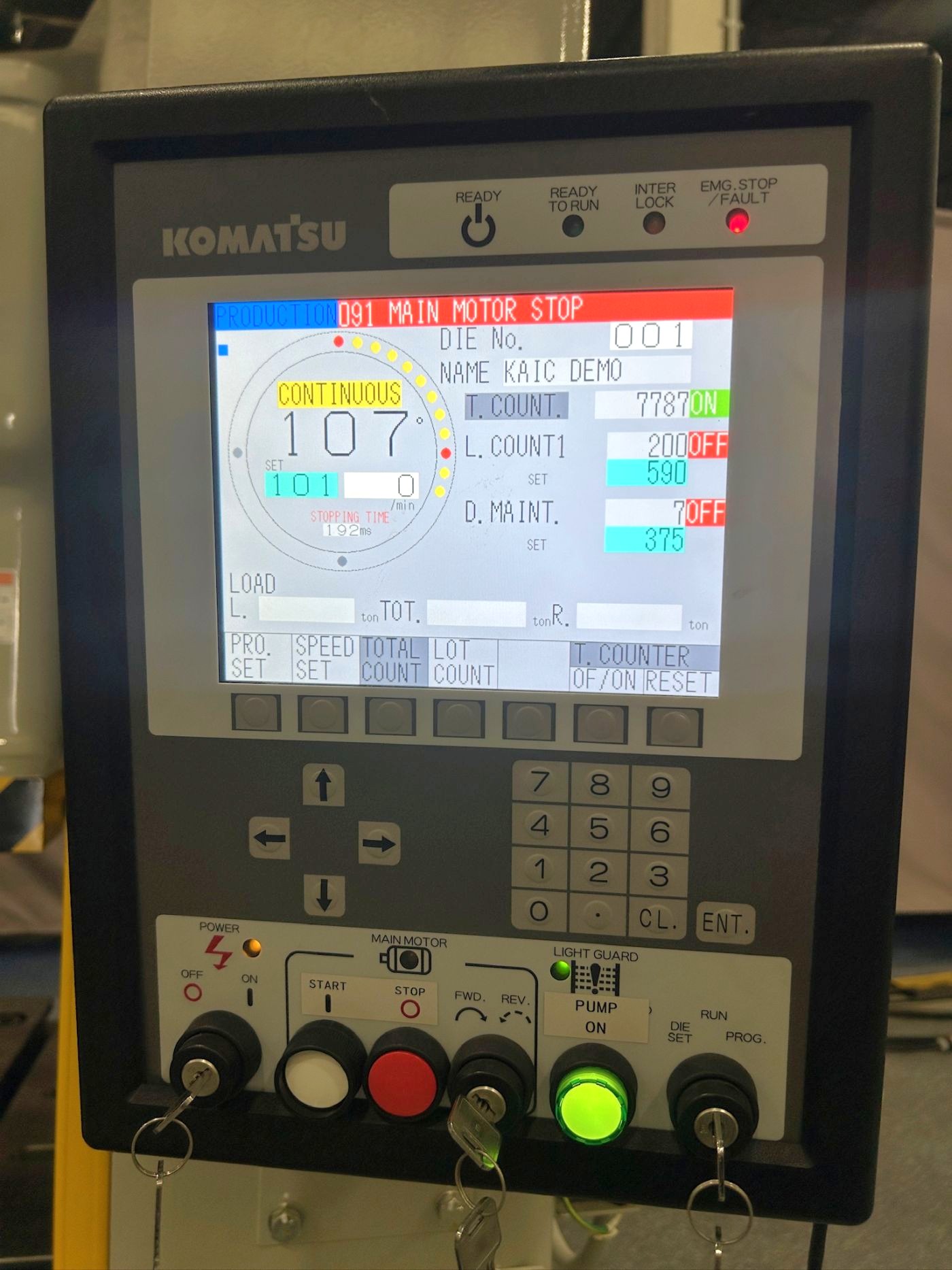

| PRESS CONTROLS | KOMATSU DISPLAY CONTROLS |
| APPROX. DIMENSIONS | 93" X 85.5" (RL X FB) X 141.9" HIGH |
| APPROX. WEIGHT | 33,000 lbs. |
| Equipped With | AIR COUNTERBALANCE, HYDRAULIC OVERLOAD PROTECTION SYSTEM, ECCENTRIC GEAR DRIVE IN WET CLUTCH FOR CONTINUOUS LUBRICATION OF MAJOR DRIVE COMPONENTS, PLUNGER GUIDED SLIDE, FLOOR STANDING DESIGN |
| Note | CAPACITY RATING POINT AT .236" |
| Location | This New Press is Located in Our Warehouse on Location |
